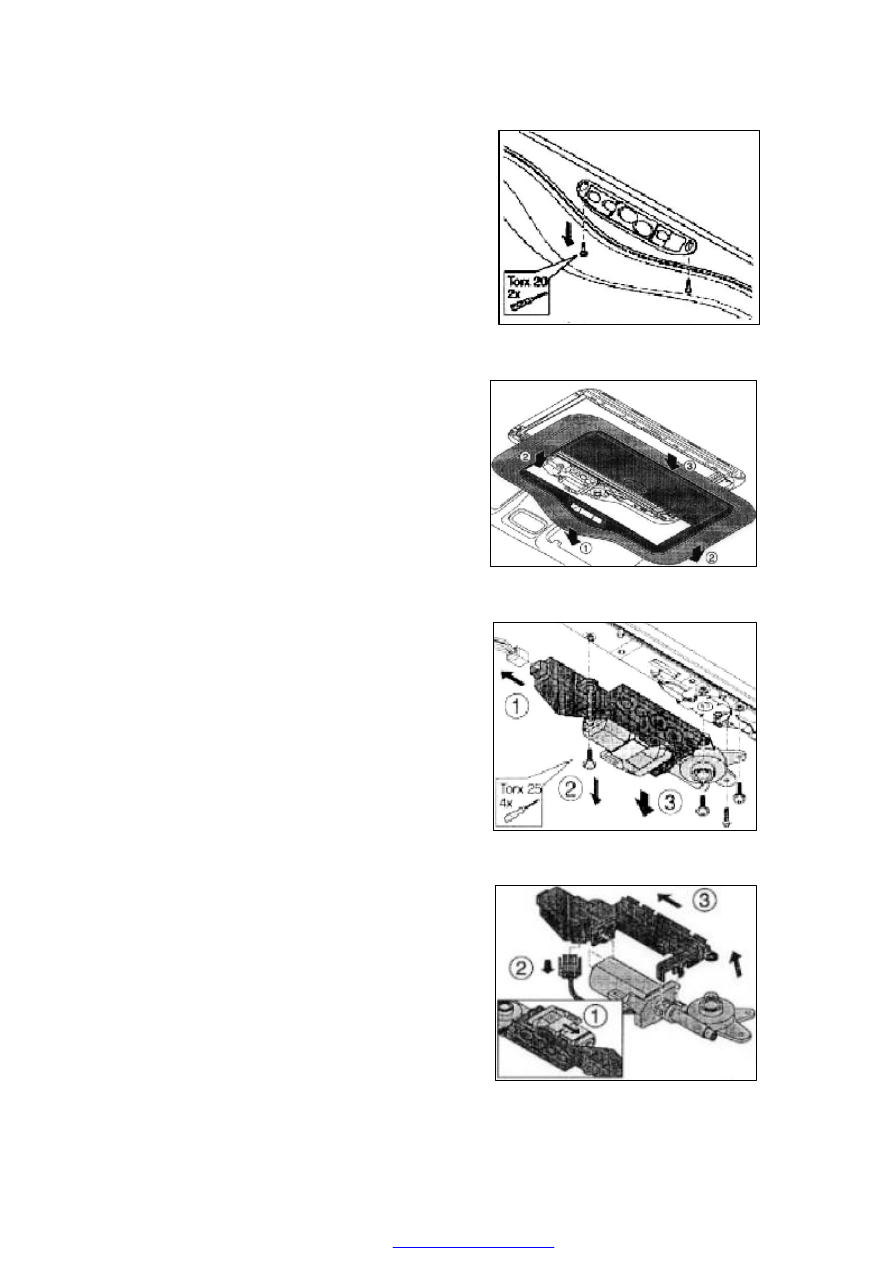

Remove the two fastening bolts in the front of
interior trim rim.

Remove the interior trim rim (pull downward
as the order shown in the figure), pay attention
not to damage the control buttons.

Move  the  fastening  clip  to  the  direction  of
computer  box,  disconnect  the  connectors  of
motor  and  the  SCU,  disengage  the  fastening
hook  between  the  SCU  and  the  motor,  and
separate  the  motor  from  the  SCU  to  carry  out
the replacement.

Pull  out  the  harness  connecting  to  the  SCU,
remove  the  4  fastening  bolts  of  motor  and  the
SCU,  and  remove  the  motor  and  the  SCU
downwards.

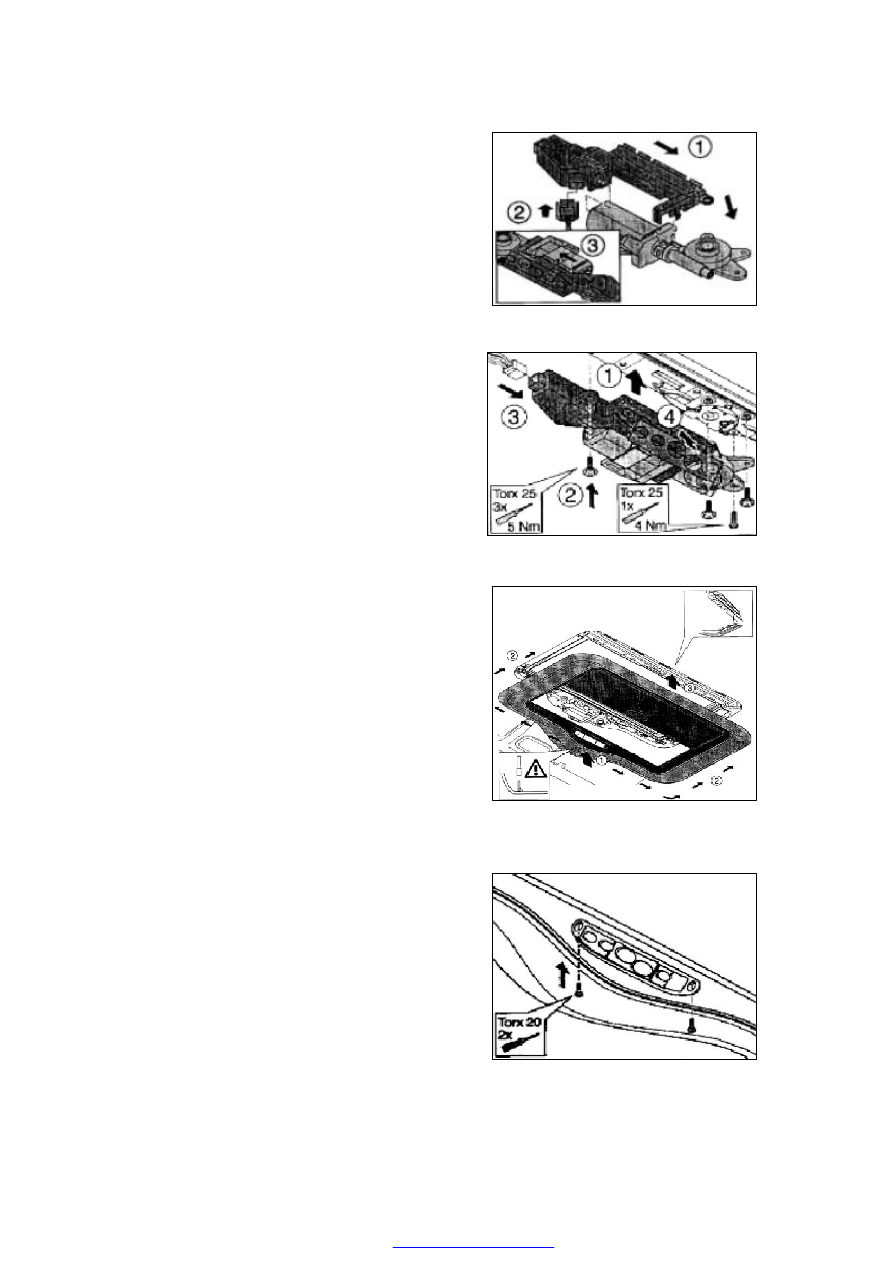

Install the motor and the SCU in the reverse
order of step 7.

Install in the reverse order of step 6.

Pay attention on the engagement of drive shaft and

the gear of motor.

Install  the  interior  trim  rim  (push  upwards  as
the  order  shown  in  the  figure,  note  that  the
clamp should  be aligned to the groove). Install
additional strip if necessary.

Tighten the fastening bolts of interior trim rim.

Install the cover of control buttons.

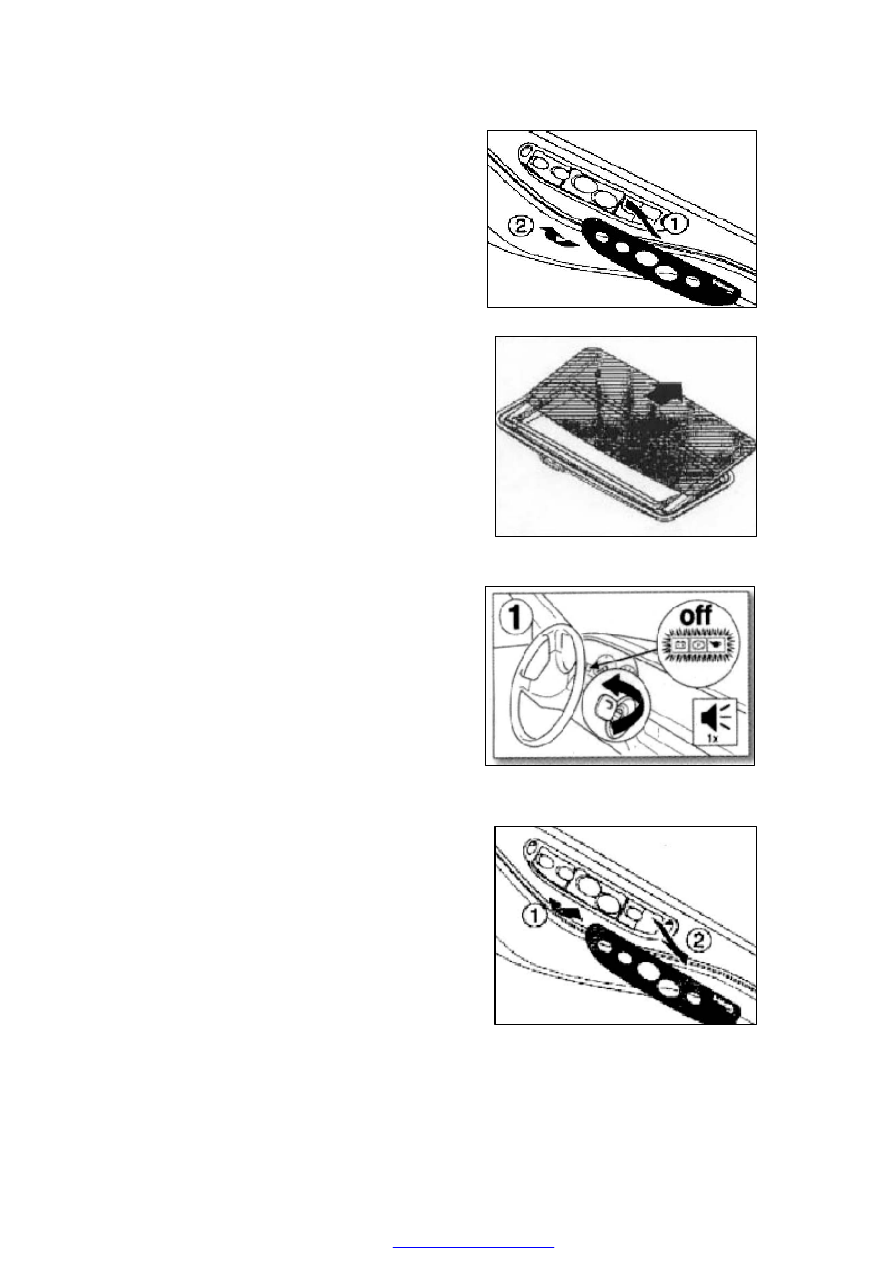

DISASSEMBLY AND ASSEMBLY OF
SUNROOF

Disassembly:

1. Fully open the sunroof.

2. Turn off the ignition switch, keep pressing

the control button to prevent the sunroof
from automatic closing.

3. Remove the cover of control buttons.

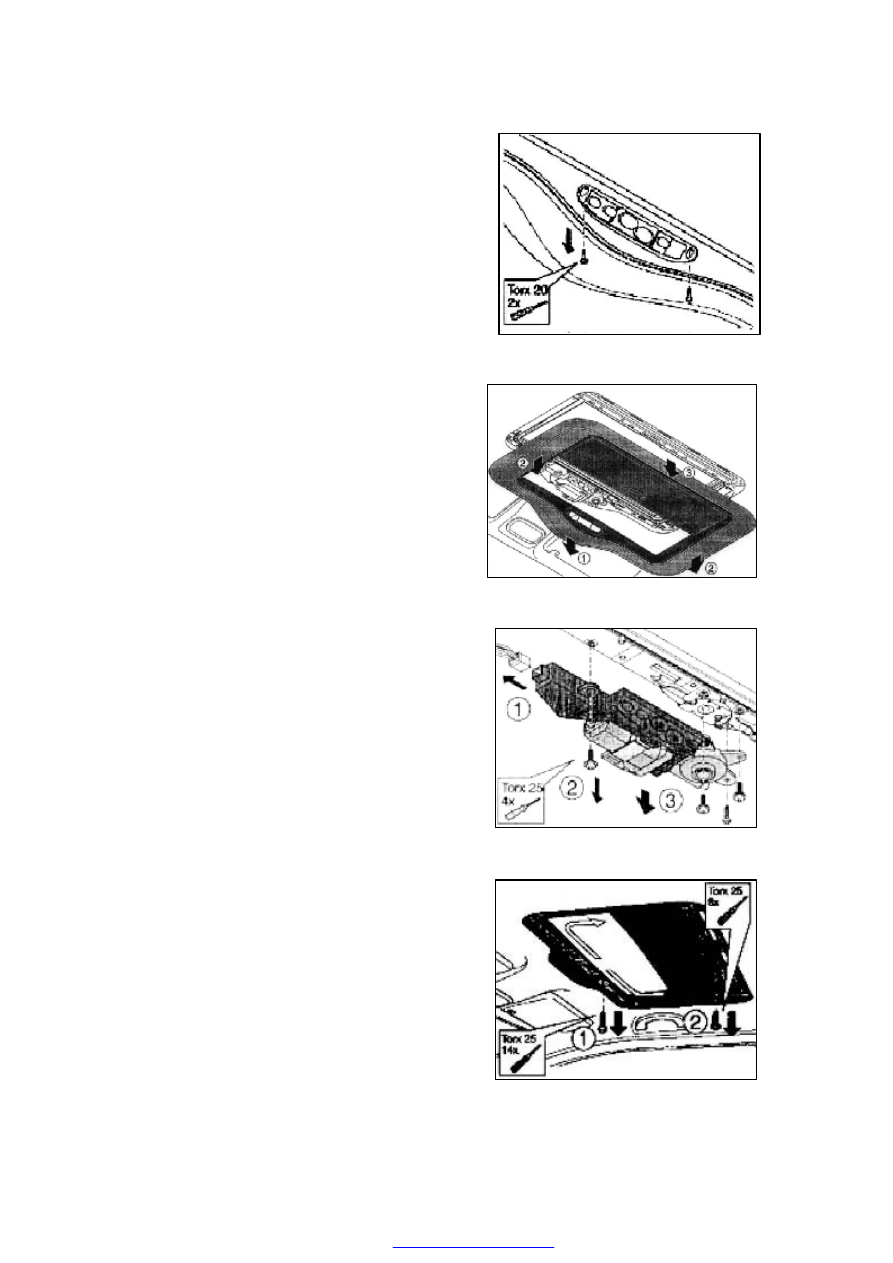

4. Remove the 2 fastening bolts in the front of

interior trim rim.

5. Remove the interior trim rim (pull upwards

as the order shown in the figure), pay
attention not to damage the control buttons.

6. Disconnect the harness of SCU.

Remove the 4 fastening bolts of motor and the
SCU, and pull upwards to remove the motor
and the SCU.

7. Remove the fastening bolts of frames.
