Chery A15 / 480 LHD model. Manual - part 5











position if the bent is found.

Installation of Condenser

(1)  Use  some  self-tapping  screws  to  secure  the

condenser  and  radiator,  and  assemble  the  related
screw  bush  and  spacer,  with  the  tightening  torque
of 6±0.6N·m;

(2)  Use  the  bolts  (M6)  and  spacer  to  secure  the

condenser support on the front crossbeam, with the
tightening torque of 1.5±0.15N·m;

(3)  Assemble  the  integrated  condenser-radiator  into  the

related fixing holes;

(4)  Use  spacer,  shim  block  and  two  nuts  to  fasten  the

condenser and front crossbeam, where the tightening
torque of nut is 1.5±0.15N·m.

The  condenser  is  designated  to  cool  the  coolant  vapor
discharged from the compressor and condense the vapor
to  make  it  give  off  its  heat  and  become  to  the  coolant
fluild.

Chery  A15LHD  adopts  the  serpentine  condenser,  as
shown  in  the  figure.  The  condenser  is  secured  with
engine radiator in a row, and there is an axial fan, which
is  driven  by  a  DC  motor,  behind  them  to  forcedly  cool
the condenser and radiator.

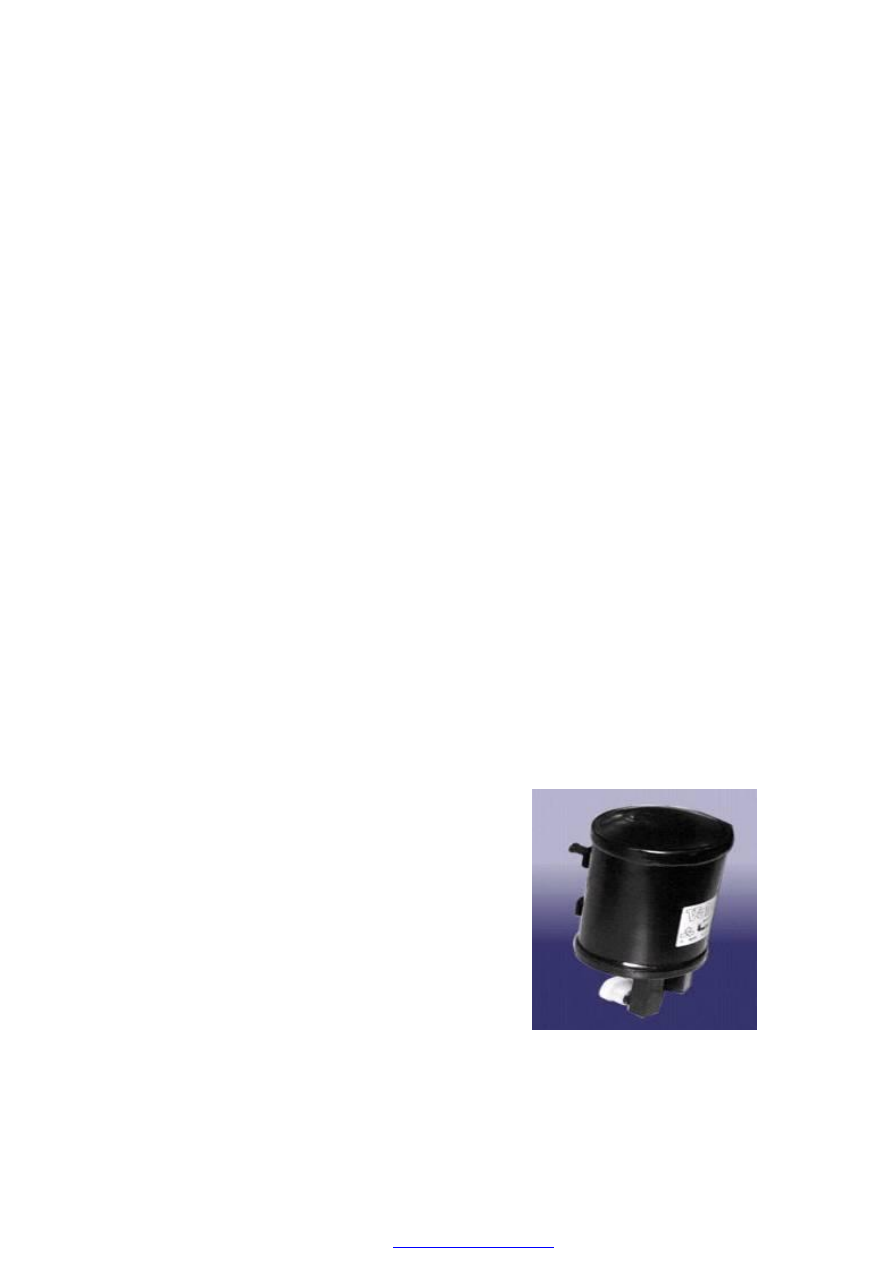

Introduction to the fluid reservoir:

Removal/Installation (see the Removal of Condenser)

Chery  A15LHD’s  fluid  reservoir  is  located  under  the
condenser (i.e., the outlet of condenser), the structure of
which is shown in the figure.

In fact, the fluid reservoir is a pressure container used to
store  the  coolant,  and  it  is  available  to  delivery  the
fluid-state  coolant  to  the  expansion  valve  at  a  specified
flow rate. The filter screen of fluid reservoir is applied to
filter the all kinds of foreign  materials from the coolant.
The  drying  agent  silicon  oxide  with  powerful  water
absorptivity is filled in the drying unit, which is used to
absorb  the  water  content  in  the  coolant.  In  addition,  a
fusible plug is also installed on the reservoir. If the poor
heat  emission  of  condenser  or  other  causes  result  the
rapid  rise  of  temperature  and  pressure  of  the











refrigeration system, the fusible plug will  metal so as to
drain off the high-temperature and high-pressure coolant
when  the  temperature  and  pressure  inside  the  reservoir
reach  the  specified  value,  which  protects  the
refrigeration system.

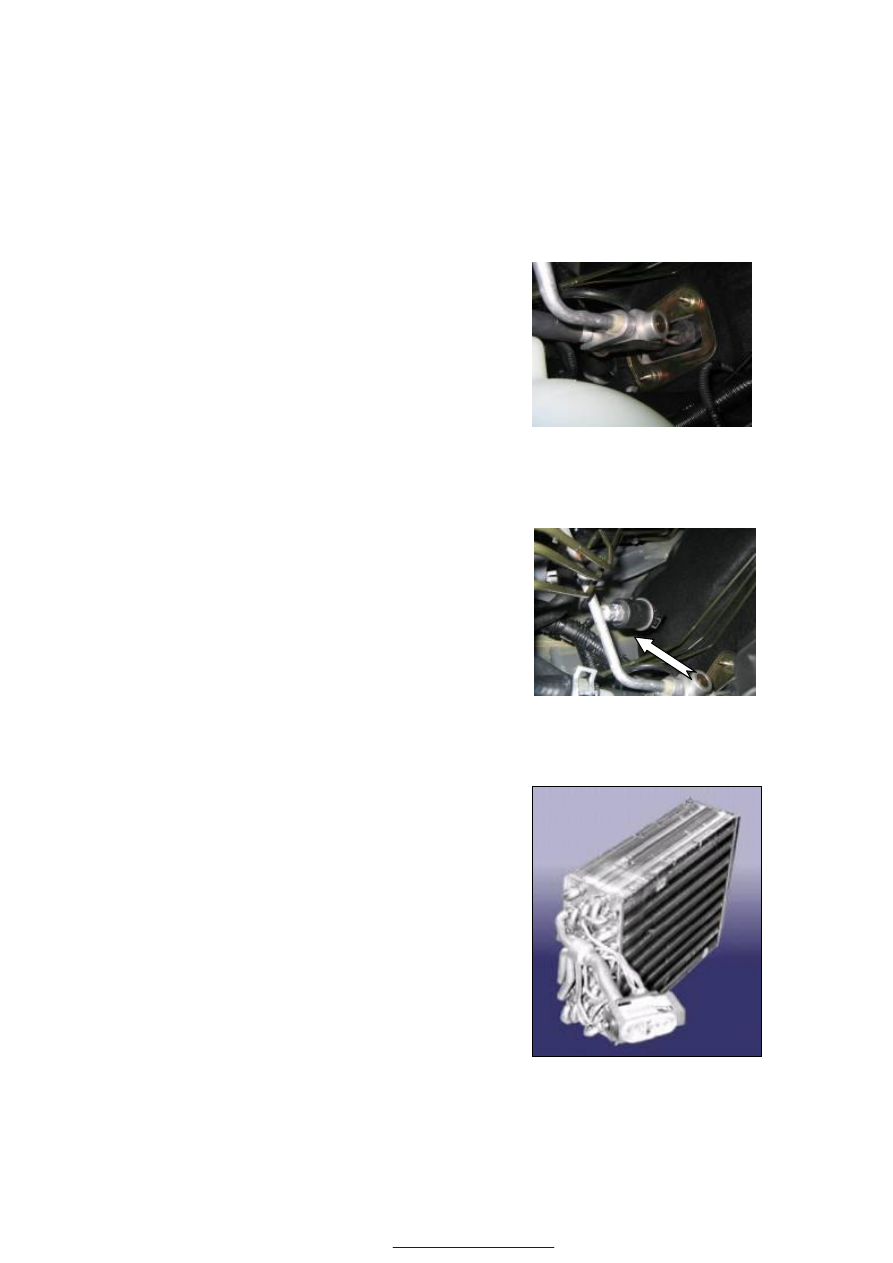

4.  Introduction  to  the  expansion  valve  and  pressure
switch

1) Expansion valve

Chery A15LHD adopts the traditional thermo-expansion
valve,  as  shown  in  the  figure,  fixed  on  the  inlet/outlet
pipes of evaporator.
The  temperature  sensor  inside  the  expansion  valve
adjust  the  opening  of  ball  valve  in  accordance  with  the
temperature  of  coolant  located  at  the  evaporator  outlet,
the  purpose  of  which  is  to  control  the  flow  rate  of
coolant.





2) Pressure switch

Chery  A15LHD’s  A/C  pressure  switch  adopts  the
dual-pressure  (high  and  low  pressures)  and  four-wire
pressure  switch  which  is  installed  on  the  high  pressure
pipe located at the front end of expansion valve, with 50
PSI  or  more  of  low-pressure  CLOSE    operation  and
220 PSI or more of high-pressure CLOSE operation





5. Removal/Installation and inspection of evaporator

(1) Drain  off  the  coolant  from  the  system  (see  the

coolant recycling procedure)

(2) Remove the expansion valve

(3) Remove

the

instrument

panel

(see

the

Disassembly/Assembly of Instrument Panel)

(4) Remove  the  control  panel  trim  plate,  and  4

self-tapping  screws  used  to  secure the  control  panel
and console. (tightening torque of 1.5±0.2N·m)

(5) Remove 1 bolt (M8*25) and 4 nuts secured with the

steering  crossbeam  and  front  side  respectively
(tightening  torque  of  3.5±0.2N·m)  from  the  fixed
evaporator.

(6)   Remove the four bolts from the evaporator.

Inspection of evaporator:









(1) Check the crack, damage or oily fluid leakage.

·

Replace  the  evaporation  unit  if  any  failure  above

occurs.

(2) Check the bent of fender.

·

Use a flat headed screwdriver to straighten it if a bent

is found.

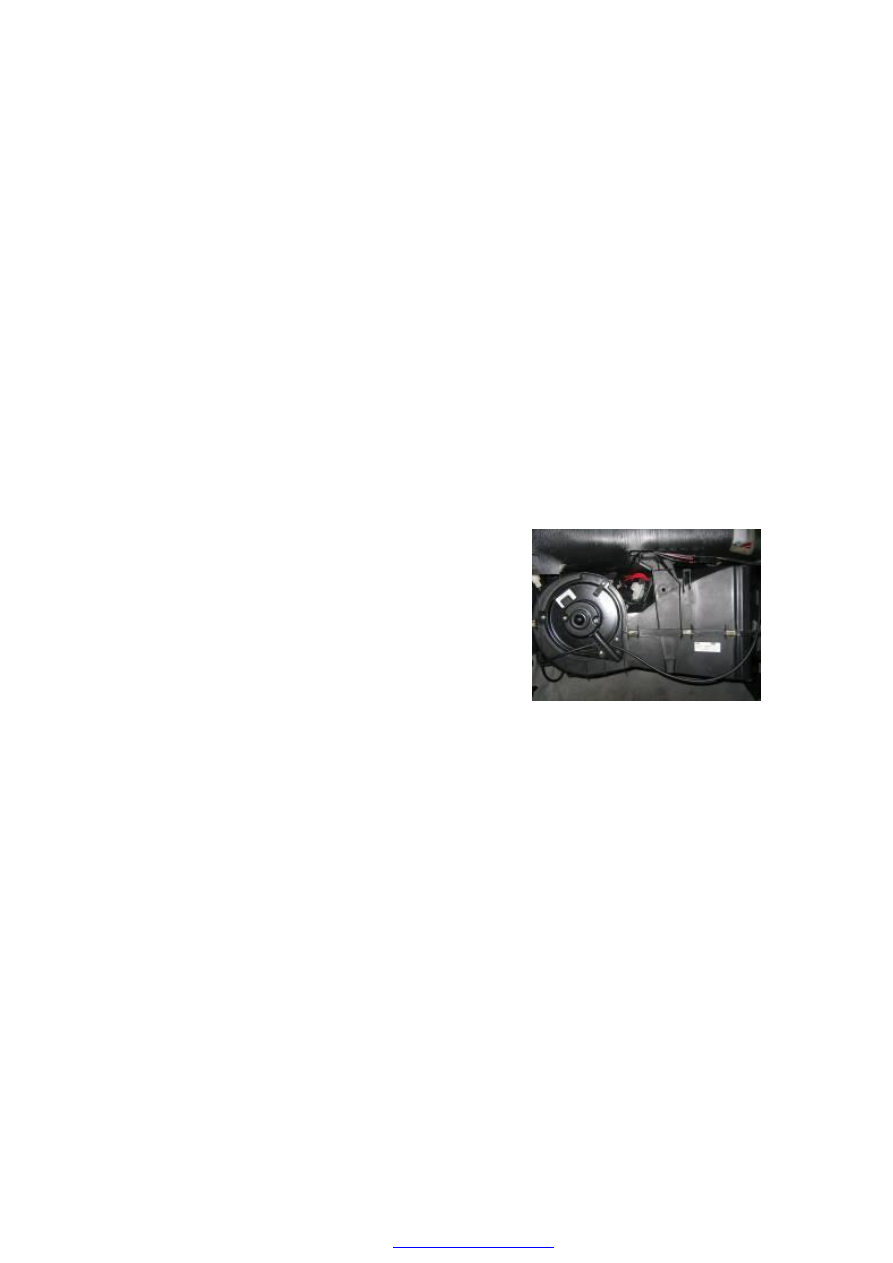

The Chery A15LHD adopts the tube-fin type evaporator
which is installed in the air conditioning unit assy. under
the instrument panel.

The  function  of  evaporator  is  opposite  to  that  of
condenser.  After  expanded  in  the  expansion  valve,  the
coolant fluid absorbs the heat inside the vehicle from the
evaporator,  and  evaporates  to  the  coolant  gas,  then
enters into the compressor to circulate.

Introduction  to  the  evaporator  temperature  sensor
(thermostat):

The  evaporator  temperature  sensor  used  by  the  Chery
A15LHD  is  the  heat-sensitive  tube  mechanical  type
temperature regulator, which is closed when the working
temperature  is  adjusted  to  4

  or  more  while

disconnected  when  adjusted  to  4

  or  below.  Its

installation  position  is  just  under  the  evaporator,  as
shown in the figure.

The tightening parameters of A/C pipe fasteners

Inner  hexagonal  head  bolt  (M10)  secured  in  the
compressor: 30N•m;
Inner  hexagonal  head  bolt  (M6)  secured  in  the
expansion valve: 7N•m;
To  connect  with  condenser  inlet  pipe  and  tighten  the
nuts: 32 N•m;
To  connect  with  condenser  outlet  pipe  and  tighten  the
nuts: 11.9 to 13 N•m;





















FAILURES AND SHOOTING ANALYSIS SHEET

1. Precautions on A/C system installation

(1)  For  the  pipes  fixed  using  the  fixing  nuts,  two

wrenches  must  be  applied  to  ensure  that  the
pipes don't deform or break;

(2) Do not use the compressed air to clean the pipes,

and the nitrogen or coolant gas is available;

(3)  Correctly  assemble  it,  and  check  the  tightening

torque of all connections as required;

(4) Check all parts to ensure that they aren’t damaged

and all adjacent parts don’t interfere each other;

(5)  Conduct  the  leakage  test  to  ensure  there  is  no

leakage in the A/C system.
