Chery A15 / 480 LHD model. Manual - part 2











4. Control system      The control system mainly consist of the electrical component, vacuum
hose  and  control  mechanism.  On  one  side,  it  is  available  to  control  the  temperature  and
pressure of refrigeration and  heating system, and, on the other side, it is also used to control
the temperature of air inside the vehicle, the blowing rate and direction.

5.  Air  purification  system      The  air  purification  system  mainly  indicates  the  dust  filter,
which  is  used  to  filter  the  outside  air  inhaled,  and  continuously  discharge  the  vitiated  air
generated inside the vehicle to make the air inside the vehicle clean and hygienic.

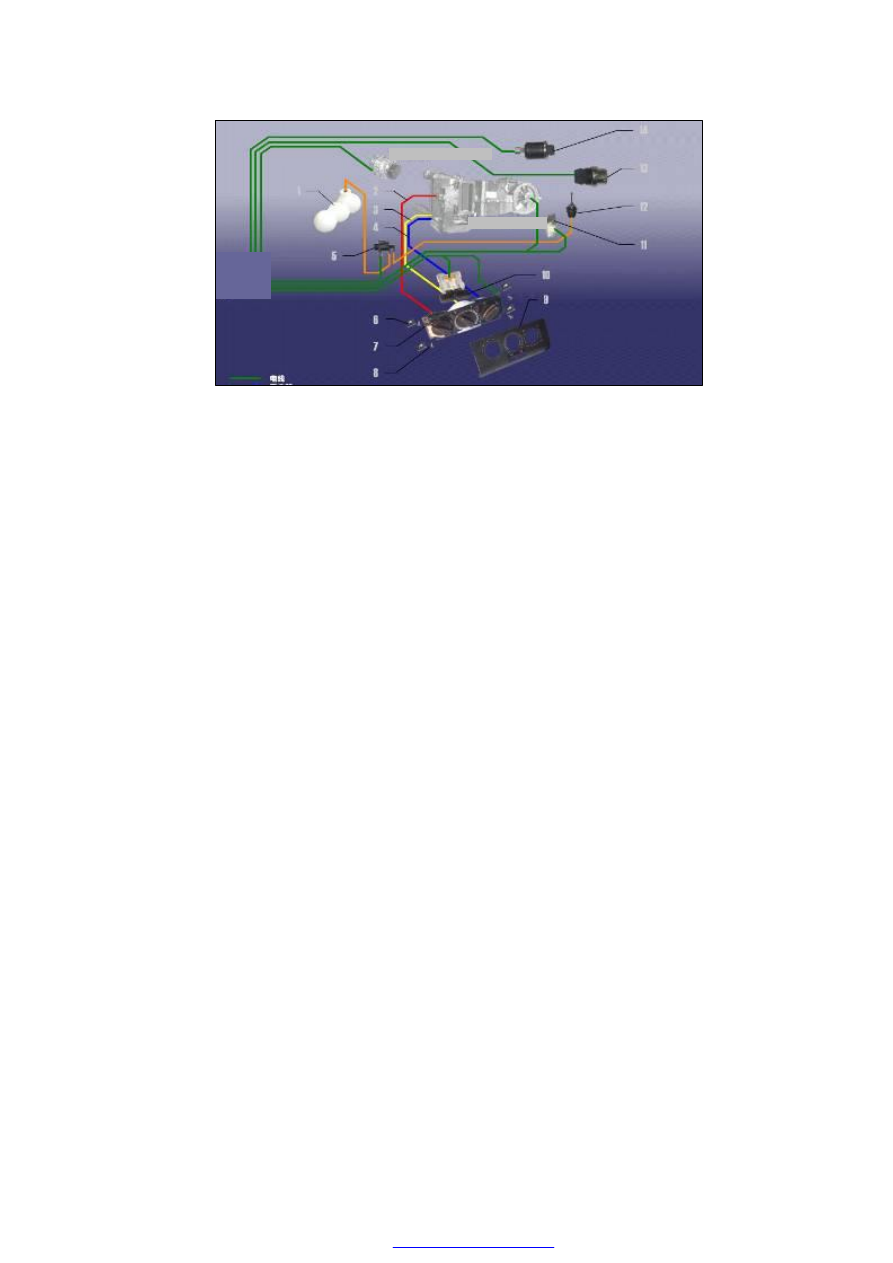

Air-Conditioner Compressor

Air-Conditi
on Harness



Evaporator Assembly







REFILLING OF REFRIGERANT AND REFRIGERANT OIL

Caution:

· If there are some moist materials or other
foreign

materials

circulating

in

the

refrigeration

system,

the

cooling

performance of the refrigeration system will
considerably  decrease  and  generate  the
abnormal  noise.  So,  after  any  refrigeration
and  circulation  part  is  removed,  the
openings  shall  be  immediately  plugged  to
avoid  the  entrance  of  moist  materials  or
other foreign materials.

· If the service reservoir is used to refill the
refrigerant,  it  is  very  dangerous  to open the
valve  located  at  engine  high  pressure  side.
During the operation, the pressure inside the
service  reservoir  will  rise,  which  may  cause
the  explosion  of  the  reservoir,  what’s  more,
the  metal  fragment  from  explosion  and  the
refrigerant sputtered will be serious harmful
to the operators. Thus, it is recommended to
pay  more  attention  to  the  close  of  the
high-pressure-side  valve  during  the  course
of engine operation.

Caution:

·  Take  care  not  to  exceed  the  starndard
value(s)

specified

in

the

technical

specification  during  refilling  the



refrigerant

into  the  refrigeration  system.  If  exceeding
the  standard  values,  it  will  considerably
reduce the efficiency of the A/C system, and
even  damage  the  refrigerant  recirculation
parts.

·  In  accordance  with  the  regulation,  the
refrigerant  shall  be  refilled  from  the
high-pressure side at all time. If it is refilled
from the low-pressure side,  the valve leaf of
A/C compressor  will  loosen and  give off the
abnormal noise.

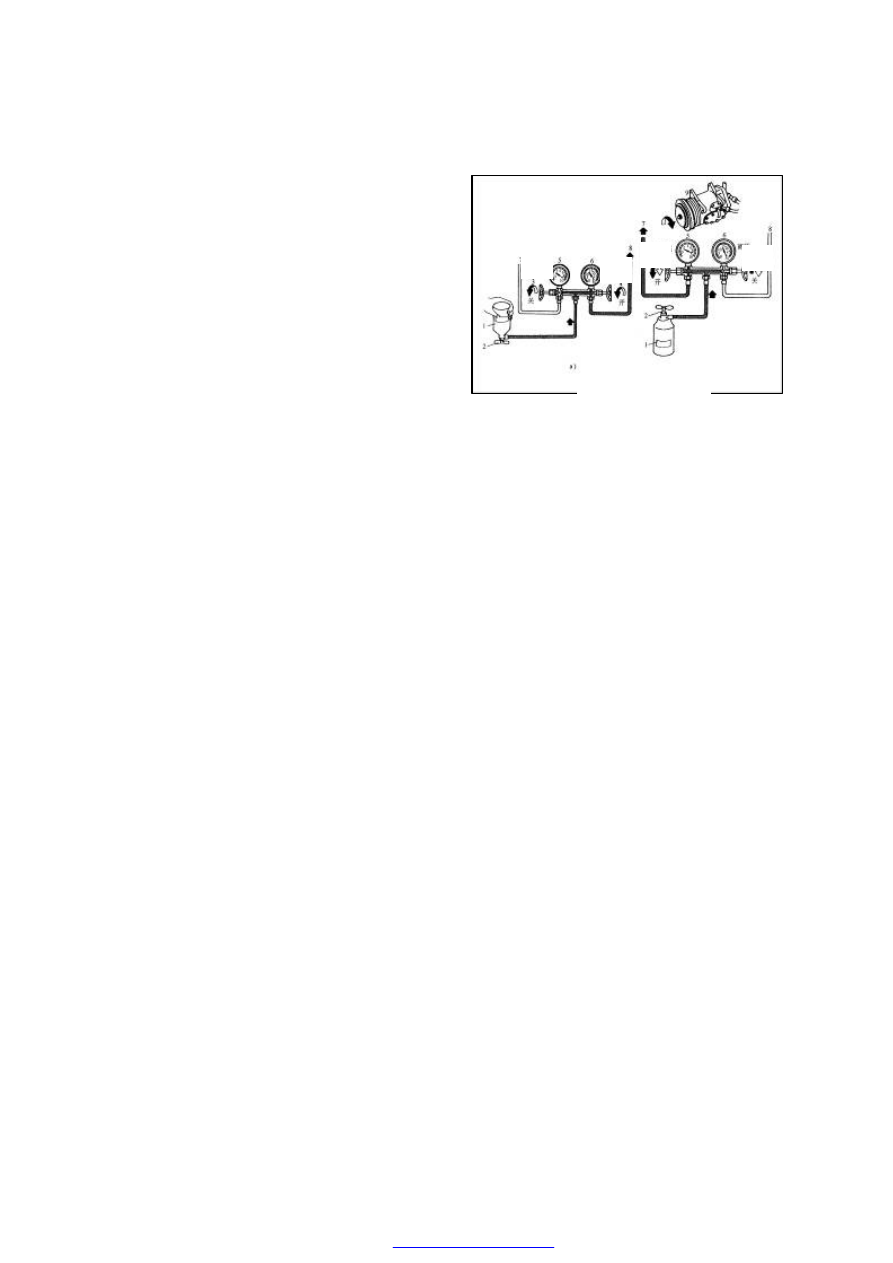

1-Refrigerant tank

2-Unlock valve



3-Low-pressure manual valve



4-High-pressure manual valve



5-Low-pressure gauge



6-High-pressure gauge



7-Connect to low-pressure service valve hose





8-Connect to high-pressure service valve hose





9-A/C compressor





Charging the refrigerant

High
pressur

Low
pressur

High
pressur

Low
pressur







1. Precautions for Refrigerant Concerned

(1) To  avoid  the  refrigerant  contacting  with

your  skin,  wear  rubber  gloves  and  safety
goggles while handling the refrigerant.

(2) Handle  the  refrigerant  concerned  at  a  well

ventilated  location.  Since  the  refrigerant  is
a colorless gas at room temperature and its
density  is  greater  than  that  of  air,  the
refrigerant  will  deposit  in  the  maintenance
location,  which  may  easily  cause  the
maintenance personnel choked.

(3) Do not allow the refrigerant to contact with

fire.  Otherwise  it  may  generate  the  toxic
gas.

(4) The O-ring can be applied once only.

(5) Chery

model-A15LHD

adopts

the

refrigerant

R134a

which

cannot

be

interchanged  with  R12.    Also  compressor
oils  cannot  be  mixed.  During  the  course of
handling,  any  tool  that  has  touched  certain
kind of refrigerant must not touch any other
kind of refrigerant.



2

. Method to Refill Refrigerant

If  the  400g  tanked  refrigerant  is  required,  a
refrigerant  tank  unlock  valve  shall  be  applied
(shown  in  the  figure).  The  operation
procedures are as follows:

(1) Before the unlock  valve  is  installed on the

refrigerant tank, turn the butterfly handle 1
in  the  counterclockwise  direction  till  the
needle valve returns back completely.

(2) Turn  the  plate-shaped  nut  3  in  the

counterclockwise  direction  to  lift  it  up  to
the  highest  position,  and  then  tighten  the
valve and the dummy club at the center of
refrigerant tank.

(3) Install  the  intermediate  filling  hose  of

manifold pressure gauge on the joint 5, and
then  turn  the  plate-shaped  nut  in  the

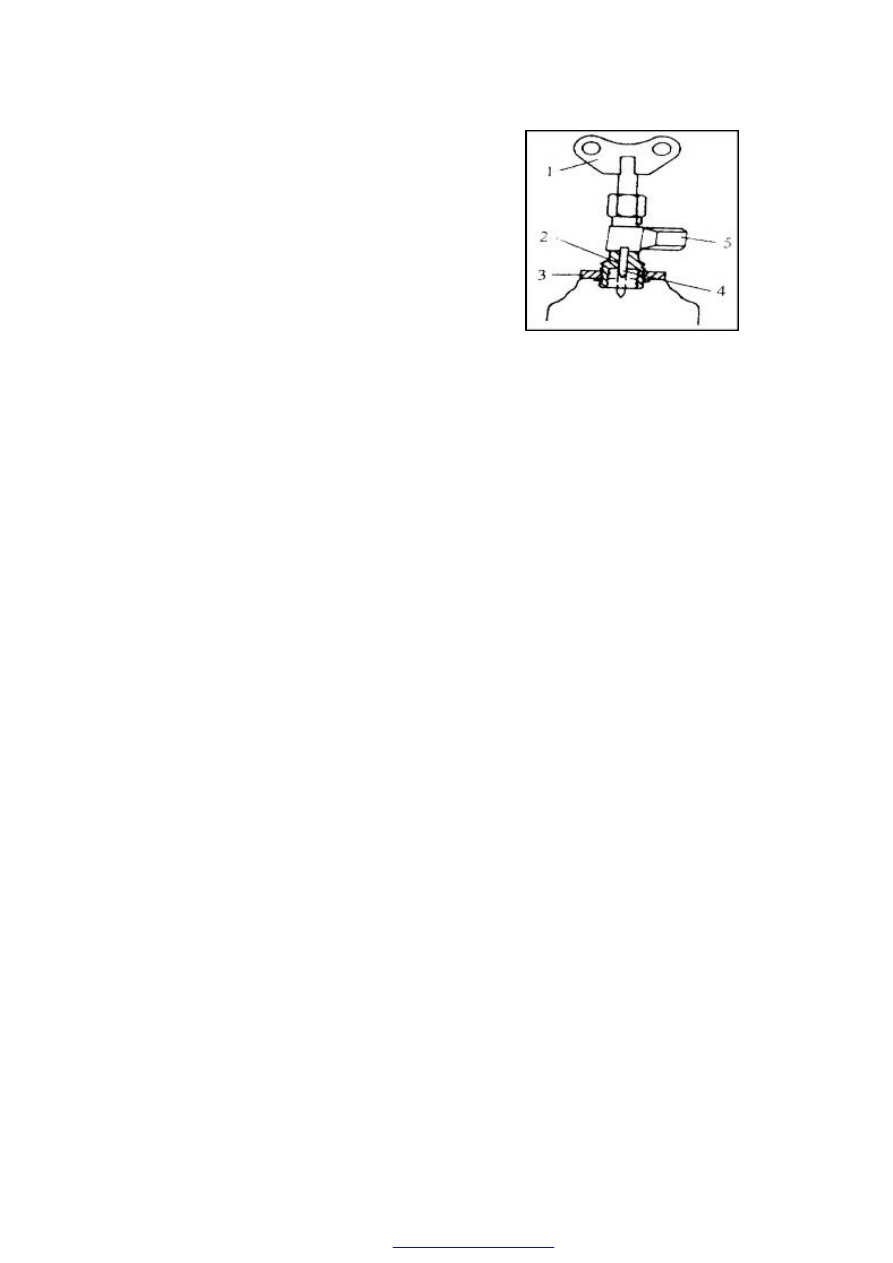

Refrigerant Tank Unlock Valve

1-Butterfly Handle

2-Refrigerant Tank Refilling Valve

  3-Plate-shaped Nut

4- Needle Valve

5-Refilling Valve Joint







clockwise  direction  and  tighten  it  by  hand
as possible.

(4) Turn  the  butterfly  handle  1  in  the

clockwise  direction  to  make  the  valve
needle 4 in its front end punch a small hole
in the dummy club of refrigerant tank.

(5) Turn  the  butterfly  handle  1  in  the

counterclockwise  direction,  which  the
refrigerant  will  flow  into  the  manifold
pressure gauge along the charging hose.

(6) Then  turn  the  butterfly  handle  1  in  the

clockwise  direction  to  the  lowest  position,
and  it  can  close  down  the  refrigerant  tank
again.  However,  do  not  detach  the  unlock
valve,  otherwise  the  refrigerant  inside  the
tank will leak out.







3. Refrigerant Refilling Procedures

(1) Connect  the  manifold  pressure  gauge  to

the  refrigerant  tank,  shown  in  the  picture
below.

(2) Unscrew  the  handle  of  unlock  valve  2  in

the  counterclockwise  direction  to  enable
the  refrigerant  to  enter  the  intermediate
charging hose. In this case, do not open the
handle valves in the both sides.

(3) Unscrew  the  nuts  of  intermediate  hose  of

manifold  pressure  gauge,  and  then  tighten
the  nuts  of  intermediate  hose  after  the  air
inside  the  intermediate  hose  are  drained
when  you  see  the  white  refrigerant  gas
overflow and heard the “fizzle” sound.

(4) Turn on the high-pressure  manual  valve 4,

shown  in  the  figure  below,  stand  the
refrigerant tank  1  upside down so as to let
the  refrigerant  in  liquid-state  charge  into
the  refrigeration  system.  In  this  case,  do
not  switch  on  the  A/C  unit  to  prevent  the
refrigerant from returning back to the tank.

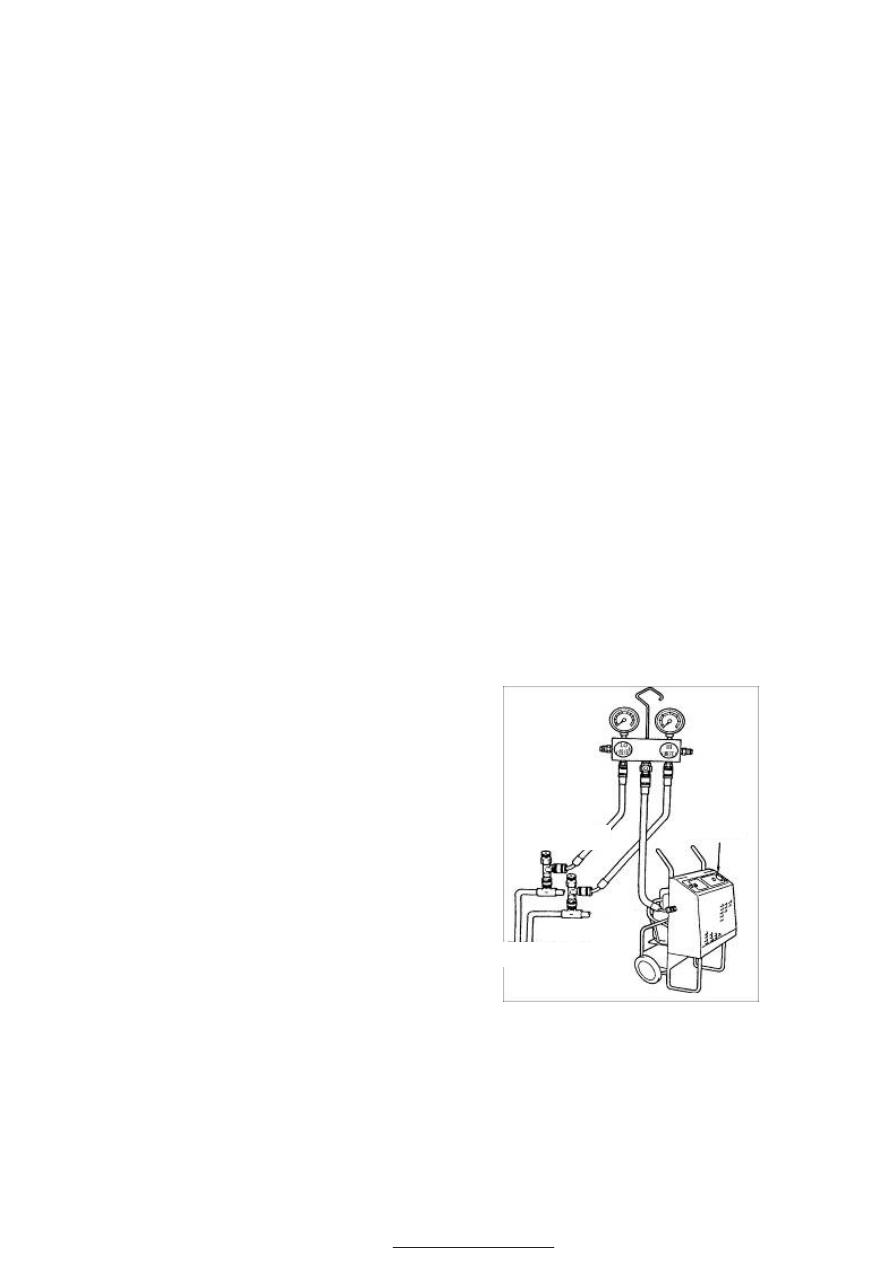

LOW-PRESSURE
SEVICE VALVE

RECYCLING

RECEIVER

HIGH-PRESSURE

SEVICE VALVE

REFRIGERATION DEVICE
