Chery A15. Manual - part 291


Section Seven: Fixing and Unfixing of Gear-shifting Mechanism and its Accessories

I. Gear lever protective cover
1. Unfixing the gear lever protective
cover
(1) Remove the gear lever handle with a
moderate force (Figure 91)



1-Gear lever handle








2) Pull up the gear lever sleeve out of the
central control booth (Figure 92).





1-Gear lever sleeve







2. Fixing
(1) Fix the gear lever sleeve onto the
gear lever’s mechanical structure so that
its front flange is engaged with the
control booth. Manually press the flange
so that the trough is engaged with the
control booth.
(2) Align the handle hole with the gear
lever (Figure 91).












1








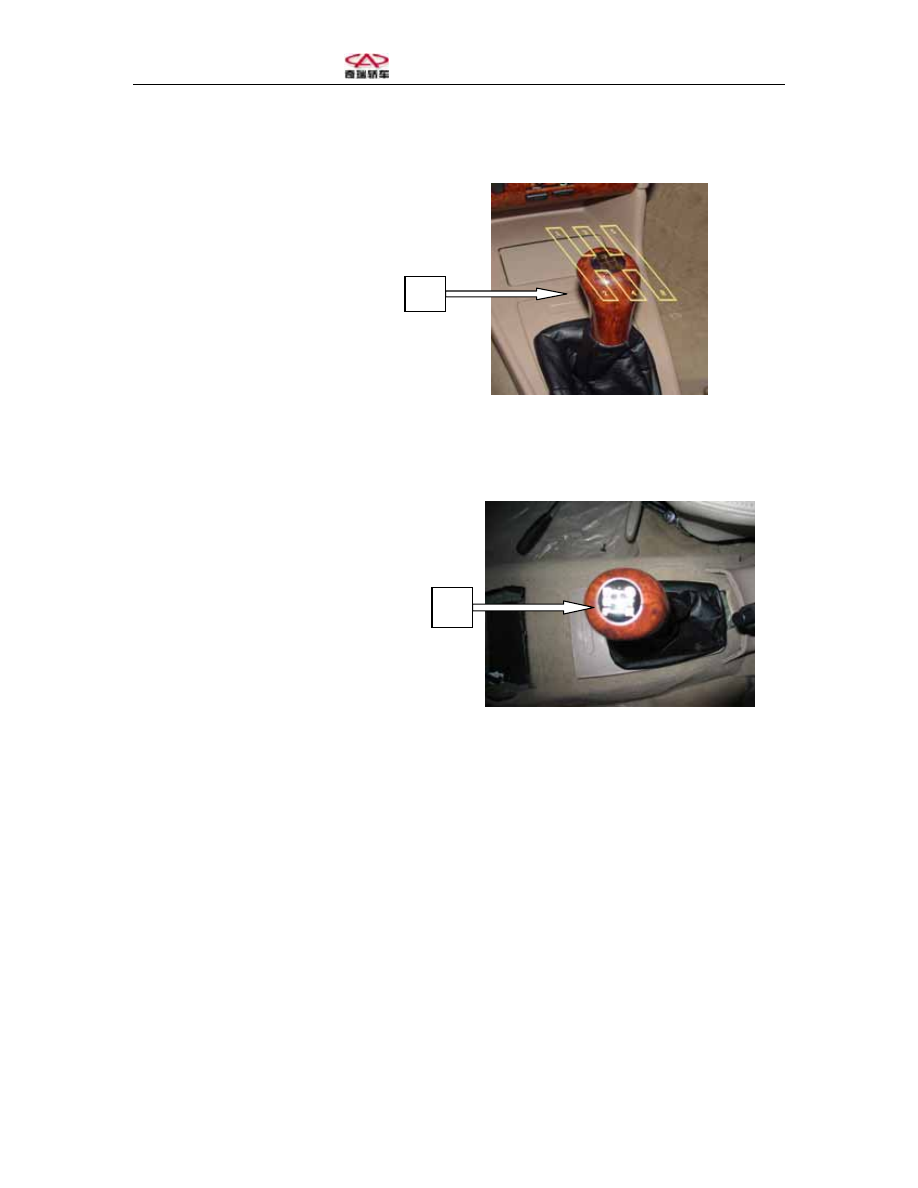

Figure91 Fixing and Unfixing the Gear
Lever Handle





1


Figure 92 Fixing and Unfixing the Gear
Lever Sleeve



(3) Slightly strike it with a rubber
hammer so that it is engaged with the
mechanical structure.
(4) Ensure that the gear shifting
operation is correct.











II. Gear-shifting control mechanism











1. Gear-shifting control mechanism 2. Gear lever cable assembly 3. Flexible shaft snap
ring 4. Flexible shaft snap ring

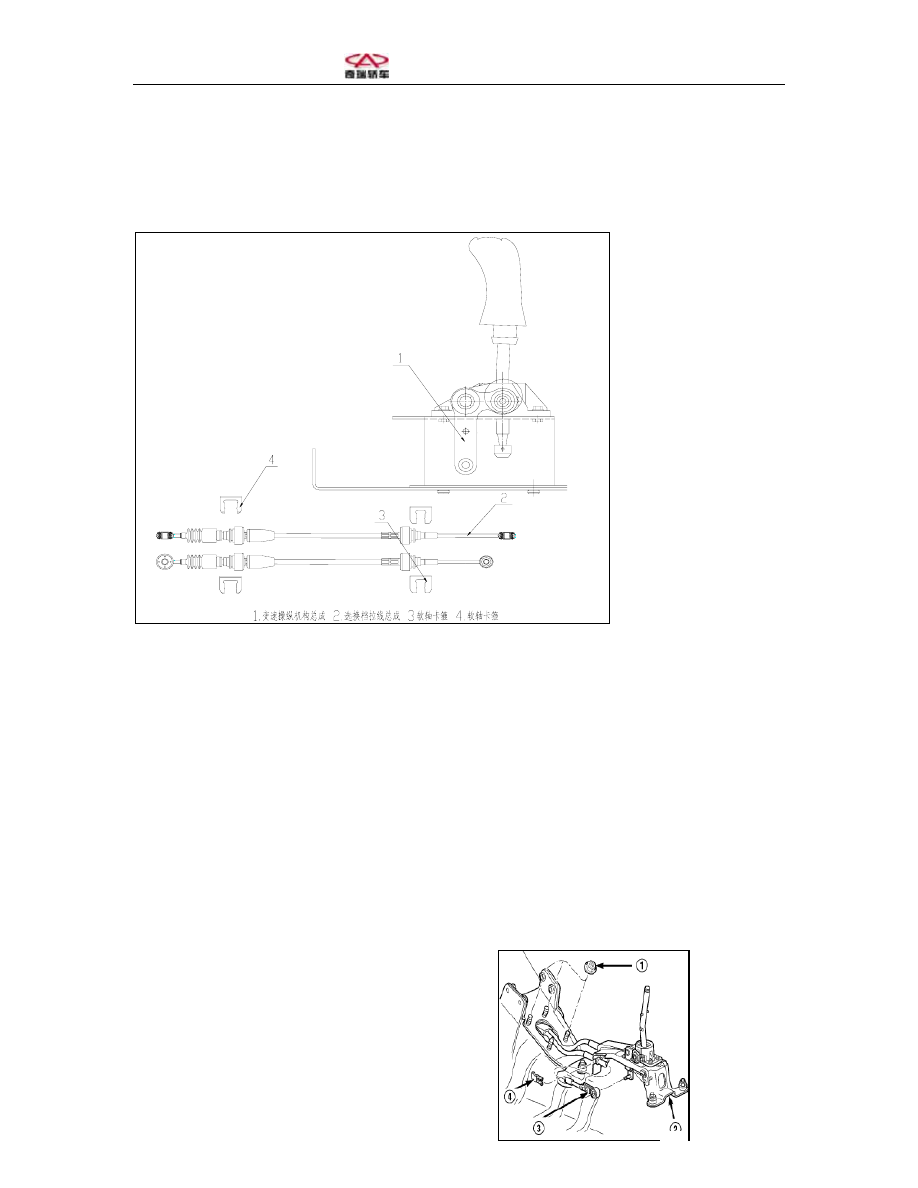

Figure 93 Gear-shifting Control Mechanism



1. Unfixing the gear-shifting control
mechanism

(1) Screw the handle off the gear lever
mechanical structure with moderate
strength.




(2) Pull up the gear lever sleeve to dismantle it.
(3) Unfix the central control booth
assembly as the figure shows.
(4) Unfix the connecting cable retaining
clip from the gear lever (Figure 94).













1-Rubber seal
2-Gear lever bracket

3-Connecting rod
4-Clip





(5) Unfix the gear-shifting cable
retaining clip and detach the cable form
the connecting rod (Figure 95).

1-Gear lever bracket
2-Clip
3-Connecting rod

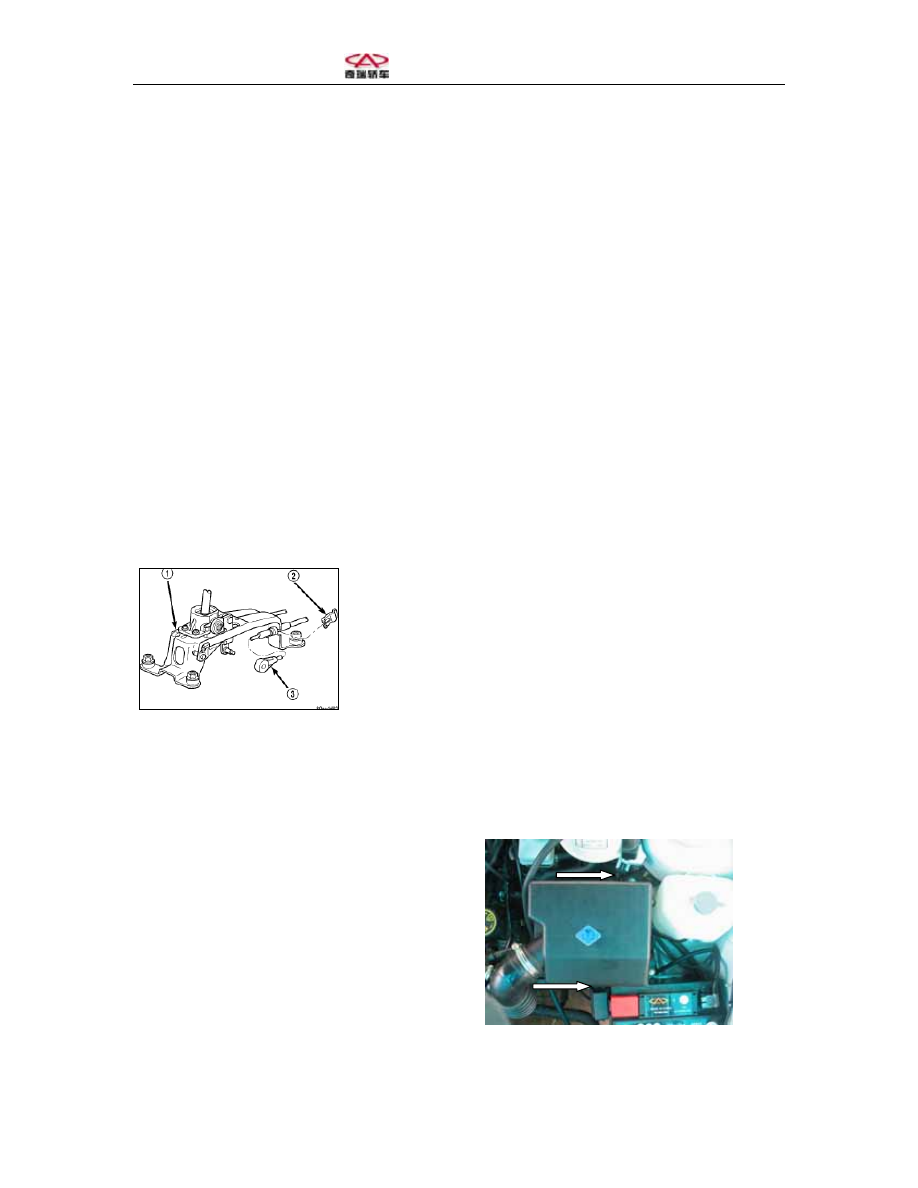

Figure 94 Fixing/unfixing the
Connecting Cable







Figure 95 Gear-shifting Cable on the
Gear-shifting Assembly




(6) Unfix the three set bolts for the gear
lever bracket and the floor (Figure 94)
(7) Unfix the air filter assembly (Figure
96).


(8) Unfix the cable from the gearbox
shifting lever (Figure 97).
(9) Unfix the cable retaining clip and
dismantle the cable from the bracket
(Figure 97).




1-Cable tie-in
2-Retainer ring
3-Bracket




(10) Jack up the car.
(11) Unfix the three-way catalyst heat-
insulating plate (Figure 98).








(12) Unfix the remaining rubber seals
and bolts (Figure 99).
(13). Detach the tie-in assembly from the
car.

1-Rubber seal
2-Gear lever bracket
3-Gear lever tie-in
4-Clip
















Figure 96 Fixing and Unfixing the Air
Filter Assembly

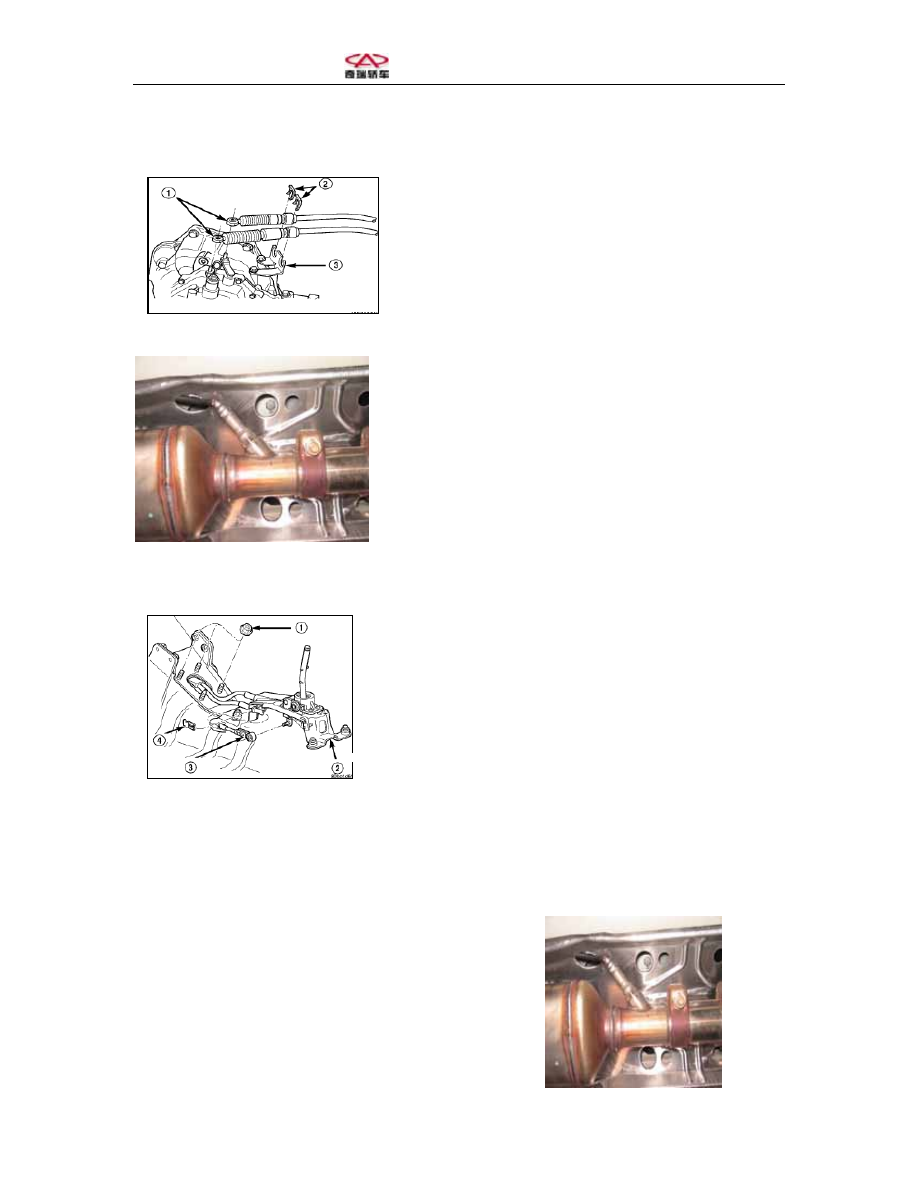

Figure 97 Gear Lever Cable





Figure 98 Fixing/unfixing the Three-way
Catalyst Heat Insulating Plate









Figure 99 Gear Lever Assembly on the
Floor



2. Fixing the gear-shifting control
mechanism
(1) Jack up the car

(2) Fix the cable assembly through the
opening on the floor and fix the flexible
shaft snap loop according to the location
of gear-shifting control mechanism’s
bracket positioning hole. The gear-

selecting and gear-shifting rocker arms
are connected through a ball head.
(3) Fix the three-way catalyst heat-
insulating plate (Figure 100).



(4) Lower the car.
(5) Fix the gear lever tie rod’s
connecting head to the bracket and
fasten with a new retaining clip (Figure
101).
(6) Connect the gear lever tie rod and the
differential gear lever (Figure 101).


1-Gear lever cable
2-Clip
3-Bracket




(7) Fix and screw tight three rubber seal
bolts with a torque of 6N.m.
(8) Fix the gear lever tie rod attachments
(Figure 102).


1-Shift lever bracket
2-Clip
3-Shift lever tie-in
