Chery A15. Manual - part 289


1-Differential assembly
2-Pinion shaft
3-Car speed sensor drive gear
4-Pinion shaft thrust pin
5-Pinion (2)







II. Assembly











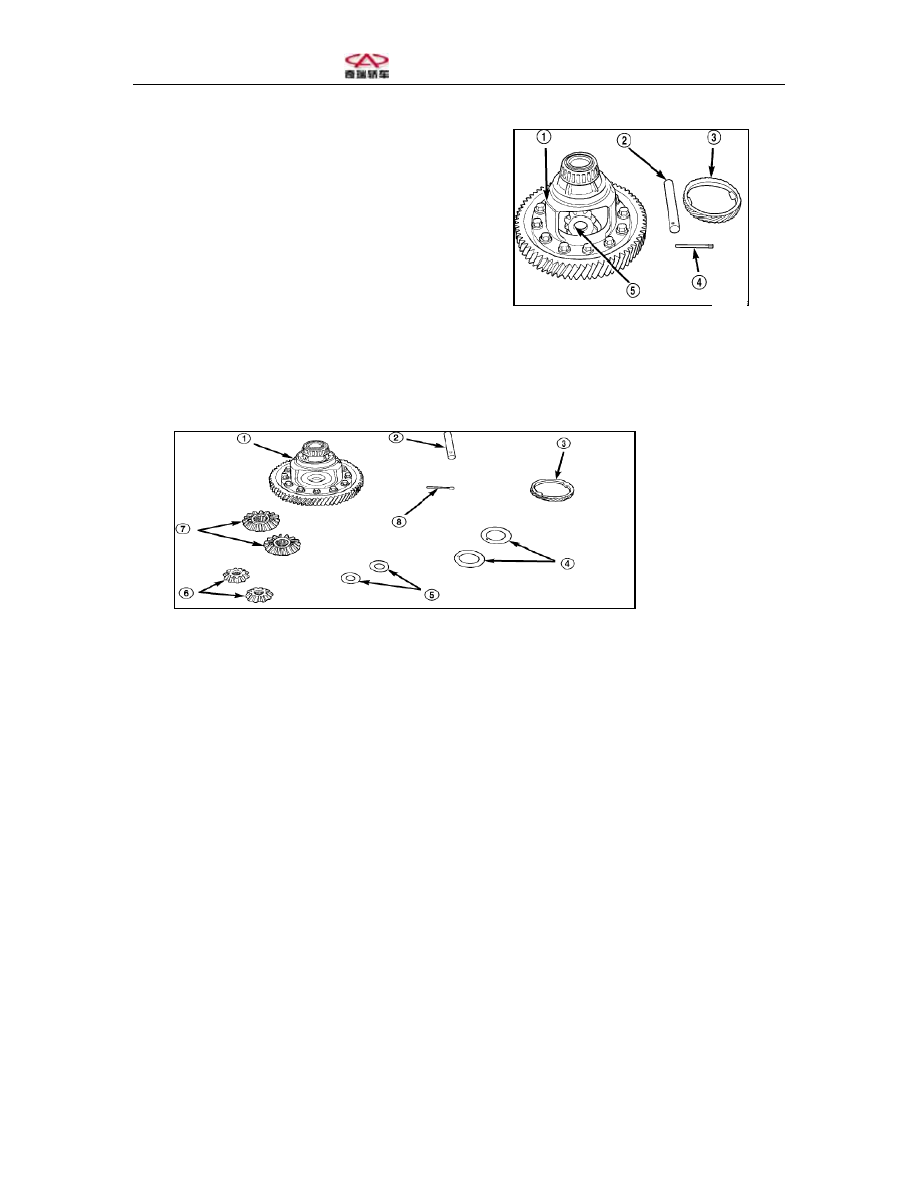

Figure 74 Differential Assembly
1-Differential Assembly
2-Pinion shaft
3-Car speed sensor drive gear
4-Side gear thrust washer (thickness
optional)
5-Pinion thrust washer
6-Pinion
7-Side gear
8-Pinion shaft thrust pin

(1) Assemble the side gear, pinion and
thrust washer (Figure 74) into the casing
and rotate to the position as required
(Figure 73).
(2) Fix the pinion shaft (Figure 72).
(3) Use a hammer and appropriate punch
to fix the pinion shaft thrust pin (Figure
75).













Figure 73 Unfixing the Pinion, Side
Gear and Thrust Washer




































1-Pinion shaft thrust pin
2-Car speed sensor drive gear








(4) Strike in the thrust pin as the figure
shows (Figure 76).


1-Pinion shaft thrust pin
2- Car speed sensor drive gear





(5) Fix the differential bearing onto the
gear ring and casing side (Figure 77 and
78).
1-Speical tool
2-Speical tool
3-Bearing cone
4-Car speed sensor drive gear




1-Pressure arm
2-Bearing cone
3-Special tool
4-Speical tool
5-Differnetial assembly
















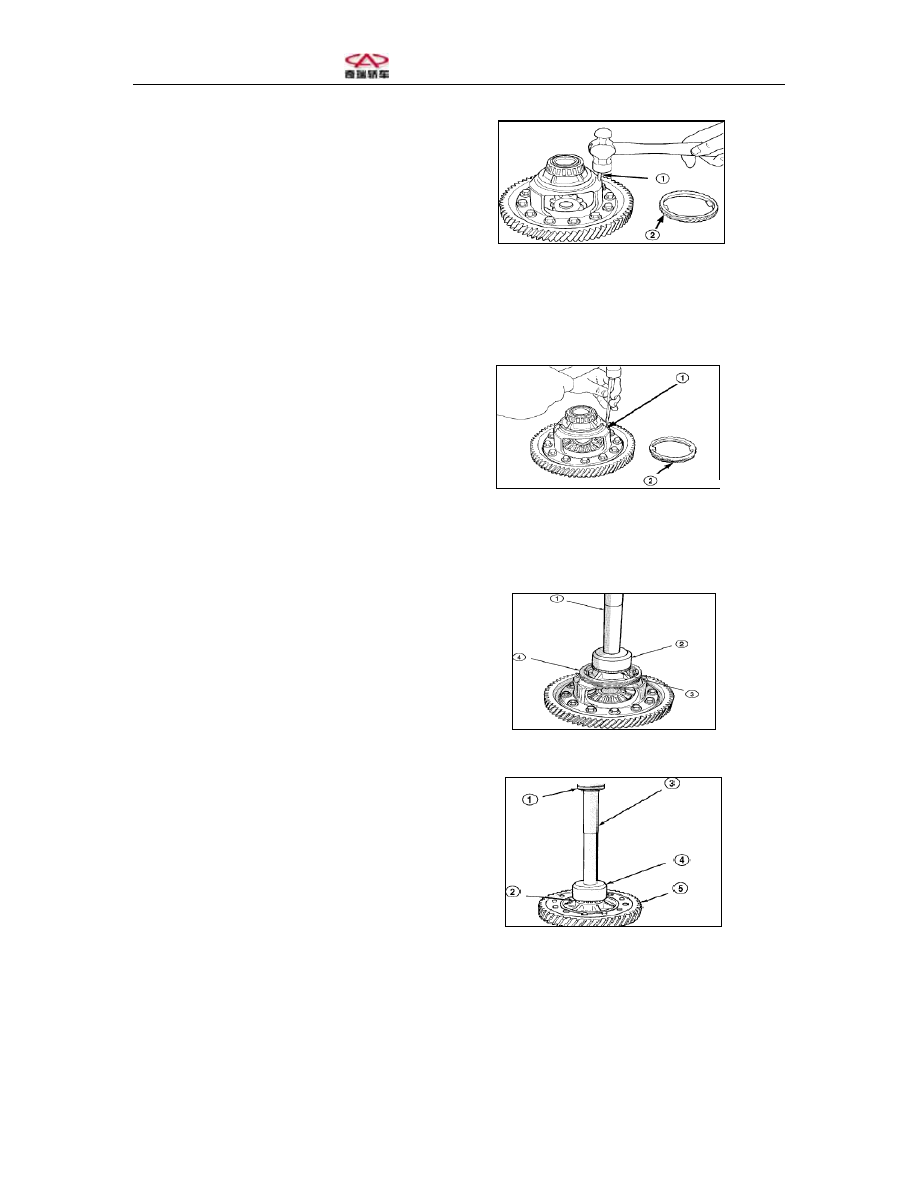

Figure 75 Fixing the Thrust Pin











Figure 76 Striking in the Thrust Pin










Figure 77 Fixing the Differential
Bearing








Figure 78 Fixing the Differential
Assembly







(6) Fix the car speed sensor drive gear
(Figure 79).



1-Car speed sensor drive gear
2-Differential assembly






(7) Press the car speed sensor drive gear
into the differential casing with a press
or steel block (Figure 80 and 81).

1-Steel plate
2-Pressure arm
3-Special tool
4-Differential assembly
5-Car speed sensor drive gear






1-Pressure arm
2- Car speed sensor drive gear
3- Differential assembly





(8) Fix the gear ring and screw on the
new bolts with a torque of 81N.m
(Figure 82).

















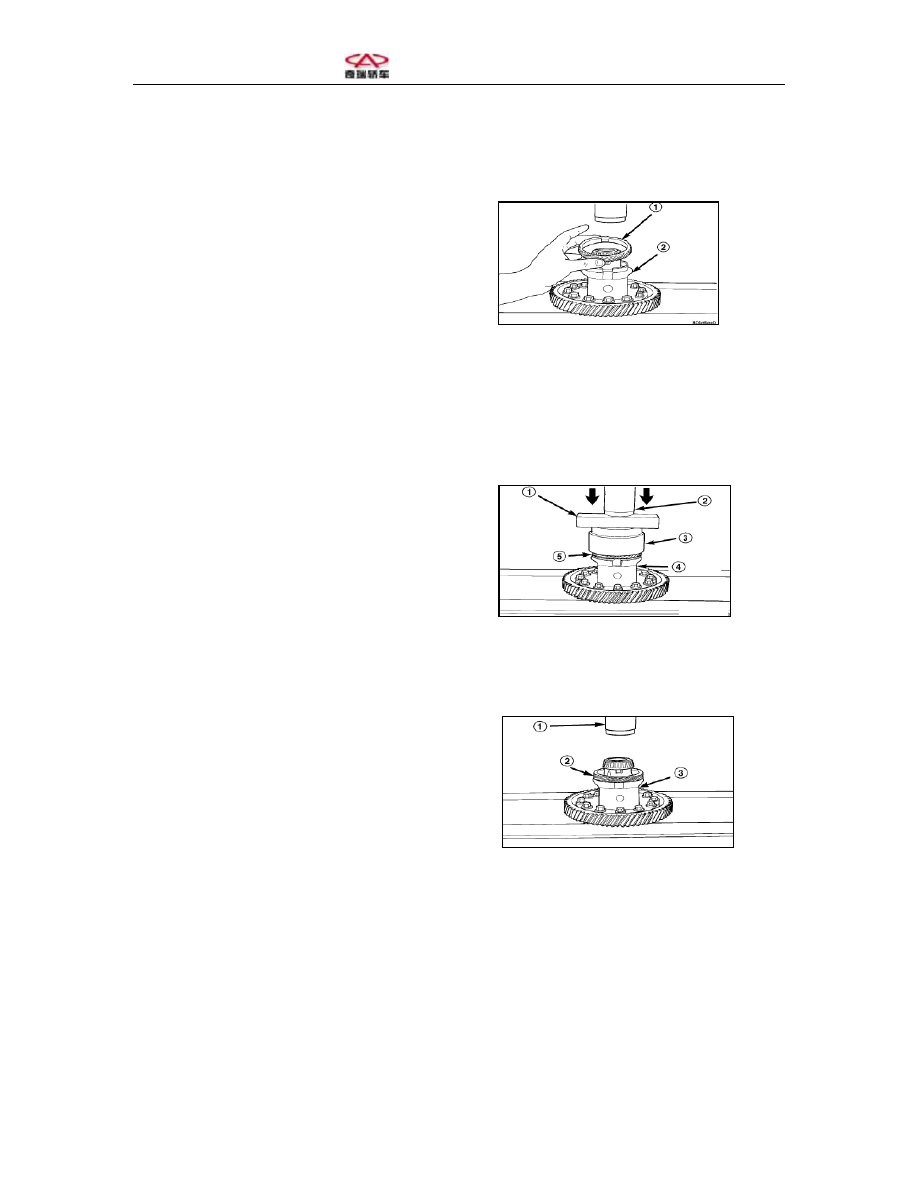

Figure 79 Car Speed Drive Gear













Figure 80 Fixing the Car Speed Sensor
Drive Gear









Figure 81 Car Speed Sensor Drive Gear












1-Car speed sensor drive gear
2-Bearing
3-Ring gear
4-Gear ring bolts



III. Measuring and adjusting
vibration
(1) Turn the differential assembly in the
clockwise and counterclockwise
direction; fix the dial indicator as the
figure shows and record the axial
clearance (Figure 83 and 84). Measure
the axial clearance of side gear and
record the measured value.


1-Special tool
2-Dial indicator
3-Differential assembly
4-Side gear







1-Special tool
2-Dial indicator setup
3-Differential assembly

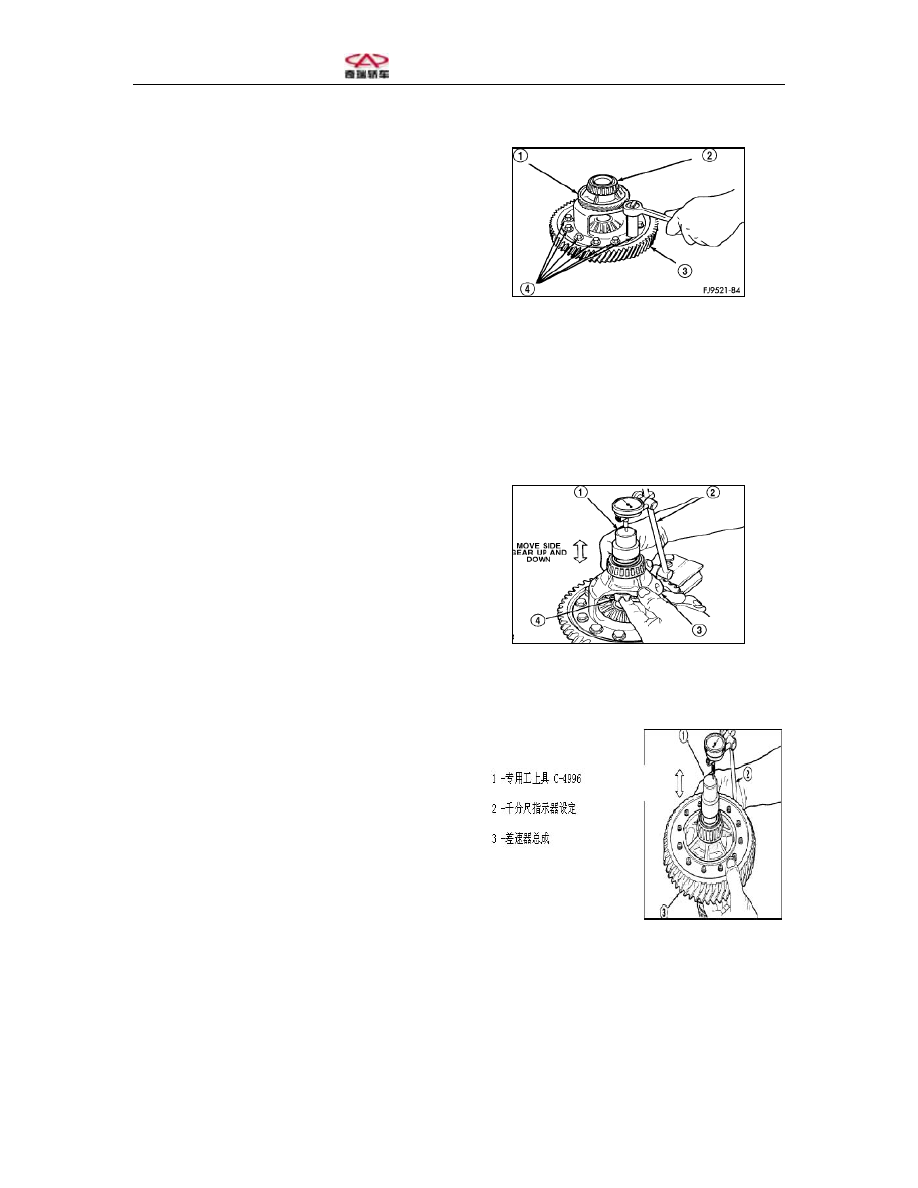

Figure 82 Fixing the Gear Ring and
Bolts















Figure 83 Checking the Vibration
Direction of Side Gear



Figure 84 Check the Vibration of Side
Gear
