Chery A15. Manual - part 286



(10) Fix the input and output shaft
bearing snap ring (Figure 51).



1-Snap ring caliper
2-Snap rings



(11) Apply sealant onto the flange and
screw holes of the rear cover. Fix the
rear cover onto the gearbox body and
screw it tight with a torque of 29N.m
(Figure 52).



1-Gearbox body
2-Rear cover





(12) Remove the gearbox from the
clamp.
(13) Fix the gearbox onto the retaining
clip with the rear cover facing down.
(14) Fix the gear lever onto the gear
position lockup assembly (Figure 53).




1-Gear position assembly
2-Gear lever



















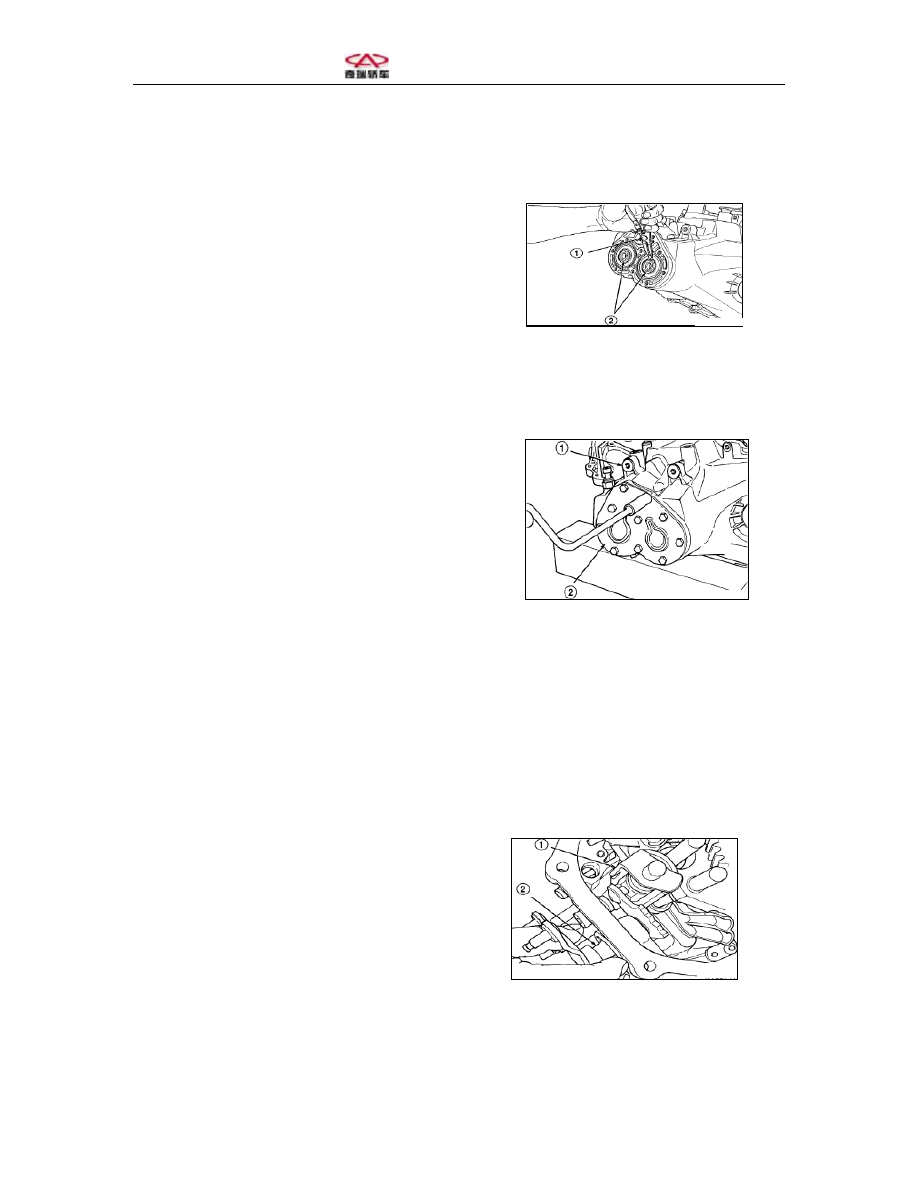

Figure 51 Fixing the Bearing
Synchronizing Ring











Figure 52 Gearbox Rear Cover

















Figure 53 Gear Lever





(15) Push the gear lever retaining clip
onto the gear lever and fix the moving
control lever.
(16) Fix the reverse idle wheel and
retainer plate as the figure shows (Figure
54).

1-Gasket
2-Reverse idle wheel






(17) Fix the reverse idle wheel shaft
(Figure 55)



1-Reverse idle wheel shaft
2-Gasket









(18) Screw the set bolts of reverse shaft
with a torque of 26N.m (Figure 56).



1-Gearbox body
2-Reverse idle wheel shaft
3-Reverse idle wheel shaft bolts


















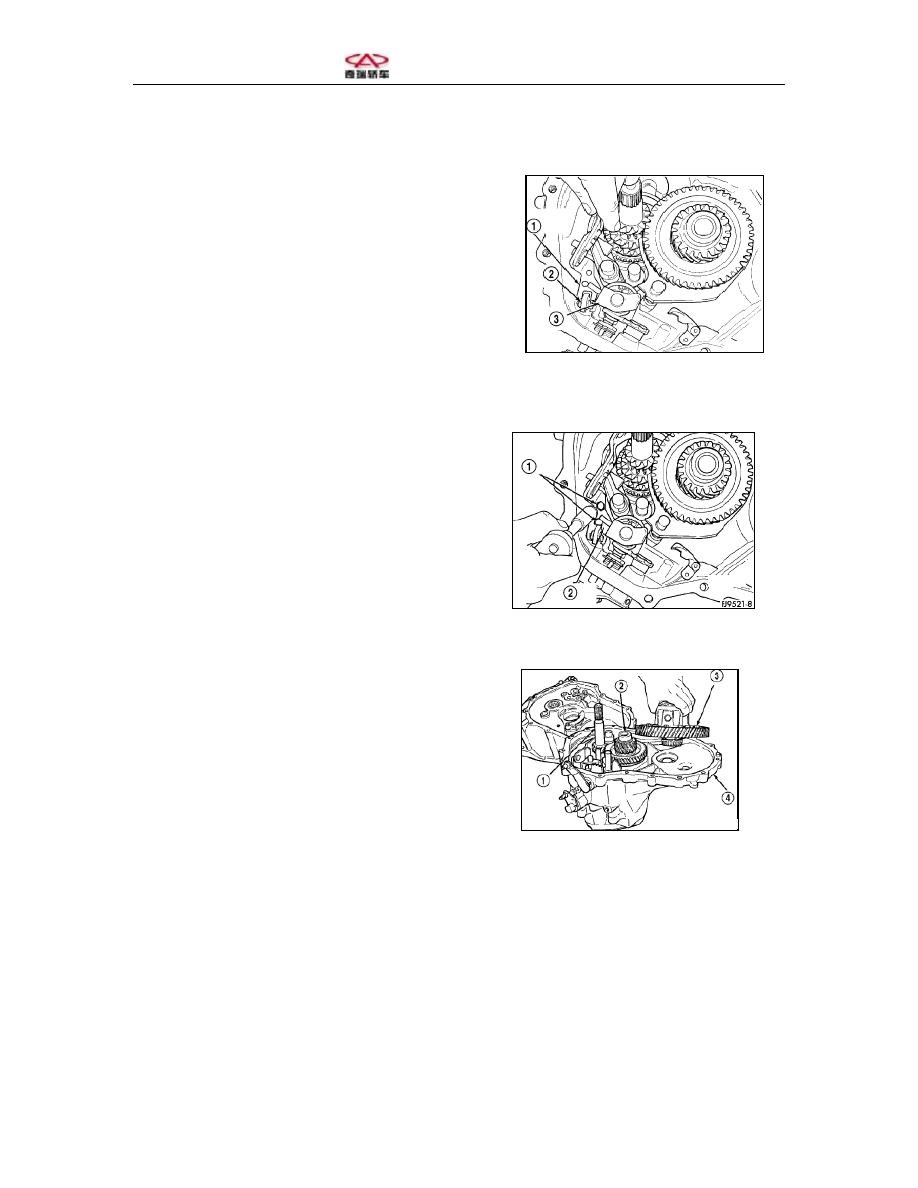

Figure 54 Reverse Idle Wheel and
Gasket













Figure 55 Fixing the Reverse Idle Wheel
Shaft











Figure 56 Reverse Idle Wheel Shaft
Bolts












(19) Fix the reverse shifting fork and
reverse lockup mechanism and screw
tight with a torque of 11N.m (Figure 57)
(Figure 58).










1-Reverse shifting fork bracket



2-Reverse cam lockup mechanism



3-Gear position lockup mechanism













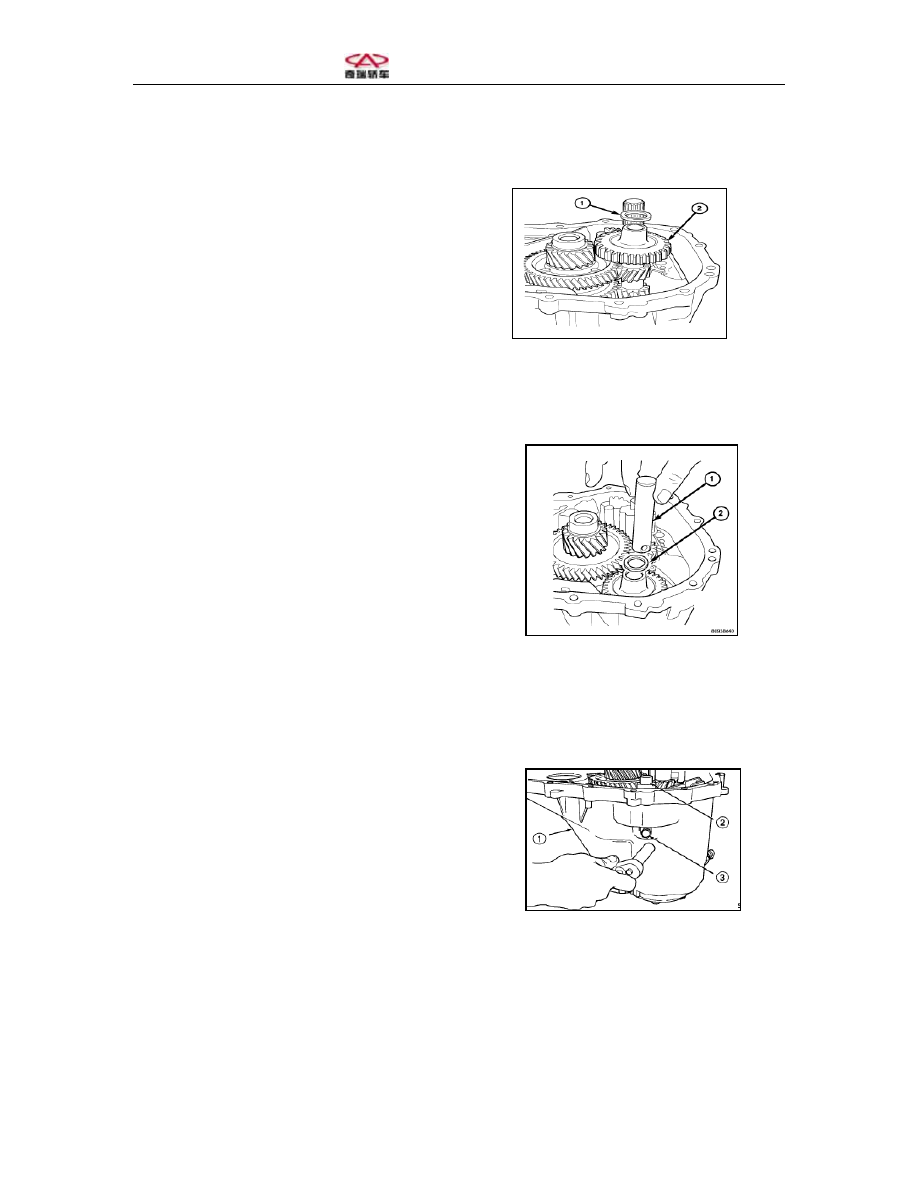

Figure 57 Reverse Shifting Fork

























1-Screws (two)



2-Reverse shifting fork





















Figure 58 Reverse Shifting Fork Screw













(20) Fix the differential assembly
(Figure 59).








1-Input shaft



2-Output shaft



3-Differential



4-Gearbox body

Figure 59 Differential Assembly














(21) Fix the output shaft bearing.



(22) Fix the clutch body.



(23) Screw tight all set bolts.










III. Bearing Adjustment Steps
(1) Take special care while fixing and unfixing the outer ring and cone of the roller
bearing. Fix with a press instead of a hammer as the latter will possibly misalign the outer
ring or the cone of the roller bearing. Replace any abnormal outer ring and cone.
(2) Replace any eroded or thermally deformed outer ring or cone of the roller bearing.
Replace the whole outer ring and cone if either of the roller bearing outer ring or needle
roller is found to be deformed.
(3) The preload and torque on the bearing must be proper to avoid early failure of the
bearing. The adjustment of the bearing must neither interfere with other moving parts nor
affect the gear engagement.
(4) Replace the bearings in pair: replace the two differential bearings in the case of
differential bearing defects; replace the two bearings on the input shaft in the case of
input shaft bearing defects.
(5) Do not use any disassembled bearing cone again.
(6) Apply the same torque whichever direction the bearing is rotated in.

IV. Adjusting the differential bearing preload
(1) Dismantle the outer ring and gasket of the roller bearing from the clutch body outer
casing.
(2) Fix one new outer ring of roller bearing onto the clutch body outer casing.
(3) Place one new outer ring of outer bearing into the gearbox.
(4) Apply some gearbox oil onto the differential bearing. Fix the differential assembly
onto the gearbox. Fix the clutch body outer casing onto the gearbox cover. Fasten the
gearbox screws with a torque of 29N.m.
(5) Place the clutch body outer casing of the gearbox on the worktable with the casing
facing down, and fix the dial indicator.
Note: place the dial indicator as the figure shows (Figure 60).Align the dial indicator with
the T handle to measure it correctly.
(6) Apply one moderate torque onto the differential by pressing down the T handle. Turn
the differential assembly to and fro to set the bearing in place.
Reset the dial indicator and read the axial clearance. Apply a certain load from front and
rear while turning the differential assembly (Figure 60). Record the axial clearance.
