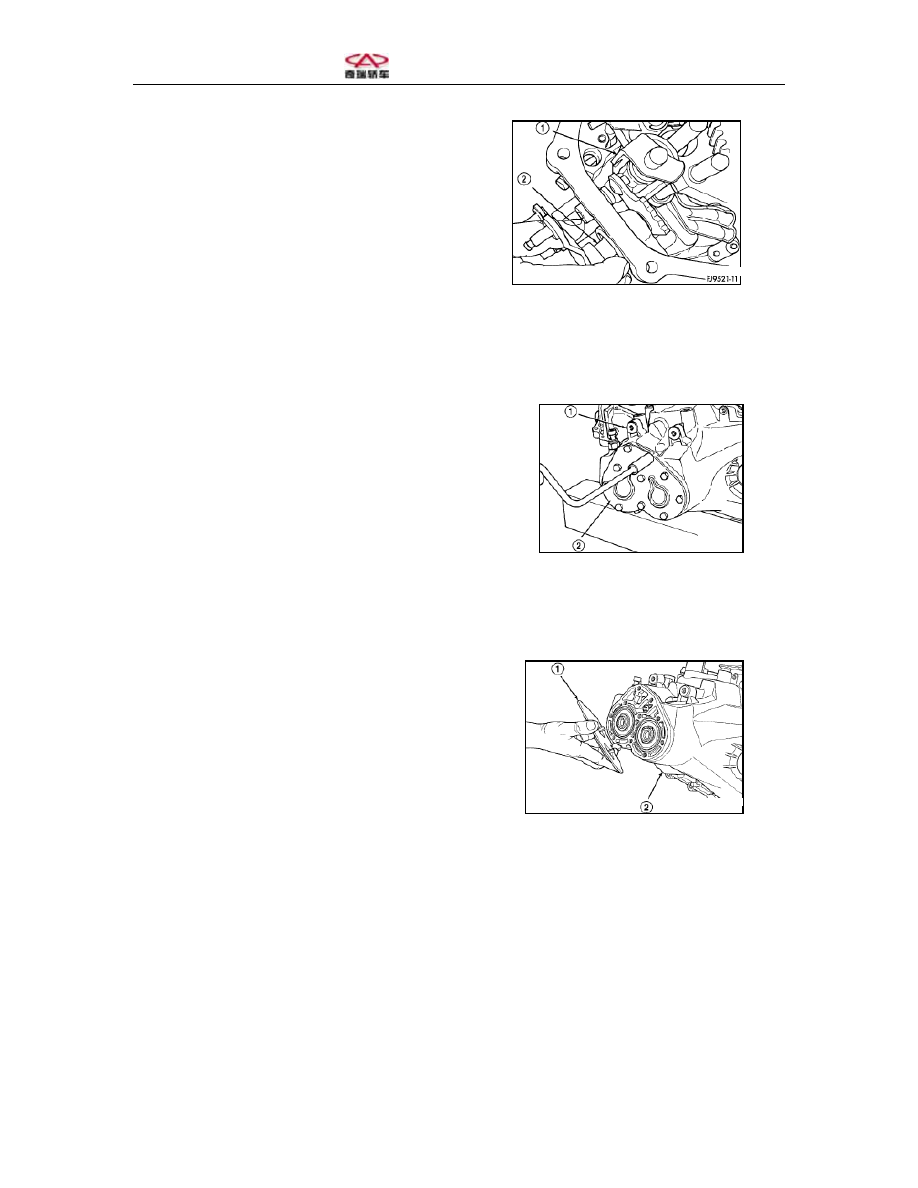

Chery A15. Manual - part 284


1-Gear shifting assembly
2-Gear lever






       Figure

29

Gear

Lever



(15) Dismantle gearbox rear cover (Figure 30 and 31).




1-Gearbox body
2-Rear cover














Figure 30 Unfixing the Gearbox
Rear Cover





1-Rear cover
2-Body




        Figure

31

Rear

Cover














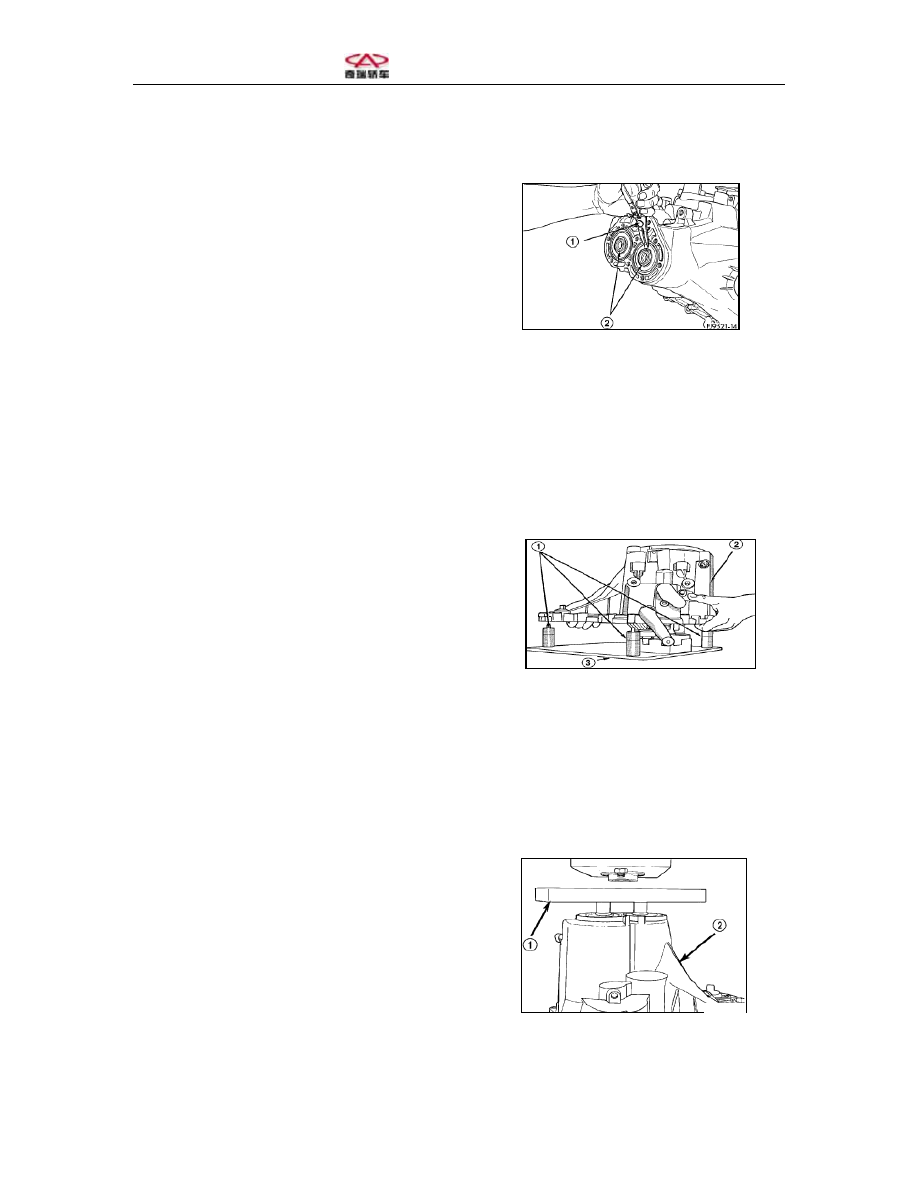

(16) Unfix the elastic snap rings on the two bearings of the input shaft and output shaft.





1-Snap ring caliber
2-Snap ring


       Figure

32

Bearing

snap

ring





(17) Prepare a clamp and gasket and turn over the gearbox cover. Install the gearbox onto
the clamp and check the location of the gasket on the clamp (Figure 33) and fasten the
gearbox.


1-Gasket
2-Gearbox
3-Clamp



















Figure 33 Clamp




(18) Install the bearing fixing tool and check if the input and output shafts are aligned
with each other.




1-Bearing pressing device
2-Gearbox body





       Figure

34

Bearing

pressing

device





Note: if is bearing pressing device is used improperly, the oil seal on the input and
output shafts may be damaged.

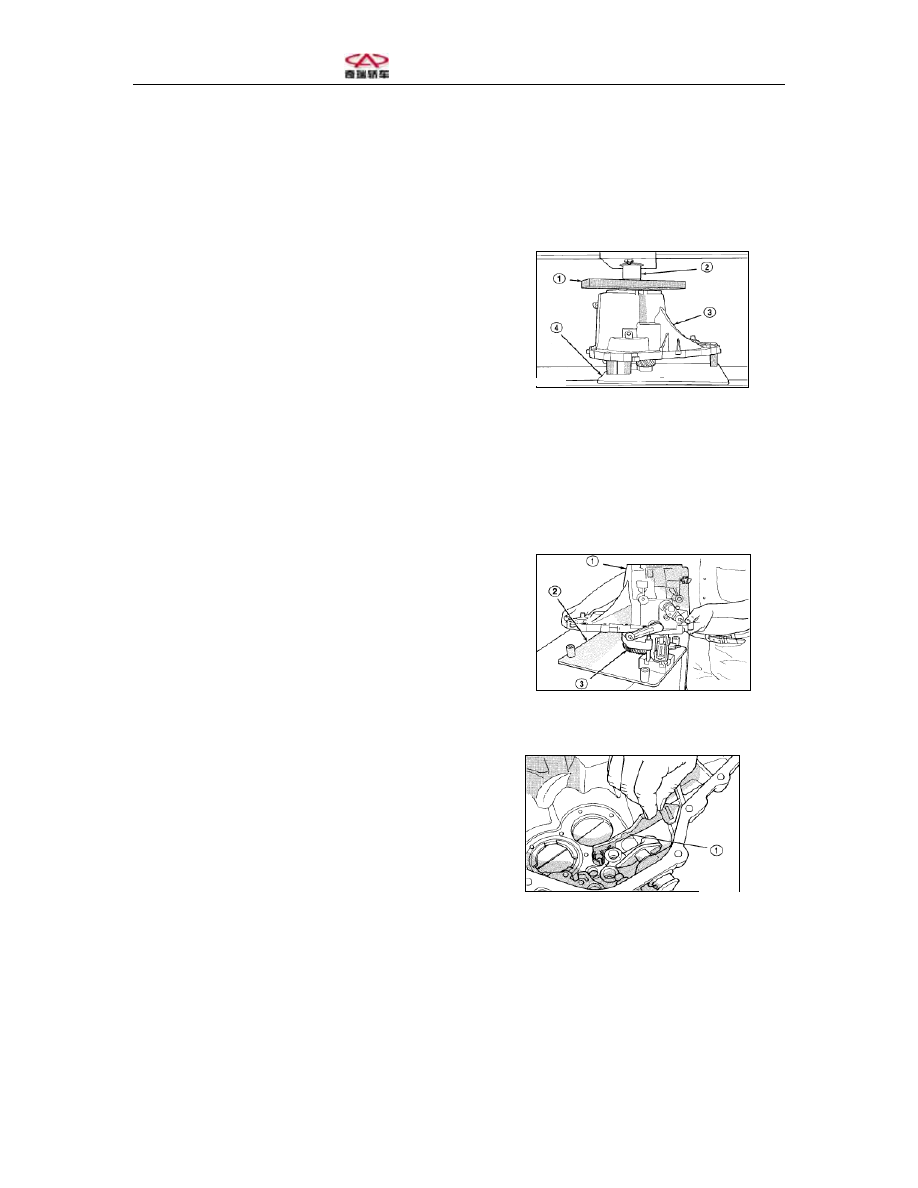

(19) Install the gearbox onto the clamp and press out the input and output shaft assembly
from the gearbox body.


1-Bearing pressing device
2-Bearing pressing rod
3-Gearbox body
4-Clamp













Figure 35 Pressing the Shaft off the
Gearbox Body



(20) Take off the gearbox body
(21) Carefully take the gearbox body off the shaft and clamp and ensure that the end
bearing and oil seal are not damaged (Figure 37).



1-Gearbox body
2-Clamp
3-Gear












Figure 36 Disassembling the
Gearbox Body



1-Lubricating circuit board





       Figure

37

Lubricating

circuit

board










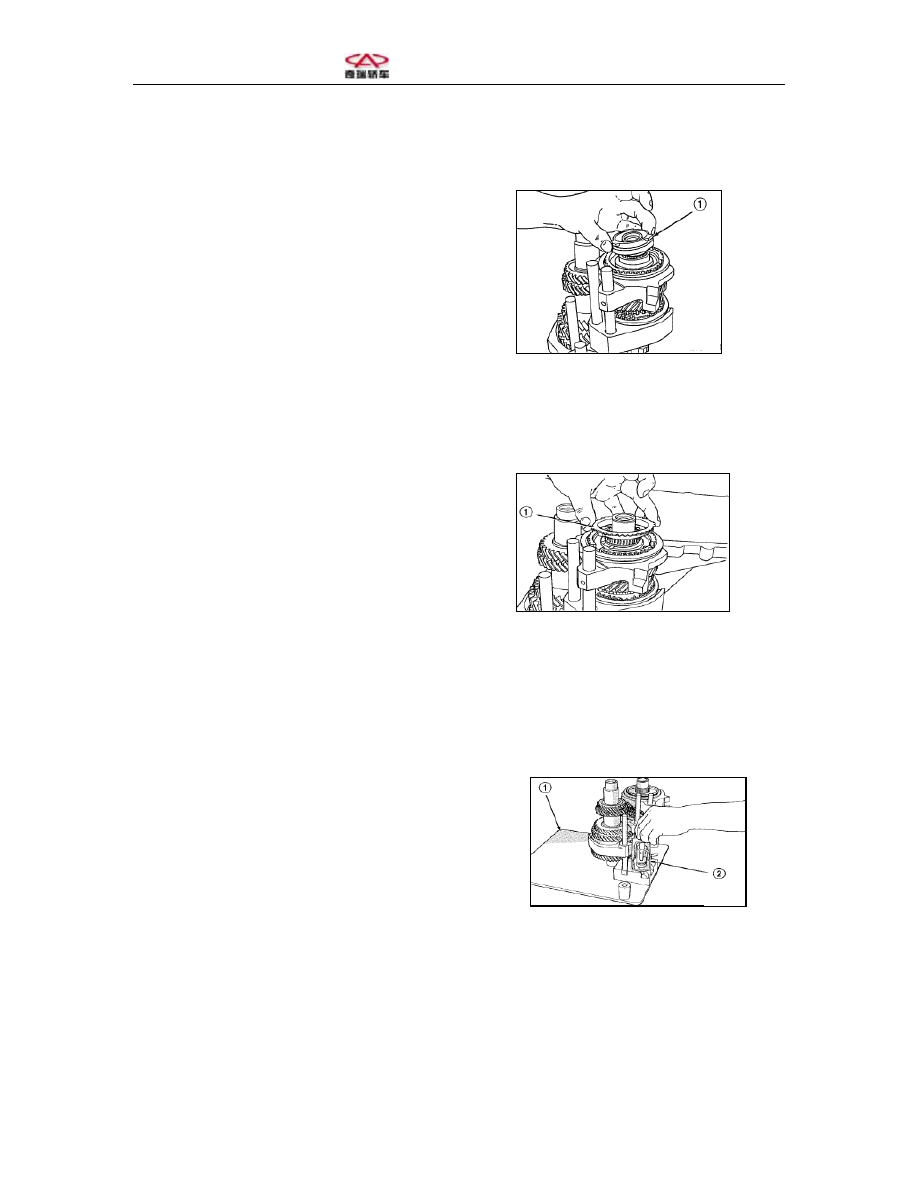

(22) Unfix the reverse brake conical friction wheel and retainer ring off the input shaft
assembly.




1-Reverse brake conical friction wheel





Figure 38 Reverse Brake Conical
Friction wheel







1-Reverse brake retainer ring




      Figure

39

Reverse

Brake

Retainer

ring




(23) Unfix the gear position lockup assembly from the clamp (Figure 40)



1-Clamp
2-Gear position lockup assembly





Figure 40 Unfixing the Gear Position
Lockup assembly
