(7) Unplug the car speed sensor tie-in
(Figure 8)



1-Tie-in
2- Sensor
3-O-ring
4-Car speed sensor gear






(8) Jack up the car with a jack.
(9) Unfix the gearbox oil filler plug
(Figure 9) and put the gearbox oil into a
designated container.



1-Oil filler plug







(10)Unfix the clutch sub-pump from the
gearbox as the figure shows (Figure 10).



1-Sub-pump
2-Bolt




















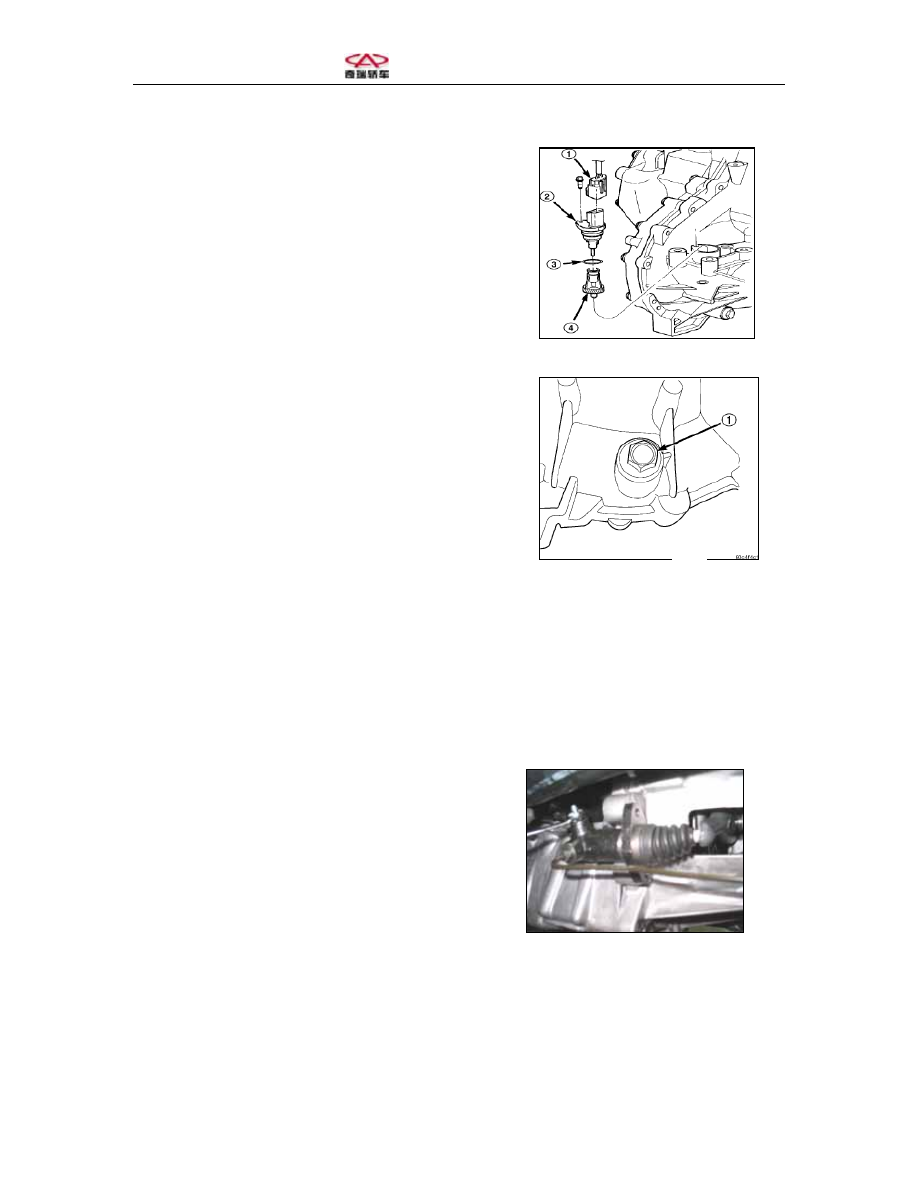

Figure 8 Car Speed Sensor Tie-in












Figure 9 Gearbox Oil filler plug



















Figure 10 Clutch Sub-pump









(11) Release the set bolts of the power
steering pipeline.



1-Power steering pipeline
2-Bolt




(12) Detach the power steering oil pipe
(Figure 12)





1-Power steering pipeline
2-Bolt






(13) Screw off the set bolts of engine
cable and take down the cable.





























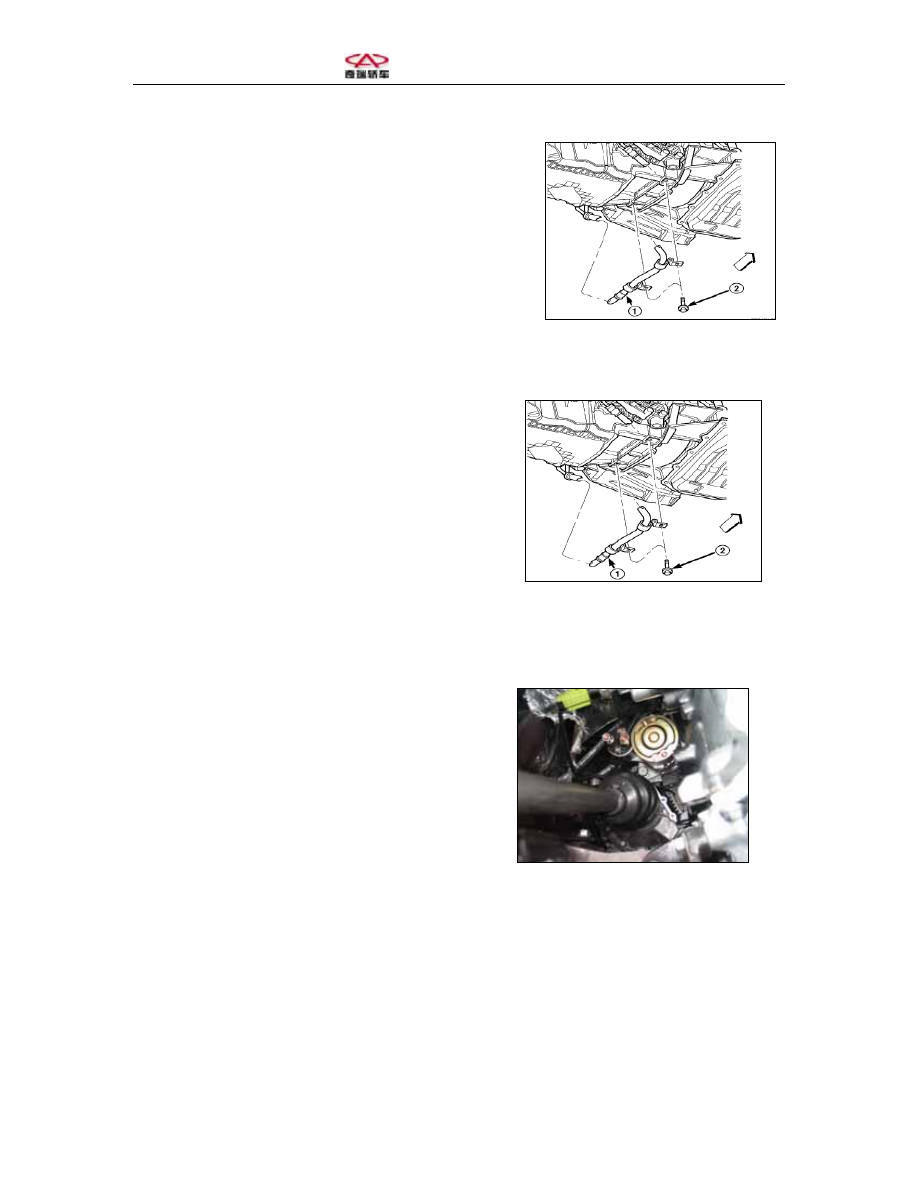

Figure 11. Power Steering Pipeline













Figure 12 Power Steering Oil Pipe















Figure 13 Starter Cable




















(14) Screw off the two set bolts of the
starter (Figure 14).
















(15) Screw off the clutch pressure plate
set bolts (Figure 16).




Mark accordingly in sequence on the
flywheel and clutch assembly during
releasing the bolts




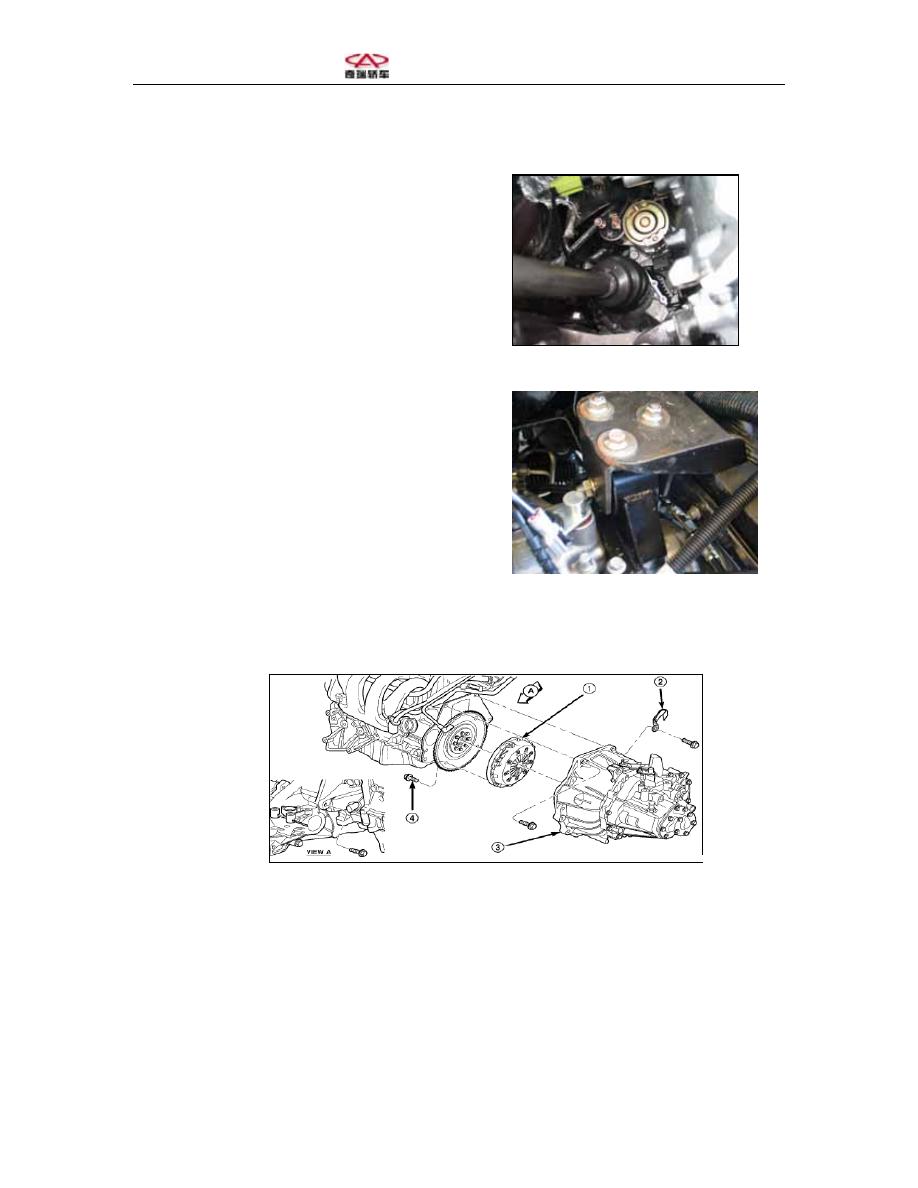

Figure 14 Starter

(16) Support the engine drain pan with a
screw jack and wooden blocks.




(17) Unfix the set bolts on top of the
gearbox (Figure 15).












(18) Carefully lower the screw jack
supporting the engine and the gearbox.




(19) Have someone else to support the
gearbox when the gearbox and engine
set screws are being released (Figure 16).




Figure 15 Assembly on top of the

Gearbox

(20) Unfix the gearbox from the car
(Figure 16).




























Figure 16 Fixing/unfixing the gearbox

1-Clutch component assembly

3-Gearbox

2-Snap ring

4-Clutch assembly bolt (4)









(21) Unfix the clutch assembly from the gearbox input shaft (Figure 16)

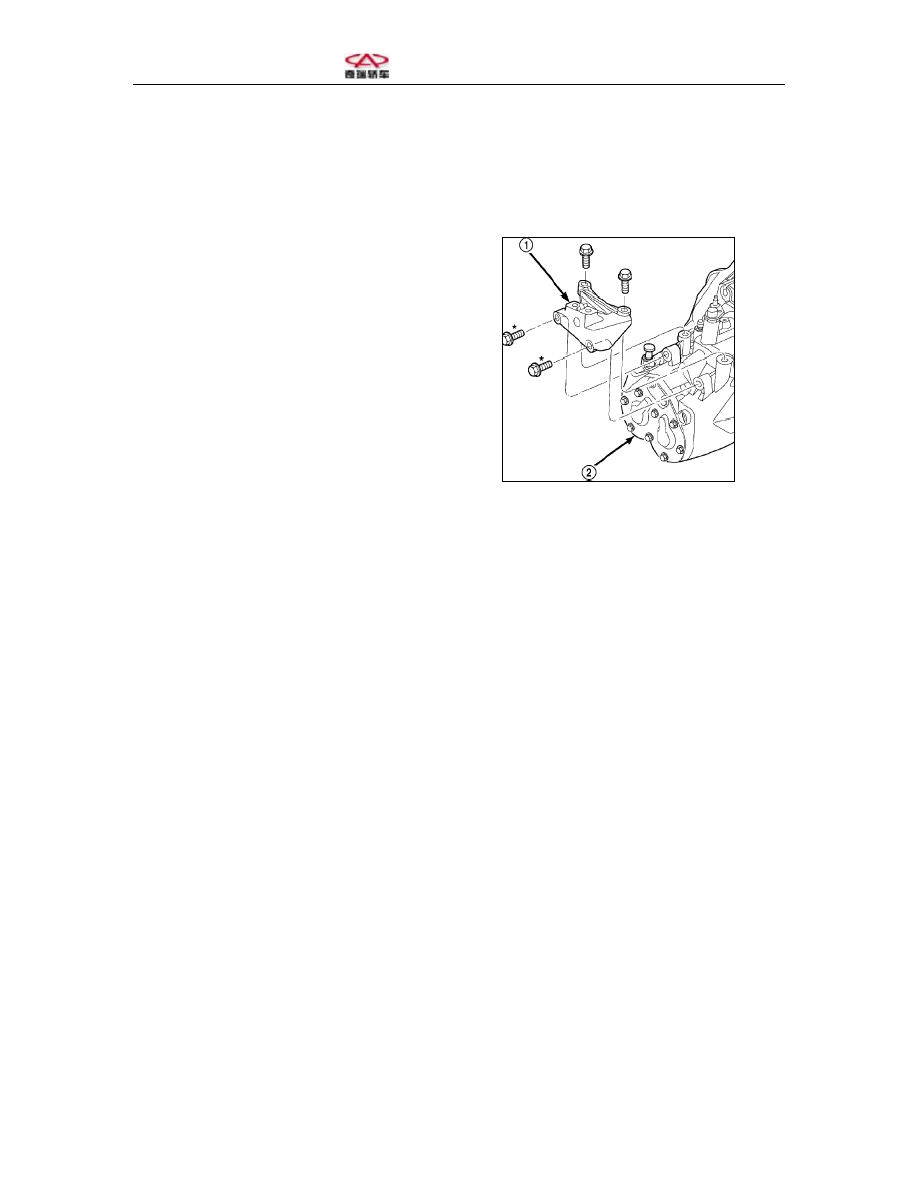

(22) In the case of fixing or replacing a gearbox, unfix the upper bracket as the figure
shows (Figure 17), fix it in place on the new gearbox and screw tight all set bolts with a
torque of 62Nm (45ft.lbs).







1-Bracket
2-Gearbox





       Figure

17

Upper

Bracket

of

Gearbox
