Three. Engine nameplate

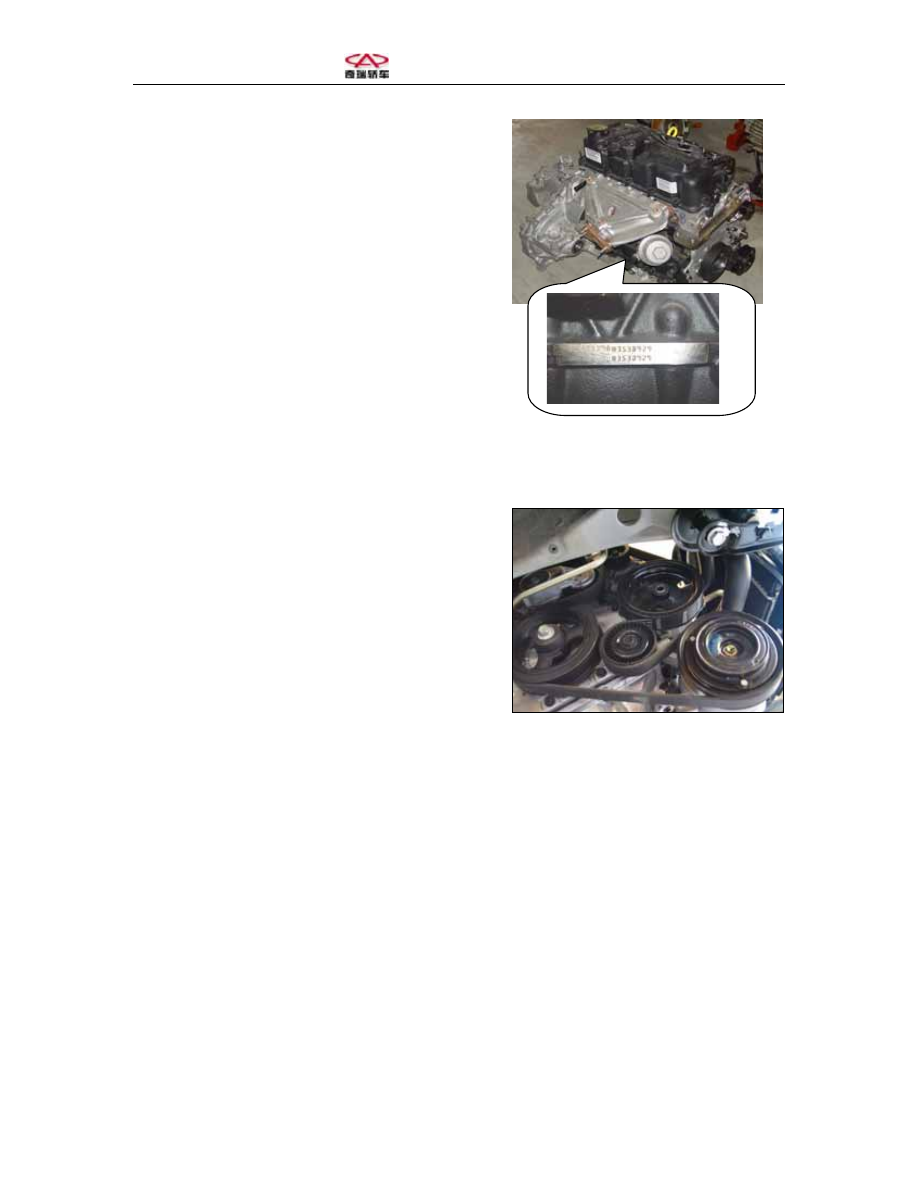

The engine serial number is located on
the lower cylinder body of the intake
manifold.











Four. Transmission belt
1. Location of the transmission belt

1-Engine
2-Water pump/power steering pump
3-Compressor
4-Idle wheel
5-Crank shaft
6-Tensioner


2. Unfixing and replacing the
transmission belt
It is important to adjust the tension of the
transmission belt in the case of
replacement or adjustment of engine
transmission belt. Overtension of the
transmission belt will result in damaged
AC generator and wheel bearing of the
power steering pump belt while
undertension will result in skidding or
early abrasion.
Reel the transmission belt on the belt
wheel in a proper manner for
replacement. Notice the reeling path of
the transmission belt before its
replacement.

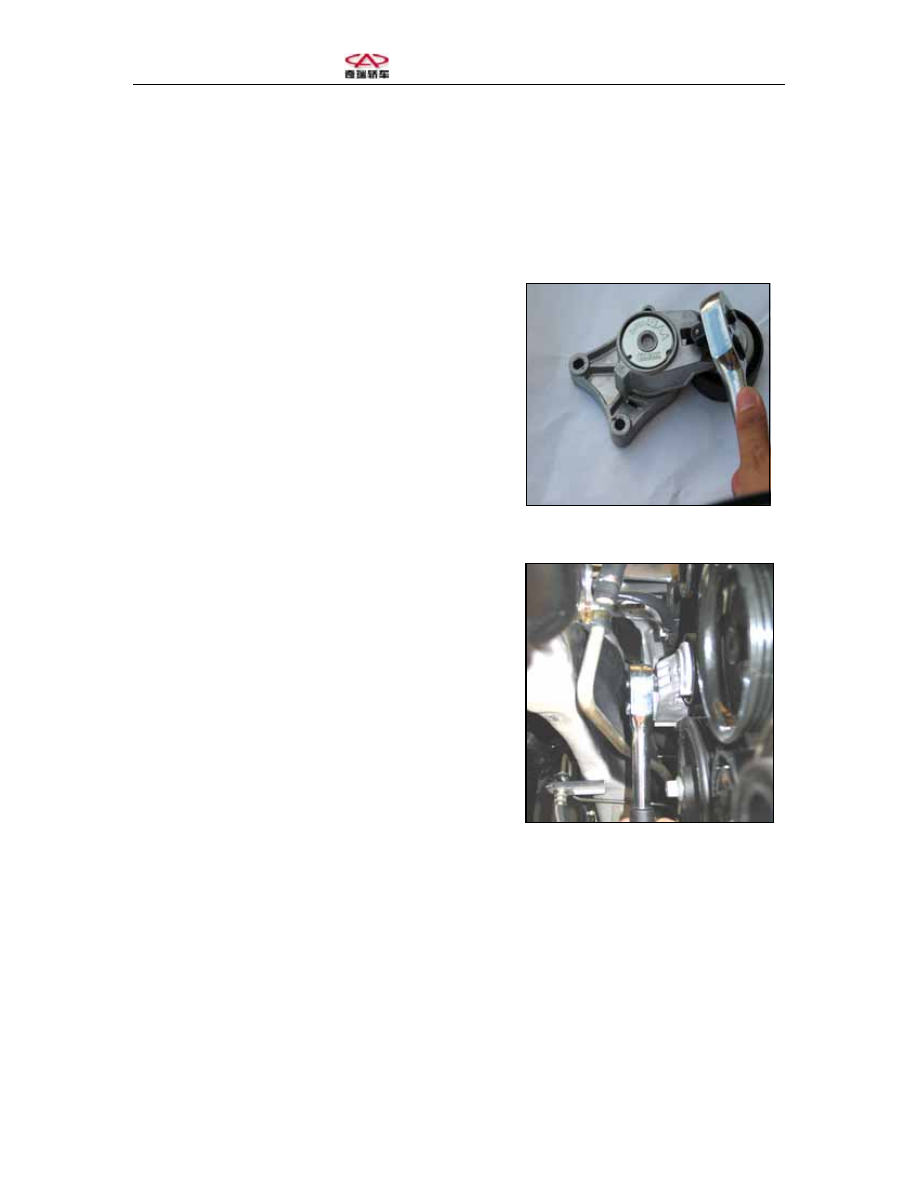

1) Insert the tie-in of a pair of quick
spanners into the belt tensioner.

























6

4

5




















2) Apply a torque of 98N (221bf) onto
the middle of the belt tensioner until it
caves in for 9.0 -11.5mm (0.35-0.45in).
3) Press down the quick spanner in a
reverse direction, release the tensioner
and take out the old transmission belt.
4) Pay attention to the belt’s reeling
direction during fixing, press down the
quick spanner in a reverse direction and
fix the transmission belt.







5) Release the tensioner and check if the
belt is properly located.










Note: Adjustment method for the
alignment of the transmission belt and
tensioner assembly.
- Turn the engine crank shaft’s belt
wheel with a pair of spanners for over
one round.
- Observe the alignment of the
transmission belt and tensioner assembly.
If the center of transmission belt goes
beyond the center of the tensioner
assembly, unfix the latter and insert
gasket to adjust.






















































Chapter Two Engine

Section One Maintenance Data of the Engine


1. Basic engine specifications
In-line engine, four-cylinder, single overhead camshaft
Displacement 1.6L
Stroke 85.8 mm (3.377 in.)
Compression ratio 10.5:1
Ignition sequence 1-3-4-2
Compression pressure 1172–1551 kPa (170–225 psi)
2. Engine cylinder body
Cylinder diameter 76.9924–77.0076 mm
Max. radial run-out 0.0076 mm
Max. taper 0.051 mm
3. Piston
Piston diameter 76.956–76.974 mm
Piston upper clearance at 40.25mm: 0.018–0.52 mm
Piston weight: 219–224 g
Piston clearance at the lowest end: 0.758–0.790 mm
Piston length: 46.25 mm
Piston pin hole inner diameter: 19.008–19.015 mm
First piston ring width: 1.215–1.235 mm
Second piston ring width: 1.215–1.235 mm
Third piston ring width: 2.521–2.541 mm
4. Piston pin
Clearance between piston pin hole and piston pin: 0.008–0.015 mm























Continued
Diameter: 18.995–19.000 mm
Length: 56.50–57.00 mm
5. Piston ring
First piston ring opening clearance: 0.20–0.36 mm
Max. maintenance limit: 0.8 mm
Second piston ring opening clearance: 0.25–0.46 mm
Max. maintenance limit: 1.0 mm
Third piston ring opening clearance: 0.20–0.58 mm
Max. maintenance limit: 1.0 mm
Compression ring side clearance: 0.025–0.065 mm
Maintenance maximum limit: 0.10 mm
Engine oil ring side clearance: 0.004–0.178 mm
Compression ring width: 1.17–1.19 mm
Engine oil ring width: 2.354–2.517 mm
6. Connecting rod
Bearing clearance: 0.023–0.067 mm
Maximum wear limit for maintenance: 0.075 mm
Connecting rod small head diameter: 18.96 - 18.98 mm
Connecting rod big head diameter: 47.005 - 46.991 mm
Connecting rod length: 135.6 mm
Connecting rod weight: 241.32g
Side clearance: 0.13–0.38 mm
Maximum wear limit for maintenance: 0.40 mm
7. Crank shaft
Connecting rod shaft collar diameter: 43.992–44.008 mm
Main shaft bearing’s shaft collar diameter: 47.922–48.008 mm
Shaft collar maximum radial run-out: 0.006 mm (Max.)
Shaft collar maximum taper: 0.008 mm (Max.)
