  Chery A15 Maintenance Manual



Chapter Ten   Seat Frame



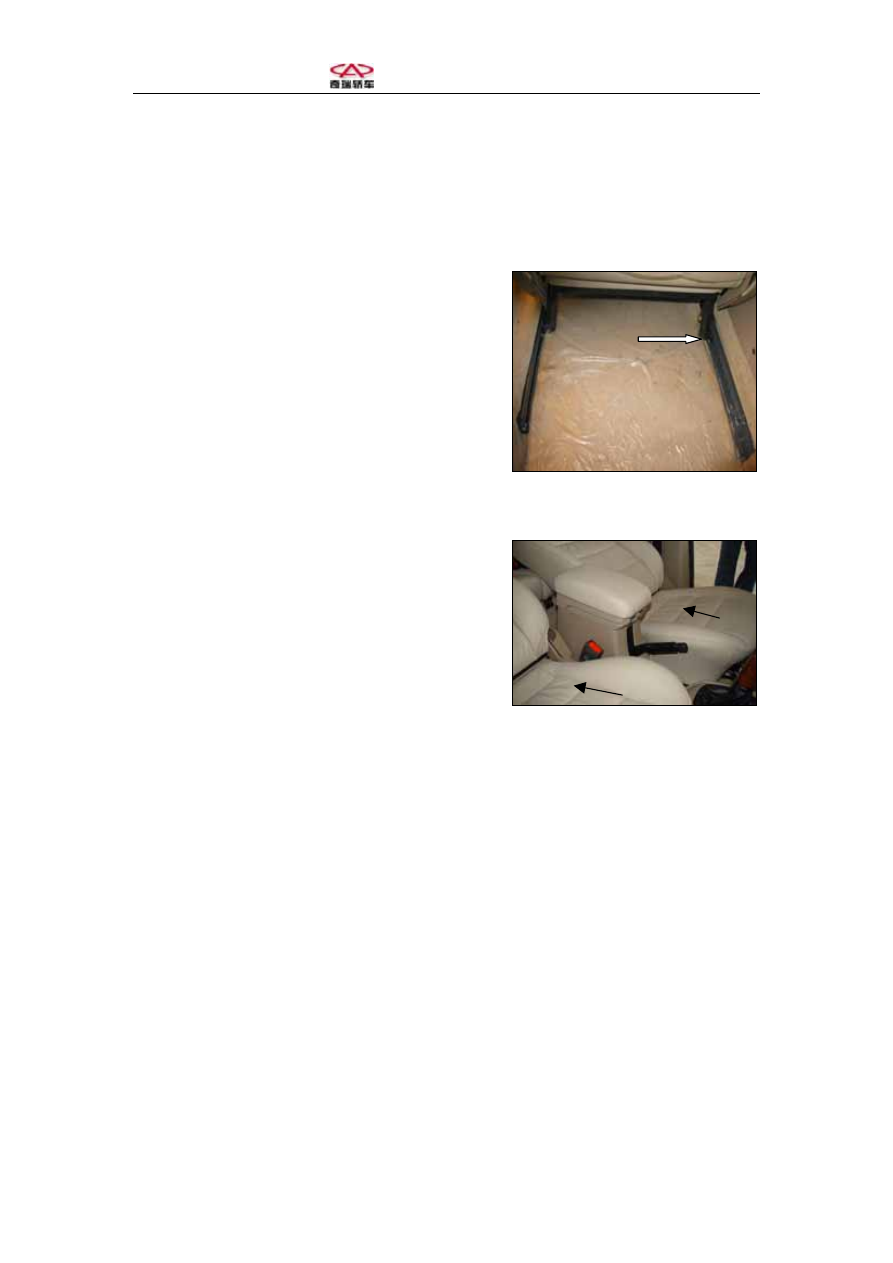

I. Front seat

Disassembling and installing

1.  Move the front seat forward. Remove

the rear brake. Loosen the set bolt for

the adjuster and remove the guide rail.







2.  Loosen the nut and take out the

locking bolt.

3. Loosen the seat adjuster rod. Move

the seat backward to disengage it from

the guide rail.

      4. Electricity lines for the seat safety belt

      5. Guard board for the seat slide

Installing procedures are in the

reversed order. Tightening torque for

the limit screw is 2.5±0.5N·m. Location of

front right/left seat in the complete

vehicle should enable space between the

front seat and the rear seat to be 740±20mm.







  Chery A15 Maintenance Manual

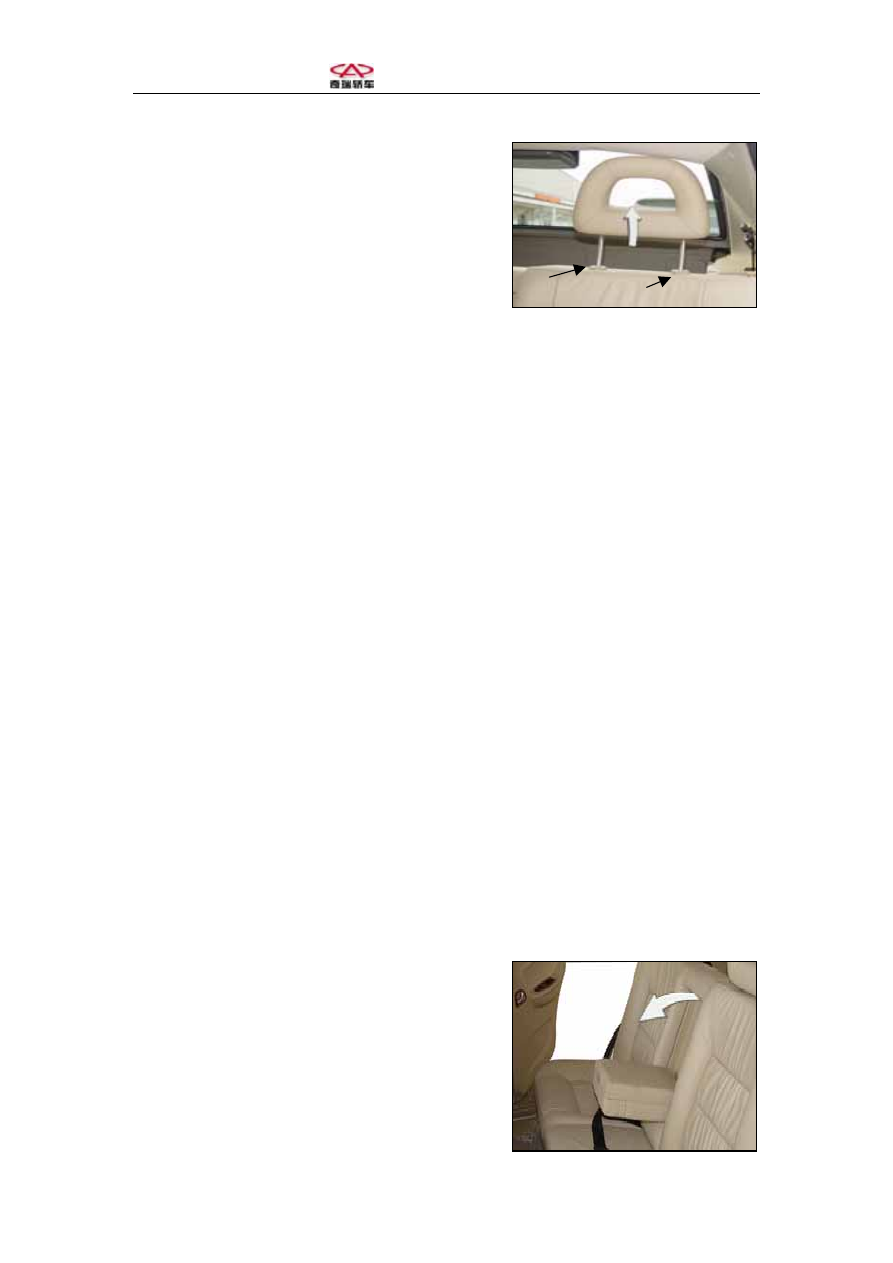

II. Headrest

Disassembling and installing



  Draw the headrest upward until it

reaches the side lever contact. Disassemble

with screwdriver the fixing clamp between the

headrest side lever and the guide groove on the

rear side of the seat back.



When installing, bear in mind the position of

Spring clamp, mount it before inserting the headrest

side lever.

III. Rear seat

Disassembling and installing.

1.  Pull out the rear adjuster control

rod and disengage the seat. Fold the rear

seat forward.

2.  Remove the protection lid between

the cushion and the set bolts on the

vehicle floor.



3. Loosen the set screw between the

Seat at the rear beam and the vehicle floor.

Installing procedures are in the

reversed order. Tightening torque for

the screw of cushion assembly is 2.5±0.5mm.



   IV. Dismountable rear seat

Overall or partial disassembling and

installing

Pull upward the adjuster control rod of the

rear seat until it is disengaged from the

  Chery A15 Maintenance Manual

front folded part of the seat.

      Remove the protection lid of the

set bolt between the seat and the

car.

      Loosen the set bolts on corresponding

positions on the rear beam of the vehicle.

      Installing procedures are in the

reversed order.

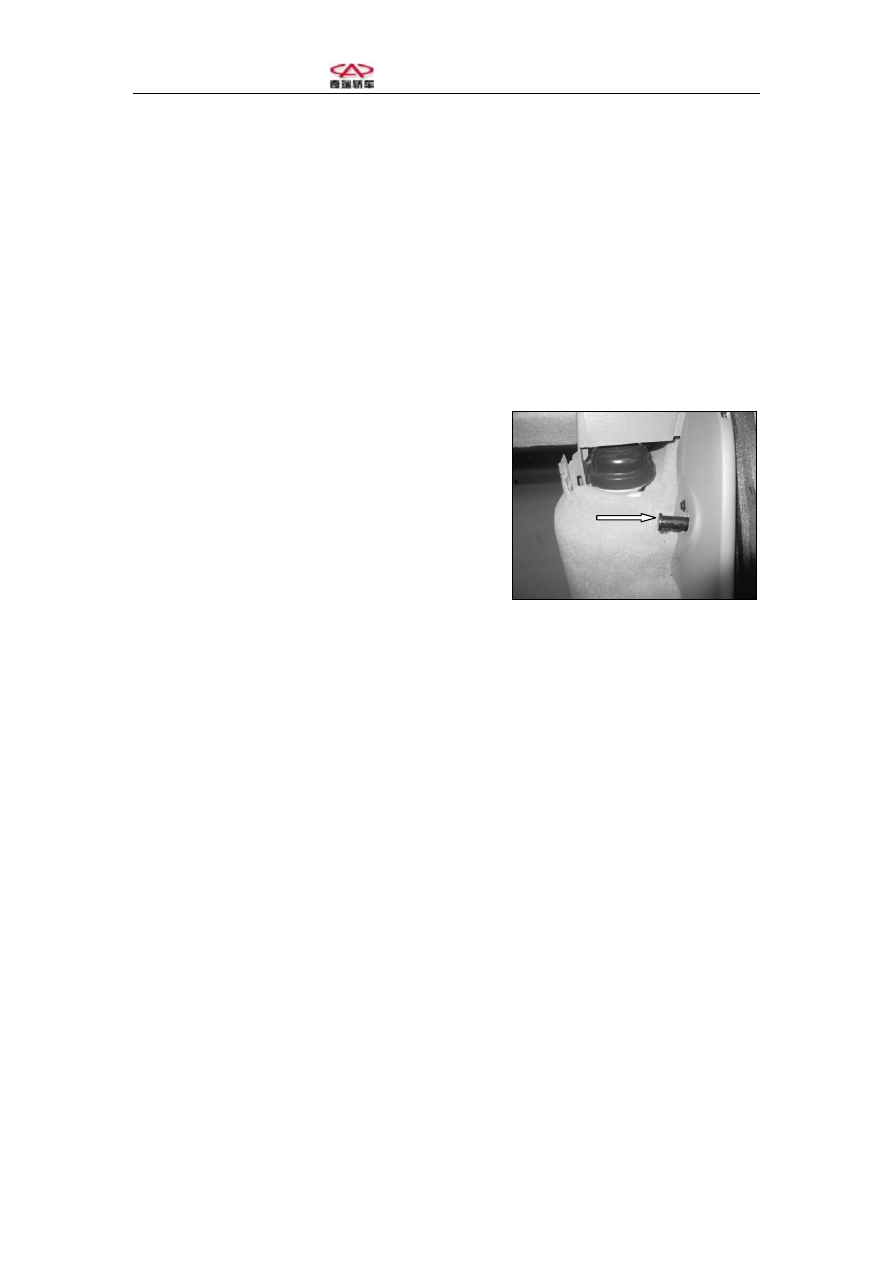

      V. Fixture on top of rear seat back

Disassembling and installing

Loosen the set bolt of the fixture

piston pin

      Installing procedures are in the

reversed order.









  Chery A15 Maintenance Manual



Chapter One: Axle and Suspension System



Axles and suspension system ensure the normal running of vehicles by receiving the

torque transferred through transmission system from the engine and making use of the

traction on vehicle by road surface through the adhesion between driving wheels and

the road surface. They also relieve the vehicle body from the impact and vibration

from road surface by transferring and receiving all counterforces applied on wheels by

road surface, thus ensuring the smoothness and stability of vehicle operation.



Section One: Maintenance of Front Axle and Front Suspension



I. Structure of Front Axle and Front Suspension

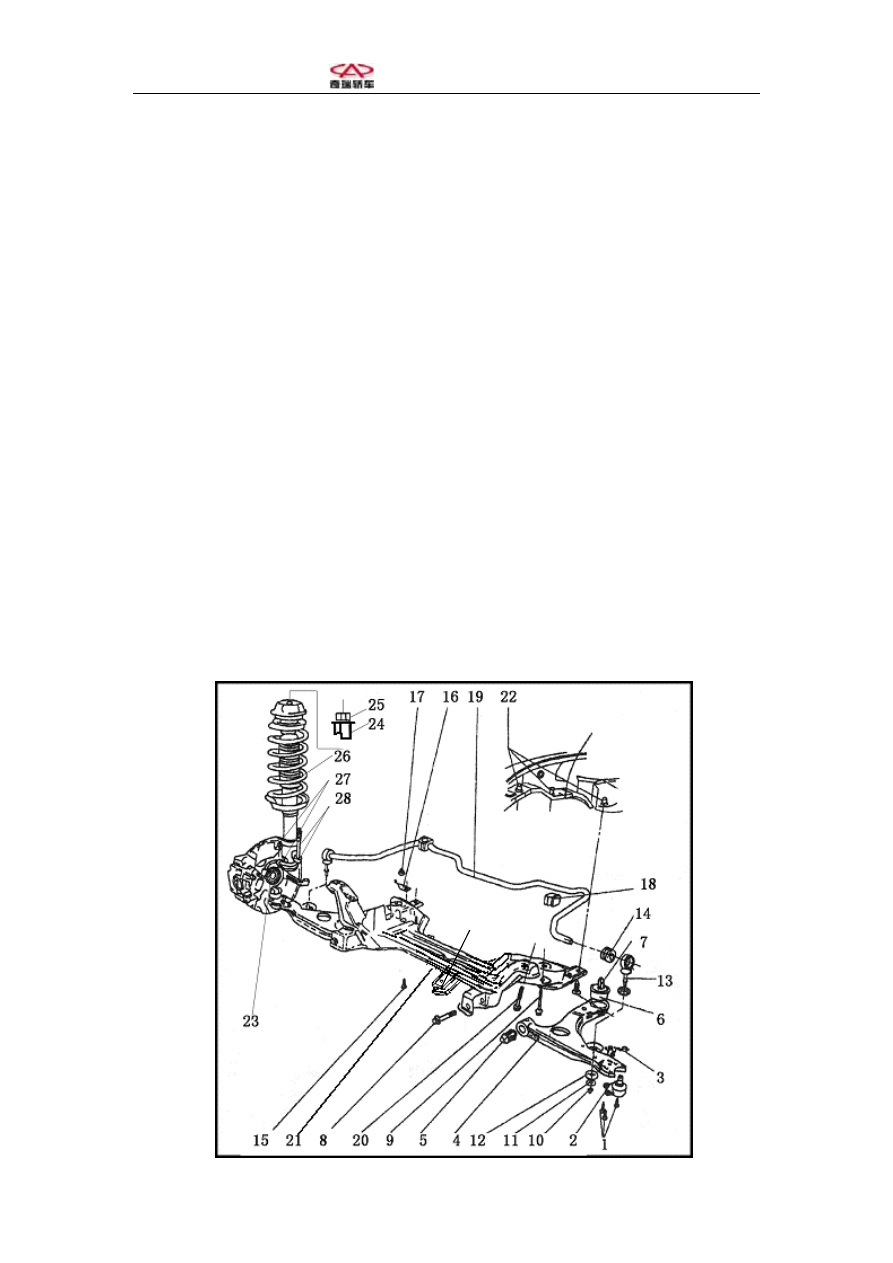

Front suspension consists of subframe, antiroll bar and control arm, etc., as shown in

the figure below.
