Chapter Nine      Inner Lining and Decoration



I. Instrument panel

Disassembling and installing

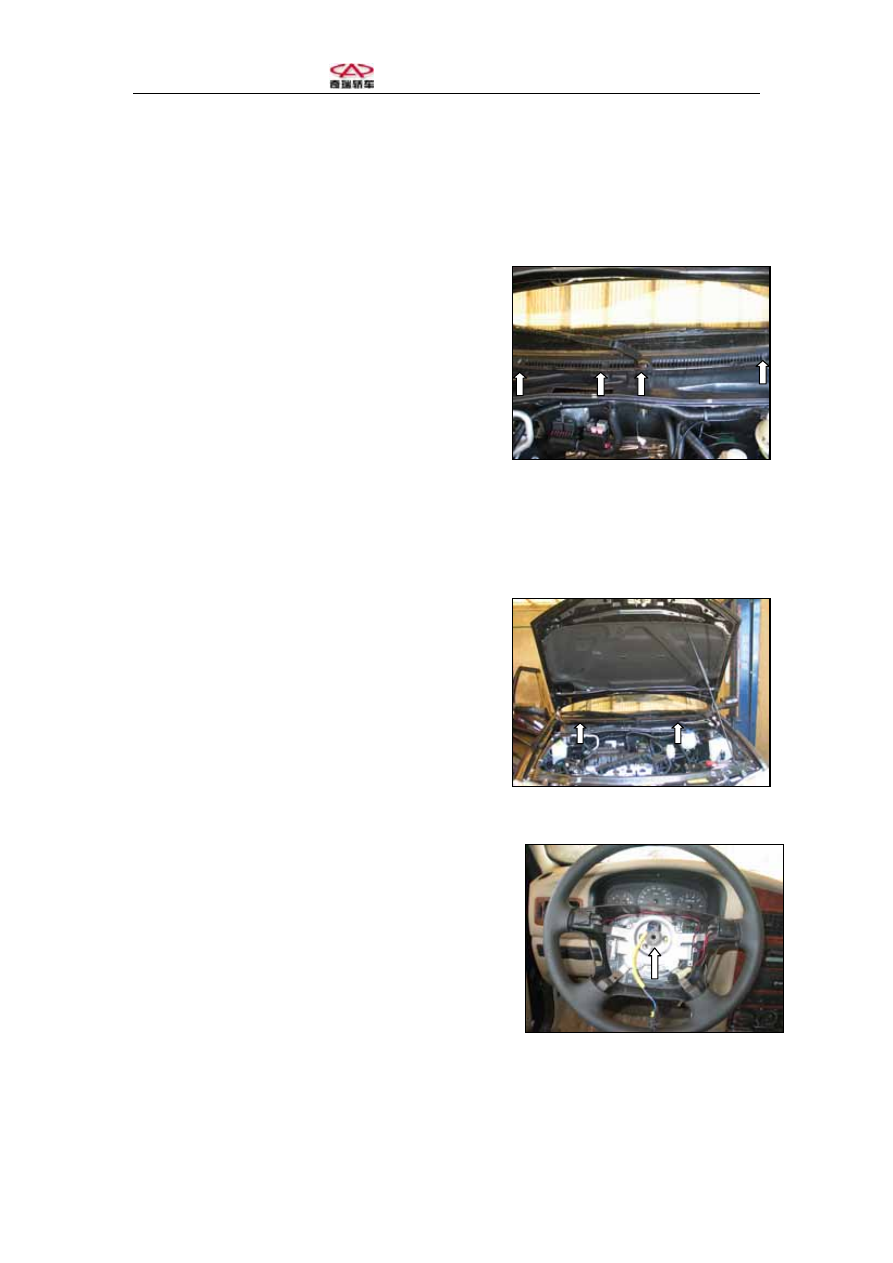

A. Procedures within the engine housing

1. Remove the battery negative pole.

2. Remove the scraper on right side of the

windscreen. Loosen the four clamps on bottom of

the windscreen glass decorative board. Remove the

box lid.





3. Remove the two set screws on the

instrument panel from the drip rail.









B. Procedures within vehicle

1.  Disassemble the steering wheel, pull the air

bag upward and remove it (see section

“Disassembling air bag”). Loosen the set

nut between the steering wheel and the steering

shaft.









  Chery A15 Maintenance Manual

2.  Disassemble the control and protection

switch for the light on steering column.

3. Take out the three radiator outlets by



overcoming resistance of the fixing clamp.





Remove the water glass bracket

lid and loosen the two fixing

screws on internal side.

Note: Don’t damage the cover clamps. Remove

the switch and lid on either side of the instrument

panel. Remove lid of the radio cover and the air

conditioning control cover.



4.  Loosen the set screws of the instrument

panel cover and remove the cover.

5.  Take out the set screws of the

instruments on the dash in the cab and disassemble

the instrument panel. Remove the switch and bottom

lid on left side of the steering wheel. Remove the

bottom lid on left side of the tool box.

  Chery A15 Maintenance Manual



6.  Remove the plug. Loosen the set screws

on the right surface of the instrument panel and the

screws on the gap bottom on the left side of the

tool box.

      Remove the protection lid on lower right part of

the instrument panel.





7.  For a vehicle with molded bottom bracket,

The dust leather sleeve on the gearshift lever should

be removed and the set bolt between the

instrument panel and the vehicle floor should be

loosened, then remove the instrument panel.









8.  Remove the plug. Loosen the set screw

on the left surface of the instrument panel and the

screws on the bottom of the bracket left side.

Loosen the set screws of the control device.











9.  Remove the instrument panel. Disengage

the cable from the its clamps. Remove the

necessary electrical components.
