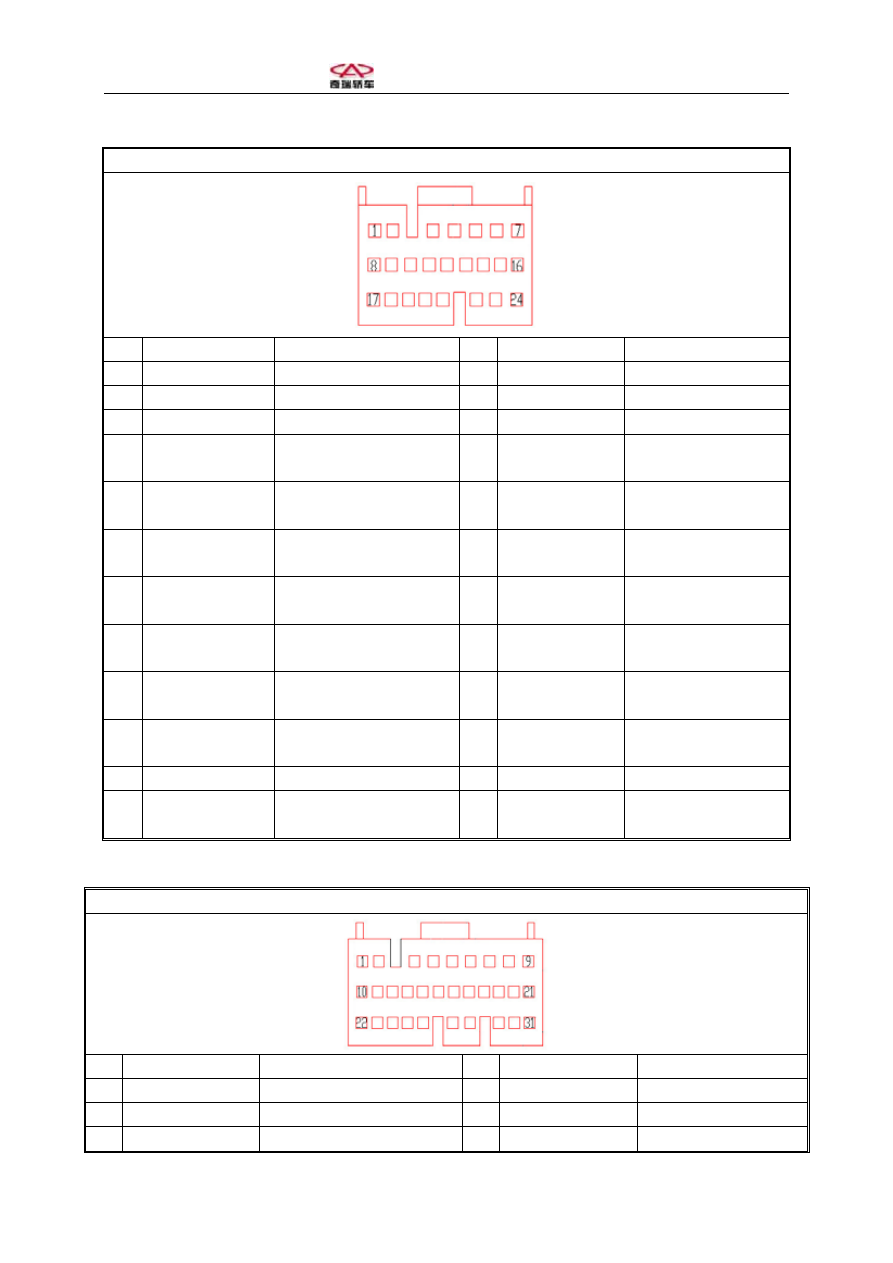

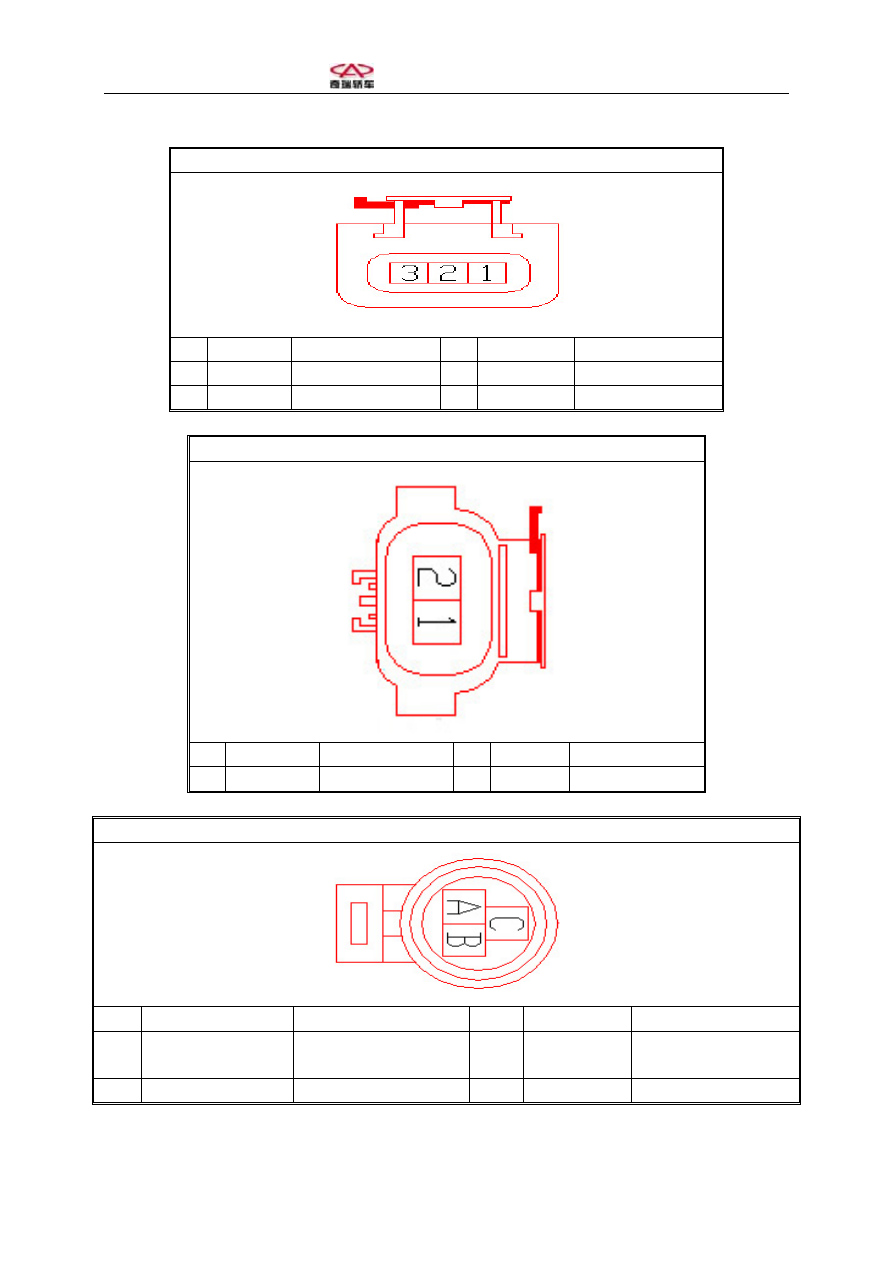

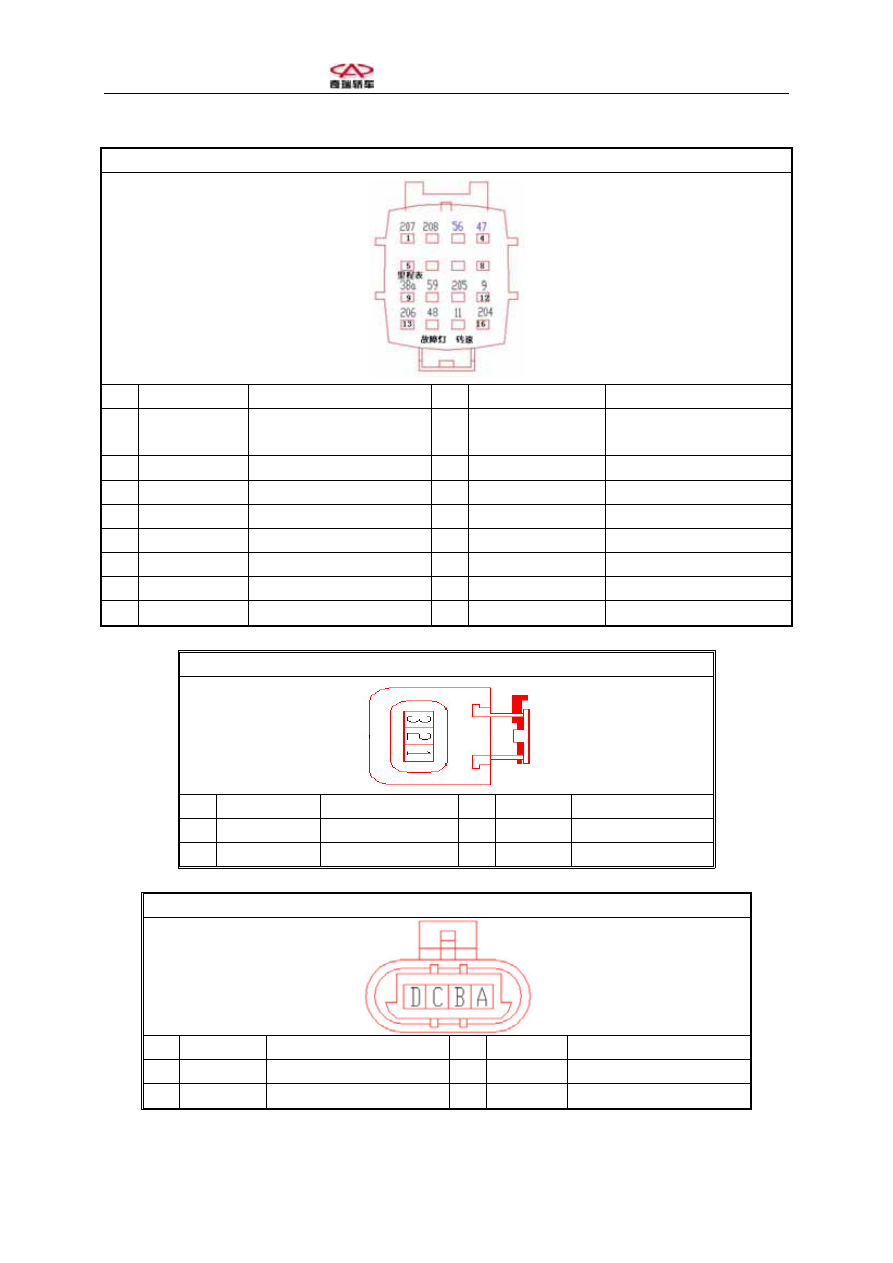

C215 ECU Plug-in 02
Pin Color
Description Pin
Color
Description
1
2.5 Red/yellow
Power 15 terminal
2
Empty
3
2.5 Red
Power 30 terminal
4
0.5 Brown
Earthing
5
Empty
6
2.5 Yellow
Knock sensor signal
7
Empty
8
0.5 Brown/white
Air intake pressure
sensor signal
9
0.5 Yellow/brown
Throttle position signal
10
0.5 Red/green
Air intake pressure
sensor power supply
11
0.5 Yellow/green
Air intake temperature
sensor feeder earthing
12
0.5 Brown
Earthing
13
0.5 Green/blue
Camshaft signal wire
14
Primary oxygen sensor
signal wire
15
0.5 Blue/white
Secondary oxygen sensor
signal wire
16
0.5 White
Crankshaft position
sensor B wire
17
0.5 Green/white
Water temperature sensor
18
0.5 Brown/green
Air intake temperature
sensor
19
0.5 Gray
Throttle reference voltage
20
0.5 Green/brown
1.0 Black
Sensor earthing
21
0.5 Red/green
Vehicle speed sensor
22
Empty
23
Empty
24
0.5 Orange
Crankshaft position
Sensor A wire

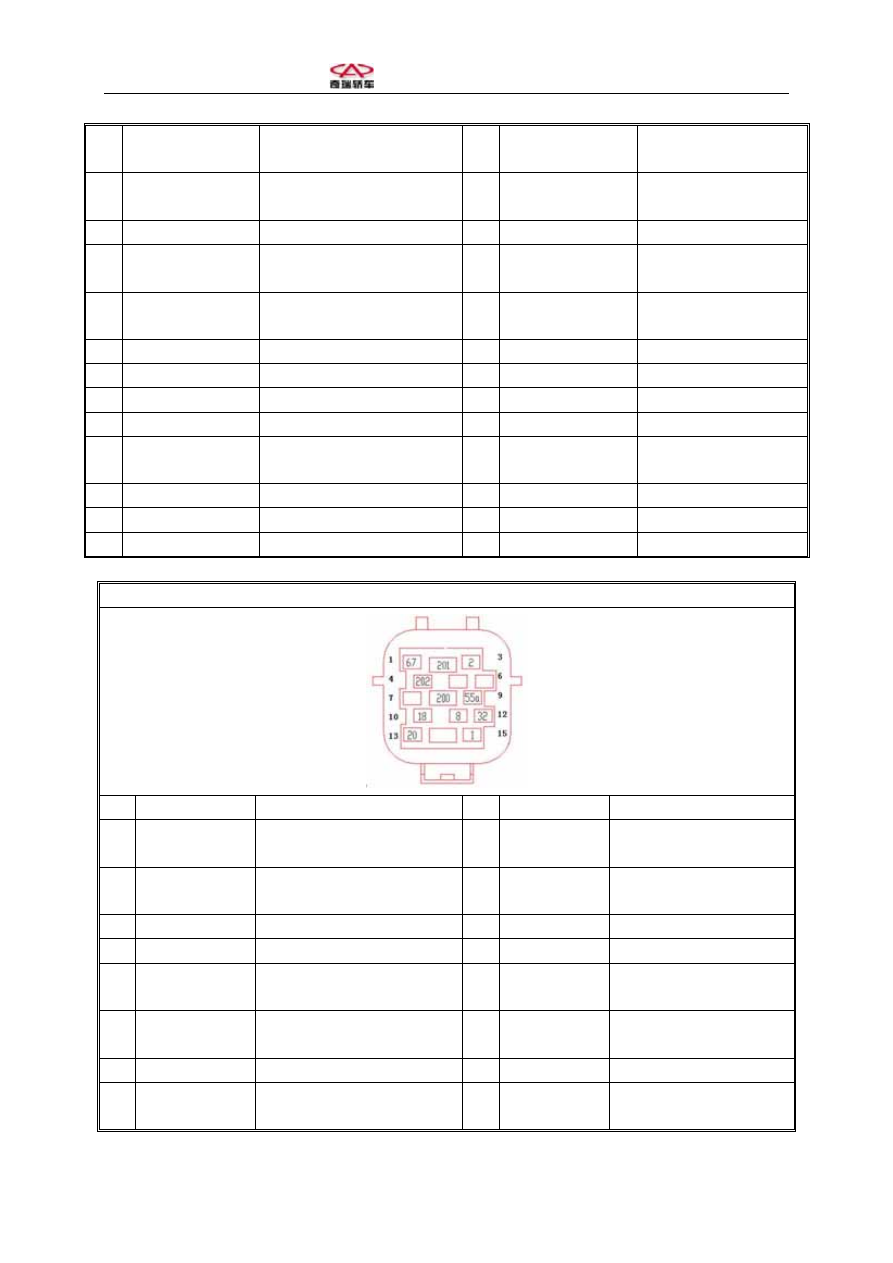

C216 ECU Plug-in 03
Pin Color
Description Pin
Color
Description
1
2
3
4
0.5
Brown Earthing
5
0.5 Blue
1, 4-Cylinder ignition control
6
0.5 Pink
Diagnose socket wire 2
