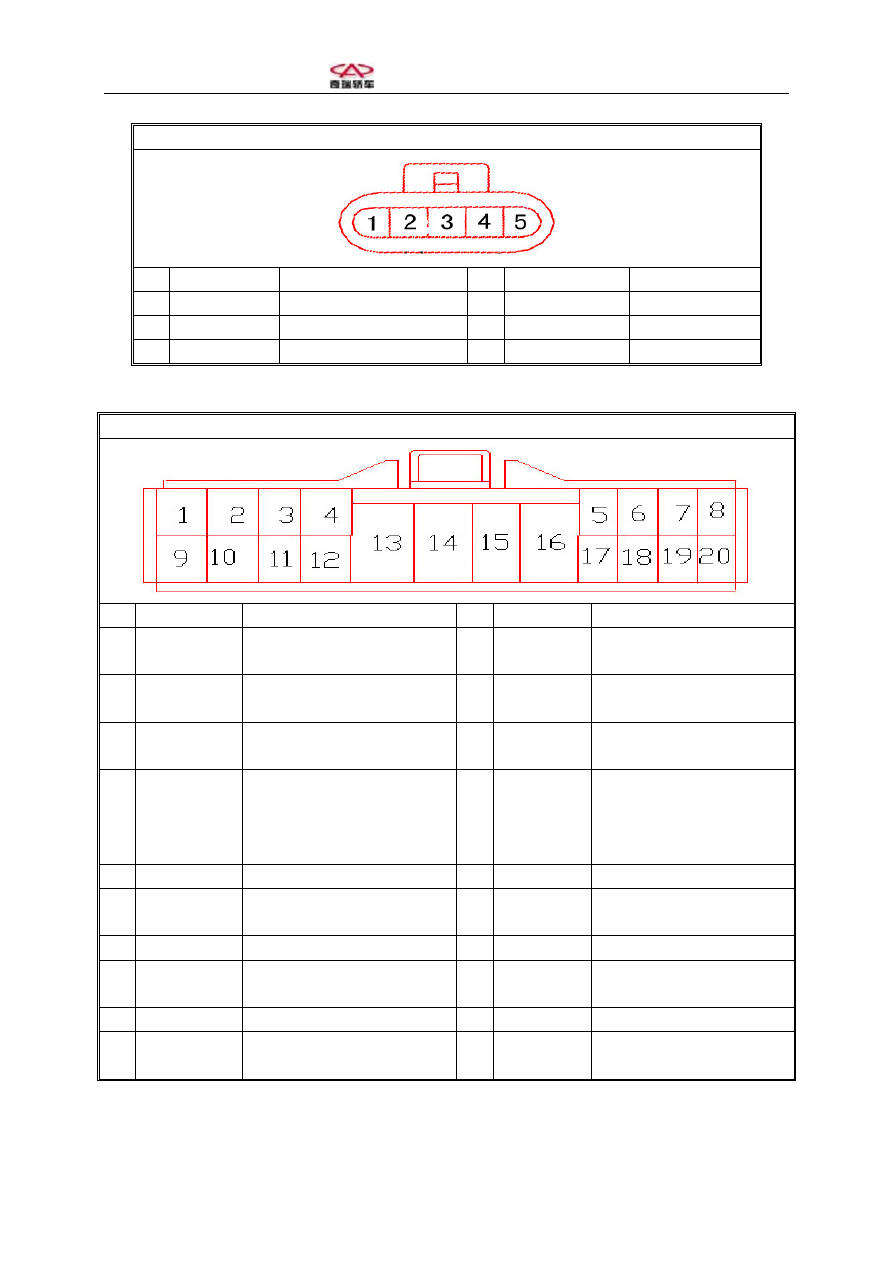

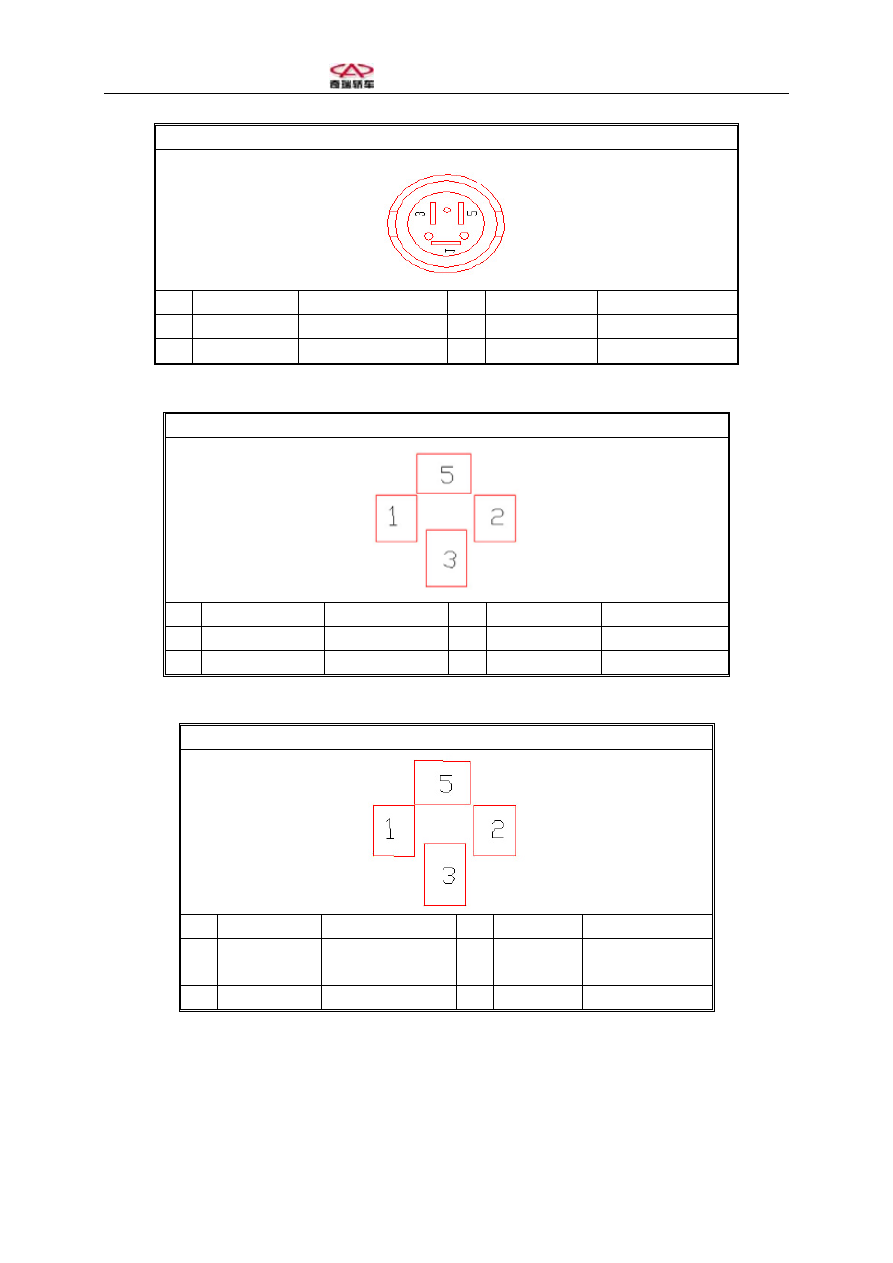

C144 Headlight Regulator Plug-in
Pin Color
Description
Pin
Color
Description
1 0.5
Red/blue Headlight
regulating
motor
2 0.5
White/yellow
Fuse
3
0.5 Gray/black
Headlight switch
4
0.5 Brown
Earthing
5
Empty

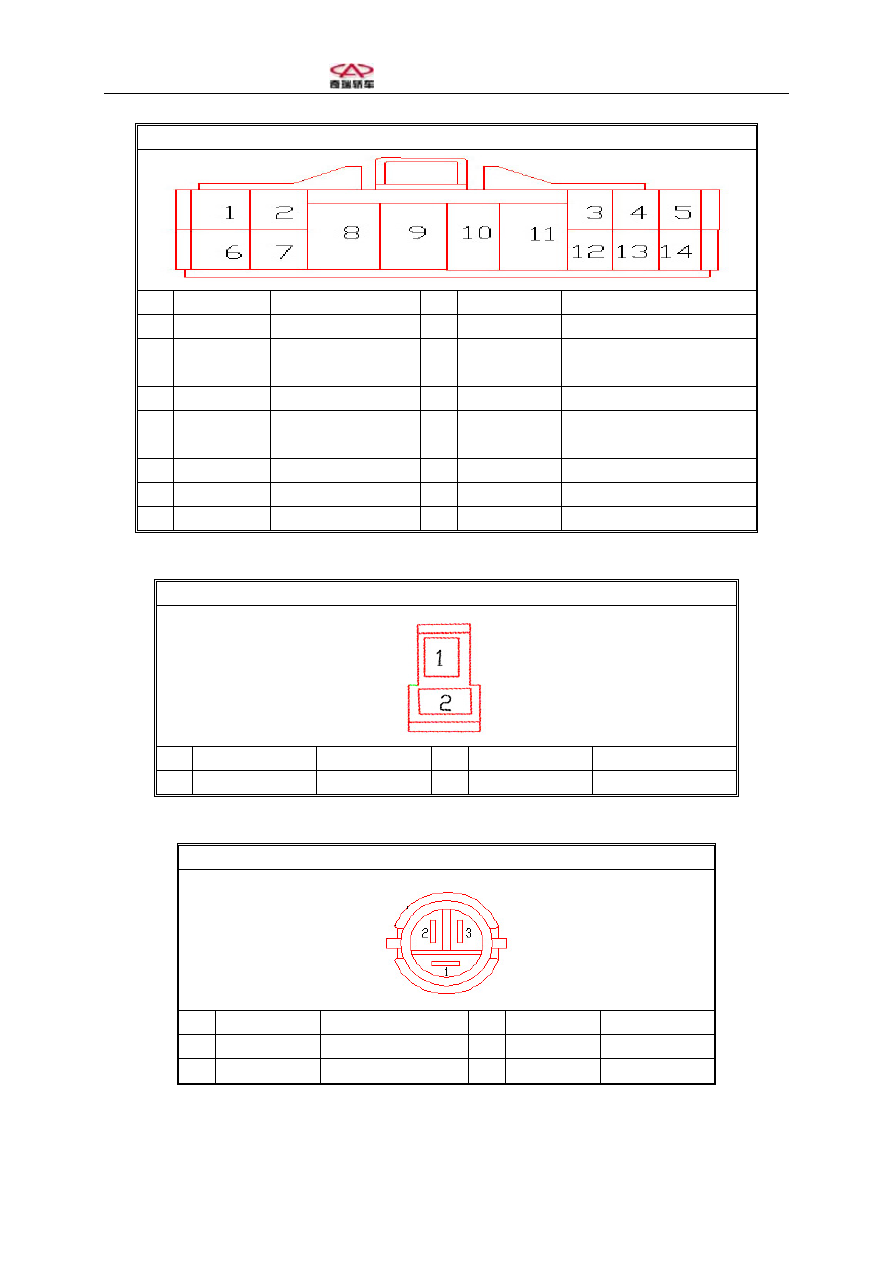

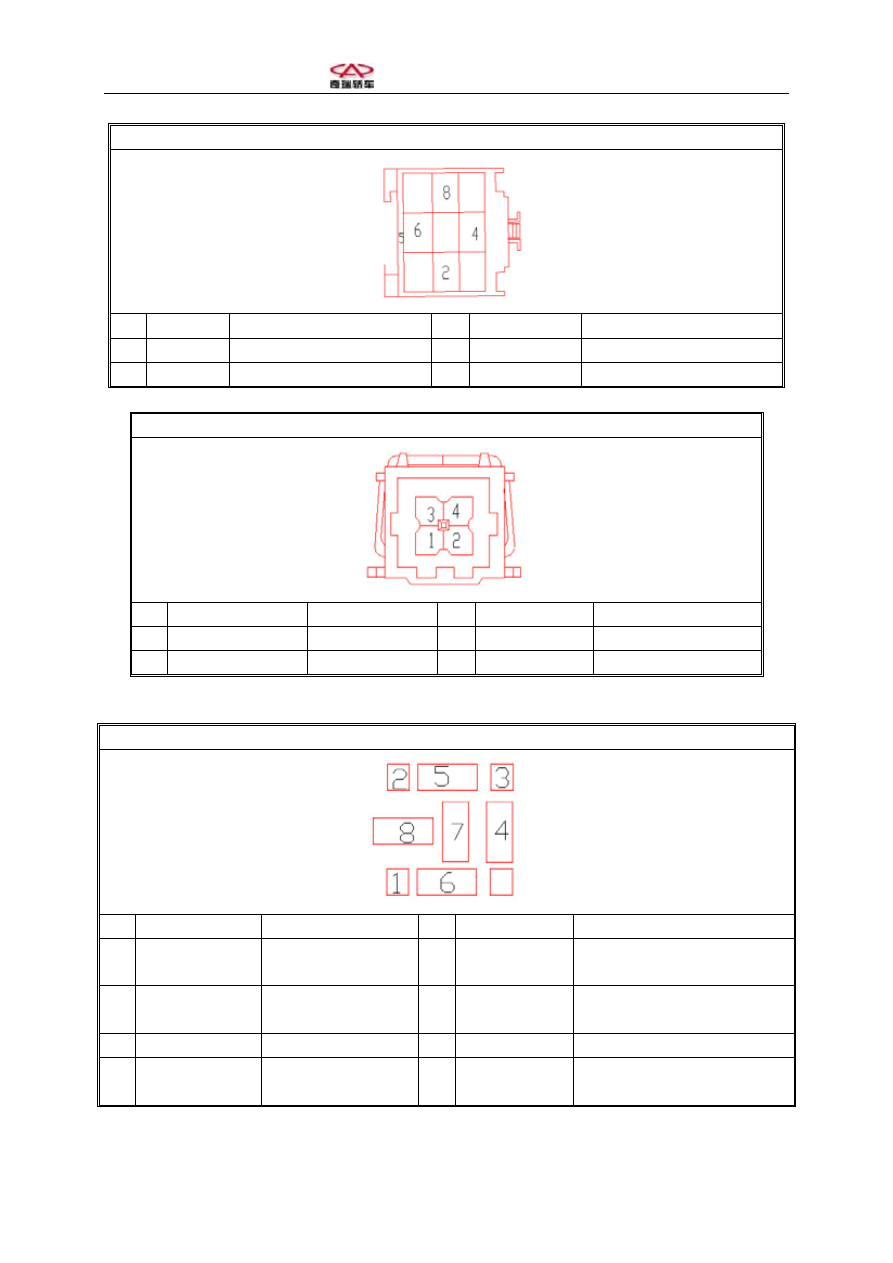

C137 Electrical Box Plug-in C
Pin Color
Description
Pin
Color
Description
1 0.5
Brown/blue
Horn switch
2
1.5 Green
Fog light relay (+)
3 1.0
Red/yellow
Fog light switch
4
1.5
Black/red
Horn relay signal
5 1.5
Black/white
Two-tone horn
6
1.0
Black/gray
Wiper motor (+)
7
0.5 Gray
Wiper indicator light,
illuminating
light switch, regulatorble
resistor of light switch
8 1.0
Black/blue
Reversing light switch
9
Empty
10
Empty
11 1．0
Red/purple
Oxygen sensor/carbon canister
12
0.5 Brown
Fog light relay (-)
13
Empty
14
1.5
Black
Empty
15
2.5 Red
Engine computer pin 20#
16
2.5 Red
Central electrical box power
supply anode (30)
17
Empty
18
1.0 Black
Wiper intermitter relay
19 0.5
Gray/green
Parking light
20
Empty
