Chery A15 Maintenance Manual
Chapter Two Illumination and Signaling Device
Section One Illumination Signaling Device Circuit Analysis
The illuminating system of Chery A15 sedan car includes head light, fog light,
body light, instrument light, trunk light and license light, alarm indicator light, etc.;
signaling system includes turn light, reversing light, parking light, tail lamp, brake
light, parking brake indicator light, etc. The specifications of illumination and
signaling device are as shown in the following table:
Specifications of Illumination and Signaling Device
Name
Specifications
(H4 halogen
bulb)
Qty. (pcs)
Name
Specifications
(H4 halogen
bulb)
Qty. (pcs)
Head light
12V55W
2
High mount
stop lamp
12V5W 1
Front fog
light
12V55W 2
Brake /
position lamp
12V21W/5W 2
Rear fog light
12V21W
2
Body light
(dome lamp)
12V10W 1
Turn light
12V21W
4
Engine
compartment
lamp
12V10W 1
Reversing
light
12V21W 2 Trunk
light
12V5W 1
License light
12V5W
1
Glove box
lamp
12V⒈2W 1
Position lamp
12V5W
4
Side turn
light
12V5W 2
Horn
Binaural
swirling
electronic horn
,
sound
intensity≥105Db
(A)
1
Head light circuit analysis and troubleshooting:

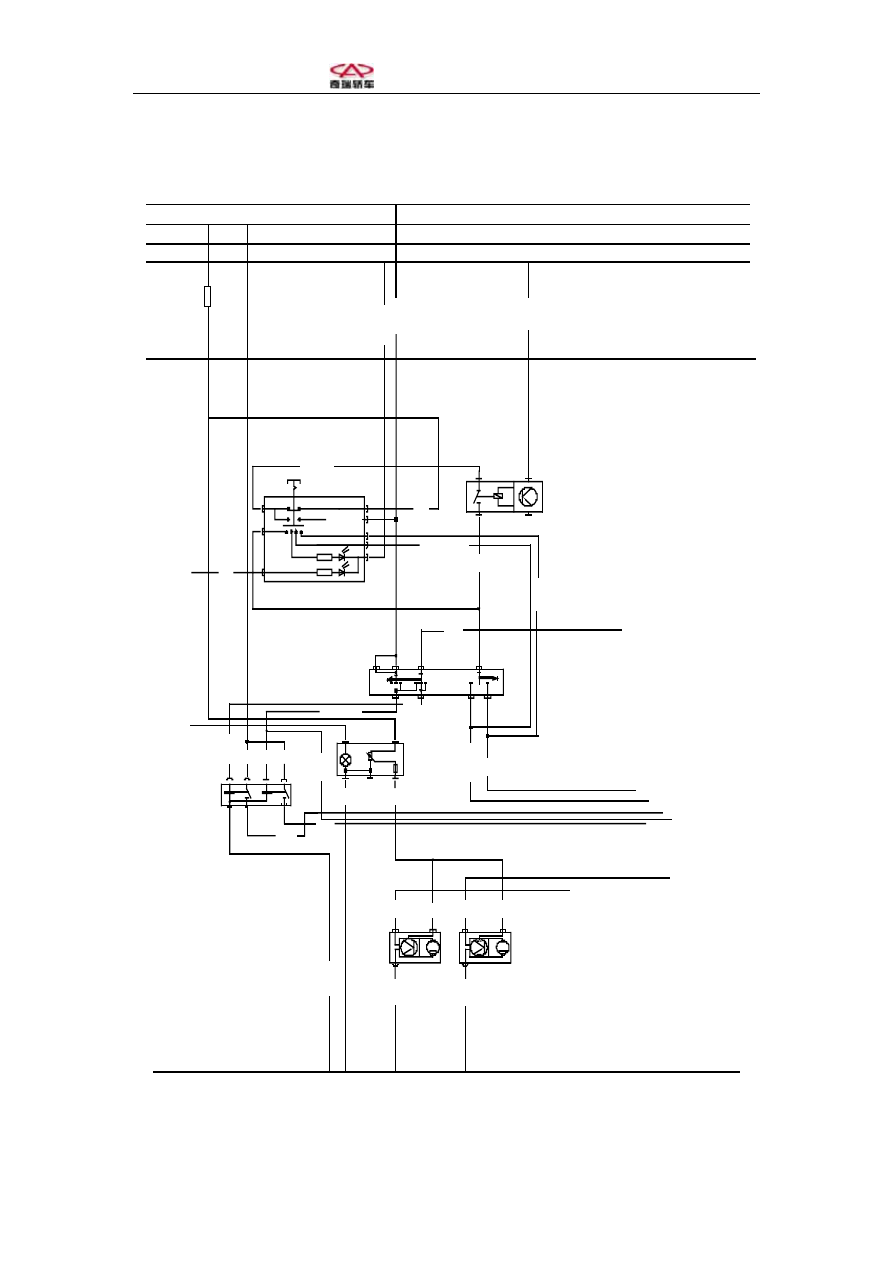

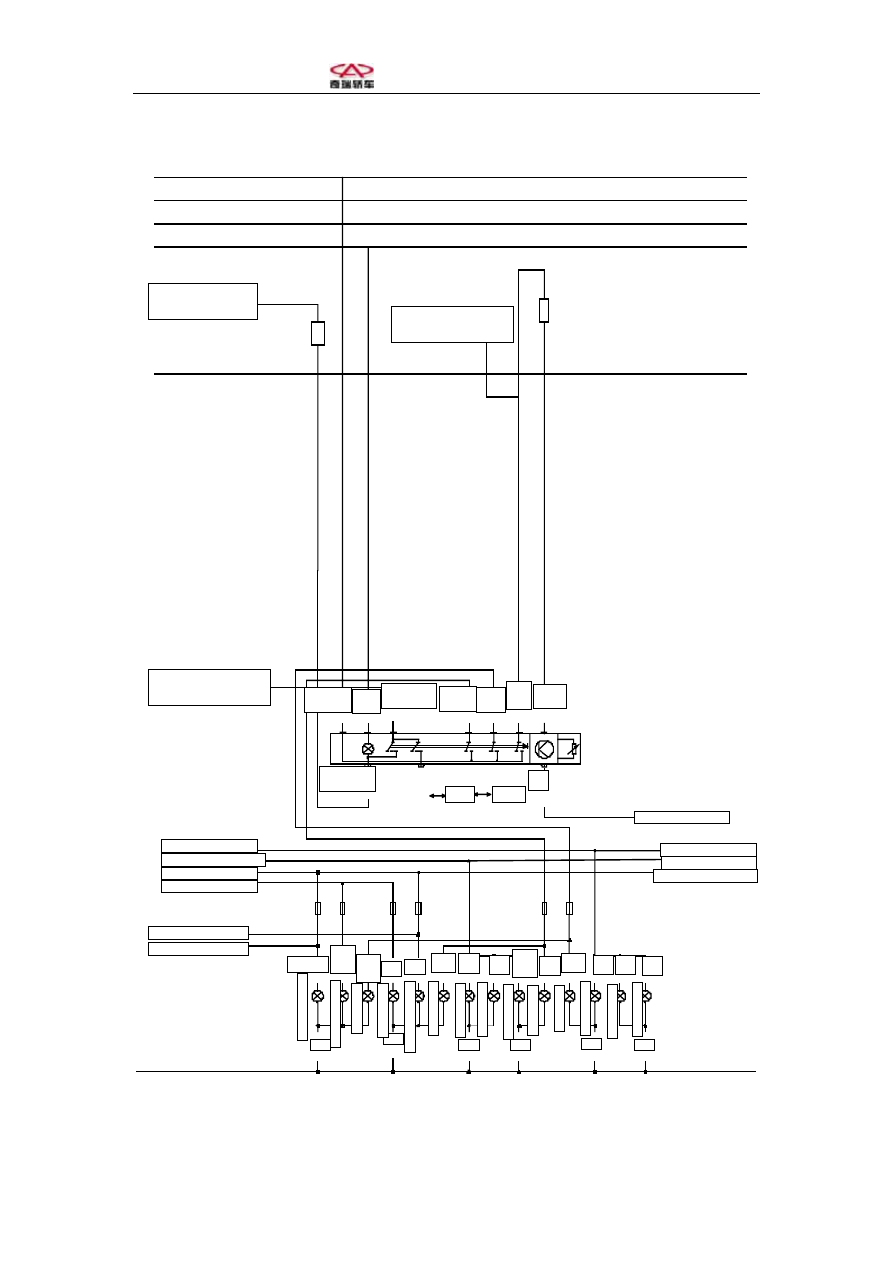

Chery sedan car head light circuit mainly consists of accumulator, fuse, lighting
relay and lighting switch. The following figures are lighting switch circuit diagram
and head light lighting circuit diagram respectively:
- 27 - SAIC CHERY AUTOMOBILE CO., LTD
