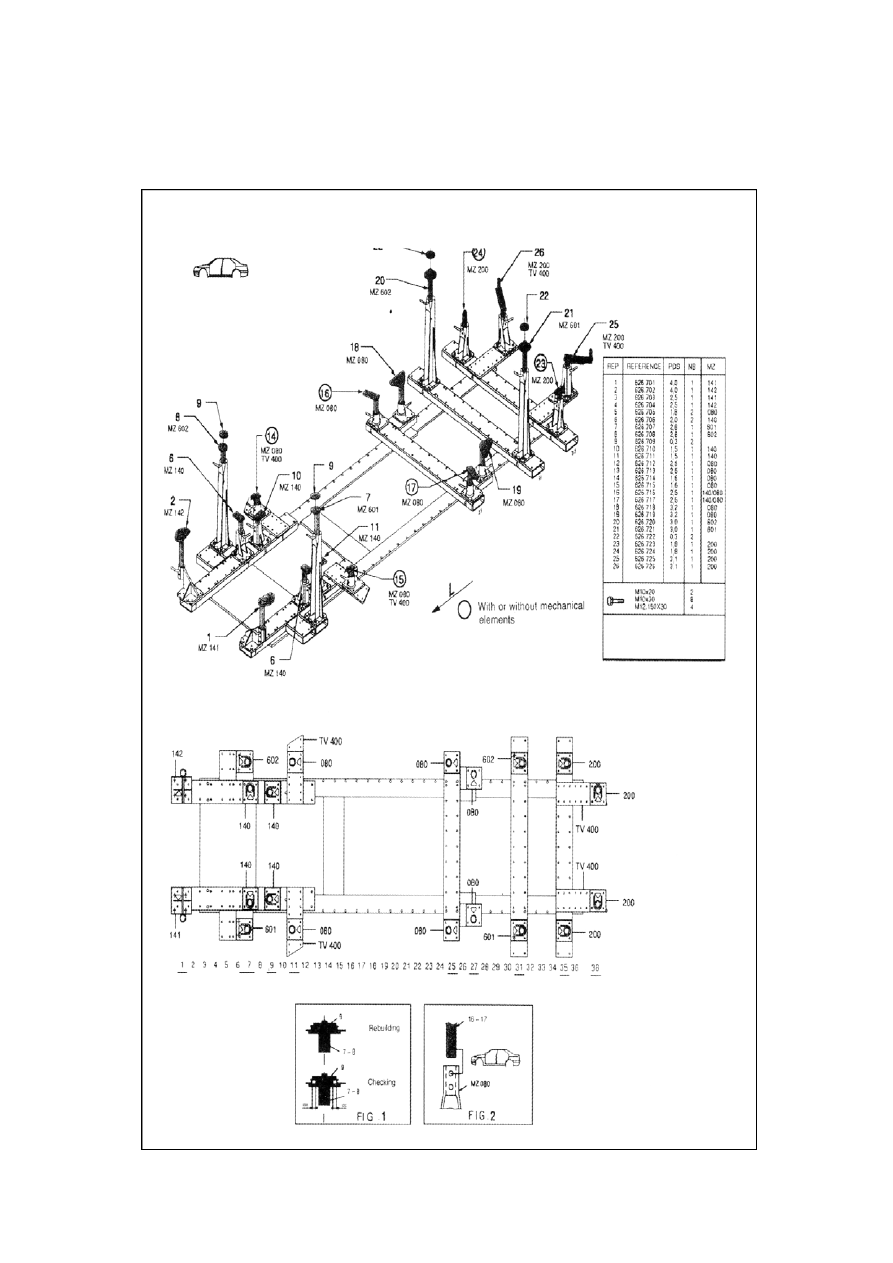

INSPECT THE BODY BY USING THE FRAMEWORK OF SPECIAL
MEASUREMENT SYSTEM (Fixed mechanical tools are to be used during inspection)


























































S-62

SUNROOF

BRIEF INTRODUCTION OF SUNROOF’S MODEL AND FUNCTION

The agate super 300 auto sunroof, which is a new generation product manufactured by
German Webster Auto Sunroof Manufacturing Company, is the new option sunroof of Chery
A15 sedan.



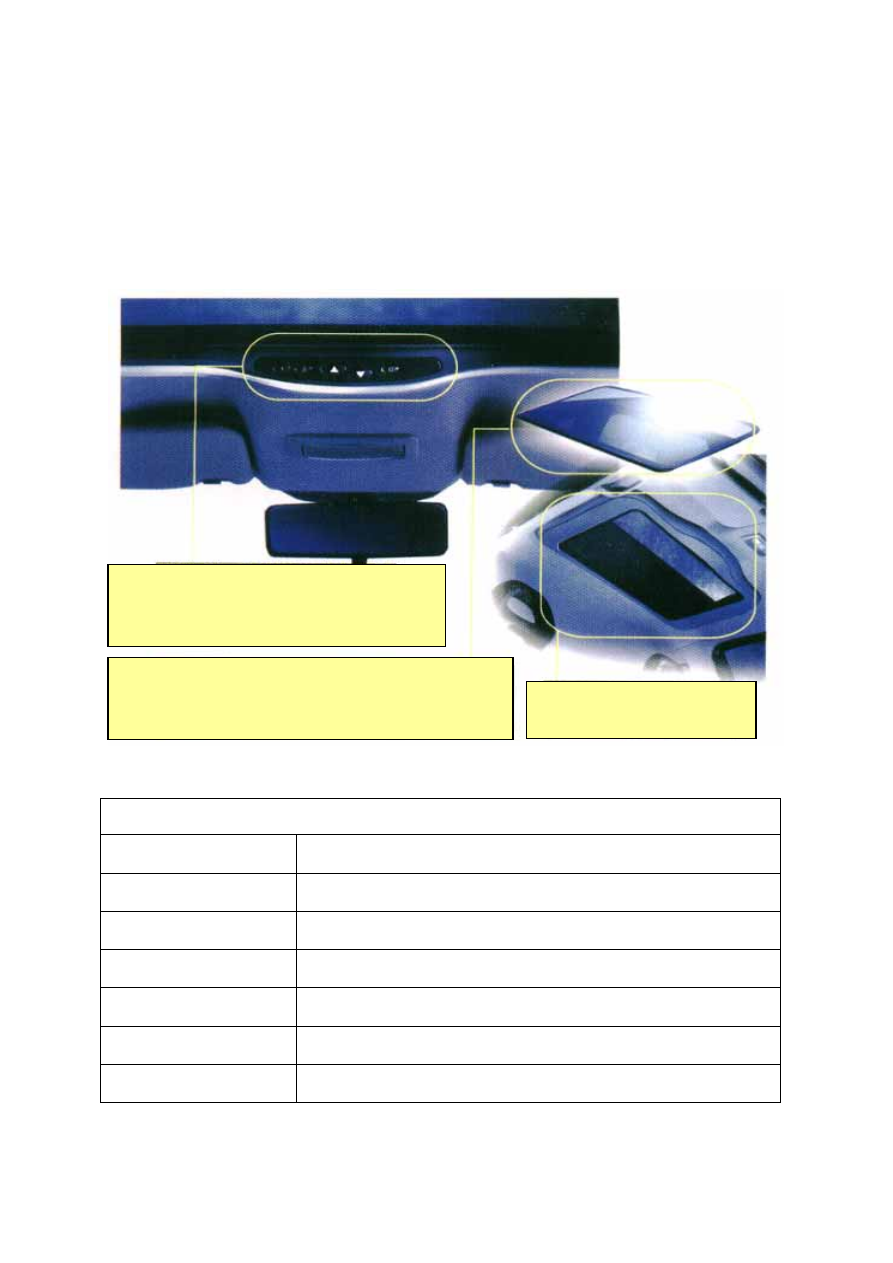

The good looking computer control panel features
with powerful functions as pre-program of glass
opening position, automatic closing in case of
engine switch-off, and anti obstruction device.



Agate super 300 medium size electric sunroof

Equipment

Interior trim casing with rolling-up sunshade.

Function

Anti obstruction mechanism, memory, automatic close and etc.

Type

Outward opening sunroof

Sliding opening

250mm

Tilt height

52mm

Outline dimension

803×370mm

Applicable type

SQR7160/SQR7162

High quality roll-up sunshade is
capable to be put at any position.

It is designed with the extreme large sliding distance and
inclining angle, further to insulate more than 99.9% of
ultraviolet radiation and 96% heat by employing the 10#
strengthened safety crystal glass of gray greenish color.

S-63

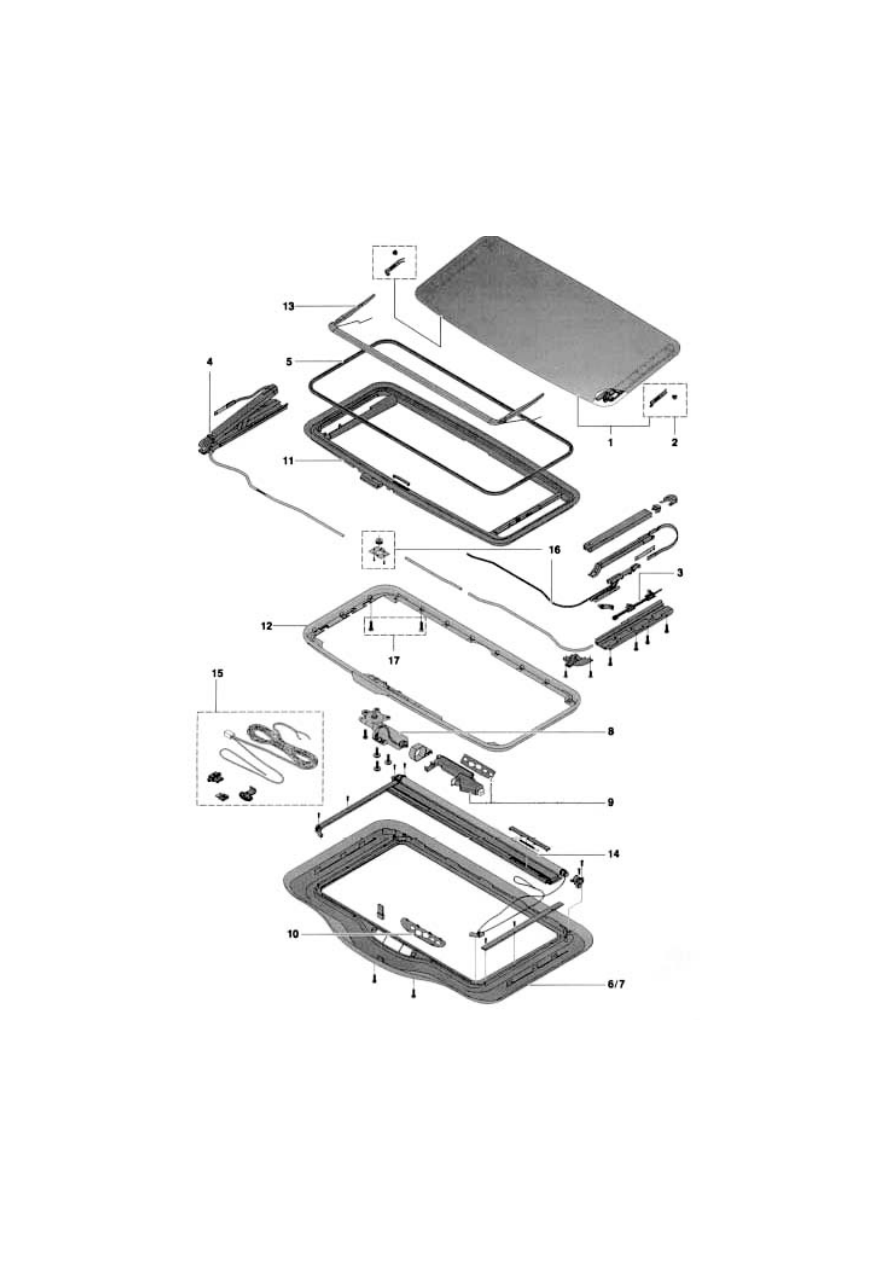

PARTS OF SUNROOF












S-64

PARTS LIST OF SUPER 300



Position Name

1 Glass

panel

2

Glass panel fastening device

3 Guide

bolt

4

Mechanical devices left / right

5 Seal

6:7

Interior trim rim with gray sunshade

6:7

Interior trim rim with beige sunshade

8 Sunroof

motor

9 Sunroof

module

10

Cover of control buttons

11 Upper

frame

12

Interior fastening frame

13 Wind

strip

14 Sunshade

assembly

15 Harness
16

Rack + pinion / cover

17 Fastening

bolts



1. GLASS PANEL



One of main parts of sunroof, is installed on the mechanical device, and airproof with the

seal of upper frame.

2. UPPER FRAME



Plastic part is used to support the mechanical devices and the glass panel, and achieve

good airproof with the body.

3. MECHANICAL DEVICES

Main parts of sunroof are installed on the upper frame with one on each side. They are the
actuators for sunroof glass inclining and opening. The glass panel is installed on the
mechanical devices.

4. MODULE MOTOR ASSEMBLY

The sunroof control panel is mounted on its surface, all programs to perform various
sunroof functions and motor actions are stored in the module’s memory, and the motor is
the drive source for the sunroof opening and closing.

5. RACK + PINION

Installed on the upper frame with one on each side, one end is connected to the motor,
another end is connected to the mechanical devices, and transmits the power from the
motor to the mechanical devices evenly to open or incline the sunroof.
