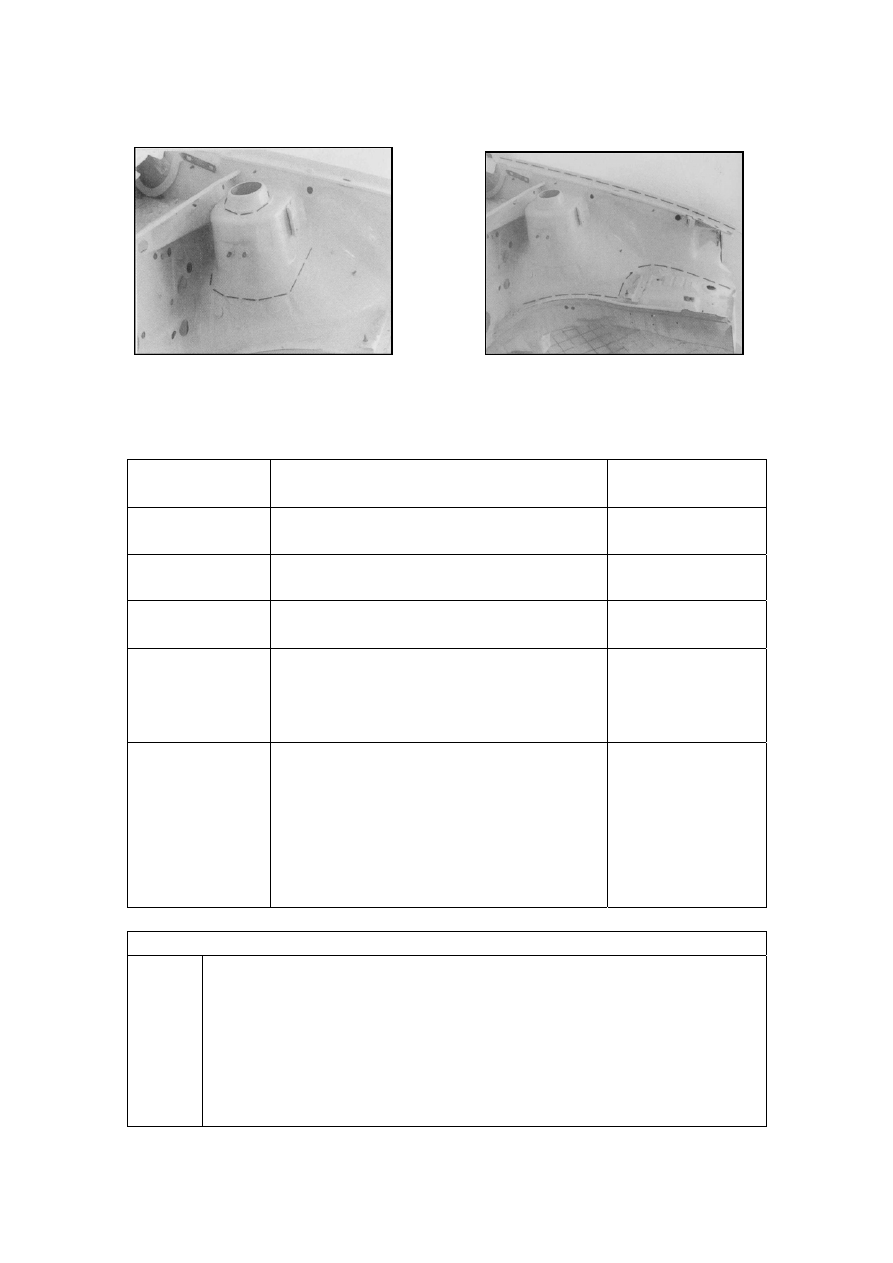

BODY FRONT INTERIOR SPRAY COATED WITH PUTTY ADHESIVE




Table for Application of Putty

Adhesive



Code

Applied Position

Material Model

13

-Joint of Roof Panel and Side Panel

14

-Joint of the Rear Door or the Tail Door
  Plank Edge with Outer Case

15

-Joint of the Rear Wheel House
-Reinforced Bracket for Rear Shock

Absorber

-Assembly Section of Driving System

16

-Connecting Position between Rear

Lining

  Plate and Lining Plate of Side Fender

Shield

-Connecting Position between Real

Bracing

  Piece and the Exterior of Floor Board



Front Exterior Area








AMV        162 000     PVC   Structural Glue
AMV        l68 000     PVC   Reinforced Glue
AKR        303 P10     PVC   Multifunctional Putty Adhesive
AKD        473 K20            Sealing Putty Adhesive
AKD        466 000            Electronic Welding Adhesive



S-58

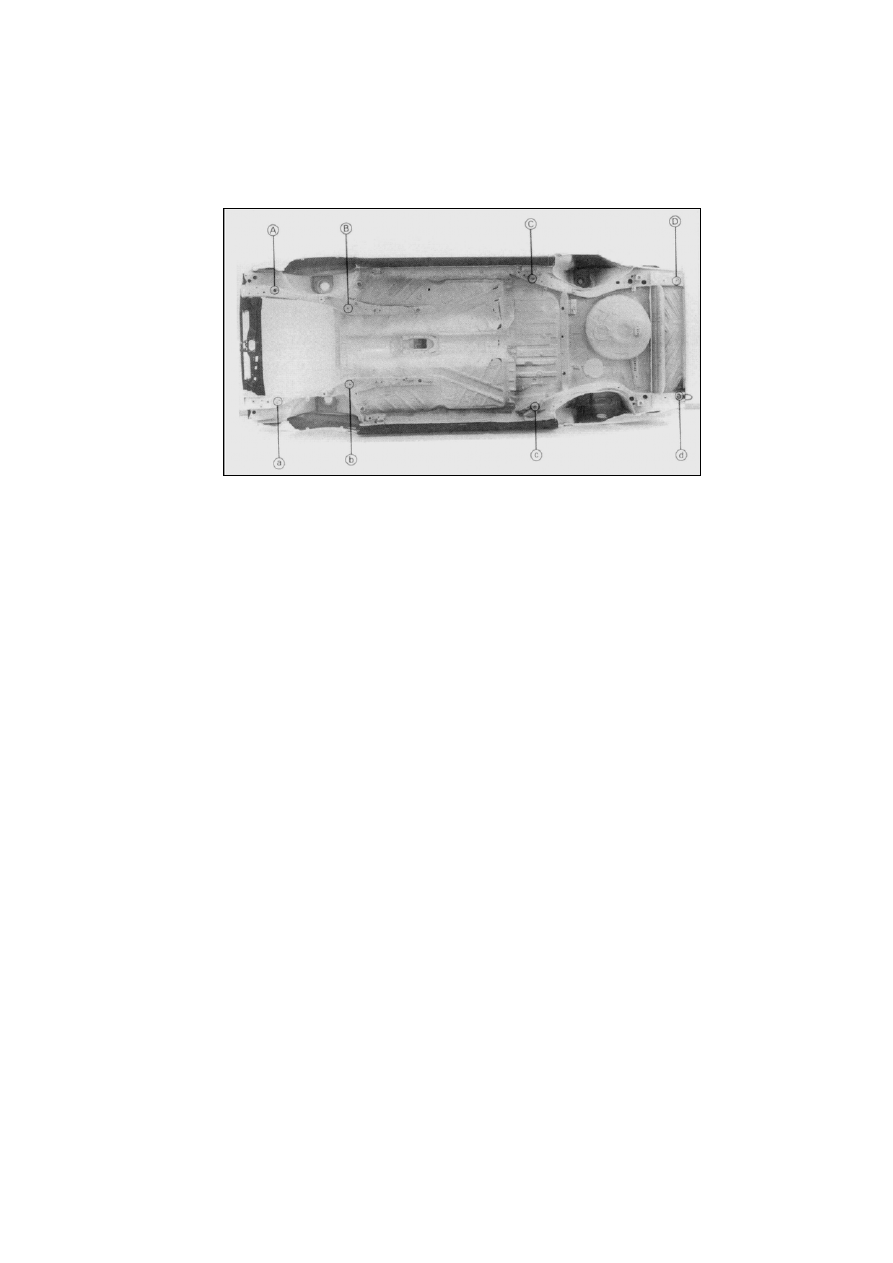

CHECKING THE SIZE OF UNDERBODY PANEL











Point A-a          Fixing Position for Bracing Piece of Engine
Point B-b    Fixing Position for Bracing Piece of Differential Gear Housing
Point C-c    Fixing Position of Rear Axle
Point D-d    Fixing Position for Bracket of Rear Bumper







Size Code                STD Value                Part Measured
1               1020±1mm

Between A and a

2               1090±1.5 mm

Between A and b

3                              679 士 1mm

Between B and b

4               703±lmm

Between A and B

5               2l24±1.5 mm    Between B and C
6               226l±2mm

Between B and c

7               880±1.5 mm

Between C and c

8               875±1.5 mm

Between C and D

9               l306±1.5 mm    Between C and d
10              1074±1.5 mm

Between D and d









S-59

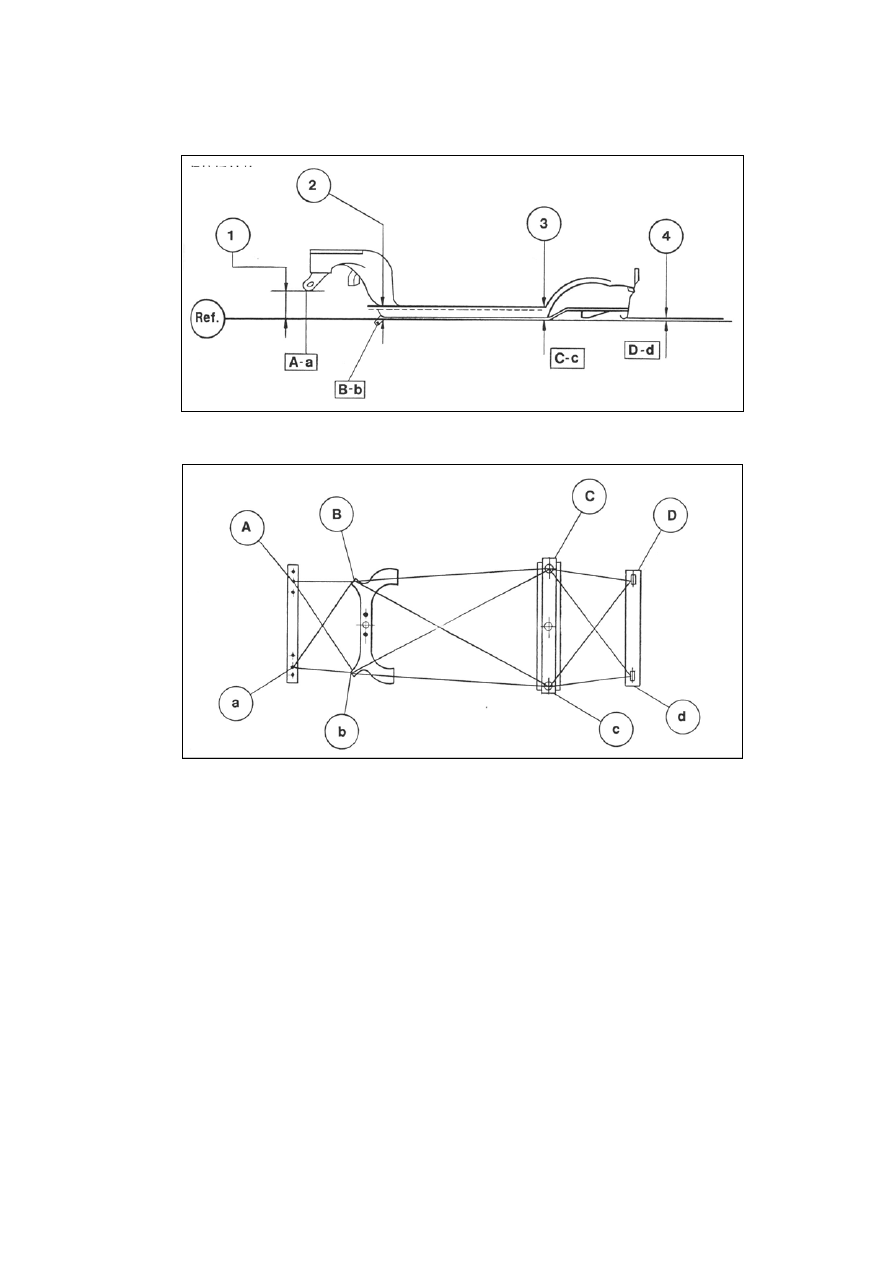

STRUCTURE OF

GUARD PLATE








1.    Distance between Reference Line and Point A-a = 246
2.    Distance between Reference Line and Point B-b = 140
3.    Distance between Reference Line and Point C-c = 94.2
4.    Distance between Reference Line and Point D-d = 246
Reference Line = -100Z













S-60

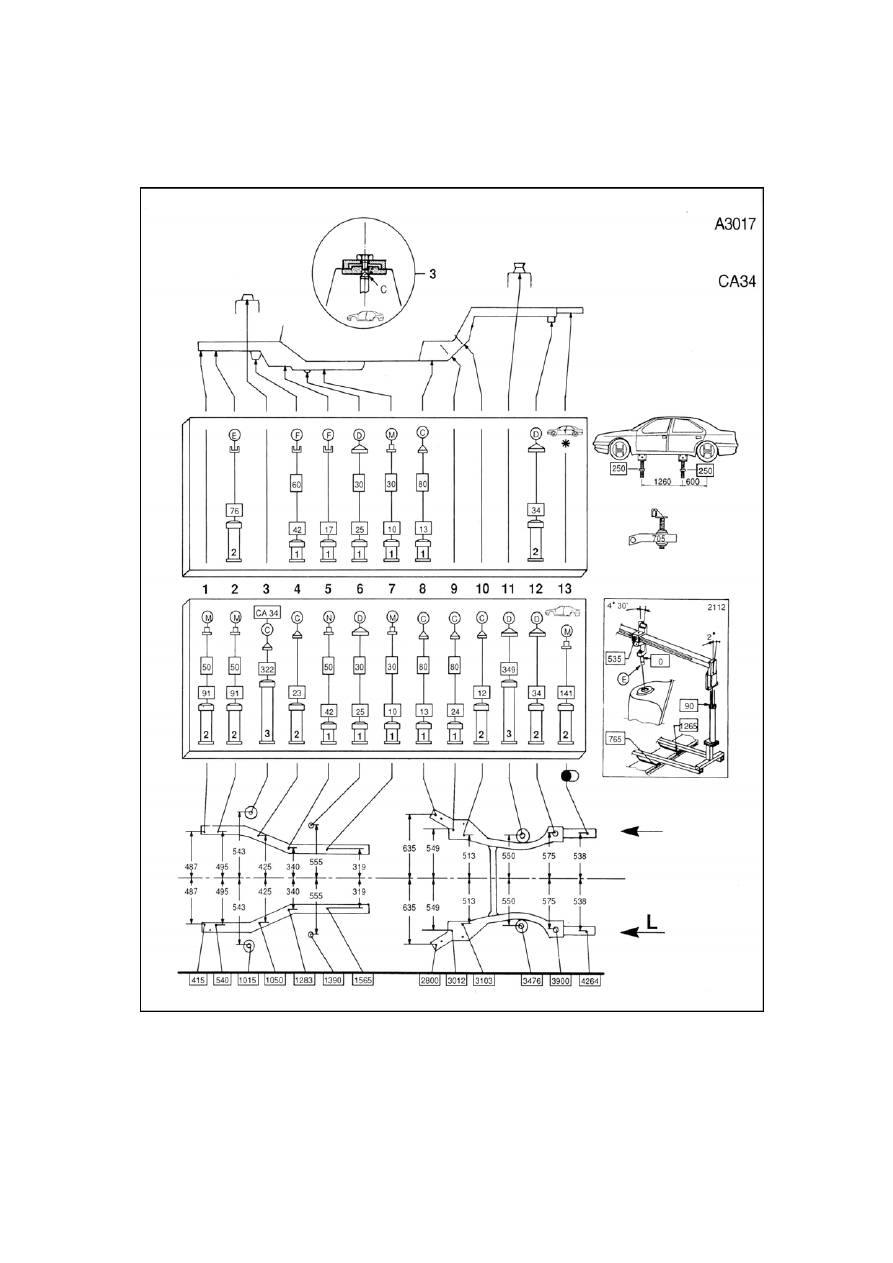

INSPECT THE BODY BY USING THE FRAMEWORK OF SPECIAL
MEASUREMENT SYSTEM












S-61
