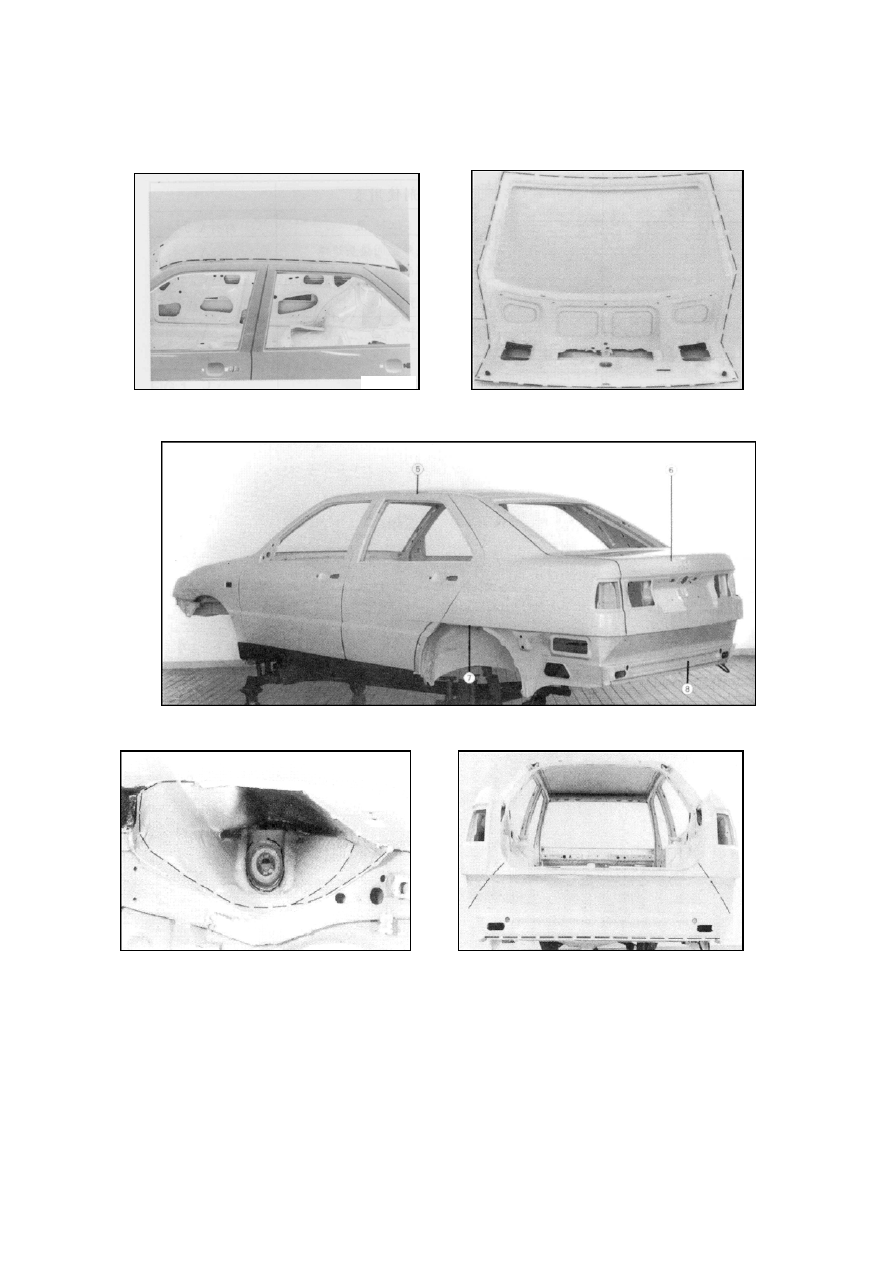

APPLICATION OF PUTTY ADHESIVE FOR REAR EXTERIOR PART














































S-54

TABLE FOR APPLICATION OF PUTTY ADHESIVE


Code

Applied Position

Material Model

5

- Joint of the Car Top and Side

D

6

- Joint between the Rear Door or the Edge of Tail Door
Plank and the Outer Frame

A

7

- Joint of the Rear Wheel House
- Reinforced Bracket for Rear Shock Absorber
- Assembly Section of Driving System

C

D

E

8

- Connecting Part between Rear Lining Board and the
Lining Board of Fender Shield
- Connecting Position between Rear Bracing Piece and
Outside the Floor Board

D



C



Front Exterior Area

A
B
C
D
E

AMV   162  000     PVC    Structural Glue
AMV   168  000     PVC    Reinforced Glue
AKR   303   P10    PVC     Multifunctional Putty Adhesive
AKD   473   K20            Sealing Putty Adhesive
AKD   466   000             Electronic Welding Adhesive





















S-55

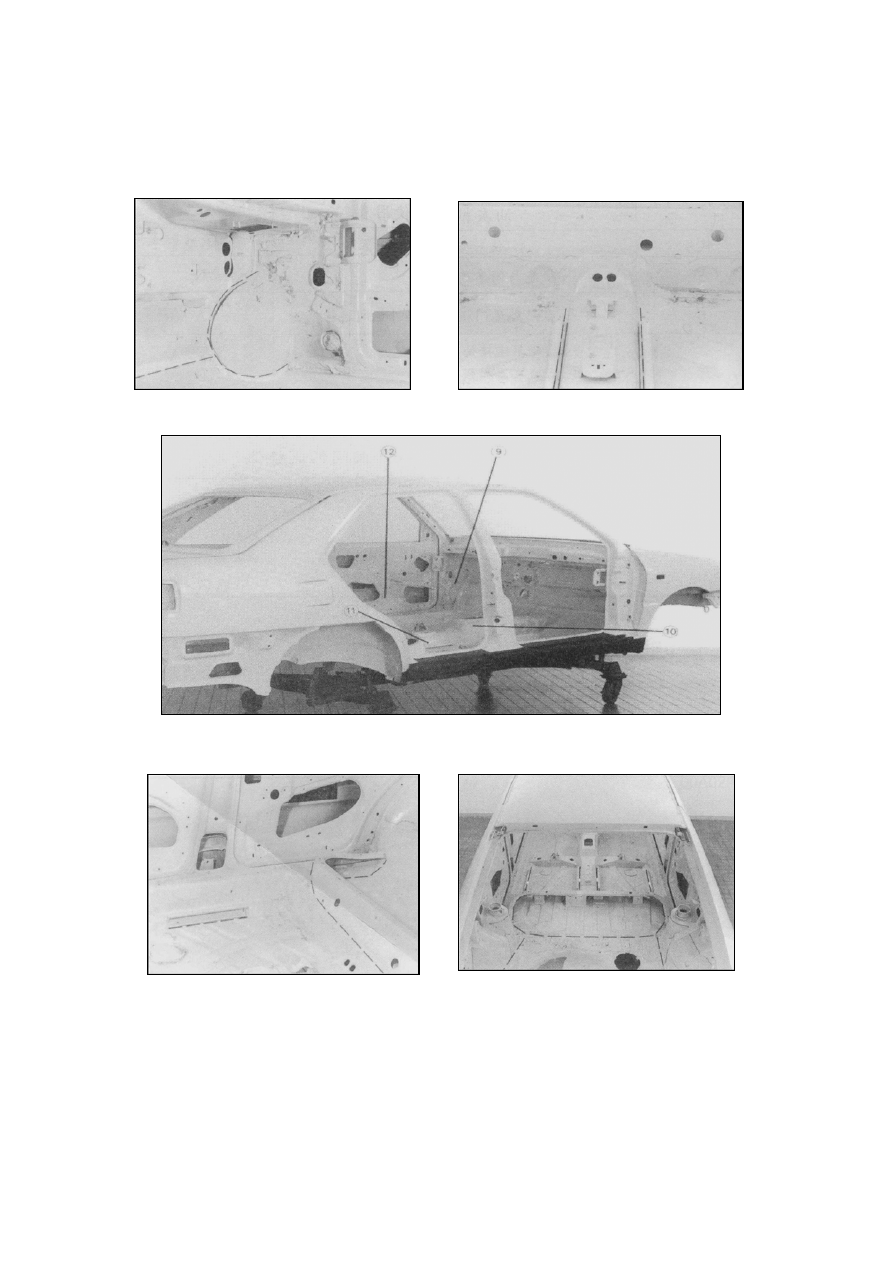

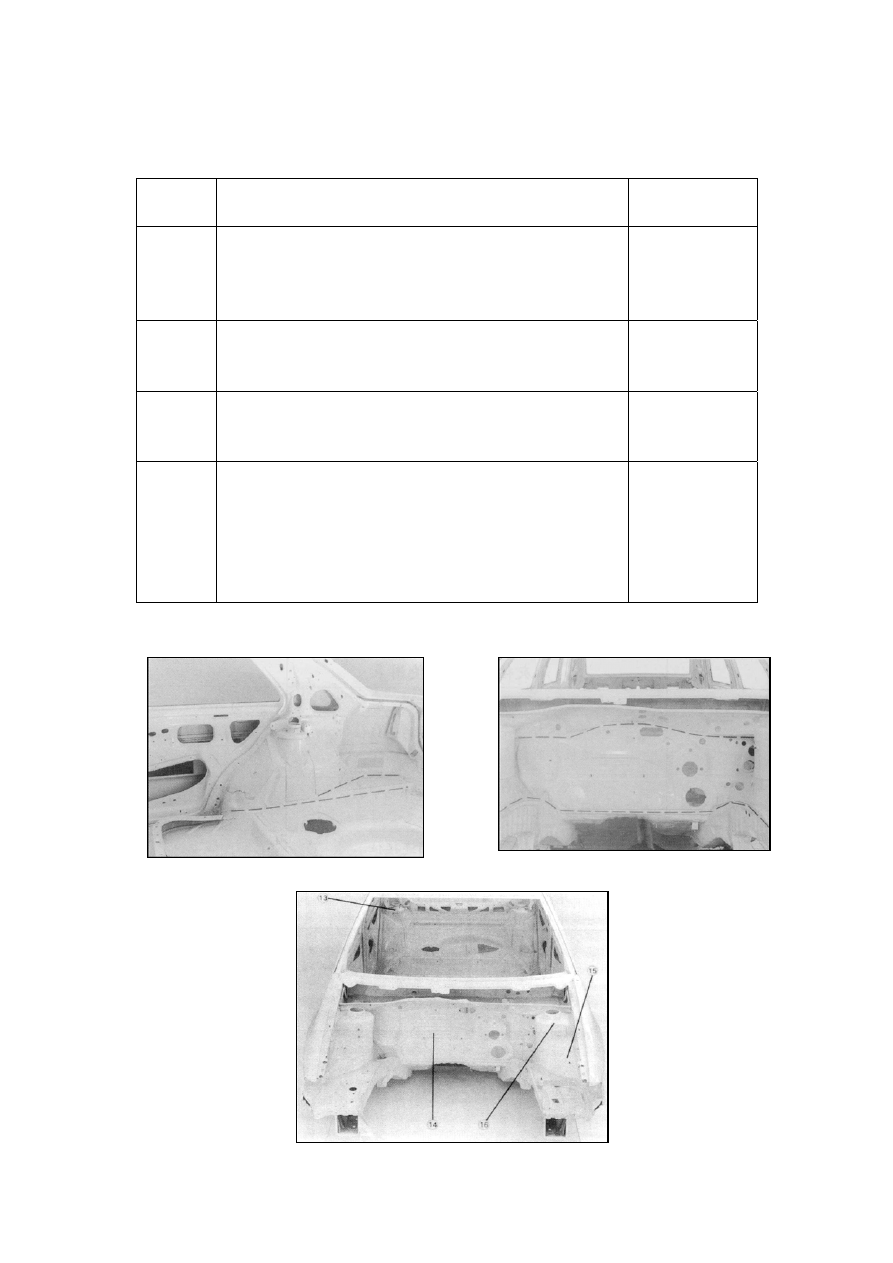

BODY INTERIOR SPRAY COATED WITH PUTTY ADHESIVE













































S-56


TABLE FOR APPLICATION OF PUTTY ADHESIVE



Code Applied

Positions

Material

Model

9

-Connecting Position between Body Control Lever
and Wheel House
-Connecting Position between Floor Board and Front
Instrument Panel

C



C

10

-Connecting Position between Floor Board, Shift
Lever and Center Reinforced Fitting (to be maintained
when necessary)

C

11

-Connecting Position between Sections of Brackets for
Front and Rear Chairs

C



12

-Inner-side Connecting Position between Rear Bracing
Piece and Floor Board
-Connecting Position between Floor Board and Center
Reinforced Fitting
-Connecting Position between Center and Rear Floor
Boards

C



 D



C
