Malfunction of suspension system

--

--

One side deflection

of braking

Uneven tire pressure of both sides

Malfunction of braking system

Adjust

--

Heavily steering of

steering wheel

Insufficient tire pressure

Malfunction of steering system

Malfunction of suspension system

Adjust

--

--

Improper

returnability of

steering wheel

Insufficient tire pressure

Malfunction of steering system

Malfunction of suspension system

Adjust

--

--



Check whether the connection of the transmission rod of steering system is loose,
deformed, etc.


Check the status of the ball joint and the rubber bush of front and rear suspension

Check whether the shock absorber works normally

------Check whether the shock absorber leaks grease

------Check whether the bush wears out

------Check whether the shock absorber is improper through shaking the vehicle body up and

down by pressing the foreside and the tail of the vehicle

Pre-check before wheel alignment

------Check the status of the tire inflation. Adjust to the recommended pressure if necessary.

------Check the clearance of the front wheel bearing. Adjust it if necessary.

------Check the flop of the vehicle and the tire.

------Check whether the ball joint and the steering linkage are too loose.

------Check the shock absorber by shaking the vehicle.

Note:



  The vehicle must be on the level ground with no-load.



  No-load: Full gasoline in the oil reservoir, engine coolant and the oil filled at the specified
level; the spare tire, jack and tools in the pointed position.

M-8

------Measure the height from the wheel center to the mudguard edge. The measured
difference from left and right should be not more than 10mm.












ALIGNMENT OF THE REAR WHEEL



It is recommended to utilize the four-wheel alignment tester with thrust line positioning
method on this type of chassis.

Note: thrust line positioning is defined as adjusting the front wheel toe-in based on the
rear wheel thrust line.


With the thrust line positioning, the adjustment of the rear wheel toe-in will influence the
single front wheel toe-in, so during four-wheel alignment, the rear wheel should be adjusted
before the front wheel alignment.





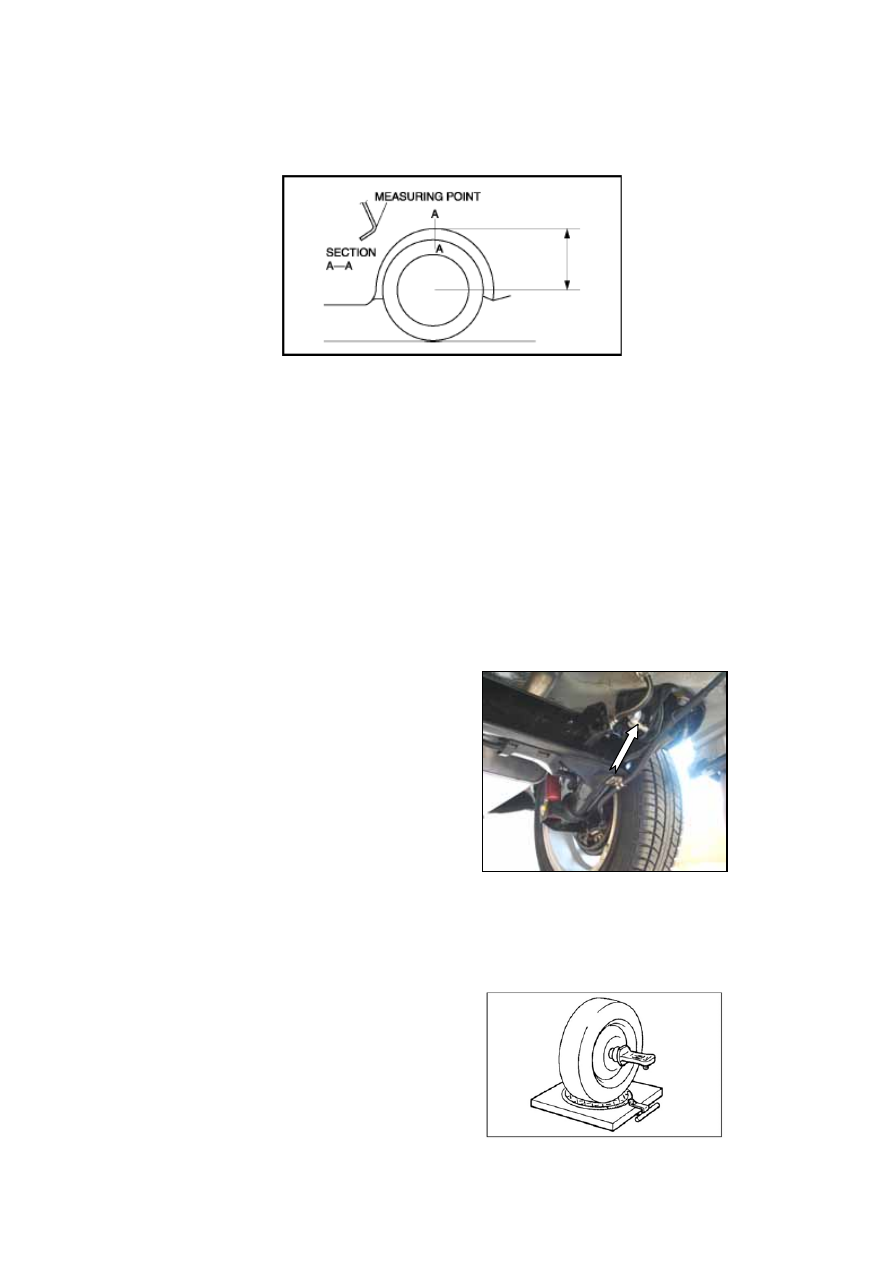

Measure the vehicle height
------Rear measure point

From ground to the center of the joint bolt of
the rear axle and the body (as the arrow
shows)

Precaution: Check whether the height from
left and right are same before processing
the wheel alignment

------If there is a difference of the heights from

left and right, that means there are
damaged or deformed components of the
front and rear suspension.





Install the wheel alignment tester on wheel



------Please refer to the specific instruction of

manufacturer for the wheel alignment
tester.








M-9



Check the caster

Inspection angle

Value

Rear wheel caster

-1°30′±10′



Note: The rear wheel caster cannot be adjusted. If there is abnormal wear on the tire of
the rear wheel, so check whether there are worn or deformed parts on the rear
suspension

Check the rear wheel toe-in



Car No.

Chery A15LHD

Rear wheel toe-in

20′±10′



Note: The rear wheel toe-in out of standard range may lead to wear on shoulder of
tire on both sides. If the differences of the rear wheel toe-in both rear wheel are too
much, the vehicle running direction may be affected. Therefore the rear wheel toe-in
is a vital parameter of the alignment angles.





ALIGNMENT OF THE FRONT WHEEL
------Install the wheel alignment tester on the wheel

Please refer to the specific instruction of manufacturer.

------Check and adjust the wheel camber and the kingpin caster of the front wheel

according to the standard



Angle Value

Front wheel camber

-30′±20′

Kingpin caster

1°30′±30′

Note: Adjust the caster before the camber



Kingpin caster

There is no need to adjust the kingpin caster for it is assured by the structure of design



M-10

Influence of caster

The main function of the caster is to keep the vehicle running straight forward. If the caster is
positive, the inside of the vehicle descends and the chassis ascends which increase the
steering knuckle load when the front wheel turns. If the casters of two wheels are same, the
vehicle will return forward after turning. Increasing the positive caster angle will enhance
stability of the steering wheel while the steering force will be increased at the same time.
Decreasing the positive caster may reduce stability of the steering wheel but lightens the
steering force.

The angle of the caster could not make the wear on tire. It is used to stabilize the steering
direction and to return automatically after steering. If the vehicle is equipped with a
traditional manual steering wheel, the caster is small or even tends to negative, which makes
the steering easy. If the vehicle is equipped with a power steering wheel, the caster is usually
set to be large positive in order to offer the driver a better feeling. Increasing the positive
caster will increase the steering force but enhances the stability of straight running.




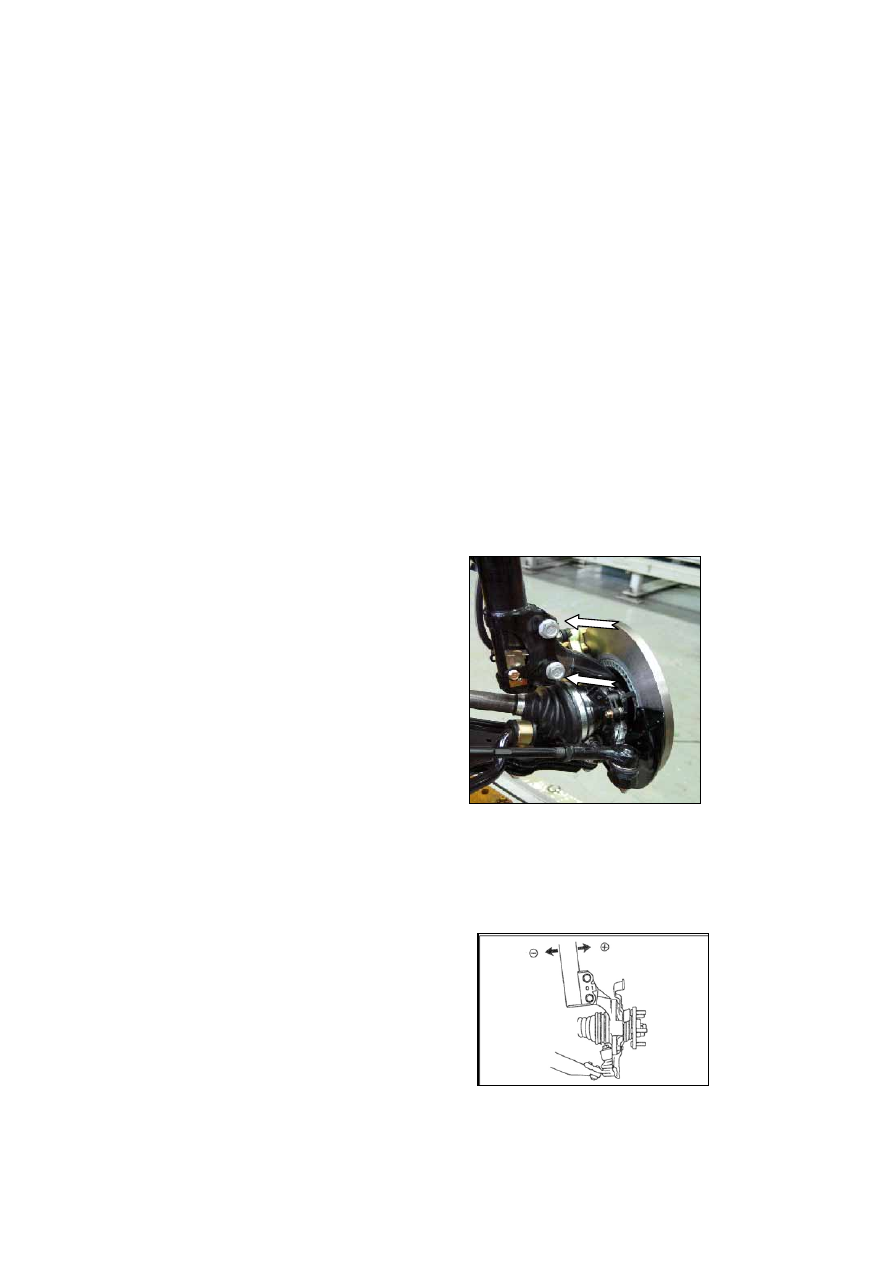

Adjust the camber





Under normal condition, there is no need to
adjust the camber after assembling the
independent suspension and the wheel
steering knuckle. Use the joint bolt of the
independent suspension and the steering
knuckle to calibrate the wheel camber if the
camber is out of the tolerance range for other
reasons.

----Check (visual inspection) whether there

are damaged parts in the steering system
and replace the damaged ones before the
calibration.

----If the front wheel camber is out of the

tolerance, loosen the joint bolt of the
front shock absorber and the steering
knuckle and move the wheel to calibrate.





----

For the further calibration, use the
substitute bolt to adjust the wheel
camber. Replace the M12 bolt with the
M11 bolt. The camber is allowed to be
adjusted within about ±1° shown as the
illustration





M-11
