SPECIFICATION

Transmission

AQ015   AA type

AQ015   AB type

Main driving

4.133

3.813

1shift 3.455

3.455

2shift 2.056

2.056

3shift 1.370

1.370

4shift 1.032

1.032

5shift 0.850

0.850

Reverse gear

3.167

3.167

Ratio

Speedometer 2.286

2.286

Lubricating oil quantity

2.0L

2.0L

Type of lubricating oil

Transmission oil GL-4 SAE75

Transmission oil GL-4 SAE75

Manipulation type of clutch

Mechanical

Mechanical

Diameter of clutch driven plate

210mm

210mm

Diameter of drive shaft flange

100mm

100mm

General gear ratio of top gear

3.513

3.240

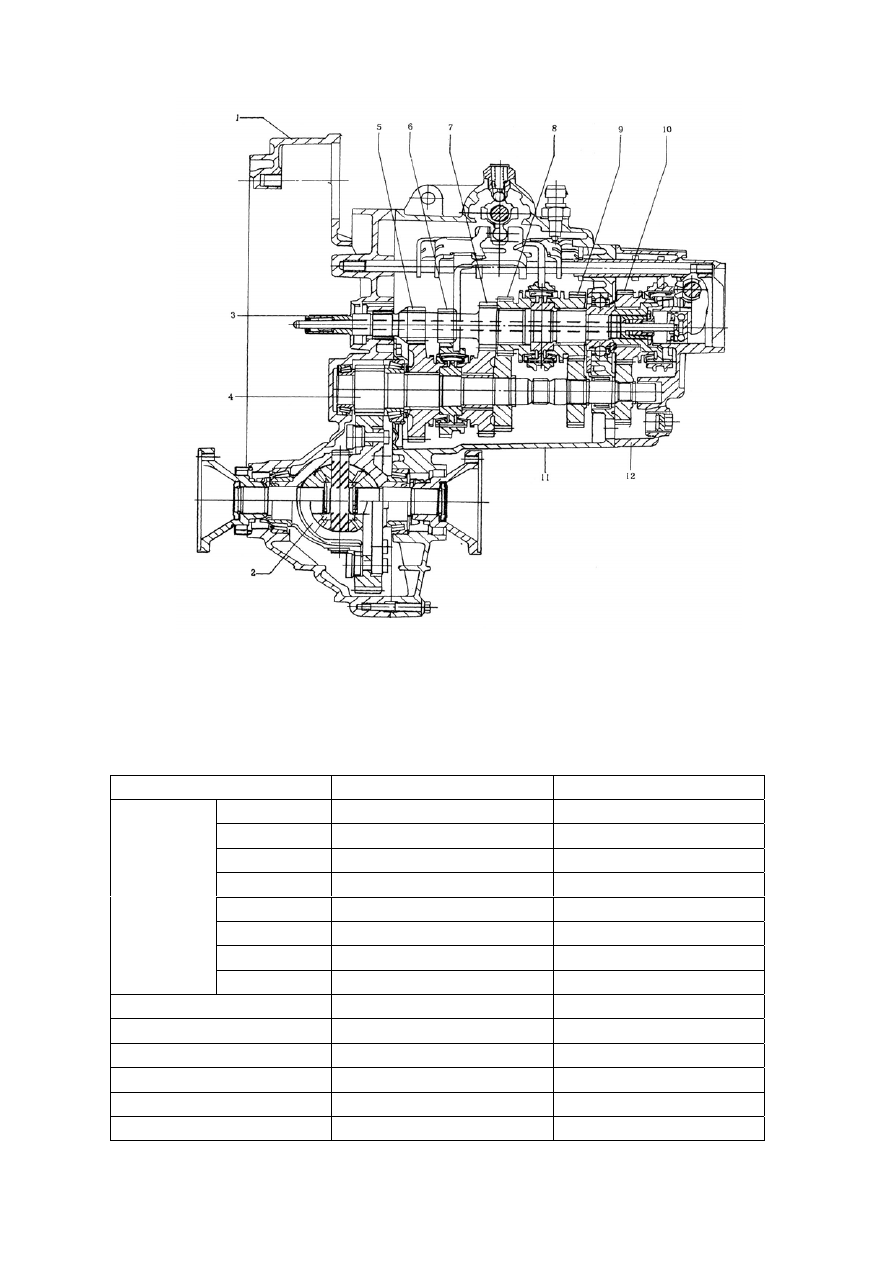

Clutch Assembly Schematic

1.  Clutch Housing    2. Differential    3. Input Shaft    4. Output Shaft
5. 1

st

 Shift  6. Reverse  7. 2

nd

 Shift  8. 3

rd

 Shift  9. 4

th

 Shift  10. 5

th

 Shift

11. Transmission Housing   12. Rear Housing



J-3



DISASSEMBLY OF THE DRIVE SHAFT

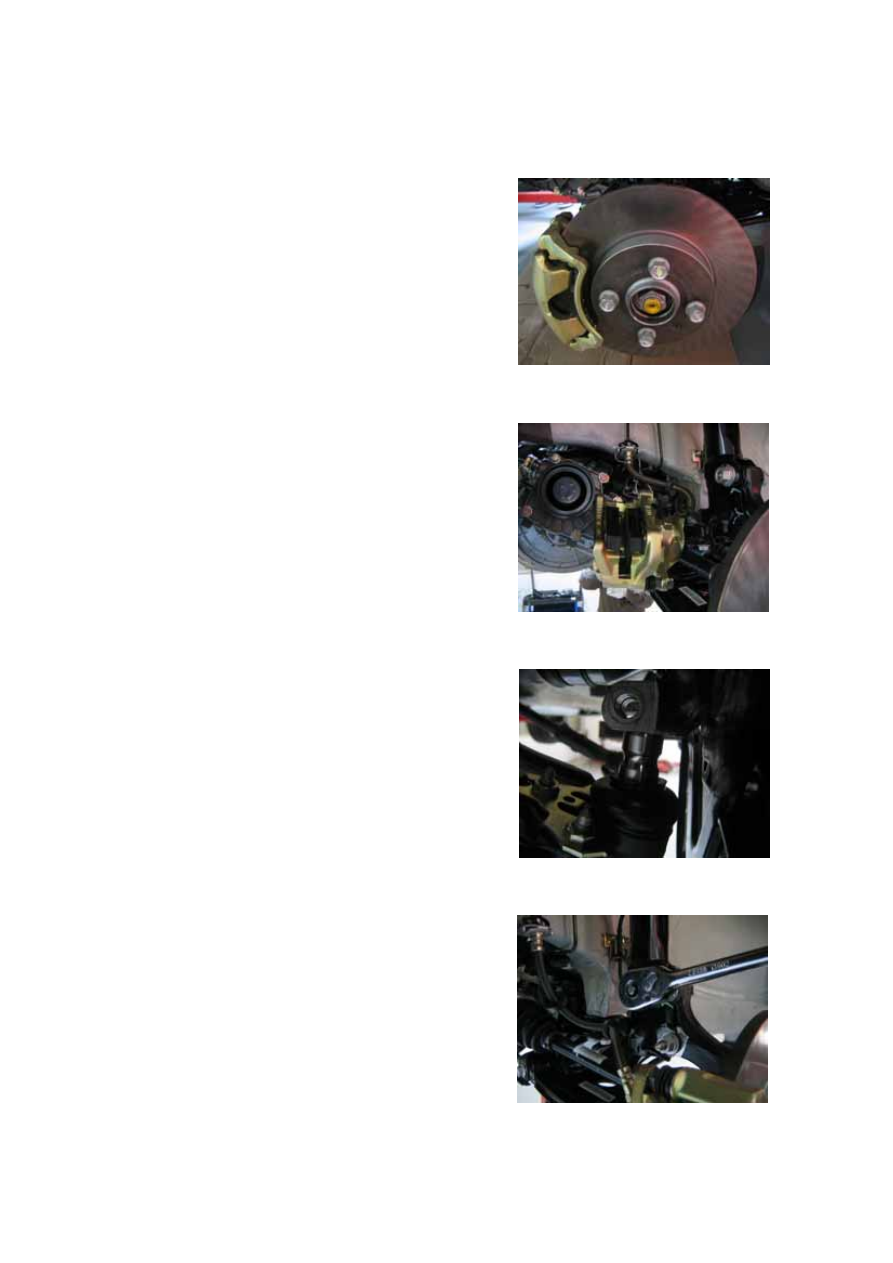

——Tyre disassembly.











——Disassemble two bolts of the brake cylinder and

brake shoe assembly. And hang the assembly on
the shock absorber by the hook.















——Disassemble the connecting bolt    of brake disc

and front axle, and make front axle ball joint off
by pressing it downward.









——

Loosen the two fixing bolts under the brake disc
and shock absorber.







J-4

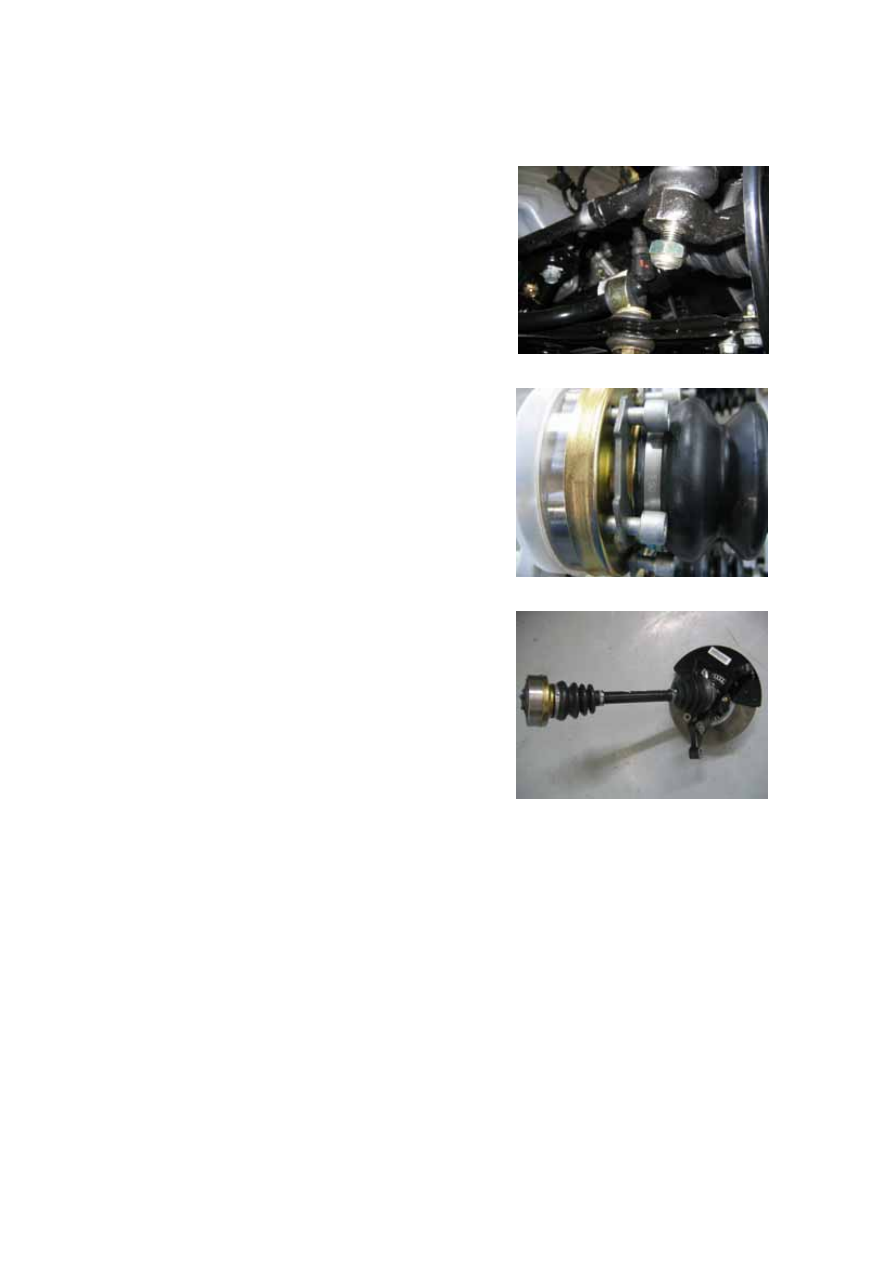

——Disassemble the round head bolt of steering

knuckle and steering rod, prize up the round
head bolt upward.









——Turn the brake disc and disassemble the 6 torx

head bolts of driving shaft and differential output
shaft, and take off the shim and bolt.









——Take off the 2 fixing bolts under the brake disc

and shock absorber, pull off the driving shaft and
brake disc assembly.



J-5



DISASSEMBLY OF THE TRANSMISSION

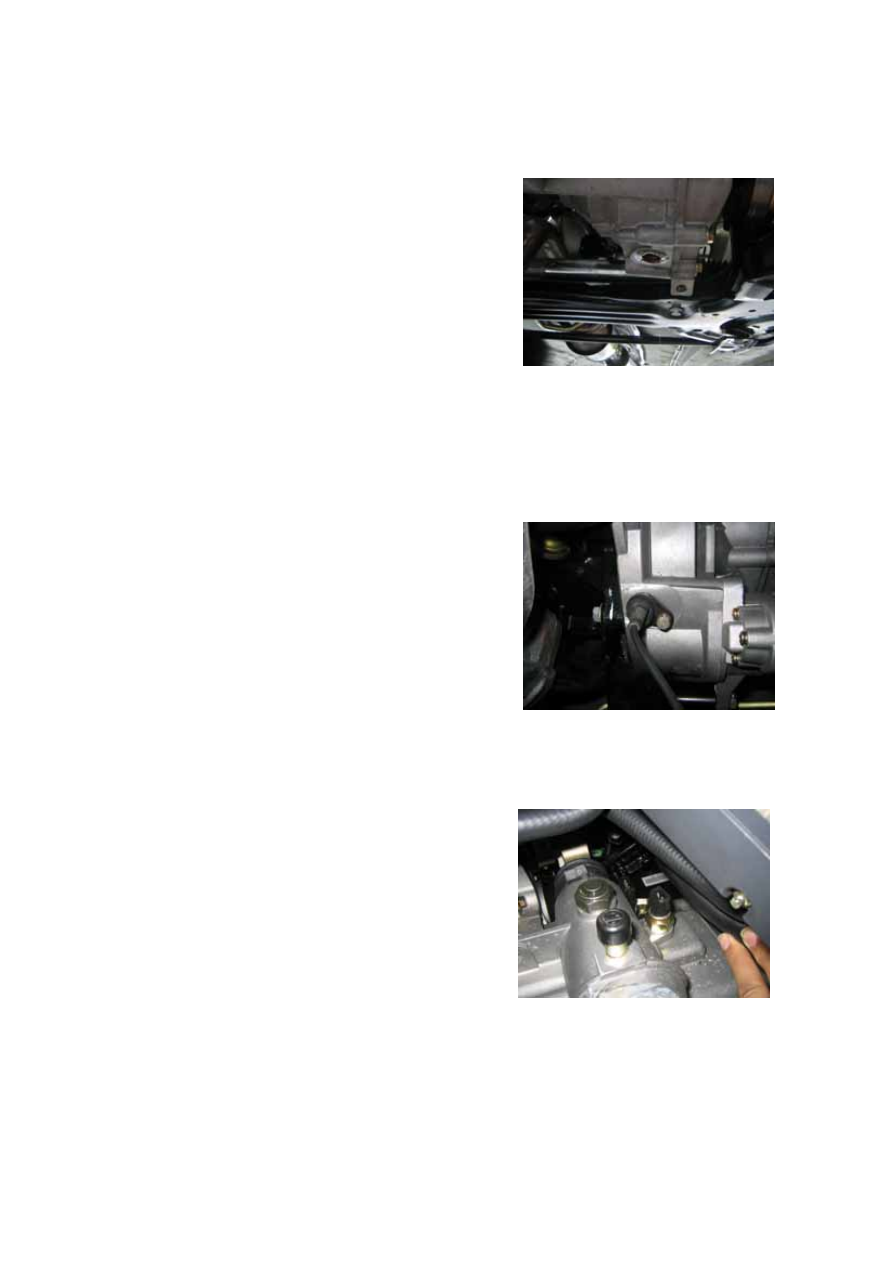

——Discharge the transmission oil.

——Disassemble the driving shaft.

——Disassemble those 3 fixing bolt of the

transmission lower shim.









——Disassemble the crankshaft position sensor.







——Disassemble the backup lamp switch plug.

——Disassemble the speed sensor plug.

——Prize up the round head clamp by screw

driver, take off the selector rod.

——Disassemble cotter pin, and take off shift lever

and shift mechanism linkage.

——Disassemble the gear shift arms subassembly.
