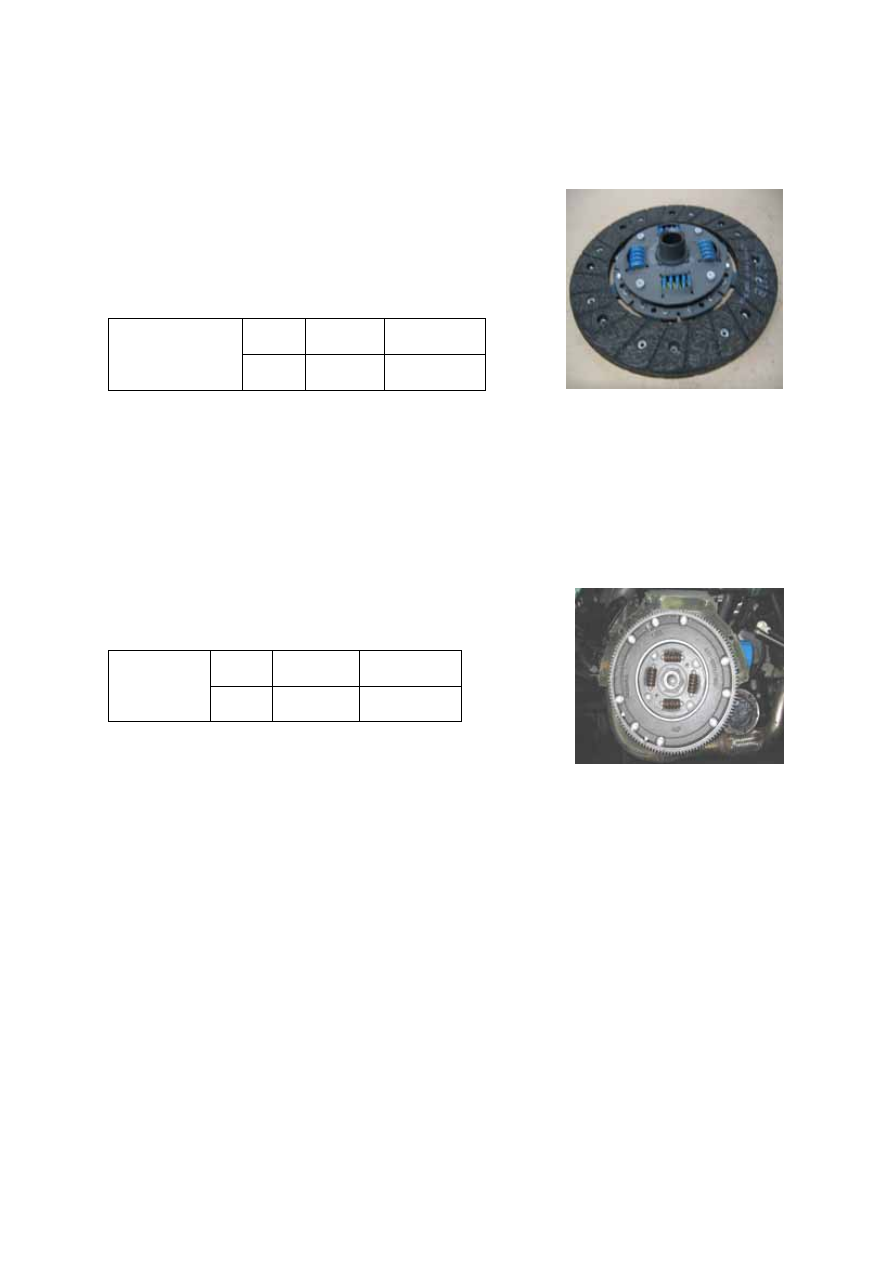

CLUTCH INSTALLATION

Before the assembly, flywheel surfaces and pressure
plate shall be clear and dry.
——Assemble the pressure plate on the crankshaft

and screw up bolts in accordance with
prescribed moment.





—— Assemble release disk and fit on snap ring.
—— Assemble clutch disk.


N•m Kg-m

1b-ft

Pressure plate

assembly bolt

Torque

57-65 5.7-6.5  41.5-47.0







—— Assemble flywheel.
——Screw up flywheel bolt uniformly according to

the diagonal line.

——Coat a thin layer of grease on the input axle

and then assemble the transmission with
engine.




Remarks:
When put the input axle of transmission into the
clutch friction disk, the flywheel shall be revolved
until the input axle of transmission and spline
meshed.



N•m Kg-m

1b-ft

Flywheel

bolt

Torque

18-28

1.8-2.8 13.5-20.0















H-7

TROUBLE DIAGNOSIS



Trouble

symptom

Cause Treatment

method

Slip of clutch

•Free travel (free play) of clutch pedal is wrong.

•Abrasion or oil stain for clutch friction disk.

•Distortion for friction disk 、 pressure plate or

flywheel surface.

•Diaphragm springs become weaker.

Adjust free travel

Change friction disk

Change frication disk,

pressure plate or flywheel

Change clutch pressure plate

Uncompleted

segregation of

clutch

•Free travel of clutch pedal is wrong.

•Diaphragm springs become weaker or abrasion for

stabber fingertip.

•Rust for input axle spline.

•Mutilation or abrasion for input axle spline of

transmission.

•Excessive nodding action for clutch friction disk

assembly.

•Abrasion or oil stain for clutch friction disk.

Adjust free travel

Change pressure plate



Lubricate

Change the input shaft



Change friction disk



Change friction disk

Vibration of

clutch

•Brighten of clutch friction disk (to become

glassiness).

•Oil stain for clutch friction disk.

•Bad skid of segregation bearing on the bearing

sleeve of transmission.

•Shimmy of clutch friction disk assembly or bad

connection of friction disk.

•Vibration reduction torsion springs of clutch

friction disk assembly become weaker.

•Loose of rivet of clutch friction disk.

•Distortion of pressure plate or flywheel surface.



•Loose of the binding bolt of flywheel or loose of

binding bolt of pressure plate assembly.

Repair or change friction

disk

Change friction disk

Lubricate



Change friction disk



Change friction disk



Change friction disk

Change pressure plate or

flywheel

Screw down

Clutch noise

•Abrasion or mutilation for segregation bearing.

•Abrasion for front bearing of input axle.

•Abnormal noise for clutch friction disk.

•Crack for clutch friction disk.

•Abnormal noise for pressure plate and diaphragm

spring.

Change segregation bearing

Change input shaft bearing

Change friction disk

Change friction disk

Change pressure plate

Non-separation of

clutch

•Clutch friction disk has fat liquor.

•Serious wear of clutch friction disk.

•Rivet head is displayed in surface of disk.

•Torsion springs become weaker

Change friction disk

Change friction disk

Change friction disk

Change friction disk



H-8

MANUAL TRANSMISSION

SPECIFICATION… … … … … … …… … … … … … …… … … … … … ………J-3

DISASSEMBLY OF THE DRIVE SHAFT… … … … … … …… … … … … … ……J-4

DISASSEMBLY OF THE TRANSMISSION… … … … … … …… … … … J-6

TRANSMISSION GEARSHIFT MECHANISM DIAGRAMATIC SKETCH …J-9

RESOLUTION GRAPH OF THE GEARSHIFT CONTROL MECHANISM ……J-10

SHIFT ADJUSTMENT… … … … … … …… … … … … … …… … …… …J-11



NEUTRAL POSITIONING… … … … … … …… … … …  … …………J-11

FINE ADJUSTMENT… … … … … … …… … … … … …… … … … … J-11

TRANSMISSION RESOLUTION… … … … … … …… … … … … … ………J-12

DISASSEMBLY AND ASSEMBLY OF THE TRANSMISSION… … … … … … …J-15

DISASSEMBLY… … … … … … …… … … … …… … … … … … …………J-15

ASSEMBLY… … … … … … …… … … … …… … … … … … ……J-21

MAIN POINTS… … … … … … …… … … … … …… … … … … … …………J-24

ADJUSTMENT OF 5

TH

 FORK … … … …… … … … … … …… … … … … … …J-25

ADJUSTMENT … … … … ……… … …… … …… … …… … … … … … …J-25

MAIN POINTS… … … … … … …… … … … … …… …… … … ………J-25

DISASSEMBLY, RESOLUTION GRAPH AND ASSEMBLY OF THE REAR

HOUSING… … … … … … …… … …… …  …… ……… … … ……………J-26

DISASSEMBLY… … … … … … … … … …  …… … … … … …J-26

RESOLUTION GRAPH… … … … … … … … … … … …… … … … … J-27

ASSEMBLY… … … … … … …  … … … … … … … … … … ……J-27

DISASSEMBLY AND ASSEMBLY OF CLUTCH CONTROL ARM, CLUTCH

RELEASE SHAFT OIL SEAL, AND CLUTCH RELEASE BEARING ……………J-28

DISASSEMBLY… … … … … … …… … … … … …… … …… … ……J-28

ASSEMBLY… … … … … … ……… …  … ……  … …… ………J-28

DISASSEMBLY AND ASSEMBLY OF THE GEARSHIFT SHAFT OIL SEAL…J-29

DISASSEMBLY… … … … … … …… … … … … …… … … … … … ……J-29

ASSEMBLY… … … … … … …… … … … … …… …… … … ……J-29

J-1

DISASSEMBLY AND ASSEMBLY OF THE GEARSHIFT SHAFT BEARING…J-30

DISASSEMBLY… … … … … … … … … … … … … … … … … …J-30

ASSEMBLY… … … … … …  … … … … … … … … … … … …J-30

RESOLUTION GRAPH OF THE INPUT SHAFT… … … … … … ………J-35

RESOLUTION GRAPH… … … … … … …… … … … … …… … … … … … J-35

RESOLUTION GRAPH OF OUTPUT SHAFT… … … … … … … … … … J-36

RESOLUTION GRAPH… … … … … …    … … … … … …… … … … … … J-36

ADJUSTMENT TABLE… … … … … … …… … … … … … …… … … …… …J-37

ADJUSTMENT ITEMS… … … … … … …… … … … … …… … … … … … J-37

ADJUSTMENT OF OUTPUT SHAFT… … … … … … …… … … … … … ………J-38

ADJUSTMENT… … … … … … … … … … … …… … … … … … …………J-38

MAIN POINTS… … … … … … …… …  … … … …… … … … …J-38

DISASSEMBLY AND ASSEMBLY OF DIFFERENTIAL, AND CALCULATION AND

ADJUSTMENT OF THE ADJUSTMENT SHIM … … … … … ……………J-39

DISASSEMBLY… … … … … …… … … … … … … … … … … …J-39

ASSEMBLY… … … …  …… … …  … … ……  … … … ……J-40

ADJUSTMENT… … … … …… … … … … … …… … … … … …J-40

RESOLUTION GRAPH OF THE DIFFERENTIAL ASSEMBLY… … … … … … J-41

RESOLUTION GRAPH… … … … … … …… … … …    …… … … … … … J-41

DISASSEMBLY AND ASSEMBLY OF OIL SEAL AND OUTPUT FLANGE ……J-42

DISASSEMBLY… … … … … … … … … …… …… … … … … … …J-42

ASSEMBLY… … … … … … …… …… … …… … …  … … ………J-43



J-2
