Chery A15. Manual - part 51

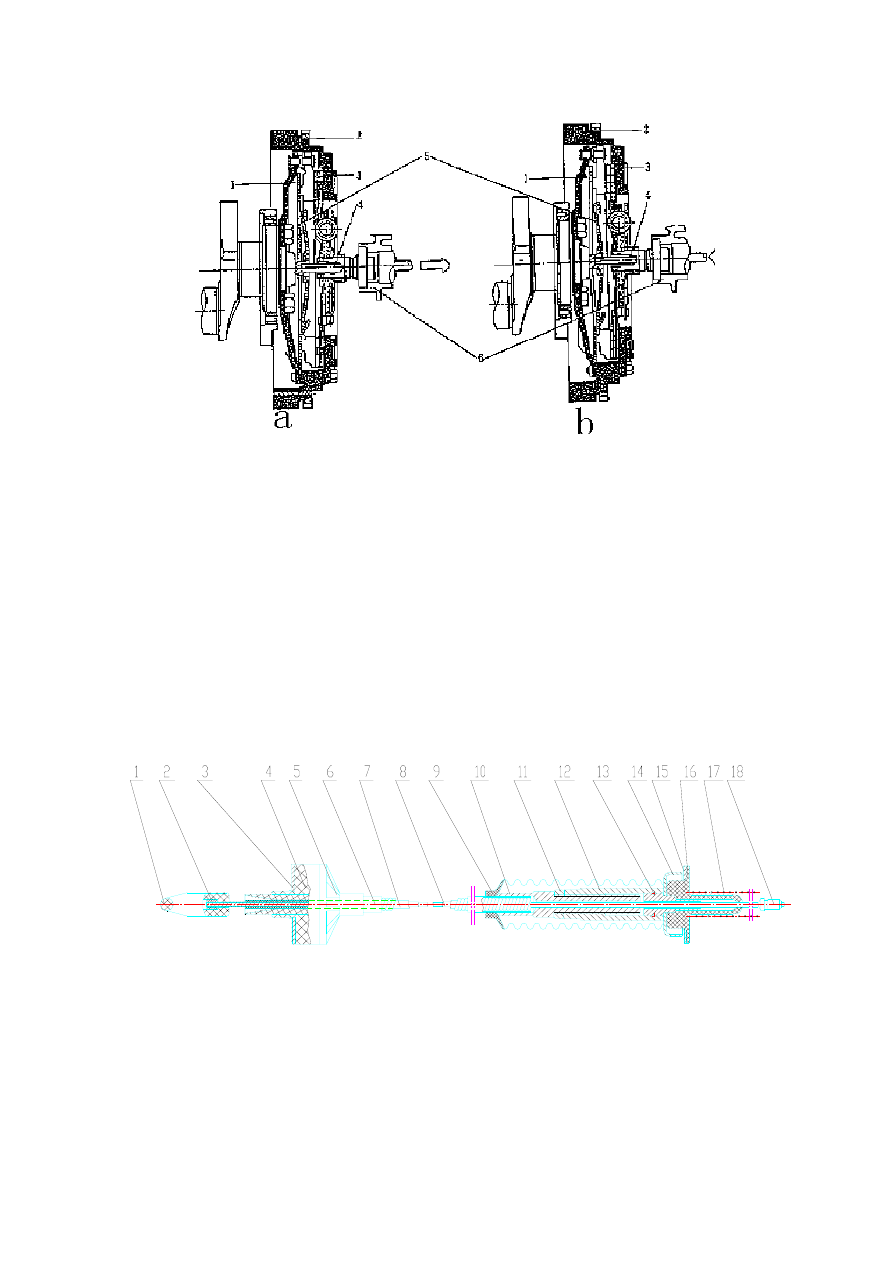

a. Clutch Connection State                                              b. Clutch Disconnection State

1.Diaphragm Spring   2.Flywheel   3.Driven Disk    4.Pusher

5.Seperator Disk   6.Transmission Axle







CLUTCH CABLE ASSEMBLY STRUCTURE



1.Clip                2.Cable  Latch            3.Washer            4.Cable  Cushion        5.Jacket  Tie-in        6.Jacket

7.Inner Pipe   8.Cable      9.Dust Cover   10.Adjust Rod      11.Jam Nut    12.Adjust Bushing

13.Clip Ring    14.Retainer    15.Washer    16.Rubber Cushion     17.Gasket     18. Butt End



H-3

ASSEMBLY AND ADJUSTMENT OF CLUTCH CABLE



·Put dust cap up and screw jam nut (11) and

adjustment bushing (12) to the upper end
(make the adjustment travel L minimum)
so as to facilitate the assembly of clutch
cable.

·Coat a little lubricant on the assembly

fitting surface of clutch cable.

·Put clip (1) across the guiding cylinder of

clutch pedal on the front brattice to
connect the clutch pedal. Make sure that
washer (3) and end face of guiding
cylinder of clutch pedal are spliced.

·Make butt end (18) fixed by bracket after

across the slot in release arm of
transmission and rubber cushion through
the upper face of transmission.

·After the assembly, uplift the segregation

arm of transmission by hand and adjust the
adjustment bushing (12) down at the same
time, so the 2~3mm clearance for
segregation arm of transmission is
available; then tread the clutch pedal for 10
times to ensure the fitness of assembly and
readjust the adjustment bushing to
guarantee that the 2~3mm clearance for
segregation arm of transmission is
available (Remarks：For new clutch, the
adjustment travel L of driven disk cable
shall not be less than 18mm. See Pic.2).

·Carry out the driving examination for the

whole automobile. Clutch and gear shifting
operation shall be normal.

·Screw jam nut (11) down to close with

adjustment bushing (12), and then put
down dust cover (9).



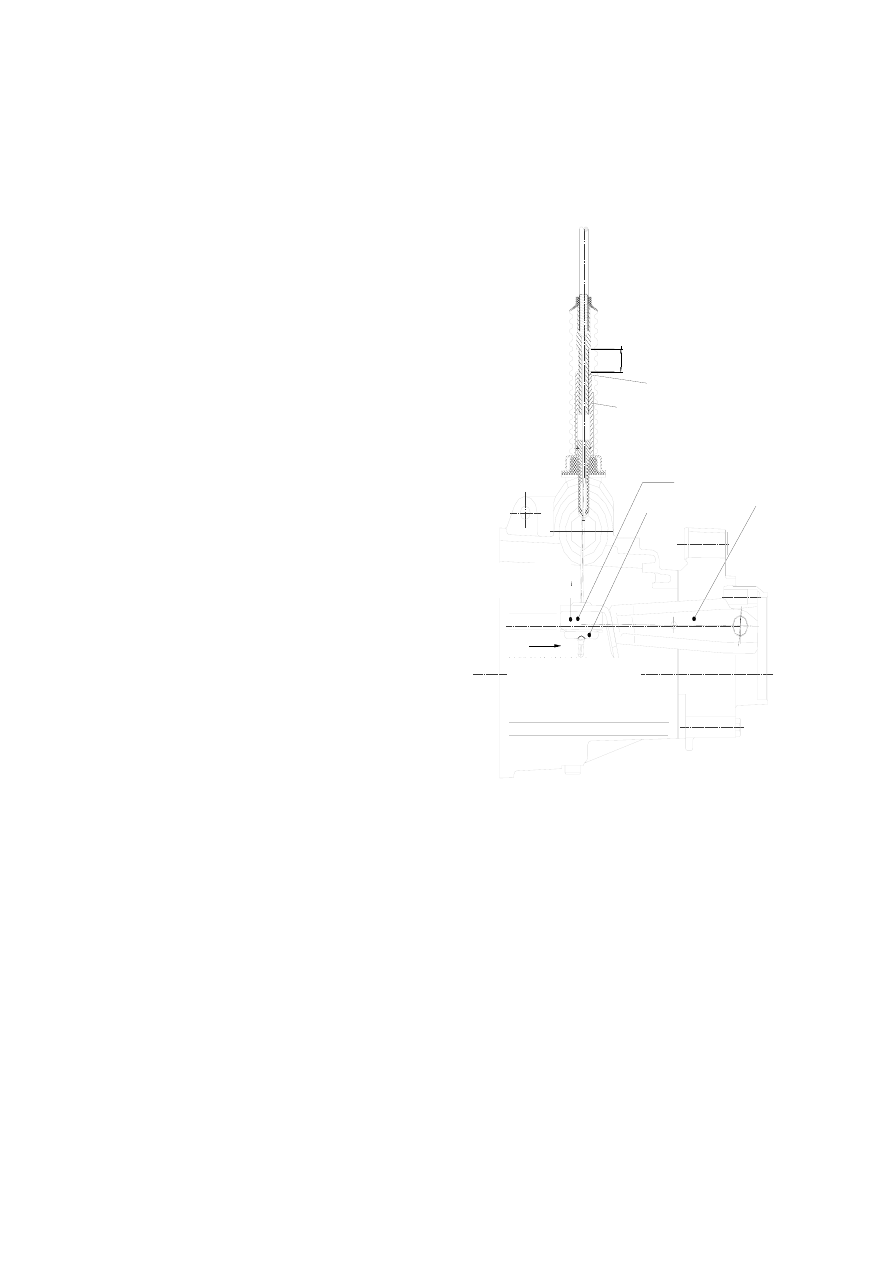

Picture 2 Sketch Map of Western
Clutch  Adjustment

Move direction of release
disk after driven disk wear
down

Transmission
release pusher

When driven disk wear down,
unscrew the nuts and adjust the
bushing to a proper position

Adjust
bushing

Jam nut

Rubber cushion

Bracket

2~3mm free
travel

H-4

L (adjustment travel)











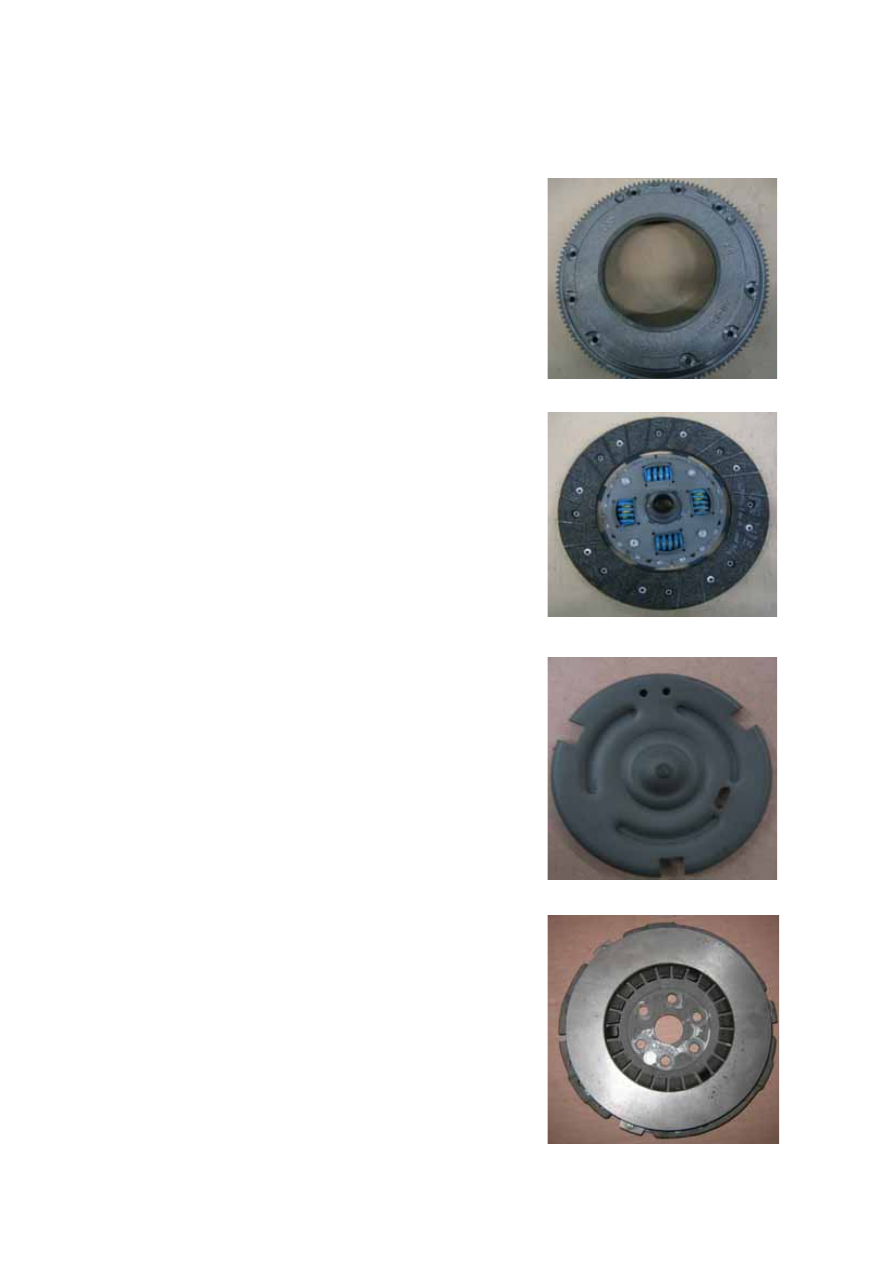

CLUTCH DISASSEMBLY



·Disassemble the transmission.




·Unscrew 9 fixed bolts in flywheel

cornerwise and dismount the flywheel.






·Remove clutch plate.












·Pry out snap ring of release disk by

screwdriver and remove the release disk.













·Unscrew 6 connection bolts in clutch

pressure plate and output end of
crankshaft, and remove the clutch pressure
plate.











H-5



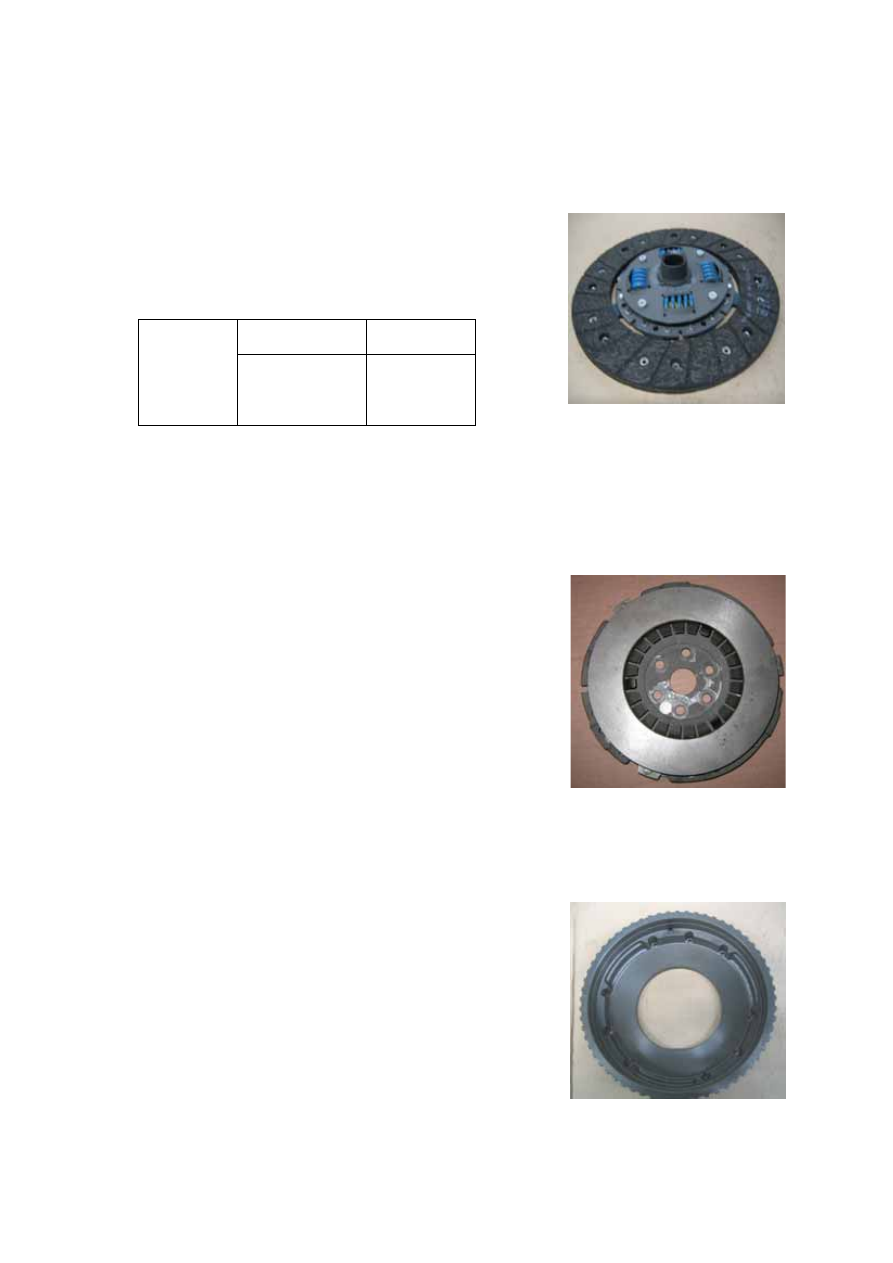

CLUTCH OVERHAUL

·  Clutch friction disk: measure the dent depth of

rivet head, i.e. the distance between the rivet head
and the friction disk surface. In case it is found that
the depth reaches the using limit for any hole, the
friction disk shall be changed.

Standard value  Maintenance

Rivet head

Dent depth

1.5mm

0.06in

0.5mm

0.02in

·Measure the clutch disc runout using a dial indicator.

If the runout is excessive, replace the clutch disc.

Runout          0.8mm    max



Clutch pressure plate:

·Examine whether the diaphragm spring has

abnormal wear or damage.

·Examine whether the pressure plate has wear or hot

point.

·In case of any abnormality, the pressure plate shall

be changed. The pressure plate shall not be
disassembled into two parts: diaphragm spring and
pressure plate.

·Measure the clutch pressure plate runout using a dial

indicator. If the runout is excessive, replace the
clutch disc.

Runout     0.25mm  max

Flywheel:

·Examine whether the connection surface of friction

disk exists abnormal wear or hot point; the change
or maintenance shall be conducted if necessary.

·Measure the flatness of the flywheel with a straight

edge and a feeler gauge. If not as specified, replace
the clutch cover.

Maximum clearance   0.05mm

Service limit          0.15mm



H-6
