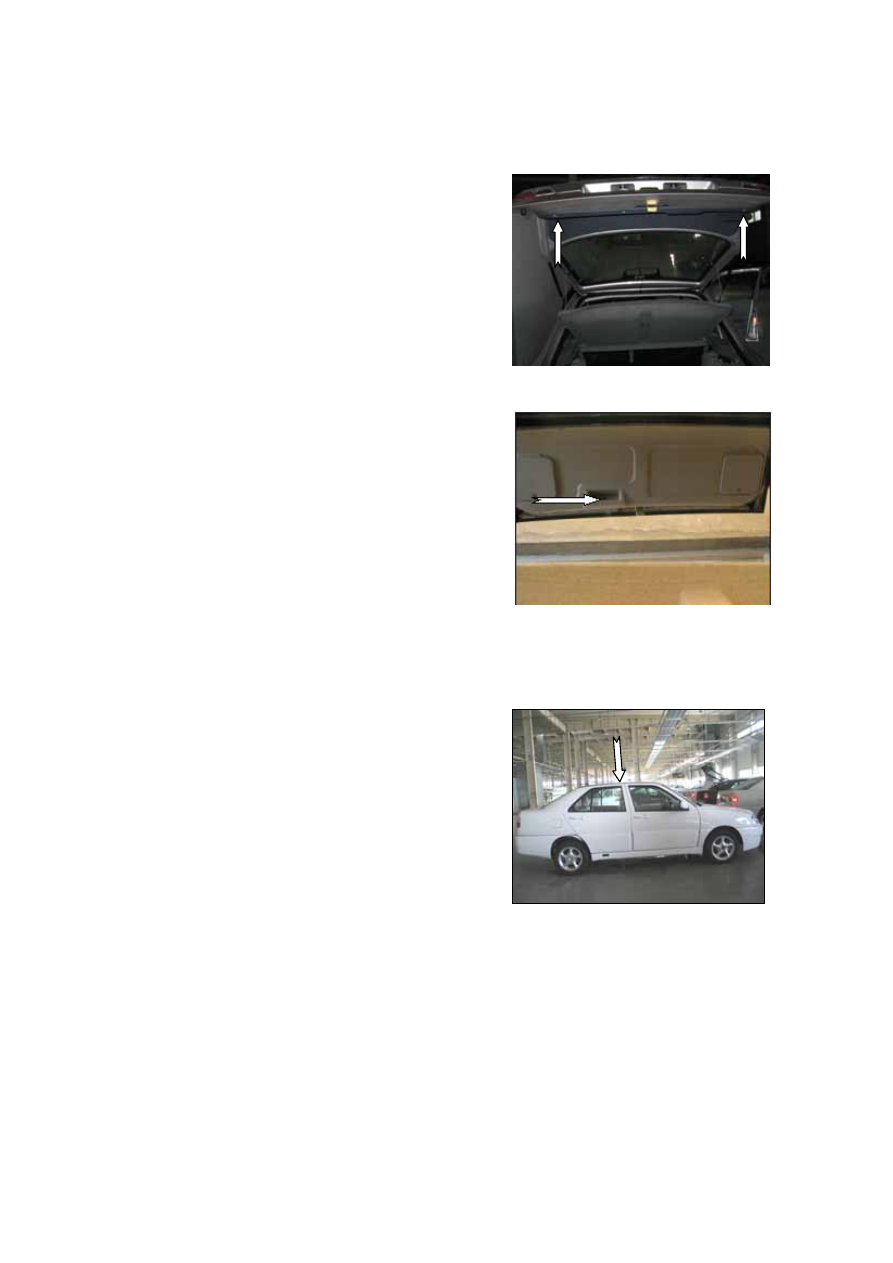

REMOVAL & INSTALLATION OF
TRUNK LID TRIM PANEL






REMOVAL：
----Remove the screw of trim panel frame.
----Pry open the plastic clip with screwdriver to

remove trunk lid trim panel.





INSTALLATION：
---- Install in the reverse order of removal.














REMOVAL & INSTALLATION OF ROOF
TRIM MOULDING

REMOVAL：
----Pry the moulding starting from where back

window is with a plastic wedge. Loosen the
clips of drip channel by hand and then open
them with screwdriver.


INSTALLATION：
---- Install in the reverse order of removal.

NOTE：
----All clips can be used once only.















S-7

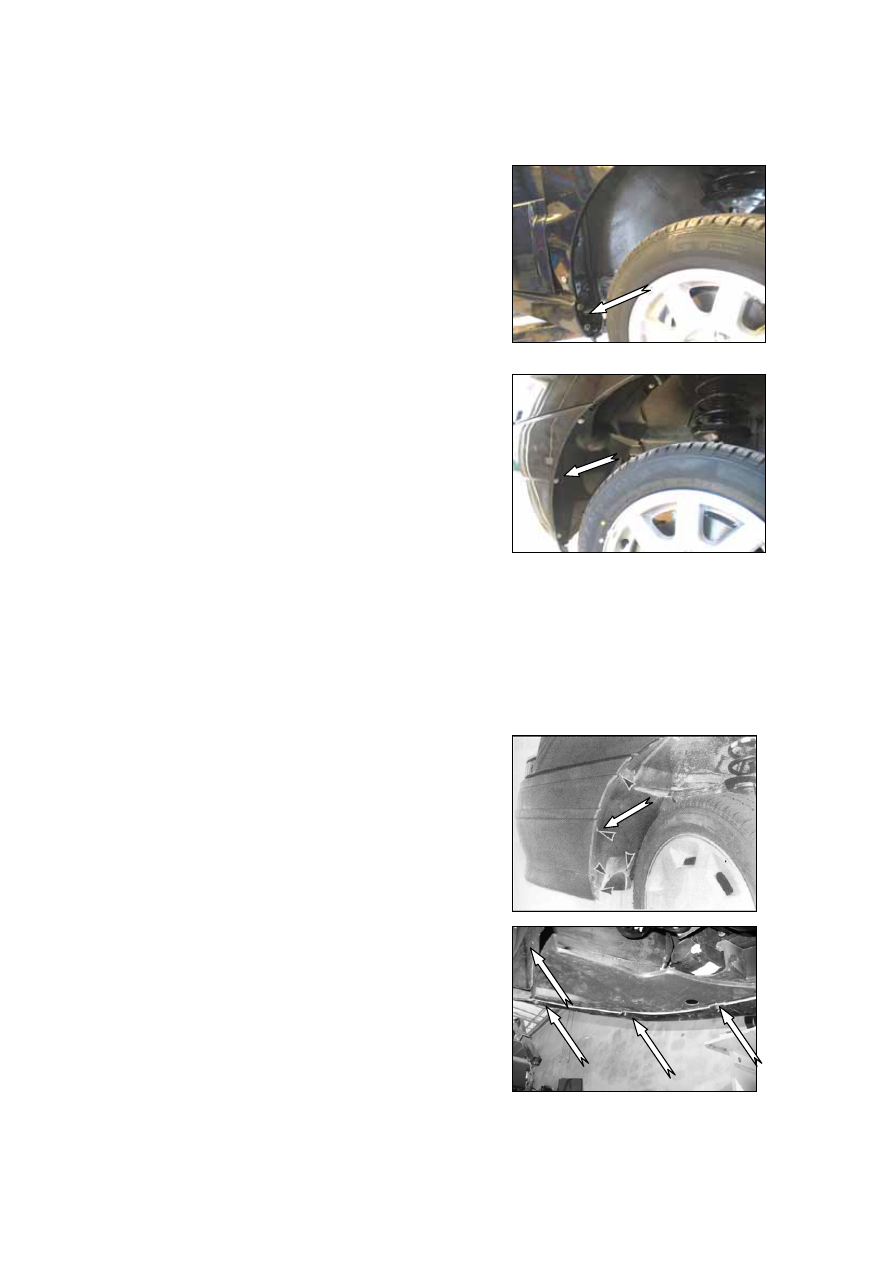

REMOVAL & INSTALLATION OF
FRONT WHEEL HOUSE INNER FENDER

REMOVAL：
----Loosen the screw between front wheel

house and its inner fender.


INSTALLATION：
---- Install in the reverse order of removal.





REMOVAL & INSTALLATION OF REAR
WHEEL HOUSE INNER FENDER

REMOVAL：
---- Loosen the screw between front wheel

house and its inner fender.


INSTALLATION：
---- Install in the reverse order of removal.












REMOVAL & INSTALLATION OF FRONT BUMPER



REMOVAL:
----Remove wheel house inner fender (refer to

REMOVAL & INSTALLALTION OF
WHEEL HOUSE INNER FENDER)













----Remove the screw of wind deflectors

under front bumper as shown in the right
figure. Two wind deflectors, one each
side.











S-8

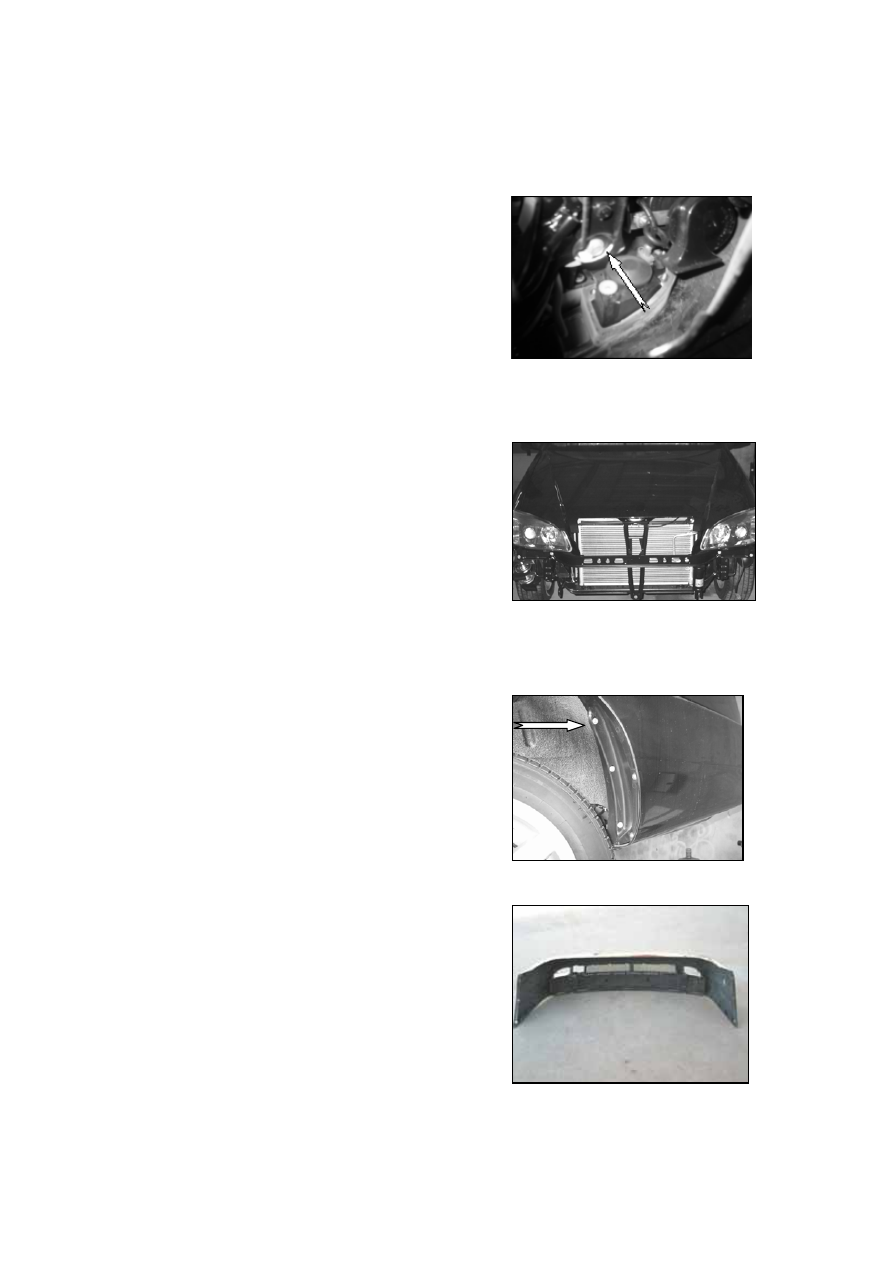

----Remove radiator grille (refer to

REMOVAL & INSTALLATION OF
RADIATOR GRILLE).





----Remove the bolts between bumper bracket

and front floor cross member.



















----Slide the bumper forward until it is

disconnected with the side bracket.



INSTALLATION：
---- Install in the reverse order of removal.

NOTE：
----Tightening torque for bumper bracket is

82±8N·m.















REMOVAL OF SIDE BRACKET



----Take out the clip of expansion seat inside

the fender with the help of auxiliary tool to
remove side bracket.

----The clearance between fender apron and car

body, rear wheel trim panel shall be not
more than 1mm during installation.







REMOVAL OF BRACKETS



----Loosen the bolts between bumper and its

brackets to remove the brackets.

----Install the bumper in the reverse order of

removal. Note that tightening torque for
the bolt between the brackets and floor
side member is 25N·m. Place the brackets
horizontally with ground.














S-9

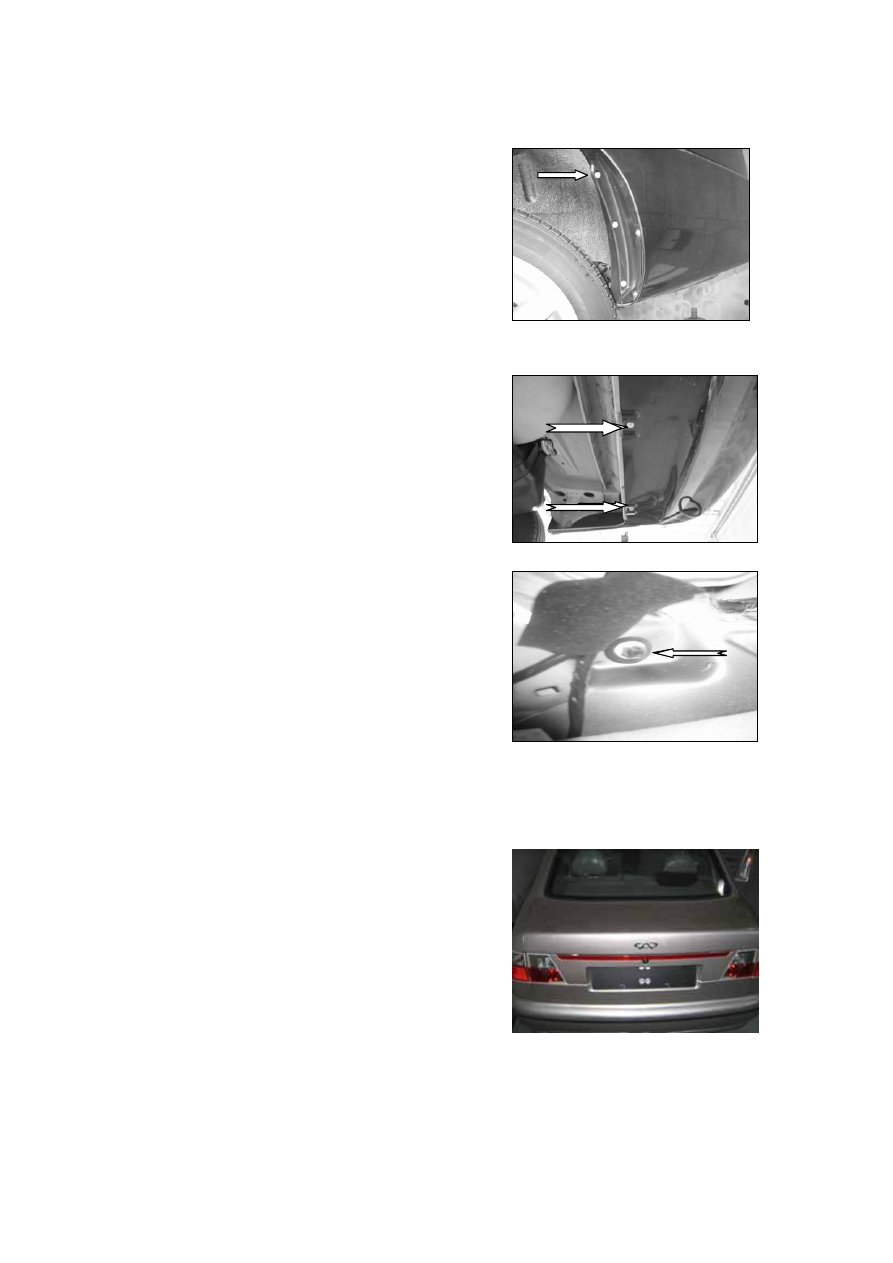

REMOVAL & INSTALLATION OF REAR BUMPER



REMOVAL:
----Remove partial lining of rear wheel house.

Loosen the bolts between the lining and
rear bumper.










----Loosen the bolts between trunk support

and trunk floor.










----Loosen the bolt between rear bumper and

trunk.

----Remove the bolt between rear bumper and

floor bottom.

----Slide the bumper backward until it is

disconnected with its bracket.








REMOVAL OF BRACKETS



----Loosen the bolts between bumper and its

brackets to remove the brackets.

----Install the bumper in the reverse order

of removal. Note that tightening torque
for the bolt between the brackets and
floor cross member is 25N·m. Place the
brackets horizontally with ground.











S-10
