MEASUREMENT SYSTEM… … … …… … … …… … … …… … … …… …S-61



SUNROOF… … … …… … … …… … … …… … … …… … … …… … … …… …S-63

BRIEF INTRODUCTION OF SUNROOF’S MODEL AND FUNCTION… … … S-63

DESCRIPTION OF SUNROOF FUNCTION… … … …… … … …… … … …S-66

INSTRUCTIONS OF SUNROOF MAINTENANCE… … … …… … … …… … S-69

DISASSEMBLY AND ASSEMBLY OF SUNROOF… … … …… … … …… … S-72

REPLACEMENT OF GLASS PANEL… … … …… … … …… … … …… … … S-76

REPLACEMENT OF SEAL… … … …… … … …… … … …… … … …… … S-78

REPLACEMENT OF SUNSHADE … … … …… … … …… … … …… … … …S-82

PROGRAM DESCRIPTION… … … …… … … …… … … …… … … …… … S-90

NOTES ON MAINTENANCE AND USEAGE… … … …… … … …… … … …S-91







































S-3

EXTERIOR ACCESSORIES

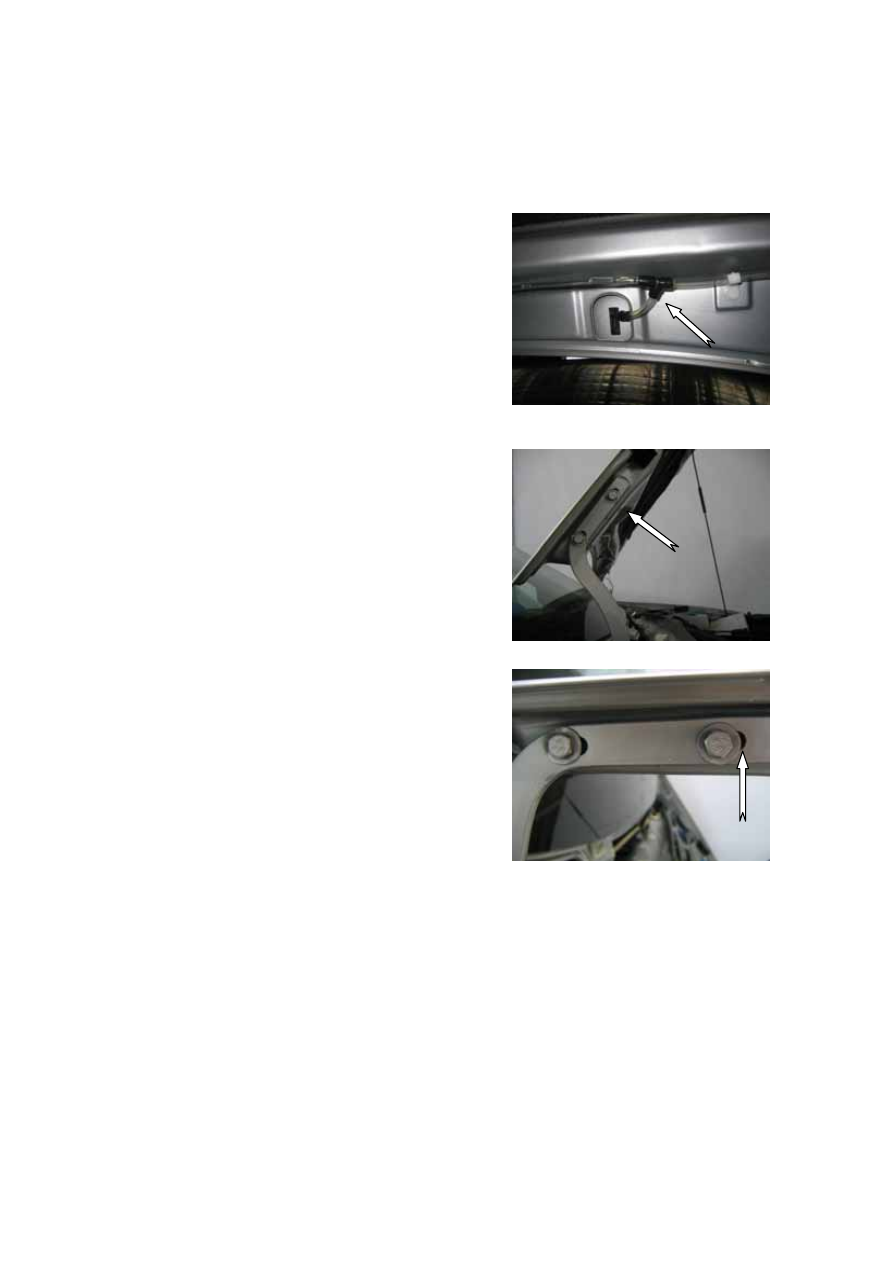

REMOVAL, INSTALLATION & ADJUSTMENT OF ENGINE HOOD

REMOVAL：
------Brace engine hood to remove washer

nozzle of windshield.







------Loosen the four screws securing engine

hood and hinges, two each side, while
the other operator removes the hood.


INSTALLATION:
------Install in the reverse order of removal.





ADJUSTMENT:
------To ensure an even clearance of 4 ±

0.5mm, consistent height and smooth
transition around the hood, the hinge is
designed with slot in it to make final
adjustment of engine hood.

------In making transverse adjustment of the

hood, loosen the bolt as shown in the
figure to move the hood till the desired
value is reached.

------In making vertical adjustment of the

front part of the hood, adjust the pin with
the rubber stopper to keep front fender
and engine hood on the same level.





S-4

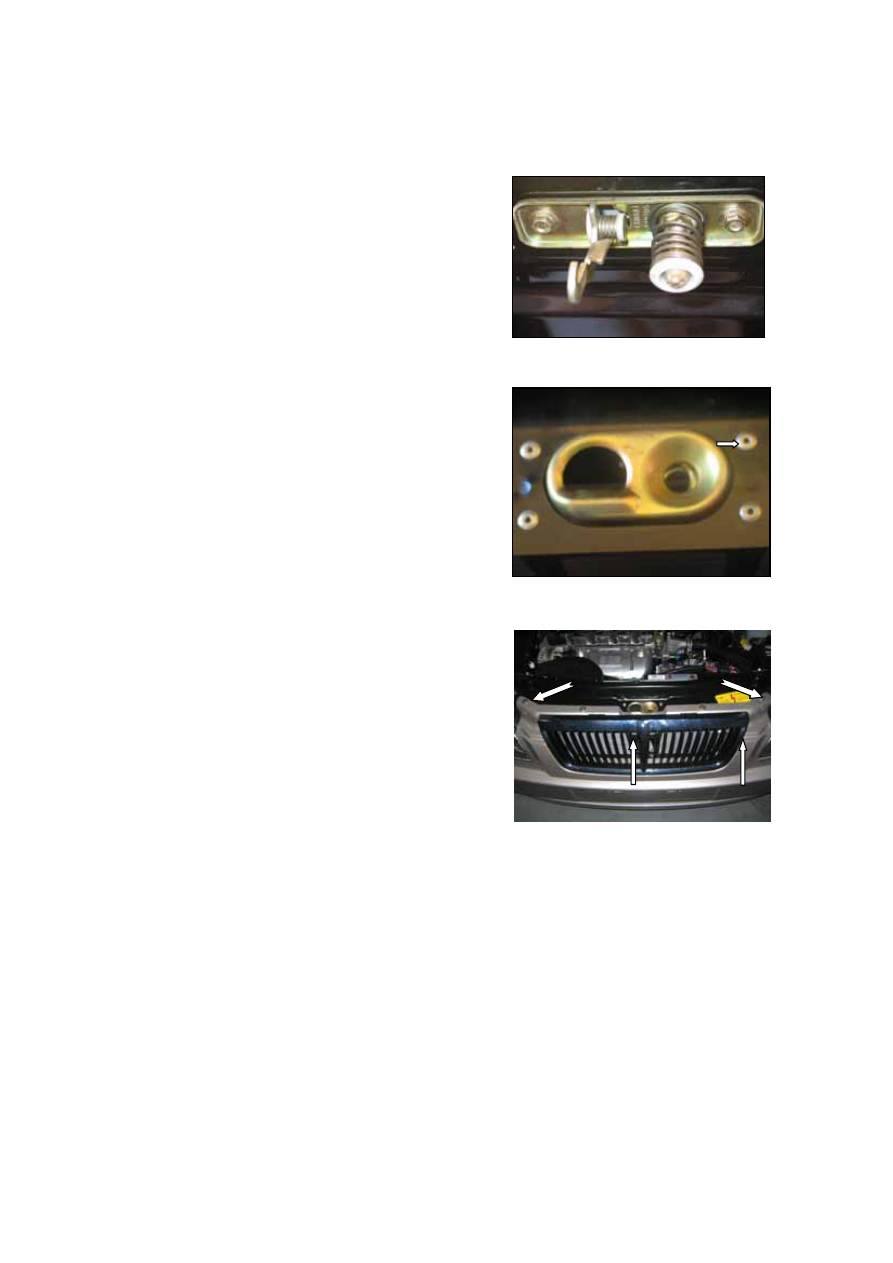

REMOVAL & INSTALLATION OF HOOD LOCK



REMOVAL:
------Remove the upper hood lock. Tightening

torque for the bolt as shown in the figure is
14±2N·m.

------Remove the lower hood lock.. When

removing the grid of radiator, remove the
four screws on the central part to remove
front panel.






------When removing hood lock, loosen the cap

for the opening of release cable to drill off
the rivet between the lock and front panel.

------Remove pin and lock hook. Remove the

two screws between it and engine hood.











































------Removal of lock handle. Take out the two

screws between the control panel and mud
guard from inside.


INSTALLATION:
-----Install in the reverse order of removal.

NOTE：Tightening torque for the upper bolts of

upper hood lock is 14±2 N.m.

























S-5

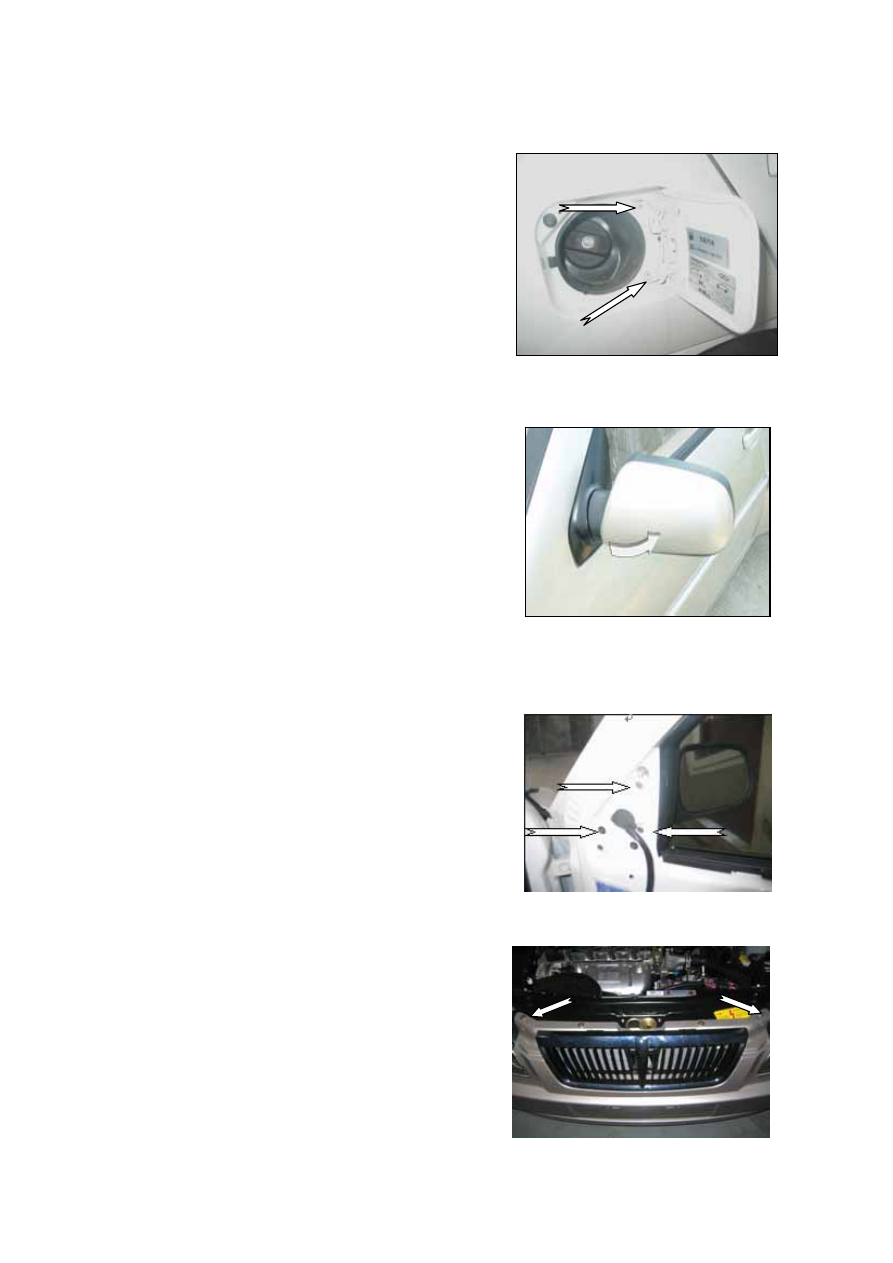

REMOVAL & INSTALLATION OF FUEL FILLER CAP



REMOVAL：
----Loosen the two screws between the filler

cap and car body.


INSTALLATION：
----Install in the reverse order of installation

ADJUSTMENT：
----Keep the size at (4±0.5）mm and flatness

error between cap rim and the fender at
±0.5mm, which shall not affect the
appearance.





REMOVAL & INSTALLATION OF
EXTERIOR REARVIEW MIRROR




REMOVAL：
----In removing the mirror, relevant

instructions shall be followed to remove
front door trim panel (refer to REMOVAL
& INSTALLATION OF FRONT DOOR
TRIM PANEL)



----Remove inner triangular block of the
mirror.





----Remove the three screws connecting the

mirror and door trim panel. Pull the mirror
connector off to remove the mirror.


INSTALLATION：
----Install in the reverse order of removal.

Tightening torque for bolts is 3±0.3N·m.





REMOVAL & INSTALLATION OF
RADIATOR GRILLE

REMOVAL：
----Take out the four bolts between the grille

top and front end panel to remove radiator
grille as shown in the right figure.





INSTALLATION：
---- Install in the reverse order of removal.

Tightening torque for bolts is 3.5±2N·m.





S-6
