461

uu

AcuraWatch

TM

u

Traffic Jam Assist

Continued

Driving

Keep your vehicle near the center of the lane
while driving.

u

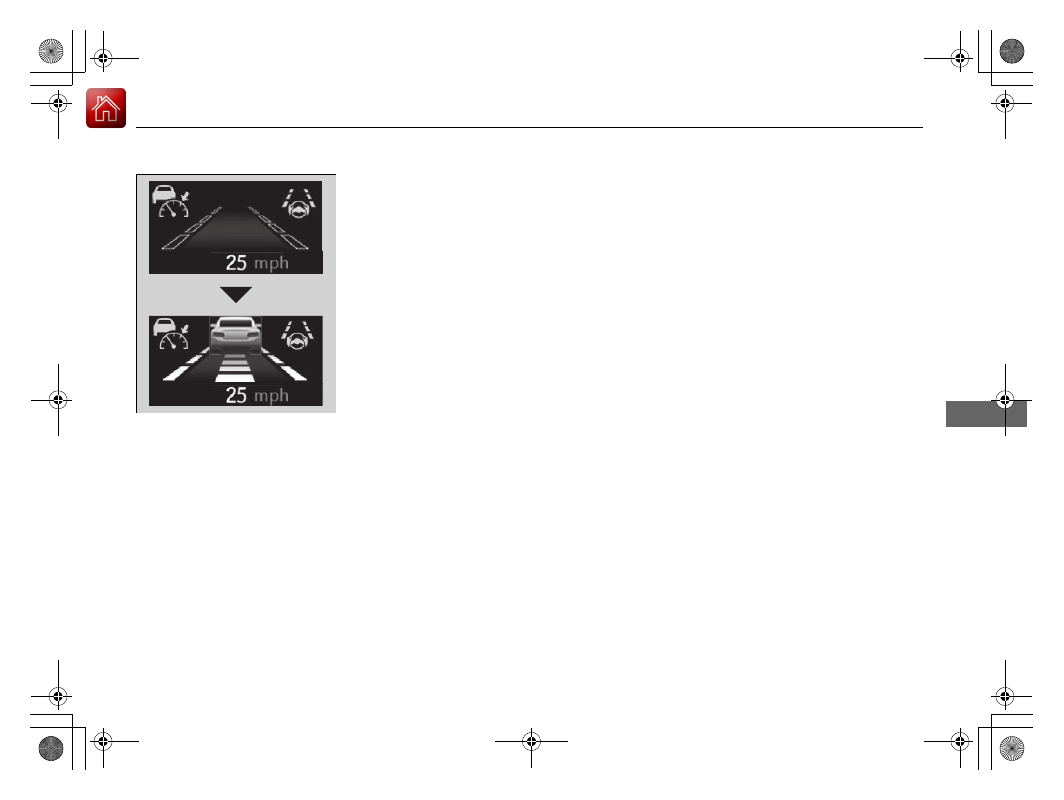

Traffic Jam Assist will be activated once
the camera has detected the white
(yellow) traffic lane lines on either side of
the lane and the radar sensor and
camera have detected a vehicle driving
ahead.
The dotted outer lines change to solid
ones and a vehicle icon appears on the
multi-information display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

AcuraWatch

TM

u

Traffic Jam Assist

462

Driving

When no vehicle is traveling ahead

If the vehicle detected ahead disappears from
the travel path of your vehicle (for example, it
changes lanes), Traffic Jam Assist will be
deactivated temporarily and your vehicle will
gradually accelerate until it reaches the set
speed, after which it will maintain that speed.

1

How Traffic Jam Assist Works

If the vehicle detected ahead suddenly slows down,
or if another vehicle is detected cutting in front of
yours, a warning buzzer will sound, and a warning in
the multi-information display and head-up warning

*



will appear.

Depress the brake pedal and take direct control of
steering.

Beep

Head-up Warning

*

The dotted outer lines and a

vehicle icon with a dotted-line

contour appear on the multi-

information display.

* Not available on all models

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

463

uu

AcuraWatch

TM

u

Traffic Jam Assist

Driving

To cancel Traffic Jam Assist, you can do any of the following:

Press the

 button.

Press the LKAS button.

When the ACC with Low Speed Follow is deactivated.

When Traffic Jam Assist may automatically be suspended when:

The system is temporarily canceled automatically under the following circumstances.

The system fails to detect lane lines.

The vehicle ahead of you cannot be detected.

The steering wheel is turned quickly.

You fail to steer the vehicle.

The vehicle in front of you is driving near the lane lines.

The wipers are set to high.

The interval between your vehicle and the one traveling ahead is over 197 feet
(60m).

Once these conditions no longer exist, the Traffic Jam Assist automatically resumes.

Canceling Traffic Jam Assist

1

How Traffic Jam Assist Works

If you are traveling slower than the vehicle detected
ahead or a vehicle that is detected cutting in front of
you and the interval between your vehicle and the
detected vehicle gradually increases, your vehicle will
continue to follow that vehicle without emitting any
warning, even if the interval between the vehicle is
minimal.

1

When Traffic Jam Assist may automatically be suspended when:

You are traveling over 45mph (72km/h).

u

When the speed of the vehicle reaches 45mph

(72km/h), Traffic Jam Assist is deactivated and LKAS
is activated instead. Once the speed of the vehicle
drops to under 42mph (68km/h), Traffic Jam Assist
is reactivated.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

464

uu

AcuraWatch

TM

u

Traffic Jam Assist

Driving

When Traffic Jam Assist may automatically be canceled when:

It is possible that under any of the following circumstances, broken lines
representing traffic lane lines will appear in the multi-information display, a buzzer
will sound, and Traffic Jam Assist will be canceled.

The temperature of the camera is too high.

The camera behind the rearview mirror, or the area around the camera, including
the windshield, is dirty.

Under the following circumstances, some features of Traffic Jam Assist may not
work.

Vehicle conditions

The front grille is dirty.

Headlight lenses are dirty or the headlights are not properly adjusted.

The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet
snow, etc.

The inside of the windshield is fogged up.

Your vehicle is fitted with tires or wheels of differing size, type, or structure, or the
tires are not properly inflated.

The vehicle is tilted due to a heavy load or suspension modifications.

The interval between your vehicle and the detected vehicle ahead of you is too
short.

Snow chains are installed on the tires.

Traffic Jam Assist: Conditions and limitations

-------------------------------------------------------------------------------------------------------------------------------------------------------------

465

uu

AcuraWatch

TM

u

Traffic Jam Assist

Continued

Driving

Environmental conditions

Bad weather (rain, fog, snow, etc.).

You are driving into low sunlight (e.g., at dawn or dusk).

Strong light is reflected onto your vehicle or the roadway.

Brightness in the immediate are suddenly changes between light and dark, such
as at the an entrance or exit of a tunnel.

The road has puddles or the surface of the road is shiny due to recent rainfall.

Shadows are cast across the lane lines (e.g., trees, buildings, guardrails, vehicle,
etc.).

Spray or snow coming off the vehicle ahead.

Driving at night or in a dark condition such as a tunnel.

Roadway conditions

Certain features of the road can interfere with proper camera operation. Here are
some examples:

The lines are not very distinguishable from the surface of the road.

The section of the road has lane restrictions or temporarily marked lanes.

The lines are faded, removed lines remain visible next to newer lines (duplicate
lines), or the road is marked with tire tracks.

Faded lines

Duplicate lines

Tire tracks

-------------------------------------------------------------------------------------------------------------------------------------------------------------

466

uu

AcuraWatch

TM

u

Traffic Jam Assist

Driving

The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).

The lane markings are extremely narrow, wide, or of inconsistent width.

The lane lines are partly concealed by your vehicle or another vehicle.

The road is hilly or the vehicle is approaching the crest of a hill.

The vehicle is shaking considerably because of an uneven road surface, etc.

Objects on the road (curb, guard rail, pylons, etc.) are recognized as white lines
(or yellow lines).

The lines appear distorted or they briefly disappear out of the camera detection
range due to an uneven road surface.

The road is unpaved, or has a rough or bumpy surface.

The roads has double lines.

The surface of the road is slippery due to icy or snowy conditions.

Sections of the paved road are obscured by puddles or snow.

The road has ruts.

Very wide or narrow traffic lane

-------------------------------------------------------------------------------------------------------------------------------------------------------------

467

uu

AcuraWatch

TM

u

Traffic Jam Assist

Continued

Driving

The section of the road branches off or merges with another road.

Certain features of the road can interfere with proper radar sensor
operation. Here are some examples:

The road has curves, undulations, slopes, etc.

The radar beam is reflecting off multiple items that are within close proximity of
your vehicle. This can happen when you are driving, for example, across a narrow
truss bridge.

Lane void of lines at junction

-------------------------------------------------------------------------------------------------------------------------------------------------------------

468

uu

AcuraWatch

TM

u

Traffic Jam Assist

Driving

Detection limitations

The vehicle ahead suddenly accelerates.

The vehicle ahead is a panel truck or a vehicle whose shape is not of standard
dimensions.

The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.

The ground clearance of the vehicle ahead is unusually high.

A vehicle suddenly cuts in front of yours.

Radar detects upper

section of an empty

carrier truck.

Panel truck,

tanker truck,

etc.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

469

uu

AcuraWatch

TM

u

Road Departure Mitigation (RDM) System

Continued

Driving

Road Departure Mitigation (RDM) System

Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected lane markings and/or leaving the roadway
altogether.

The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close to
detected lane markings without a turn signal
activated, the system, in addition to a visual
alert, applies steering torque and alerts you
with rapid vibrations on the steering wheel, to
help you remain within the detected lane.

2

Customized Features

 P. 300

As a visual alert, the

Lane Departure



message appears on the multi-information
display.

If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking.

u

Braking is applied only when the lane
markings are solid continuous lines.

The system cancels assisting operations when you turn the steering wheel to avoid
crossing over detected lane markings.

If the system operates several times without detecting driver response, the system
beeps to alert you.

How the System Works

1

Road Departure Mitigation (RDM) System

Important Safety Reminder

Like all assistance systems, the RDM system has
limitations.
Over-reliance on the RDM system may result in a
collision. It is always your responsibility to keep the
vehicle within your driving lane.

The RDM system only alerts you when lane drift is
detected without a turn signal in use. The RDM
system may not detect all lane markings or lane or
roadway departures; accuracy will vary based on
weather, speed and lane marker condition. It is
always your responsibility to safely operate the
vehicle and avoid collisions.

You can read about handling information for the
camera equipped with this system.

2

Front Sensor Camera

 P. 480

The RDM system may not work properly or may work
improperly under the certain conditions:

2

RDM Conditions and Limitations

 P. 472

There are times when you may not notice RDM
functions due to your operation of the vehicle, or
road surface conditions.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

AcuraWatch

TM

u

Road Departure Mitigation (RDM) System

470

Driving

The system becomes ready to start searching for lane markings when all the
following conditions are met:

The vehicle is traveling between about 45 and 90 mph (72 and 145 km/h).

The vehicle is on a straight or slightly curved road.

The turn signals are off.

The brake pedal is not depressed.

The wipers are not in continuous high speed operation.

The vehicle is not accelerating or braking, and the steering wheel is not being
turned.

The system makes a determination that the driver is not actively accelerating,
braking or steering.

How the System Activates

1

How the System Activates

The RDM system may automatically shut off and the
safety support indicator (amber) comes and stays on.

2

Indicators

 P. 78

RDM system function can be impacted when the
vehicle is:

Not driven within a traffic lane.

Driven on the inside edge of a curve, or outside of
a lane.

Driven in a narrow lane.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

471

uu

AcuraWatch

TM

u

Road Departure Mitigation (RDM) System

Driving

When you turn the RDM on and off, do the
following.

1.

Press the safety support switch.

2.

Roll the right selector wheel to the



symbol and push it.

u

The message appears on the multi-
information display when the system
becomes on or off.

u

A check mark appears in the box and the
color of the

 symbol changes green

when the system is on. The check mark
disappears and the color of the



symbol changes gray when the system is
off.

The RDM is in the previously selected on
(checked) or off (unchecked) setting each time
you start the engine.

RDM On and Off

1

RDM On and Off

When you have selected

Warning Only

 from the

customized options using the audio/information
screen, the system does not operate the steering
wheel and braking.

2

Customized Features

 P. 300

If LKAS is off and you have selected

Narrow

 from the

customized options using the multi information
display, the message below will appear in case the
system determines a possibility of your vehicle
crossing over detected lane markings.

2

Customized Features

 P. 300

In the following case, a beeper sounds, a message
related to the ACC with Low Speed Follow appears
on the multi-information display, and the braking
function controlled by the Road Departure Mitigation
system is canceled.

The vehicle has repeatedly applied the brakes to
maintain the set speed (for example, you are
descending a long slope).

Right Selector Wheel

Safety Support Switch

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

AcuraWatch

TM

u

Road Departure Mitigation (RDM) System

472

Driving

The system may not properly detect lane markings and the position of your vehicle
under certain conditions. Some examples of these conditions are listed below.

Environmental conditions

Driving in bad weather (rain, fog, snow, etc.).

Sudden changes between light and dark, such as an entrance or exit of a tunnel.

There is little contrast between lane lines and the roadway surface.

Driving into low sunlight (e.g., at dawn or dusk).

Strong light is reflected onto the roadway.

Driving in the shadows of trees, buildings, etc.

Shadows of adjacent objects are parallel to lane markings.

Roadway objects or structures are misinterpreted as lane markers.

Reflections on the interior of the windshield.

Driving at night or in a dark condition such as a tunnel.

RDM Conditions and Limitations

1

RDM On and Off

The vehicle stability assist

TM

 (VSA

®

) system, vehicle

stability assist

TM

 (VSA

®

) OFF, adaptive cruise control

(ACC) with low speed follow, and safety support
indicators may come on in amber along with a
message in the multi-information display when you
set the power mode to ON after reconnecting a
battery.
Drive a short distance at more than 12 mph (20
km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

473

uu

AcuraWatch

TM

u

Road Departure Mitigation (RDM) System

Driving

Roadway conditions

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).

Driving on a road with temporary lane markings.

Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.

The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).

The lane markings are extremely narrow, wide, or changing.

The vehicle in front of you is driving near the lane lines.

The road is hilly or the vehicle is approaching the crest of a hill.

Driving on rough or unpaved roads, or over bumpy surfaces.

When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
lines (or yellow lines).

Driving on roads with double lines.

Vehicle conditions

Headlight lenses are dirty or the headlights are not properly adjusted.

The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet
snow, etc.

The inside of the windshield is fogged.

The camera temperature gets too high.

An abnormal tire or wheel condition (wrong sized, varied size or construction,
improperly inflated, compact spare tire

*

, etc.).

The vehicle is tilted due to a heavy load or suspension modifications.

When tire chains are installed.

* Not available on all models

-------------------------------------------------------------------------------------------------------------------------------------------------------------

474

uu

AcuraWatch

TM

u

Traffic Sign Recognition System

Driving

Traffic Sign Recognition System

Reminds you of road sign information of the current speed limit, your vehicle has
just passed through, showing it on the multi-information display and the head-up
display

*

.

When the camera located behind the rearview mirror captures traffic signs while
driving, the system displays the ones that are recognized as designated for your
vehicle. The sign icon will be displayed until the vehicle reaches a predetermined
time and distance.

The sign icon also may switch to another one or disappear when:

The other designated limit is detected.

You make a turn with a turn signal at an intersection.

How the System Works

1

Traffic Sign Recognition System

Not all signs may be displayed, but any signs posted
on roadsides should not be ignored. The system does
not work on the designated traffic signs of all the
countries you travel, nor in all situations.
Do not rely too much on the system. Always drive at
speeds appropriate for the road conditions.

Never apply a film or attach any objects to the
windshield that could obstruct the camera’s field of
vision and cause the system to operate abnormally.
Scratches, nicks, and other damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the camera’s field of vision or
installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the
camera is necessary for the system to operate
properly.

* Not available on all models

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

475

uu

AcuraWatch

TM

u

Traffic Sign Recognition System

Driving

If the system does not detect any traffic signs while you are driving, the image below
may appear.

1

Traffic Sign Recognition System

To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing system
to shut off, when parking, find a shady area or face
the front of the vehicle away from the sun. If you use
a reflective sun shade, do not allow it to cover the
camera housing.
Covering the camera can concentrate heat on it.

You can read about handling information for the
camera equipped with this system.

2

Front Sensor Camera

 P. 480

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

AcuraWatch

TM

u

Traffic Sign Recognition System

476

Driving

The traffic sign recognition system may not be able to recognize the traffic sign in
the following cases.

Vehicle conditions

Headlight lenses are dirty or the headlights are not properly adjusted.

The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.

The inside of the windshield is fogged.

There are portions remaining to be wiped.

An abnormal tire or wheel condition (wrong sized, varied size or construction,
improperly inflated, compact spare tire

*

, etc.).

The vehicle is tilted due to a heavy load or suspension modifications.

Environmental conditions

Driving into low sunlight (e.g., at dawn or dusk).

Strong light is reflected onto the roadway.

Sudden changes between light and dark, such as an entrance or exit of a tunnel.

When you drive in the shadows of trees, buildings, etc.

Driving at night, in dark areas such as long tunnels.

Driving in bad weather (rain, fog, snow, etc.).

A vehicle in front of you is traveling flying up spray or snow.

Traffic Sign Recognition System Conditions and Limitations

1

Traffic Sign Recognition System Conditions and Limitations

When the traffic sign recognition system
malfunctions,

appears

on the multi-information

display. If this message does not disappear, have your
vehicle checked by a dealer.

* Not available on all models

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     27      28      29      30     ..
