Traffic Sign Recognition System

Continued

Driving

■

The position or the condition of the traffic sign

•

A sign is hard to be found since it is in a complicated area.

•

A sign is located far away from your vehicle.

•

A sign is located where the beam of the headlight is hard to reach.

•

A sign is on a corner or bend in the road.

•

Faded or bent signs.

•

Rotated or damaged signs.

•

A sign is covered with mud, snow, or frost.

•

A part of the sign is hidden by the trees, or the sign itself is hidden by a vehicle
and others.

•

Light (a streetlight) or a shadow is reflected on the surface of the sign.

•

A sign is too bright or too dark (an electric sign).

•

A sign of a small size.

■

Other conditions

•

When you are driving at a high speed.

478

uu

AcuraWatch

TM

u

Traffic Sign Recognition System

Driving

The traffic sign recognition system may not operate correctly, such as displaying a
sign that does not follow the actual regulation for the roadway or does not exist at
all in the following cases.

u

A speed limit sign may display at a higher or lower speed than the actual speed
limit.

•

There is a supplementary sign with further information such as weather, time,
vehicle type, school zone, etc.

•

Figures on the sign are hard to read (electric signs, numbers on the sign are
blurred, etc.).

•

A sign is in the vicinity of the lane you are driving even though it is not for the lane
(speed limit sign situated at the junction between the side road and the main
road, etc.).

•

There are things that look similar to the color or shape of the recognition object
(similar sign, electric sign, signboard, structure, etc.).

•

A truck or another large vehicle with a sticker of the speed limit sign on the back
are traveling in front of you.

479

uu

AcuraWatch

TM

u

Traffic Sign Recognition System

Driving

The speed limit sign icon is displayed on the right half of the screen.

■

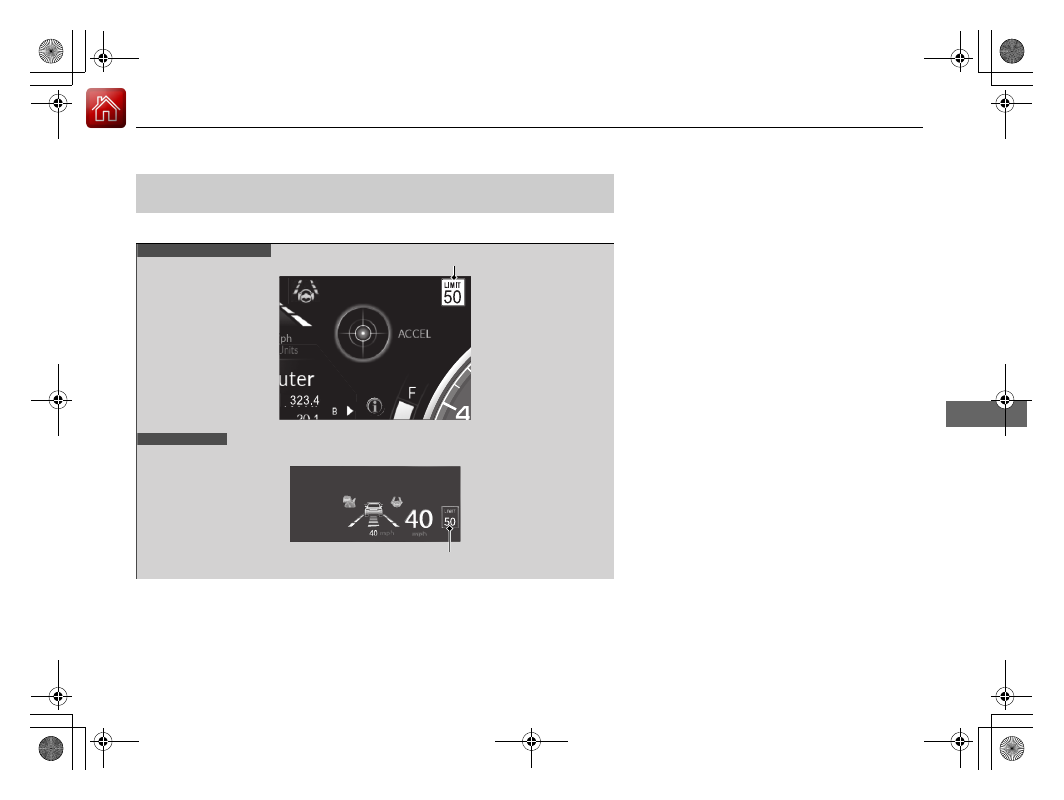

Signs Displayed on the Multi-Information Display and Head-up

Display

*

Speed Limit Sign

Multi-Information Display

Speed Limit Sign

Head-up display

*

* Not available on all models

480

uu

AcuraWatch

TM

u

Front Sensor Camera

Driving

Front Sensor Camera

The camera, used in systems such as LKAS, RDM, ACC with Low Speed Follow,
CMBS

TM

, and Traffic Jam Assist is designed to detect an object that triggers any of

the systems to operate its functions.

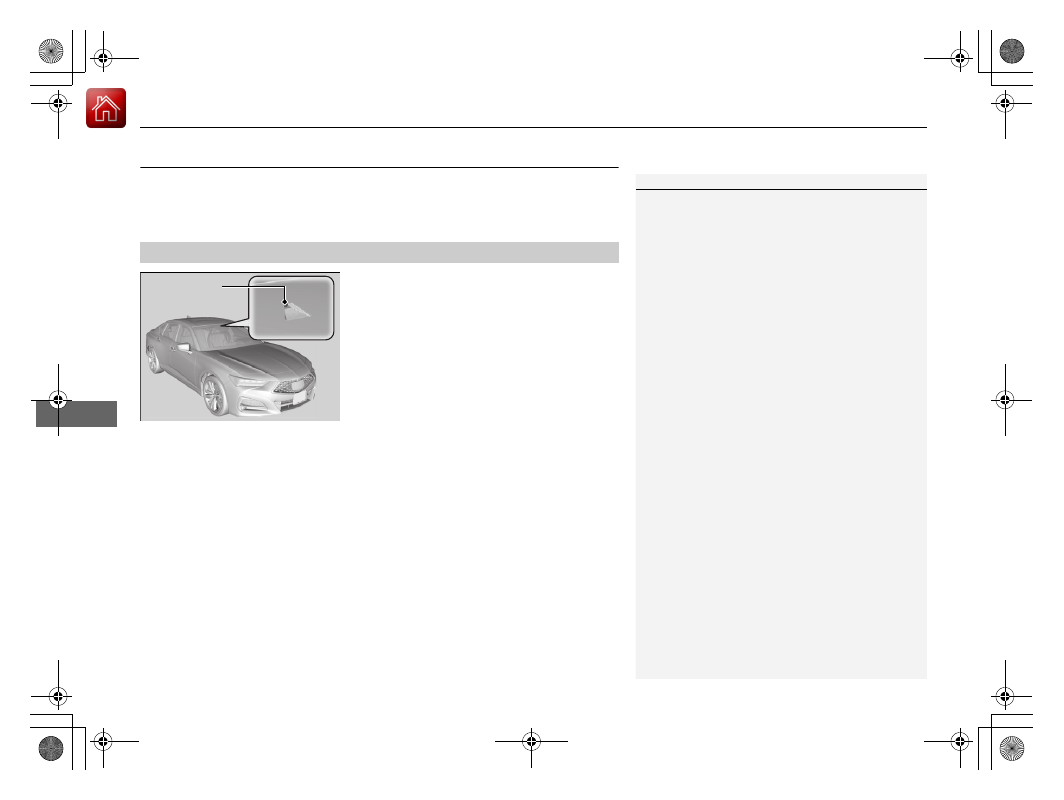

This camera is located behind the rearview
mirror.

To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.

■

Camera Location and Handling Tips

1

Front Sensor Camera

Never apply a film or attach any objects to the
windshield, the hood, or the front grille that could
obstruct the camera’s field of vision and cause the
system to operate abnormally.
Scratches, nicks, and other damage to the windshield
within the camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the camera’s field of vision or
installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the
camera is necessary for the system to operate
properly.

Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.

Front Sensor

Camera

481

uu

AcuraWatch

TM

u

Front Sensor Camera

Driving

1

Front Sensor Camera

If the

Some Driver Assist Systems Cannot

Operate:



Camera Temperature Too High

 message

appears:

•

Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.

•

Start driving the vehicle to lower the windshield
temperature, which cools down the area around
the camera.

If the

Some Driver Assist Systems Cannot

Operate: Clean Front Windshield

 message

appears:

•

Park your vehicle in a safe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.

482

uu

AcuraWatch

TM

u

Radar Sensor

Driving

Radar Sensor

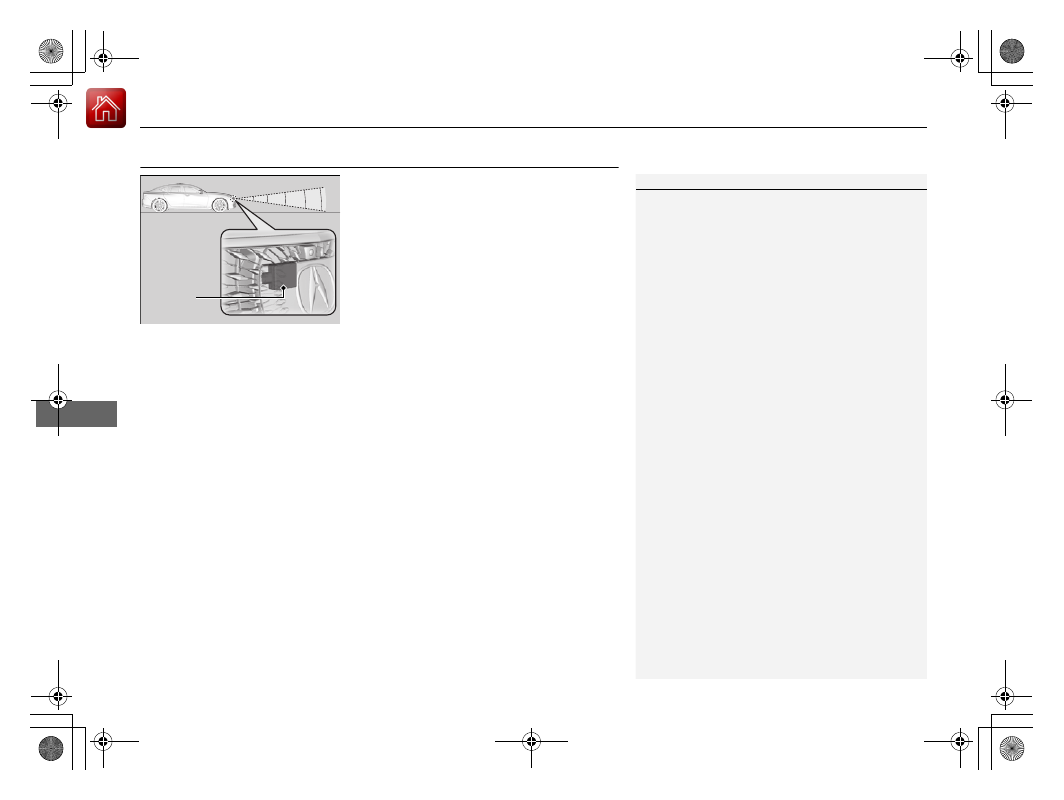

The radar sensor is behind the emblem.

1

Radar Sensor

Avoid strong impacts to the radar sensor cover.

For the CMBS

TM

 to work properly:

•

Always keep the radar sensor cover clean.

•

Never use chemical solvents or polishing powder
for cleaning the sensor cover. Clean it with water
or a mild detergent.

•

Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.

If you need the radar sensor to be repaired, or
removed, or the radar sensor cover is strongly
impacted, turn off the system by using the safety
support switch and take your vehicle to a dealer.

2

CMBS

TM

 On and Off

 P. 421

If the vehicle is involved in any of the following
situations, the radar sensor may not work properly.
Have your vehicle checked by a dealer:

•

Your vehicle is involved in a frontal collision

•

Your vehicle drives through deep water or is
submerged in deep water

•

Your vehicle strongly strikes a bump, curb, chock,
or embankment that could jar the radar sensor

Radar

Sensor

483

Continued

Driving

Braking

Brake System

Use the parking brake to keep the vehicle stationary when parked. When the
parking brake is applied, you can manually or automatically release it.

■

To apply

The electric parking brake can be applied any
time the vehicle has battery, no matter which
position the power mode is in.

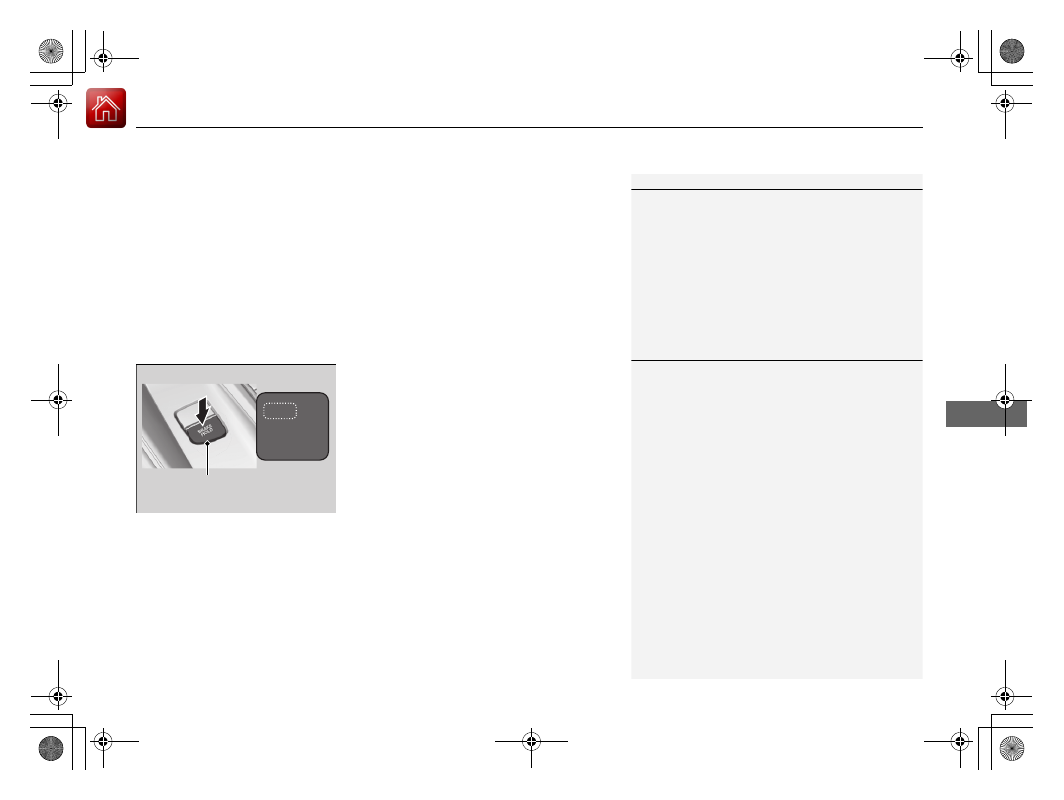

Press the electric parking brake switch gently
and securely.

u

The indicator in the switch comes on.

u

The parking brake and brake system
indicator comes on.

■

Parking Brake

1

Brake System

When you depress the brake pedal, you may hear a
whirring sound from the engine compartment. This is
because the brake system is in operation, and it is
normal.

1

Parking Brake

You may hear the electric parking brake system
motor operating from the rear wheel area when you
apply or release the parking brake. This is normal.

The brake pedal may slightly move due to the electric
parking brake system operation when you apply or
release the parking brake. This is normal.

You cannot apply or release the parking brake if the
battery goes dead.

2

If the Battery Is Dead

 P. 593

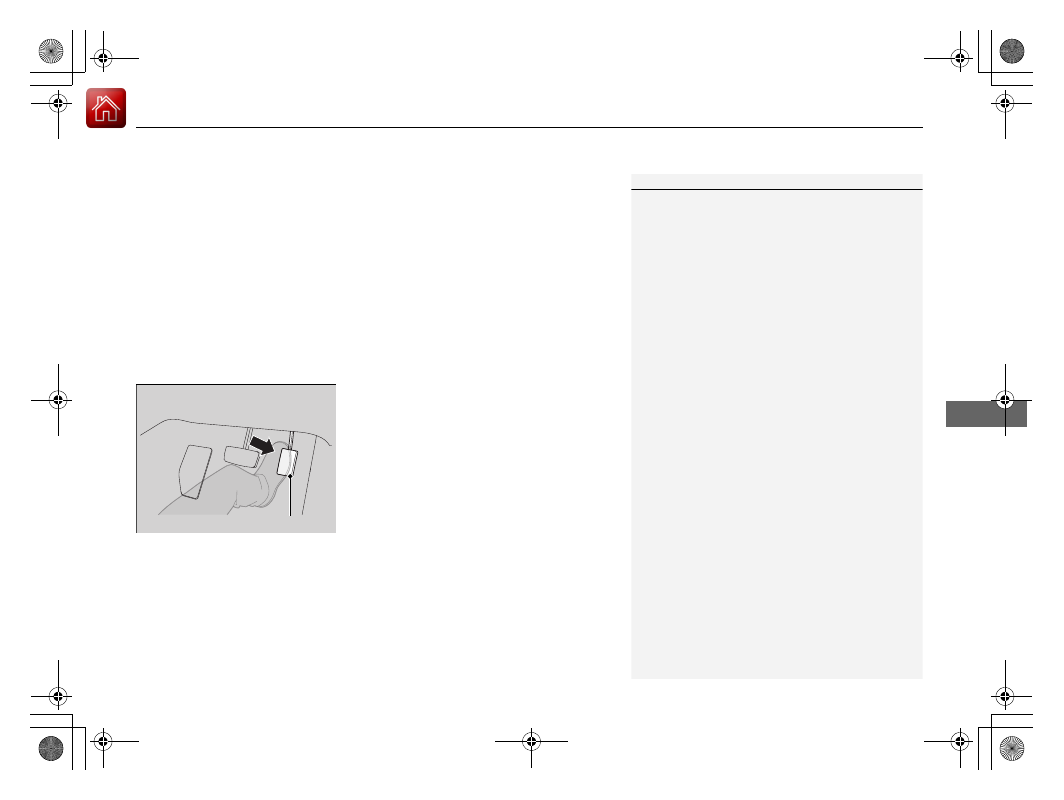

If you press and hold the electric parking brake
switch while driving, the brakes on all four
wheels are applied by the electric servo brake
system until the vehicle comes to a stop. The
electric parking brake then applies, and the
switch should be released.

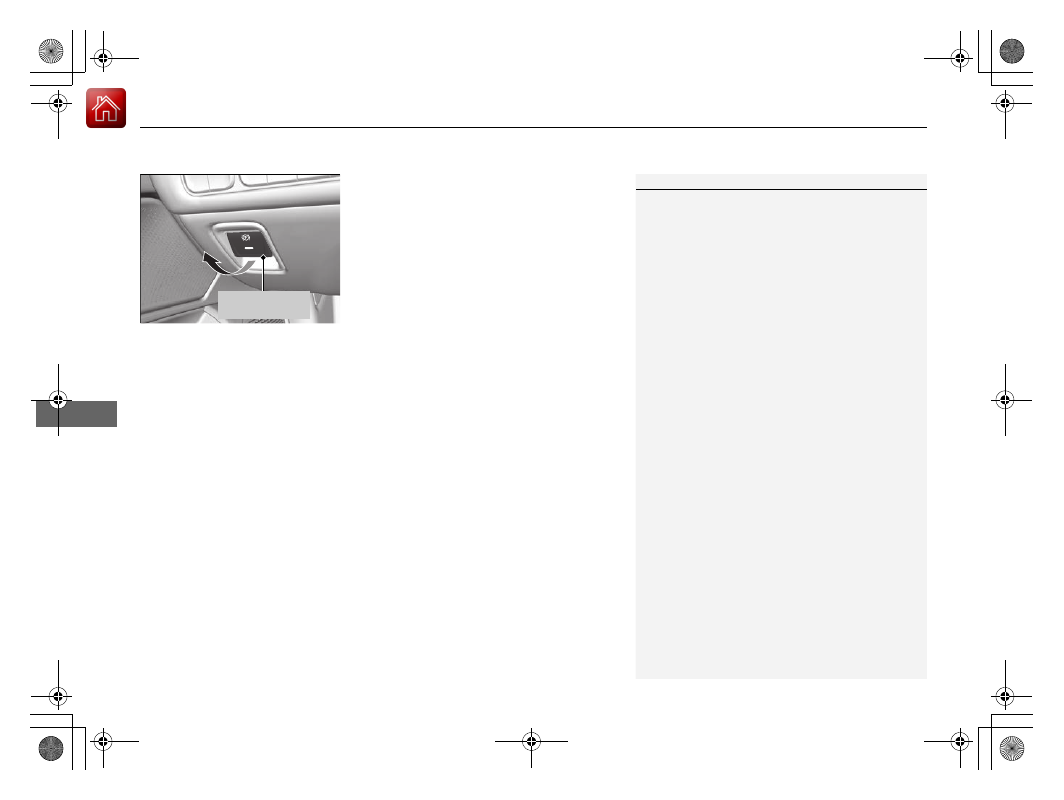

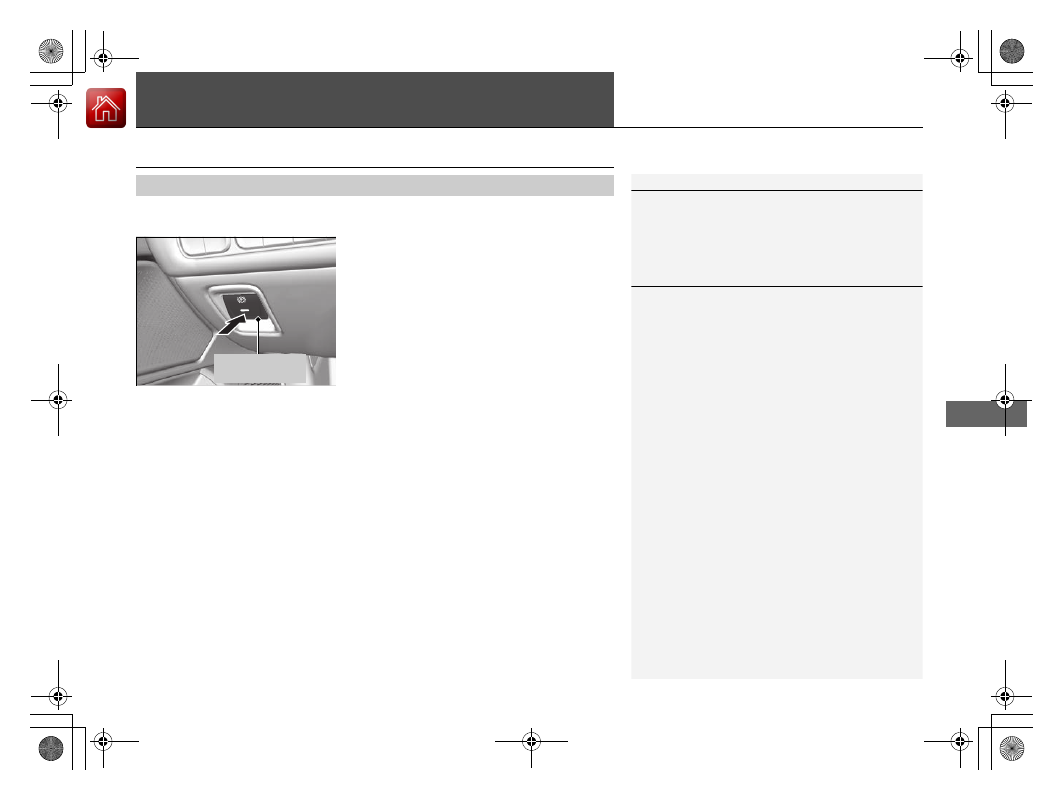

Electric Parking

Brake Switch

uu

Braking

u

Brake System

484

Driving

■

To release

The power mode must be in ON in order to
release the electric parking brake.

1.

Depress the brake pedal.

2.

Pull the electric parking brake switch.

u

The indicator in the switch goes off.

u

The parking brake and brake system
indicator goes off.

Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing down hill on steep hills.

1

Parking Brake

In the following situations, the parking brake
automatically operates.

•

When the vehicle stops more than 10 minutes
while ACC with Low Speed Follow is activated.

•

When the driver’s seat belt is unfastened while
your vehicle is stopped automatically by ACC with
Low Speed Follow.

•

When the engine is turned off, except by Auto Idle
Stop system, while ACC with Low Speed Follow is
activated.

•

When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.

•

When the driver’s seat belt is unfastened while
your vehicle is stopped and automatic brake hold is
applied.

•

When the engine is turned off, except by Auto Idle
Stop system, while automatic brake hold is applied.

•

When there is a problem with the Automatic Brake
Hold System while automatic brake hold is applied.

Electric Parking

Brake Switch

Continued

485

uu

Braking

u

Brake System

Driving

■

Automatic parking brake feature operation

If the automatic parking brake feature has been activated:

•

The parking brake is applied automatically when you set the power mode to
VEHICLE OFF.

•

To confirm that the parking brake is applied, check if the Parking Brake and Brake
System indicator (red) is on.

2

Activating and deactivating the automatic parking brake feature

 P. 486

■

To release automatically

Depressing the accelerator pedal releases the parking brake.
Use the accelerator pedal to release the brake when you are starting the vehicle
facing uphill, or in a traffic jam.

Gently depress the accelerator pedal.
When on a hill, it may require more
accelerator input to release.

u

The parking brake and brake system
indicator goes off.

You can release the parking brake automatically when:

•

You are wearing the driver’s seat belt.

•

The engine is running.

•

The transmission is not in

(

P

 or

(

N

.

1

Parking Brake

If the parking brake cannot be released
automatically, release it manually.

When the vehicle is traveling uphill, the accelerator
pedal may need to be pressed farther to
automatically release the electric parking brake.

The parking brake cannot be released automatically
while the following indicators are on:

•

Malfunction indicator lamp

•

Transmission system indicator

The parking brake may not be released automatically
while the following indicators are on:

•

Electric parking brake system indicator

•

VSA

®

 system indicator

•

ABS

 indicator

•

Supplemental restraint system indicator

Accelerator Pedal

uu

Braking

u

Brake System

486

Driving

■

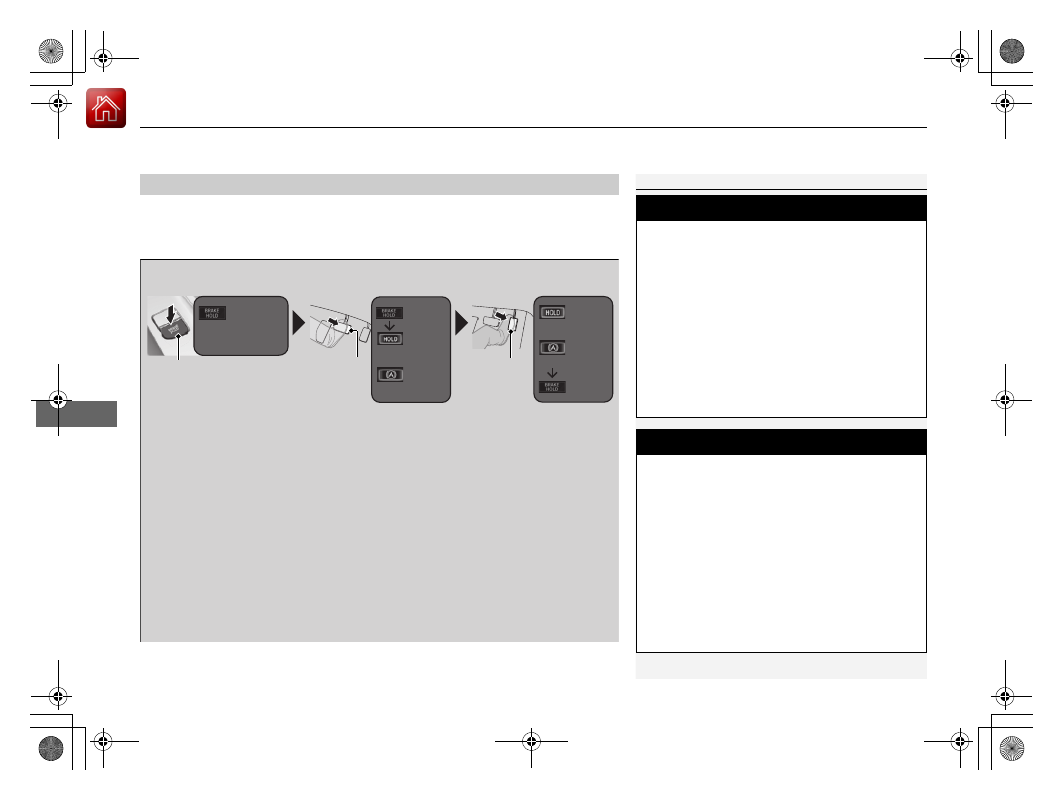

Activating and deactivating the automatic parking brake feature

With the power mode in ON, carry out the following steps to either activate or
deactivate the automatic parking brake feature.

1.

Put the transmission into

(

P

.

2.

Without depressing the brake pedal, press and release the parking brake switch.

u

Check that the Parking Brake and Brake System indicator (red) has come on.

3.

Press and hold the parking brake switch. When you hear a beeping sound, release
the switch and within 3 seconds press and hold the switch again.

4.

When you hear a sound indicating that the procedure is completed, release the
switch.

u

Two beeps indicates that the feature has been activated.

u

One beep indicates that the feature has been deactivated.

u

When you have completed activating the feature, the parking brake will
remain applied after you turn off the engine.

u

To confirm that the parking brake is applied, check if the Parking Brake and
Brake System indicator (red) is on.

If you need to temporarily deactivate the feature for when putting your vehicle
through a conveyor type car wash, you can follow the procedure explained below.

1.

Depress the brake pedal and bring the vehicle to a stop.

2.

Set the power mode to VEHICLE OFF and then within 2 seconds pull up the
parking brake switch.

u

Activation and deactivation settings for the feature will not be affected.

u

Before temporarily deactivating the feature, make sure to first turn off both
ACC with Low Speed Follow and the automatic brake hold system.

u

To confirm that the parking brake is applied, check if the Parking Brake and
Brake System indicator (red) is on.

1

Parking Brake

In cold climates, the parking brake may freeze in
place if applied.

When parking the vehicle, chock the wheels and
make sure the automatic parking brake feature is
deactivated.

Also, when putting your vehicle through a conveyor-
type car wash or when having your vehicle towed,
deactivate the automatic parking brake feature and
leave the parking brake released.

Continued

487

uu

Braking

u

Brake System

Driving

Your vehicle is equipped with disc brakes at all four wheels. The brake assist system
increases the stopping force when you depress the brake pedal hard in an
emergency situation. The anti-lock brake system (ABS) helps you retain steering
control when braking very hard.

2

Brake Assist System

 P. 491

2

Anti-lock Brake System (ABS)

 P. 490

■

Foot Brake

1

Foot Brake

Check the brakes after driving through deep water,
or if there is a buildup of road surface water. If
necessary, dry the brakes by lightly depressing the
pedal several times.

If you hear a continuous metallic friction sound when
applying the brakes, this is caused by the brake wear
indicator rubbing on the brake rotor and indicates
that the brake pads need to be replaced. Have the
vehicle checked by a dealer. If you hear only an
occasional squeak or squeal when you initially apply
the brake pedal, this may be normal and caused by
high frequency vibration of the brake pads against
the rotating brake disc.

Constantly using the brake pedal while going down a
long hill builds up heat, which reduces the brake
effectiveness. Apply engine braking by taking your
foot off the accelerator pedal and downshifting to a
lower gear.

Do not rest your foot on the brake pedal while
driving, as it will lightly apply the brakes and cause
them to lose effectiveness over time and reduce pad
life. It will also confuse drivers behind you.

uu

Braking

u

Brake System

488

Driving

Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while the vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.

■

Automatic Brake Hold

1

Automatic Brake Hold

3

WARNING

Activating the automatic brake hold system

on steep hills or slippery roads may still

allow the vehicle to move if you remove

your foot from the brake pedal.

If a vehicle unexpectedly moves, it may

cause a crash resulting in serious injury or

death.

Never activate the automatic brake hold

system or rely on it to keep a vehicle from

moving when stopped on a steep hill or

slippery roads.

3

WARNING

Using the automatic brake hold system to

park the vehicle may result in the vehicle

unexpectedly moving.

If a vehicle moves unexpectedly, it may

cause a crash, resulting in serious injury or

death.

Never leave the vehicle when braking is

temporarily kept by automatic brake hold

and always park the vehicle by putting the

transmission in

(

P

 and applying the parking

brake.

■

Turning on the system

Fasten your seat belt

properly, then start the

engine. Press the

automatic brake hold

button.

●

The automatic brake
hold system indicator
comes on. The system
is turned on.

■

Activating the system

Depress the brake pedal

to come to a complete

stop. The transmission

must not be in

(

P

 or

(

R

.

●

The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.

●

Release the brake
pedal after the
automatic brake hold
indicator comes on.

■

Canceling the system

Depress the accelerator

pedal while the

transmission is in a

position other than

(

P



or

(

N

. The system is

canceled and the vehicle

starts to move.

●

The automatic brake
hold indicator goes
off. The system
continues to be on.

Accelerator

Pedal

Brake Pedal

Automatic Brake

Hold Button

Comes

On

Comes On

On

On

U.S.

Canada

Comes

On
Comes

On

On

U.S.

Canada

489

uu

Braking

u

Brake System

Driving

■

The system automatically cancels when:

•

You engage the parking brake.

•

You depress the brake pedal and put the transmission into

(

P

 or

(

R

.

■

The system automatically cancels and the parking brake is applied when:

•

Braking is kept for more than 10 minutes.

•

The driver’s seat belt is unfastened.

•

The engine is turned off.

•

There is a problem with automatic brake hold system.

■

Turning off the automatic brake hold system

While the system is on, press the automatic
brake hold button again.

u

The automatic brake hold system
indicator goes off.

If you want to turn off automatic brake hold
while the system is in operation, press the
automatic brake hold button with the brake
pedal depressed.

1

Automatic Brake Hold

While the system is activated, you can turn off the
engine or park the vehicle through the same
procedure as you normally do.

2

When Stopped

 P. 492

Whether the system is on, or the system is activated,
the automatic brake hold turns off once the engine is
off.

1

Turning off the automatic brake hold system

Make sure to turn off the automatic brake hold
system before using an automated car wash.

You may hear an operating noise if the vehicle moves
while the automatic brake hold system is in
operation.

Automatic Brake

Hold Button

Goes

Off

490

uu

Braking

u

Anti-lock Brake System (ABS)

Driving

Anti-lock Brake System (ABS)

Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you can.

The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.

You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pedal. This is sometimes referred to as
“stomp and steer.”

■

ABS operation

The brake pedal may pulsate slightly when the ABS is working. Depress the brake
pedal and keep holding the pedal firmly down. On dry pavement, you will need to
press on the brake pedal very hard before the ABS activates. However, you may feel
the ABS activate immediately if you are trying to stop on snow or ice.

ABS may activate when you depress the brake pedal when driving on:

•

Wet or snow covered roads.

•

Roads paved with stone.

•

Roads with uneven surfaces, such as potholes, cracks, manholes, etc.

When the vehicle speed goes under 6 mph (10 km/h), the ABS stops.

■

ABS

1

Anti-lock Brake System (ABS)

NOTICE

The ABS may not function correctly if you use a tire of
the wrong size or type.

If the

ABS

 indicator comes on while driving, there

may be a problem with the system.
While normal braking will not be affected, there is a
possibility that the ABS will not be operating. Have
your vehicle checked by a dealer immediately.

The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lockup which can lead to
skidding and loss of steering control.

In the following cases, your vehicle may need more
distance to stop than a vehicle without the ABS:

•

You are driving on rough or uneven road surfaces,
such as gravel or snow.

•

The tires are equipped with tire chains.

The following may be observed with the ABS system:

•

Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
engine has been started and while the vehicle
accelerates.

•

Brake pedal and/or the vehicle body vibration when
ABS activates.

These vibrations and sounds are normal to ABS
systems and are no cause for concern.

491

uu

Braking

u

Brake Assist System

Driving

Brake Assist System

Designed to assist the driver by generating greater braking force when you depress
the brake pedal hard during emergency braking.

■

Brake assist system operation

Press the brake pedal firmly for more powerful braking.

492

Driving

Parking Your Vehicle

When Stopped

1.

Depress the brake pedal firmly.

2.

With the brake pedal depressed, press the electric parking brake switch slowly,
but fully.

3.

Change the shift position to

(

P

.

4.

Turn off the engine.

u

The parking brake and brake system indicator goes off in about 30 seconds.

1

Parking Your Vehicle

Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.

NOTICE

The following can damage the transmission:

•

Depressing the accelerator and brake pedals
simultaneously.

•

Holding the vehicle in place when facing uphill by
depressing the accelerator pedal.

•

Changing into

(

P

 before the vehicle stops

completely.

3

WARNING

The vehicle can roll away if left unattended
without confirming that Park is engaged.

A vehicle that rolls away could cause a crash
resulting in serious injury or death.

Always keep your foot on the brake pedal
until you have confirmed that

(

P

 is shown

on the gear position Indicator.
