Acura RDX (2021 year). Manual in english - page 16

254

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

■

Settings

Enters the customizing menu screen.

2

Customized Features

 P. 341

■

Apple CarPlay

Displays the

Apple CarPlay

 screen.

2

Apple CarPlay

 P. 307

■

Android Auto

Displays the

Android Auto

 screen.

2

Android Auto

 P. 311

■

System Updates

Updates the software version of the audio system.

2

System Updates

 P. 266

■

Messages

Displays the text message screen.

2

Text Message

 P. 385

■

AT&T HotSpot

Displays the AT&T Hotspot screen.

2

AT&T Hotspot

 P. 305

■

AcuraLink

Displays the AcuraLink screen.

2

AcuraLink

®

 P. 396

Continued

255

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

You can see the audio, HFL information, navigation mini map

*

, and clock

information on the B-zone using the B-zone touchpad.

■

Switching the card

Swipe up or down the B-zone touchpad to cycle through the following screen.

■

B-Zone

1

B-Zone

SiriusXM

®

 radio service notifications are displayed in

the B-zone.

B-Zone

1

Switching the card

The card in the B-zone will change depending on the
screen displayed in the A-zone.

*1: Appears only when you set a destination on the
Apple CarPlay or Android Auto navigation function.

2

Apple CarPlay

 P. 307

2

Android Auto

 P. 311

Models without navigation system

Now Playing Audio

Navigation

*1

Clock

* Not available on all models

256

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

You can also switching the screen by following procedure.

1.

Press the

 (cards list) button.

2.

Select an item then press the B-zone
touchpad.

Continued

257

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

■

To change to a next screen

Swiping A-zone touchpad left or right takes you to the next screen.

■

Home Screen

1

Home Screen

The home screen has 2 pages. You can add up to 8
pages.

Press the

 (home) button to go directly back to

the first page of the home screen from any page.

Current page position

A-Zone Touchpad

Swipe left to go to
the additional pages
of the home screen.

Swipe right to
display the

All Apps



screen.

uu

Audio System Basic Operation

u

Audio/Information Screen

258

Features

■

To add app icons to the home screen and the head-up display

*

You can add app icons to the home screen and the head-up display.

1.

Press the

 (home) button.

2.

Swipe right to display the

All Apps

 screen.

3.

Go to an app on the list, then press and
hold A-zone touchpad.

4.

From the pop-up menu, select

Add to

Home Page

 or

Add to Heads-Up

Display

*

.

u

The

 icon or

HUD

*

 appears next to

the app on the list when the
corresponding icon has been added to
the home screen or head-up display.

1

To add app icons to the home screen and the head-up display

*

Pre-installed apps may not start up normally. If this
occurs, you need to reset the system.

2

Defaulting All the Settings

 P. 363

If you perform

Factory Data Reset

, it may reset all

the settings to their factory default.

2

Defaulting All the Settings

 P. 363

In case those apps still do not startup normally, even
after

Factory Data Reset

, contact your dealer.

Each item with

HUD

 is listed on the head-up display

menu.

If you want to hide the item from the head-up display
menu, select

Remove from Heads-Up Display

.

Models with head-up display

* Not available on all models

Continued

259

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

■

To add shortcut icons to the home screen and the head-up display

*

Shortcut icons for items stored in Favorite can be added to the home screen and the
head-up display.

1.

Select a favorite item, then press and hold
A-zone touchpad.

u

A pop-up menu will appear on the
screen.

2.

Select

Add to Home Page

 or

Add to

Heads-Up Display

*

.

u

A short cut icon will be added to the
home screen or the head-up display.

1

To add shortcut icons to the home screen and the head-up
display

*

You can add an icon to the head-up display directly
from the home screen. Select an icon on the home
screen, then press and hold the A-zone touchpad.
After that, select

Add to Heads-Up Display

, and

then press the

 (back) button or the

 (home)

button to confirm the change.
Note that icons for

Messages

,

Settings

, and

System Update

 cannot be added to the head-up

display.

Models with head-up display

* Not available on all models

uu

Audio System Basic Operation

u

Audio/Information Screen

260

Features

■

To move icons on the home screen

You can change the location of the icons on the home screen.

1.

Select the icon you want to move, then
press and hold A-zone touchpad.

u

The screen will change to the
customization screen.

2.

Drag the icon to where you want it to be
and then press and hold the A-zone
touchpad.

u

The icon will be repositioned and the
screen will remain in the customization
mode.

u

After you drag the icon, keep your finger
on the A-zone touchpad and then press
down. If you release your finger before
pressing the A-zone touchpad, the icon
will remain in its original place.

u

If you want to reposition the icon on
another page of the home screen, swipe
the A-zone touchpad.

3.

Press the

 (back) button or the



(home) button to confirm the change.

1

To move icons on the home screen

Press and hold

 (home) button to switch to the

customization screen.

Select and hold.

Drag and drop.

Continued

261

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

■

To remove icons from the home screen and the head-up display

*

You can remove icons from the home screen and the head-up display.

1.

From the home screen, select the icon that
you want to remove, then press and hold A-
zone touchpad.

u

The screen will switch to the
customization screen.

2.

Go to

Remove from Home Page

 or

Remove from Heads-Up Display

*

 and

press the A-zone touchpad.

u

The icon will be removed from the home
screen or the head-up display, and the
screen will remain in the customization
mode.

3.

Press the

 (back) button or the



(home) button to confirm the change.

You can also remove an icon from the home
screen or head-up display directly from the

All

Apps

 list.

1.

Go to an item you want to remove, then
press and hold the A-zone touchpad.

2.

Go to

Remove from Home Page

 or

Remove from Heads-Up Display

*

 and

press the A-zone touchpad.

u

The icon will be removed from the home
screen or the head-up display.

3.

Press the

 (back) button or the



(home) button to confirm the change.

1

To remove icons from the home screen and the head-up display

*

Removing an icon from the home screen does not
result in the deletion of the corresponding app.

Press and hold

 (home) button to switch to the

customization screen.

If you remove a shortcut icon from the home screen,
the function of selected icon also remove from the
head-up display.

Models with head-up display

Select and hold.

* Not available on all models

262

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

1.

Select the system status area, then press B-
zone touchpad.

u

The status items will appear in the A-
zone.

2.

Select an item to see the details.

u

Select

Dismiss

 to delete the detail.

u

Press the

 (back) button or select

status area again to close the status list.

■

Status Area

System Status Area

Status Items

Continued

263

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

You can use the hand-writing input feature by using the A-zone touchpad when
searching for various items of the audio system (e.g., music, route of the navigation,
phonebook contact).

1.

Write letters or numbers using the A-zone
touchpad.

u

Search results appear on the screen.

2.

Press the A-zone touchpad.

u

If you re-enter letters or numbers, select
the input area on the upper side of the
screen.

3.

Select a desired item, and then press the A-
zone touchpad.

■

Searching Screen

1

Searching Screen

Delete a letter or number

Swipe left the A-zone touchpad to delete a letter or a
number.

Input a space

Swipe right the A-zone touchpad to input a space.

You can inputting letters or numbers by using on
screen keyboard. Select

KEYBOARD

 on the upper

right of the screen.
When you return to hand-writing input screen, select

HANDWRITING

.

You can inputting letters or numbers by using voice
control operation. Select

 icon on the upper left of

the screen.

Input Area

264

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

You can edit, show, or hide the audio, phone, navigation

*

 contents on the multi-

information display or the head-up display

*

.

■

To add or remove an items

1.

Press the

APPS

 button on the steering

wheel.

2.

Roll down the left selector wheel to select

Customize Apps

.

3.

Move the left selector wheel left to select

Add/Remove

.

4.

Select an item then press the left selector
wheel.

u

The checked items are displayed on the
multi-information display or the head-up
display

*

.

■

Customizing the Meter or Head-Up Display

*

On Multi-Information Display

On Head-Up Display

*

* Not available on all models

265

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

■

Editing order

1.

Press the

APPS

 button on the steering

wheel.

2.

Using the left selector wheel, scroll to

Customize Apps

 and then press the

selector wheel.

3.

Move the selector wheel to the right to go
to the

Reorder

 screen.

4.

Scroll to an item you want to move, then
press the left selector wheel.

5.

Scroll to where you want to move the
contents, then press the left selector wheel.

On Multi-Information Display

On Head-Up Display

*

* Not available on all models

266

uu

Audio System Basic Operation

u

System Updates

Features

System Updates

The audio system’s firmware can be updated with the telematics control unit (TCU)
through the subscription-based service.

■

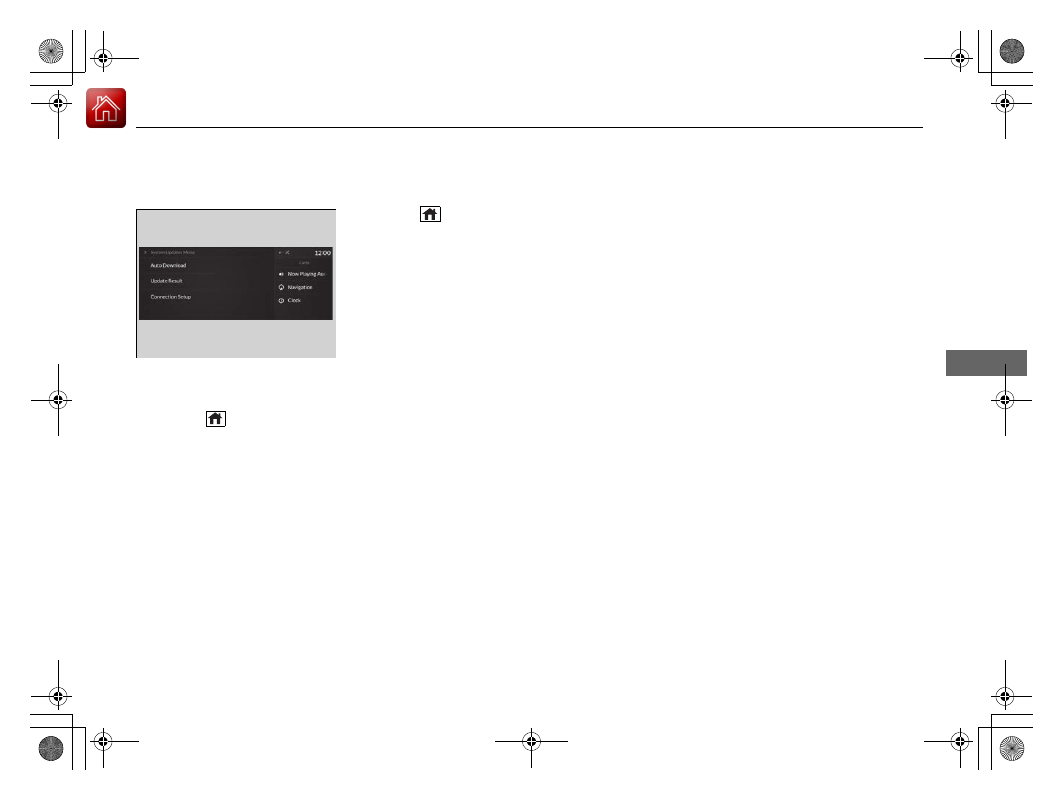

Wireless connection mode setup

1.

Press the

 (home) button.

2.

Select

System Updates

.

3.

Select

MENU

.

4.

Select

Connection Setup

.

5.

Select

Change Mode

.

6.

Select

Network

.

u

The display will return to the network list.

7.

Select an access point from the network list,
then select

OK

.

u

If the audio system requires a password,
enter a password.

■

How to Update Wirelessly

267

uu

Audio System Basic Operation

u

System Updates

Continued

Features

■

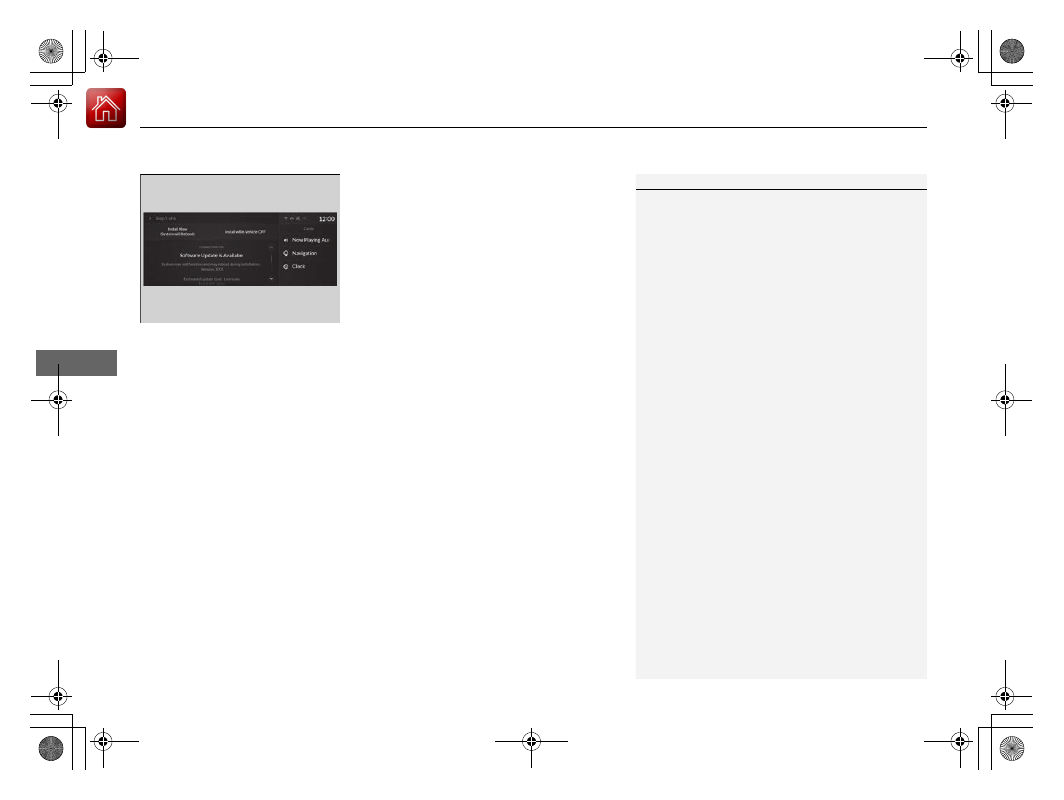

How to update

When the audio system update is available, the notification is shown on the audio/
information screen. Use the following procedure to update the system.

1.

Press the

 (home) button.

2.

Select

System Updates

.

3.

Select

via Wireless Connection

.

u

When the download is complete, the
screen for step 5 will be displayed.

4.

Select

Download Now

.

u

A notification will appear on the screen.

Notification

uu

Audio System Basic Operation

u

System Updates

268

Features

5.

Select

Install Now

 or

Install while

Vehicle OFF

.

u

A notification appears on the screen if
the update is successful when

Install

Now

 is selected.

u

If you select

Install while Vehicle OFF

,

proceed to steps 6 and 7.

6.

Set the power mode to VEHICLE OFF
(LOCK).

u

A notification will appear on the screen.
If you select

Postpone Update

, the

update will be postponed.

7.

Exit from your vehicle.

u

The system will start the firmware
update.

u

If the update is successful, a notification
informing you of this fact will appear on
the screen the next time you set the
power mode to ON.

1

How to update

The system may cancel the firmware update if the
battery is low on power, even if you have selected

Install while Vehicle OFF

. If you want to install the

updated data, recharge the battery or select

Install

Now

.

If you select

Install Now

, the system may reboot.

269

uu

Audio System Basic Operation

u

System Updates

Continued

Features

■

Automatic download settings

Use the following procedure to change to the automatic download setting.

1.

Press the

 (home) button.

2.

Select

System Updates

.

3.

Select

MENU

.

4.

Select

Auto Download

.

5.

Select the access point, then

Allow

.

■

View a update status

Use the following procedure to confirm the update status.

1.

Press the

 (home) button.

2.

Select

System Updates

.

3.

Select

MENU

.

4.

Select

Update Result

.
