Acura RLX HYBRID (2020 year). Manual in english - page 30

482

uu

Surround View Camera System

*

u

When Parking Your Vehicle

Driving

When Parking Your Vehicle

The display automatically changes to the rear view when the gear position is
changed to

(

R

.

■

Checking for Obstacles at the Back of Your Vehicle

1

When Parking Your Vehicle

The ground view can be displayed even with the door
mirrors folded. However, the viewable angle and
blind spot change.
Do not refer to the surround view camera system
when the door mirrors are folded.

Folded

Not folded

1

Checking for Obstacles at the Back of Your Vehicle

When changing the gear position from/to

(

R

, you

may experience a delay in switching between the
audio/information screen and a rear view image.

Rear Wide View

Rear Normal View

Rear Ground View

When the

steering wheel is

turned more than

90 degrees.

The projection lines
appear approx. 10
inches (25 cm)
outside the vehicle
body.

Blind spots
appear in
black.

Press the

CAMERA



button.

Approximate distances
the guide lines indicate

Approximate distances the
projection lines indicate

39 inches (1 m)

20 inches
(50 cm)

39 inches
(1 m)

Continued

483

uu

Surround View Camera System

*

u

When Parking Your Vehicle

Driving

1.

With your vehicle at a complete stop, press the

CAMERA

 button, then press the

MENU

 button. Rotate

 to select

Back- in left park guidance

 or

Back-in right

park guidance

. Press

.

2.

Move the vehicle forward perpendicular to the parking space and stop where the
initial positioning guide in the display is at the center of the parking space.

3.

Turn the steering wheel fully to the left (if the parking space is on the passenger
side) at a stop.

u

The steering position alignment guide is displayed.

4.

Slowly move the vehicle forward.

u

Stop the vehicle when the steering position alignment guide enters the parking space.

5.

Turn the steering wheel fully to the right (if the parking space is on the passenger
side) at a stop. Start reversing the vehicle slowly.

6.

Stop the vehicle when it is parallel to the parking lines.

7.

Return the steering wheel to its center position, then reverse the vehicle slowly
until it is parked within the space.

■

Reversing into a Parking Space Marked with Parking Lines

1

Reversing into a Parking Space Marked with Parking Lines

If the steering position alignment guide does not fit in
the parking lines, the parking space is too small for
the vehicle.

Reference lines can be useful only when the parking
space is in a rectangular shape with straight parking
marks and when vehicles in the next parking spaces
are within the spaces.

Must be wider than approx. 8 feet (2.5 m)

The initial positioning
guide must come here.

Must be wider than approx. 20 feet (6 m)

Make sure the guides
are within the parking
space when reversing.

Initial
Positioning
Guide

Steering Position
Alignment Guide

A

B

C

Steering position alignment
guide enters the parking
space. (Step 4)

uu

Surround View Camera System

*

u

When Parking Your Vehicle

484

Driving

1.

Press the

CAMERA

 button, then press the

MENU

 button. Rotate

 to select

Left parallel park guidance

 or

Right Parallel park guidance

. Press

.

2.

Move the vehicle forward parallel to the parking space and stop when the initial
positioning guide shown in the display overlaps the front corner of the space.

3.

Turn the steering wheel fully to the right (if the parking space is on the passenger
side) at a stop.

u

The steering position alignment guide is displayed.

4.

Slowly reverse the vehicle.

u

Stop the vehicle when the steering position alignment guide overlaps the
sideline of the parking space.

5.

Turn the steering wheel fully to the left (if the parking space is on the passenger
side) at a stop. Reverse the vehicle slowly.

6.

Stop the vehicle when it is parallel to the parking lines.

7.

Return the steering wheel to its center position, then reverse the vehicle slowly
until it is parked within the space.

■

Parallel Parking into a Parking Space Marked with Parking Lines

1

Parallel Parking into a Parking Space Marked with Parking Lines

Reference lines can be useful only when the parking
space is in a rectangular shape with straight parking
marks and when vehicles in the next parking spaces
are within the spaces.

Initial
Positioning
Guide

Steering Position
Alignment Guide

Must be wider than approx. 20 feet (6 m)

Must be
wider than
approx. 8
feet (2.5 m)

Must be longer than approx. 21 feet (6.5 m)

A

B

C

Initial
positioning
guide
overlaps the
front corner
of the space.
(Step 2)

Continued

485

uu

Surround View Camera System

*

u

When Parking Your Vehicle

Driving

You can display the front ground view screen using all the four cameras for the
system. Pressing the

CAMERA

 button when the vehicle speed is at below 12 mph

(20 km/h) changes the image as follows.

■

Checking for the Sides of Your Vehicle

1

Checking for the Sides of Your Vehicle

When the vehicle speed exceeds 15 mph (25 km/h),
the front or side view on the screen automatically
switches to the audio information screen. The front
or side view screen resumes when the vehicle speed
is reduced below 12 mph (20 km/h).

0 mph (0 km/h)

Down

Up

Camera
Screen

Camera
Screen

Audio/information
Screen

Audio/information
Screen

15 mph (25 km/h)

12 mph (20 km/h)

0 mph (0 km/h)

Side
View

Front Wide View

Front Ground View

Press and hold the

CAMERA

 button.

A Combined Image of
Both Side Views

Approximate distance
the reference line
indicates.

Blind spots
appear in black.

Projection lines
appear.

Press the

CAMERA



button.

When the
steering wheel is
turned more
than 90 degrees.

approx. 3 feet (1 m)

uu

Surround View Camera System

*

u

When Parking Your Vehicle

486

Driving

■

Checking from the front wide view at intersections

The front wide view screen is useful when you need to check for vehicles crossing
from either direction at an intersection with poor visibility.

■

Checking the sides of your vehicle

The side view screens are convenient when you pull over at a curb or tollbooth, or
slowly pass by oncoming vehicles on a narrow road.

1

Checking from the front wide view at intersections

The front wide view image is a wide-angled view. The
displayed image will be largely distorted, and objects
may appear closer or more distant than they actually
are.

The angle
provided by the
front wide view
screen is 180
degrees.

Front Wide View Screen

When the vehicle
speed is below 12
mph (20 km/h),
press the

CAMERA

 button

repeatedly until
the front wide
view comes on.

1

Checking the sides of your vehicle

When the door mirrors are folded, the side views
cannot be displayed.

Side View Screen

12 inches
(30 cm)

12 inches
(30 cm)

Press and hold the

CAMERA

 button.

Approximate distance
the projection lines
indicate is 12 inches
(30 cm) from the
vehicle.

Side Views
The images
from the side
cameras.

12 inches
(30 cm)

487

uu

Surround View Camera System

*

u

When Parking Your Vehicle

Driving

The system may not work properly under the following conditions.

■

Surround View Camera System Limitations

Conditions

Solutions

The images may not
appear clearly when:

•

You activate the system in bad weather (heavy rain,
snow, fog, etc.) or in the dark.

•

Camera temperatures are high.

•

A sudden change between light and dark such as an
entrance or exit of a tunnel.

•

You drive into the sunlight (e.g., at dawn or dusk.)

Do not use the surround view camera system but rely
only on visual confirmation until the conditions allow
the system to work properly.

•

A camera lens is covered with dirt, moisture, or
debris.

•

A camera lens is scratched.

Clean camera lenses with a soft cloth moisturized with
water, mild detergent or glass cleaner.

The audio/information screen is dirty.

Wipe off the screen using a soft dry cloth.

A camera angle is
altered.

A camera or the area around the camera has been
severely impacted.

Do not use the surround view camera system and
contact a dealer.

An error message is displayed while the surround view camera system is in use.

488

Driving

Refueling

Fuel Information

■

Fuel recommendation

Use of lower octane gasoline can cause occasional metallic knocking noise in the
engine and will result in decreased engine performance.
Use of gasoline with a pump octane less than 87 can lead to engine damage.

■

Top tier detergent gasoline

Because the level of detergency and additives in gasoline vary in the market, Acura
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.

Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.

For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit Acura Owners at

owners.acura.com

. In

Canada, visit

www.acura.ca

 for additional information on gasoline. For more

information on top tier gasoline, visit

www.toptiergas.com

.

■

Fuel tank capacity: 15.1 US gal (57 L)

Unleaded premium gasoline, pump octane number 91 or higher

1

Fuel Information

NOTICE

We recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.

Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.

489

uu

Refueling

u

How to Refuel

Driving

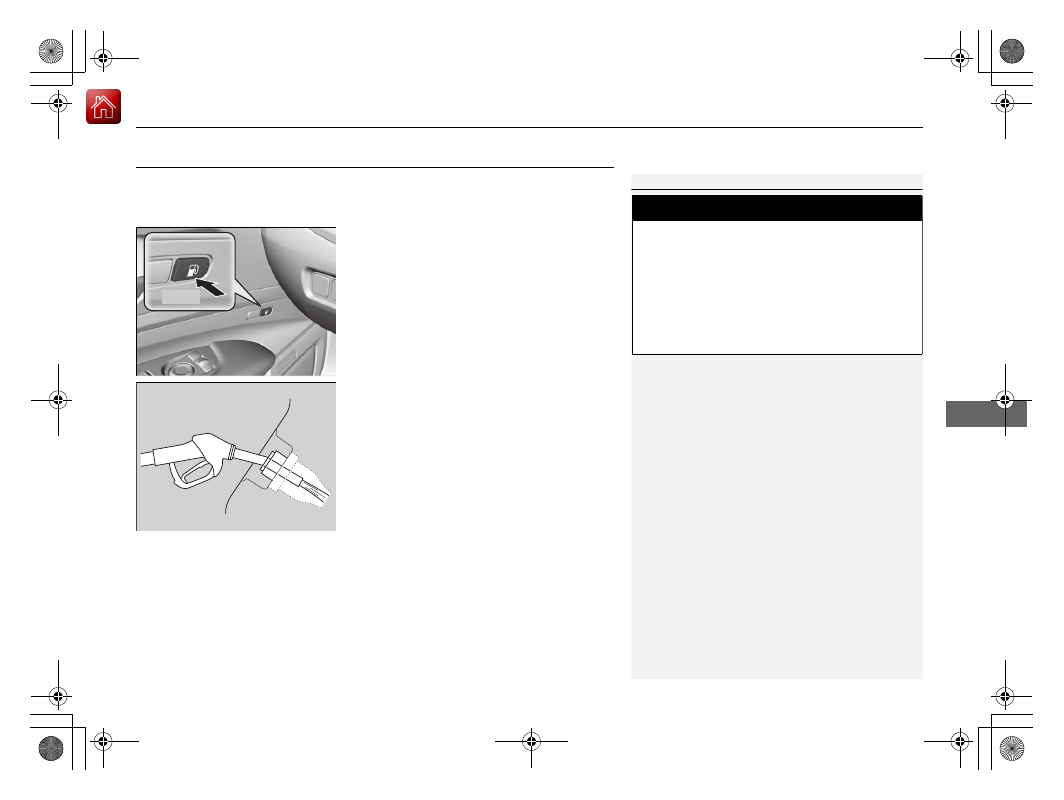

How to Refuel

Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seals itself again when you pull out the filler
nozzle.

1.

Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.

2.

Turn off the power system.

3.

Press the fuel fill door release button.

u

The fuel fill door opens.

4.

Place the end of the filler nozzle on the
lower part of filler opening, then insert it
slowly and fully.

u

Make sure that the end of the filler
nozzle goes down along with the filler
pipe.

u

Keep the filler nozzle level.

u

When the tank is full, the filler nozzle will
click off automatically.

u

After filling, wait about five seconds
before removing the filler nozzle.

5.

Shut the fuel fill door by hand.

1

How to Refuel

The fuel filler opening is designed to accept only service
station filler nozzles for refueling. Use of smaller
diameter tubes (e.g., those used to siphon fuel for other
uses) or other non-service station devices can damage
the area in and around the filler opening.

The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.

If the filler nozzle keeps turning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try filling at another pump. If
this does not fix the problem, consult a dealer.

Do not continue to add fuel after the filler nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.

If you have to refuel your vehicle from a portable
container, use the funnel provided with your vehicle.

2

Refueling From a Portable Fuel Container

 P. 583

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

•

Turn the power system off, and keep
heat, sparks, and flame away.

•

Handle fuel only outdoors.

•

Wipe up spills immediately.

Press

490

Driving

Fuel Economy and CO

2

 Emissions

Improving Fuel Economy and Reducing CO

2

 Emissions

Achieving fuel economy and reducing CO

2

 emissions is dependent on several

factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.

You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
multi-information display.

•

Use engine oil with the viscosity recommended.

2

Recommended Engine Oil

 P. 504

•

Maintain the specified tire pressure.

•

Do not load the vehicle with excess cargo.

•

Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.

■

Maintenance and Fuel Economy

1

Improving Fuel Economy and Reducing CO

2

 Emissions

Direct calculation is the recommended method to
determine actual fuel consumed while driving.

In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit

http://oee.nrcan.gc.ca/

Miles driven

Gallons of

fuel

Miles per

Gallon

100

L per 100 km

Liters of

fuel

Kilometers

driven

491

Maintenance

This chapter discusses basic maintenance.

Before Performing Maintenance

Inspection and Maintenance ............ 492
Safety When Performing Maintenance .... 493
Parts and Fluids Used in Maintenance

Service ........................................... 494

Maintenance Minder

TM

..................... 495

Maintenance Under the Hood

Maintenance Items Under the Hood .... 501
Opening the Hood ........................... 502
Engine Compartment Cover............. 503
Recommended Engine Oil ................ 504
Oil Check ......................................... 505
Adding Engine Oil ............................ 506

Changing the Engine Oil and Oil Filter..... 507
Cooling System................................ 509
Inverter Coolant............................... 511
Transmission Fluid............................ 512
Brake Fluid....................................... 512
Refilling Window Washer Fluid......... 513

Replacing Light Bulbs

....................... 514

Checking and Maintaining Wiper Blades

.... 517

Checking and Maintaining Tires

Checking Tires ................................. 520
Tire and Loading Information Label .. 521
Tire Labeling .................................... 521
DOT Tire Quality Grading (U.S. Vehicles).. 523

Wear Indicators ............................... 525
Tire Service Life................................ 525
Tire and Wheel Replacement ........... 526
Tire Rotation.................................... 527
Winter Tires ..................................... 528

12-Volt Battery

................................. 529

Remote Transmitter Care

Replacing the Button Battery ........... 530

Climate Control System Maintenance

.... 531

Cleaning

Interior Care .................................... 532
Exterior Care.................................... 534

Accessories and Modifications

........ 537

492

Main

tenan

ce

Before Performing Maintenance

Inspection and Maintenance

For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintenance booklet for detailed maintenance and
inspection information.

■

Daily inspections

Perform inspections before long distance trips, when washing the vehicle, or when
refueling.

■

Periodic inspections

•

Check the brake fluid level monthly.

2

Brake Fluid

 P. 512

•

Check the tire pressure monthly. Examine the tread for wear and foreign objects.

2

Checking and Maintaining Tires

 P. 520

•

Check the operation of the exterior lights monthly.

2

Replacing Light Bulbs

 P. 514

•

Check the condition of the wiper blades at least every six months.

2

Checking and Maintaining Wiper Blades

 P. 517

■

Types of Inspection and Maintenance

1

Inspection and Maintenance

Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.

According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the multi-information display.

2

Maintenance Service Items

 P. 498

If you want to perform complex maintenance tasks
that require more skills and tools, you can purchase a
subscription to the Service Express website at

www.techinfo.honda.com

.

2

Authorized Manuals

 P. 595

If you want to perform maintenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.

U.S. models

493

uu

Before Performing Maintenance

u

Safety When Performing Maintenance

Continued

Main

tenan

ce

Safety When Performing Maintenance

Some of the most important safety precautions are given here. However, we cannot
warn you of every conceivable hazard that can arise in performing maintenance.
Only you can decide whether you should perform a given task.

•

To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames
away from the 12-volt battery, all High Voltage system, and all fuel related parts.

•

Never leave rags, towels, or other flammable objects under the hood.

u

Heat from the engine and exhaust can ignite them, causing a fire.

•

To clean parts, use a commercially available degreaser or parts cleaner, not
gasoline.

•

Wear eye protection and protective clothing when working with the 12-volt
battery or compressed air.

•

Engine exhaust contains carbon monoxide, which is poisonous and can kill you.

u

Only operate the engine if there is sufficient ventilation.

■

Maintenance Safety

1

Safety When Performing Maintenance

3

WARNING

Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.

Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.

3

WARNING

Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.

Always follow the procedures and
precautions in this owner’s manual.

uu

Before Performing Maintenance

u

Parts and Fluids Used in Maintenance Service

494

Main

tenan

ce

•

The vehicle must be in a stationary condition.

u

Make sure your vehicle is parked on level ground, the parking brake is set, and
the power system is turned off.

•

Be aware that hot parts can burn you.

u

Make sure to let the power system including the engine and exhaust system
cool thoroughly before touching vehicle parts.

•

Be aware that moving parts can injure you.

u

Do not activate the power system unless instructed, and keep your hands and
limbs away from moving parts. When the power mode is on, the engine can
automatically start, or the radiator fan may start operating without the engine
running.

•

Do not touch the high-voltage battery and wiring (orange).

Parts and Fluids Used in Maintenance Service

The use of Acura genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Acura genuine parts are manufactured according to the same
high quality standards used in Acura vehicles.

■

Vehicle Safety

1

Parts and Fluids Used in Maintenance Service

NOTICE

Do not press the engine cover forcibly. This may
damage the engine cover and component parts.

495

Main

tenan

ce

Maintenance Minder

TM

If the engine oil life is less than 15%, you will see the Maintenance Minder messages
appear on the multi-information display every time you set the power mode to ON.
The messages notify you when to change the engine oil, or when to bring your
vehicle to a dealer for indicated maintenance services.

496

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Main

tenan

ce

To Use Maintenance Minder

TM

Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the multi-information display.
You can view them on the engine oil life screen at any time.

1.

Set the power mode to ON.

2.

Roll the right selector wheel until the engine oil life appears on the multi-
information display.

■

Displaying the Maintenance Minder Information

1

Displaying the Maintenance Minder Information

Based on the engine operating conditions, the
remaining engine oil life is calculated and displayed
as a percentage.

There is a list of maintenance main and sub items you
can view on the multi-information display.

2

Maintenance Service Items

 P. 498

Displayed Engine Oil

Life (%)

Calculated Engine Oil

Life (%)

100

100 to 91

90

90 to 81

80

80 to 71

70

70 to 61

60

60 to 51

50

50 to 41

40

40 to 31

30

30 to 21

20

20 to 16

15

15 to 11

10

10 to 6

5

5 to 1

0

0

Remaining Engine Oil Life
Maintenance Service Items

Right Selector Wheel

497

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Continued

Main

tenan

ce

The system message indicator (

) comes on along with the Maintenance Minder message.

■

Maintenance Minder Messages on the Multi-Information
Display

Maintenance Message

Oil Life Display

Explanation

Information

Maintenance Due Soon

15 %

The remaining engine oil life is 15 to 6
percent. Once you switch the display
by rolling the right selector wheel, this
message will go off.

The engine oil is approaching the end
of its service life, and the maintenance
items should be inspected and
serviced soon.

Maintenance Due Now

5 %

The remaining engine oil life is 5 to 1
percent. Roll the right selector wheel
to switch to another display.

The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.

Maintenance Past Due

Negative Distance

The remaining engine oil life has
passed its service life, and a negative
distance appears after driving over 10
miles (U.S. models) or 10 km
(Canadian models). Roll the right
selector wheel to switch to another
display.

The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
