384

uu

Customized Features

u

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

System
Settings

Others

Units

Changes the distance unit on the navigation map
screen.

mile

*1

/

km

 (U.S.)

mile

/

km

*1

 (Canada)

Language

Changes the display language.

English

*1

/

Français

/

Español

Operation Restriction
Tips

*

Alerts you when manual control of the system is
disabled to prevent distraction while driving. Only
voice commands are available.

On

*1

/

Off

Header Clock Display

Selects whether the clock display comes on.

On

*1

/

Off

System Device
Information

Displays the system/device information.

—

Factory Data Reset

Resets all the settings to their factory default.

2

Defaulting All the Settings

 P. 393

—

Smartphone
Settings

Default

Cancels/Resets all customized items in the

Smartphone Settings

 group as default.

Yes

/

No

Apple CarPlay Device List

Sets up the Apple CarPlay connection.

—

Android Auto Device List

Sets up the Android Auto connection.

—

Smartphone Volume

Adjusts the volume of the smartphone function.

1

~

8

*1

~

11

Version

Shows software version of Apple CarPlay and
Android Auto unit.

—

* Not available on all models

385

uu

Customized Features

u

Continued

Features

■

How to customize

While the vehicle is at a complete stop with the power mode in ON, select

Audio

Menu

, then select a setting item.

On Demand Multi-Use Display

TM

On Demand Multi-Use Display

TM

386

uu

Customized Features

u

Features

■

Customization flow

Select

Audio Menu

.

On Demand Multi-Use Display

TM

Play the Song from the Beginning

SportsFlash

Traffic & Weather Now Setup

Channel Art

TuneMix

SiriusXM

Bass

Treble

Fader

Balance

Subwoofer

SVC

Edit Source Order

Sound Settings

Audio Settings

CD/HDD

Recording Quality

Recording from CD

Recording

Options

HDD Information

Update Gracenote Album Information

Delete All HDD Data

DTS Neural Surround

Edit/Delete HDD Music

Center

387

uu

Customized Features

u

Continued

Features

Sync Display Brightness

Brightness

Contrast

Black Level

Beep

Keyboard

Screen Settings

RES Settings

*

Rear Control

Rear Speaker

Single/Dual Screen Mode

HD Radio Mode

*

Other

Cover Art

DVD Auto Play

DVD

*

Audio Language

Subtitle Language

Menu Language

Dynamic Range

* Not available on all models

388

uu

Customized Features

u

Features

■

List of customizable options

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Edit Source Order

Changes the order of source list.

2

Selecting an Audio Source

 P. 244

—

Sound Settings

Bass

Adjusts the settings of the audio speaker’s sound.

2

Adjusting the Sound

 P. 256

—

Treble

Fader

Balance

Center

Subwoofer

SVC

DTS Neural Surround

Edit/Delete HDD Music

Change the playlist name, album name, genre,
and track order of the current playlist. You can
also delete tracks, playlists, and albums.

2

Editing an Album or Playlist

 P. 284

—

Audio
Settings

SiriusXM

Play the Song from the
Beginning

Turns on and off the Tune Start function.

On

/

Off

*1

On Demand Multi-Use Display

TM

389

uu

Customized Features

u

Continued

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Audio
Settings

SiriusXM

SportsFlash

Notification

Turns on and off the sports alert function.

Disable

/

Enable once

/

Enable

*1

Beep

Causes the system to beep when the sports alert
is notified.

On

*1

/

Off

Favorite
Teams

Selects your favorite sport teams.

—

Traffic & Weather Now
Setup

Selects a city for using the SiriusXM

®

 traffic and

weather information.

—

Channel Art

Turns on and off the channel art display.

On

*1

/

Off

TuneMix

Turns multiple channel mix preset on and off.

On

/

Off

*1

CD/
HDD

Recording
Options

Recording
from CD

Selects whether the songs on music CDs are
automatically recorded to the HDD.

Auto

*1

/

Manual

Recording
Quality

Selects the quality of the music files recorded to
the HDD.

Standard

*1

/

High

HDD Information

Displays the HDD capacity.

—

Update Gracenote Album
Information

Updates the Gracenote

®

 Album Info (Gracenote

®



Media Database) from CD or USB.

Update by CD

/

Update by USB

Delete All HDD Data

2

Deleting all HDD Data

 P. 290

—

390

uu

Customized Features

u

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Audio
Settings

DVD

*

DVD Auto Play

Turns the auto play feature on or off.

On

*1

/

Off

Audio Language

Selects a language for the audio that is available
on the DVD.

—

Subtitle Language

Selects a language for the subtitle that is available
on the DVD.

—

Menu Language

Selects a language for the DVD menu that is
available on the DVD.

—

Dynamic Range

Sets whether to control the range of the loud and
low sounds.

On

*1

/

Off

Other

HD Radio Mode

*

Selects whether the audio system automatically
switches to the digital radio waves or receives the
analog waves only.

Auto

*1

/

Analog

Cover Art

Turns on and off the cover art display.

On

*1

/

Off

* Not available on all models

391

uu

Customized Features

u

Continued

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Screen Settings

Sync Display Brightness

Selects whether the screen brightness
synchronizes with the instruments panel
brightness.

Off

/

On

*1

Brightness

Changes the brightness of the On Demand Multi-
Use Display

TM

.

—

Contrast

Changes the contrast of the On Demand Multi-
Use Display

TM

.

—

Black Level

Changes the black level of the On Demand Multi-
Use Display

TM

.

—

Beep

Mutes a beep that sounds every time you touch
the screen.

Off

/

On

*1

Keyboard

Changes the on-screen keyboard from the
alphabetical order to the qwerty type.

Alphabet

/

QWERTY

*1

392

uu

Customized Features

u

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

RES Settings

*

Rear Control

Select weather to use the rear control panel to
control the RES.

On

*1

/

Off

Rear Speaker

Sets the front audio source to play through the
rear speakers, even when the RES is on. The RES
source can only be heard through the wireless
headphones.

On

*1

/

Off

Single/Dual Screen Mode

Selects a source to continue playing when you
switch from dual mode to single mode on the
overhead screen.

—

* Not available on all models

393

uu

Customized Features

u

Defaulting All the Settings

Features

Defaulting All the Settings

You can reset all the menu and customized settings as the factory defaults.

1.

Press the

 SETTINGS

 button.

2.

Rotate

 to select

System Settings

, then

press .

3.

Rotate

 to select

Factory Data Reset

,

then press

.

u

The pop-up menu appears on the screen.

4.

Rotate

 to select

Yes

, then press

.

u

The confirmation message will appear.

5.

Rotate

 to select

Yes

, then press



again to reset the settings.

u

The confirmation message will appear.
Press

 to select

OK

.

1

Defaulting All the Settings

When you transfer the vehicle to a third party, reset
all settings to default and delete all personal data.

Driver 1

 and

Driver 2

 has stored each settings and

personal data separatory.
Perform both

Driver 1

 and

Driver 2

 data reset.

The following settings will be reset:

•

Routing & Guidance: Rerouting, Unverified Area
Routing, Traffic Rerouting, Edit Waypoint Search
Area, Guidance Mode, Street Name Guidance

•

Route Preference

•

Audio preset settings

•

Phonebook entries

•

Other display and each item settings

394

Features

HomeLink

®

 Universal Transceiver

The HomeLink

®

 Universal Transceiver can be programmed to operate up to three

remote controlled devices around your home, such as garage doors, lighting, or
home security systems.

Refer to the safety information that came with your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.

Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.

When programming a garage door opener, park just outside the garage door’s
path.

■

Important Safety Precautions

1

HomeLink

®

 Universal Transceiver

Before programming HomeLink to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and reverse stop features. If it
does not, HomeLink may not be able to operate it.

395

uu

HomeLink

®

 Universal Transceiver

u

Training HomeLink

Continued

Features

Training HomeLink

If it is necessary to erase a previously entered
learned code:

•

Press and hold the two outside buttons for
about 20 seconds, until the red indicator
blinks. Release the buttons, and proceed to
step 1.

•

If you are training the second or third
button, go directly to step 1.

The instructions on the next page should work for most gate or garage openers, but
may not work for all. For detailed instructions about your specific remote opener,
visit

http://www.homelink.com

 or call (800) 355-3515.

Red Indicator

uu

HomeLink

®

 Universal Transceiver

u

Training HomeLink

396

Features

■

Training a Button

1

Training HomeLink

Retraining a Button
If you want to retrain a programmed button for a
new device, you do not have to erase all button
memory. You can replace the existing memory code
using this procedure:

1.

Press and hold the desired HomeLink button
until the HomeLink indicator begins to blink.

2.

Quickly release the HomeLink button and follow
steps 1 - 3 under “Training a Button.” You do not
need to press and release the HomeLink button
again in step 2.

Indicator remains on
for about 25 secs.

Standard transmitter

Indicator remains on for
about 25 secs.

Rolling code transmitter

Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink indicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.

If you have any problems, see the device’s
instructions, visit

www.homelink.com

, or call

HomeLink at (800) 355-3515.

HomeLink

®

 is a registered trademark of Gentex

Corporation.

4.

3.

2.

5.

A.

B.

1.

Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the
HomeLink button you want to program.

Press and release the desired HomeLink button. Hold the button on the remote
transmitter. Does the HomeLink indicator (LED) change from slowly blinking to
constantly on or rapidly blinking? The process should take less than 60 seconds.

Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work?

Press and release the HomeLink button. Press
and release the button on the remote every 2
secs.
Does the HomeLink indicator (LED) change from
slowly blinking to

constantly on or rapidly

blinking

? The process should take less than 60

seconds.

Training

Complete

Press and hold the HomeLink button again.

Press and hold the HomeLink
button again.
The remote-controlled device
should operate.

Training Complete

The remote has a rolling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).

Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.

HomeLink indicator

rapidly blinks

.

HomeLink LED is

constantly

 on.

YES

NO

YES

YES

NO

NO

397

Continued

Features

Bluetooth

®

 HandsFreeLink

®

Bluetooth

®

 HandsFreeLink

®

 (HFL) allows you to place and receive phone calls using

your vehicle’s audio system, without handling your cell phone.

Using HFL

 (Pick-up) button:

 Press to go to the

Speed Dial

/

Call History

 on the MID or to

answer an incoming call.

 (Hang-up/back) button:

 Press to end a call, to cancel a command or to clear

the phone information on the MID.

 (Talk) button:

 Press to give HFL voice commands.

PHONE button:

 Press to go directly to the phone menu screen.

Interface dial (ENTER/MENU button):

 Rotate

 to select an item on the screen,

then press

. Move

,

,   or   to select secondary menu.

■

HFL Buttons

1

Bluetooth

®

 HandsFreeLink

®

Place your phone where you can get good reception.
To use HFL, you need a

Bluetooth

-compatible cell

phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:

•

U.S.: Visit

www.handsfreelink.com/Acura

, or call 1-

888-528-7876.

•

Canada: For more information on smartphone
compatibility, call 1-855-490-7351.

To use HFL, the

Bluetooth

 setting must be

On

. If

there is an active connection to Apple CarPlay, HFL is
unavailable.

2

Customized Features

 P. 362

Voice control tips:

•

Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.

•

Press and release the

 button when you want to

call a number using a stored voice tag, a
phonebook name, or a number. Speak clearly and
naturally after a beep.

•

If the microphone picks up voices other than yours,
the command may be misinterpreted.

State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.

Talk Button

Volume up

Microphone

Hang-up/Back Button

Pick-up

Button

Volume down

Interface

Dial

PHONE



Button

uu

Bluetooth

®

 HandsFreeLink

®

u

Using HFL

398

Features

The On Demand Multi-Use Display

TM

 notifies you when there is an incoming call.

■

HFL Status Display

1

Bluetooth

®

 HandsFreeLink

®

Bluetooth

®

 Wireless Technology

The

Bluetooth

®

 word mark and logos are registered

trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.

HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.

1

HFL Status Display

The information that appears on the information
screen varies between phone models.

Bluetooth

®

 Indicator

Comes on when your phone is
connected to HFL.

Signal Strength

HFL Mode

Roam Status

Information Screen

Battery Level

Status

Caller’s Name or

Caller’s Number

On Demand Multi-

Use Display

TM

399

uu

Bluetooth

®

 HandsFreeLink

®

u

Using HFL

Features

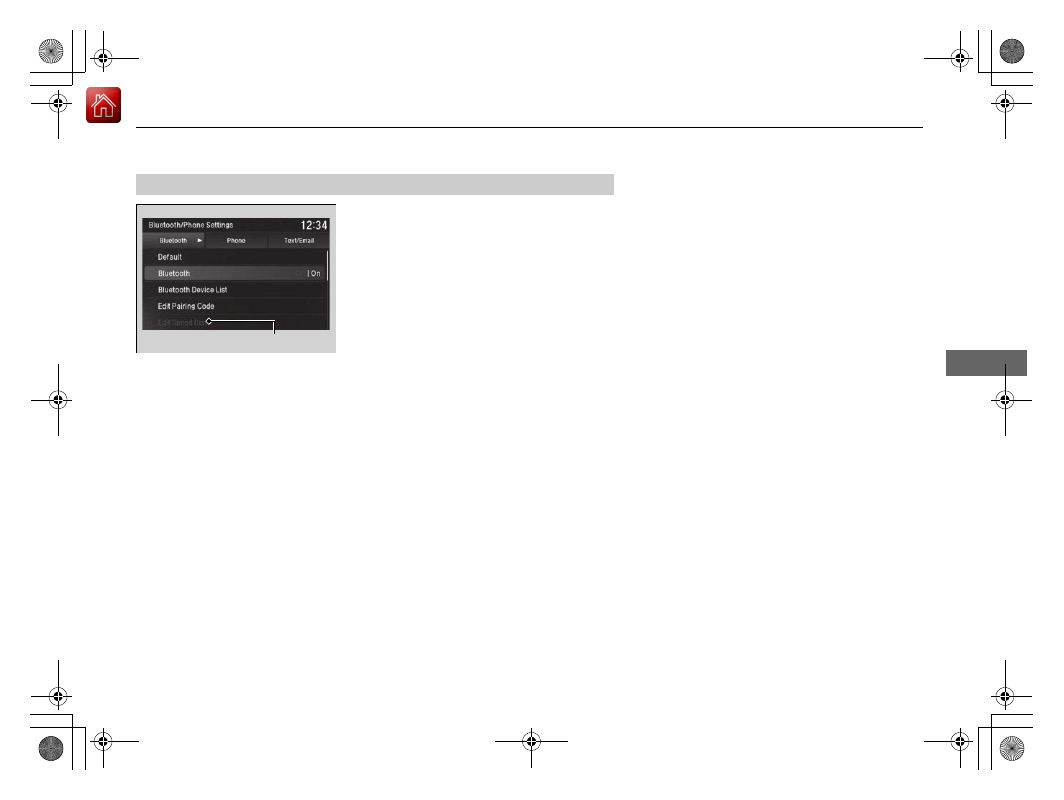

Certain manual functions are disabled or
inoperable while the vehicle is in motion.
You cannot select a grayed-out option until
the vehicle is stopped.

Only previously stored speed dial entries with
voice tags, phonebook names, or numbers
can be called using voice commands while the
vehicle is in motion.

2

Speed Dial

 P. 416

■

Limitations for Manual Operation

Disabled Option
