333

uu

General Information on the Audio System

u

About Open Source Licenses

Features

About Open Source Licenses

About the software license of the product

The software installed in the product contains open source software.
See the following Alpine website for details on the open source software.

http://www.alpine.com/h/e/oss/download/

■

Important information on the software

334

uu

General Information on the Audio System

u

License information

*

Features

License information

*

Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are registered trademarks of Dolby Laboratories.

For DTS patents, see

http://patents.dts.com

. Manufactured under license from DTS

Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS Digital Surround and Neural Surround are trademarks of DTS,
Inc. © DTS, Inc. All Rights Reserved.

■

DOLBY DIGITAL

*

■

DTS

* Not available on all models

335

Features

Rear Entertainment System (RES)

*

Allows the rear passengers to enjoy a different entertainment source, such as DVD,
CD, and radio, than the front passengers.

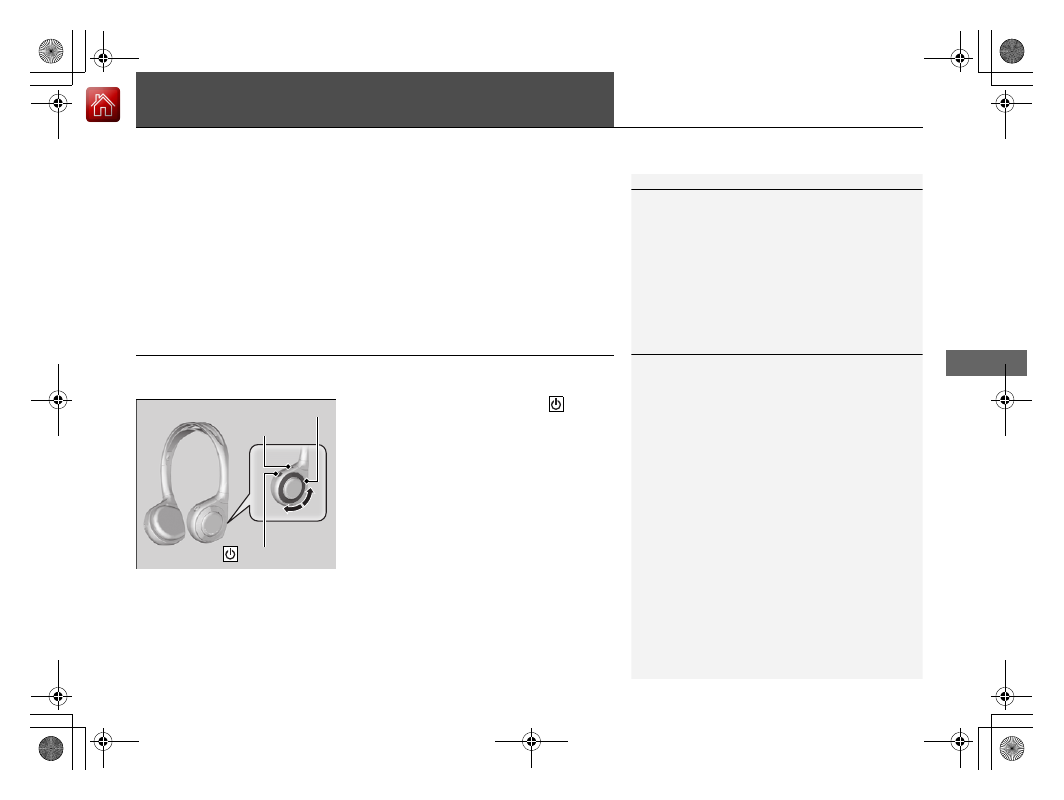

Wireless Headphones

The rear seat passengers can listen to audio from the rear entertainment system by
a wireless headphone that comes with your vehicle.

To turn on the switch:

Press the

 (power)

button at the right earpiece. The indicator
comes on.

To adjust the volume:

Turn the dial at the

right earpiece.

1

Rear Entertainment System (RES)

*

CAUTION:

Radio Frequency Radiation Exposure

The Rear Entertainment System remote complies with
FCC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio
frequency (RF) Exposure Guidelines.
The Rear Entertainment System remote should be
kept at least 7.9 inches (20 cm) or more away from a
person’s body when operated.

1

Wireless Headphones

Your vehicle comes with two wireless headphones.

Wear the headphone correctly with the earpiece
marked with L goes to your left ear and R goes to
your right ear.
Wearing the headphone backward may affect the
audio reception.

Indicator

Volume Dial

 (Power) Button

* Not available on all models

336

uu

Rear Entertainment System (RES)

*

u

Auxiliary Console Panel

Features

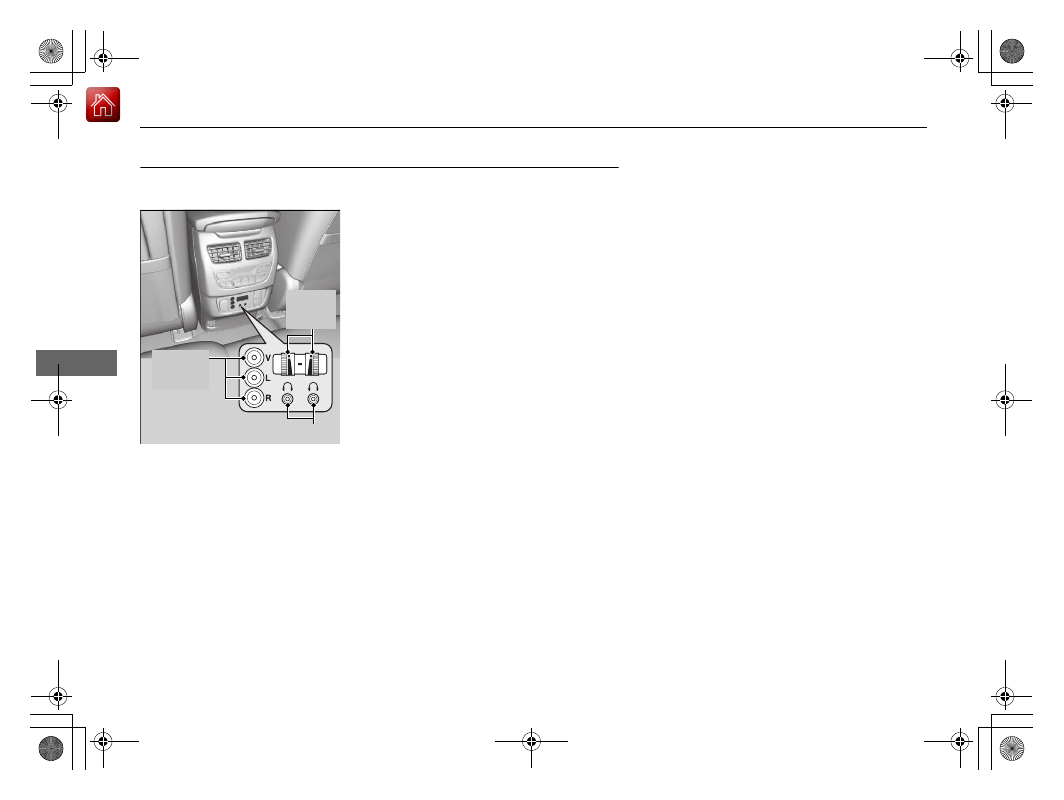

Auxiliary Console Panel

Auxiliary input jacks and headphone connectors for the rear entertainment system
are on the back of the front console compartment.

V = Video jack
L = Left audio jack
R = Right audio jack

■

Auxiliary input jacks

The system will accept auxiliary inputs from standard video games and video
equipment. Some video game power supplies may cause poor picture quality.

■

Headphone connectors

The headphones can also be used by connecting to the auxiliary console panel.
There are two headphone connectors for the rear passengers. Each connector has
its own volume control.

Headphone Connectors

Auxiliary
Input
Jacks

Volume
Control
Knob

337

uu

Rear Entertainment System (RES)

*

u

HDMI

TM

 Port

Features

HDMI

TM

 Port

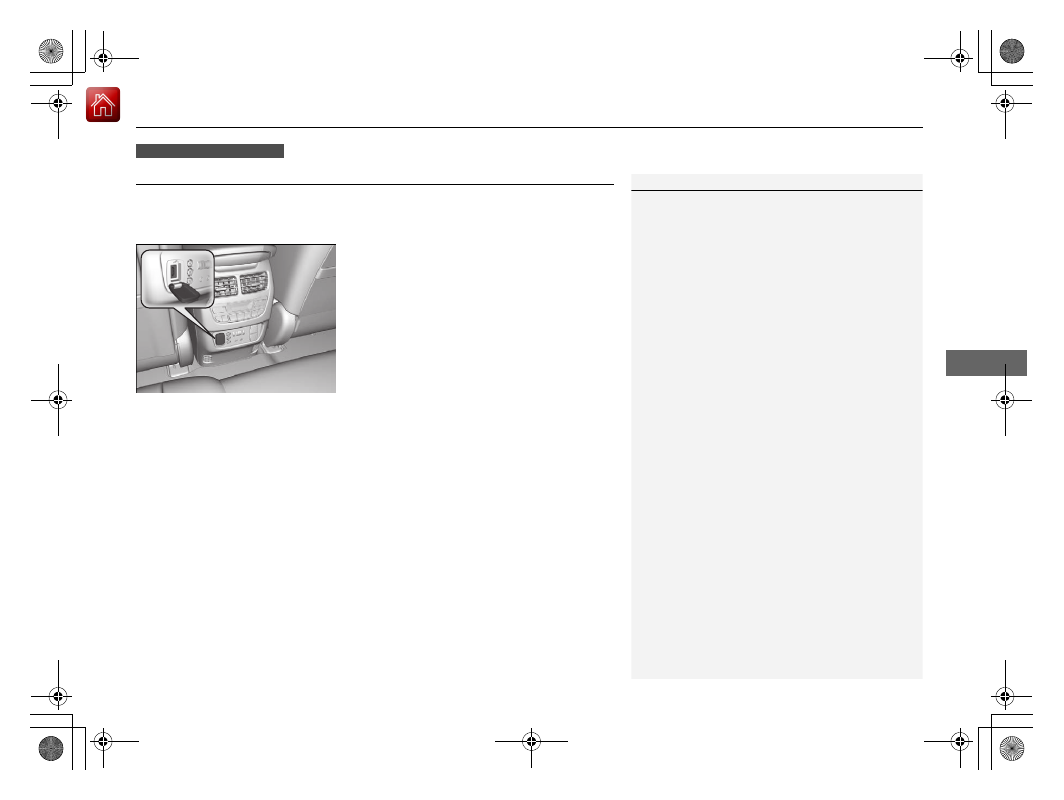

There is an HDMI port on the back of the front console compartment. The system
will accept HDMI input from video games and video equipment which are equipped
with an HDMI port.

Open the outlet cover and insert the cable.

Models with ultrawide RES

1

HDMI

TM

 Port

•

Do not leave the HDMI connected device in the
vehicle. Direct sunlight and high temperatures may
damage it.

•

We recommend keeping your data backed up
before using the device in your vehicle.

•

Displayed messages may vary depending on the
device model and software version.

The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.

338

uu

Rear Entertainment System (RES)

*

u

Overhead Screen

Features

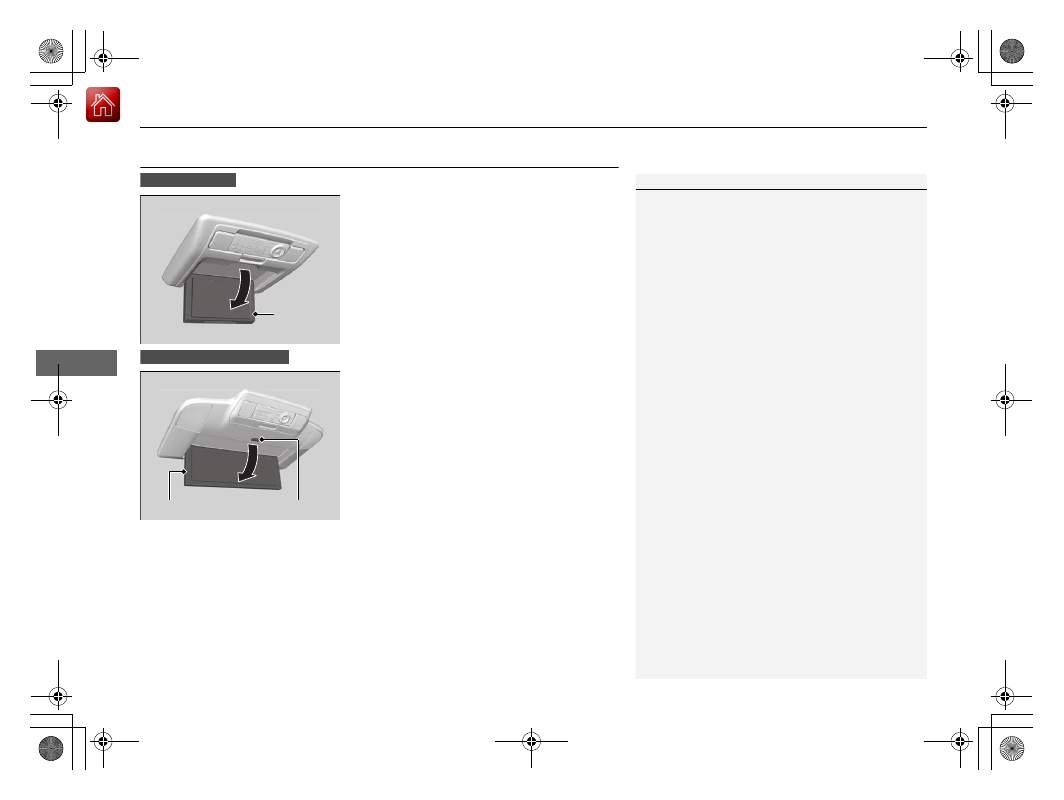

Overhead Screen

Pull down the screen to the first or second
detent until it latches.

Press the open button to open and pull down
the screen.

1

Overhead Screen

You can use the rear control panel as a remote. Press
the release button to detach it.

Models with RES

Overhead
Screen

Models with ultrawide RES

Open Button

Overhead Screen

339

uu

Rear Entertainment System (RES)

*

u

Operating the System

Features

Operating the System

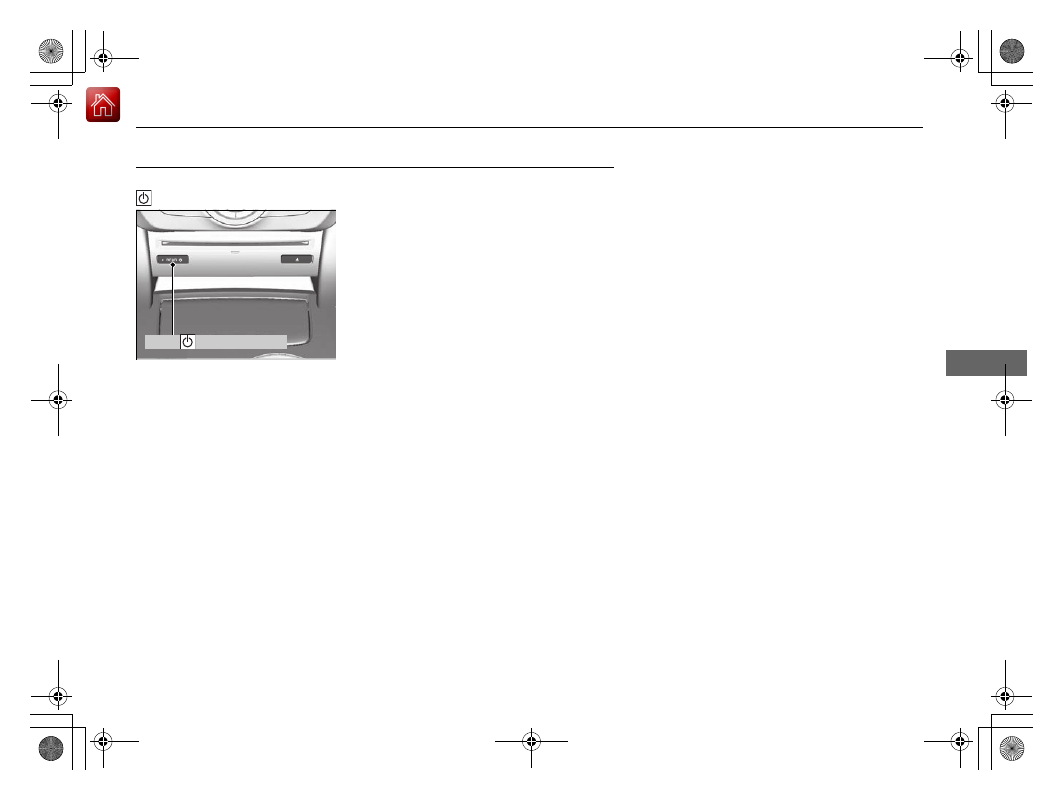

To operate the system, set the power mode to ON or ACCESSORY. Press the

REAR



(power) button to turn on the system.

REAR



 (Power) Button

340

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Features

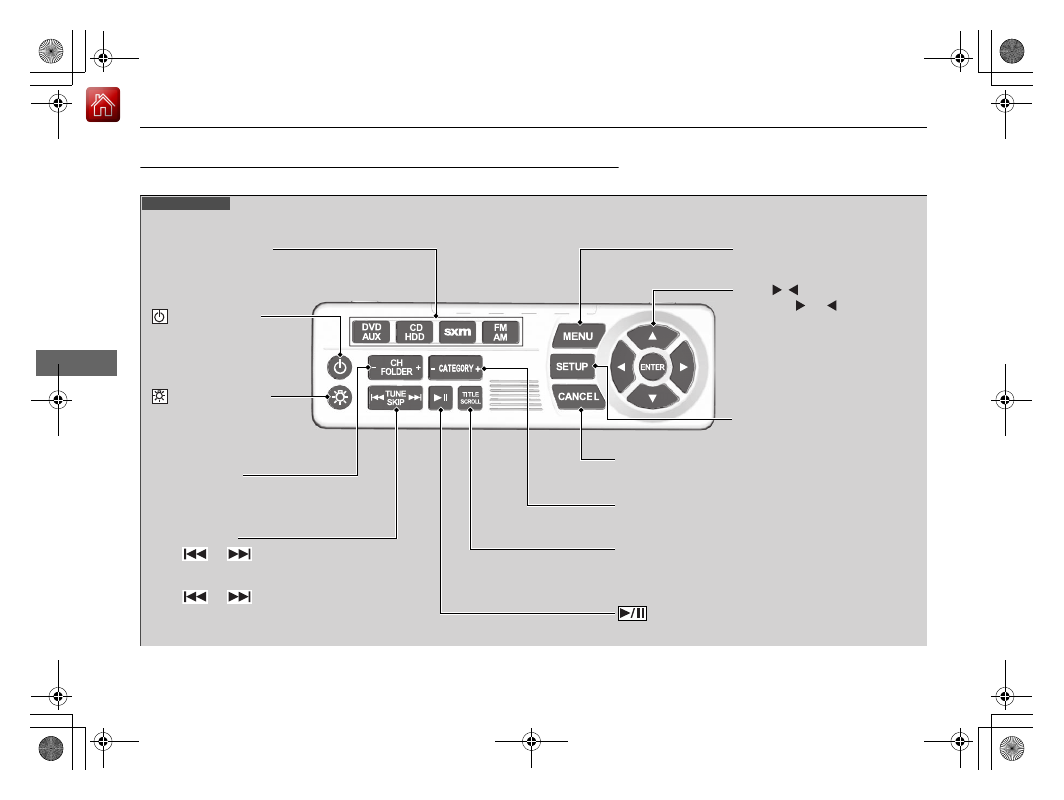

Rear Control Panel Operation

The rear passengers can operate the system with the rear control panel.

 (Play/Pause) Button

Press to play or pause the playback.

TITLE SCROLL Button

Press to display the track title, artist,
and other text information.

MENU Button

Press to display the audio menu.

SETUP Button

Press to display the setup items.

CANCEL Button

Press to go back to the previous display or operation.

3

,

4

,  ,   and ENTER Buttons

Use

3

,

4

,  , or   to highlight a

menu item, and press the

ENTER



button to make a selection.

Models with RES

CATEGORY Bar

Press to change the category (SiriusXM

®

).

 (Power) Button

Press to turn the system
on or off (when rear
power is turned on).

Audio Source Button

Press to select the audio source.

 (Light-up) Button

Press to illuminate the
buttons on the rear
control panel.

TUNE/SKIP Bar

Press

 or

 to search up and down the

selected band for a station with a strong signal
(FM/AM).
Press

 or

 to change tracks. Press and

hold to move rapidly within a track/file (Disc/
USB/DVD).

CH/FOLDER Bar

Press to change the channel (Radio) or
folder (Disc/USB).

341

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Continued

Features

 (Play/Pause) Button

Press to play or pause the playback.

TITLE SCROLL Button

Press to display the track title, artist, and other text information.

MENU Button

Press to display the audio menu.

SETUP Button

Press to display the setup items.

CANCEL Button

Press to go back to the previous display or operation.

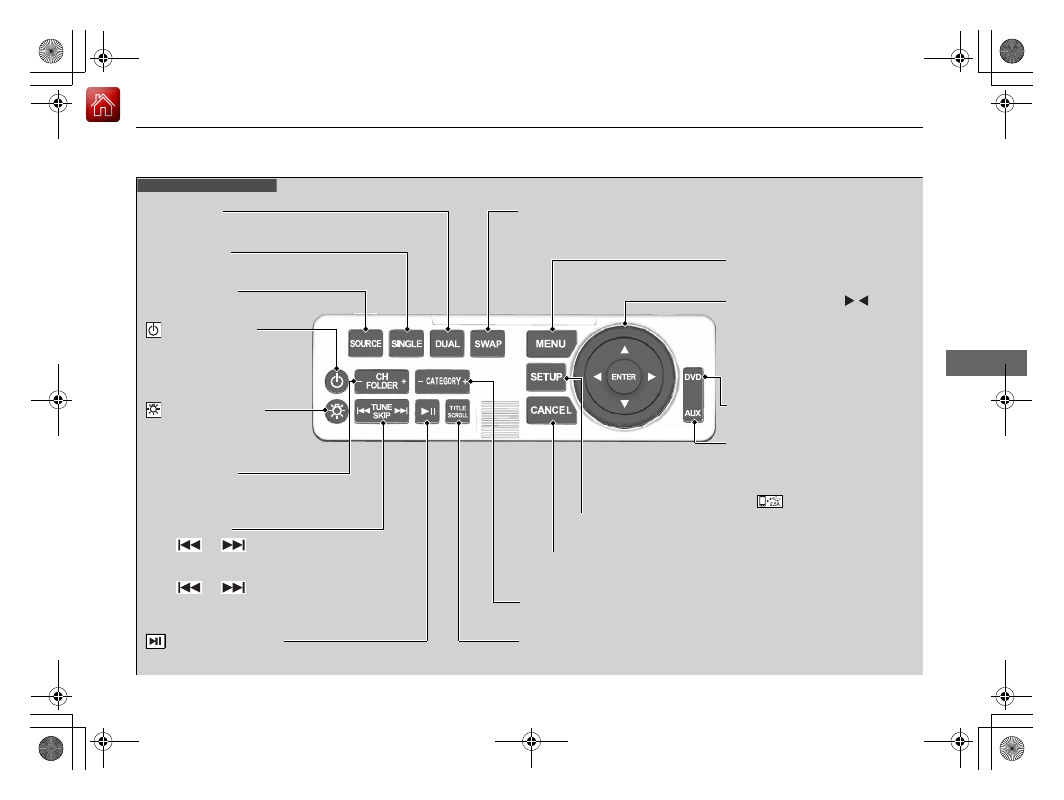

Models with ultrawide RES

CATEGORY Bar

Press to change the category (SiriusXM

®

).

DUAL Button

Press to change the screen mode to dual.

SWAP Button

Press to swap left side screen and right side screen.

 (Power) Button

Press to turn the system
on or off (when rear
power is turned on).

SINGLE Button

Press to change the screen mode to single.

 (Light-up) Button

Press to illuminate the
buttons on the rear
control panel.

TUNE/SKIP Bar

Press

 or

 to search up and down the

selected band for a station with a strong signal
(FM/AM).
Press

 or

 to change tracks. Press and

hold to move rapidly within a track/file (Disc/
USB/DVD).

CH/FOLDER Bar

Press to change the channel (Radio) or
folder (Disc/USB).

SOURCE Button

Press to select the audio source.

Interface Dial,

3

/

4

/ /

(Directional) Buttons, and ENTER
Button

Rotate the interface dial or press
directional button to select items.
Press the

ENTER

 button to make a

selection.

DVD bar

Press to change the DVD mode.

AUX bar

Press to change the input source
toggling through the auxiliary
input jack(s), HDMI port and USB
port

(2.5A).

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

342

Features

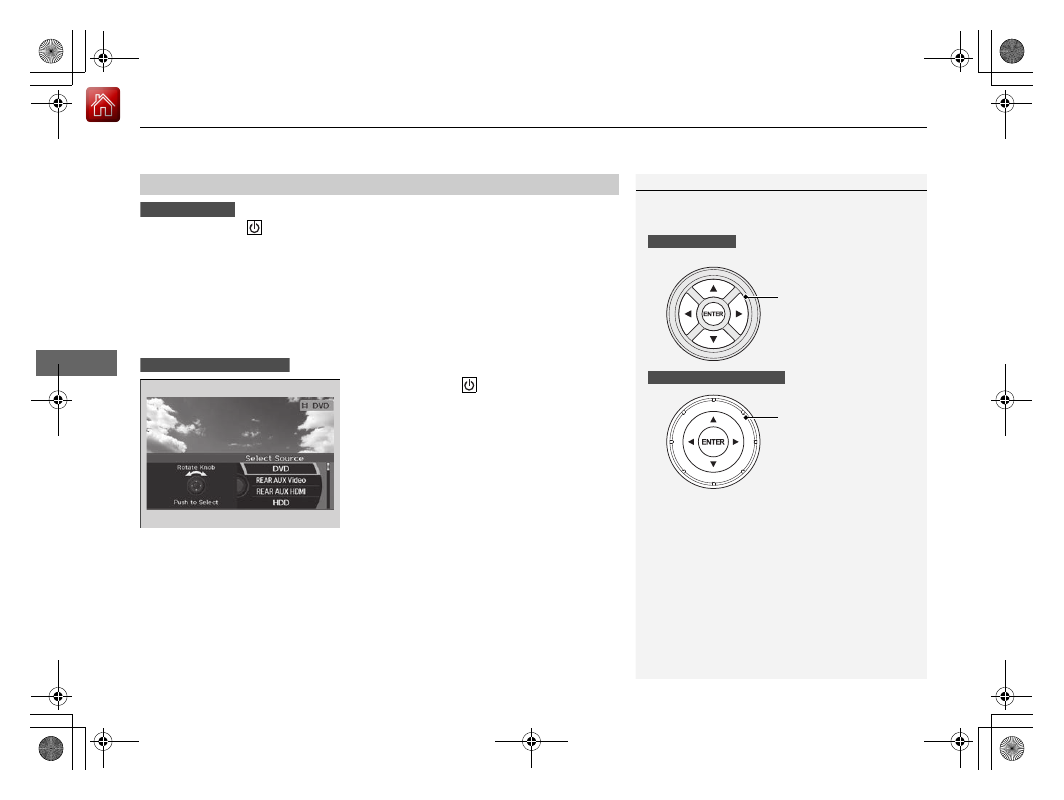

1.

Press the

REAR



 (power) button on the front control panel.

2.

Press the audio source button on the rear control panel.

u

You can also change the audio source by the front control panel.

2

Front Control Panel Operation

 P. 352

3.

Select a station, channel, track, or chapter using the

CH/FOLDER

,

TUNE/SKIP

, or

CATEGORY

 bars.

2

Rear Control Panel Operation

 P. 340

1.

Press the

REAR



 (power) button on the

front control panel.

2.

Press the

SOURCE

 button on the rear

control panel.

3.

Select the audio source. Press the

ENTER



button.

u

You can also change the audio source by
the front control panel.

2

Front Control Panel Operation

 P. 352

4.

Select a station, channel, track, or chapter
using the

CH/FOLDER

,

TUNE/SKIP

, or

CATEGORY

 bars.

■

Selecting the Audio Source

1

Rear Control Panel Operation

In the procedures of this section, “select” means the
following actions:

The rear control panel can be detached from the
ceiling unit and used as a remote control.

2

Overhead Screen

 P. 338

In this section, screen illustrations from the standard
RES are used for the explanation unless otherwise
noted.

The screen is displayed on the overhead screen.

Models with RES

Models with ultrawide RES

Press the cursor
buttons on the rear
control panel.

Rotate the interface
dial or press the
directional buttons on
the rear control panel.

Models with RES

Models with ultrawide RES

343

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Continued

Features

1.

Press the

MENU

 button (in DVD mode).

2.

Select an item. Press the

ENTER

 button.

The following items are available:

•

Top Menu

: Displays the top menu of the DVD.

•

Menu

: Displays the menu of the DVD.

•

Play Mode

: Displays while a DVD is playing and changes the DVD’s audio,

subtitle, or angle settings.

2

Setting the play mode

 P. 344

•

Initial Settings

*

: Displays while a DVD is not playing and changes the DVD

preferences.

2

DVD Initial Settings

 P. 349

•

Search/NumInput

: Skips to a title or chapter by entering the number.

2

Searching a title/chapter

 P. 345

•

Repeat

:

 (title repeat): Repeats the current title.
 (chapter repeat): Repeats the current chapter.

•

Pause/Play

: Pause or play the playback.

•

Stop

: Stops the playback.

•

Return

: Hides the rear audio menu.

■

Rear DVD Menu

* Not available on all models

344

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Features

■

Setting the play mode

1.

Press the

MENU

 button (in DVD mode).

2.

Select

Play Mode

. Press the

ENTER

 button.

3.

Select an item. Press the

ENTER

 button.

4.

Select an option. Press the

ENTER

 button.

The following items are available:

•

Audio

: Selects the language of the DVD audio.

•

Subtitle

: Selects the language of the DVD subtitle.

•

Angle

: Selects the angle of a scene shot with multiple cameras.

345

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Continued

Features

■

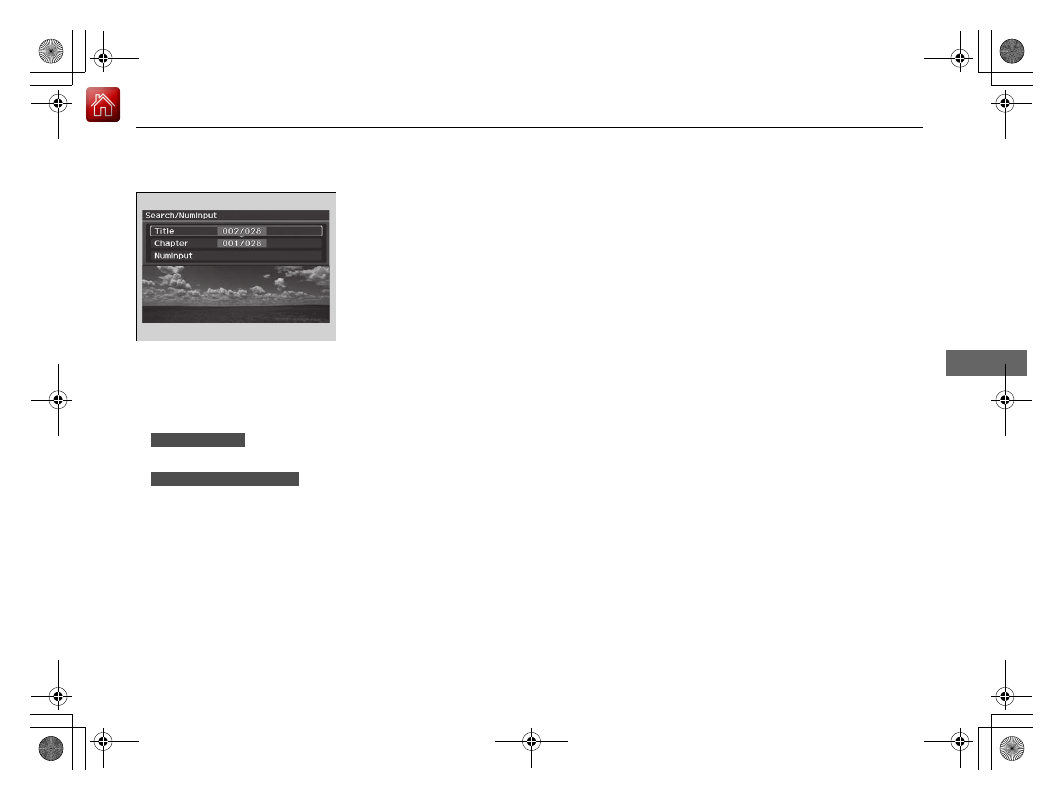

Searching a title/chapter

1.

Press the

MENU

 button (in DVD mode).

2.

Select

Search/NumInput

. Press the

ENTER



button.

3.

Select an item. Press the

ENTER

 button.

4.

Select a number. Press the

ENTER

 button.

The following items are available:

•

Title

: Skips to a title you specify.

•

Chapter

: Skips to a chapter you specify.

•

NumInput

: Enters a number of a title or chapter to skip.

Enter a number and select

ENT

. Press the

ENTER

 button.

Enter a number and press the

ENTER

 button. Select

DONE

.

Models with RES

Models with ultrawide RES

346

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Features

1.

Press the

SETUP

 button (in DVD mode).

2.

Select an item. Press the

ENTER

 button.

The following items are available:

•

Brightness

*

: Adjusts the screen’s brightness. Adjust the brightness using the

interface dial and press the

ENTER

 button.

•

Appearance

*

: Selects the color of the rear menu screen.

•

Display Adjust

: Adjusts the screen’s preferences.

2

Adjusting the screen

 P. 347

•

Aspect Ratio

: Selects an aspect ratio of the image.

2

Setting the aspect ratio

 P. 348

•

PERSONAL SURROUND

: Sets the surround of the wireless headphones. You can

choose from three options:

Music

,

Cinema

, or

Voice

. Select

Off

 to disable the

feature.

•

Language

: Sets the system language used on all screens. You can choose from

three languages:

English

,

Français

 (French), or

Español

 (Spanish).

■

Screen and Surround Settings

* Not available on all models

347

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Continued

Features

■

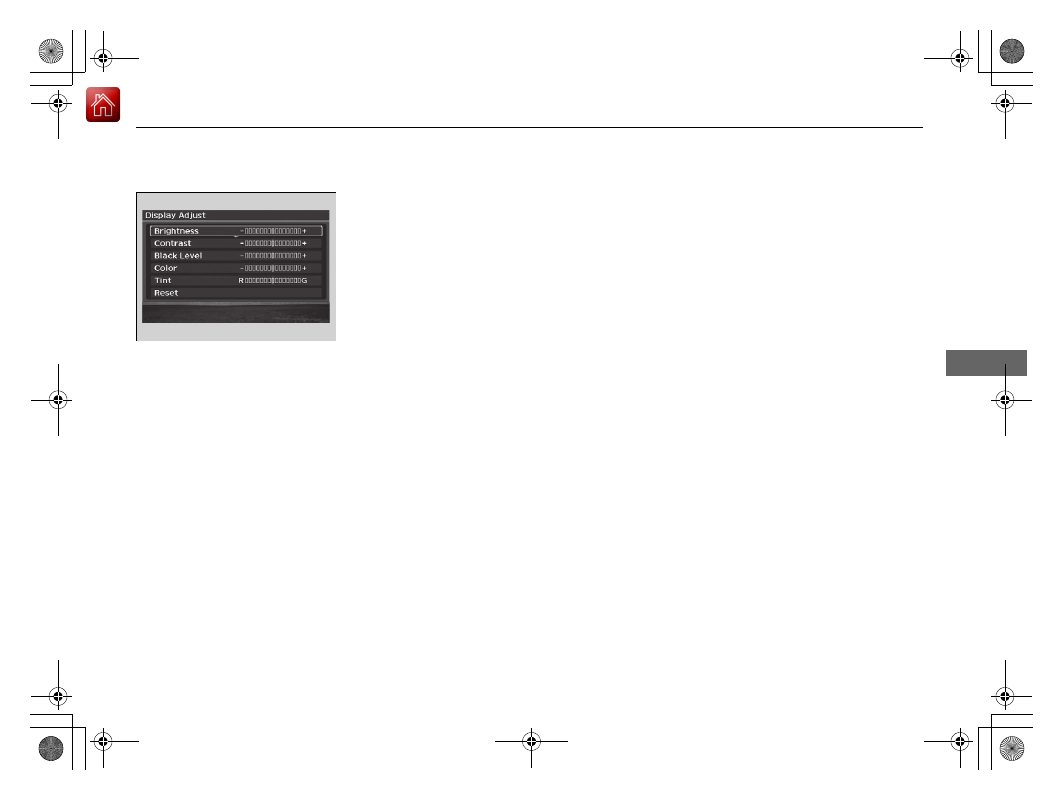

Adjusting the screen

1.

Press the

SETUP

 button (in DVD mode).

2.

Select

Display Adjust

. Press the

ENTER



button.

3.

Select an item. Press the

ENTER

 button.

4.

Make the adjustment. Press the

ENTER



button.

The following items are available:

•

Brightness

*

: Adjusts the screen’s brightness.

•

Contrast

: Adjusts the screen’s contrast.

•

Black Level

: Adjusts the screen’s black level.

•

Color

: Adjusts the screen’s color strength.

•

Tint

: Adjusts the screen’s hue.

•

Reset

: Resets all the settings to their factory default.

* Not available on all models

348

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Features

■

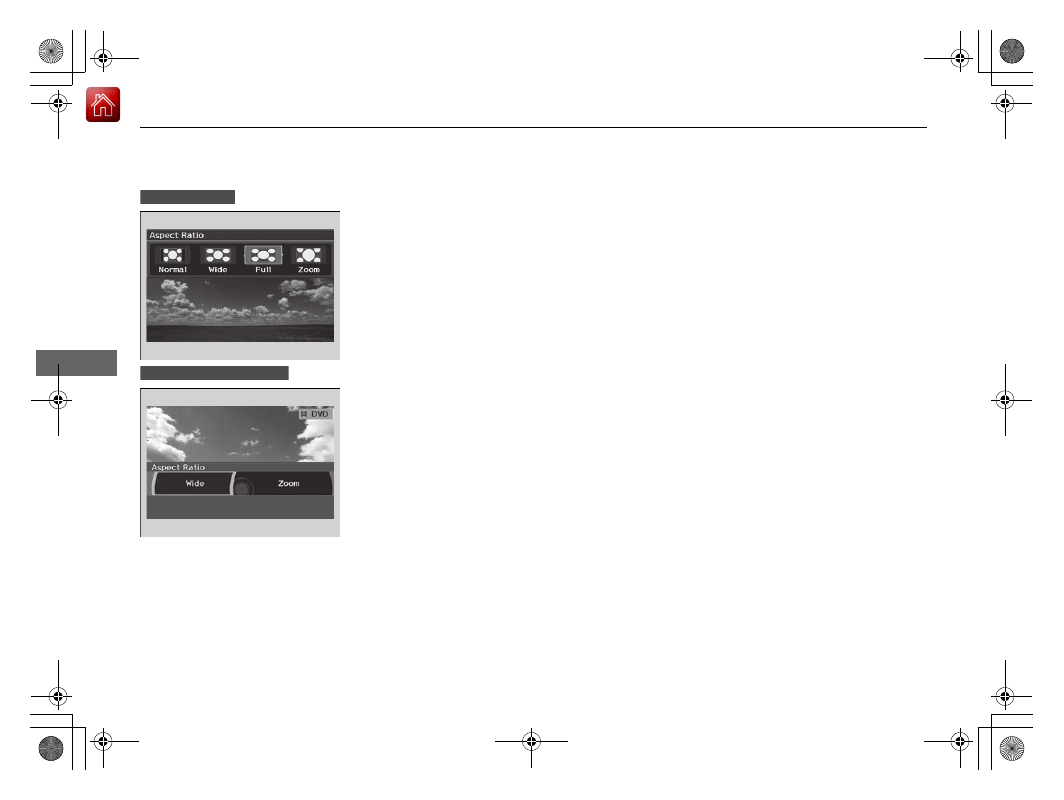

Setting the aspect ratio

1.

Press the

MENU

 button (in DVD mode).

2.

Select

Aspect Ratio

. Press the

ENTER



button.

3.

Select an option. Press the

ENTER

 button.

1.

Press the

MENU

 button (in DVD mode).

2.

Select

Aspect Ratio

. Press the

ENTER



button.

3.

Select an item. Press the

ENTER

 button.

4.

Select an option. Press the

ENTER

 button.

The following items are available:

•

Wide

: Selects the wide screen option (

Normal

,

Full

,

Super Full

,

Ultra Full

).

•

Zoom

: Selects the zoom screen option (

Super Zoom

,

Ultra Zoom

).

Models with RES

Models with ultrawide RES
