Acura MDX (2020 year). Manual in english - page 7

108

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when pressing the

Dynamic Mode

 button.

u

Press again to change the next mode.

2

Integrated Dynamics System

 P. 486

●

Appears if there is a problem with the cooling system.

●

Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.

●

Appears when there is a problem with the headlights.

●

Appears while driving

 - The headlights may not be

on. When conditions allow you to drive safety, have
your vehicle checked by a dealer as soon as possible.

●

Appears if there is a problem with the parking sensor
system

*

.

●

Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.

* Not available on all models

109

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears if the automatic brake hold is automatically
canceled while it is in operation.

●

Immediately depress the brake pedal.

●

Appears when the automatic brake hold system is
turned off.

2

Automatic Brake Hold

 P. 533

●

Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.

●

Fasten the driver’s seat belt.

2

Automatic Brake Hold

 P. 533

●

Appears when the automatic brake hold button is
pressed without depressing the brake pedal while the
automatic brake hold is in operation.

●

Press the automatic brake hold button with the brake
pedal depressed.

2

Automatic Brake Hold

 P. 533

●

Appears when the parking brake is applied
automatically while it is in operation.

2

Automatic Brake Hold

 P. 533

2

Parking Brake

 P. 529

110

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears if there is a problem with the Auto high-beam.

●

Manually operate the headlight switch.

●

If you are driving with the high-beam headlights when
this happens, the headlights are changed to low beams.

●

Appears when the Auto high-beam is in operation, or
the headlight switch is turned in

AUTO

, but there the

temperature inside the camera is too high. The Auto
high-beam cancels automatically.

●

Use the climate control system to cool down the
camera.

●

Goes off

 - The camera has been cooled down. Turing

the headlight switch in

AUTO

 can resume the system.

2

Front Sensor Camera

 P. 487

●

Appears when the area around the camera is blocked
by dirt, mud, etc. Stop your vehicle in a safe place, and
wipe it off with a soft cloth.

●

May appear when driving in bad weather (rain, snow,
fog, etc.)

●

Have your vehicle checked by a dealer if the message
comes back on after you cleaned the area around the
camera.

111

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Flashes when the system senses a likely collision with a
vehicle in front of you.

●

Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)

2

Collision Mitigation Braking System

TM

 (CMBS

TM

)



P. 537

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

●

Appears when ACC with Low Speed Follow has been
automatically canceled.

●

You can resume the set speed after the condition that
caused ACC with Low Speed Follow to cancel improves.
Press the

RES/+

/

SET/–

 switch up.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

●

Appears when the vehicle speed slows down to 25 mph
(40 km/h) and the vehicle ahead of you goes out of the
ACC with Low Speed Follow range while ACC with Low
Speed Follow is in operation.

●

ACC with Low Speed Follow has been automatically
canceled.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

●

Appears when pressing the

RES/+/SET/–

 switch down

while the vehicle speed is less than 25 mph (40 km/h)
and the vehicle ahead of you goes out of the ACC with
Low Speed Follow range.

●

ACC with Low Speed Follow cannot be set.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

●

Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with
Low Speed Follow is in operation.

●

ACC with Low Speed Follow has been automatically
canceled.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

112

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when pressing the

RES/+/SET/–

 switch down

while the distance between your vehicle and the vehicle
ahead of you is too close.

●

ACC with Low Speed Follow cannot be set.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

●

Appears when pressing the

RES/+/SET/–

 switch down

while the driver’s seat belt is unfastened.

●

ACC with Low Speed Follow cannot be set.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

●

Appears when pressing the

RES/+/SET/–

 switch down

while the transmission is not in

(

D

.

●

ACC with Low Speed Follow cannot be set.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

●

Appears if ACC with Low Speed Follow is canceled
while your vehicle is automatically stopped by ACC with
Low Speed Follow. The beeper sounds.

●

Immediately depress the brake pedal.

●

Appears when pressing the

RES/+/SET/–

 switch down

while the vehicle is moving and the brake pedal is
depressed.

●

ACC with Low Speed Follow cannot be set.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

113

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in operation.

●

ACC with Low Speed Follow has been automatically
canceled.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

●

Appears when pressing the

RES/+/SET/–

 switch down

while the vehicle is stopped on a very steep slope.

●

ACC with Low Speed Follow cannot be set.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

●

Appears when pressing the

RES/+/SET/–

 switch down

while the parking brake is applied.

●

ACC with Low Speed Follow cannot be set.

2

Adaptive Cruise Control (ACC) with Low Speed
Follow

 P. 489

2

Parking Brake

 P. 529

114

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.

●

Keep the vehicle within the lane you are driving.

2

Lane Keeping Assist System (LKAS)

 P. 510

●

Appears when the vehicle is driving out of a detected
lane.

-

The steering wheel vibrates rapidly when the vehicle is
drifting out of a detected lane.

-

The steering wheel vibrates rapidly when the vehicle is
drifting out of a detected lane. The system also steers
the vehicle to help you remain within your driving
lane.

●

Keep the vehicle within the lane you are driving.

2

Road Departure Mitigation (RDM) System

 P. 505

●

You can change the setting for the road departure
mitigation system.

Normal

,

Wide

, and

Warning Only



can be selected.

2

Customized Features

 P. 126, 358

●

Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.

●

Operate the steering wheel to resume the LKAS.

Lane Keeping Assist System (LKAS)

Road Departure Mitigation (RDM) System

When you selected Warning Only

When you selected Normal or Wide

115

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a system
related to the LKAS. The LKAS cancels automatically.
The beeper sounds simultaneously.

●

If any other system indicators come on, such as the
VSA

®

, ABS and brake system, take appropriate action.

2

Indicators

 P. 78

●

Appears when the LKAS is in operation, or the LKAS
button is pressed, but there the temperature inside the
LKAS camera is too high. The LKAS cancels
automatically. The beeper sounds simultaneously if
selected by customization.

●

Use the climate control system to cool down the
camera.

●

Goes off

 - The camera has been cooled down. Pressing

the LKAS button can resume the system.

2

Front Sensor Camera

 P. 487

●

Appears when the area around the camera is blocked
by dirt, mud, etc. Stop your vehicle in a safe place, and
wipe it off with a soft cloth.

●

May appear when driving in bad weather (rain, snow,
fog, etc.)

●

Have your vehicle checked by a dealer if the indicator
and message come back on after you cleaned the area
around the camera.

116

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when you turn the Auto Idle Stop system on.

2

Auto Idle Stop

 P. 480

●

Appears when

Auto Engine Idle Stop Guidance

Screens On

 has been selected from the customization

menu.

2

Auto Idle Stop

 P. 480

●

Appears when Auto Idle Stop does not activate for
some reason.

●

Appears when the engine restarts automatically.

●

Appears when the battery temperature is around 14°F
(−10°C) or lower.

●

Appears when Auto Idle Stop does not activate because
the climate control system is in use, and the difference
between the set temperature and actual interior
temperature becomes significant.

●

Appears when Auto Idle Stop does not activate because
the engine coolant temperature is too low or high.

●

Appears when Auto Idle Stop does not activate because
the battery charge level is low.

●

Appears when the battery is low performance.

117

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when Auto Idle Stop does not activate because
the pressure to the brake pedal is not enough.

●

Depress the brake pedal firmly.

●

Appears when

Auto Engine Idle Stop Guidance

Screens On

 has been selected from the customization

menu.

●

Appears when the system is under the following
conditions while Auto Idle Stop activates:

-

The battery charge level is low.

-

The climate control system is in use, and the difference
between the set temperature and actual interior
temperature becomes significant.

-

The humidity in the interior is high.

●

The engine restarts automatically in a few seconds.

2

Starting the Engine

 P. 464

118

uu

Indicators

u

Multi-Information Display (MID) Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when you unlock and open the driver’s door
while the engine is running by two-way keyless access
remote.

2

Remote Engine Start with Vehicle Feedback

*

 P. 466

Message

Condition

Explanation

●

Appears if there is a problem with the active damper
system.

●

Have your vehicle checked by a dealer. With this icon
on, your vehicle has limited damping ability without the
active damper system.

Models with two-way keyless access remote

Models with active damper system

* Not available on all models

119

In

strum

e

nt Pa

nel

Gauges and Multi-Information Display (MID)

Gauges

Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the power mode is in ON.

Displays your driving speed in mph (U.S.) or km/h (Canada).

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

Displays the temperature of the engine coolant.

■

Speedometer

■

Tachometer

■

Fuel Gauge

■

Temperature Gauge

1

Fuel Gauge

NOTICE

You should refuel when the reading approaches

.

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

E

1

Temperature Gauge

NOTICE

Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

2

Overheating

 P. 654

120

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

MID

The MID shows the odometer, trip meter, outside temperature indicator, and other
gauges. It also displays important messages such as warnings and other helpful
information.

■

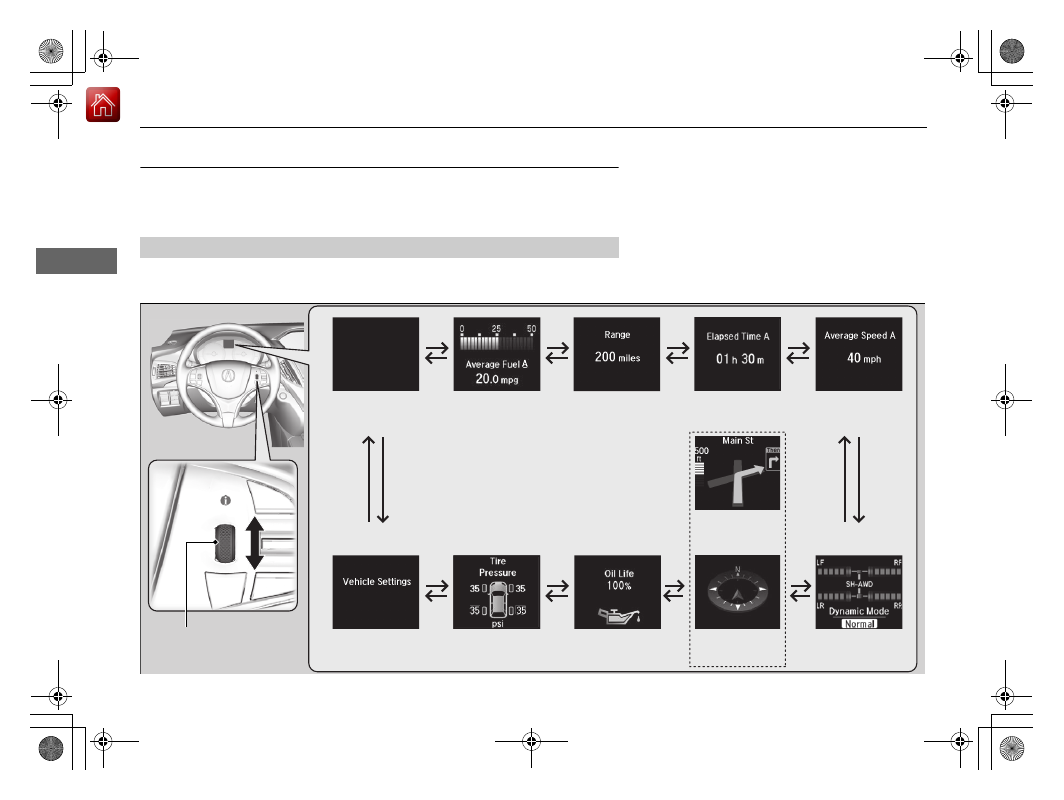

Main displays

Roll the multi-function steering-wheel controls to change the display.

■

Switching the Display

Blank

Instant Fuel
Economy/
Average Fuel
Economy

Range

Elapsed Time

Average Speed

SH-AWD

®

*

/

Dynamic Mode

Vehicle
Settings

Tire Pressure
for Each Tire

Engine Oil Life

Turn-by-Turn
Directions

Multi-function Steering-
wheel Controls

Compass

* Not available on all models

121

uu

Gauges and Multi-Information Display (MID)

u

MID

Continued

In

strum

e

nt Pa

nel

■

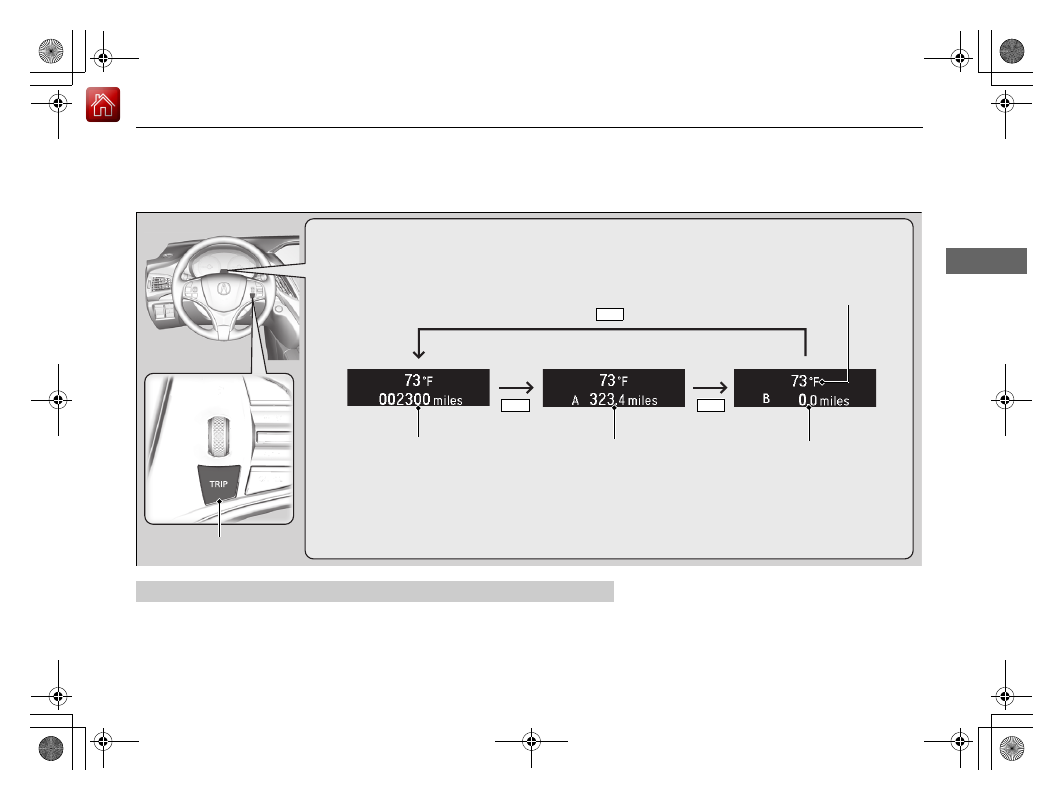

Lower displays

Press the

TRIP

 button to change the display.

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.

■

Odometer

TRIP

 Button

Outside Temperature

Trip A

Trip B

Odometer

TRIP

TRIP

TRIP

uu

Gauges and Multi-Information Display (MID)

u

MID

122

In

strum

e

nt Pa

nel

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the

TRIP

 button until the trip

meter is reset to

0.0

.

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature display

Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.

■

Trip Meter

■

Outside Temperature

■

Average Fuel Economy

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the

TRIP

 button.

1

Outside Temperature

The temperature sensor is located in the front
bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

Use the MID’s customized features to correct the
temperature.

2

Customized Features

 P. 126

1

Average Fuel Economy

You can change when to reset the average fuel
economy.

2

Customized Features

 P. 126

Continued

123

uu

Gauges and Multi-Information Display (MID)

u

MID

In

strum

e

nt Pa

nel

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the estimated distance you can travel on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.

Shows the time elapsed since Trip A or Trip B was reset.

Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.

■

Instant Fuel Economy

■

Range

■

Elapsed Time

■

Average Speed

1

Elapsed Time

You can change when to reset the elapsed time.

2

Customized Features

 P. 126

1

Average Speed

You can change when to reset the average speed.

2

Customized Features

 P. 126
