STARTING AND OPERATING

TOWING A TRAILER

ACC while towing a trailer is recommended only

with an Integrated Trailer Brake Controller.

Aftermarket trailer brake controllers will not

activate the trailer brakes when ACC is braking.

OFFSET DRIVING

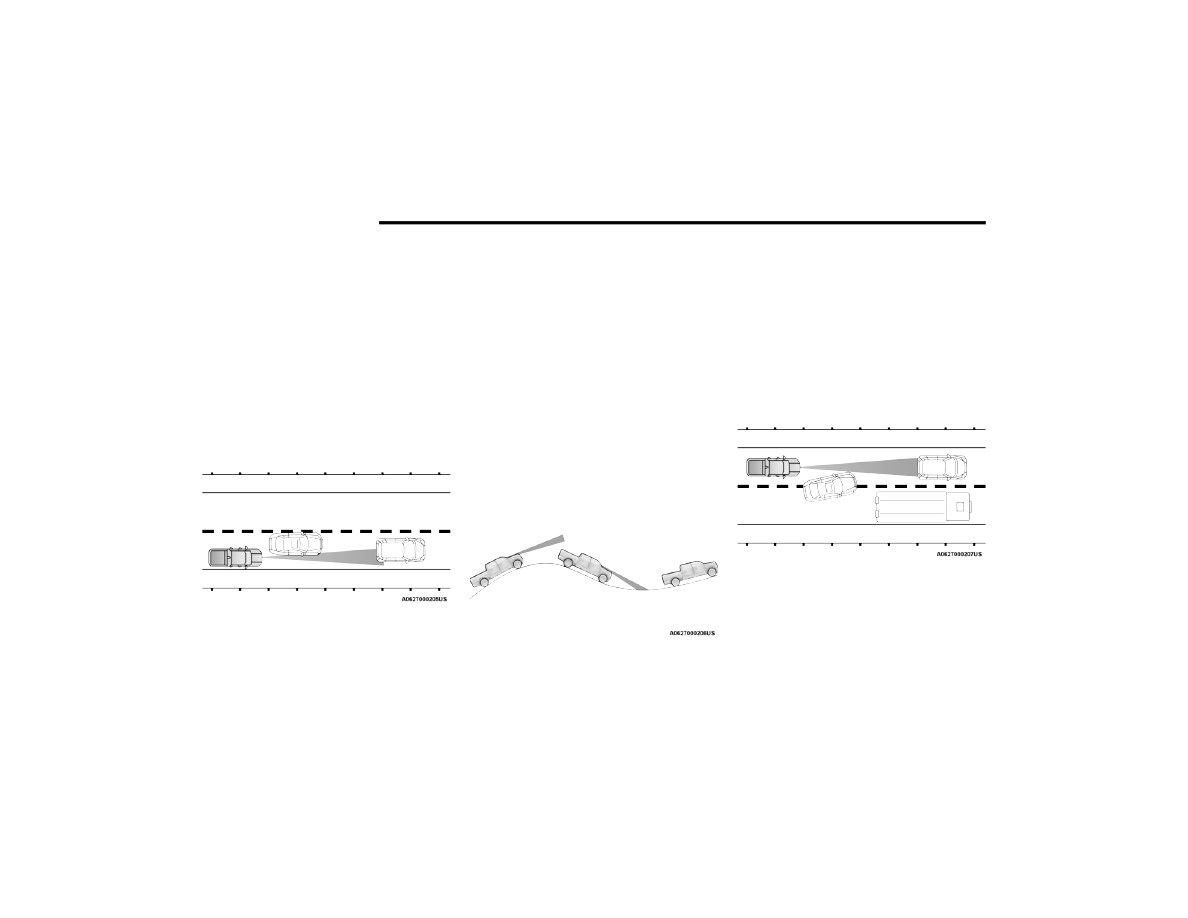

ACC may not detect a vehicle in the same lane that

is offset from your direct line of travel, or a vehicle

merging in from a side lane. There may not be

sufficient distance to the vehicle ahead. The offset

vehicle may move in and out of the line of travel,

which can cause your vehicle to brake or

accelerate unexpectedly.

Offset Driving Condition Example

TURNS AND BENDS

When driving on a curve with ACC engaged, the

system may decrease the vehicle speed and

acceleration for stability reasons, with no target

vehicle detected. Once the vehicle is out of the

curve the system will resume your original set

speed. This is a part of normal ACC system

functionality.
NOTE:

On tight turns ACC performance may be limited.

USING ACC ON HILLS

When driving on hills, ACC may not detect a vehicle

in your lane. Depending on the speed, vehicle load,

traffic conditions, and the steepness of the hills,

ACC performance may be limited.

ACC Hill Example

LANE CHANGING

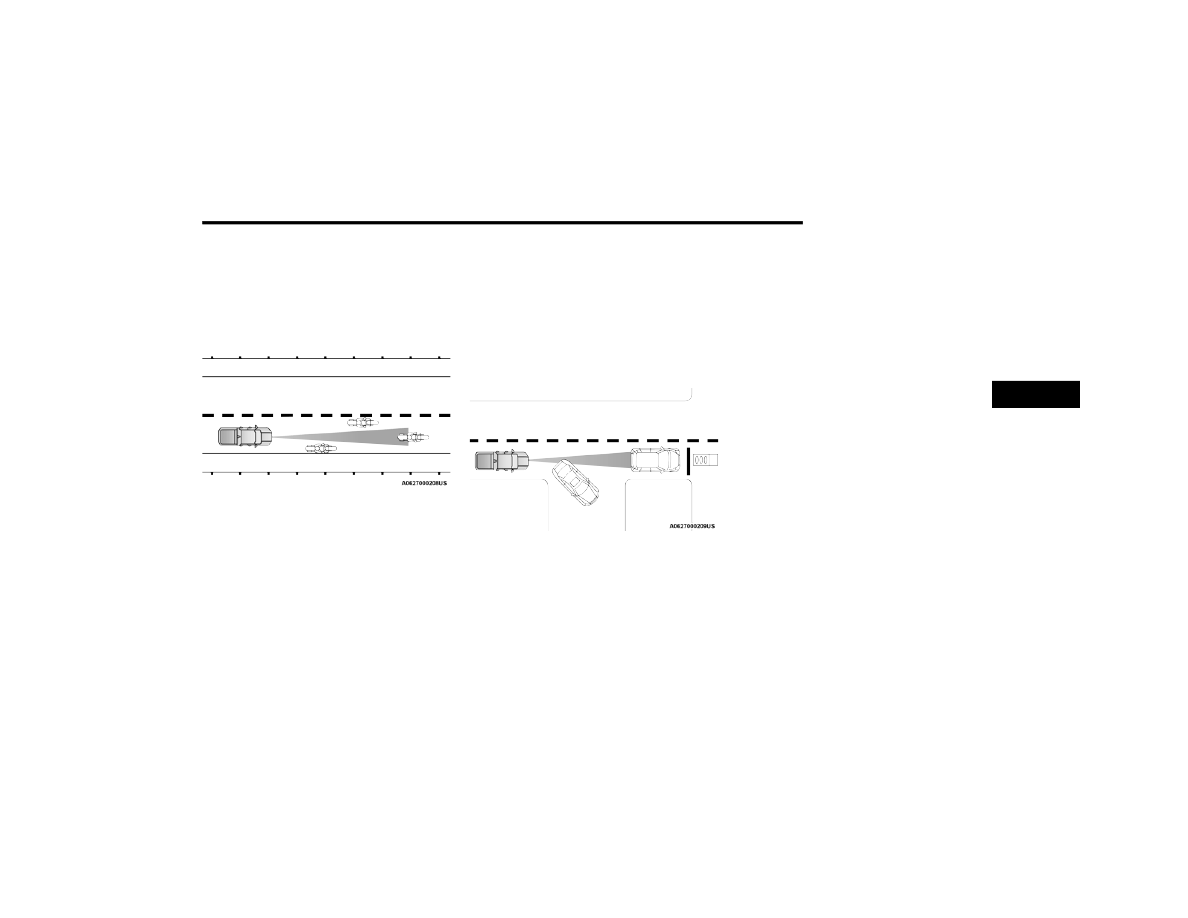

ACC may not detect a vehicle until it is completely

in the lane in which you are traveling. In the

illustration shown, ACC has not yet detected the

vehicle changing lanes and it may not detect the

vehicle until it's too late for the ACC system to take

action. ACC may not detect a vehicle until it is

completely in the lane. There may not be sufficient

distance to the lane-changing vehicle. Always be

attentive and ready to apply the brakes if

necessary.

Lane Changing Example

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

189

NARROW VEHICLES

Some narrow vehicles traveling near the outer

edges of the lane or edging into the lane are not

detected until they have moved fully into the lane.

There may not be sufficient distance to the vehicle

ahead.

Narrow Vehicle Example

STATIONARY OBJECTS AND VEHICLES

ACC does not react to stationary objects or

vehicles. For example, ACC will not react in

situations where the vehicle you are following exits

your lane and the vehicle ahead is stopped in your

lane. It will consider this stopped vehicle a

stationary object as it did not previously detect

movement from it. Always be attentive and ready

to apply the brakes if necessary.

Stationary Object And Stationary Vehicle Example

PARKSENSE FRONT/REAR PARK ASSIST —

IF EQUIPPED

The ParkSense Park Assist system provides visual

and audible indications of the distance between

the rear, and/or front fascia/bumper, and a

detected obstacle when backing up or moving

forward (e.g. during a parking maneuver).
For limitations of this system and

recommendations, see

page 193.

ParkSense will retain the system state (enabled or

disabled) from the previous ignition cycle when the

ignition is placed in the ON/RUN position.
ParkSense can be active only when the gear

selector is in REVERSE or DRIVE. If ParkSense is

enabled at one of these gear selector positions,

the system will remain active until the vehicle

speed is increased to approximately 7 mph

(11 km/h) or above. A warning will appear in the

instrument cluster display when the vehicle is in

REVERSE, indicating the vehicle is above

ParkSense operating speed. The system will

become active again if the vehicle speed is

decreased to speeds less than approximately

6 mph (9 km/h).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

190

STARTING AND OPERATING

ARK

ENSE

ENSORS

The four ParkSense sensors, located in the rear

fascia/bumper, monitor the area behind the

vehicle that is within the sensors’ field of view.
The sensors can detect obstacles from

approximately 12 inches (30 cm) up to 79 inches

(200 cm) from the rear fascia/bumper in the

horizontal direction, depending on the location,

type and orientation of the obstacle.
NOTE:

If equipped as a dually, the ParkSense system has

six rear sensors to assist in detection around the

dually flares.

The six ParkSense sensors, located in the front

fascia/bumper, monitor the area in front of the

vehicle that is within the sensors’ field of view. The

sensors can detect obstacles from approximately

12 inches (30 cm) up to 47 inches (120 cm) from

the front fascia/bumper in the horizontal direction,

depending on the location, type and orientation of

the obstacle.
NOTE:

The dually flares are only protected when the

vehicle is in REVERSE. There is no detection for the

flares when the vehicle is moving forward.

ARK

ENSE

ARNING

ISPLAY

The ParkSense Warning screen is located within

the instrument cluster display. It provides visual

warnings to indicate the distance between the rear

fascia/bumper and/or front fascia/bumper and

the detected obstacle.

ARK

ENSE

ISPLAY

The warning display will turn on indicating the

system status when the vehicle is in REVERSE or

when the vehicle is in DRIVE and an obstacle has

been detected.

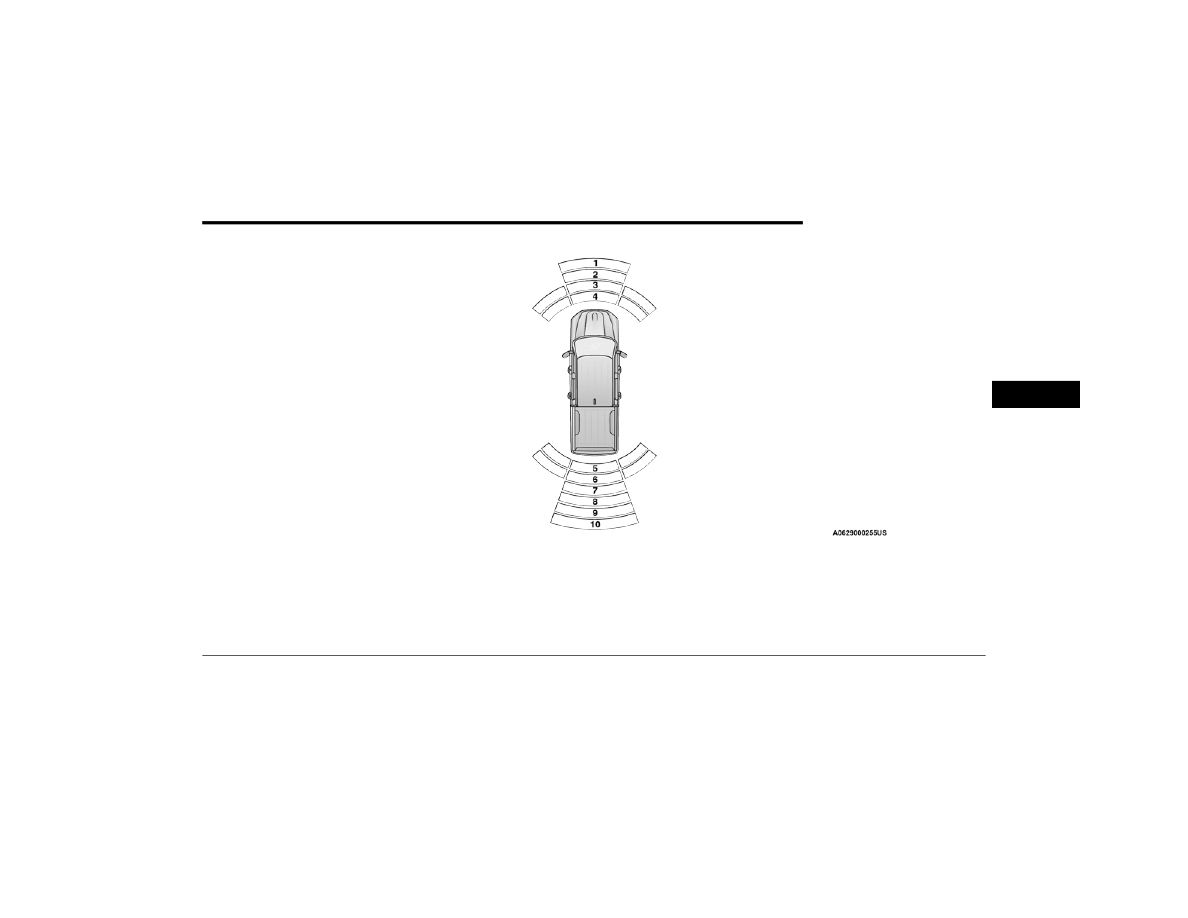

The system will indicate a detected obstacle by

showing a single arc in the left and/or right rear

regions based on the obstacle’s distance and

location relative to the vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

192

STARTING AND OPERATING

If an obstacle is detected in the left and/or right rear region, the display will show a single arc in the left and/or right rear region and the system will produce a

tone. As the vehicle moves closer to the obstacle, the display will show the single arc moving closer to the vehicle and the tone will change from a single 1/2

second tone to slow, to fast, to continuous.
The vehicle is close to the obstacle when the display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert operation

when the system is detecting an obstacle:

NOTE:

ParkSense will reduce the volume of the radio, if on, when the system is sounding an audio tone.

WARNING ALERTS FOR REAR

Rear Distance

(inches/cm)

Greater than

79 inches

(200 cm)

79-59 inches

(200-150 cm)

59-47 inches

(150-120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than

12 inches

(30 cm)

Audible Alert Chime

None

Single 1/2 Sec

ond Tone

Slow

Fast

Continuous

Arcs-Left

None

6th Flashing

5th Flashing

Arcs-Center

None

10th Solid

9th Solid

8th Solid

7th Flashing

6th Flashing

5th Flashing

Arcs-Right

None

6th Flashing

5th Flashing

Radio Volume Reduced

Yes

WARNING ALERTS FOR FRONT

Front Distance

(inches/cm)

Greater than 47 inches

(120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than 12 inches

(30 cm)

Audible Alert Chime

None

Fast

Continuous

Arcs-Left

None

3rd Flashing

4th Flashing

Arcs-Center

None

1st Solid

2nd Flashing

3rd Flashing

4th Flashing

Arcs-Right

None

3rd Flashing

4th Flashing

Radio Volume Reduced

Yes

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

193

Front Park Assist Audible Alerts
ParkSense will turn off the Front Park Assist

audible alert (chime) after approximately three

seconds when an obstacle has been detected, the

vehicle is stationary, and brake pedal is applied.
Adjustable Chime Volume Settings

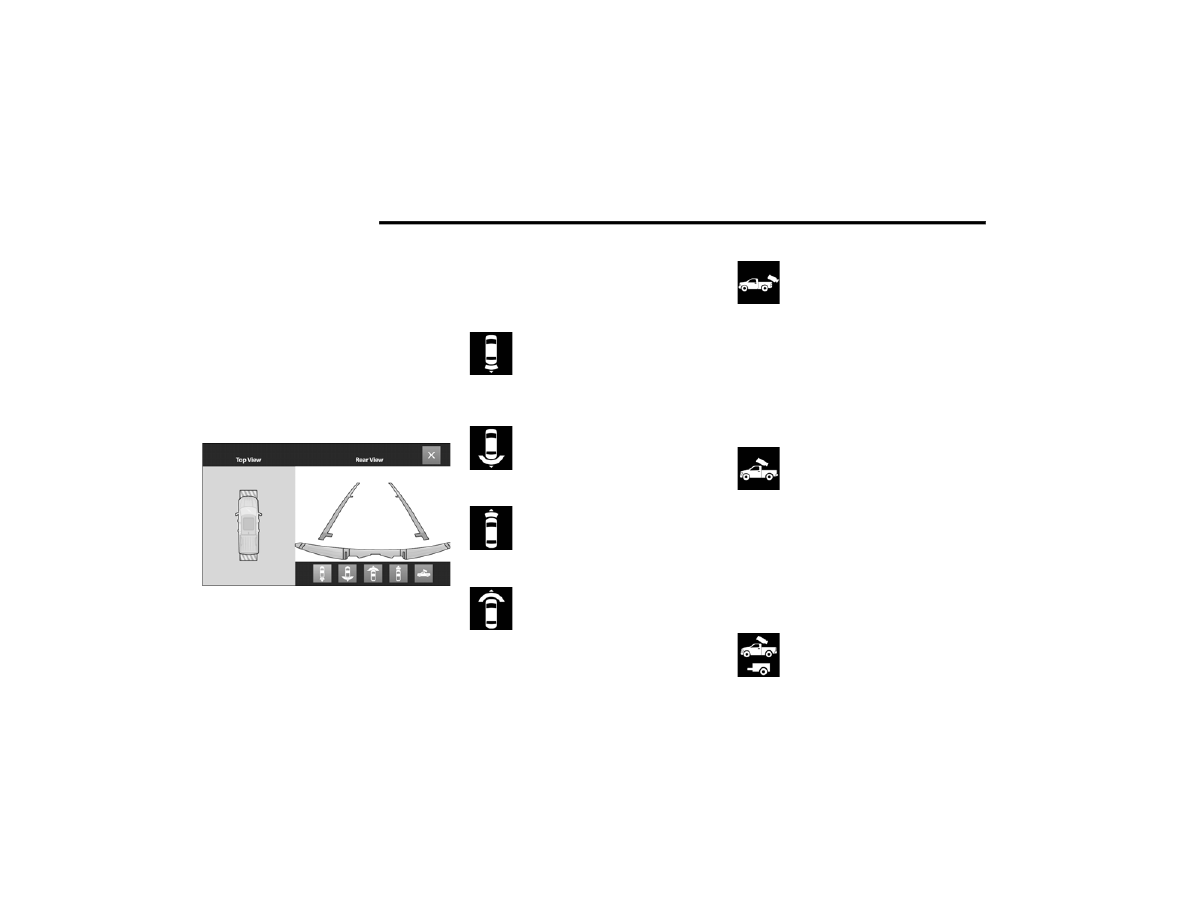

The Front and Rear chime volume settings are

programmable through the Uconnect system

page 232.

The chime volume settings include low, medium,

and high. The factory default volume is medium.

NABLING

ISABLING

RONT

EAR

ARK

ENSE

Front ParkSense can be enabled and

disabled with the Front ParkSense

switch.

Rear ParkSense can be enabled and disabled with

the Rear ParkSense switch.
When the gear selector is moved to REVERSE and

the Front or Rear system is disabled, the

instrument cluster display will show a vehicle

graphic with an “Off” message overlay over the

system that is off (Front or Rear system). This

vehicle graphic will be displayed for as long as the

vehicle is in REVERSE.
The Front or Rear ParkSense switch LED will be on

when Front or Rear ParkSense is disabled or

requires service. The Front or Rear ParkSense

switch LED will be off when the Front or Rear

system is enabled. If the Front or Rear ParkSense

switch is pushed, and the system requires service,

the Front or Rear ParkSense switch LED will blink

momentarily, and then the LED will be on.

ERVICE

ARK

ENSE

RONT

EAR

ARK

SSIST

YSTEM

During vehicle start up, when the Front/Rear

ParkSense System has detected a faulted

condition, the instrument cluster display will show

the "Front/Rear ParkSense Unavailable Service

Required" or the "Front/Rear ParkSense

Unavailable Wipe Sensors" message.
When the gear selector is moved into REVERSE, a

vehicle graphic will show in the instrument cluster

display, along with the display overlay “Wipe

Sensors.” If the system needs service, the display

overlay will read “Service.” Under this condition,

ParkSense will not operate.
If "Front/Rear ParkSense Unavailable Wipe

Sensors" appears in the instrument cluster display

make sure the outer surface and the underside of

the rear fascia/bumper is clean and clear of snow,

ice, mud, dirt or other obstruction, and then cycle

the ignition. If the message continues to appear,

see an authorized dealer.

If "Front/Rear ParkSense Unavailable Service

Required" appears in the instrument cluster

display, see an authorized dealer.

LEANING

ARK

ENSE

YSTEM

Clean the ParkSense sensors with water, car wash

soap and a soft cloth. Do not use rough or hard

cloths. Do not scratch or poke the sensors.

Otherwise, you could damage the sensors.

ARK

ENSE

YSTEM

SAGE

RECAUTIONS

NOTE:



Ensure that the front and rear fascias/bumpers

are free of snow, ice, mud, dirt and debris to

keep the ParkSense system operating properly.



Jackhammers, large trucks, and other vibra

tions could affect the performance of Park

Sense.



When you move the gear selector to the

REVERSE position and Front or Rear ParkSense

is turned off, the instrument cluster display will

show "Off" on the vehicle graphic arcs. This

vehicle graphic will be displayed for as long as

the vehicle is in REVERSE.



ParkSense, when on, will reduce the volume of

the radio when it is sounding a tone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

194

STARTING AND OPERATING



Clean the ParkSense sensors regularly, taking

care not to scratch or damage them. The

sensors must not be covered with ice, snow,

slush, mud, dirt or debris. Failure to do so can

result in the system not working properly. The

ParkSense system might not detect an obstacle

behind or in front of the fascia/bumper, or it

could provide a false indication that an obstacle

is behind or in front of the fascia/bumper.



Use the ParkSense switch to turn the ParkSense

system off if obstacles such as bicycle carriers,

trailer hitches, etc. are placed within 18 inches

(45 cm) from the rear fascia/bumper. Failure to

do so can result in the system misinterpreting a

close obstacle as a sensor problem, causing the

“Front/Rear ParkSense Unavailable Service

Required” message to be appear in the instru

ment cluster display.



On vehicles equipped with a tailgate, ParkSense

should be disabled when the tailgate is in the

lowered or open position. A lowered tailgate

could provide a false indication that an obstacle

is behind the vehicle.

LANESENSE — IF EQUIPPED

ANE

ENSE

PERATION

The LaneSense system is operational at speeds

above 37 mph (60 km/h) and below 112 mph

(180 km/h). It uses a forward looking camera to

detect lane markings and measure vehicle

position within the lane boundaries.
When both lane markings are detected and the

driver unintentionally drifts out of the lane while no

turn signal has been applied OR the driver departs

the lane on the opposite side of the applied turn

signal (if the left turn signal is applied and the

vehicle departs to the right), the LaneSense

WARNING!



Drivers must be careful when backing up even

when using ParkSense. Always check carefully

behind your vehicle, look behind you, and be

sure to check for pedestrians, animals, other

vehicles, obstructions, and blind spots before

backing up. You are responsible for safety and

must continue to pay attention to your

surroundings. Failure to do so can result in

serious injury or death.



Before using ParkSense, it is strongly recom

mended that the ball mount and hitch ball

assembly be disconnected from the vehicle

when the vehicle is not used for towing.

Failure to do so can result in injury or damage

to vehicles or obstacles because the hitch ball

will be much closer to the obstacle than the

rear fascia when the vehicle sounds the

continuous tone. Also, the sensors could

detect the ball mount and hitch ball assembly,

depending on its size and shape, giving a false

indication that an obstacle is behind the

vehicle.

CAUTION!



ParkSense is only a parking aid and it is

unable to recognize every obstacle, including

small obstacles. Parking curbs might be

temporarily detected or not detected at all.

Obstacles located above or below the sensors

will not be detected when they are in close

proximity.



The vehicle must be driven slowly when using

ParkSense in order to be able to stop in time

when an obstacle is detected. It is recom

mended that the driver looks over his/her

shoulder when using ParkSense.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

195

system provides a haptic warning in the form of

torque applied to the steering wheel to prompt the

driver to remain within the lane boundaries. The

LaneSense system will also provide a visual

warning through the instrument cluster display to

prompt the driver to remain within the lane

boundaries.
The driver may manually override the haptic

warning by applying torque to the steering wheel at

any time.
When only a single lane marking is detected and

the driver unintentionally drifts across that lane

marking (no turn signal applied), the LaneSense

system provides a visual warning through the

instrument cluster display to prompt the driver to

remain within the lane. When only a single lane

marking is detected, a haptic (torque) warning will

not be provided.
NOTE:

When operating conditions have been met, the

LaneSense system will monitor if the driver’s

hands are on the steering wheel and provides an

audible and visual warning to the driver when the

driver’s hands are not detected on the steering

wheel. The system will cancel if the driver does not

return their hands to the wheel.

URNING

ANE

ENSE

The LaneSense button is located on the

switch panel below the Uconnect display.

NOTE:

If your vehicle is equipped with a 12–inch

Uconnect Display screen, the LaneSense button is

located above the display.
To turn the LaneSense system on, push the

LaneSense button (LED turns off). A “LaneSense

On” message is shown in the instrument cluster

display.
To turn the LaneSense system off, push the

LaneSense button again (LED turns on).
NOTE:

The LaneSense system will retain the last system

state (on or off) from the last ignition cycle when

the ignition is placed in the ON/RUN position.

ANE

ENSE

ARNING

ESSAGE

The LaneSense system will indicate the current

lane drift condition through the instrument cluster

display.
When the LaneSense system is on, the lane lines

are gray when both of the lane boundaries have
not been detected and the LaneSense telltale

is solid white.

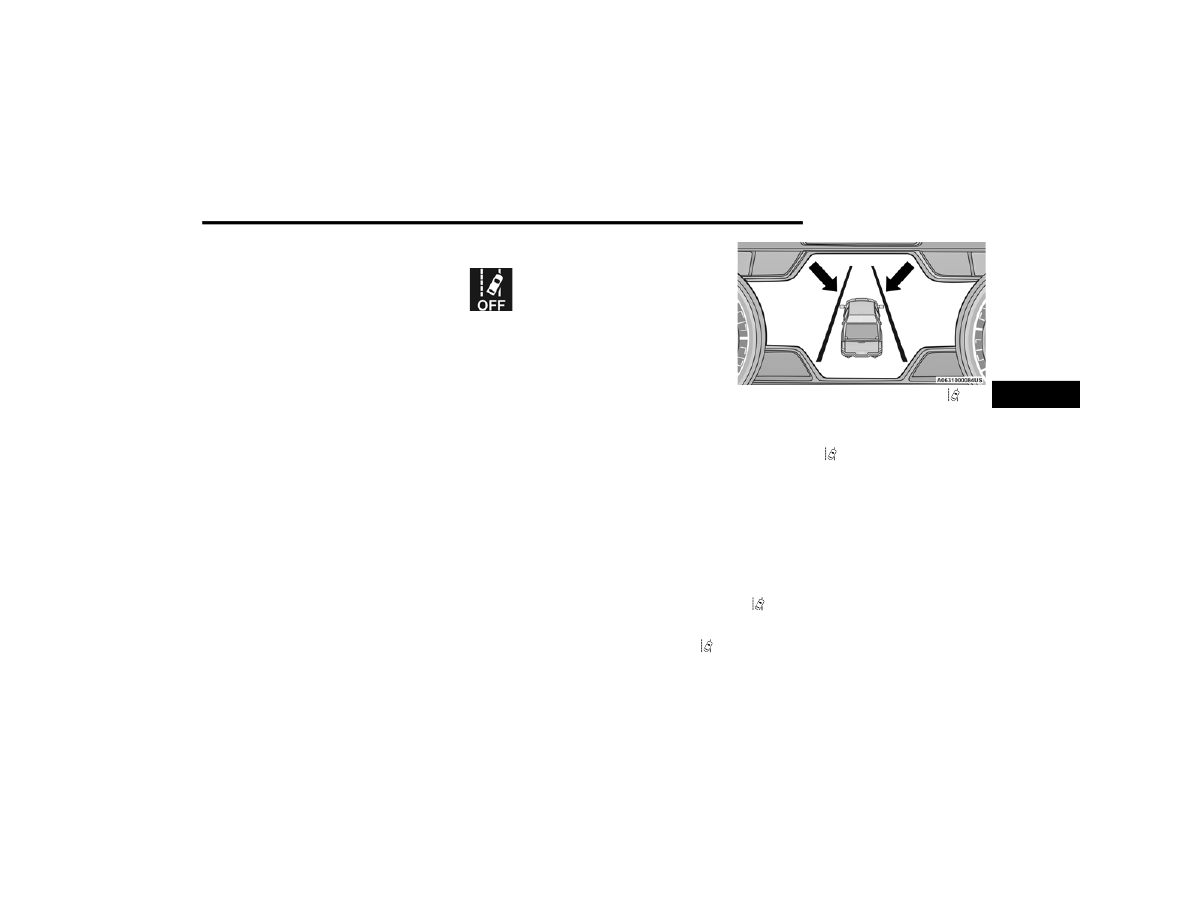

System ON (Gray Lines) With White Telltale

Left Lane Departure — Only Left Lane Detected



When the LaneSense system is on, the Lane

Sense Telltale is solid white when only the

left lane marking has been detected and the

system is ready to provide visual warnings in the

instrument cluster display if an unintentional

lane departure occurs on the left side.



When the LaneSense system senses the lane

has been approached and is in a lane departure

situation, the visual warning in the instrument

cluster display will show the left lane line

flashing yellow (on/off). The LaneSense telltale

changes from solid white to flashing yellow.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

196

STARTING AND OPERATING

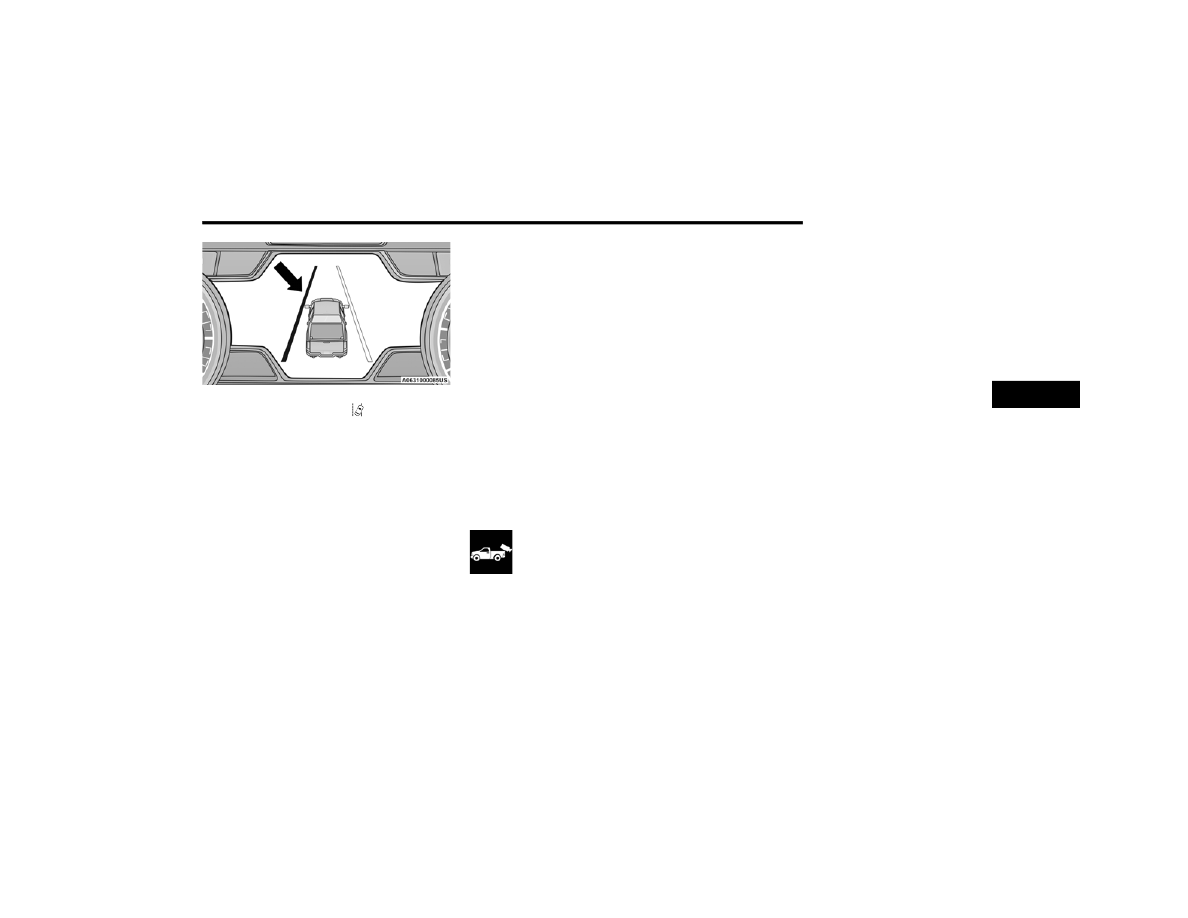

Lane Crossed (Flashing Yellow Lane Line) With Yellow

Telltale

NOTE:

The LaneSense system operates with similar

behavior for a right lane departure when only the

right lane marking has been detected.
Left Lane Departure — Both Lane Lines Detected



When the LaneSense system is on and both the

lane markings have been detected, the system

is "armed" to provide visual warnings in the

instrument cluster display and a torque warning

in the steering wheel if an unintentional lane

departure occurs. The lane lines turn from gray
to white and the LaneSense telltale is solid

green.

Lanes Sensed (White Lines) With Green Telltale



When the LaneSense system senses a lane drift

situation, the left lane line turns solid yellow.
The LaneSense telltale changes from solid

green to solid yellow. At this time torque is

applied to the steering wheel in the opposite

direction of the lane boundary.
For example: If approaching the left side of the

lane the steering wheel will turn to the right.

Lane Approached (Solid Yellow Lane Line) With Solid

Yellow Telltale



When the LaneSense system senses the lane

has been approached and is in a lane departure

situation, the left lane line flashes yellow (on/
off). The LaneSense telltale changes from

solid yellow to flashing yellow. At this time

torque is applied to the steering wheel in the

opposite direction of the lane boundary.
For example: If approaching the left side of the

lane the steering wheel will turn to the right.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

197

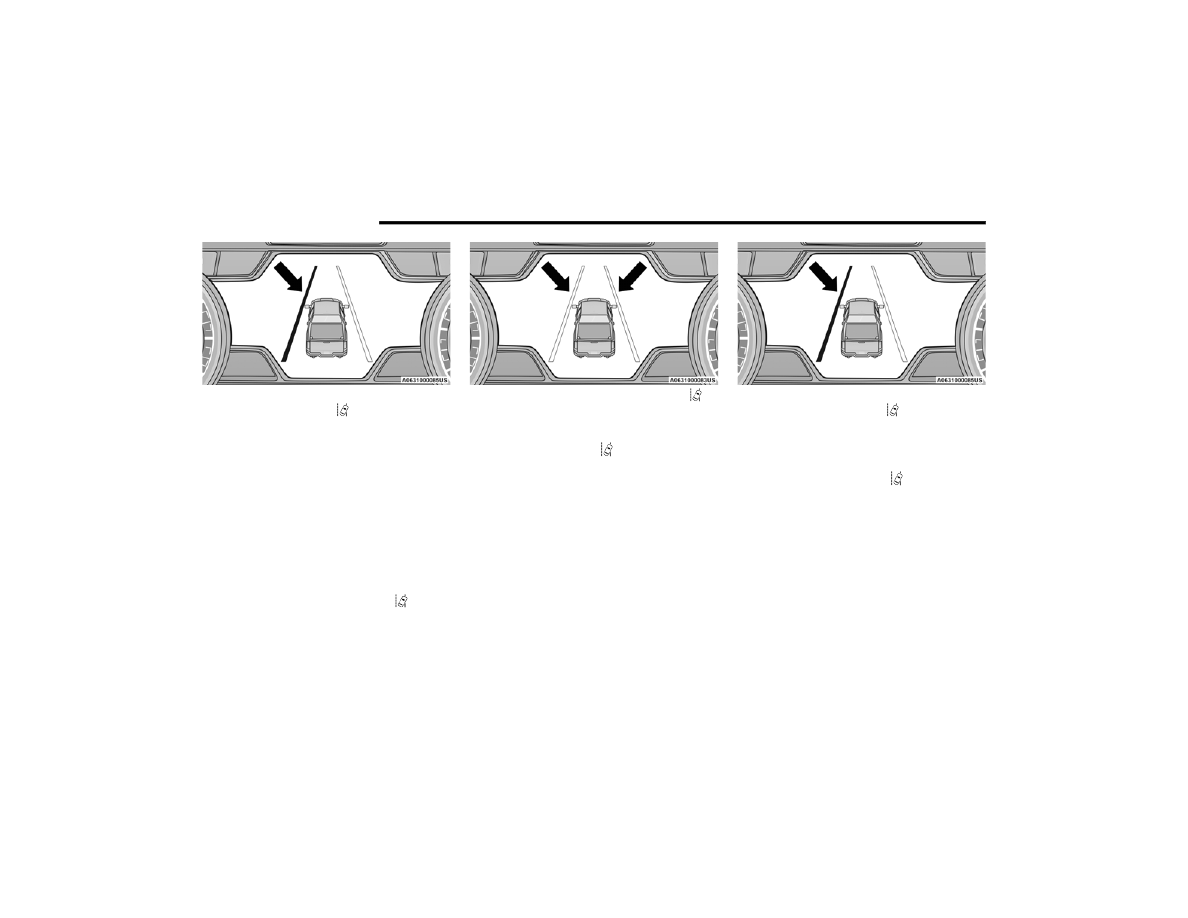

Lane Crossed (Flashing Yellow Lane Line) With Flashing

Yellow Telltale

NOTE:

The LaneSense system operates with similar

behavior for a right lane departure.

HANGING

ANE

ENSE

TATUS

The LaneSense system has settings to adjust the

intensity of the torque warning and the warning

zone sensitivity (Early/Medium/Late) that you can

configure through the Uconnect system

page 232.

NOTE:



When enabled the system operates above

37 mph (60 km/h) and below 112 mph

(180 km/h).



Use of the turn signal suppresses the warnings.



The system will not apply torque to the steering

wheel whenever a safety system engages

(Anti-Lock Brakes, Traction Control System,

Electronic Stability Control, Forward Collision

Warning, etc.).

PARKVIEW REAR BACK UP CAMERA

The ParkView Rear Back Up Camera allows you to

see an on-screen image of the rear surroundings of

your vehicle whenever the gear selector is put into

REVERSE. The image will be displayed on the

Uconnect display along with a caution note to

“Check Entire Surroundings” across the top of the

screen. After five seconds this note will disappear.

The ParkView Camera is located in the center of

the tailgate handle.
NOTE:

Removing the tailgate will disable the rearview

camera function.

Manual Activation Of The Rear View

Camera

1. Press the Controls button located on the

bottom of the Uconnect display.

2. Press the Back Up Camera icon to turn the

Rear View Camera system on.

When the vehicle is shifted out of REVERSE with

Camera delay turned off, the rear Camera mode is

exited and the previous screen appears again.
When the vehicle is shifted out of REVERSE with

Camera delay turned on, the rear Camera image

will be displayed for up to 10 seconds after shifting

to another gear, unless the vehicle speed exceeds

8 mph (13 km/h), the transmission is shifted into

PARK, the ignition is placed in the OFF position, or

the touchscreen button X to disable display of the

Rear View Camera image is pressed.
Whenever the Rear View Camera image is

activated through the Back Up Camera button in

the Controls menu, and the vehicle speed is

greater than, or equal to, 8 mph (13 km/h), a

display timer for the image is initiated. The image

will continue to be displayed until the display timer

exceeds 10 seconds.
NOTE:



If the vehicle speed remains below 8 mph

(13 km/h), the Rear View Camera image will be

displayed continuously until deactivated via the

touchscreen button X, the transmission is

shifted into PARK, or the ignition is placed in the

OFF position.



The touchscreen button X to disable display of

the camera image is made available ONLY when

the vehicle is not in REVERSE.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

198

STARTING AND OPERATING

Cargo Camera Icons — If Equipped

If equipped with a Cargo Camera, a touchscreen

button is made available to indicate the current

active Camera image being displayed whenever

the Rear View Camera image is displayed.
If equipped with a Cargo Camera, a touchscreen

button to switch the display to Cargo Camera

image is made available whenever the Rear View

Camera image is displayed.
A touchscreen button X to disable display of the

camera image is made available when the vehicle

is not in REVERSE gear.
When enabled, active guidelines are overlaid on

the Back Up camera image to illustrate the width of

the vehicle and its projected back up path based

on the steering wheel position. The active

guidelines will show separate zones that will help

indicate the distance to the rear of the vehicle. The

corresponding settings can be adjusted within

Uconnect Settings

page 232.

A dashed centerline overlay indicates the center of

the vehicle to assist with parking or aligning to a

hitch/receiver. The following table shows the

approximate distances for each zone:

The ParkView Rear Back Up Camera is located in

the center of the tailgate handle.
NOTE:

If snow, ice, mud, or any foreign substance builds

up on the camera lens, clean the lens, rinse with

water, and dry with a soft cloth. Do not cover the

lens.
Zoom View

When the Rear View Camera image is

being displayed, and the vehicle speed is

below 8 mph (13 km/h) while in any gear

selector position, Zoom View is available.

By pressing the “magnifying glass” icon in the

upper left of the display screen, the image will

zoom in to four times the standard view. Pressing

the icon a second time will return the view to the

standard Back Up Camera display.

Back Up Camera Touchscreen Button

Cargo Camera Touchscreen Button

AUX Camera Touchscreen Button

Zones

Distance To The Rear

Of The Vehicle

Red

0 - 1 ft (0 - 30 cm)

Yellow

1 ft - 6.5 ft

(30 cm - 2m)

Green

6.5 ft or greater

(2 m or greater)

WARNING!

Drivers must be careful when backing up even

when using the ParkView Rear Back Up Camera.

Always check carefully behind your vehicle, and

be sure to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety of

your surroundings and must continue to pay

attention while backing up. Failure to do so can

result in serious injury or death.

CAUTION!



To avoid vehicle damage, ParkView should

only be used as a parking aid. The ParkView

camera is unable to view every obstacle or

object in your drive path.



To avoid vehicle damage, the vehicle must be

driven slowly when using ParkView to be able

to stop in time when an obstacle is seen. It is

recommended that the driver look frequently

over his/her shoulder when using ParkView.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

199

When Zoom View is selected while the vehicle is in

REVERSE, then shifted to DRIVE, the camera delay

view will display the standard Back Up Camera

view. If the vehicle is then returned to REVERSE

gear from DRIVE, the Zoom View selection will

automatically resume.
Shifting to NEUTRAL from any gear will maintain

the selected view (Zoom or Standard) as long as

the vehicle is below 8 mph (13 km/h).
If the vehicle is in PARK, Zoom View is available

until the gear selector is placed in DRIVE or

REVERSE.
NOTE:



If the vehicle is in DRIVE, NEUTRAL, or REVERSE,

and speed is greater than or equal to 8 mph

(13 km/h), Zoom View is unavailable and the

icon will appear gray.



While in Zoom View, the guidelines will not be

visible.

For information on Auxiliary Cameras (if equipped),

see

page 207.

SURROUND VIEW CAMERA SYSTEM —

IF EQUIPPED

The Surround View Camera system allows you to

see an on-screen image of the surroundings and

the Top View of your vehicle. This occurs whenever

the gear selector is in REVERSE or when enabled

through the Uconnect system. The Top View of the

vehicle will also show if any doors are open. The

image will be displayed on the Uconnect display

along with a caution note “Check Entire

Surroundings”. After five seconds, this note will

disappear. The Surround View Camera system is

comprised of four cameras located in the front

grille, rear tailgate and side mirrors.
NOTE:



Removing the tailgate will disable the rearview

camera function.



The Surround View Camera system has

programmable settings that may be selected

through the Uconnect system

page 232.

Press this button on the touchscreen to

enter the Surround View Camera menu in

the Uconnect system.

When the vehicle is shifted into REVERSE, the Rear

View and Top View is the default view of the

system.
If the camera delay is turned on, the camera image

will display for up to 10 seconds after shifting out

of REVERSE. The camera image will not display for

10 seconds if the vehicle speed exceeds 8 mph

(13 km/h), the vehicle is shifted into PARK, or the

ignition is placed in the OFF position. The X button

on the touchscreen disables the display of the

camera image.

If the camera delay is turned off, the camera image

will close and display the previous screen after

shifting out of REVERSE.
If active guidelines are enabled, the lines are

overlaid on the image in the Rear View to illustrate

the width of the vehicle. The view will also include

the side view mirrors and its projected back up

path based on the steering wheel position.
There are different colored zones to indicate the

distance to the rear of the vehicle. Refer to the

chart below:

Modes Of Operation
Standard Rear View can be manually activated by

selecting “Back Up Camera” through the Controls

menu within the Uconnect system.
Top View
The Top View will show in the Uconnect system with

Rear View and Front View in a split screen display.

There are integrated ParkSense arcs in the image

Zone

Distance To The Rear

Of The Vehicle

Red

0 - 1 ft (0 - 30 cm)

Yellow

1 ft - 6.5 ft

(30 cm - 2 m)

Green

6.5 ft or greater

(2 m or greater)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

200

STARTING AND OPERATING

at the front and rear of the vehicle. The arcs will

change color from yellow to red corresponding the

distance zones to the oncoming object.
The fifth button of the ParkSense Camera View

screen will change based on vehicle options. If not

equipped with a Cargo Camera or Trailer Reverse

Guidance, the Backup Camera soft button will be

displayed. If equipped with a Cargo Camera but no

Trailer Reverse Guidance, the Cargo Camera soft

button will be displayed. If equipped with both a

Cargo Camera and Trailer Reverse Guidance, the

Cargo/Trailer Reverse Guidance soft button will be

displayed.

ParkSense Camera View

NOTE:



Front tires will display on the image when the

tires are turned.



Due to wide angle cameras in mirrors, the image

will appear distorted.



Top View will show which doors are open.



Open front doors will cancel the outside image.

Top View Plus Rear View

This is the default view of the system in

REVERSE and is always paired with the

Top View of the vehicle with optional

active guidelines for the projected path

when enabled.
Rear Cross Path View

The Rear Cross Path will give the driver a

wider angle view of the Backup Camera

system. The Top View will be disabled

when this is selected.

Top View Plus Front View

The Front View will show what is

immediately in front of the vehicle and is

always paired with the Top View of the

vehicle.

Front Cross Path View

The Front Cross Path will give the driver a

wider angle view of the front camera

system. The Top View will be disabled

when this is selected.

Back Up Camera View

The Back Up Camera will provide a full

screen rear view with Zoom View.

NOTE:

If the Back Up Camera view was selected through

the Surround View Camera menu, exiting out of the

Rear View screen will return to the Surround View

menu. If the Back Up Camera was manually acti

vated through the Controls menu of the Uconnect

system, exiting out of the display screen will return

to the Controls menu.
Cargo Camera

The Cargo Camera will provide a full

screen view of the cargo area.

NOTE:

If the Cargo Camera view was selected through the

Surround View screen, exiting out of the Cargo

Camera screen will return to the Surround View

screen. If the Cargo Camera was manually acti

vated through the Controls menu of the Uconnect

display, exiting out of the display screen will return

to the Controls menu.
Trailer Reverse Guidance

The Trailer Reverse Guidance will provide

a full screen view of the cargo area and

trailer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

201

Pressing the Left & Right Tow Mirror Split

Screen View button within the Trailer

Reverse Guidance screen will display a

split screen to allow the driver to see both

sides of the trailer at the same time. This view

allows the driver to pan left/right to better frame

the trailer in the image.
NOTE:

Trailer Reverse Guidance can only be selected

through the Surround View screen; exiting out of

the Trailer Reverse Guidance screen will return to

the Surround View screen.
Zoom View
When the Rear View Camera image is being

displayed, and the vehicle speed is below 8 mph

(13 km/h) while in any gear, Zoom View is

available. By pressing the “magnifying glass” icon

in the upper left of the display screen, the image

will zoom in to four times the standard view.

Pressing the icon a second time will return the view

to the standard Back Up Camera display.
When Zoom View is selected while the vehicle is in

REVERSE, then shifted to DRIVE, the camera delay

view will display the standard Back Up Camera

view. If the vehicle is then returned to REVERSE

gear from DRIVE, the Zoom View selection will

automatically resume.
Shifting to NEUTRAL from any gear will maintain

the selected view (Zoom or Standard) as long as

the vehicle is below 8 mph (13 km/h).

If the vehicle is in PARK, Zoom View is available

until the gear selector is placed in DRIVE or

REVERSE and speeds are at or above 8 mph

(13 km/h).
NOTE:



If the vehicle is in DRIVE, NEUTRAL, or REVERSE,

and speed is greater than or equal to 8 mph

(13 km/h), Zoom View is unavailable and the

icon will appear gray.



While in Zoom View, the guidelines will not be

visible.

Deactivation
The system is deactivated in the following

conditions if it was activated automatically:



When the vehicle is shifted out of REVERSE with

camera delay turned on, the camera image will

continue to be displayed for up to 10 seconds,

unless the vehicle speed exceeds 8 mph

(13 km/h), the vehicle is shifted into PARK or

the ignition is placed in the OFF position. There

is a touchscreen button X to disable the display

of the camera image.



When the vehicle is shifted out of REVERSE with

camera delay turned off, the Surround View

Camera mode is exited and the last known

screen appears again.

The system is deactivated in the following

conditions if it was activated manually from the

Uconnect controls menu via the Surround View

button, Back Up Camera button, Cargo Camera

button or Forward Facing Camera button:



The X button on the display is pressed



Vehicle is shifted into PARK



Ignition is placed in the OFF position



Vehicle speed is over 8 mph (13 km/h) for

10 seconds

NOTE:

If the Surround View Camera, Cargo Camera,

Backup Camera, or Forward Facing Camera is acti

vated manually, and the vehicle is shifted into

REVERSE, deactivation methods for automatic

activation are assumed.
The camera delay system is turned off manually

through the Uconnect Settings menu

page 232.

NOTE:



If snow, ice, mud, or any foreign substance

builds up on the camera lenses, clean the

lenses, rinse with water, and dry with a soft

cloth. Do not cover the lenses.



If a malfunction with the system has occurred,

see an authorized dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

202

STARTING AND OPERATING

Cargo Camera With Dynamic Centerline —

If Equipped
The Dynamic Centerline feature provides an

overlay on the Cargo Camera display screen that

aligns to the center of the pickup box to aid in

hooking up a fifth-wheel camper or gooseneck

trailer. The centerline auto aligns to the center of

the pickup box, and can also be manually adjusted.

The centerline will adjust in response to steering

angle inputs, and will not obstruct the gooseneck

receiver or an approaching trailer gooseneck in the

camera feed.
Activation
The Dynamic Centerline feature can be activated

through the Uconnect settings by pressing the

Cargo Camera soft button, followed by the

Dynamic Centerline soft button on the

touchscreen.
If the Dynamic Centerline feature is turned on, the

overlay will display anytime the Cargo Camera

image is displayed.
Adjusting Centerline
Follow the steps below to manually adjust the

centerline:

1. Press the Adjust Centerline soft button

located in the bottom right corner of the

Cargo Camera display.

2. Use the arrows on the bottom left corner of the

Cargo Camera display to adjust the centerline

horizontally or vertically.

3. Once the desired position is achieved, press

the Accept button to set the centerline to the

newly specified position.

Deactivation
The Dynamic Centerline feature will automatically

be deactivated whenever the Cargo Camera

display is deactivated. It can also be manually

deactivated through the Uconnect Settings.
Cargo Camera Zoom View

When the Cargo Camera image is being

displayed, and the vehicle speed is below

8 mph (13 km/h) while in any gear

selector position, Zoom View is available.

By pressing the “magnifying glass” icon in the

upper left of the display screen, the image will

zoom in to four times the standard view. Pressing

the icon a second time will return the view to the

standard Cargo Camera display.

When Zoom View is selected while the vehicle is in

REVERSE, then shifted to DRIVE, the camera delay

view will display the standard Cargo Camera view.

If the vehicle is then returned to REVERSE gear

from DRIVE, the Zoom View selection will

automatically resume.
Shifting to NEUTRAL from any gear will maintain

the selected view (Zoom or Standard) as long as

the vehicle is below 8 mph (13 km/h).
Zoom View is available until the gear selector is

placed in DRIVE or REVERSE and speeds are at or

above 8 mph (13 km/h).
NOTE:



If the vehicle is in DRIVE, NEUTRAL, or REVERSE,

and speed is greater than or equal to 8 mph

(13 km/h), Zoom View is unavailable and the

icon will appear gray.



While in Zoom View, the dynamic centerline will

not be visible.

Forward Facing Camera With Tire Lines —

If Equipped
The Forward Facing Camera displays a front view

image of the road ahead, along with tire lines to

guide the driver when driving on narrow roads. Tire

lines can be activated/deactivated through the

Uconnect Settings.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

203

(Continued)

Activation
The Forward Facing Camera can be activated in

the following ways:



Pressing the Forward Facing Camera button in

the Controls screen or Apps menu



Pressing the Forward Facing Camera button

located in the upper left corner of the Back Up

camera display

Once activated, the camera image will remain on

as long as the vehicle speed is below 8 mph

(13 km/h).
Deactivation
The Forward Facing Camera is deactivated in the

following conditions:



The vehicle exceeds 8 mph (13 km/h), except

when vehicle is in 4WD Low



The X button on the display is pressed.



The vehicle is shifted into PARK.



The ignition is placed in the OFF position.

NOTE:

If the vehicle is in 4WD Low, the Forward Facing

Camera image will be displayed until the X button

is pressed or the ignition is placed in the OFF

position.

Trailer Reverse Guidance — If Equipped
The Trailer Reverse Guidance feature assists the

driver in backing up a trailer by providing

adjustable camera views of the trailer and

surrounding area. The cameras are mounted on

the side mirrors and the images will be displayed

side-by-side on the touchscreen. Left and right

camera images are swapped and mirrored on the

touchscreen to show the equivalent area behind

the vehicle as though the driver is using the side

mirrors.
Activation
The Trailer Reverse Guidance feature can be

activated by pressing the Trailer Reverse Guidance

button on the Backup/Cargo Camera Display.
Deactivation
When the vehicle is shifted out of REVERSE with

camera delay turned on, the camera image will

continue to be displayed for up to 10 seconds

unless the vehicle speed exceeds 8 mph (13 km/h),

the vehicle is shifted into PARK, or the ignition is

placed in the OFF position. There is a touchscreen

button X to disable the display of the camera image.
If Trailer Reverse Guidance is selected through

manually activated Surround View, Back Up

Camera, or Cargo Camera, the below deactivation

conditions apply:



The X button on the display is pressed



The vehicle is shifted into PARK



The ignition is placed in the OFF position



The vehicle speed is over 8 mph (13 km/h) for

10 seconds

WARNING!

Drivers must be careful when backing up even

when using the Surround View Camera. Always

check carefully behind your vehicle, and be sure

to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety of

your surroundings and must continue to pay

attention while backing up. Failure to do so can

result in serious injury or death.

CAUTION!



To avoid vehicle damage, Surround View

should only be used as a parking aid. The

Surround View Camera is unable to view every

obstacle or object in your drive path.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

RAM 2500 (2022 year). Manual in english - page 12
