Replacing Light Bulbs

u

Front Turn Signal Lights

Main

tenan

ce

Front Turn Signal Lights

Front turn signal lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.

Parking/Daytime Running Lights

Parking/daytime running lights are LED type. Have an authorized Acura dealer
inspect and replace the light assembly.

18 ACURA ILX-31TX66500.book  453 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

454

uu

Replacing Light Bulbs

u

Front Side Marker Light Bulbs

Main

tenan

ce

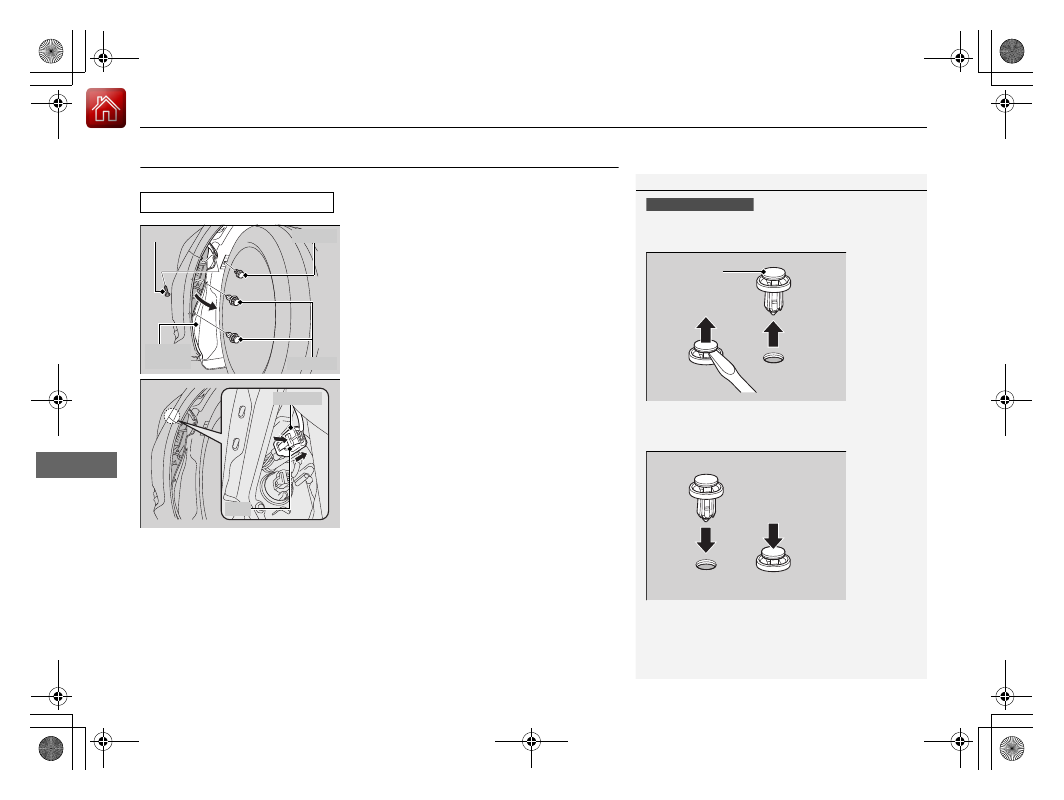

Front Side Marker Light Bulbs

When replacing, use the following bulbs.

1. Turn the steering wheel all the way to the

opposite side from the light being replaced.
Passenger side: Turn the steering wheel
counter-clockwise.
Driver side: Turn the steering wheel
clockwise.

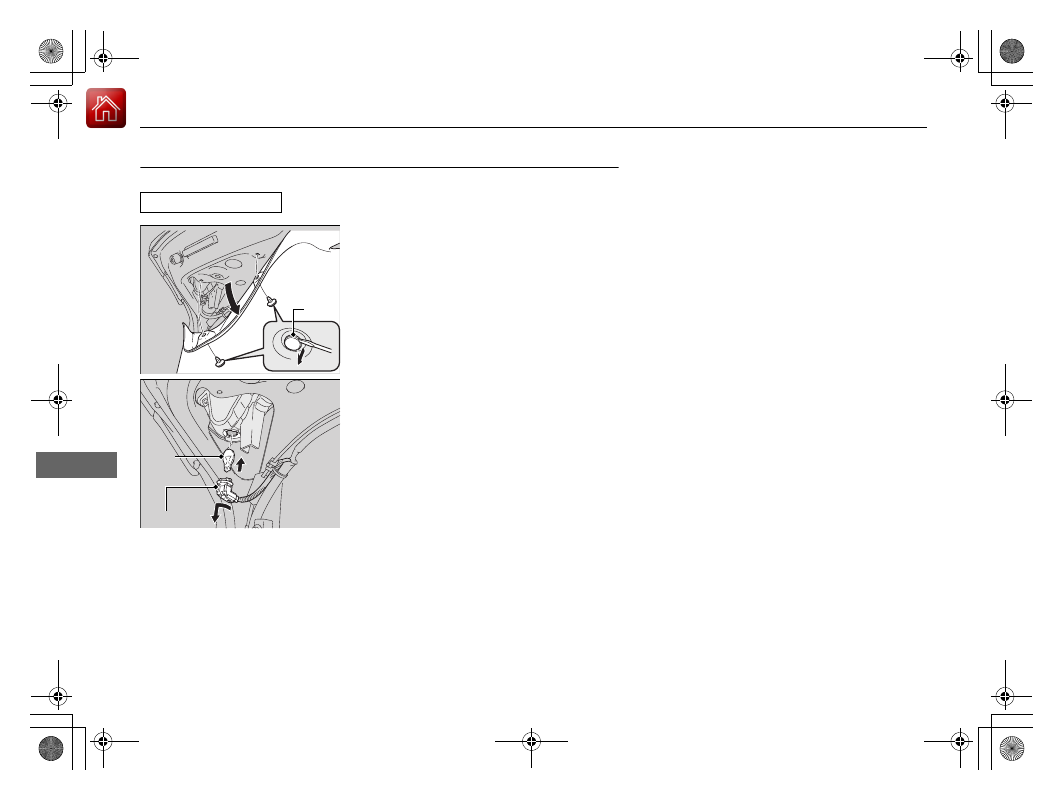

2. Remove the holding clips (A), (B) and screw,

pull the inner fender back.

3. Push the tab to remove the coupler.

Front Side Marker Light: 3 CP

1

Front Side Marker Light Bulbs

Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.

Insert the clip with the center pin raised, and push
until it is flat.

Holding clip (A-type)

Center Pin

Push until the
pin is flat

Screw

Inner
Fender

Clip (B)

Clips (A)

Coupler

Tab

18 ACURA ILX-31TX66500.book  454 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

455

uu

Replacing Light Bulbs

u

Front Side Marker Light Bulbs

Main

tenan

ce

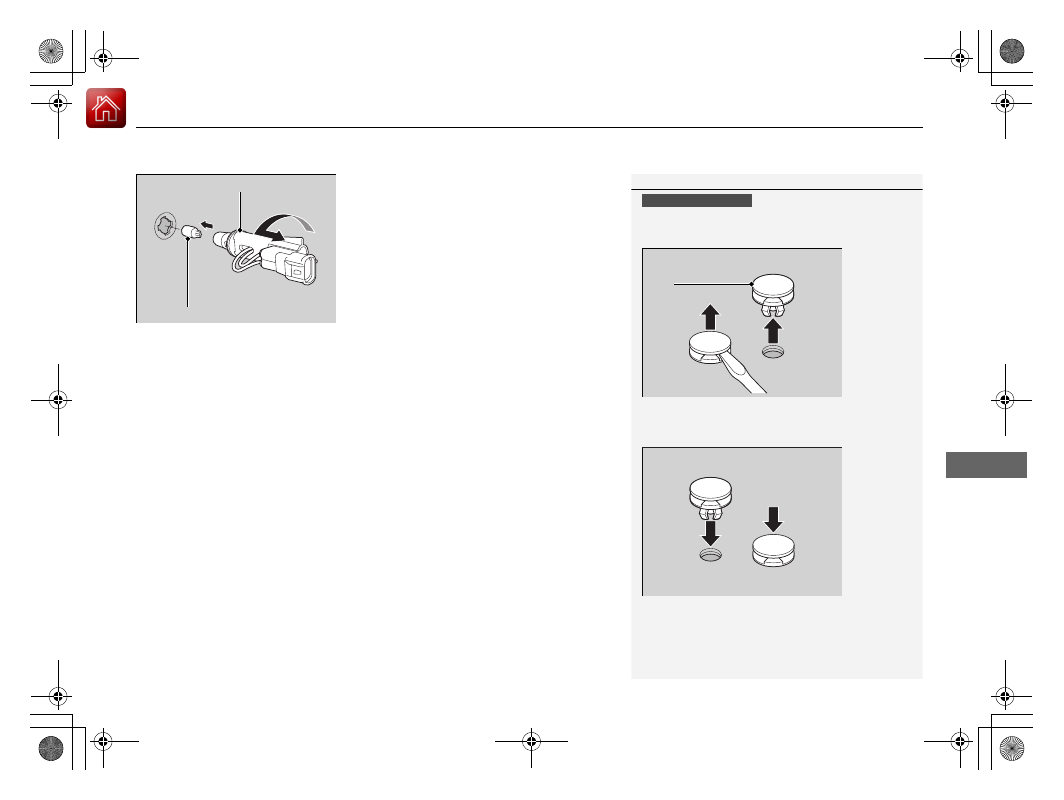

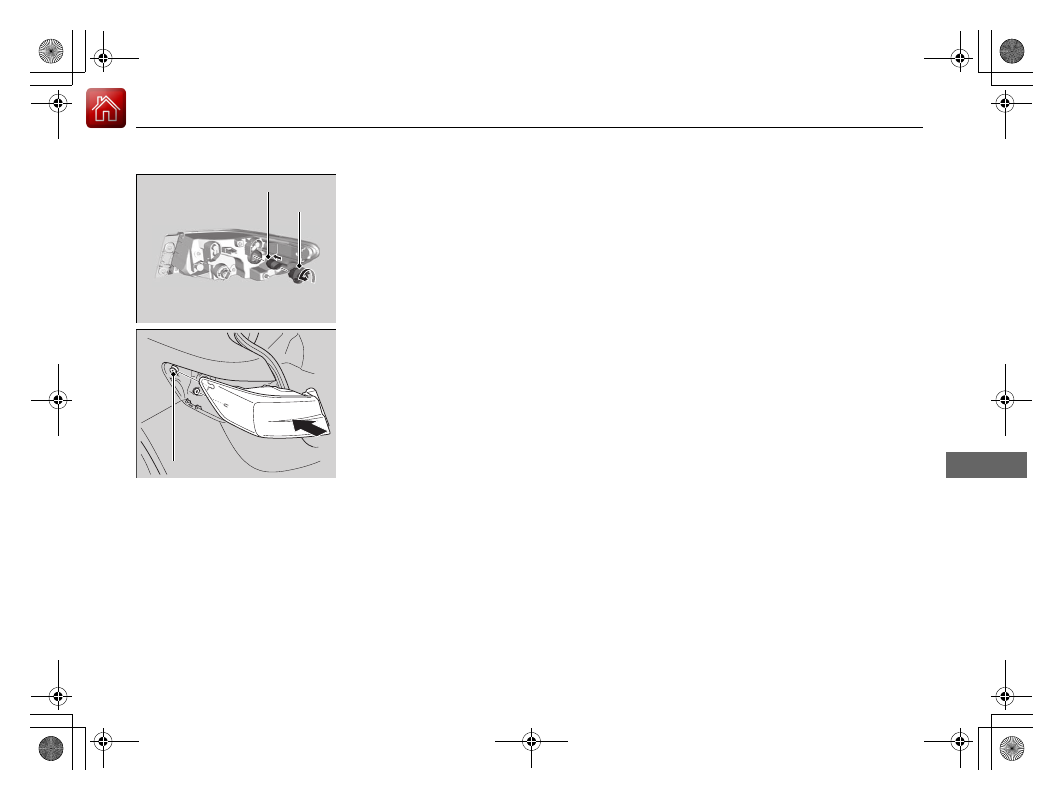

4. Turn the socket counter-clockwise and

remove it.

5. Remove the old bulb and insert a new bulb.
6. Insert the coupler into the connector of the

bulb.

1

Front Side Marker Light Bulbs

When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.

Insert the clip with the pin raised, and push until it is
flat.

Holding clip (B-type)

Clip

Push until the
pin is flat.

Bulb

Socket

18 ACURA ILX-31TX66500.book  455 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

456

uu

Replacing Light Bulbs

u

Brake Lights/Taillights/Rear Side Marker Lights

Main

tenan

ce

Brake Lights/Taillights/Rear Side Marker Lights

Brake lights/taillights/rear side marker lights are LED type. Have an authorized Acura
dealer inspect and replace the light assembly.

Rear Turn Signal Light Bulbs

When replacing, use the following bulbs.

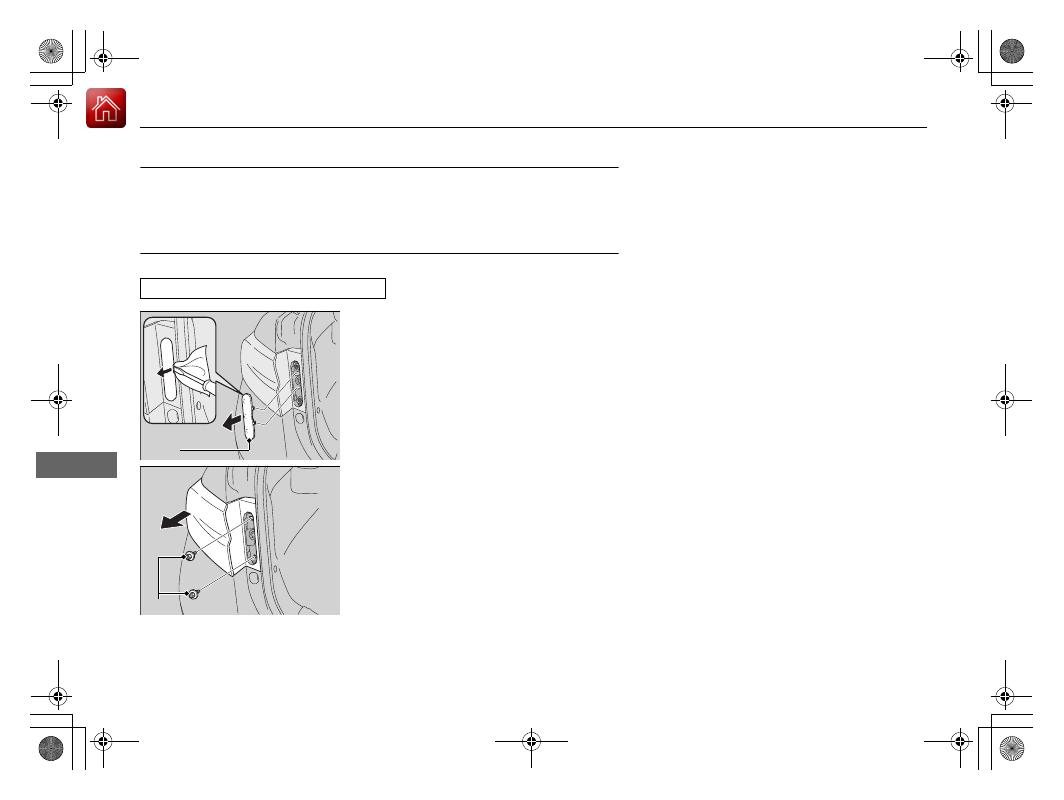

1. Pry on the edge of the cover using a flat-tip

screwdriver to remove the cover.

u

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

2. Remove the mounting bolts.
3. Pull the light assembly out of the rear pillar.

Rear Turn Signal Light: 21 W (Amber)

Cover

Bolts

18 ACURA ILX-31TX66500.book  456 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

457

uu

Replacing Light Bulbs

u

Rear Turn Signal Light Bulbs

Main

tenan

ce

4. Turn the socket counter-clockwise and

remove it.
Remove the old bulb.

5. Insert a new bulb.

6. Reinstall the light assembly by sliding it on

to the guide on the body.

Socket

Bulb

Guide

18 ACURA ILX-31TX66500.book  457 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

458

uu

Replacing Light Bulbs

u

Back-Up Light Bulbs

Main

tenan

ce

Back-Up Light Bulbs

When replacing, use the following bulbs.

1. Remove the holding clips using a flat-tip

screwdriver, then pull the lining back.

2. Turn the socket counter-clockwise and

remove it.

3. Remove the old bulb and insert a new bulb.

Back-Up Light: 16 W

Clips

Socket

Bulb

18 ACURA ILX-31TX66500.book  458 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

459

uu

Replacing Light Bulbs

u

Rear License Plate Light Bulbs

Main

tenan

ce

Rear License Plate Light Bulbs

When replacing, use the following bulbs.

1. Remove the screw from the center of the

fastener using a Phillips-head screwdriver.

2. Remove the holding clips using a flat-tip

screwdriver, then pull the lining back.

3. Remove the license plate light assembly by

squeezing the tabs on both sides of the
socket.

4. Remove the old bulb and insert a new bulb.

High-Mount Brake Light

High-mount brake light is LED type. Have an authorized Acura dealer inspect and
replace the light assembly.

Rear License Plate Light: 5 W

Fastener

Lining

Clip

Socket

Bulb

18 ACURA ILX-31TX66500.book  459 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

460

Main

tenan

ce

Checking and Maintaining Wiper Blades

Checking Wiper Blades

If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.

Changing the Wiper Blade Rubber

1. Lift the driver side wiper arm first, then the

passenger side.

2. Pry on the edge of the lock tab using a flat-

tip screwdriver to push it up.
Wrap the flat-tip screwdriver with a cloth to
prevent scratches.

3. Slide the holder off the wiper arm.

1

Changing the Wiper Blade Rubber

NOTICE

Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.

Lock Tab

18 ACURA ILX-31TX66500.book  460 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

461

uu

Checking and Maintaining Wiper Blades

u

Changing the Wiper Blade Rubber

Main

tenan

ce

4. Slide the wiper blade out of holder by

pulling the tabbed end out.

5. Remove the retainers from the wiper blade

that has been removed, and mount to a
new wiper blade.

u

Correctly align the wiper blade
protrusion and the retainer grooves.

6. Slide the new wiper blade onto the holder

from the bottom end.

7. Slide the holder onto the wiper arm, then

push down the lock tab.

8. Lower the passenger side wiper arm first,

then the driver side.

Blade

Retainer

Blade

18 ACURA ILX-31TX66500.book  461 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

462

Main

tenan

ce

Checking and Maintaining Tires

Checking Tires

To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.

■

Inflation guidelines

Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or specifications page for the specified pressure.

Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.

Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.

Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.

At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1–2 psi (10–20
kPa, 0.1–0.2 kgf/cm

2

) per month.

■

Inspection guidelines

Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,

splits, or cracks in the side of the tire. Replace it if you see fabric or cord.

• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a dealer check the wheel alignment.
• Excessive tread wear.

2 Wear Indicators P. 467

• Cracks or other damage around valve stem.

1

Checking Tires

Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or release air until the specified
pressure is reached.

If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm

2

) higher than if

checked when cold.

Have a dealer check the tires if you feel a consistent
vibration while driving. New tires and any that have
been removed and reinstalled should be properly
balanced.

Check the spare tire pressure once a month or before
long trips.

3

WARNING

Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.

Vehicles with optional spare tire

18 ACURA ILX-31TX66500.book  462 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

463

uu

Checking and Maintaining Tires

u

Tire and Loading Information Label

Continued

Main

tenan

ce

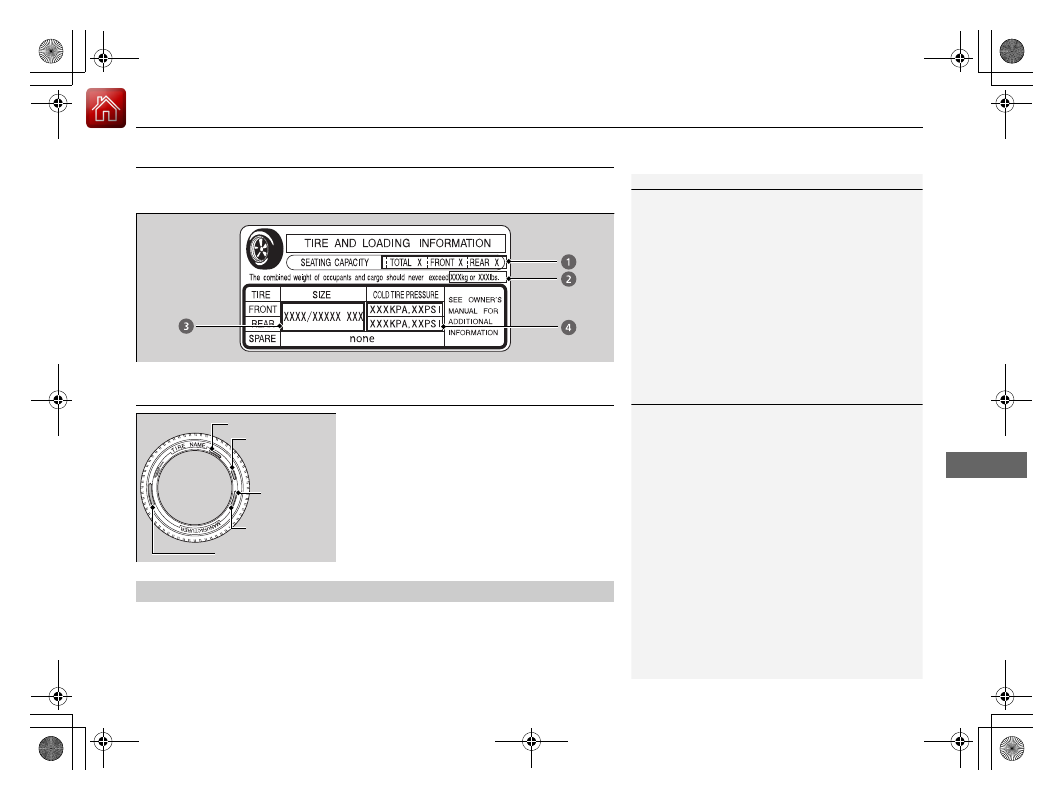

Tire and Loading Information Label

The label attached to the driver’s doorjamb provides necessary tire and loading
information.

Tire Labeling

The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described below.

Whenever tires are replaced, they should be replaced with tires of the same size.

1

Tire and Loading Information Label

The tire and loading information label attached to the
driver’s doorjamb contains:

a

The number of people your vehicle can carry.

b

The total weight your vehicle can carry. Do not
exceed this weight.

c

The original tire sizes for front, rear, and spare.

d

The proper cold tire pressure for front, rear, and
spare.

Label
Example

Example

Tire Size

Tire
Identification
Number (TIN)

Maximum
Tire Load

Maximum
Tire Pressure

Tire Size

■

Tire Sizes

1

Tire Sizes

Following is an example of tire size with an
explanation of what each component means.
P215/45R17 87V
P: Vehicle type (P indicates passenger vehicle).
215: Tire width in millimeters.
45: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
17: Rim diameter in inches.
87: Load index (a numerical code associated with the
maximum load the tire can carry).
V: Speed symbol (an alphabetical code indicating the
maximum speed rating).

18 ACURA ILX-31TX66500.book  463 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

uu

Checking and Maintaining Tires

u

Tire Labeling

464

Main

tenan

ce

The tire identification number (TIN) is a group of numbers and letters that look like
the example in the side column. TIN is located on the sidewall of the tire.

Cold Tire Pressure – The tire air pressure when the vehicle has been parked for at
least three hours or driven less than 1 mile (1.6 km).
Load Rating – Means the maximum load that a tire is rated to carry for a given
inflation pressure.
Maximum Inflation Pressure – The maximum tire air pressure that the tire can
hold.
Maximum Load Rating – Means the load rating for a tire at the maximum
permissible inflation pressure for that tire.
Recommended Inflation Pressure – The cold tire inflation pressure recommended
by the manufacturer.

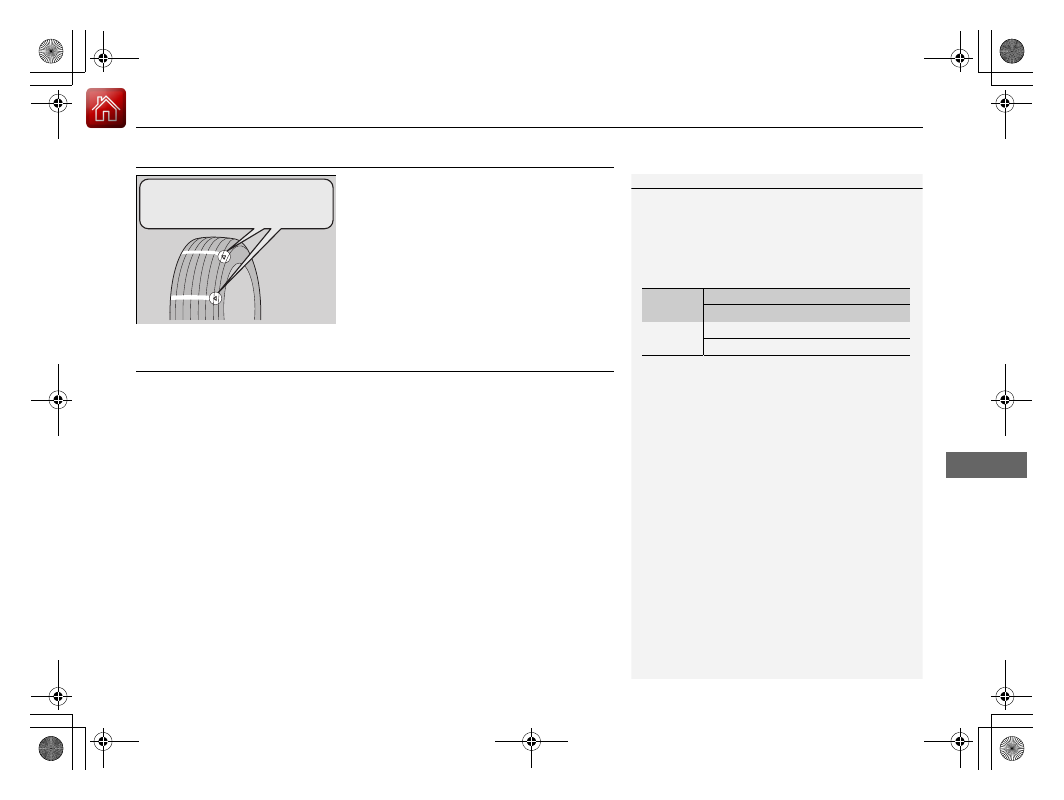

Treadwear Indicators (TWI) – Means the projections within the principal grooves
designed to give a visual indication of the degrees of wear of the tread.

■

Tire Identification Number (TIN)

■

Glossary of Tire Terminology

1

Tire Identification Number (TIN)

DOT B97R FW6X 2209
DOT: This indicates that the tire meets all
requirements of the U.S. Department of
Transportation.
B97R: Manufacturer's identification mark.
FW6X: Tire type code.
22 09: Date of manufacture.

Year
Week

18 ACURA ILX-31TX66500.book  464 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

465

uu

Checking and Maintaining Tires

u

DOT Tire Quality Grading (U.S. Vehicles)

Continued

Main

tenan

ce

DOT Tire Quality Grading (U.S. Vehicles)

The tires on your vehicle meet all U.S. Federal Safety
Requirements. All tires are also graded for treadwear, traction,
and temperature performance according to Department of
Transportation (DOT) standards. The following explains these
gradings.

Quality grades can be found where applicable on the tire sidewall
between tread shoulder and maximum section width.

The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm due to variations in
driving habits, service practices and differences in road
characteristics and climate.

■

Uniform Tire Quality Grading

■

Treadwear

1

Uniform Tire Quality Grading

For example:
Treadwear 200
Traction AA
Temperature A

All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.

18 ACURA ILX-31TX66500.book  465 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

uu

Checking and Maintaining Tires

u

DOT Tire Quality Grading (U.S. Vehicles)

466

Main

tenan

ce

The traction grades, from highest to lowest, are AA, A, B, and C.
Those grades represent the tire's ability to stop on wet pavement
as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire marked
C may have poor traction performance.

The temperature grades are A (the highest), B, and C,
representing the tire's resistance to the generation of heat and its
ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel. Sustained high
temperature can cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than the minimum
required by law.

■

Traction

■

Temperature

1

Traction

Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.

1

Temperature

Warning: The temperature grade for
this tire is established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.

18 ACURA ILX-31TX66500.book  466 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

467

uu

Checking and Maintaining Tires

u

Wear Indicators

Main

tenan

ce

Wear Indicators

The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is exposed, replace the tire.
Worn out tires have poor traction on wet
roads.

Tire Service Life

The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).

In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare, should be removed from service after 10
years from the date of manufacture, regardless of their condition or state of wear.

1

Checking Tires

High speed driving
We recommend that you do not drive faster than the
posted speed limits and conditions allow. If you drive
at sustained high speeds (over 99 mph or 160 km/h),
adjust the cold tire pressures as shown below to
avoid excessive heat build up and sudden tire failure.

*1: Vehicle with 18 inch tires
*2: Vehicle with 17 inch tires

Tire Size

225/40R18 92V

*1

P215/45R17 87V

*2

Pressure

Front

38 psi (260 kPa, 2.6 kgf/cm

2

)

Rear

36 psi (250 kPa, 2.5 kgf/cm

2

)

Example of a Wear
Indicator mark

18 ACURA ILX-31TX66500.book  467 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

468

uu

Checking and Maintaining Tires

u

Tire and Wheel Replacement

Main

tenan

ce

Tire and Wheel Replacement

Replace your tires with radials of the same size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause certain vehicle systems such as the ABS and
Vehicle Stability Assist (VSA®) system to work incorrectly.

It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.

If you replace a wheel, only use TPMS specified wheels approved for your vehicle.
Make sure that the wheel’s specifications match those of the original wheels.

1

Tire and Wheel Replacement

3

WARNING

Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.

Always use the size and type of tires
recommended in this owner’s manual.

18 ACURA ILX-31TX66500.book  468 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分
