Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Continued

Main

tenan

ce

*1:On the left: Models with full color display

On the right: Models without full color display

The system message indicator (

) comes on along with the Maintenance Minder message.

■

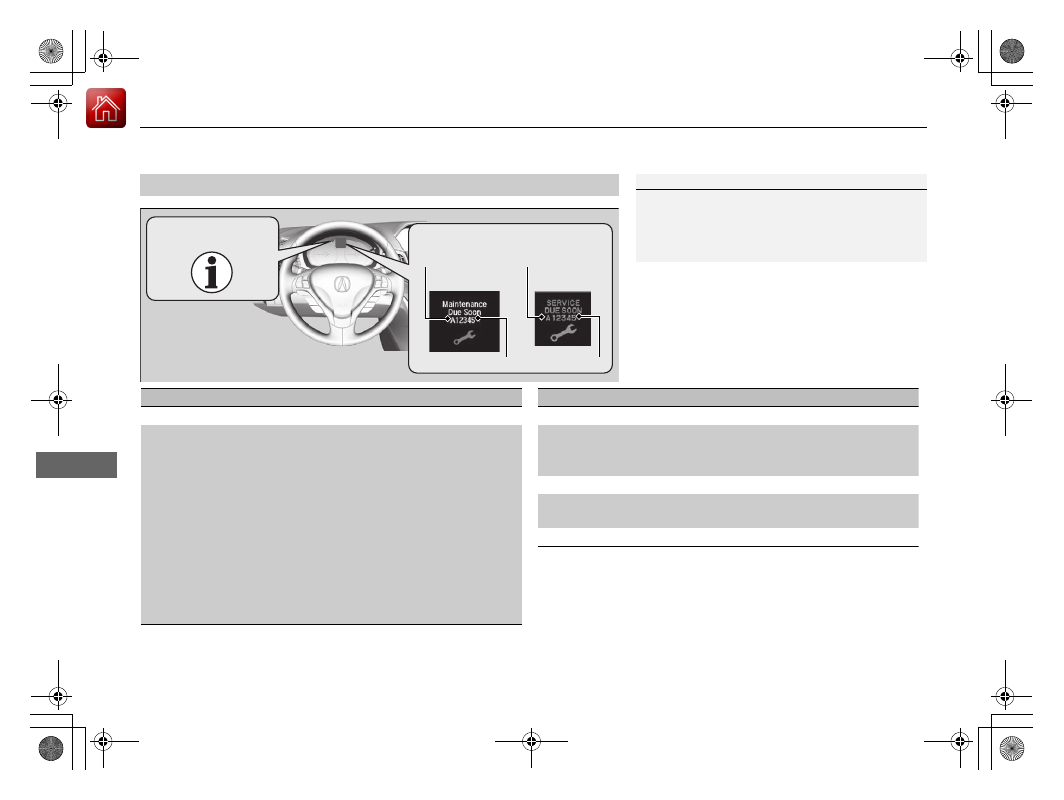

Maintenance Minder Messages on the Multi-Information
Display

Maintenance Message

*1

Oil Life Display

*1

Explanation

Information

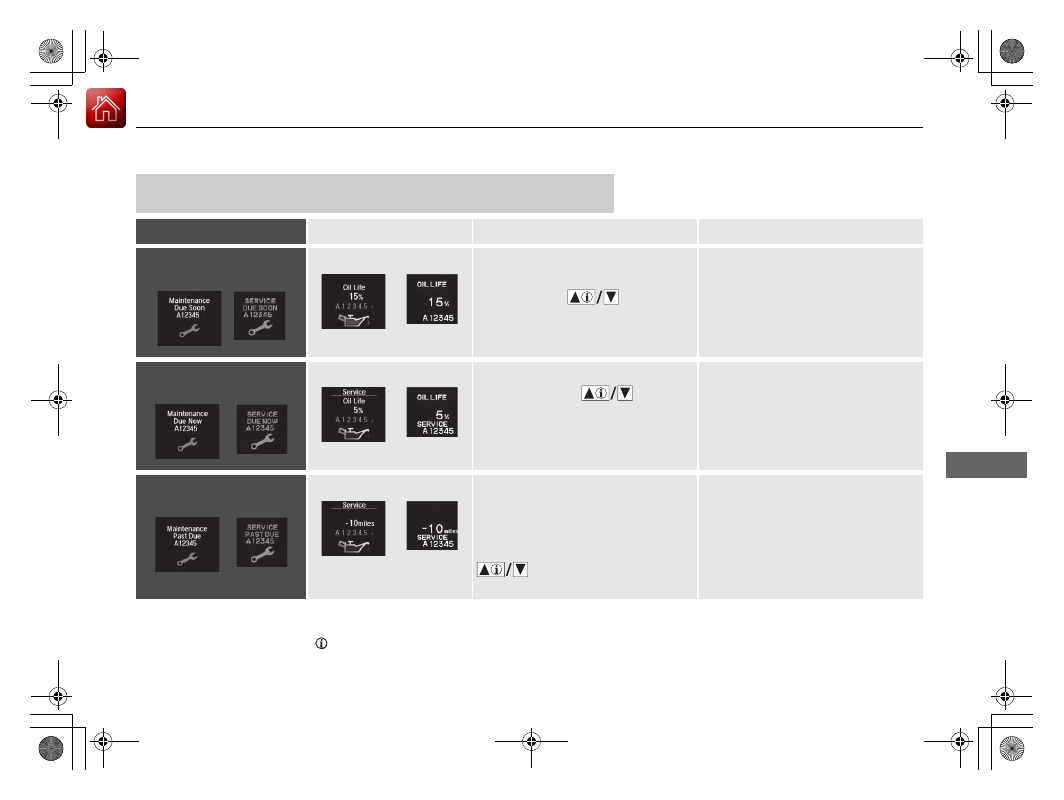

Maintenance Due Soon/

SERVICE DUE SOON

15 %

The remaining engine oil life is 15 to 6
percent. Once you switch the display
by pressing the



(information) button, this message
will go off.

The engine oil is approaching the end
of its service life, and the maintenance
items should be inspected and
serviced soon.

Maintenance Due Now/

SERVICE DUE NOW

5 %

The remaining engine oil life is 5 to 1
percent. Press the

 button to

switch to another display.

The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.

Maintenance Past Due/

SERVICE PAST DUE

Negative Distance

The remaining engine oil life has
passed its service life, and a negative
distance appears after driving over 10
miles (U.S. models) or 10 km
(Canadian models). Press the

 button to switch to another

display.

The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.

18 ACURA ILX-31TX66500.book  437 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

438

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Main

tenan

ce

■

Maintenance Service Items

1

Maintenance Service Items

•

Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.

•

Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.

Maintenance Minder Message

System Message
Indicator

Sub Items

Main Item

Main Item

Sub Items

*1: Models with full color display
*2: Models without full color display

*1

*2

*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the

engine oil every year.

# : See information on maintenance and emissions warranty.

CODE

Maintenance Main Items

A

●

Replace engine oil

*1

B

●

Replace engine oil

*1

 and oil filter

●

Inspect front and rear brakes

●

Check parking brake adjustment

●

Check expiry date for tire repair kit bottle (If
equipped)

●

Inspect tie rod ends, steering gearbox, and boots

●

Inspect suspension components

●

Inspect driveshaft boots

●

Inspect brake hoses and lines (Including ABS/VSA)

●

Inspect all fluid levels and condition of fluids

●

Inspect exhaust system

#

●

Inspect fuel lines and connections

#

*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and

from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).

*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature.

This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 40,000 miles (64,000 km), then every 30,000 miles (48,000 km).

CODE

Maintenance Sub Items

1

●

Rotate tires

2

●

Replace air cleaner element

*2

●

Replace dust and pollen filter

*3

●

Inspect drive belt

3

●

Replace transmission fluid

*4

4

●

Replace spark plugs

●

Inspect valve clearance

5

●

Replace engine coolant

18 ACURA ILX-31TX66500.book  438 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

439

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Main

tenan

ce

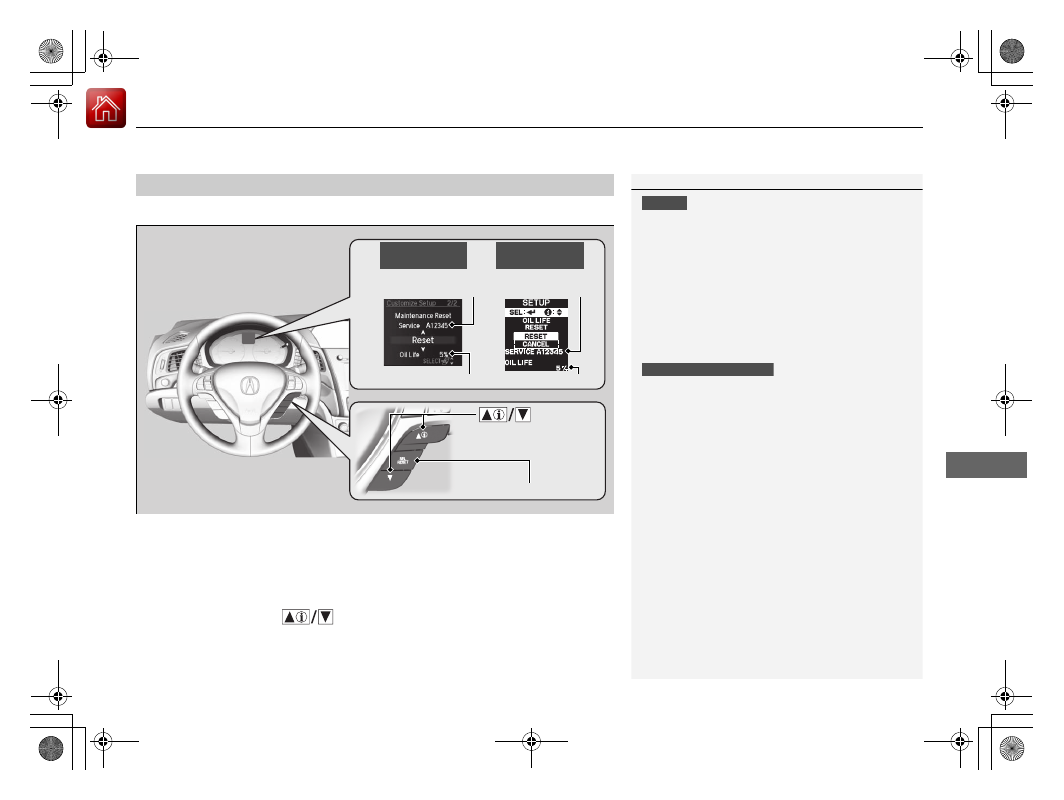

Reset the engine oil life display if you have performed the maintenance service.

1. Set the power mode to ON.
2. Go to the Maintenance Info group.

2 Customized Features P. 99

3. Press the SEL/RESET button.

u

The oil life reset mode is displayed on the multi-information display.

4. Select RESET with the

 button, then press the SEL/RESET button.

u

The displayed maintenance items disappear, and the engine oil life display
returns to 100%.

To cancel the oil life reset mode, select CANCEL, then press the SEL/RESET button.

■

Resetting the Display

1

Resetting the Display

NOTICE

Failure to reset the engine oil life after a maintenance
service results in the system showing incorrect
maintenance intervals, which can lead to serious
mechanical problems.

The dealer will reset the engine oil life display after
completing the required maintenance service. If
someone other than a dealer performs maintenance
service, reset the engine oil life display yourself.

You can reset the engine oil life display using the
audio/information screen.

2 Customized Features

*

 P. 263

Models with two displays

Engine Oil Life

Maintenance
Item Codes

SEL/RESET Button

 Button

Models with full
color display

Models without
full color display

Maintenance
Item Codes

Engine Oil Life

* Not available on all models

18 ACURA ILX-31TX66500.book  439 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

440

Main

tenan

ce

Maintenance Under the Hood

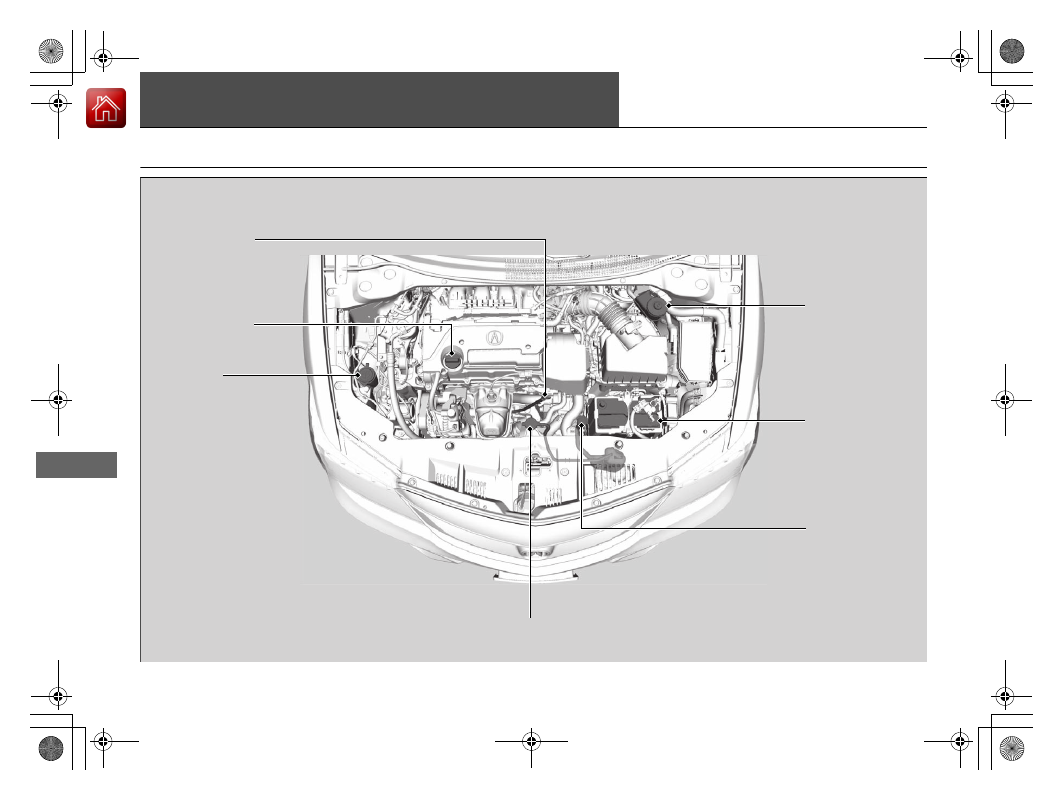

Maintenance Items Under the Hood

Brake Fluid
(Black Cap)

Washer Fluid
(Blue Cap)

Engine Oil Dipstick
(Orange)

Engine Oil Fill Cap

Battery

Engine Coolant
Reserve Tank Cap

Radiator Cap

18 ACURA ILX-31TX66500.book  440 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

441

uu

Maintenance Under the Hood

u

Opening the Hood

Main

tenan

ce

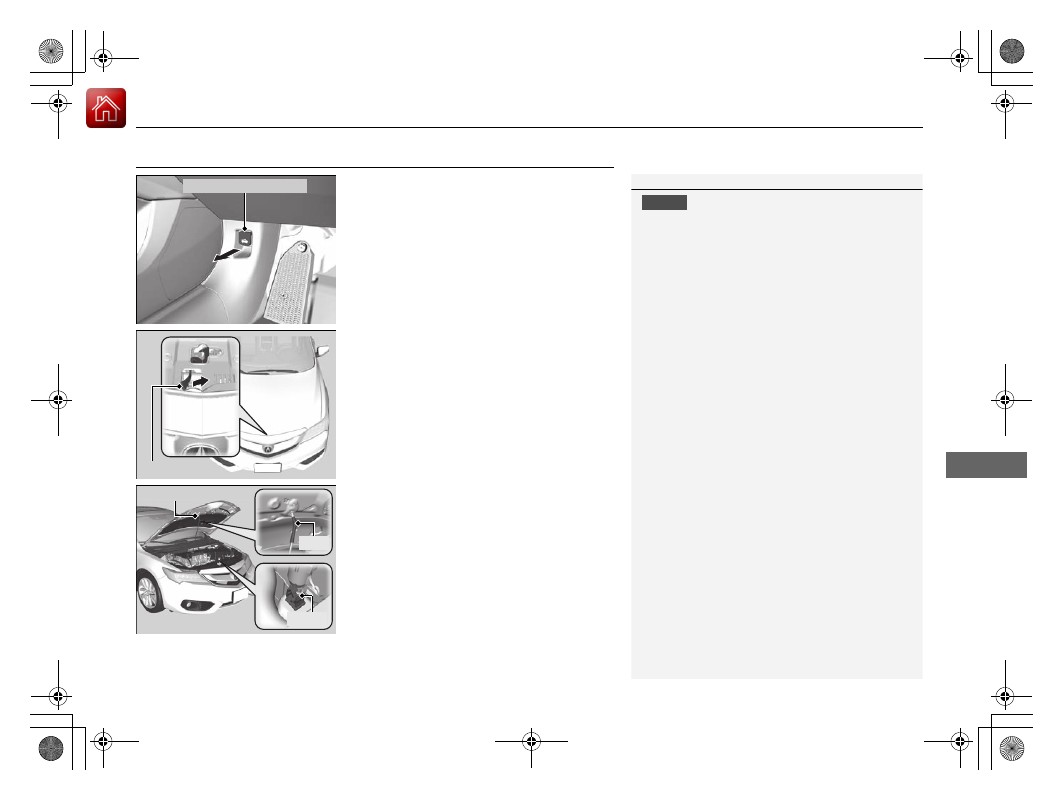

Opening the Hood

1. Park the vehicle on a level surface, and set

the parking brake.

2. Pull the hood release handle under the

driver’s side lower corner of the dashboard.

u

The hood will pop up slightly.

3. Push the hood latch lever (located under

the front edge of the hood to the center) to
the side and raise the hood. Once you have
raised the hood slightly, you can release the
lever.

4. Remove the support rod from the clamp

using the grip. Mount the support rod in
the hood.

When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.

1

Opening the Hood

NOTICE

Do not open the hood when the wiper arms are
raised: The hood will strike the wipers, resulting in
possible damage to the hood and/or the wipers.

When closing the hood, check that the hood is
securely latched.

If the hood latch lever moves stiffly, or if you can
open the hood without lifting the lever, the latch
mechanism should be cleaned and lubricated.

Pull

Hood Release Handle

Lever

Support Rod

Grip

Clamp

18 ACURA ILX-31TX66500.book  441 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

442

uu

Maintenance Under the Hood

u

Recommended Engine Oil

Main

tenan

ce

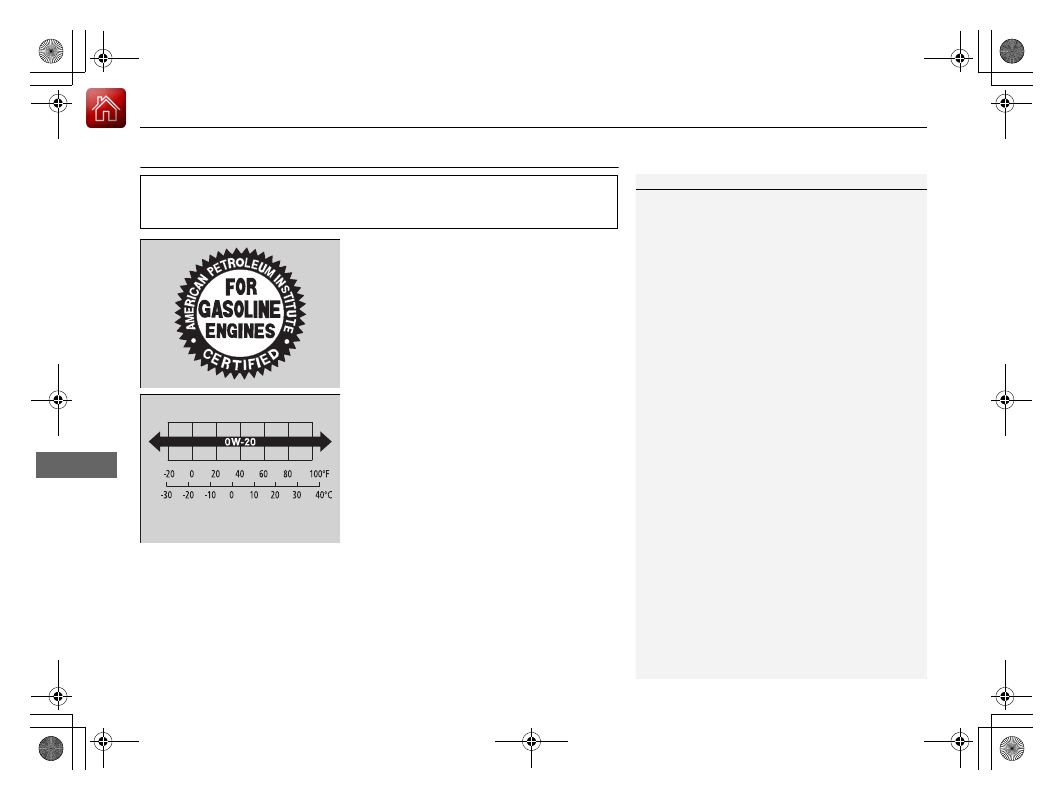

Recommended Engine Oil

Oil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.

This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.

Use a Genuine Acura Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown.

■

Synthetic oil

You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.

• Genuine Acura Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certification Seal on the

container.

1

Recommended Engine Oil

Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.

Ambient Temperature

18 ACURA ILX-31TX66500.book  442 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

443

uu

Maintenance Under the Hood

u

Oil Check

Main

tenan

ce

Oil Check

We recommend that you check the engine oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turning the engine off before you check the
oil.

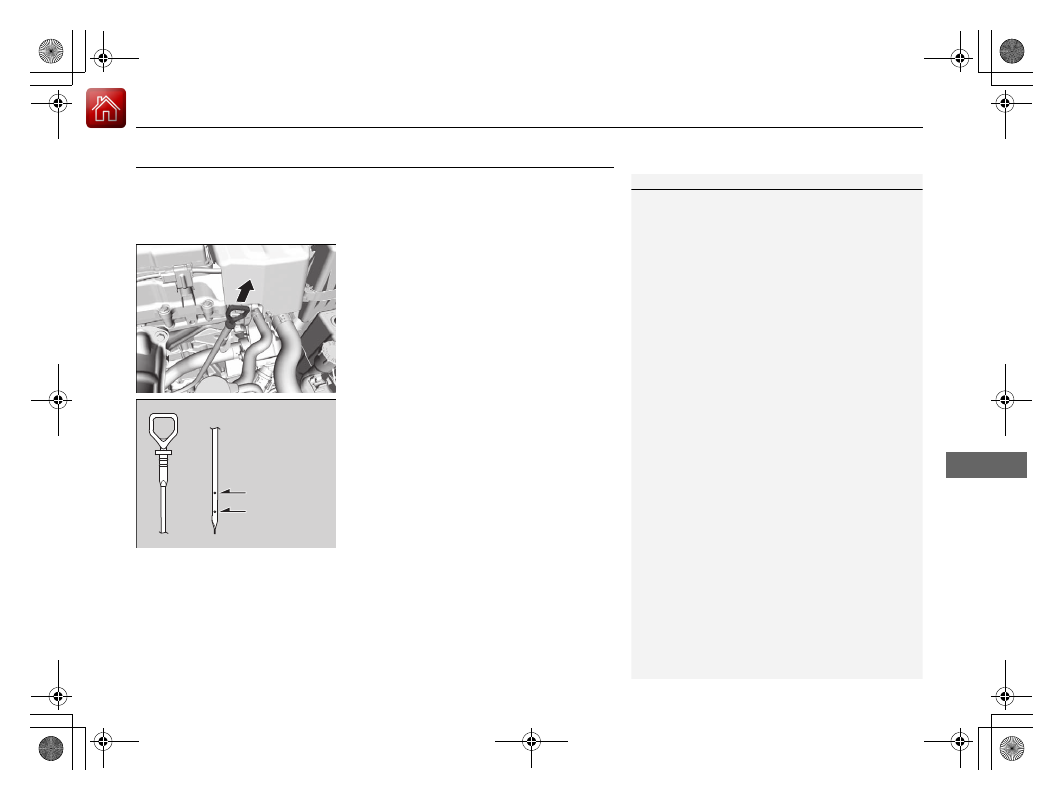

1. Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or

paper towel.

3. Insert the dipstick back all the way into its

hole.

4. Remove the dipstick again, and check the

level. It should be between the upper and
lower marks. Add oil if necessary.

1

Oil Check

If the oil level is near or below the lower mark, slowly
add oil, being careful not to overfill.

Upper Mark

Lower Mark

18 ACURA ILX-31TX66500.book  443 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

444

uu

Maintenance Under the Hood

u

Adding Engine Oil

Main

tenan

ce

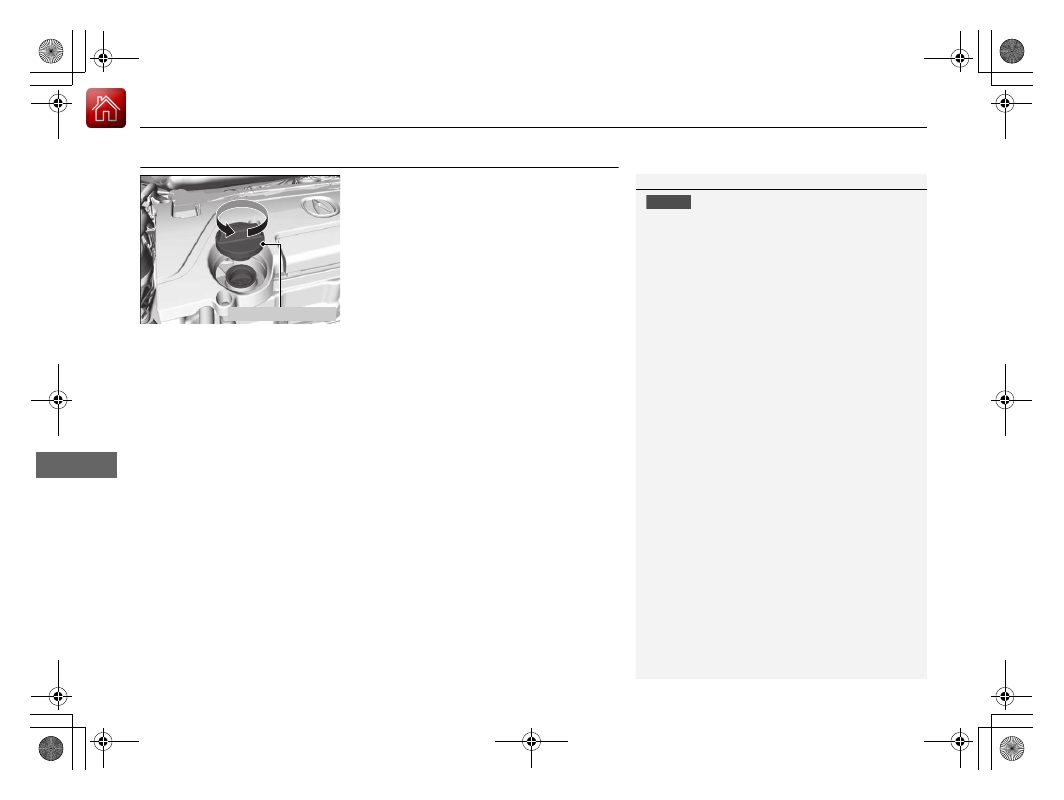

Adding Engine Oil

1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten

it securely.

4. Wait for three minutes and recheck the

engine oil dipstick.

1

Adding Engine Oil

NOTICE

Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.

If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.

Engine Oil Fill Cap

18 ACURA ILX-31TX66500.book  444 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

445

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

Continued

Main

tenan

ce

Changing the Engine Oil and Oil Filter

You must change the engine oil and oil filter regularly in order to maintain the
engine's lubrication. The engine may be damaged if they are not changed regularly.

Change the oil and filter in accordance with the maintenance message on the multi-
information display.

1. Run the engine until it reaches normal

operating temperature, and then turn the
engine off.

2. Open the hood and remove the engine oil

fill cap.

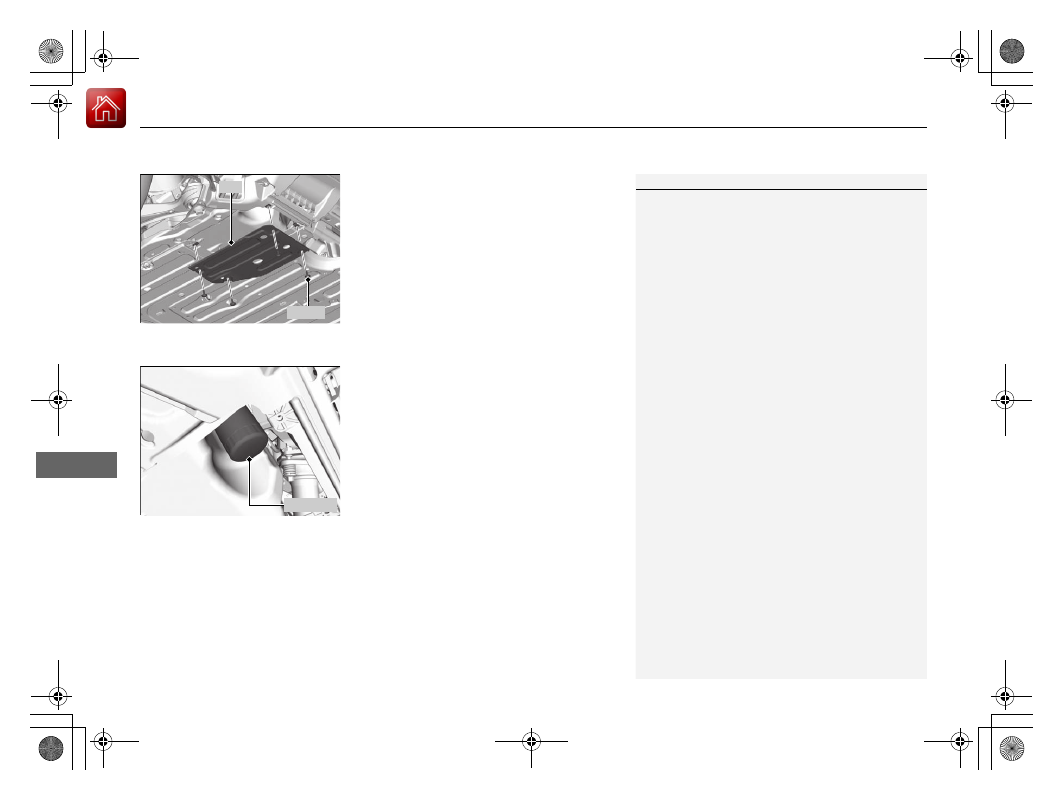

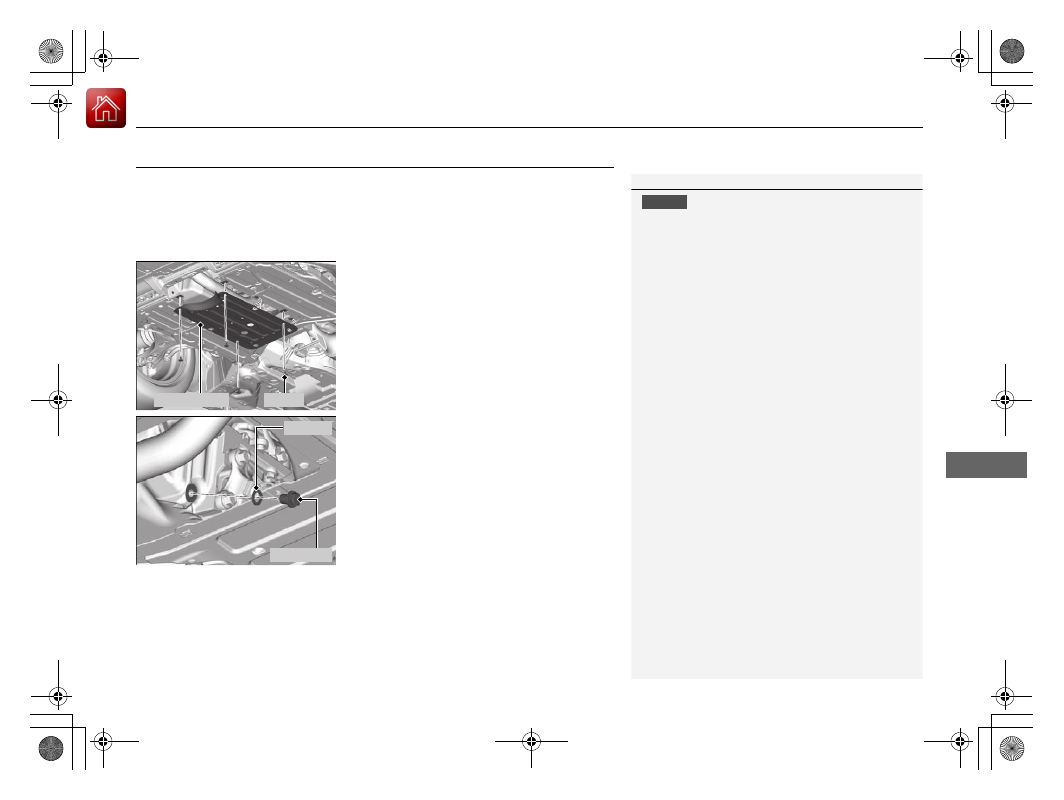

3. Remove the screws on the undercarriage

and remove the under cover.

4. Remove the drain bolt and washer from

the bottom of the engine, and drain the
oil into a suitable container.

1

Changing the Engine Oil and Oil Filter

NOTICE

You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.

Under Cover

Screw

Drain Bolt

Washer

18 ACURA ILX-31TX66500.book  445 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

446

Main

tenan

ce

5. Remove the screws and remove the rid.
6. Remove the oil filter and dispose of the

remaining oil.

7. Check that the filter gasket is not stuck to

the engine contact surface.

u

If it is stuck, you must detach it.

8. Wipe away dirt and dust adhering to the

contact surface of the engine block, and
install a new oil filter.

u

Apply a light coat of new engine oil to
the filter gasket.

9. Put a new washer on the drain bolt, then

reinstall the drain bolt.

u

Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)

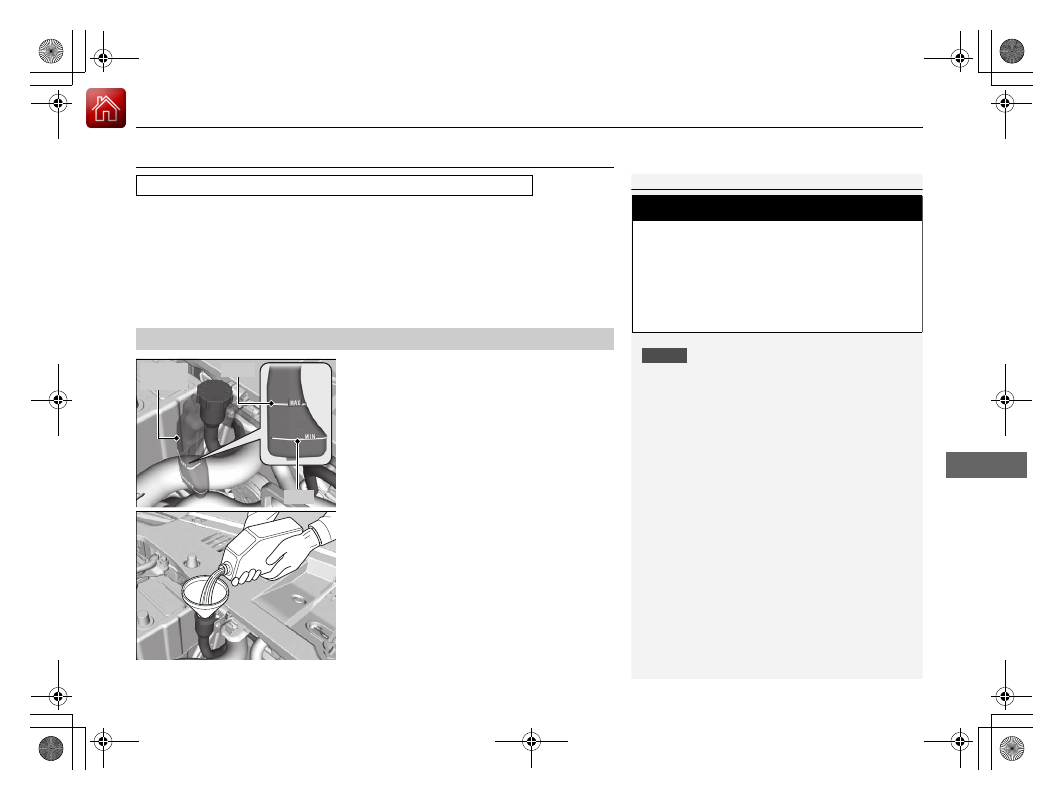

10. Pour the recommended engine oil into the

engine.

u

Engine oil change capacity (including
filter):
4.6 US qt (4.4 L)

11. Reinstall the engine oil fill cap securely and

start the engine.

12. Run the engine for a few minutes, and

then check that there is no leak from the
drain bolt or oil filter.

13. Stop the engine, wait for three minutes,

and then check the oil level on the
dipstick.

u

If necessary, add more engine oil.

1

Changing the Engine Oil and Oil Filter

You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.

When installing the new oil filter, follow the
instructions supplied with the oil filter.

Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.

Screw

Rid

Oil Filter

18 ACURA ILX-31TX66500.book  446 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

447

uu

Maintenance Under the Hood

u

Engine Coolant

Continued

Main

tenan

ce

Engine Coolant

This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.

We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.

1. Make sure the engine and radiator are

cool.

2. Check the amount of coolant in the reserve

tank.

u

If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.

3. Inspect the cooling system for leaks.

Specified coolant: Acura Long Life Antifreeze/Coolant Type 2

■

Reserve Tank

1

Engine Coolant

NOTICE

Genuine Acura engine coolant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.

If Acura antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Acura coolant can result in
corrosion, causing the cooling system to malfunction
or fail. Have the cooling system flushed and refilled
with Acura antifreeze/coolant as soon as possible.

Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

Reserve
Tank

MAX

MIN

18 ACURA ILX-31TX66500.book  447 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

uu

Maintenance Under the Hood

u

Engine Coolant

448

Main

tenan

ce

1. Make sure the engine and radiator are

cool.

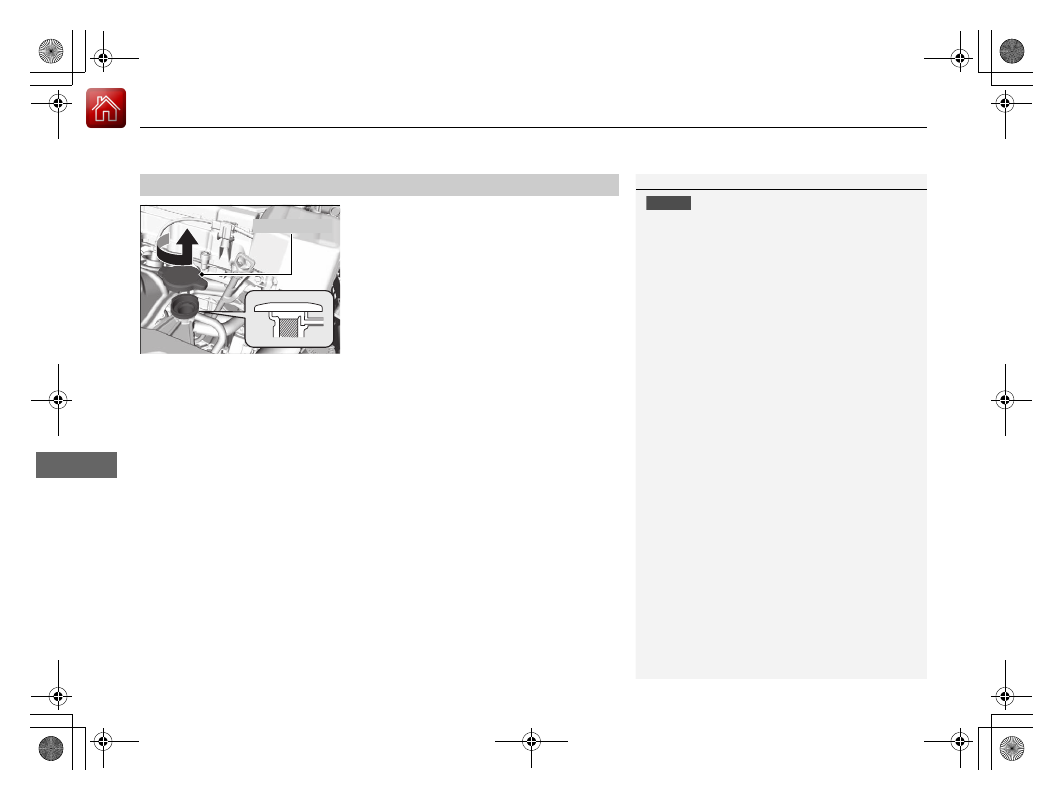

2. Turn the radiator cap 1/8 turn counter-

clockwise and relieve any pressure in the
cooling system.

3. Push down and turn the radiator cap

counterclockwise to remove it.

4. The coolant level should be up to the base

of the filler neck. Add coolant if it is low.

5. Put the radiator cap back on, and tighten it

fully.

■

Radiator

1

Radiator

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

Radiator Cap

18 ACURA ILX-31TX66500.book  448 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

449

uu

Maintenance Under the Hood

u

Transmission Fluid

Main

tenan

ce

Transmission Fluid

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the dual clutch transmission fluid yourself.

■

Dual Clutch Transmission Fluid

Specified fluid: Acura Automatic Transmission Fluid ATF-TYPE 2.0

1

Dual Clutch Transmission Fluid

NOTICE

Do not mix Acura ATF-TYPE 2.0 with other
transmission fluids.
Using a transmission fluid other than Acura ATF-TYPE
2.0 may adversely affect the operation and durability
of your vehicle’s transmission, and damage the
transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Acura ATF-TYPE 2.0 is not
covered by Acura’s new vehicle limited warranty.

18 ACURA ILX-31TX66500.book  449 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

450

uu

Maintenance Under the Hood

u

Brake Fluid

Main

tenan

ce

Brake Fluid

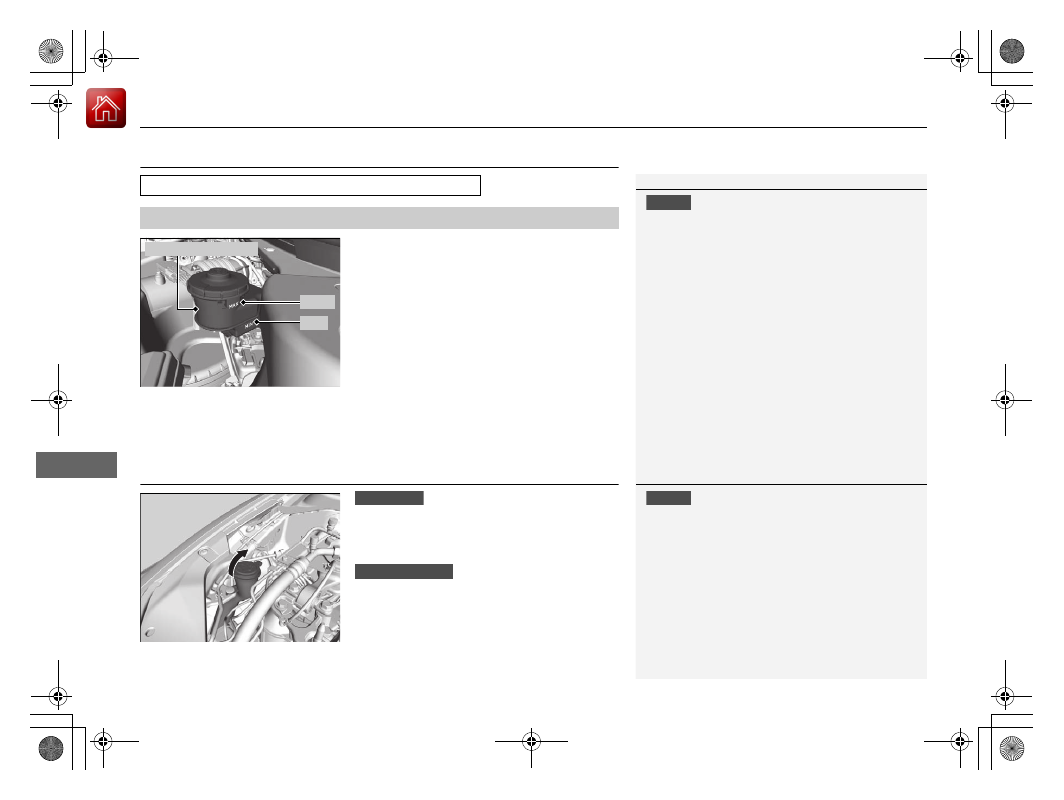

The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.

Refilling Window Washer Fluid

Check the amount of window washer fluid by
looking at the reservoir.
If the level is low, fill the washer reservoir.

If the washer fluid is low, a message appears
on the multi-information display.

Pour the washer fluid carefully. Do not
overflow the reservoir.

Specified fluid: Acura Heavy Duty Brake Fluid DOT 3

■

Checking the Brake Fluid

1

Brake Fluid

NOTICE

Brake fluid marked DOT 5 is not compatible with your
vehicle's braking system and can cause extensive
damage.

If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.

Using any non-Acura brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and refilled with Acura Heavy
Duty Brake Fluid DOT 3 as soon as possible.

If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.

MIN

MAX

Brake Reserve Tank

1

Refilling Window Washer Fluid

NOTICE

Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle's paint. A
vinegar/water solution can damage the windshield
washer pump.
Use only commercially available windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.

U.S. models

Canadian models

18 ACURA ILX-31TX66500.book  450 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

451

Continued

Main

tenan

ce

Replacing Light Bulbs

Headlights

Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.

Fog Light Bulbs

*

When replacing, use the following bulbs.

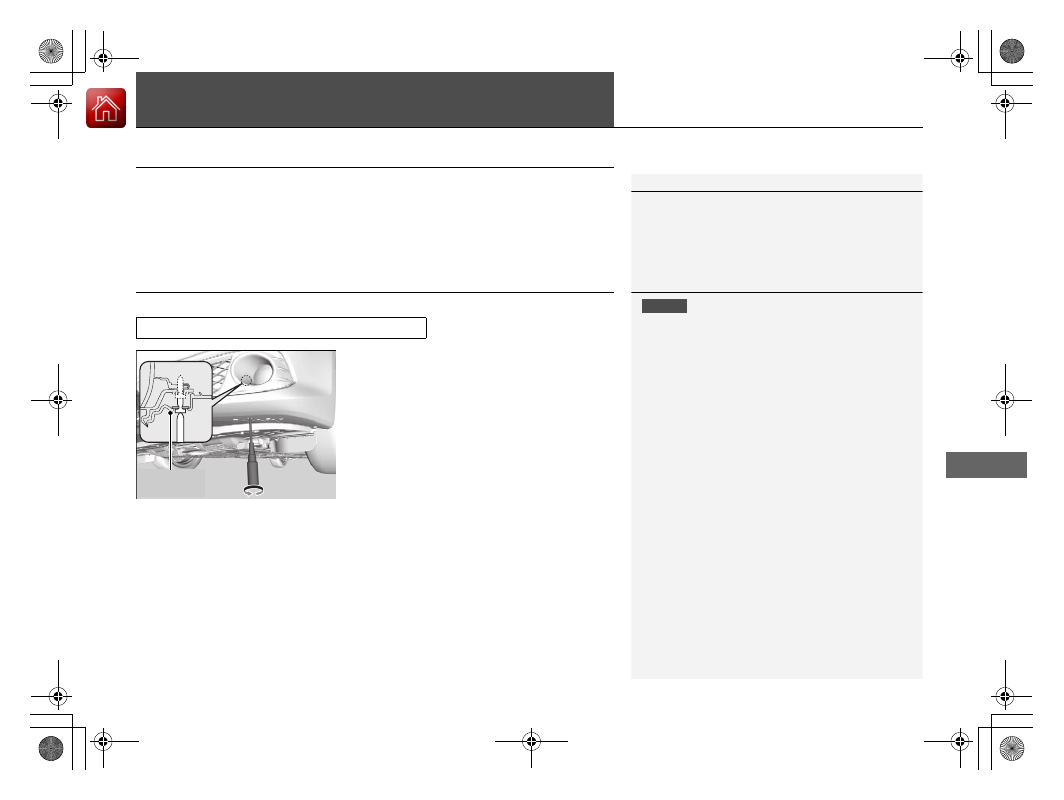

1. Remove the screw using a Phillips-head

screwdriver.

u

The screw does not drop.

Fog Light: 55 W (H11 for halogen bulb Type)

1

Headlights

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.

1

Fog Light Bulbs

*

NOTICE

Halogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.

When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alcohol and a clean cloth.

Dropping
prevention

* Not available on all models

18 ACURA ILX-31TX66500.book  451 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分

452

uu

Replacing Light Bulbs

u

Fog Light Bulbs

*

Main

tenan

ce

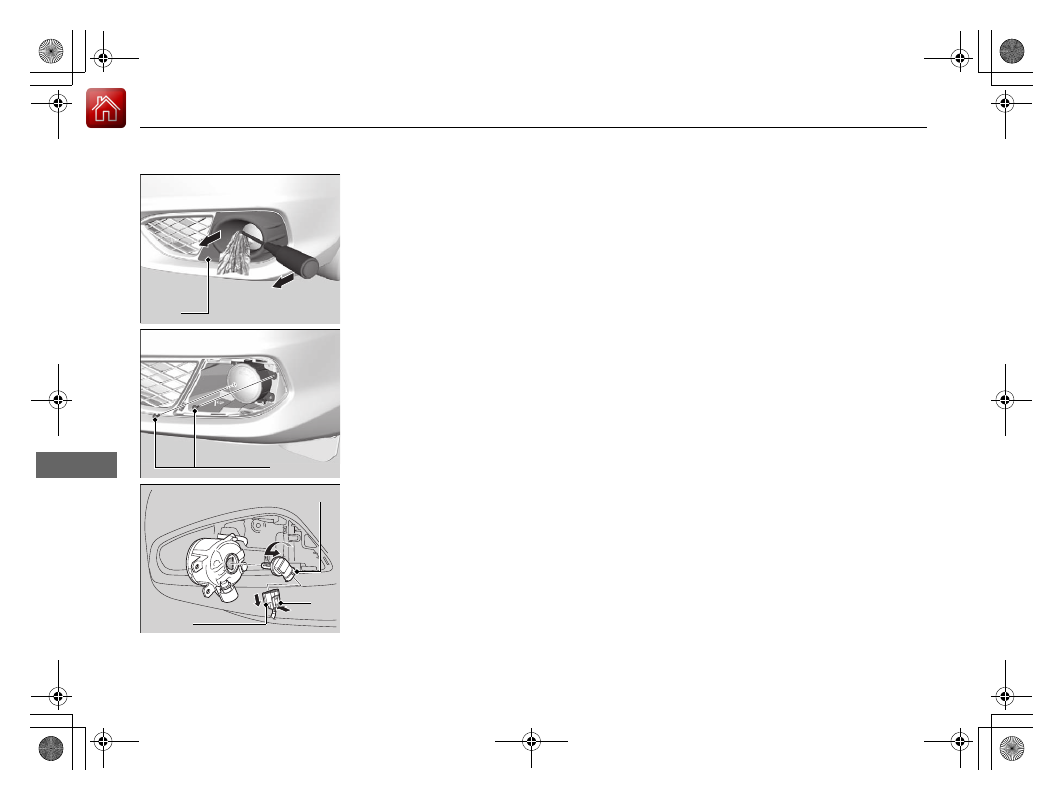

2. Insert a flat-tip screwdriver into the tab at

the inside edge of the cover, then pull
straight out as indicated to remove the
cover.

3. Remove the screws using a Phillips-head

screwdriver and carefully pull the fog light
assembly out of the bumper.

4. Push the tab to remove the coupler.
5. Rotate the old bulb counter-clockwise to

remove.

6. Insert a new bulb into the fog light

assembly and turn it clockwise.

7. Insert the coupler into the connector of the

bulb.

Cover

Screws

Coupler

Bulb

Tab

18 ACURA ILX-31TX66500.book  452 ページ  ２０１７年８月２５日　金曜日　午前１１時３１分
