Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

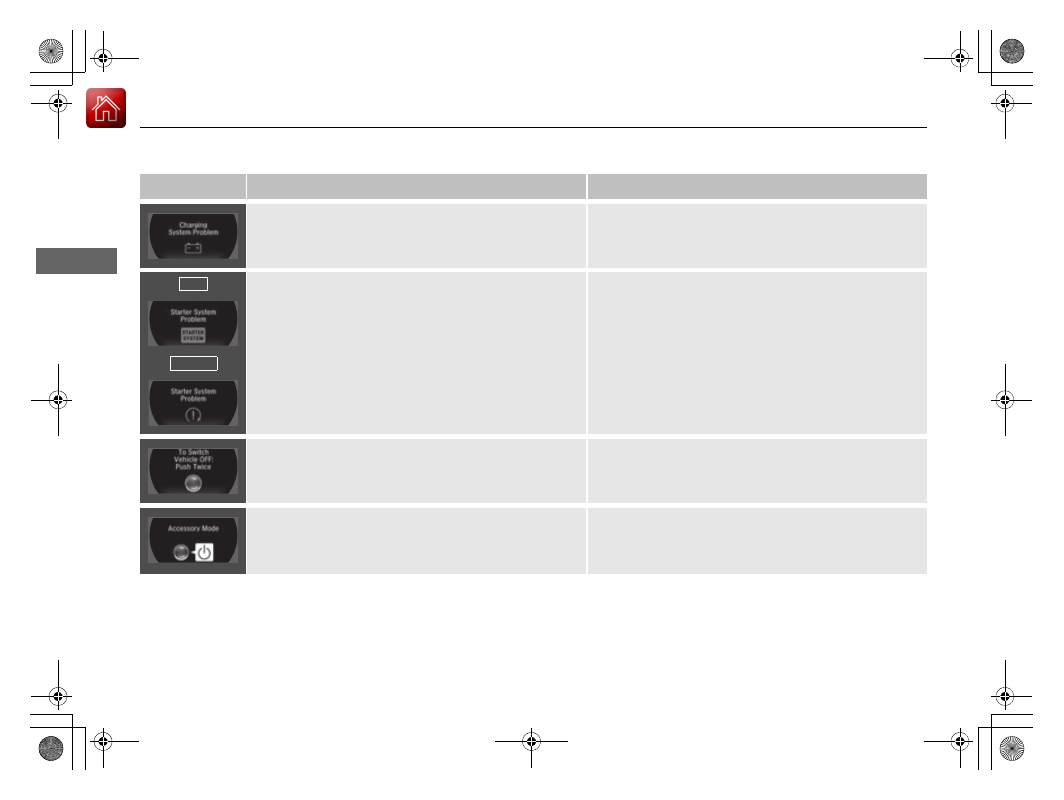

Appears when there is a problem with the sensor on the
12-volt battery.

●

Have your vehicle checked by an authorized Acura NSX
dealer.

2 Checking the 12-Volt Battery P. 403

●

Appears when the starter system has a problem.

●

As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
depressing the brake pedal and manually turn on the
power system.
Have your vehicle checked by an authorized Acura NSX
dealer.

●

Appears after the driver’s door is opened when the
power mode is in ACCESSORY.

●

Press the ENGINE START/STOP button twice with your
foot off the brake pedal to change the power mode to
VEHICLE OFF (LOCK).

●

Appears when the power mode is in ACCESSORY.

—

U.S.

Canada

17 NSX-31T6N6000.book  84 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

85

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.

●

Disappears when you bring the keyless access remote
back inside the vehicle and close the door.

2 Keyless Access Remote Reminder P. 129

●

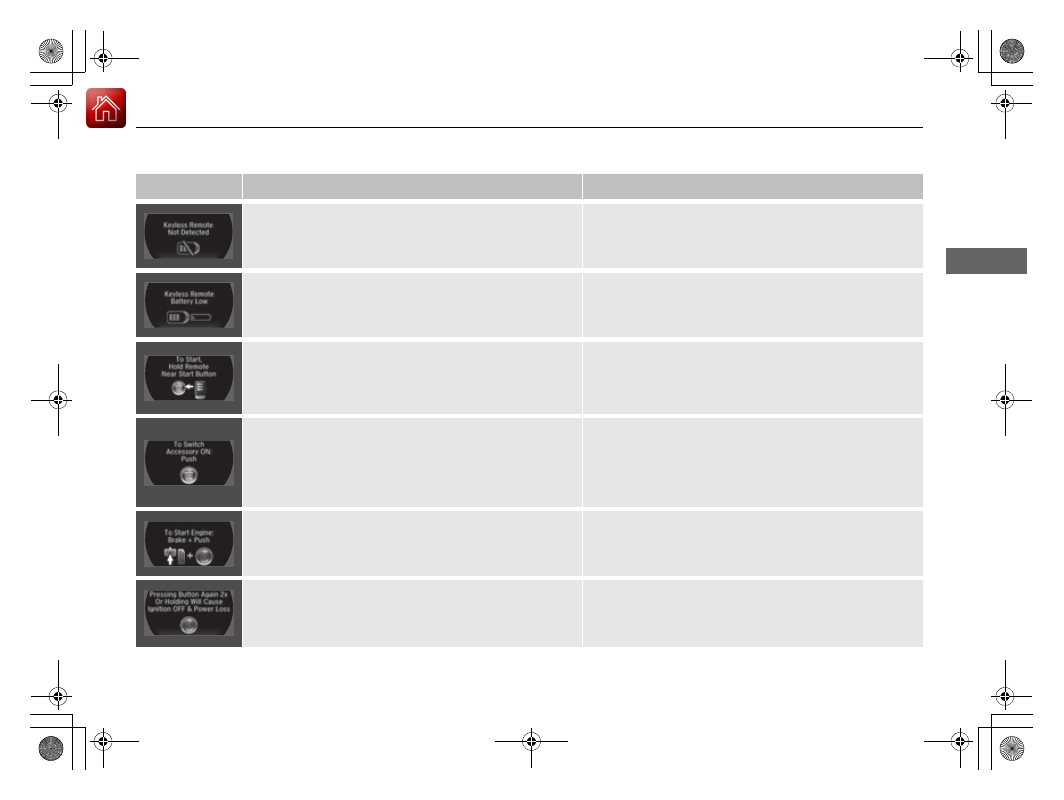

Appears when the keyless access remote battery
becomes weak.

●

Replace the battery as soon as possible.

2 Replacing the Button Battery P. 404

●

Appears if the keyless access remote battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.

●

Bring the keyless access remote in front of the ENGINE
START/STOP button to be touched with.

2 If the Keyless Access Remote Battery is Weak P. 432

●

Appears three seconds after you bring the keyless
access remote in front of the ENGINE START/STOP
button when To Start, Hold Remote Near Start
Button appears. To Start Engine: Brake + Push
appears sequentially.

●

Unless you bring the keyless access remote in front of
the ENGINE START/STOP button, this message does
not appear.

2 If the Keyless Access Remote Battery is Weak P. 432

●

Appears when you set the power mode to ACCESSORY
or ON.

2 Turning on the Power P. 309

●

Appears if you press the ENGINE START/STOP button
while the vehicle is moving.

●

The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF (LOCK).

17 NSX-31T6N6000.book  85 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

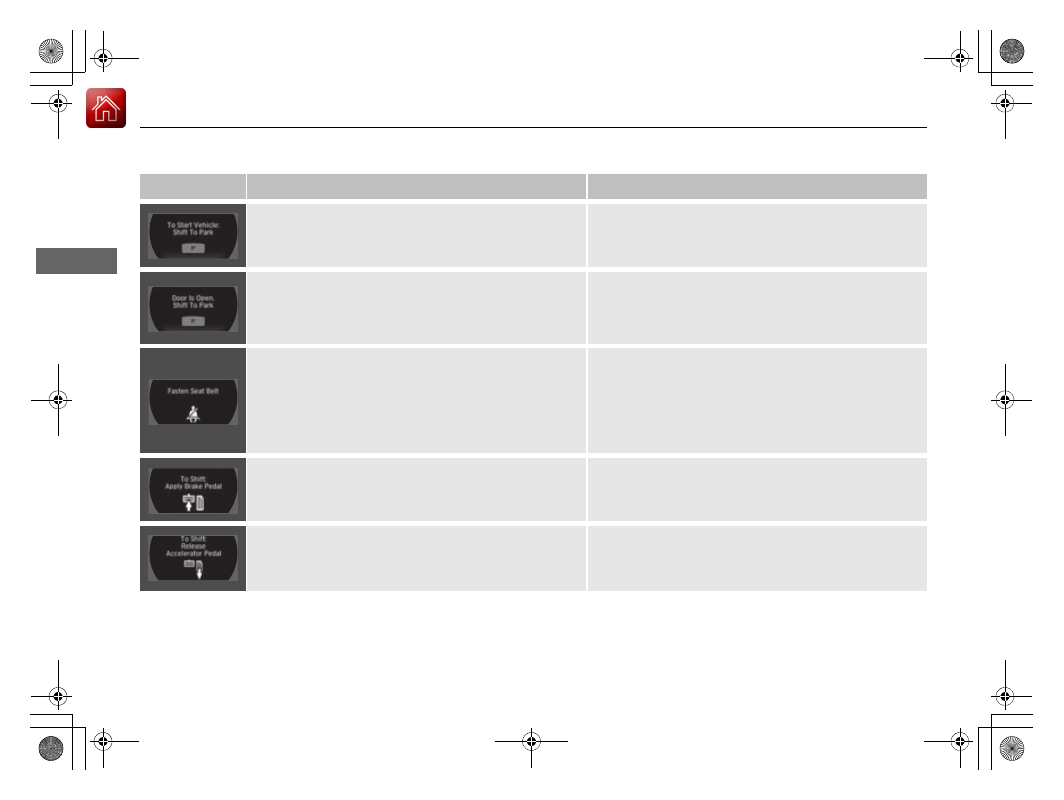

86

uu

Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

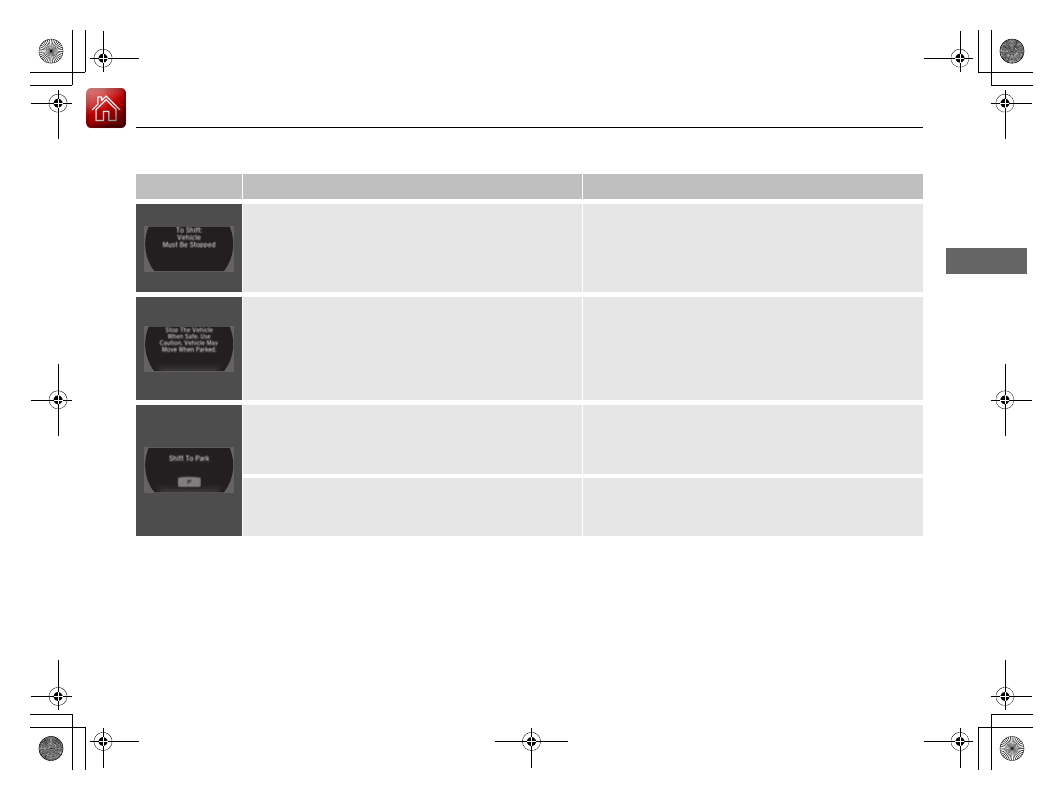

Appears when you turn the power system on with the
transmission not in

(

P.

●

Press the

(

P button.

●

Appears when you try to change the gear position after
the position has automatically been changed to

(

P with

the driver’s door open and the driver’s seat belt
unfastened.

●

Press the

(

P button if you leave the vehicle.

●

Appears when you set the power mode to ON without
fastening the driver’s seat belt.

●

Appears when you change the gear position after

(

P

has been automatically selected with the driver’s door
open, the driver’s seat belt unfastened, then the brake
pedal is released.

●

Fasten the seat belt properly before you start to drive.

2 Shift Operation P. 316

●

Appears when you try to change the gear position
without depressing the brake pedal.

●

Depress the brake pedal, then select a shift button.

●

Appears when you try to change the gear position
without releasing your foot off the accelerator pedal.

●

Release your foot from the accelerator pedal, depress
the brake pedal, then select a gear.

17 NSX-31T6N6000.book  86 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

87

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the park button is pressed while the
vehicle is moving.

●

Appears if you change the gear position to

(

R while the

vehicle is moving forward, or to D or M while the vehicle
is reversing.

●

Make sure that the vehicle comes to a stop before
operating the select button.

●

Appears if there is a problem with the electric system.

●

Appears when you set the power mode to OFF while
driving.

●

Immediately stop in a safe place and set the parking
brake.

●

Continue driving if the message goes off soon after.

●

If there is a problem with the transmission system, the
transmission system indicator comes on.

2 Transmission System Indicator P. 76

●

Appears when you change to

(

N, and press the

ENGINE START/STOP button within five seconds.

●

The gear position remains in

(

N for 15 minutes, then

automatically switches to

(

P.

2 If you want to keep the transmission in

(

N



position (car wash mode) P. 317

●

Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.

●

Press the

(

P button before release the brake pedal

when idling, parking or exiting the vehicle.

2 Shift Operation P. 316

17 NSX-31T6N6000.book  87 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

88

uu

Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears if any door or the trunk (hatch) is not
completely closed.

●

Appears if any door or the trunk (hatch) is opened while
driving. The beeper sounds.

●

Goes off when all doors and the trunk (hatch) are
closed.

●

Appears if there is a problem with the radiator system.

●

Drive slowly to prevent overheating and have your
vehicle checked by an authorized Acura NSX dealer as
soon as possible.

●

Appears when there is a problem with the headlights.

●

Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by an authorized
Acura NSX dealer as soon as possible.

●

Appears if there is a problem with the parking sensor
system.

●

Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by an
authorized Acura NSX dealer.

Models with
parking sensor
system

17 NSX-31T6N6000.book  88 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

89

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears if the automatic brake hold is automatically
canceled while it is in operation.

●

Immediately depress the brake pedal.

●

Appears when the automatic brake hold system is
turned off.

2 Automatic Brake Hold P. 347

●

Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.

●

Fasten the driver’s seat belt.

2 Automatic Brake Hold P. 347

●

Appears when the automatic brake hold button is
pressed without depressing the brake pedal while the
automatic brake hold is in operation.

●

Press the automatic brake hold button with the brake
pedal depressed.

2 Automatic Brake Hold P. 347

●

Appears when the parking brake is applied
automatically while it is in operation.

2 Automatic Brake Hold P. 347
2 Parking Brake P. 344

17 NSX-31T6N6000.book  89 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

90

uu

Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

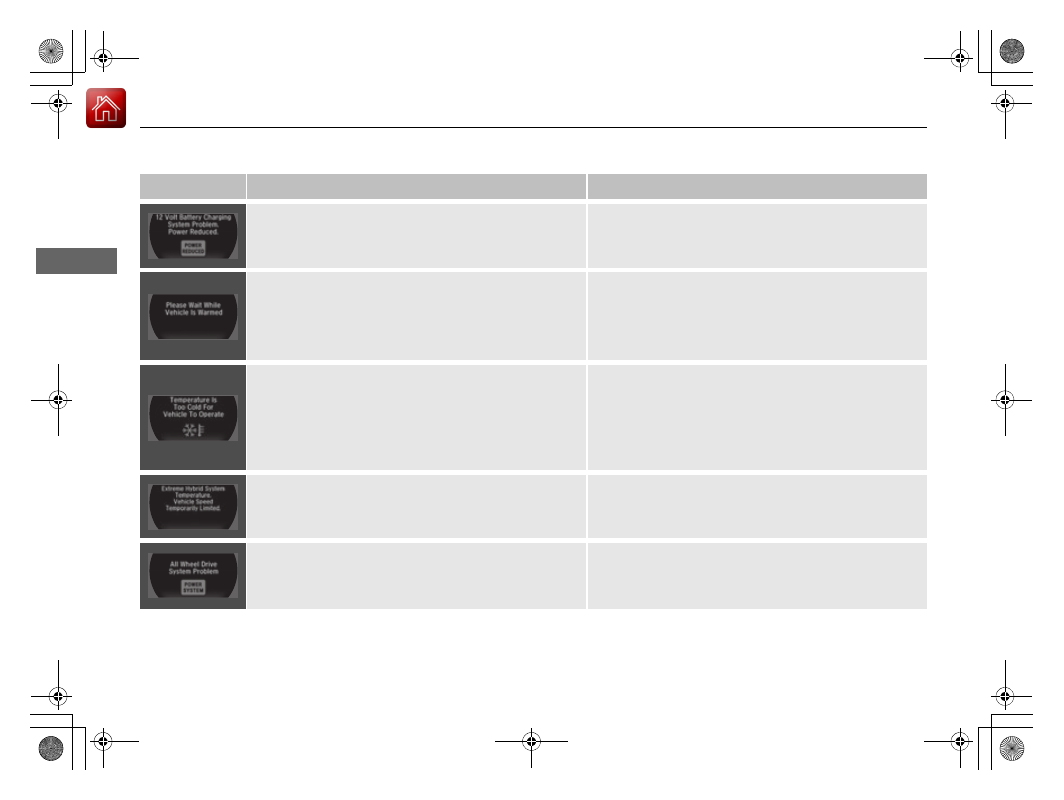

Appears after the 12-volt battery charging system
indicator comes on.

●

Your vehicle has less ability to accelerate and may be
harder to start on an incline.

●

Contact an authorized Acura NSX dealer immediately.

●

Appears when the transmission temperature is too low
to operate (approx. -13°F [-25°C] or below).

●

You can start the engine and use the climate control
system to warm up the interior, which will also warm
the transmission enough for you to drive the vehicle.

●

The engine speed does not increase even if you fully
depress the accelerator pedal.

●

Appears when the High Voltage battery temperature is
extremely low (-4°F [-20°C]).

●

Contact an authorized Acura NSX dealer immediately.

●

To prevent the message to come on, store the vehicle in
the garage or drive in advance to warm up the High
Voltage battery.

●

The minimum operation guarantee environmental
temperature is -4°F [-20°C].

●

Appears when the twin motor unit fluid temperature is
extremely low.

●

Vehicle speed is limited to 109 mph (175 km/h) until
twin motor unit fluid warms up.

●

Appears if the AWD system has a problem due to a
hybrid system or power distribution control failure.

●

Drives with the rear wheels only in this state.
Have your vehicle checked by an authorized Acura NSX
dealer.

17 NSX-31T6N6000.book  90 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

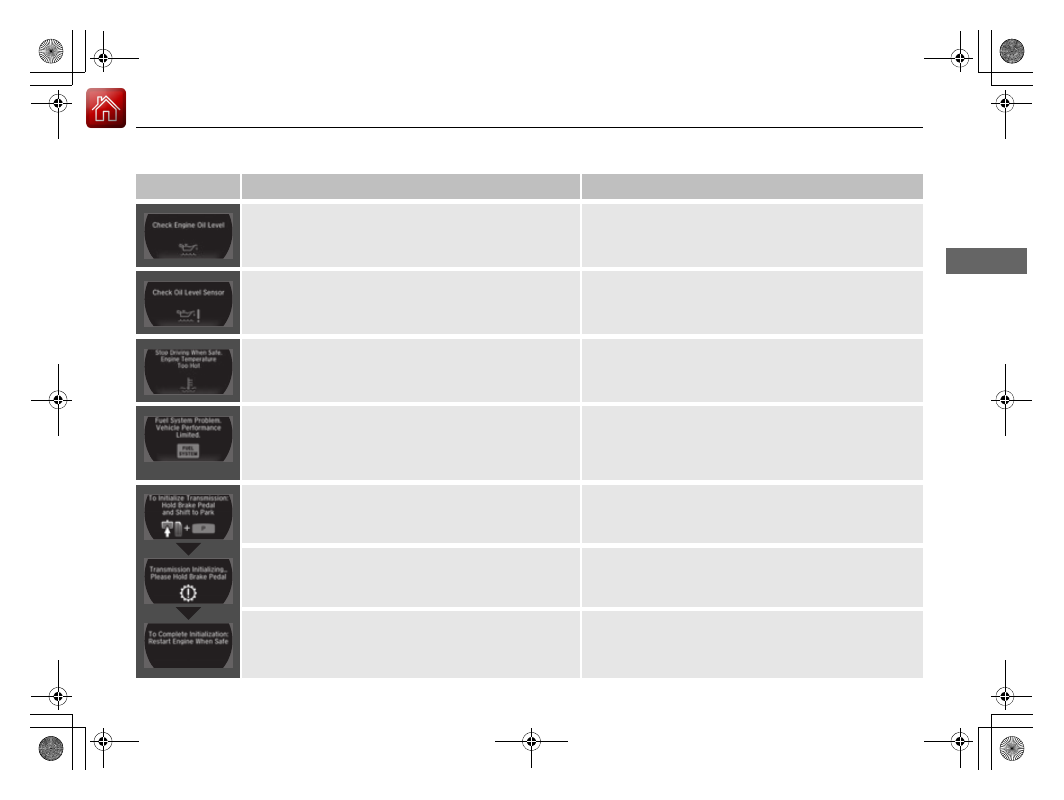

91

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the engine is running and indicates that
the engine oil level is low.

●

Appears while driving - Immediately stop in a safe
place.

2 If the Low Oil Level Symbol Appears P. 442

●

Appears when the engine is running and indicates that
there is a problem with the oil level sensor.

●

Have your vehicle checked by an authorized Acura NSX
dealer as soon as possible.

●

Appears if the engine coolant temperature is
abnormally high.

2 Overheating P. 436

●

Appears if there is a problem with the fuel system.
Engine performance will be limited.

●

Immediately stop in a safe place and set the power

mode to VEHICLE OFF (LOCK), then select the ON mode

again.

Have your vehicle checked by an authorized Acura NSX

dealer if the message appears again.

●

Appears if there is a temporary problem with the gear
shift mechanism and initialization is necessary.

●

Depress the brake pedal and shift to

(

P.

●

Appears when the transmission is undergoing
initialization.

●

Keep the brake pedal depressed.

●

Appears when a temporary problem is fixed.

●

Initialization will be completed when the engine is
restarted.

17 NSX-31T6N6000.book  91 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

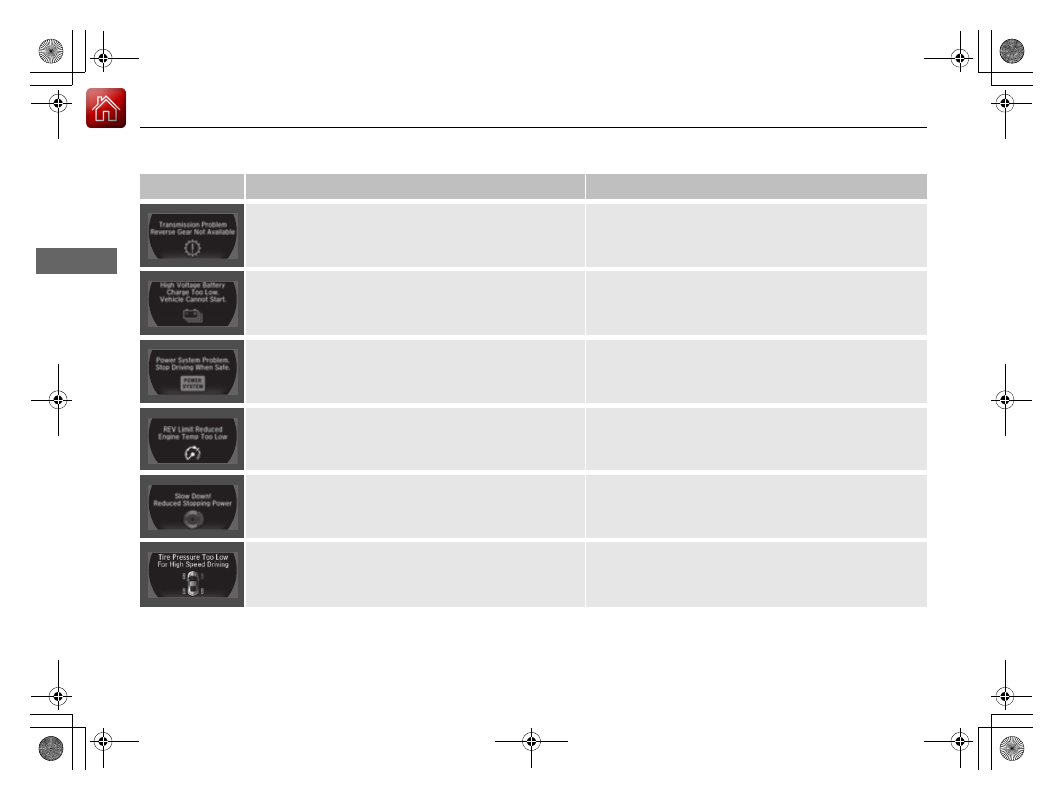

92

uu

Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when a problem with the transmission
prevents a gear from changing to

(

R.

●

Have your vehicle checked by an authorized Acura NSX
dealer.

●

Appears when the High Voltage battery is extremely low
and cannot start the power system.

●

Have your vehicle checked by an authorized Acura NSX
dealer.

●

Appears when the vehicle cannot be driven by the
engine.

●

Stop your vehicle in a safe place and contact an
authorized Acura NSX dealer.

●

Appears when the engine speed exceeds reduced REV
LIMIT while engine temperature is low.

●

Continue driving at a low engine speed until the engine
temperature becomes warm.

●

Appears when braking ability is reduced due to
increased fluid consumption in the braking system.

●

Slow Down and drive carefully. The message will
disappear once the brakes have cooled and the system
has returned to normal operating condition.

●

Appears if you are driving at an extremely high speed
and one or more tires are underinflated.

●

Decelerate and drive your vehicle until the message
disappears.

17 NSX-31T6N6000.book  92 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

93

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

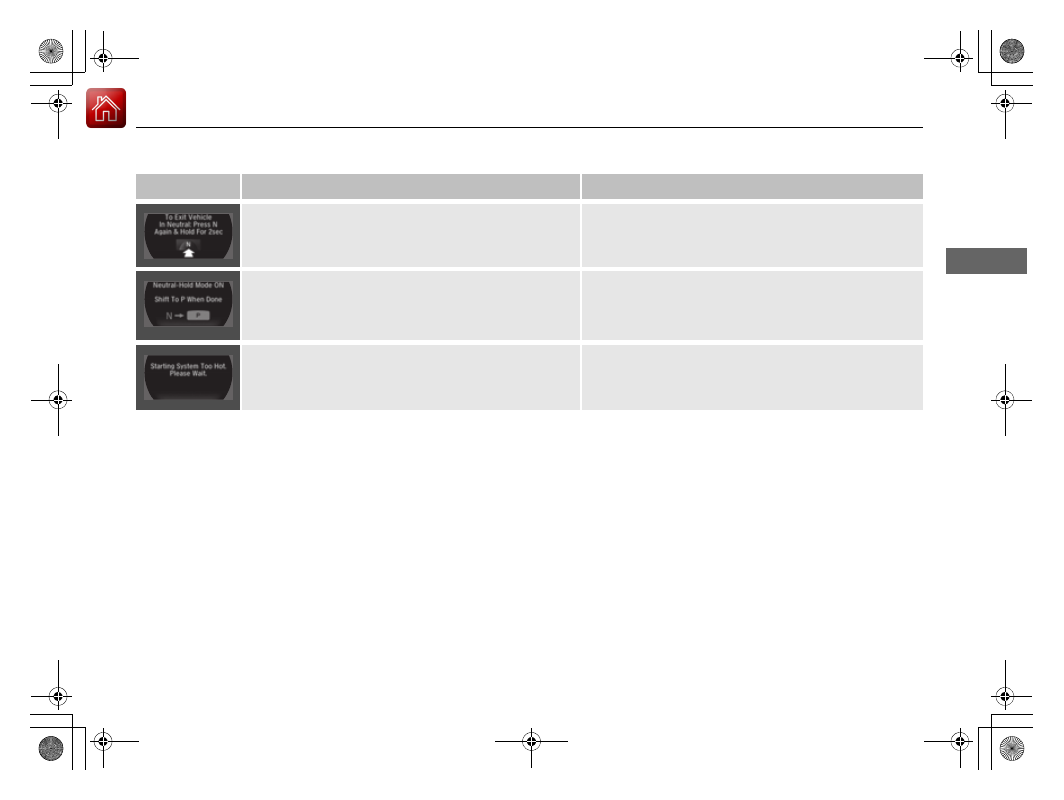

Appears for a few seconds if you have not pressed the

(

N button long enough to initiate Neutral-Hold mode.

2 If you want to keep the transmission in

(

N

 position

(car wash mode) P. 317

●

Appears when you press and hold

(

N button for more

than 2 seconds.

●

Disappears when you set the gear position to other than

(

N.

2 If you want to keep the transmission in

(

N

 position

(car wash mode) P. 317

●

Appears when the device for starting the vehicle is too
hot.

●

Wait until message disappears.

17 NSX-31T6N6000.book  93 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

94

uu

Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

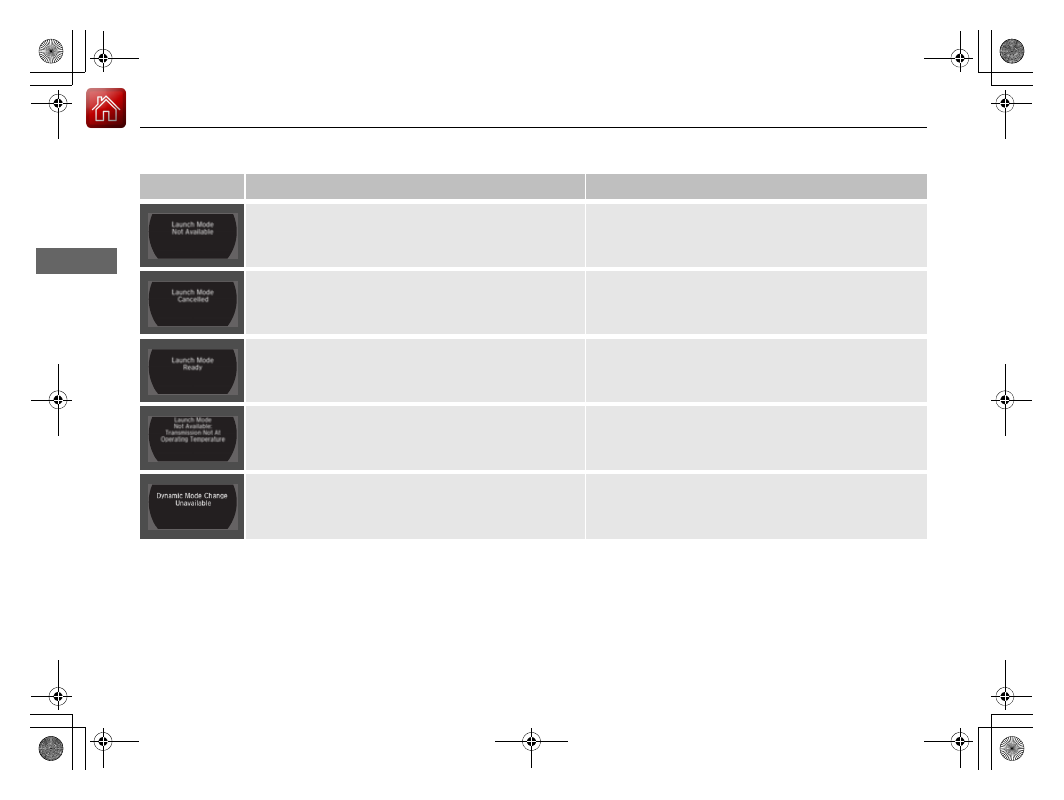

Appears when launch control cannot be used due to the
condition of your vehicle.

2 Launch Control P. 328

●

Appears if you shift the gear or do anything else after
Launch Mode is ready.

2 Launch Control P. 328

●

Appears when Launch Mode is ready.

2 Launch Control P. 328

●

Appears when the temperature of the transmission is
not in the operable range for launch control.

2 Launch Control P. 328

●

Appears if the IDS mode cannot be changed due to
certain situations, such as a system error or adverse
driving conditions.

2 Integrated Dynamics System (IDS) P. 323

17 NSX-31T6N6000.book  94 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

95

Continued

In

strum

e

nt Pa

nel

Gauges and Displays

Gauges

Gauges include the speedometer, tachometer, fuel gauge, temperature gauge, High
Voltage battery charge level gauge, ASSIST/CHARGE gauge, SH-AWD®
temperature gauge, and related indicators. They are displayed when the power
mode is in ON.

Displays your driving speed in mph or km/h.

Shows the number of engine revolutions per minute.

■

Engine speed red-zone indication

Alerts you when the engine speed is near the tachometer’s red zone.
When the engine speed exceeds 7,000 rpm, the outer ring of the tachometer flashes
in red.
To protect the engine from damage, never drive with the tachometer in its red zone.

Displays the amount of fuel left in the fuel tank.

■

Speedometer

■

Tachometer

■

Fuel Gauge

1

Speedometer

Press and hold the mph/km/h change button until
you hear a beep.
The speedometer reading and the displayed
measurements switch between mph and km/h.

1

Fuel Gauge

NOTICE

You should refuel when the needle approaches

.

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

E

17 NSX-31T6N6000.book  95 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

uu

Gauges and Displays

u

Gauges

96

In

strum

e

nt Pa

nel

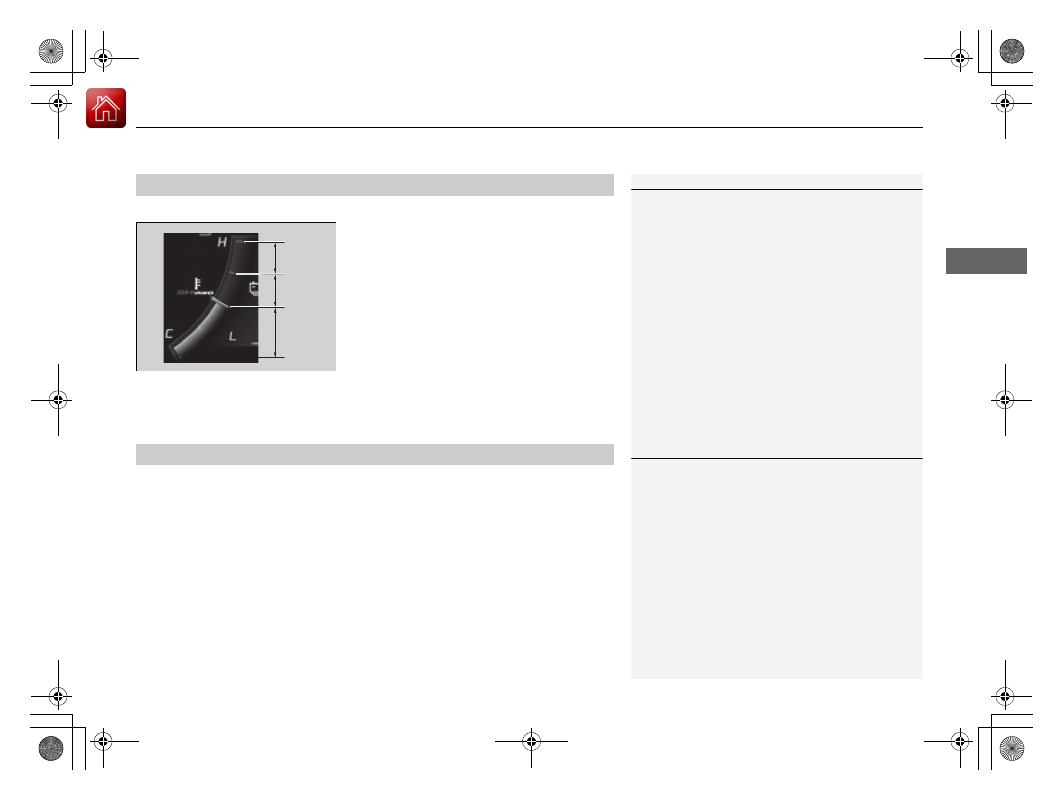

Displays the temperature of the engine coolant.

Shows the remaining High Voltage battery charge level.

■

Electric motor

The degree to which the electric motor is being powered is displayed by the readings
on the ASSIST side.

■

Battery charge in progress

The degree to which the High Voltage battery is being charged is displayed by the
readings on the CHARGE side.

■

Temperature Gauge

■

High Voltage Battery Charge Level Gauge

■

ASSIST/CHARGE Gauge

1

Temperature Gauge

Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

2 Overheating P. 436

1

High Voltage Battery Charge Level Gauge

The High Voltage battery charge level may decrease
under the following conditions:

•

When the 12-volt battery has been replaced.

•

When the 12-volt battery has been disconnected.

•

When the High Voltage battery control system
corrects its reading.

The charge level reading will be corrected
automatically while driving.

Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temperature changes cause the
battery’s capacity to change, the number of
indicators in the battery charge level gauge may also
change, even if the amount of charging remains the
same.

17 NSX-31T6N6000.book  96 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

97

uu

Gauges and Displays

u

Gauges

In

strum

e

nt Pa

nel

Displays the temperature of the SH-AWD® system.

A: System performance is severely limited
due to extreme operating temperature. Stop
your vehicle in a safe place and contact an
authorized Acura NSX dealer.
B: System performance is limited due to high
operating temperature.
C: System is operating at optimum
performance.
D: System performance is limited due to low
operating temperature.
E: System is not warm enough for vehicle to
drive.

Displays the temperature of the engine oil when the IDS is in SPORT+ mode and
TRACK mode.
Since the actual oil temperature is not measured, the temperature displayed here
may differ from the actual temperature.

2 Integrated Dynamics System (IDS) P. 323

■

SH-AWD® Temperature Gauge

1

SH-AWD® Temperature Gauge

If the temperature reaches the red zone, stop your
vehicle in a safe place and allow the system to cool
down. After that, change the power mode to
VEHICLE OFF (LOCK) and set the power mode to ON
again. Even though the system has cooled down, the
POWER SYSTEM indicator will stay on. Have your
vehicle inspected by an authorized Acura NSX dealer.

A

B

C

D

E

■

Engine Oil Temperature Gauge

1

Engine Oil Temperature Gauge

Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

17 NSX-31T6N6000.book  97 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

98

uu

Gauges and Displays

u

Driver Information Interface

In

strum

e

nt Pa

nel

Driver Information Interface

The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges. It also displays important messages such
as warnings and other helpful information.

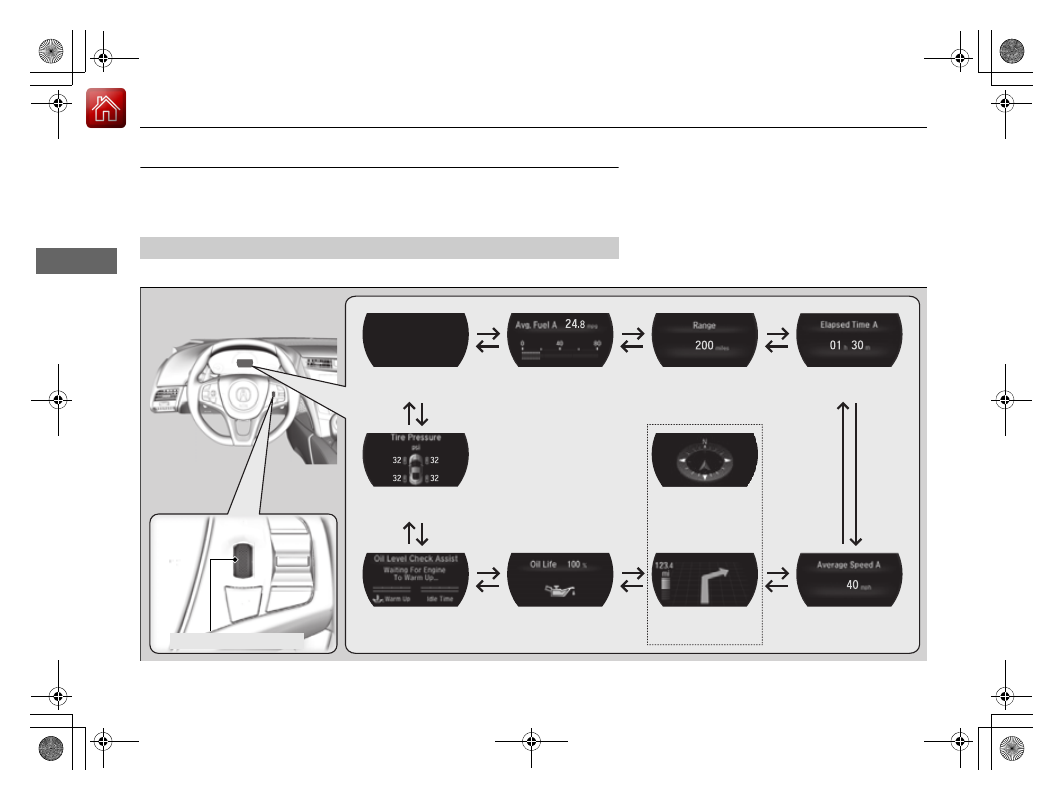

Roll the right selector wheel to change the display.

■

Switching the Display

Right Selector Wheel

Engine Oil Life

Elapsed Time

Blank Screen

Average Speed

Range

Average Fuel Economy/
Instant Fuel Economy

Tire Pressure for
Each Tire

Turn-by-Turn
Directions

Oil Level Check Assist

Compass

17 NSX-31T6N6000.book  98 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

99

uu

Gauges and Displays

u

Driver Information Interface

Continued

In

strum

e

nt Pa

nel

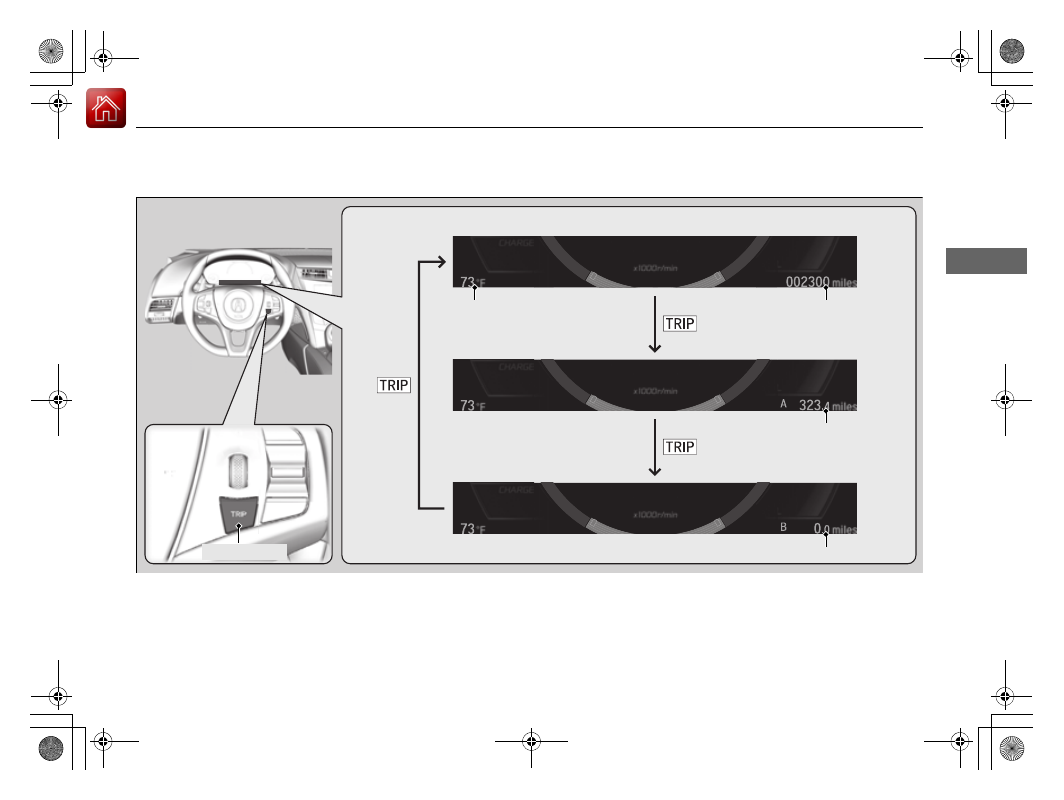

Press the TRIP button to change the display.

Odometer

Trip A

Trip B

TRIP Button

Outside Temperature

17 NSX-31T6N6000.book  99 ページ  ２０１６年４月２２日　金曜日　午後３時４４分
