68

Safe Driving

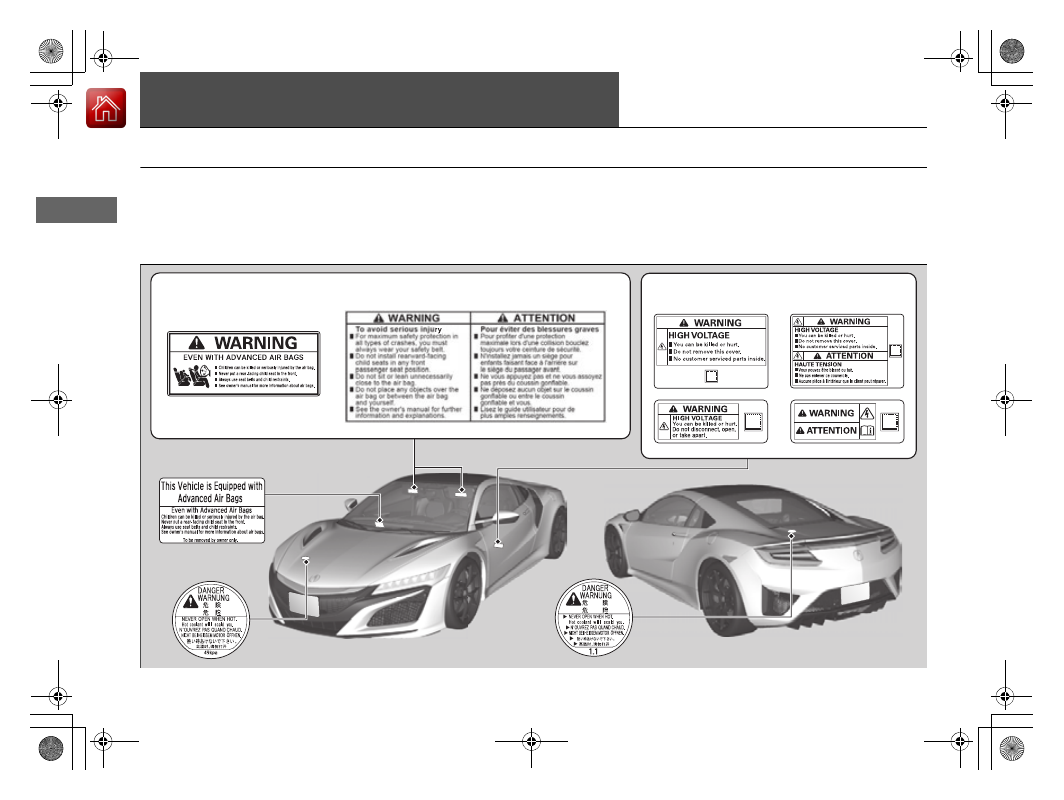

Safety Labels

Label Locations

These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.

If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact an
authorized Acura NSX dealer for a replacement.

Inverter Coolant Filler
Tank Cap

Sun Visors

U.S. models

Canadian models

Engine Coolant Reserve Tank Cap

High Voltage System Components

U.S. models

Canadian models

Dashboard

U.S. models only

17 NSX-31T6N6000.book  68 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

69

Instrument Panel

This chapter describes the buttons, indicators, and gauges that are used while driving.

Indicators ............................................ 70

Driver Information Interface Warning and

Information Messages...................... 83

Gauges and Displays .......................... 95

Gauges.............................................. 95
Driver Information Interface ............... 98

17 NSX-31T6N6000.book  69 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

70

In

strum

e

nt Pa

nel

Indicators

Indicator

Name

On/Blinking

Explanation

Message

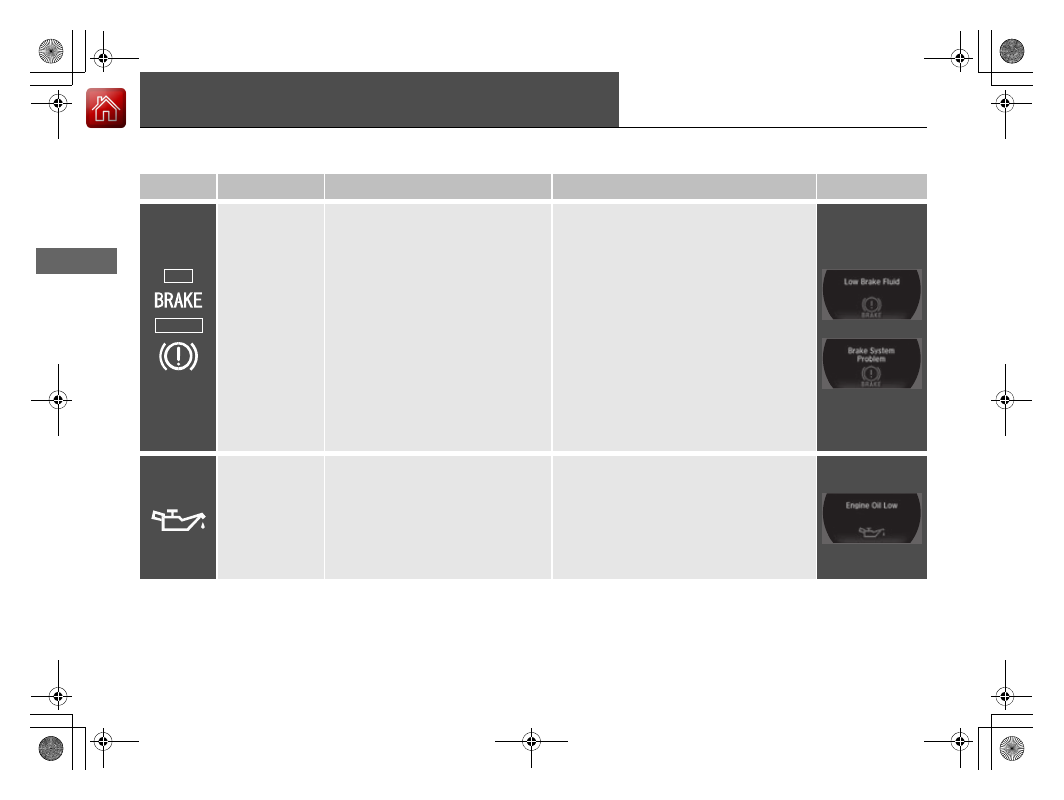

Brake System
Indicator (Red)

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on when the brake fluid
level is low.

●

Comes on if there is a problem with
the brake system.

●

Comes on while driving - Check the
brake fluid level.

2 What to do when the indicator comes

on while driving P. 439

●

Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact an authorized Acura
NSX dealer for repair. The brake pedal
becomes harder to operate. Depress the
pedal further than you normally do.

●

Comes on along with the ABS
indicator - Have your vehicle checked by
an authorized Acura NSX dealer.

2 If the Brake System Indicator (Red)

Comes On P. 439

Low Oil Pressure
Indicator

●

Comes on when you set the power
mode to ON, and goes off when the
power system starts.

●

Comes on when the engine oil
pressure is low.

●

Comes on if there is a problem with
the engine oil pressure system.

●

Comes on while driving - Immediately
stop in a safe place and set the power
mode to VEHICLE OFF (LOCK), then
contact an authorized Acura NSX dealer.

U.S.

Canada

(Red)

17 NSX-31T6N6000.book  70 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

71

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

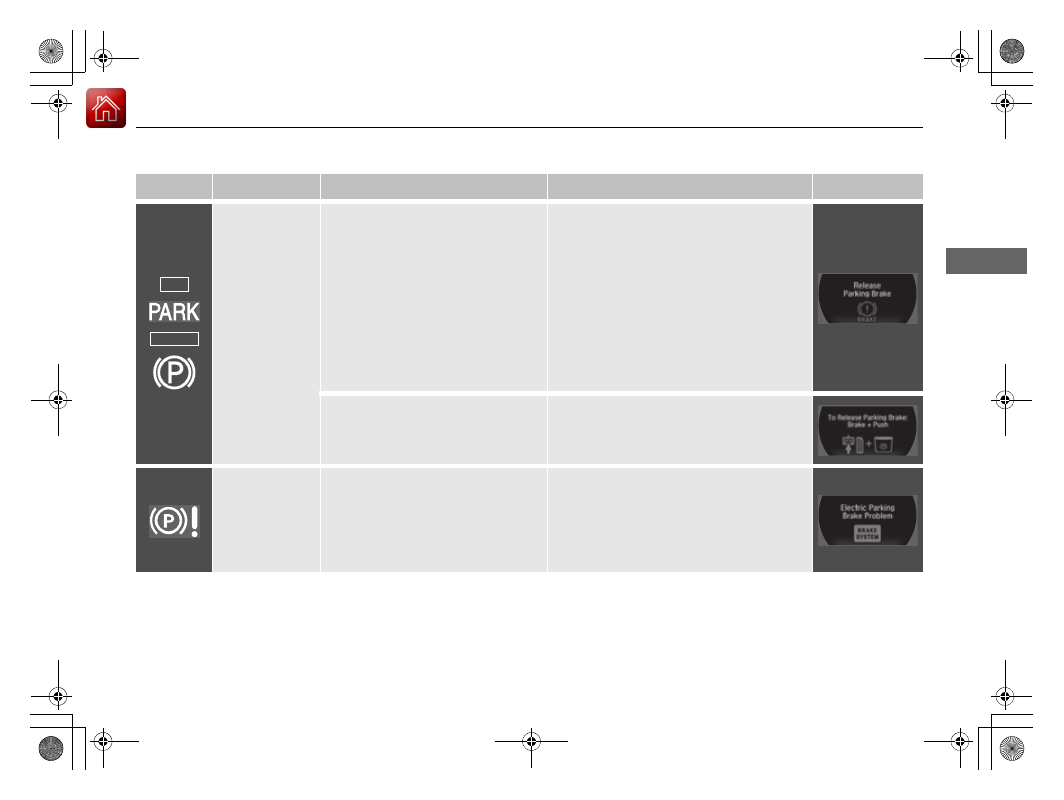

Electric Parking
Brake Indicator

●

Comes on when the parking brake
is applied, and goes off when it is
released.

●

Comes on for about 15 seconds
then goes off when you pull the
electric parking brake switch with
the power mode in OFF.

●

Comes on for about 15 seconds
then goes off when you set the
power mode to OFF with the
parking brake applied.

●

Blinks and the electric parking brake
system indicator comes on at the same
time - There is a problem with the electric
parking brake system. The parking brake
may not be set.

●

Comes on when you press the
electric parking brake switch
without depressing the brake pedal.

●

Depress the brake pedal to release the
parking brake.

2 Parking Brake P. 344

Electric Parking
Brake System
Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on if there is a problem with
the electric parking brake system.

●

Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by an authorized Acura NSX
dealer immediately.

2 If the Electric Parking Brake System

Indicator Comes On P. 440

U.S.

Canada

17 NSX-31T6N6000.book  71 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

72

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

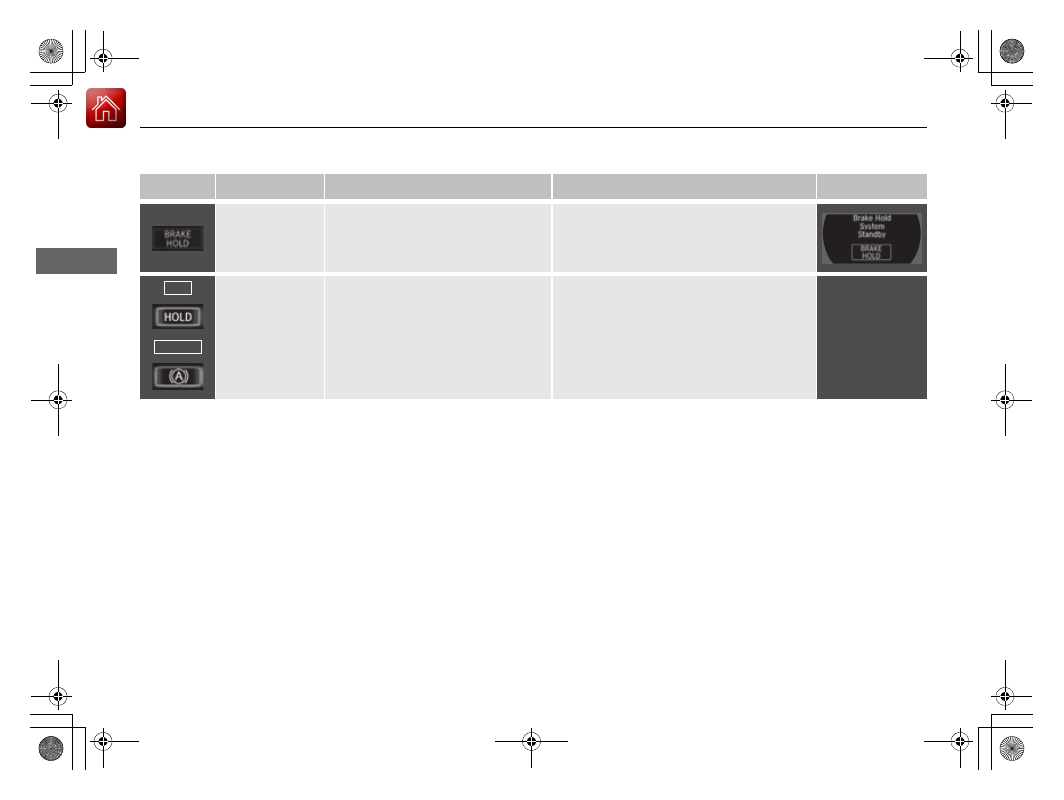

Automatic Brake
Hold System
Indicator

●

Comes on when the automatic
brake hold system is on.

2 Automatic Brake Hold P. 347

Automatic Brake
Hold Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on when the automatic
brake hold is activated.

2 Automatic Brake Hold P. 347

—

U.S.

Canada

17 NSX-31T6N6000.book  72 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

73

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

Brake System
Indicator
(Amber)

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on if there is a problem with
a system related to braking other
than the conventional brake system.

●

Comes on if there is a problem with
the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.

●

Comes on while driving - Have your
vehicle checked by an authorized Acura
NSX dealer.

●

Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to an
authorized Acura NSX dealer immediately.

●

With this indicator on, your vehicle still has
normal braking ability.

U.S.

Canada

(Amber)

U.S.

Canada

17 NSX-31T6N6000.book  73 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

74

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

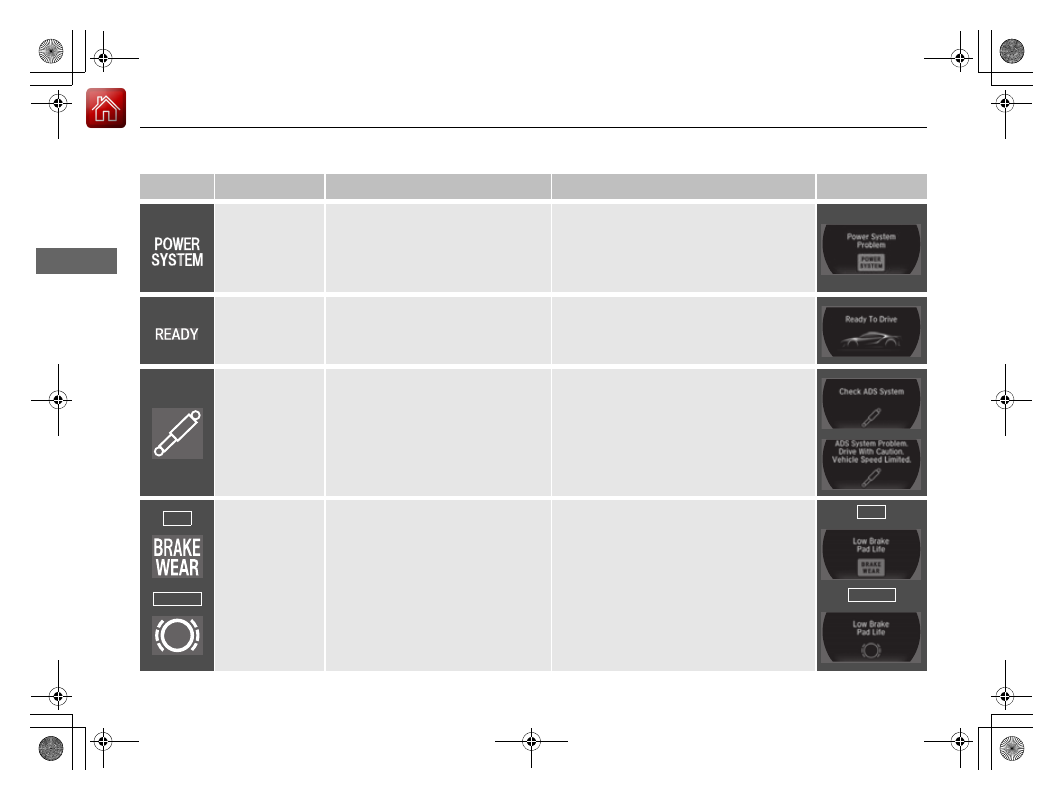

POWER SYSTEM
Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on if there is a problem with
the electric vehicle system.

●

Comes on while driving - Have your
vehicle checked by an authorized Acura
NSX dealer immediately.

READY Indicator

●

Comes on when the vehicle is ready
to drive.

2 Turning on the Power P. 309

Active Damper
System Indicator

●

Comes on for a few seconds when
you change the power mode to ON,
then goes off.

●

Comes on if there is a problem with
the Active Damper System. The
speed of the vehicle will be limited.

●

Stays on constantly - Have the vehicle
checked by an authorized Acura NSX
dealer. With this indicator on, your vehicle
has normal damping ability without the
active damper feature.

2 Integrated Dynamics System (IDS)

P. 323

Brake Wear
Indicator

*

●

Comes on for a few seconds when
you change the power mode to ON,
then goes off.

●

Comes on if a worn brake pad is
detected.

●

Comes on while driving - The brake
pads may need to be replaced. Have your
vehicle inspected by an authorized Acura
NSX dealer.

U.S.

Canada

U.S.

Canada

* Not available on all models

17 NSX-31T6N6000.book  74 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

75

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

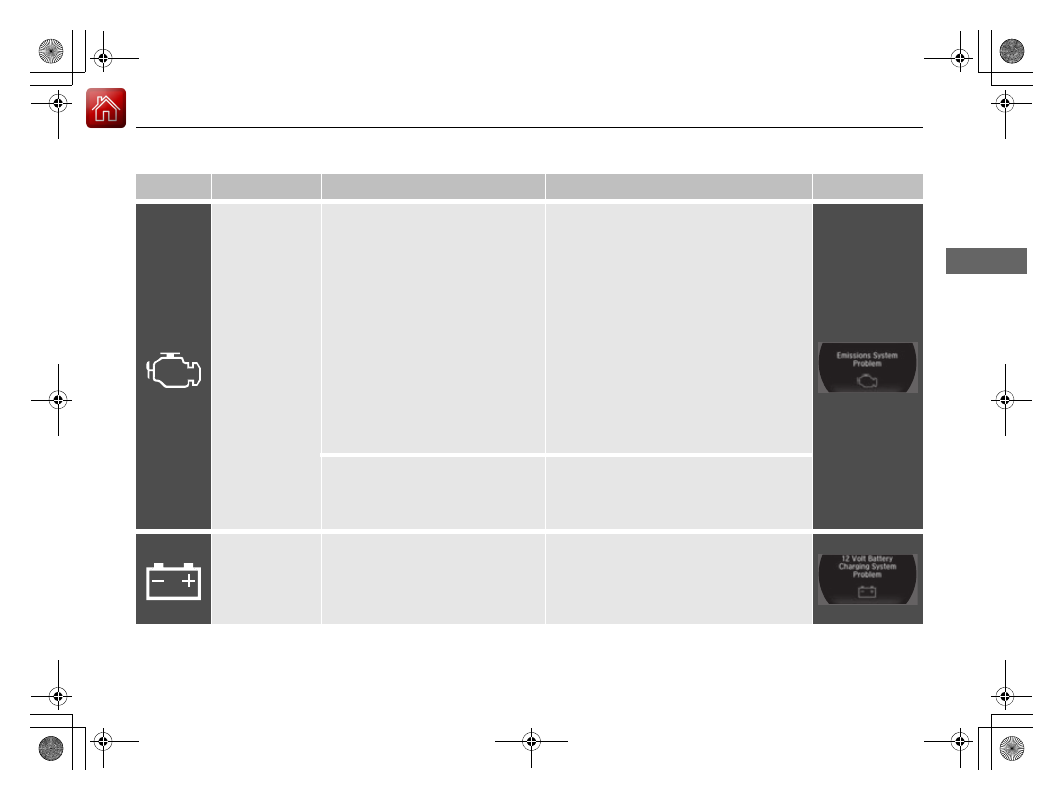

Malfunction
Indicator Lamp

●

Comes on when you set the power
mode to ON, and goes off either
when the power system is on or
after several seconds if the power
system did not turn on. If
“readiness codes” have not been
set, it blinks five times before it
goes off.

●

Comes on if there is a problem with
the emissions control system.

●

Blinks when a misfire in the
engine’s cylinders is detected.

●

Readiness codes are part of the on board
diagnostics for the emissions control
systems.

2 Testing of Readiness Codes P. 459

●

Comes on while driving - Have your
vehicle checked by an authorized Acura
NSX dealer.

●

Blinks while driving - Stop in a safe place
where there are no flammable objects.
Stop the power system for 10 minutes or
more, and wait for it to cool down. Then,
take the vehicle to an authorized Acura
NSX dealer.

2 If the Malfunction Indicator Lamp

Comes On or Blinks P. 438

●

Comes on if there is a problem with
the gear shift mechanism.

●

Comes on and gear position indicator
blinks at the same time - Have your
vehicle checked by an authorized Acura
NSX dealer.

12-Volt Battery
Charging System
Indicator

●

Comes on when you set the power
mode to ON, and goes off when
the power system is on.

●

Comes on when the 12-volt battery
is not charging.

●

Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity consumption.

2 If the 12-Volt Battery Charging

System Indicator Comes On P. 438

17 NSX-31T6N6000.book  75 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

76

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

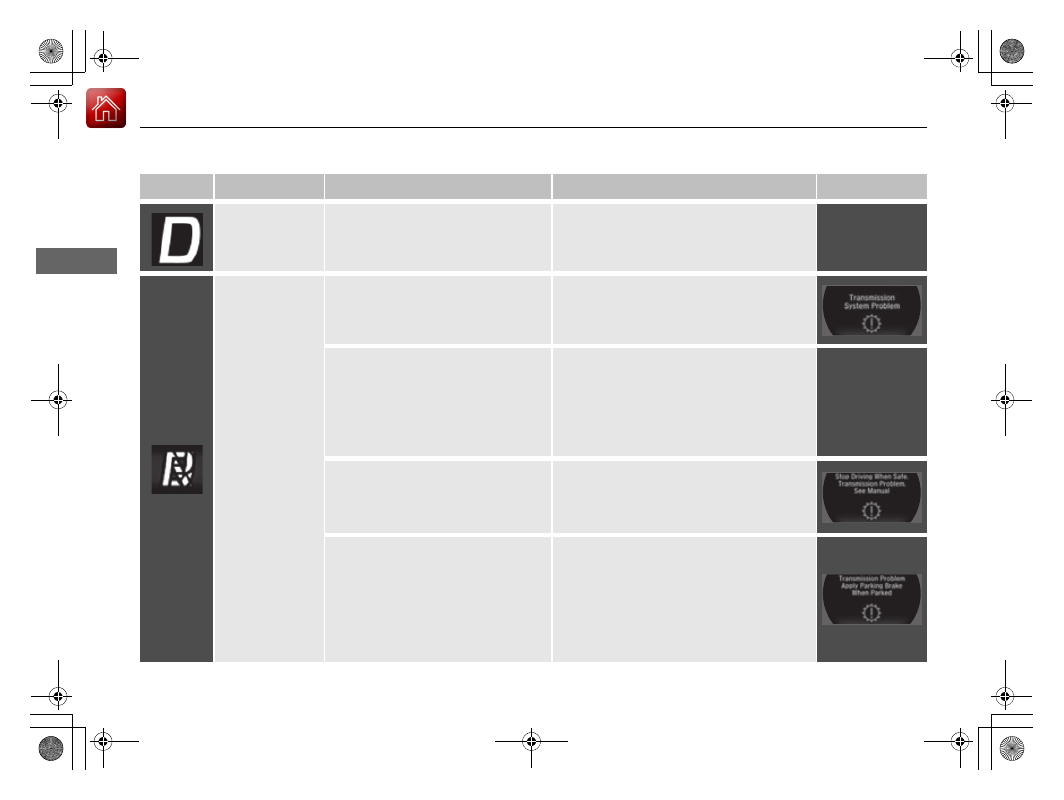

Gear Position
Indicator

●

Indicates the current gear selection.

2 Shifting P. 314

—

Transmission
System Indicator

●

The indicated current gear selection
blinks if there is a problem with the
transmission system.

●

Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by an
authorized Acura NSX dealer.

●

All the gear positions may light for
several seconds, and go off.

●

When all the gear positions light,
immediately stop your vehicle in a safe
place.

●

Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to an authorized Acura NSX dealer
for inspection.

—

●

The indicated current gear selection
or all the gear positions blink if there
is a problem with the transmission
system.

●

Immediately stop in a safe place.

2 Emergency Towing P. 448

●

Have your vehicle checked by an
authorized Acura NSX dealer.

●

The indicated current gear selection
or all the gear positions blink if you
cannot select

(

P due to the

transmission system failure.

●

The power system can be activated as a
temporary measure.

2 If the Transmission System Indicator

Blinks along with the Warning
Message P. 442

●

Set the parking brake when parking.

●

Have your vehicle checked by an
authorized Acura NSX dealer immediately.

17 NSX-31T6N6000.book  76 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

77

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

Seat Belt
Reminder
Indicator

●

Comes on and the beeper sounds if
you are not wearing a seat belt
when you set the power mode to
ON.

●

If the passenger is not wearing a
seat belt, the indicator comes on a
few seconds later.

●

Blinks while driving if either you or
the passenger has not fastened a
seat belt. The beeper sounds and
the indicator blinks at regular
intervals.

●

The beeper stops and the indicator goes off
when you and the passenger fasten their
seat belts.

●

Stays on after you or the passenger has
fastened the seat belt - A detection error
may have occurred in the sensor. Have your
vehicle checked by an authorized Acura
NSX dealer.

2 Seat Belt Reminder P. 37

Low Fuel Indicator

●

Comes on when the fuel reserve is
running low (approximately 2.4
U.S. gal/8.9 Liter left).

●

Blinks if there is a problem with the
fuel gauge.

●

Comes on - Refuel your vehicle as soon as
possible.

●

Blinks - Have your vehicle checked by an
authorized Acura NSX dealer.

17 NSX-31T6N6000.book  77 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

78

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

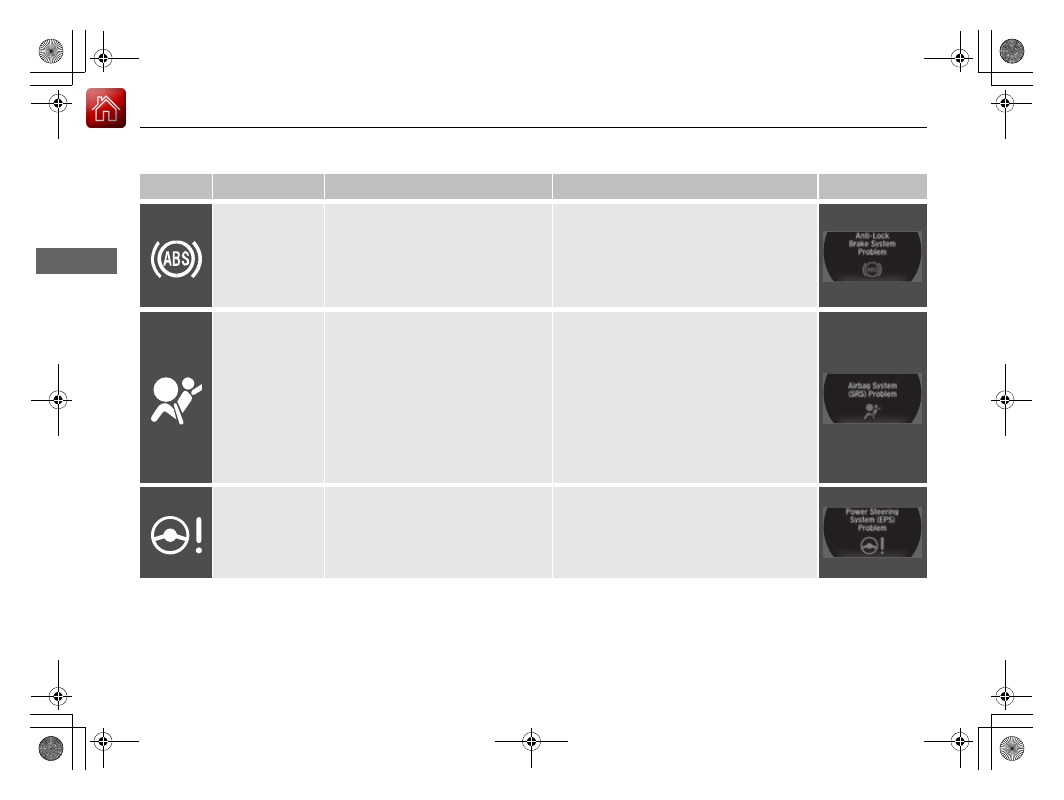

Anti-lock Brake
System (ABS)
Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

If it comes on at any other time,
there is a problem with the ABS.

●

Stays on constantly - Have your vehicle
checked by an authorized Acura NSX
dealer. With this indicator on, your vehicle
still has normal braking ability but no
anti-lock function.

2 Anti-lock Brake System (ABS) P. 349

Supplemental
Restraint System
Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on if a problem with any of
the following is detected:
- Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Knee airbag system
- Seat belt tensioner

●

Stays on constantly or does not come
on at all - Have your vehicle checked by
an authorized Acura NSX dealer.

Electric Power
Steering (EPS)
System Indicator

●

Comes on when you set the power
mode to ON, and goes off when the
power system is on.

●

Comes on if there is a problem with
the EPS system.

●

Stays on constantly or does not come
on at all - Have your vehicle checked by
an authorized Acura NSX dealer.

2 If the Electric Power Steering (EPS)

System Indicator Comes On P. 439

17 NSX-31T6N6000.book  78 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

79

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

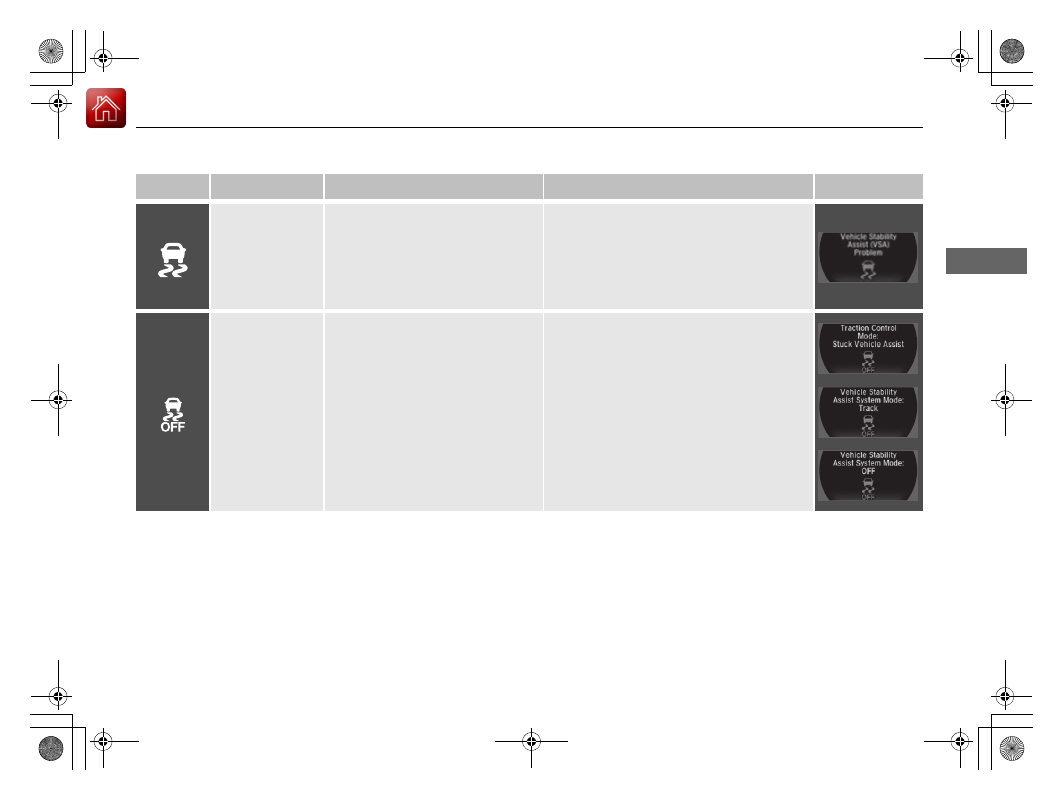

Vehicle Stability
Assist (VSA®)
System Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Blinks when VSA® is active.

●

Comes on if there is a problem
with the VSA® system.

●

Stays on constantly - Have your vehicle
checked by an authorized Acura NSX
dealer.

2 Vehicle Stability Assist (VSA®), aka

Electronic Stability Control (ESC),
System P. 333

Vehicle Stability
Assist (VSA®) OFF
Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on when you press the
VSA® OFF button to change VSA®
mode.

●

Comes on when you select TRACK
mode by the IDS Mode switch.

2 VSA® OFF Button P. 334
2 Integrated Dynamics System (IDS)

P. 323

17 NSX-31T6N6000.book  79 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

80

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

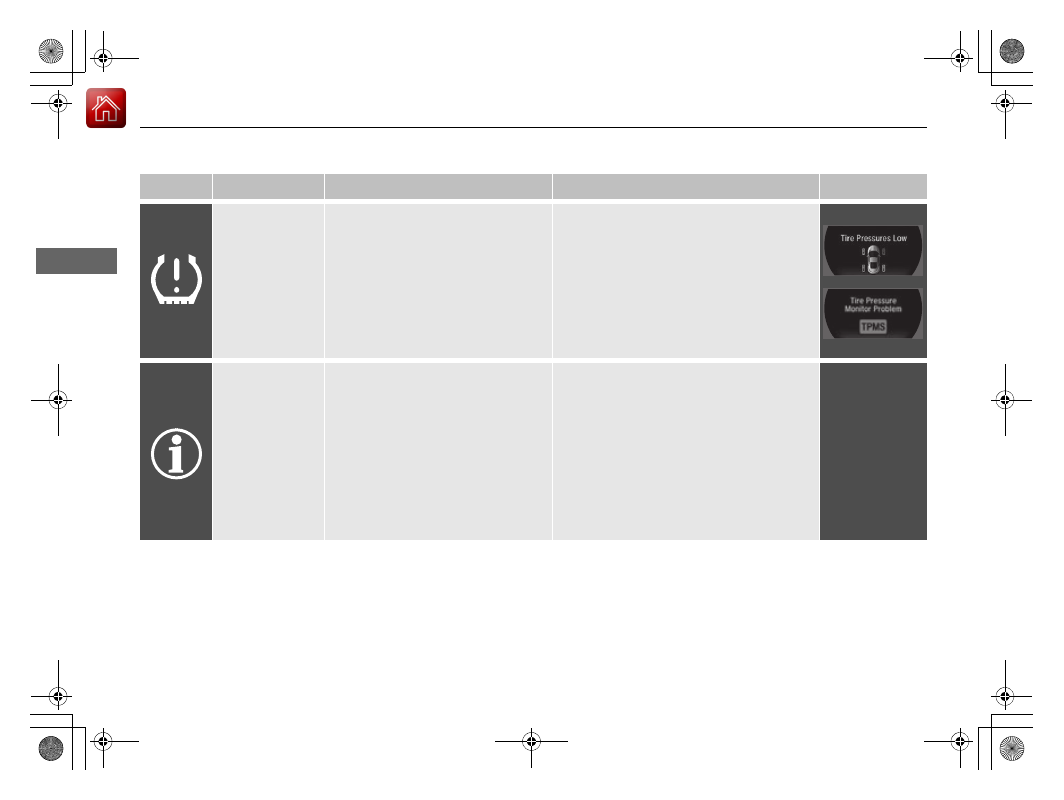

Low Tire Pressure/
TPMS Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on if the tire pressure of any
of the tires becomes significantly
low.

●

Blinks for about one minute, and
then stays on if there is a problem
with the TPMS.

●

Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.

●

Blinks and remains on - Have your
vehicle checked by an authorized Acura
NSX dealer.

System Message
Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on along with a beep when
a problem is detected. A system
message on the driver information
interface appears at the same time.

●

While the indicator is on, roll the right
selector wheel to see the message again.

●

Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.

●

The driver information interface does not
return to the normal screen unless the
warning is canceled, or the right selector
wheel is rolled.

—

17 NSX-31T6N6000.book  80 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

81

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

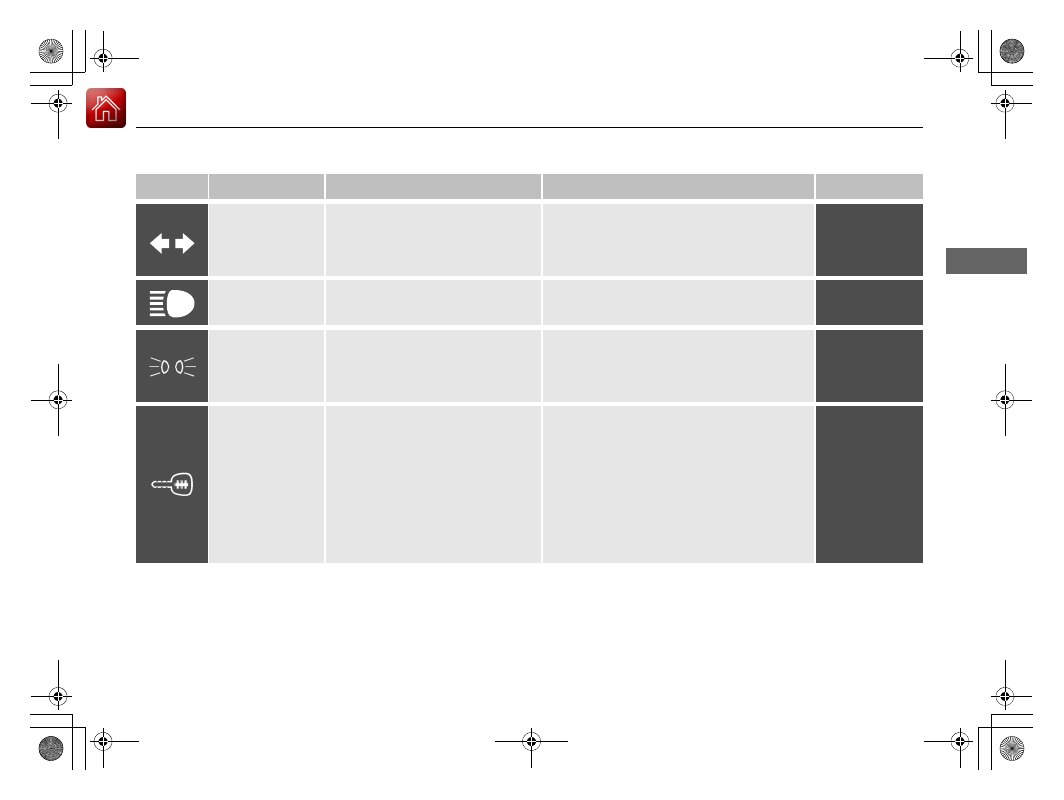

Turn Signal and
Hazard Warning
Indicators

●

Blinks when you operate the turn
signal lever.

●

Blink if you press the hazard
warning button.

●

Does not blink or blinks rapidly - Have
your vehicle checked by an authorized
Acura NSX dealer.

2 Replacing Light Bulbs P. 387, 388

—

High Beam
Indicator

●

Comes on when the high beam
headlights are on.

—

—

Lights On Indicator

●

Comes on whenever the light
switch is on, or in AUTO when the
exterior lights are on.

●

If you set the power mode to VEHICLE OFF
(LOCK) while the exterior lights are on, a
chime sounds when the driver’s door is
opened.

—

Immobilizer
System Indicator

●

Comes on briefly when you set
the power mode to ON, then goes
off.

●

Comes on if the immobilizer
system cannot recognize the key
information.

●

Blinks - You cannot start the power system.
Set the power mode to VEHICLE OFF
(LOCK), then select the ON mode again.

●

Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked
by an authorized Acura NSX dealer.

●

Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.

—

17 NSX-31T6N6000.book  81 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

82

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

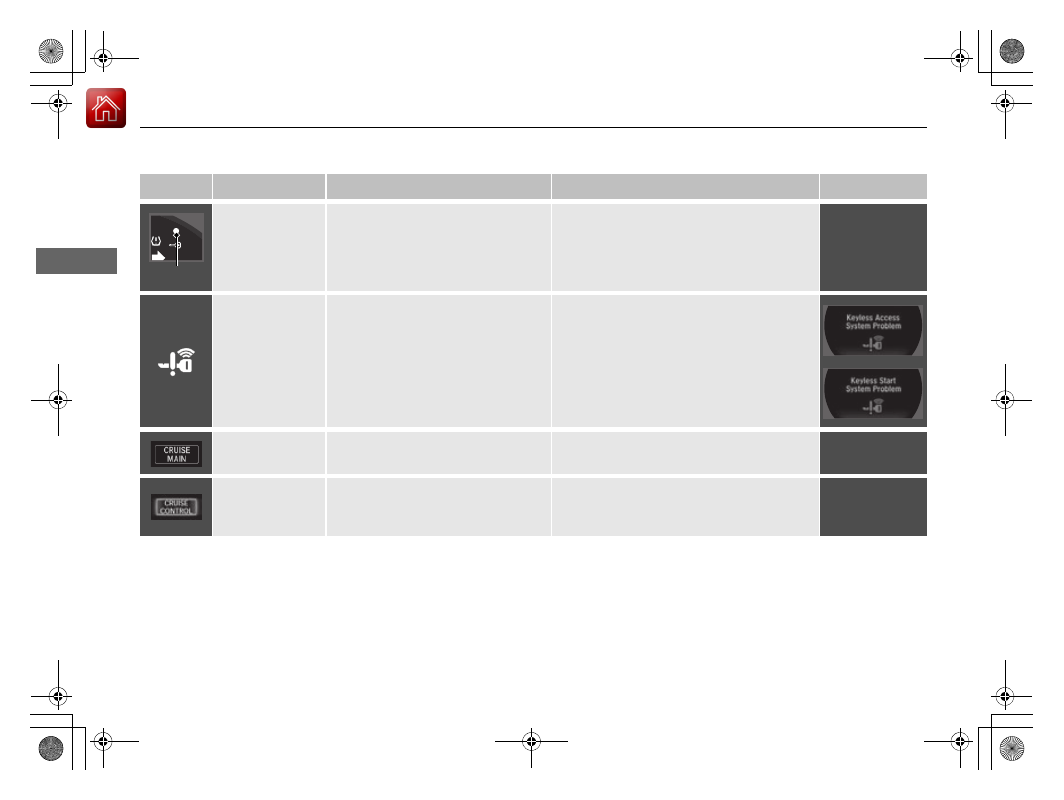

Security System
Alarm Indicator

●

Blinks when the security system
alarm has been set.

2 Security System Alarm P. 122

—

Keyless Access
System Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on as soon as a problem is
detected in the keyless access
system or keyless starting system.

●

Have your vehicle checked by an
authorized Acura NSX dealer.

CRUISE MAIN
Indicator

●

Comes on when you press the
CRUISE button.

2 Cruise Control P. 330

—

CRUISE
CONTROL
Indicator

●

Comes on if you have set a speed
for cruise control.

2 Cruise Control P. 330

—

Indicator

17 NSX-31T6N6000.book  82 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

83

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

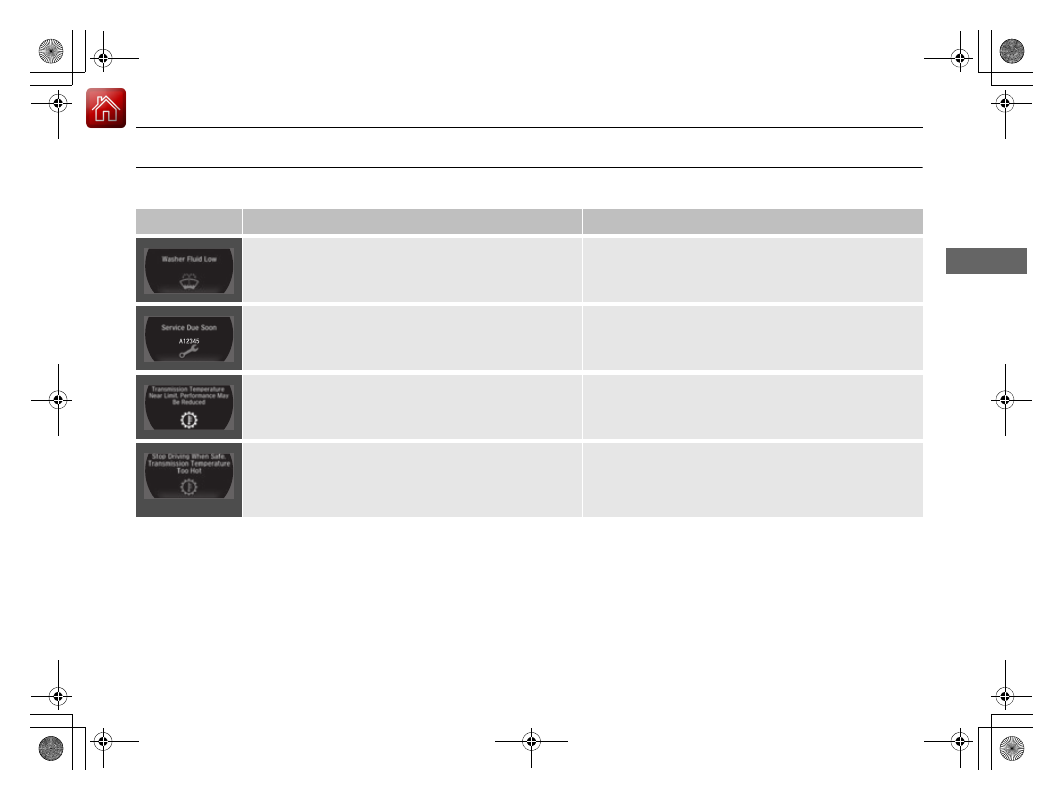

Driver Information Interface Warning and Information Messages

The following messages appear only on the driver information interface. Roll the right selector wheel to see the message again with the
system message indicator on.

Message

Condition

Explanation

●

Appears when the washer fluid is low.

●

Refill the washer fluid.

2 Refilling Window Washer Fluid P. 386

●

Appears when the scheduled maintenance is due soon.

●

Consequently, Service Due Now and Service Past
Due follow.

2 Maintenance Minder Messages on the Driver

Information Interface P. 367

●

Appears when the temperature of the transmission is
starting to get too hot.

●

The performance of the vehicle may be reduced.

●

It may not be possible to use the paddle shifters.

●

Until the message disappears, reduce your speed and
allow the system to cool down.

●

Appears when the transmission system temperature is
too high. The vehicle does not operate properly.

●

You may find it difficult to accelerate, or to start the
vehicle on uphill.

●

Immediately stop in a safe place in

(

P.

●

Let the engine idle until the message disappears.

17 NSX-31T6N6000.book  83 ページ  ２０１６年４月２２日　金曜日　午後３時４４分
