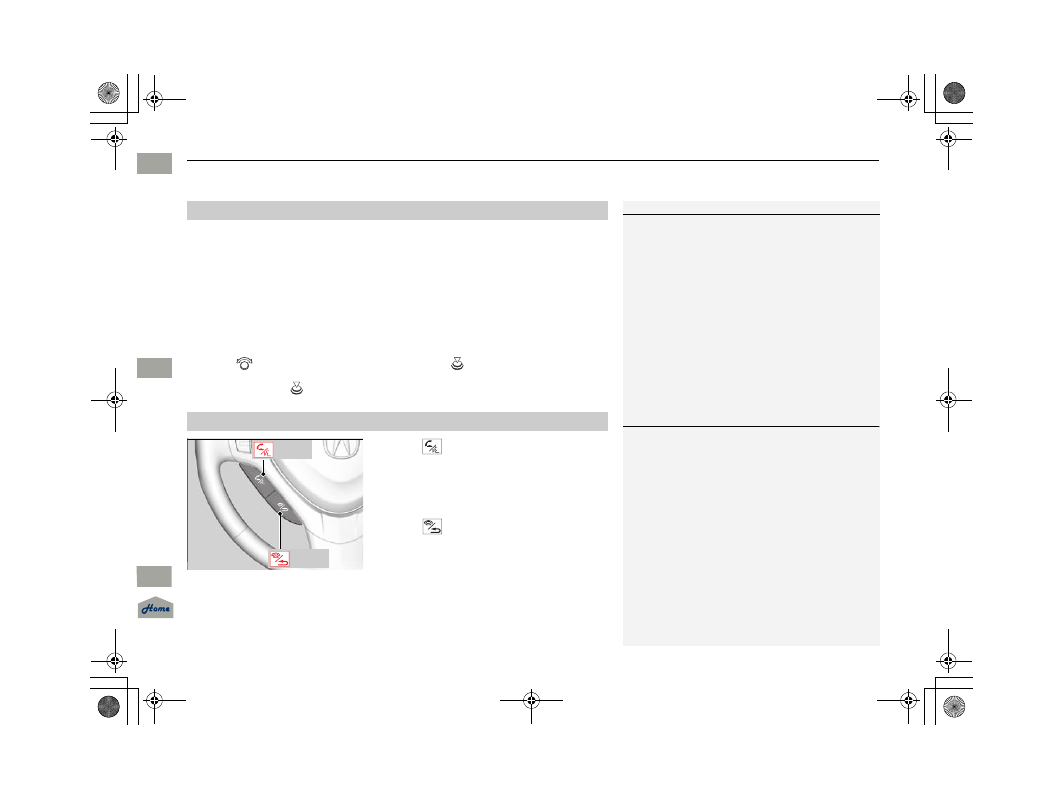

Audio System Basic Operation

u

Playing Bluetooth® Audio

166



1. Make sure that your phone is paired and connected to HFL.

2. Press the AUX button.

If the phone is not recognized, another HFL-compatible phone, which is not
compatible for Bluetooth® Audio, may already be connected.

■

To pause or resume a file

1. Press the MENU button.

2. Rotate

 to select RESUME/PAUSE, then press

.

Each time you press

, the setting switches between PAUSE and RESUME.

Press the

 (HFL Talk) button on the steering

wheel to receive a call when Bluetooth® Audio
is playing.

2 Bluetooth® HandsFreeLink® P. 175

Press the

 (HFL Back) button to end the call

and return to Bluetooth® Audio.

■

To Play Bluetooth® Audio Files

■

Switching to HFL

1

To Play Bluetooth® Audio Files

To play the audio files, you may need to operate your
phone. If so, follow the phone maker’s operating
instructions.

The pause function may not be available on some
phones.

If any audio device is connected to the auxiliary input
jack, you may need to press the AUX button
repeatedly to select the Bluetooth® Audio system.

Switching to another mode pauses the music playing
from your phone.

1

Switching to HFL

If you receive a call while Bluetooth® Audio is in the
pause mode, it will resume play after ending the call.

 Button

 Button

14 ACURA TSX 5D-31TL76300.book  166 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

167

Audio Error Messages

CD Player

If a disc error occurs, you may see the following error messages.

Error Message

Cause

Solution

HEAT ERROR

High temperature

●

Turn the audio system off and allow the player to cool down until
the error message is cleared.

UNSUPPORTED

Track/file format not supported

●

Current track/file will be skipped. The next supported track/file
plays automatically.

BAD DISC
PLEASE CHECK OWNERS
MANUAL
PUSH EJECT

Mechanical error

●

Press the

 (eject) button and remove the disc, and check that the

error message is cleared.

●

Check that the disc is not damaged or deformed, and insert the
disc again.

2 Protecting CDs P. 171

●

If the error message reappears, press the

 button, and pull out

the disc.

●

Insert a different disc.
If the new disc plays, there is a problem with the first disc.

●

If the error message repeats, or the disc cannot be removed,
contact your dealer.
Do not try to force the disc out of the player.

MECH ERROR

CHECK DISK LOAD

BAD DISC
PLEASE CHECK OWNERS
MANUAL

Servo error

CHECK DISC

Disc error

●

Check that the disc is not damaged or deformed.

2 Protecting CDs P. 171

14 ACURA TSX 5D-31TL76300.book  167 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

168

uu

Audio Error Messages

u

iPod®/USB Flash Drive



iPod®/USB Flash Drive

If an error occurs while playing an iPod® or USB flash drive, you may see the following error messages.
If you cannot clear the error message, contact a dealer.

Error Message

Solution

USB ERROR

Appears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.

BAD USB DEVICE
PLEASE CHECK OWNERS
MANUAL

Appears when an incompatible device is connected. Disconnect the device. Then turn the audio system
off, and turn it on again. Do not reconnect the device that caused the error.

iPod NO SONG

Appears when the iPod® is empty. Check that compatible files are stored on the device.

UNSUPPORTED VER.

Appears when an unsupported iPod® is connected. If it appears when a supported iPod® is connected,
update the iPod® software to the newer version.

CONNECT RETRY

Appears when the system does not acknowledge the iPod®. Reconnect the iPod®.

UNPLAYABLE FILE

Appears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.

USB NO SONG

Appears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in the USB flash
drive. Check that compatible files are stored on the device.

UNSUPPORTED

Appears when an unsupported device is connected. If it appears when the supported device is
connected, reconnect the device.

14 ACURA TSX 5D-31TL76300.book  168 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

169

General Information on the Audio System

XM® Radio Service

1. You need your radio ID ready before registering for subscription.

To see the ID in the display: Turn the selector knob until 0 appears.

2. Have your radio ID and credit card number ready, and either call or visit the XM®

website to subscribe.

Press the

 (XM®) button and stay in this mode for about 30 minutes until the

service is activated. Make sure your vehicle is in an open area with good reception.

LOADING: XM® is loading the audio or program information.

OFF AIR: The channel is not currently broadcasting.

UPDATING: The encryption code is being updated. Channels 0 and 1 still work
normally.

NO SIGNAL: The signal is too weak in the current location.

--------: No such channel exists, the channel is not part of your subscription, or the
artist or title information is unavailable.

ANTENNA: There is a problem with the XM® antenna. Contact a dealer.

■

Subscribing to XM® Radio

■

Receiving XM® Radio

■

XM® Radio Display Messages

1

Subscribing to XM® Radio

Contact Information for XM® Radio:

US:

 XM® Radio at www.siriusxm.com, or

(800) 852- 9696

1

Receiving XM® Radio

The XM® satellites are in orbit over the equator;
therefore, objects south of the vehicle may cause
satellite reception interruptions. Satellite signals are
more likely to be blocked by tall buildings and
mountains the farther north you travel from the
equator.

You may experience reception problems under the
following circumstances:

•

In a location with an obstruction to the south of
your vehicle.

•

In tunnels

•

On the lower level of a multi-tiered road

•

Large items carried on the roof rack

14 ACURA TSX 5D-31TL76300.book  169 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

170

uu

General Information on the Audio System

u

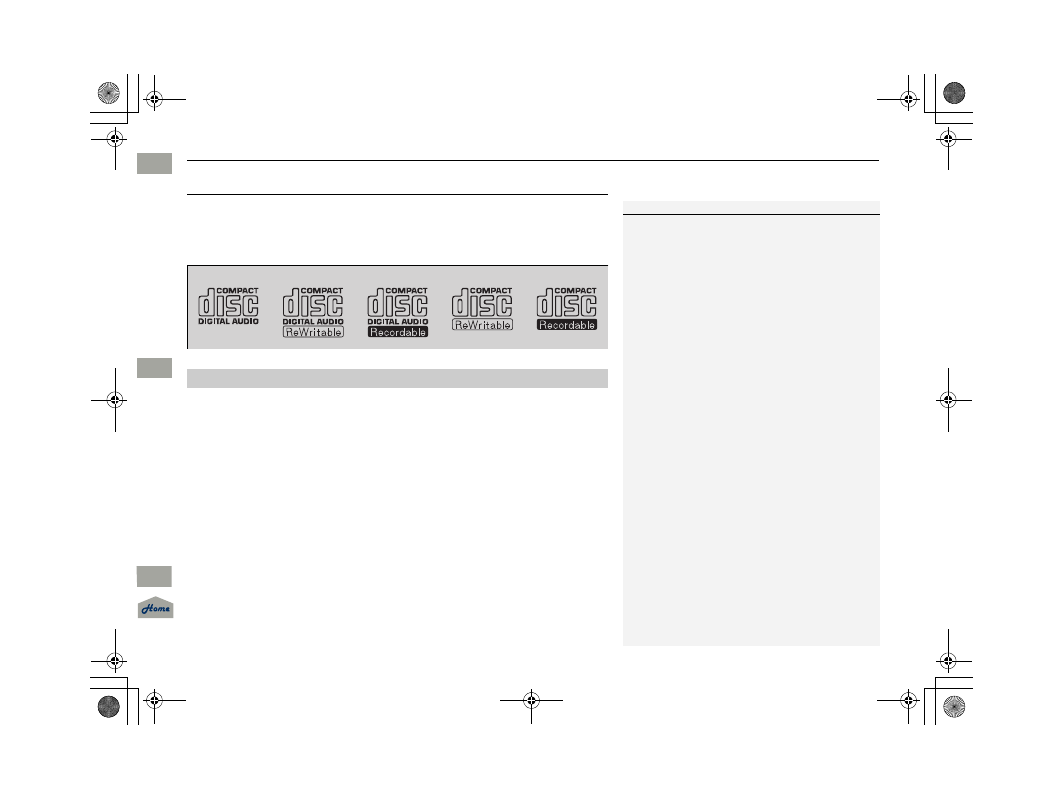

Recommended CDs



Recommended CDs

• Use only high-quality CD-R or CD-RW discs labeled for audio use.

• Use only CD-R or CD-RW discs on which the recordings are closed.

• Play only standard round-shaped CDs.

• Some software files may not allow for audio play or text data display.

• Some versions of MP3, WMA, or AAC formats may be unsupported.

1

Recommended CDs

A Dual-disc cannot play on this audio unit. If recorded
under certain conditions, a CD-R or CD-RW may not
play either.

■

CDs with MP3, WMA or AAC files

The CD packages or jackets should have one of these marks.

14 ACURA TSX 5D-31TL76300.book  170 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

171

uu

General Information on the Audio System

u

Recommended CDs

■

Protecting CDs

Follow these precautions when handling or storing CDs:

• Store a CD in its case when it is not being played.

• When wiping a CD, use a soft clean cloth from the center to the outside edge.

• Handle a CD by its edge. Never touch either surface.

• Never insert foreign objects into the CD player.

• Keep CDs out of direct sunlight and extreme heat.

• Do not place stabilizer rings or labels on the CD.

• Avoid fingerprints, liquids, and felt-tip pens on the CD.

1

Protecting CDs

NOTICE

Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.

14 ACURA TSX 5D-31TL76300.book  171 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

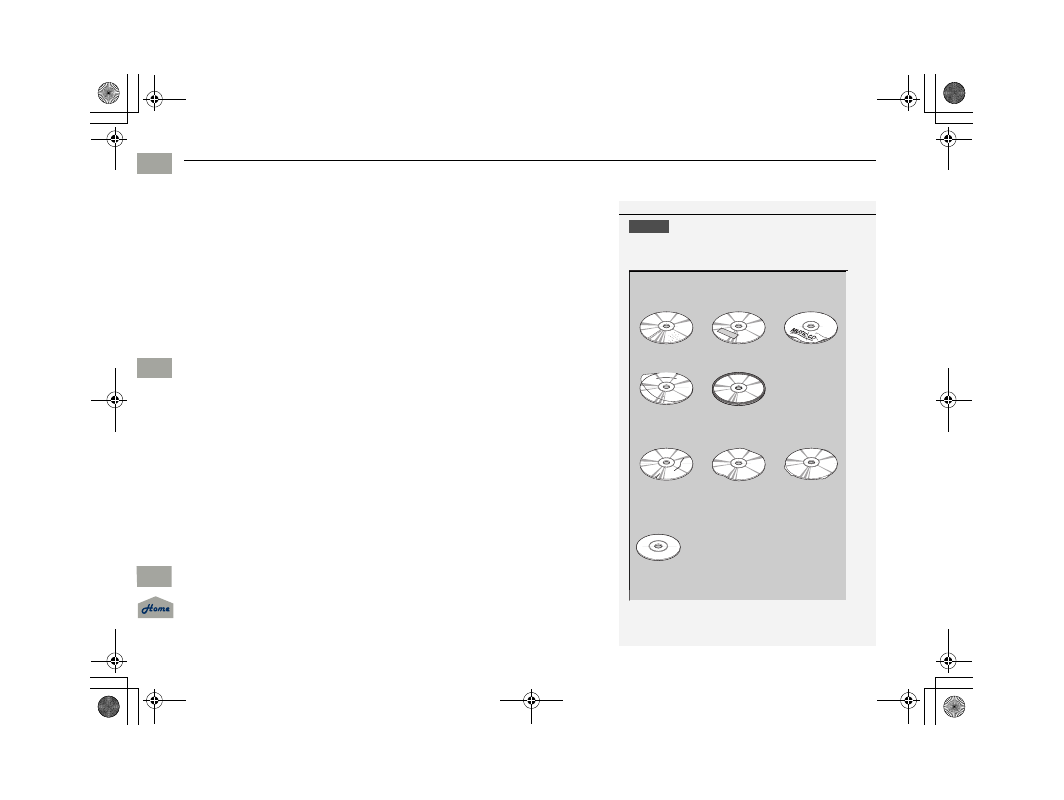

Examples:

●

Damaged CDs

Bubbled/
Wrinkled

With Label/
Sticker

Using
Printer Label

Kit

Sealed

  With Plastic Ring

● Poor quality  CDs

Chipped/
Cracked

Warped

Burrs

● Small CDs

3-inch
(8-cm)
CD

● Bubbled, wrinkled, labeled, and

excessively thick CDs

2014 TSX Sport Wagon

172

uu

General Information on the Audio System

u

Compatible iPod® and USB Flash Drives



Compatible iPod® and USB Flash Drives

• Use a recommended USB flash drive of 256 MB or higher.

• Some digital audio players may not be compatible.

• Some USB flash drives (e.g., a device with security lockout) may not work.

• Some software files may not allow for audio play or text data display.

• Some versions of MP3, WMA, or AAC formats may be unsupported.

■

iPod® Model Compatibility

Model

iPod® (5th generation)
iPod classic® 80/160GB (launched in 2007)
iPod classic® 120GB (launched in 2008)
iPod classic® 160GB (launched in 2009)
iPod touch® (1st to 4th generation

*

)

*

launched in 2011

iPod nano® (1st to 6th generation

*

)

*

launched in 2011

■

USB Flash Drives

1

iPod® Model Compatibility

This system may not work with all software versions
of these devices.

1

USB Flash Drives

Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.

* Not available on all models

14 ACURA TSX 5D-31TL76300.book  172 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

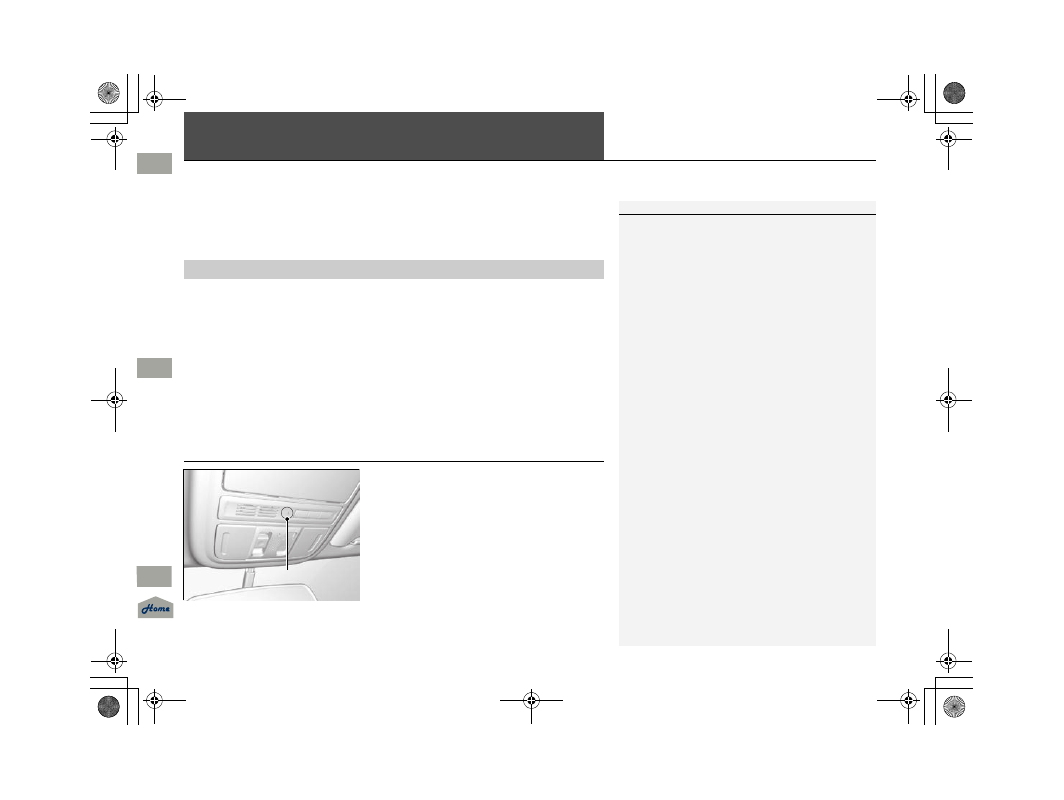

173

Continued

HomeLink® Universal Transceiver

The HomeLink® Universal Transceiver can be programmed to operate up to three
remote controlled devices around your home, such as garage doors, lighting, or
home security systems.

Refer to the safety information that comes with your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.

Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.

When programming a garage door opener, park just outside the garage
door’s path.

Training HomeLink

If you have not trained any of the buttons in
HomeLink before, you should erase any
previously learned codes. To do this:

• Press and hold the two outside buttons for

about 20 seconds, until the red indicator
blinks. Release the buttons, and proceed to
step 1.

• If you are training the second or third

button, go directly to step 1.

■

Important Safety Precautions

1

HomeLink® Universal Transceiver

HomeLink® is a registered trademark of Johnson
Controls., Inc.

Before programming HomeLink to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and reverse stop features. If it
does not, HomeLink may not be able to operate it.

Red Indicator

14 ACURA TSX 5D-31TL76300.book  173 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

uu

HomeLink® Universal Transceiver

u

Training HomeLink

174



■

Training a Button

1

Training HomeLink

Retraining a Button
If you want to retrain a programmed button for a
new device, you do not have to erase all button
memory. You can replace the existing memory code
using this procedure:

Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink indicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.

If you have any problems, see the device’s
instructions, visit www.homelink.com, or call
HomeLink at (800) 355-3515.

1.

Press and hold the desired HomeLink button until the
HomeLink indicator begins to blink.

2.

Continue to hold the HomeLink button and follow steps
1 - 3 under “Training a Button.”

Indicator remains on for
about 25 secs.

Standard transmitter

Indicator blinks rapidly for
two secs, then remains on
for about 23 secs.

Rolling code transmitter

1.

Position the remote transmitter you wish to link 1 to 3 inches (3-8 cm) from the HomeLink
button you want to program.

2.

3.

Press and hold the desired HomeLink button and the button on
the remote transmitter.
Does the HomeLink indicator (LED) blink after 10 secs?

Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work?

a.

4.

5.

a.

b.

Training

Complete

Press and hold the
HomeLink button again.
The remote-controlled
device should operate.

The remote has a rolling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).

Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.

Press and hold the HomeLink button again.

Training Complete

NO

Press and hold the remote and the HomeLink
button at the same time. Then, while
continuing to hold the HomeLink button,
press and release the button on the remote
every 2 secs.
Dose the LED blink within 20 secs?

NO

YES

YES

NO

HomeLink LED

is on.

HomeLink indicator blinks for 2 secs,

then remains on.

YES

14 ACURA TSX 5D-31TL76300.book  174 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

175

Continued

Bluetooth® HandsFreeLink®

See the Navigation System Manual for how to operate Bluetooth® HandsFreeLink®.

Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.

Using HFL

 (HFL Talk) Button: Press to give a command or answer a call.

 (HFL Back) Button: Press to end a call, go back to the previous command, or

cancel a command.

■

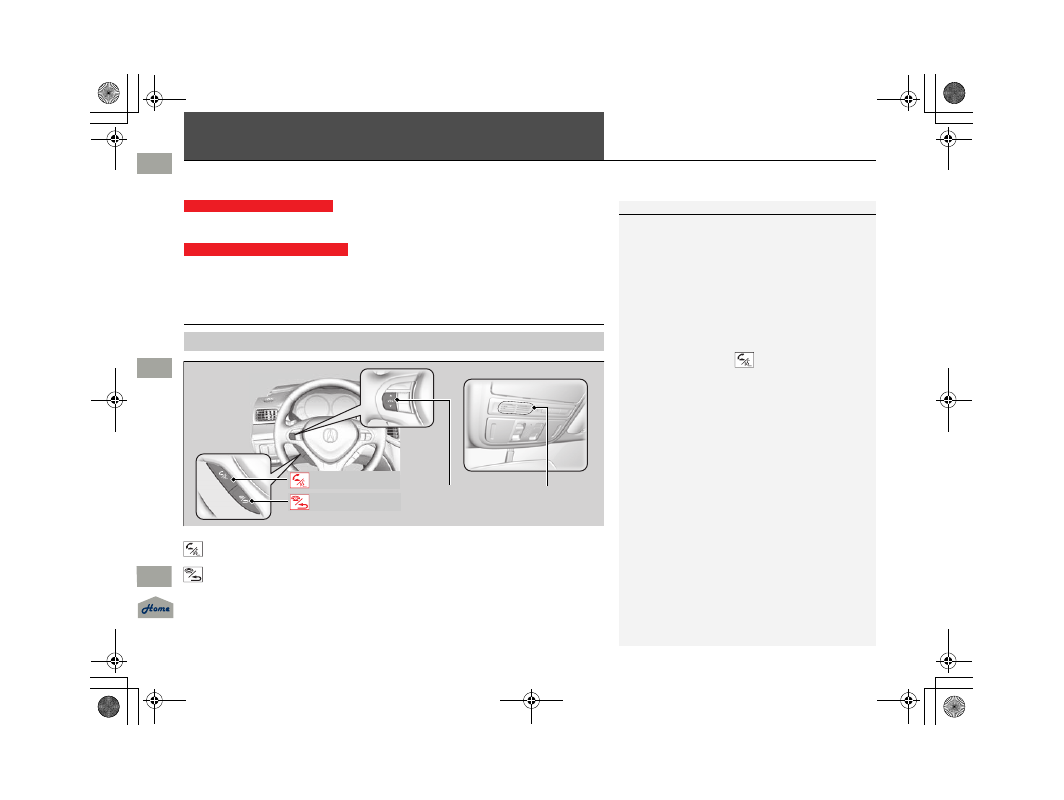

HFL Buttons

1

Bluetooth® HandsFreeLink®

To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:

•

U.S.:

 Visit www.acura.com/handsfreelink, or call

(888) 528-7876.

Voice control tips:

•

Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.

•

Press and release the

 button before giving a

command. Speak clearly and naturally after a beep.

•

If the microphone picks up voices other than yours,
the command may be misinterpreted.

•

A command that consists of several words can be
spoken together. For example, say “Call

 at once.

•

When HFL is in use, navigation voice commands
cannot be recognized.

•

To change the volume level, use the audio system’s
volume knob or the remote audio controls.

State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.

123-456-7890”

Models with navigation system

Models without navigation system

Microphone

Audio Remote
VOL (Volume)
Buttons

 (HFL Talk) Button

 (HFL Back) Button

14 ACURA TSX 5D-31TL76300.book  175 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

uu

Bluetooth® HandsFreeLink®



u

Using HFL

176



• To hear general HFL information and help, say “Tutorial.”

• Say “Hands free help” or “Help” any time to get help or hear a list of commands.

The multi-information display notifies you
when there is an incoming call.

■

Help Features

■

HFL Status Display

1

Bluetooth® HandsFreeLink®

Bluetooth ® Wireless Technology
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motors Co., Ltd., is
under license. Other trademarks and trade names are
those of their respective owners.

HFL Limitations
An incoming call on HFL will interrupt Bluetooth®
Audio when it is playing. Audio will resume when the
call is ended.

1

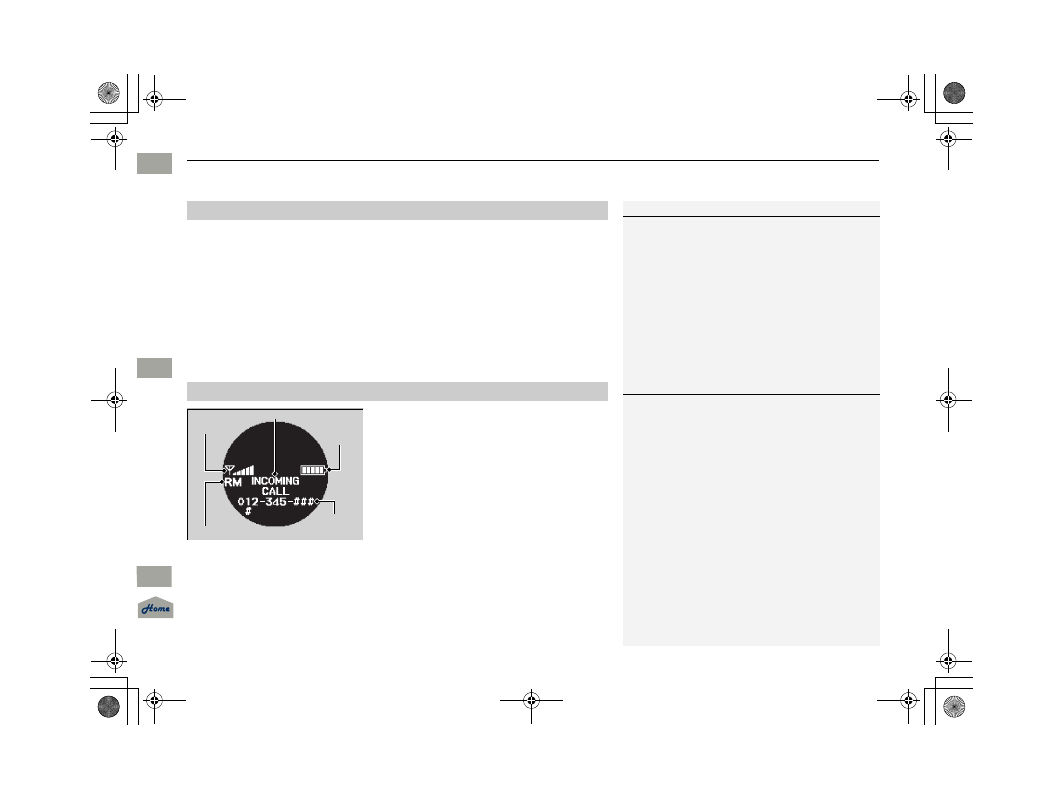

HFL Status Display

The information that appears on the multi-
information display varies between phone models.

Signal
Strength

HFL Mode

Battery
Level
Status

Roam Status

Phone
Number

14 ACURA TSX 5D-31TL76300.book  176 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

177

uu

Bluetooth® HandsFreeLink®



u

HFL Menus

Continued

HFL Menus

The ignition switch must be in ACCESSORY

 (

q  or ON

 (

w  to use HFL.

To use HFL, you must first pair your Bluetooth-compatible cell phone to the system while the vehicle is parked.

Press the

 (HFL Talk) button each time you give a command

“Set pairing code”

Pair a phone to the system.

Edit the name of a paired phone.

Delete a paired phone from the system.

Hear a list of all phones paired to the system.

Hear which paired phone is connected, and its remaining battery life.

Search for another phone that has been paired.

Set the pairing code to either “Fixed” or “Random.”

Say a phone number.

Say a name after a phonebook entry is stored.

Redial the last number called.

Transfer a call from HFL to your phone or from your phone to HFL.

Mute your voice to the person at the other end of the call.

Send numbers or names during a call.

“Pair”

“Edit”

“Delete”

“List”

“Status”

“Next phone”

e.g.: “123-456-####”

e.g.: “Jim Smith”

“Phone setup”

“Call”/“Dial”

“Transfer”

“Mute”

“Send”

“Redial”

14 ACURA TSX 5D-31TL76300.book  177 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

178

uu

Bluetooth® HandsFreeLink®



u

HFL Menus



“Change passcode”

Store a phonebook entry.

Edit the number of an existing phonebook entry.

Delete a phonebook entry.

Transfer contacts from your phone to HFL.

Hear a list of all stored phonebook entries.

Apply a security passcode to the system that must be input at each key
cycle to access the system.

Change your security passcode.

Set how you want to be notified of an incoming call.

Set to automatically transfer calls from your phone to HFL when you
enter the vehicle.

Hear a tutorial for general rules on using the system.

Hear a list of available commands and additional information describing each command.

“Store”

“Edit”

“Delete”

“Receive contact”

*

“List”

“Security”

“Call notification”

“Auto transfer”

“Phonebook”

“System setup”

“Tutorial”

“Hands-free help”

Clear the system of all paired phones, phonebook entries, and security
passcode.

“Clear”

* Not available on all models

14 ACURA TSX 5D-31TL76300.book  178 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

Continued

179

uu

Bluetooth® HandsFreeLink®



u

HFL Menus

■

To pair a cell phone

1. If no phone has been paired to the system before, HFL gives you information

about how to pair the first phone.

If a phone has already been paired: say “Phone Setup” and “Pair” after the
HFL prompts.

2. Follow the HFL prompts and put your phone in discovery or search mode.

u

HFL gives you a four-digit code and begins searching for your phone.

3. When your phone finds a Bluetooth® device, select HFL from the options and

enter the four-digit code.

4. Follow the HFL prompts and name the newly paired phone.

■

To rename a paired phone

1. Say “Phone Setup.”

2. Say “Edit” after the prompts.

3. Follow the HFL prompts and rename the phone.

u

If there is more than one phone paired to the system, HFL will ask you which
phone’s name you want to change.

■

To delete a paired phone

1. Say “Phone Setup.”

2. Say “Delete” after the prompts.

3. Follow the HFL prompts.

u

HFL will ask you which phone you want to delete.

■

Phone Setup

1

Phone Setup

Press the

 button and follow the prompts.

Your Bluetooth-compatible phone must be paired to
HFL before you can make and receive hands-free
calls.

Phone Pairing Tips:

•

You cannot pair your phone while the vehicle is
moving.

•

Up to six phones can be paired.

•

Your phone’s battery may drain faster when it is
paired to HFL.

•

If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and returns to idle.

14 ACURA TSX 5D-31TL76300.book  179 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

uu

Bluetooth® HandsFreeLink®



u

HFL Menus

180



■

To hear the name of all paired phones

1. Say “Phone Setup.”

2. Say “List” after the prompts.

3. HFL reads out all the paired phones’ names.

■

To hear which paired phone is currently connected

1. Say “Phone Setup.”

2. Say “Status” after the prompts.

3. HFL will tell you which phone is connected with the system.

■

To change the currently connected phone

1. Say “Phone Setup.”

2. Say “Next Phone” after the prompts.

3. HFL disconnects the current phone, and searches for another paired phone.

4. Once another phone is found, it is connected to the system. HFL will inform you

which phone is now connected.

■

To change the pairing code setting

1. Say “Phone Setup.”

2. Say “Set Pairing Code” after the prompts.

3. If you want HFL to create a random code each time you pair a phone, say

“Random.” If you want to create your own four-digit code, say “Fixed.”

4. Follow the HFL prompts.

1

Phone Setup

If no other phones are found or paired when trying to
switch to another phone, HFL will inform you that the
original phone is connected again.

“Status” and  “Next Phone”  commands:
Only one paired phone at a time can be connected to
HFL. When there are two or more paired phones in
the vehicle, the first paired phone that the system
finds is connected.

14 ACURA TSX 5D-31TL76300.book  180 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

Continued

181

uu

Bluetooth® HandsFreeLink®



u

HFL Menus

You can make calls using any phone number or a name in the HFL phonebook, and
redial the last number called.

2 HFL Phonebook P. 183

■

Direct dialing a phone number

1. Say “Call” or “Dial.”

2. Say the number you want to dial after the prompts.

3. Say “Call” or “Dial” after the prompts.

■

From the HFL phonebook

1. Say “Call” or “Dial.“

2. Say the name stored in the HFL phonebook after the prompts.

3. Follow the HFL prompts.

■

To redial the last number called by HFL

Say “Redial.”

■

To end a call

Press the

 (HFL back) button.

■

Making a Call

1

Making a Call

Press the

 button and follow the prompts.

HFL uses a Class 2 Bluetooth, with has a maximum
range of about 30 feet (10 meters).

HFL allows you to talk up to 30 minutes after you
remove the key from the ignition switch. However,
this may weaken the vehicle’s battery.

14 ACURA TSX 5D-31TL76300.book  181 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon
