Acura TSX (2014 year). Manual - part 12

uu

Bluetooth® HandsFreeLink®



u

HFL Menus

182



Press the

 button to answer the call, or the

 button to hang up. When there

is an incoming call, a call notification (if activated) sounds and a message appears on
the display.

You can transfer a call from HFL to your phone, or from your phone to HFL. Press the

 button and say “Transfer.”

To mute or unmute your voice during a call, press the

 button and say “Mute.”

You can send numbers and names during a call. This is useful when calling a menu-
driven phone system.

■

To send a number or name during a call

1. Say “Send.”

2. Say the number or name you want to send after the prompts.

3. Follow the HFL prompts.

■

Receiving a Call

■

Transferring a Call

■

Muting a Call

■

Sending Numbers or Names During a Call

1

Receiving a Call

Call Waiting
Press the

 button and put the original call on hold

to answer the incoming call.

Press the

 button again to return to the original

call.

Ignore the incoming call if you do not want to answer
it.

Press the

 button if you want to hang up the

original and answer the incoming call.

1

Sending Numbers or Names During a Call

Press the

 button before a command.

To send a    , say “Pound.” To send a    , say “Star.”

#

*

14 ACURA TSX 5D-31TL76300.book  182 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

Continued

183

uu

Bluetooth® HandsFreeLink®



u

HFL Menus

You can store up to 50 names with their associated numbers in HFL. The numbers
you store can be account numbers or passwords. These numbers can be sent to an
automated phone system.

■

To store a phonebook entry

1. Say “Phonebook.”

2. Say “Store” after the prompts.

3. Say a name you want to list as your phonebook entry.

4. Say the number you want to store for the name entry.

5. Follow the HFL prompts and say “Enter” to store the entry.

■

To edit the number stored for a name

1. Say “Phonebook.”

2. Say “Edit” after the prompts.

3. Say a name you want to edit. When asked, say the new number for that name.

4. Follow the HFL prompts and say “Enter” to store the entry.

■

HFL Phonebook

1

HFL Phonebook

Press the

 button before a command.

•

Avoid using duplicate name entries.

•

Avoid using “home” as a name entry.

•

It is easier for HFL to recognize a multisyllabic or
longer name. For example, use “Peter” instead of
“Pete,” or “John Smith” instead of “John.”

14 ACURA TSX 5D-31TL76300.book  183 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

184

uu

Bluetooth® HandsFreeLink®



u

HFL Menus



■

To delete a name

1. Say “Phonebook.”

2. Say “Delete” after the prompts.

3. Say a name you want to delete.

4. Say “Yes,” and follow the HFL prompts.

■

To list all names in the phonebook

1. Say “Phonebook.”

2. Say “List” after the prompts.

3. HFL begins reading the names in the order they were stored.

4. When you hear a name you want to call, say “Call.”

■

To store a specific phone number from your cell phone directly to the HFL
phonebook

*

1. Say “Phonebook.”

2. Say “Receive Contact” after the prompts.

3. Follow the HFL prompts, select a number from your cell phone, and send it to HFL.

u

If it is not the number you want to store, say “Discard.”

4. Say the name for that number.

5. Follow the HFL prompts to continue.

* Not available on all models

14 ACURA TSX 5D-31TL76300.book  184 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

Continued

185

uu

Bluetooth® HandsFreeLink®



u

HFL Menus

This command group allows you to change or customize HFL basic settings.

■

To set a four-digit passcode to lock the HFL system for security

1. Say “System Setup.”

2. Say “Security.”

3. Follow the HFL prompts and say the four-digit number of your choice.

4. Follow the HFL prompts and confirm the number.

■

To change the security passcode

1. Say “System Setup.”

2. Say “Change Passcode” after the prompts.

3. Say the new four-digit passcode after the HFL prompts.

4. Follow the HFL prompts.

■

To select a ring tone or a prompt as the incoming call notification

1. Say “System Setup.”

2. Say “Call Notification” after the prompts.

3. Say “Ring Tone” or “Prompt” after the prompts. For no audible

notification, say  “Off.”

■

System Setup

1

System Setup

Press the

 button before a command.

Once a passcode is set, you are required to enter the
passcode with every new key cycle to use HFL.
If you forget the code, go to your dealer to have the
passcode reset. You can also cancel the passcode by
clearing all the data stored in the HFL system.

2 To clear the system P. 186

The default setting of the incoming notification is a
ring tone.

14 ACURA TSX 5D-31TL76300.book  185 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

uu

Bluetooth® HandsFreeLink®



u

HFL Menus

186



■

To activate or deactivate the auto transfer function

The call on your cell phone can be automatically transferred to HFL when you get
into the vehicle and turn on the ignition.
1. Say “System Setup.”

2. Say “Auto Transfer” after the prompts. HFL lets you know the current status.

3. Follow the HFL prompts to change the setting.

■

To clear the system

Paired phones, all stored or imported phonebook data, and any passcodes
are erased.
1. Say “System Setup.”

2. Say “Clear” after the prompts.

3. Follow the HFL prompts.

1

System Setup

Press the

 button before a command.

You can clear the system when you have forgotten
the passcode and cannot access HFL.
When HFL asks you for the passcode, say “System
Clear.”

14 ACURA TSX 5D-31TL76300.book  186 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

187

Compass

*

When you turn the ignition switch to ON

 (

w , the compass self-calibrates, and the

compass display appears.

Compass Calibration

If the compass indicates the wrong direction, or the CAL indicator blinks, you need
to manually calibrate the system.

1. Turn the ignition switch to ON

 (

w .

2. Press and hold the MENU button until

the display shows the compass setting
menu list.

3. Rotate

 to select CALIBRATION, then

press

.

4. When the display changes to PUSH CAL

START, press

.

5. Drive the vehicle slowly in two circles.

u

The compass starts to show a direction
after the calibration. The CAL indicator
goes off.

1

Compass

*

Compass operation can be affected under the
following conditions:

•

Driving near power lines or stations

•

Crossing a bridge

•

Passing a large vehicle, or driving near a large
object that can cause a magnetic disturbance

•

When accessories such as antennas and roof racks
are mounted by magnets

1

Compass Calibration

Calibrate the compass in an open area.

While setting the compass:

•

The RETURN button returns to the previous screen.

•

The MENU button cancels the setting mode.

Compass Setting Menu Items

* Not available on all models

14 ACURA TSX 5D-31TL76300.book  187 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

188

uu

Compass

*

u

Compass Zone Selection



Compass Zone Selection

1. Turn the ignition switch to ON

 (

w .

2. Press and hold the MENU button until

menu list.

the display shows the compass setting

3. Rotate

 to select ZONE, then press

.

The display shows the current
zone number.

4. Rotate

 to select the zone number of

your area (See Zone Map), then press

.

1

Compass Zone Selection

The zone selection is done to compensate the
variation between magnetic north and true north.

If the calibration starts while the audio system is in
use, the display returns to normal after the calibration
is completed.

Zone Number

2

3

4

5

6 7 8 9

10 11

12

13

14

15

Zone Map

Guam Island: Zone 8
Puerto Rico: Zone 11

14 ACURA TSX 5D-31TL76300.book  188 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Fea

tu

res

TOC

2014 TSX Sport Wagon

190





Dri
vin
g

Before Driving

Driving Preparation

Check the following items before you start driving.

• Make sure there are no obstructions on the windows, door mirrors, exterior

lights, or other parts of the vehicle.

u

Remove any frost, snow, or ice.

u

Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid, remove ice once it has softened.

u

When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.

• Make sure the hood is securely closed.

u

If the hood opens while driving, your front view will be blocked.

• Make sure the tires are in good condition.

u

Check air pressure, check for damage and excessive wear.

2 Checking and Maintaining Tires P. 259

• Make sure there are no people or objects behind or around the vehicle.

u

There are blind spots from the inside.

■

Exterior Checks

1

Exterior Checks

NOTICE

When doors are frozen shut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.

Do not pour warm water into the key cylinder.
You will be unable to insert key if the water freezes in
the hole.

Heat from the engine and exhaust can ignite
flammable materials left under the hood, causing a
fire. If you’ve parked your vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.

14 ACURA TSX 5D-31TL76300.book  190 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

TOC

2014 TSX Sport Wagon

Continued

191

uu

Before Driving

u

Driving Preparation



• Store or secure all items on board properly.

u

Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, stopping distance, and tires, and make it unsafe.

2 Maximum Load Limit P. 193

• Do not pile items higher than the seat height.

u

They can block your view and may be thrown forward in the event of sudden
braking.

• Do not place anything in the front seat footwells. Make sure to secure the floor

mat.

u

An object or unsecured floor mat can interfere with your brake and accelerator
pedal operation while driving.

• If you have any animals on board, do not let them move around in the vehicle.

u

They may interfere with driving and a crash could occur.

• Securely close and lock all doors and the tailgate.

2 Locking/Unlocking the Doors from the Inside P. 91

• Adjust your seating position properly.

u

Adjust the head restraint, too.

2 Adjusting the Seats P. 119
2 Adjusting the Head Restraints P. 121

• Adjust the mirrors and steering wheel properly for your driving.

u

Adjust them while sitting in the proper driving position.

2 Adjusting the Mirrors P. 117
2 Adjusting the Steering Wheel P. 116

■

Interior Checks

1

Interior Checks

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.

14 ACURA TSX 5D-31TL76300.book  191 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Dri
vin
g

TOC

2014 TSX Sport Wagon

192

uu

Before Driving

u

Driving Preparation





• Be sure items placed on the floor behind the front seats cannot roll under the

seats.

u

They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.

• Everyone in the vehicle must fasten their seat belt.

2 Fastening a Seat Belt P. 29

• Make sure that the indicators in the instrument panel come on when you start the

vehicle, and go off soon after.

u

Always have a dealer check the vehicle if a problem is indicated.

2 Indicators P. 64

14 ACURA TSX 5D-31TL76300.book  192 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Dri
vin
g

TOC

2014 TSX Sport Wagon

193

uu

Before Driving

u

Maximum Load Limit

Continued



Maximum Load Limit

1

Maximum Load Limit

Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accessories, all cargo, and the tongue
load.

2 Specifications P. 312

Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle.

2 Specifications P. 312

3

WARNING

Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.

Follow all load limits and other
loading guidelines in this manual.

14 ACURA TSX 5D-31TL76300.book  193 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Dri
vin
g

TOC

The maximum load for your vehicle is 850 lbs (385 kg).
See Tire and Loading Information label attached to the driver's doorjamb.

This figure includes the total weight of all occupants, cargo, and accessories,
and the tongue load  if you are towing a trailer.

Steps for Determining Correct Load Limit -

(1) Locate the statement “The combined weight of occupants and cargo should

never exceed XXX kg or XXX lbs.” on your vehicle's placard.

(2) Determine the combined weight of the driver and passengers that will

(3) Subtract the combined weight of the driver and passengers from XXX kg

(4) The resulting figure equals the available amount of cargo and luggage load

capacity. For example, if  the “XXX” amount equals 1,4000 lbs. and there
will be five 150 lb. passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)

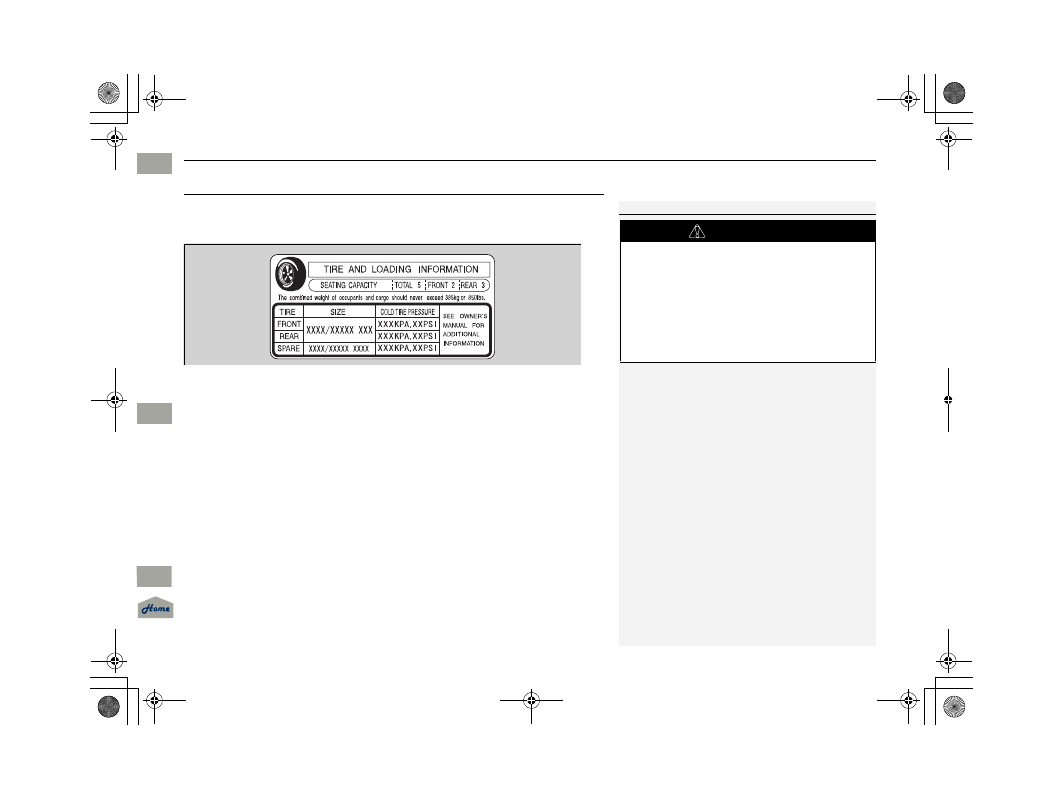

Label Example

or XXX lbs.

be riding in your vehicle.

2014 TSX Sport Wagon

194

uu

Before Driving

u

Maximum Load Limit





Load Limits Example

Example1

Max Load

850 lbs

(385 kg)

Passenger Weight

150 lbs x 2 = 300 lbs

(68 kg x 2 = 136 kg)

Cargo Weight

550 lbs

(249 kg)

Example2

Max Load

850 lbs

(385 kg)

Passenger Weight

150 lbs x 5 = 750 lbs

(68 kg x 5 = 340 kg)

Cargo Weight

100 lbs
(45 kg)

14 ACURA TSX 5D-31TL76300.book  194 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

(5) Determine the combined weight of luggage and cargo being loaded on the

vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in step 4.

(6) If your vehicle will be towing a trailer, load from your trailer will be transferred

to your vehicle. Consult this manual to determine how this reduces the
available cargo and luggage  load capacity of your vehicle.

In addition, the total weight of the vehicle, all occupants, accessories, cargo, and
trailer tongue load must not exceed the Gross Vehicle Weight Rating (GVWR) or
the Gross Axle Weight Rating (GAWR). Both are on a label on the driver's doorjamb.

Dri
vin
g

TOC

2014 TSX Sport Wagon

195

Continued



Towing a Trailer

Towing Preparation

Your vehicle can tow a trailer if you carefully observe the load limits, use the proper
equipment, and follow the towing guidelines. Check the load limits before driving.

■

Total trailer weight

Maximum allowable weight of the trailer,
cargo, and everything in or on it must not
exceed 1,000 lbs (450 kg). Towing loads in
excess of this can seriously affect vehicle
handling and performance and can damage
the engine and drivetrain.

■

Tongue load

The weight of the tongue with a fully loaded
trailer on the hitch should be approximately
10% of the total trailer weight.
• Excessive tongue load reduces front tire

traction and steering control. Too little
tongue load can make the trailer unstable
and cause it to sway.

• To achieve a proper tongue load, start by

loading 60% of the load toward the front
of the trailer and 40% toward the rear.
Readjust the load as needed.

■

Towing Load Limits

1

Towing Load Limits

Check if all loads are within limits at a public scale.
If a public scale is not available, add the estimated
weight of your cargo load to the weight of your
trailer (as quoted by the manufacturer), and the
tongue load.

Break-in Period
Avoid towing a trailer during your vehicle’s first 600
miles (1,000 km).

Never exceed the gross weight ratings.
Gross weight information

2 Vehicle Specifications P. 312

3

WARNING

Exceeding any load limit or improperly
loading your vehicle and trailer can cause a
crash in which you can be seriously hurt or
killed.

Check the loading of your vehicle and
trailer carefully before starting to drive.

Total Load

Tongue Load

14 ACURA TSX 5D-31TL76300.book  195 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Dri
vin
g

TOC

2014 TSX Sport Wagon

uu

Towing a Trailer

u

Towing Preparation

196





Towing equipment varies by the size of your trailer, how much load you are towing,
and where you are towing.

■

Hitches

The hitch must be of an approved type and properly bolted to the underbody.

■

Safety chains

Always use safety chains when you tow a trailer. Leave enough slack to allow the
trailer to turn corners easily, but do not allow the chains to drag on the ground.

■

Trailer brakes

There are two common types of trailer brakes: surge and electric. Surge brakes are
common for boat trailers, since the brakes will get wet. If you choose electric brakes,
be sure they are electronically actuated. Do not attempt to attach trailer brakes to
your vehicle’s hydraulic system, as it will lower braking effectiveness and create a
potential hazard.

■

Additional towing equipment

Many states and provinces/territories require special outside mirrors when towing a
trailer. Even if mirrors are not required in your locale, you should install special
mirrors if visibility is restricted in any way.

■

Trailer light

Trailer lights and equipment must comply with federal, state, province/territory, and
local regulations. Check with your local trailer sales or rental agency for the
requirements in the area where you plan to tow.

■

Towing Equipment and Accessories

1

Towing Equipment and Accessories

Make sure that all equipment is properly installed and
maintained, and that it meets federal, state, province/
territory, and local regulations.

Consult your trailer sales or rental agency if any other
items are recommended or required for your towing
situation.

The lighting and wiring of trailers can vary by type
and brand. If a connector is required, it should only
be installed by a qualified technician.

14 ACURA TSX 5D-31TL76300.book  196 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Dri
vin
g

TOC

2014 TSX Sport Wagon

197

uu

Towing a Trailer

u

Driving Safely with a Trailer

Continued



Driving Safely with a Trailer

• Have the trailer properly serviced and keep it in good condition.

• Make sure that all the weights and load in the vehicle and trailer are within limits.

2 Towing Load Limits P. 195

• Securely attach the hitch, safety chains, and other necessary parts to the trailer.

• Securely store all the items in and on the trailer so that they do not shift while

driving.

• Check if the lights and brakes on the trailer are working properly.

• Check the pressures of the trailer tires, including the spare.

• Drive slower than normal.

• Obey posted speed limits for vehicles with trailers.

• Use the

 (

D  position when towing a trailer on level roads.

• Turn more slowly and with a wider turning arc than normal.

• Allow more time and distance for braking.

• Do not brake or turn suddenly.

■

Things You Need To Know Before Towing a Trailer

■

Towing Speeds and Gears

■

Turning and Braking

1

Driving Safely with a Trailer

Operating speed when towing a trailer is restricted
up to 62 mph (100 km/h).

Parking
In addition to the normal precautions, place wheel
chocks at each of the trailer’s tires.

14 ACURA TSX 5D-31TL76300.book  197 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Dri
vin
g

TOC

2014 TSX Sport Wagon

uu

Towing a Trailer

u

Towing Your Vehicle

198





• Monitor your temperature gauge. If it nears the red (Hot) mark, turn off the air

conditioning and reduce speed. Pull to the side of the road safely to cool down
the engine if necessary.

• Shift to the

 (

S  position if the transmission shifts frequently.

Towing Your Vehicle

Your vehicle is not designed to be towed behind a motor home. If your vehicle needs
to be towed in an emergency, refer to the emergency towing information.

2 Emergency Towing P. 308

■

Driving in Hilly Terrain

1

Driving in Hilly Terrain

If you use the paddle shifters when driving uphill and
downhill, select 3rd, 2nd, or 1st gear, depending on
the vehicle speed and road conditions. Do not use
4th and 5th gears.

If the automatic transmission fluid temperature
exceeds the specified limit, the transmission will also
automatically downshift to the 1st gear, even in the
sequential shift mode. The gear position indicator
blinks for a few seconds, then stays on.

Gear Position

Speed Range

1st

0 - 42 mph (0 - 67 km/h)

2nd,3rd

19 - 62 mph (30 - 100 km/h)

14 ACURA TSX 5D-31TL76300.book  198 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Dri
vin
g

TOC

2014 TSX Sport Wagon
