Seat Heaters

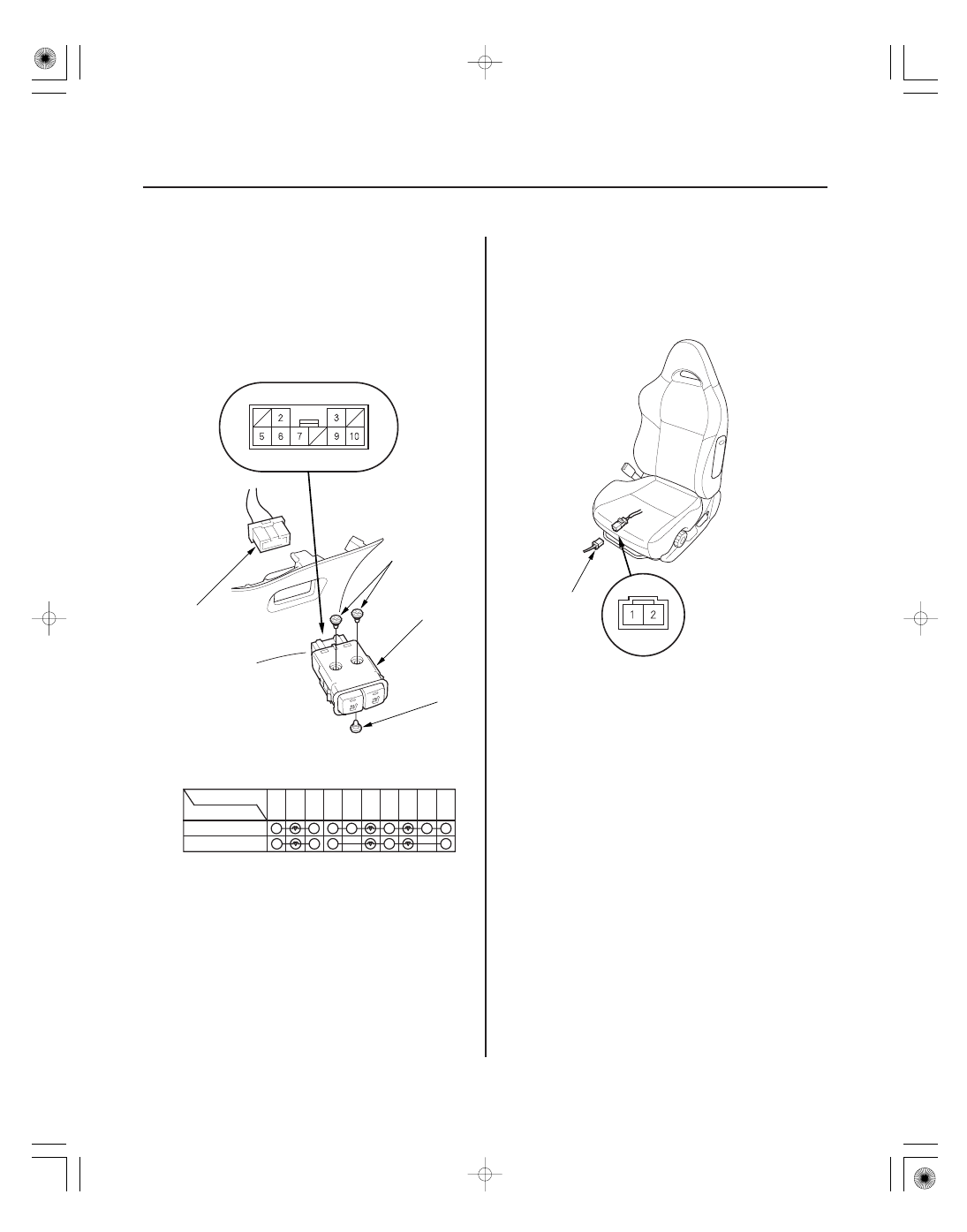

Seat Heater Switch Test/
Replacement
Seat Heater Test
A
B
C
C
Terminal
Position
ON
OFF
3
10
9
7
6
5
2
A
1. Remove the dashboard center lower cover
(see page 20-65).
2. Disconnect the 10P connector (A) from the seat
heater switch (B), then remove the switch.
3. Check for continuity in each switch position
according to the table.
4. If the check is not as specified, replace the bulb(s)
(C) or the switch.
1. Remove the front seat (see page 20-75).
2. Disconnect the 2P connector (A) from the seat
heater.
3. The temperature of the seat must be below 122 °F
(50 °C). Check for continuity between the No. 1 and
No. 2 terminals. There should be continuity.
If there is no continuity, replace the seat cushion
(see page 20-77).
Terminal side of
male terminals
