Function Test

Defogger Wire Repair

A

B

C

B

A

NOTE:

• Be careful not to scratch or damage the defogger

wires with the tester probe.

• Before testing, check the No. 11 (40 A) fuse in the

under-hood fuse/relay box and the No. 14 (10 A) fuse
in the under-dash fuse/relay box.

1. Check for voltage between the positive terminal (A)

and body ground with the ignition switch and
defogger switch ON.
There should be battery voltage.

• If there is no voltage, check for:

– Faulty defogger relay.
– Faulty window antenna coil (’02-04 models).
– An open in the BLK/RED, BLK/YEL, or YEL/BLK

wire.

– Faulty climate control unit.

• If there is battery voltage, go to step 2.

2. Check for voltage between the positive terminal (A)

and the negative terminal (B).
If there is no voltage, check for:

• An open in the BLK/BLU wire.
• Faulty window antenna coil.
• Poor body ground at the window antenna coil

mounting bolt.

3. Touch the voltmeter positive probe to the halfway

point of each defogger wire, and the negative
probe to the negative terminal.
There should be about 6 V with the ignition switch
and the defogger switch ON.

• If the voltage is as specified, the defogger wire is

OK.

• If the voltage is not as specified, repair the

defogger wire.
– If it is more than 6 V, there is a break in the

negative half of the wire.

– If it is less than 6 V, there is a break in the

positive half of the wire.

NOTE: To make an effective repair, the broken section
must be no longer than 1 inch.

1. Lightly rub the area around the broken section (A)

with fine steel wool, then clean it with isopropyl
alcohol.

2. Carefully mask above and below the broken portion

of the defogger wire (B) with transparent tape (C).

3. Thoroughly mix the silver conductive paint

(commercially available defogger grid repair
material). Using a small brush, apply a heavy coat
of the silver conductive paint extending about 1/8’’
on both sides of the break. Allow 30 minutes to dry.

4. Check for continuity in the repaired wire.

5. Apply a second coat of paint in the same way. Let it

dry 3 hours before removing the tape.

05/06/27 18:04:41 61S6M040_220_0128

01

S6M6AZFG24166165411FEAT00

01

S6M6A00G24166142701FEAT00

’02-04 models

No. 1 and No. 2 terminal capacity: 1.0 microfarads
No. 3 terminal capacity:

2.2 microfarads

22-128

22-128

Rear Window Defogger

Window Antenna Coil Test

Noise Condenser Capacity Test

C

A

B

A

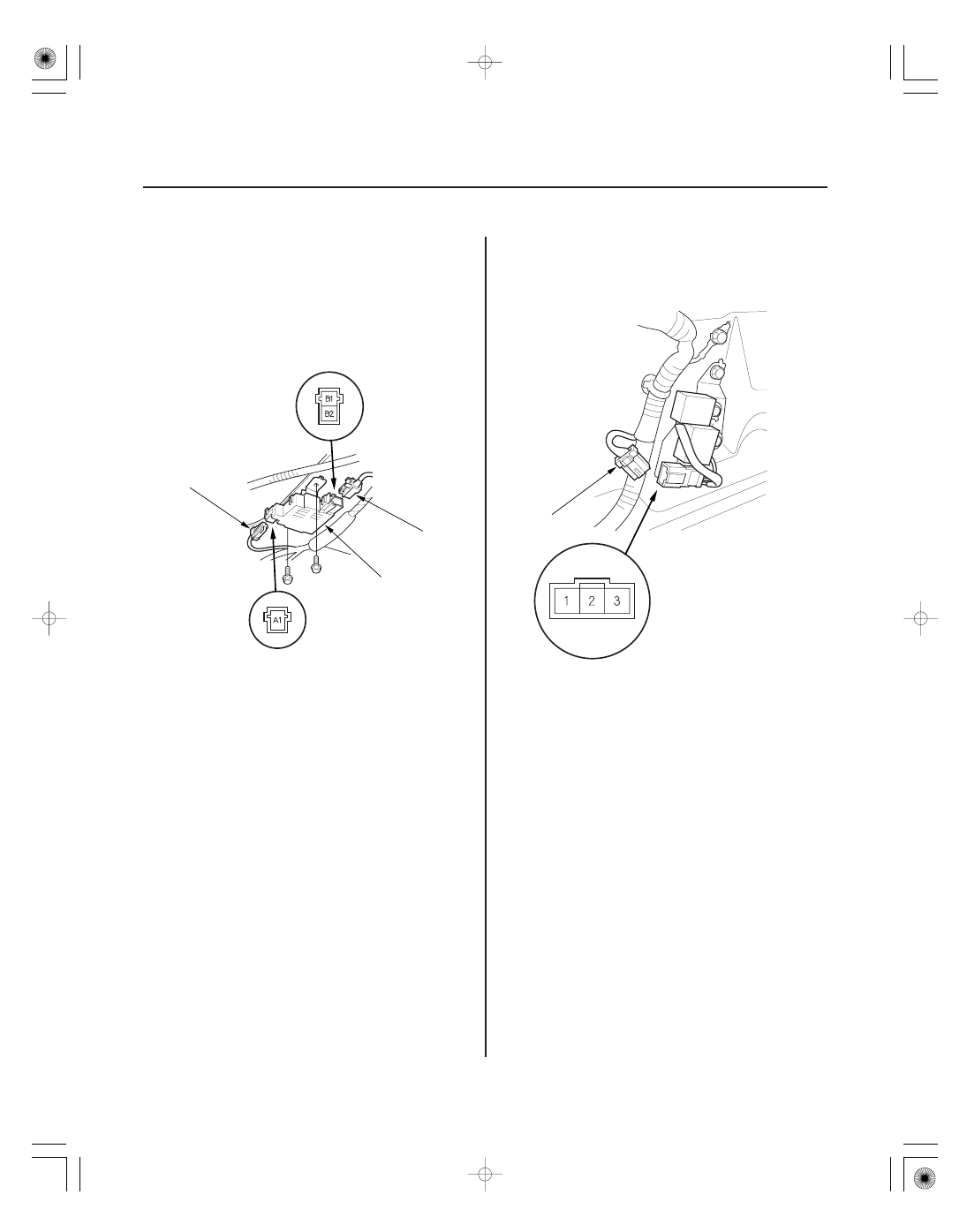

1. Open the hatch.

2. Remove the hatch trim panel (see page 20-54).

3. Disconnect the 1P connector (A) and 2P connector

(B) from the window antenna coil (C).

4. Check for continuity between the terminal B2 and

body ground, and between terminal A1 and B1.
There should be continuity.
If there is no continuity, loosen the two bolts, and
replace the window antenna coil.

1. Remove the right side trim panel (see page 20-51).

2. Disconnect the 3P connector (A) from the noise

condenser.

3. Use a commercially available condenser tester.

Connect the condenser tester probes and measure
the condenser capacity.

4. If capacity is not within the specification, replace

the noise condenser.

Terminal side
of male terminals

05/06/27 18:04:42 61S6M040_220_0129

*01

S6M6A22J34200000000DAAT02

22-129

Moonroof

Component Location Index

MOONROOF SWITCH

MOONROOF MOTOR

MOONROOF OPEN RELAY

MOONROOF CLOSE RELAY

Test, page 22-131

Test, page 22-131
Replacement, page 20-42

Wire colors: GRN/YEL, GRN,
RED/YEL, BLK and YEL/GRN

Test, page 22-62

Wire colors: GRN/BLK, GRN,
GRN/WHT, BLK and YEL/GRN

Test, page 22-62

05/06/27 18:04:43 61S6M040_220_0130

*01

S6M6A22J34200000000EAAT00

22-130

Moonroof

Circuit Diagram

No. 20*

* No. 20 (40 A) : USA

No. 20 (50 A) : Canada

YEL/GRN

YEL/GRN

IGNITION SWITCH

IG1

BAT

No. 13
(40 A)

BLK/YEL

WHT/BLK

G401

BLK

RED/BLK

5

1

6

2

3

RED

LIGHT
(0.84 W)

OPEN

CLOSE

BLK

G401

2

1

RED/YEL

GRN/WHT

GRN/BLK

GRN/YEL

BLK

BLK

GRN

GRN

YEL/GRN

GRN

No. 7
(20 A)

No. 6
(7.5 A)

WHT

UNDER-HOOD FUSE/RELAY BOX

No. 19 (100 A)

BATTERY

IG1 HOT in ON (II)
and START (III)

UNDER-DASH
FUSE/RELAY
BOX

MOONROOF
CLOSE
RELAY

MOONROOF
OPEN
RELAY

MOONROOF
MOTOR

TAILLIGHT
RELAY

MOONROOF
SWITCH

DASH LIGHTS
BRIGHTNESS
CONTROLLER
(In the gauge
assembly)
