Acura RSX Honda Integra. Manual - part 338

１９

１５

１６

１８

17-45

07746-0010100

07749-0010000

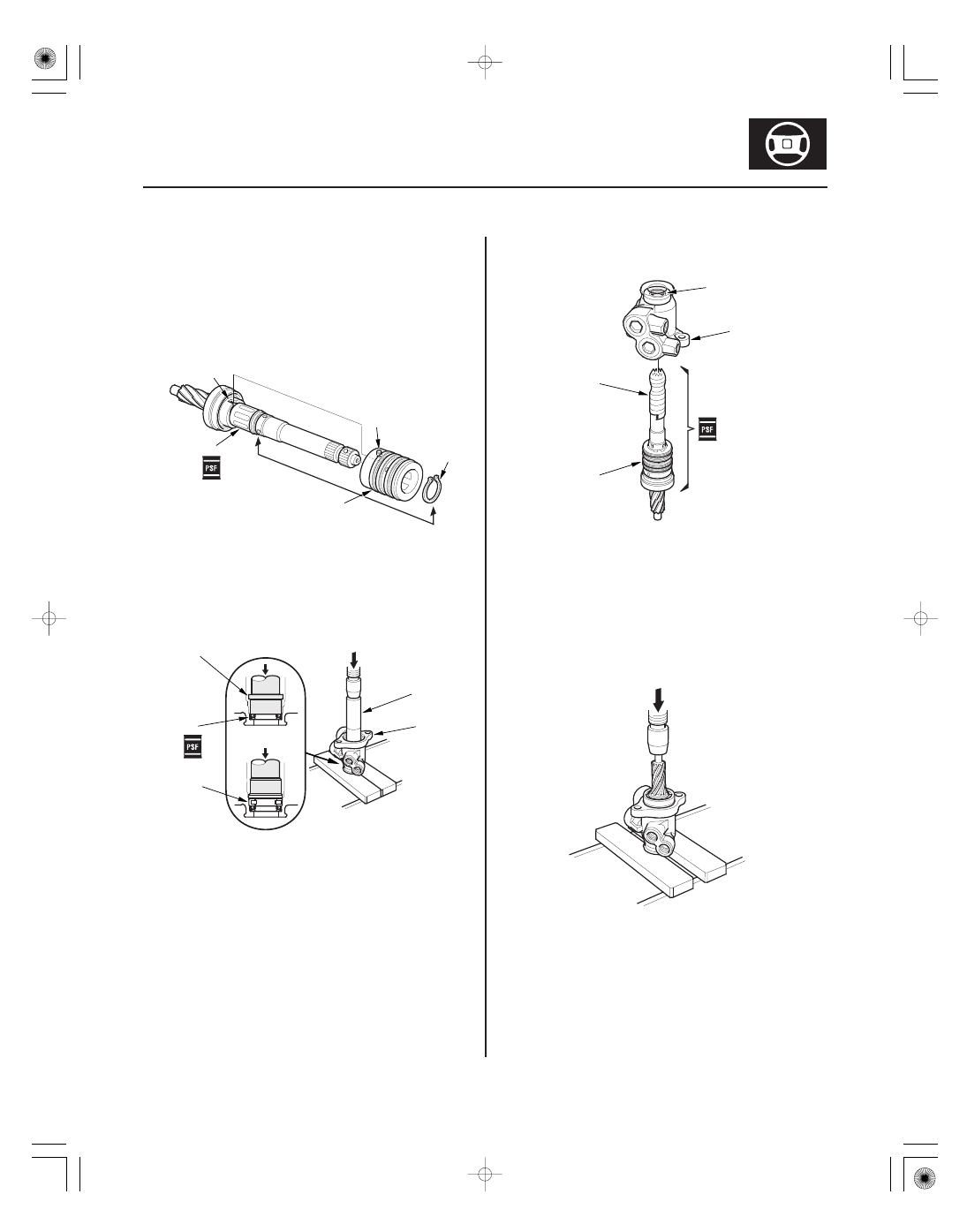

44. Apply power steering fluid to the surface of the

pinion shaft (A). Slide the sleeve (B) onto the pinion
shaft by aligning the locating pin (C) on the inside
of the sleeve with the cutout (D) in the shaft. Then
install the new snap ring (E) securely in the pinion
shaft groove. Be careful not to damage the valve
seal ring when inserting the sleeve.

45. Apply power steering fluid to the seal ring lip of the

new valve oil seal (A), then install the seal in the
valve housing (B) using a hydraulic press and
special tools. Install the seal with its grooved side
facing the tool.

46. Press the roller bearing (C) into the valve housing

with a hydraulic press and special tool.

47. Apply vinyl tape (A) to the pinion shaft, then coat

the vinyl tape with power steering fluid.

48. Insert the pinion shaft into the valve housing (B). Be

careful not to damage the valve seal rings (C) and
valve oil seal sealing lip (D).

49. Remove the vinyl tape from the pinion shaft, then

remove any residue from the tape adhesive.

50. Press the pinion shaft/sleeve into the valve housing

with a hydraulic press. Check that the pinion shaft/
sleeve turns smoothly by hand after installing it.

(cont’d)

05/06/27 18:15:45 61S6M040_170_0046

０７

０８

２１

２２

17-46

Power Steering

Steering Gearbox Overhaul (cont’d)

K20A2 engine,
K20Z1 engine models:
07ZAG-S7A0100

K20A3 engine model:
07XAG-S0KA200

K20A2 engine,
K20Z1 engine models:
07ZAG-S7A0200

K20A3 engine model:
07XAG-S0KA100

07NAD-SR30101

07ZAF-S5A0100

A
07974-6890801 or
07974-689080A

51. Coat the special tool with power steering fluid, then

slide it onto the steering rack, big end first.

52. Position the new O-ring (A) and new piston seal

ring (B) on the special tool, then slide them down
toward the big end of the tool.

Note these items during reassembly:

• Do not over expand the resin seal rings. Install

the resin seal rings with care so as not to damage
them. After installation, make sure you contract
the seal ring using the special tool (sizing tool).

• Replace piston’s O-ring and seal ring as a set.

53. Pull the O-ring off into the piston groove, then pull

the piston seal ring off into the piston groove on
top of the O-ring.

54. Coat the piston seal ring (A) and the inside of the

special tool with power steering fluid, then
carefully slide the tool onto the rack and over the
piston seal ring.

55. Move the special tool back and forth several times

to make the piston seal ring fits snugly in the piston.

56. Set the new bushing (A) on the special tool, and

insert the special tools into the cylinder housing (B).

57. Set the cylinder in a press, and install the bushing

into the bottom of the cylinder by pressing on the
tool with a press. Do not push on the tool with
excessive force as it may damage the new bushing.

58. Coat the sliding surface of the special tool (A) and

new cylinder end seal (B) with power steering fluid.
Place the seal on the special tool with its grooved
side (C) facing opposite the special tool.

05/06/27 18:15:46 61S6M040_170_0047

２３

２４

２５

０９

17-47

07974-6890801 or
07974-689080A

14.5 mm (0.57 in.)

59. Apply a thin coat of multipurpose grease to the

inside of the special tool.

60. Install the cylinder end seal (A) onto the steering

rack (B) with its grooved side (C) toward the piston
(D). Make sure the gap in the special tool is
opposite of rack teeth.

61. Separate the cylinder end seal from the special tool,

then remove the special tool.

62. Install the new backup ring (A) on the steering rack,

then place the backup ring and cylinder end seal (B)
against the piston (C).

63. Mark (A) a position on the steering rack surface

with a felt-tip marker, 14.5 mm (0.57 in.) from the
rack end edge.

(cont’d)

05/06/27 18:15:46 61S6M040_170_0048

２１

２２

３４

２６

17-48

Power Steering

Steering Gearbox Overhaul (cont’d)

64. Apply multipurpose grease to the steering rack

teeth, then insert the steering rack (A) into the
cylinder (B). Be careful not to damage the inner
surface of the cylinder wall and bushing with the
rack edges.

65. Set the cylinder (A) in a press, then press the

cylinder end seal (B) into the bottom of the cylinder
until the mark (C) on the rack meets the edge (D) of
the cylinder.

66. Coat the inside and outside surfaces of the new

cylinder end seal (A) with power steering fluid.

67. Install the cylinder end seal onto the steering rack

(B) with its grooved side (C) toward the piston.
Push in the cylinder end seal with your finger.

68. Place the backup ring (D) on the cylinder end seal

with its flat side facing upward. Then drive the
backup ring in with the appropriate size socket
wrench until its surface is below the snap ring
groove (E). Install the snap ring (F) in the groove.

69. Install the new lock screw (A) on the cylinder.

70. Install the new stop ring (B) in the groove (C) on the

cylinder by expanding it with snap ring pliers. Be
careful not to scratch or damage on the cylinder
surface with the stop ring edges.

05/06/27 18:15:47 61S6M040_170_0049
