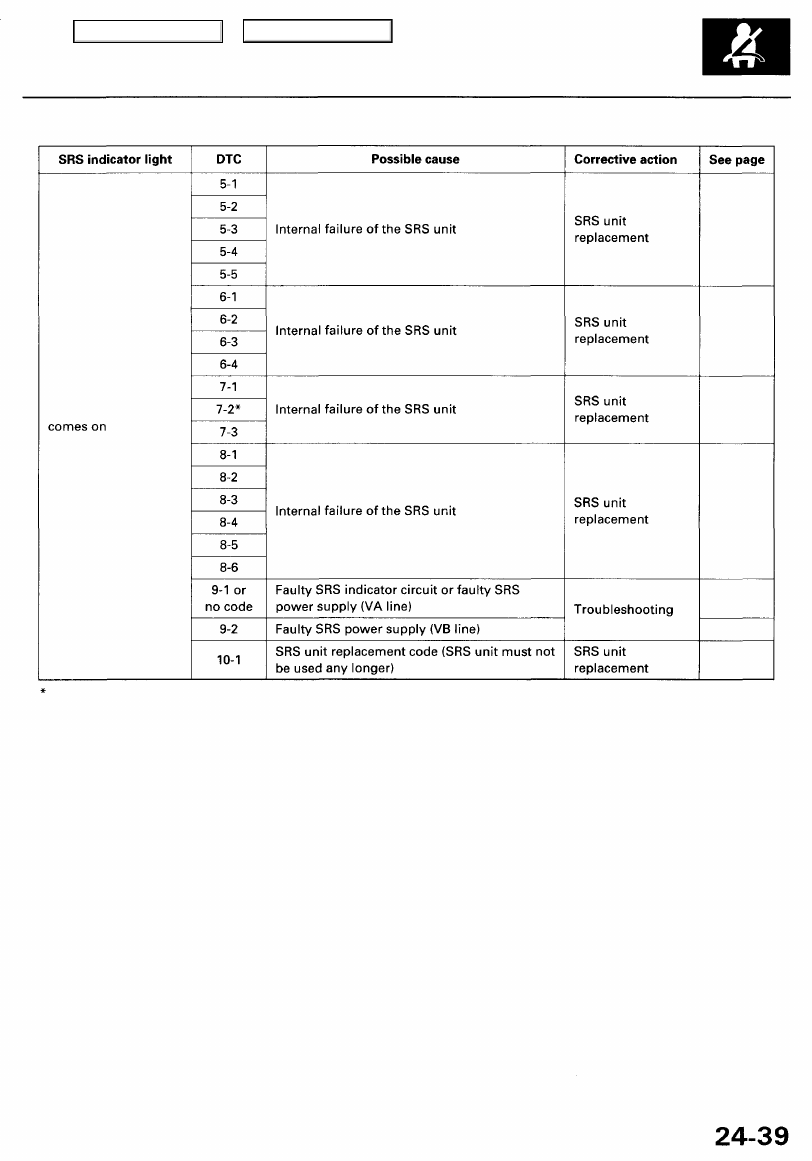

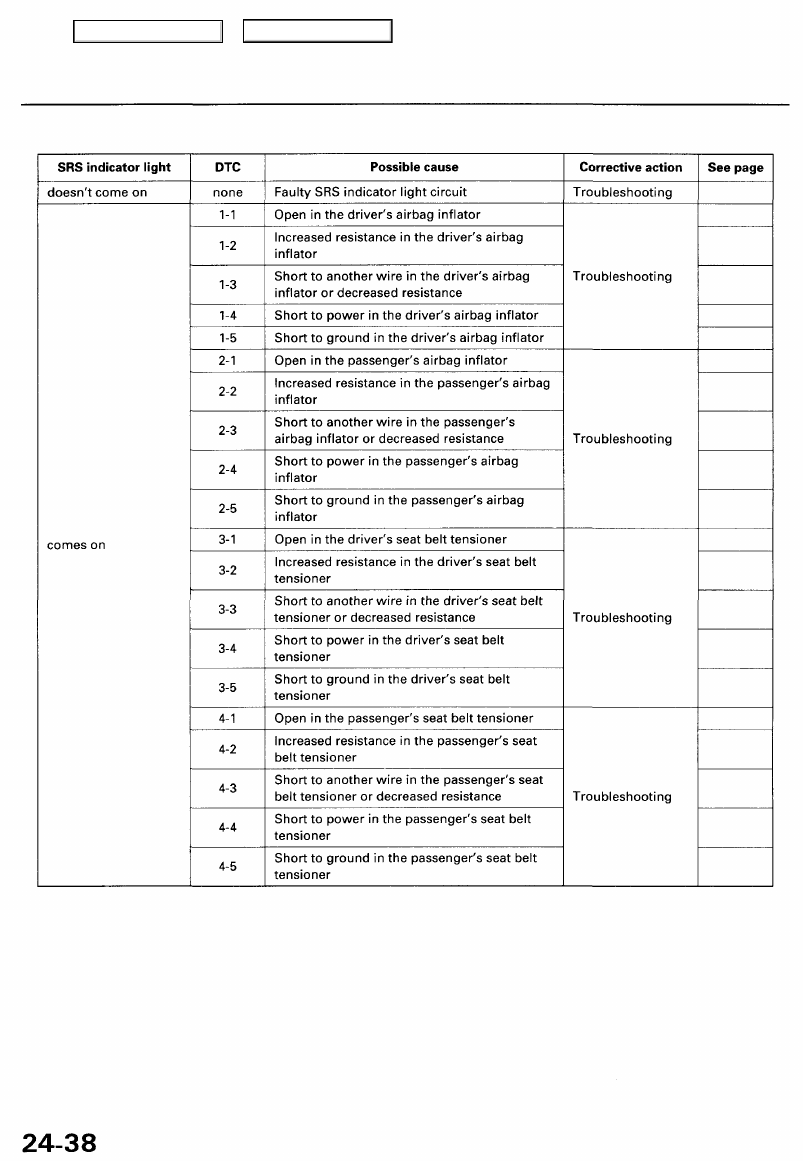

If fuse No. 7 (10 A) is open or removed, and you keep the engine cranking, this may be self-diagnosed as a failure in the
SRS system, and the SRS indicator light may indicate DTC 7-2. In this case, first check the No. 7 (10 A) fuse in the under-

dash fuse/relay box. Next, erase the DTC memory (see page

24-37

), and check the DTC. If DTC 7-2 doesn't reappear, the

SRS unit is normal.

Main Menu

Table of Contents

To UNDER-DASH
FUSE/RELAY BOX
2P CONNECTOR

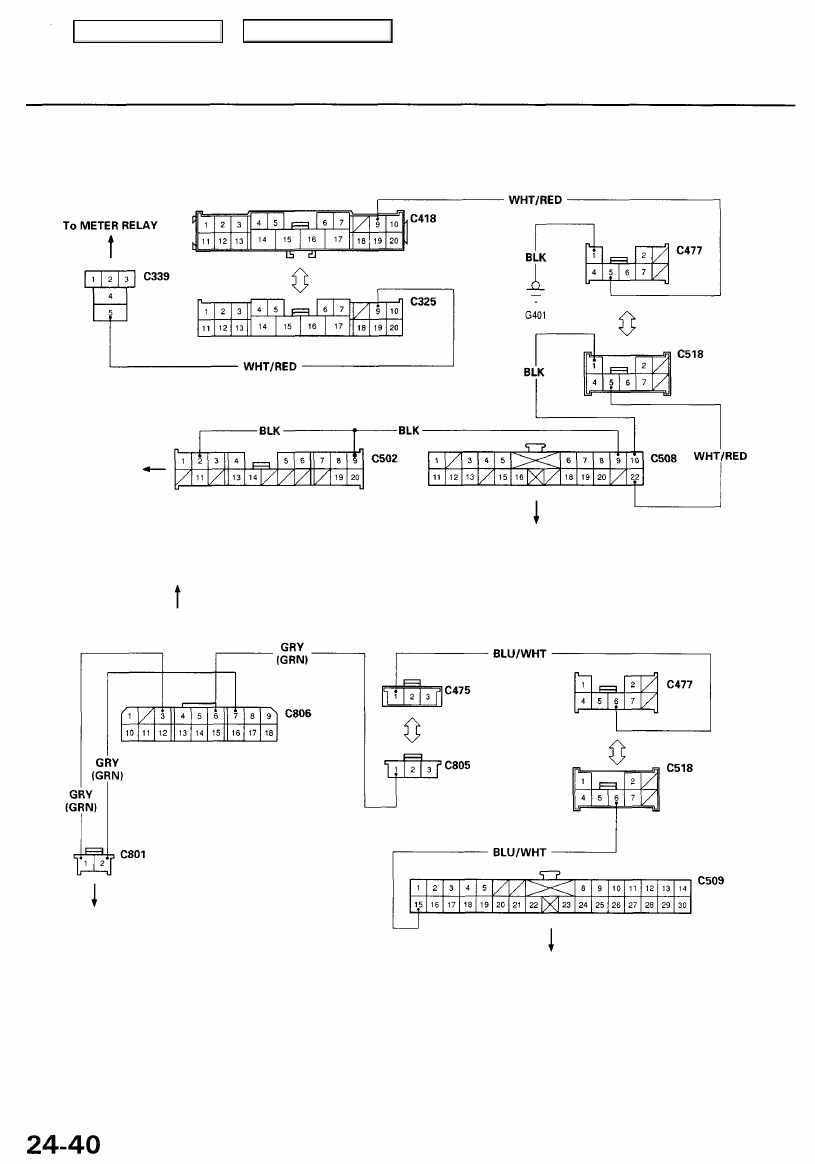

Troubleshooting - '96 - 98 Models

SRS Indicator Light Wire Connections

SRS Indicator Light Power Circuit

MAIN WIRE HARNESS

LEFT ENGINE COMPARTMENT WIRE HARNESS

To UNDER-DASH

FUSE/RELAY BOX

18P CONNECTOR

SRS Indicator Light Control Circuit

To SRS UNIT

SRS MAIN HARNESS

C418, C475, C518 : Terminal side of male terminals
Except C418, C475, C518 : Wire side of female terminals

MAIN WIRE HARNESS

To GAUGE ASSEMBLY

DASHBOARD WIRE HARNESS

To GAUGE ASSEMBLY

C325 : LEFT ENGINE COMPARTMENT

WIRE HARNESS 20P CONNECTOR

C339 : LEFT ENGINE COMPARTMENT

WIRE HARNESS 5P CONNECTOR

C418 : MAIN WIRE HARNESS 20P CONNECTOR
C475 : MAIN WIRE HARNESS 3P CONNECTOR
C477 : MAIN WIRE HARNESS 8P CONNECTOR

C502 DASHBOARD WIRE HARNESS 20P CONNECTOR
C508 DASHBOARD WIRE HARNESS 22P CONNECTOR
C509 DASHBOARD WIRE HARNESS 30P CONNECTOR
C518 DASHBOARD WIRE HARNESS 8P CONNECTOR
C801 SRS MAIN HARNESS 2P CONNECTOR
C805 SRS MAIN HARNESS 3P CONNECTOR
C806 SRS MAIN HARNESS 18P CONNECTOR

Main Menu

Table of Contents

To page

24-42

To page

24-42

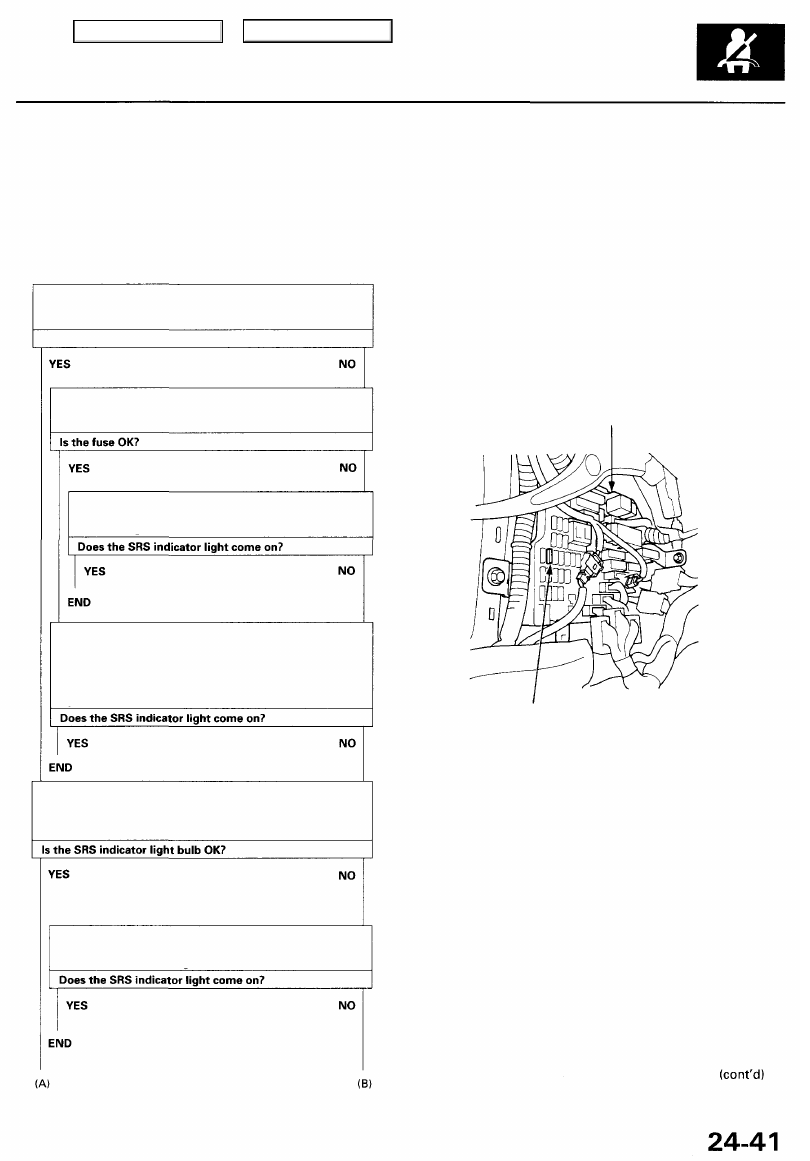

The SRS Indicator Light Doesn't Come On

CAUTION: Whenever the ignition switch is ON (II), or has

been turned OFF for less than 3 minutes, be careful not

to bump the SRS unit; the airbags could accidentally

deploy and cause damage or injuries.

NOTE: The PCM memory must be reset after reconnec-

ting the battery (see page

11-125

Check the power supply (fuse):
Turn the ignition switch ON (II), and check whether the other
indicator lights come on or not (brake system, etc.).

Do the other indicator lights come on?

Check the fuse:
Check the No. 13 (7.5 A) fuse in the under-dash fuse/relay
box.

Check the bulb:
Replace the No. 13 (7.5 A) fuse, and check that the SRS
indicator light comes on.

Check the wire harness between the fuse and gauge
assembly or gauge relay:
Check for an open in the wire harness between the fuse

No. 13 (7.5 A) and the gauge assembly, check the gauge
relay, and repair as needed. Check that the SRS indicator
light comes on.

Check the SRS indicator light bulb:

1. Turn the ignition switch OFF.

2. Remove the gauge assembly.
3. Check for blown SRS indicator light bulb.

Check the SRS indicator light circuit:

Replace the bulb, and reconnect the gauge assembly con-
nectors. Then turn the ignition switch ON (II).

UNDER-DASH FUSE/RELAY BOX

No. 13 (7.5 A) FUSE
