Acura RL (1996-2004 year). Manual - part 686

To page

24-43

Troubleshooting - '96 - 98 Models

The SRS Indicator Light Doesn't Come On (cont'd)

From page

24-41

From page

24-41

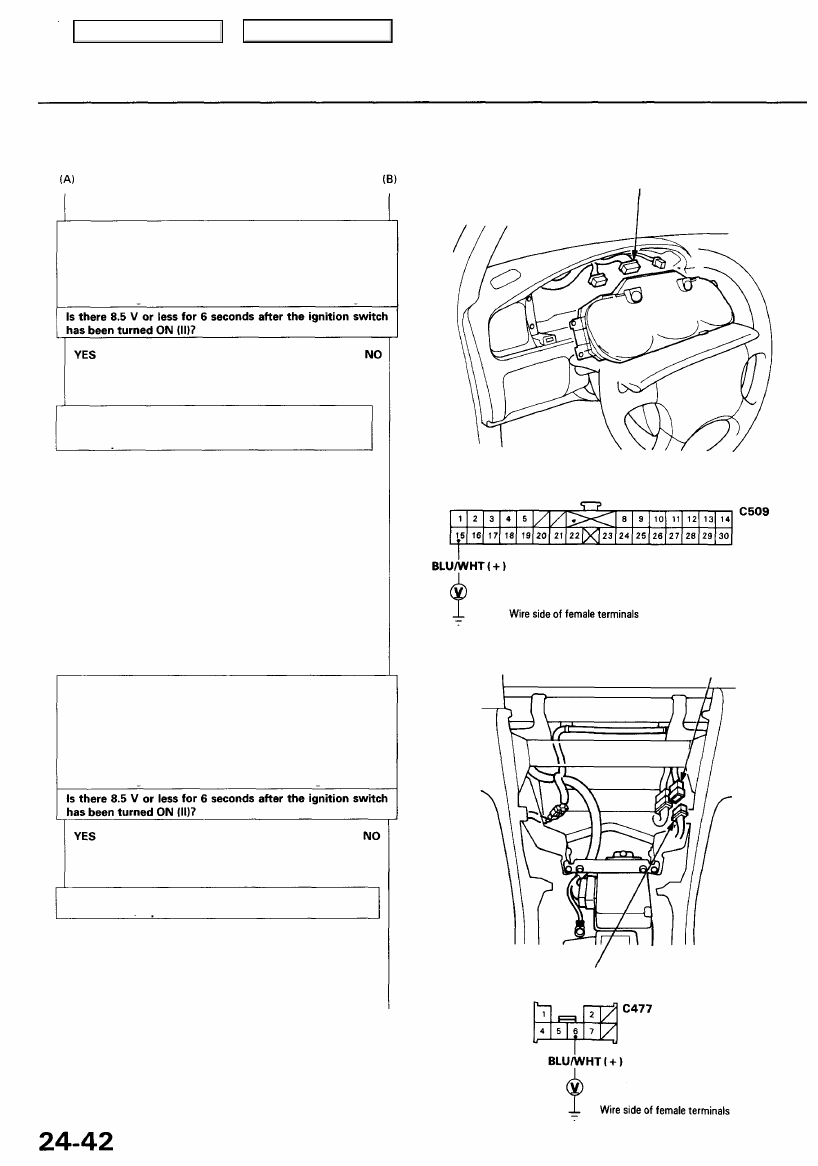

Check the SRS indicator light circuit:

1. Disconnect the dashboard wire harness 30P connector from

the gauge assembly.

2. Connect a voltmeter between the No. 15 terminal (+) of the

30P connector and ground.

3. Turn the ignition switch ON (II), and measure voltaqe.

Faulty SRS indicator light circuit in the gauge assembly;

replace the SRS printed circuit board in the gauge
assembly.

Check the wire harness of the SRS indicator light circuit (1):

1. Turn the ignition switch OFF, then remove the radio panel

assembly (see

section 20

2. Disconnect the main wire harness 8P connector from the

dashboard wire harness.

3. Connect a voltmeter between the No. 6 terminal (+) of the

main wire harness 8P connector and ground.

4. Turn the ignition ON (II), and measure voltaqe.

Short to power in the BLU/WHT wire of the dashboard
wire harness: repair the harness.

DASHBOARD WIRE HARNESS
30P CONNECTOR

DASHBOARD WIRE
HARNESS
8P CONNECTOR

MAIN WIRE HARNESS

8P CONNECTOR

Main Menu

Table of Contents

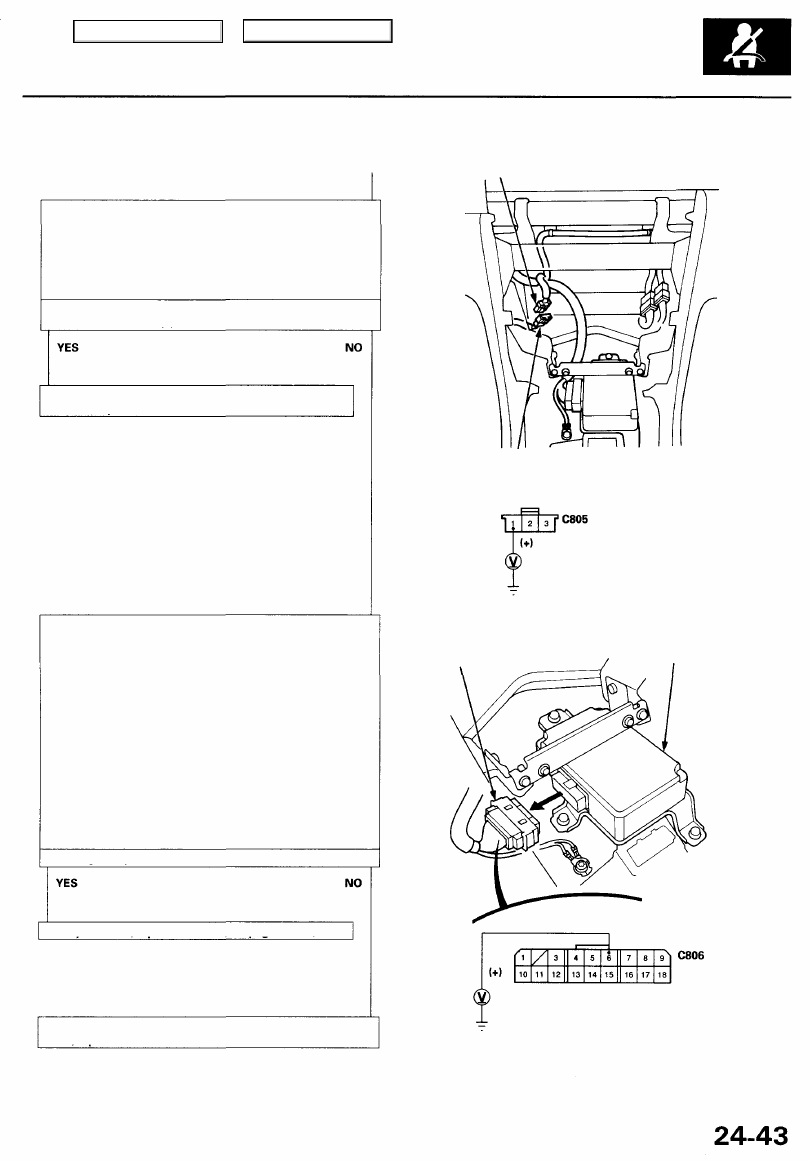

From page

24-42

SRS MAIN WIRE HARNESS

Check the wire harness of the SRS indicator light circuit (2):

1. Turn the ignition switch OFF.

2. Disconnect the SRS main harness 3P connector from the

main wire harness.

3. Connect a voltmeter between the No. 1 terminal (+) of the

SRS main harness 3P connector and ground.

4. Turn the ignition switch ON (II), and measure voltage.

Is there 8.5 V or less for 6 seconds after the ignition switch
has been turned ON (II)?

Short to power in the BLU/WHT wire of the main wire
harness: repair the harness.

MAIN WIRE HARNESS

SRS MAIN HARNESS
3P CONNECTOR

Wire side of female
terminals

Check the wire harness of the SRS indicator circuit (3):

1. Turn the ignition switch OFF. Make sure you have the anti-

theft code for the radio, then write down the frequencies
for the radio's preset buttons.

2. Disconnect the battery negative cable, then the positive

cable, and wait 3 minutes.

3. Disconnect the driver's and front passenger's airbag con-

nectors, then disconnect the driver's and front passen-
ger's seat belt tensioner connectors (see page

24-33

4. Disconnect the SRS main harness 18P connector from

the SRS unit.

5. Reconnect the battery positive cable, then reconnect the

negative cable.

6. Connect a voltmeter between the No. 6 terminal (+) of the

SRS main harness 18P connector and ground.

7. Turn the ignition switch ON (II), and measure voltage.

There should be 0.5 V or less.

Is voltage as specified?

Faulty SRS unit: replace the unit (see page

24-181

SRS MAIN HARNESS

18P CONNECTOR

SRS UNIT

Wire side of female terminals

Short to power in the GRY (BLU) wire of the SRS main har-
ness: replace the harness.

Main Menu

Table of Contents

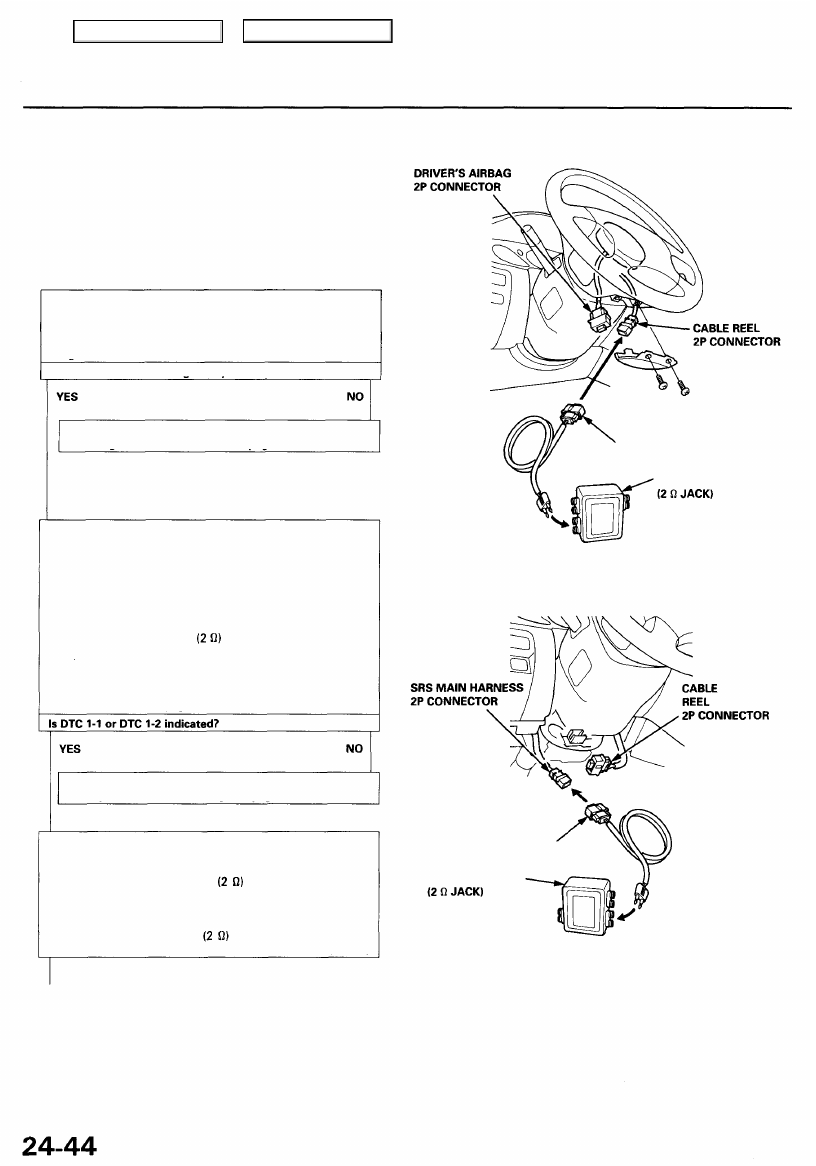

Troubleshooting - '96 - 98 Models

DTC 1-1 and DTC 1-2

CAUTION: Whenever the ignition switch is ON (II), or
has been turned OFF for less than 3 minutes, be careful
not to bump the SRS unit; the airbags could accidentally
deploy and cause damage or injuries.

NOTE: The PCM memory must be reset after reconnect-
ing the battery (see page

11-125

Try to reproduce the SRS indicator light:

1. Erase the DTC memory (see page

24-37

2. Turn the ignition switch ON (II), and check that the SRS

indicator light comes on for about 6 seconds and then
goes off.

Does the SRS indicator light stay on?

Intermittent failure, system is OK at this time. See Trouble-
shooting Intermittent Failures on page

24-37

Check for an open in the driver's airbag inflator:

1. Turn the ignition switch OFF.

2. Disconnect the battery negative cable, then disconnect the

positive cable, and wait for 3 minutes.

3. Disconnect the driver's airbag 2P connector from the cable

reel 2P connector.

CAUTION: Do not disconnect the passenger's airbag con-
nector.

4. Connect the special tool to the cable reel 2P connec-

tor.

5. Reconnect the battery positive cable, then reconnect the

negative cable.

6. Erase the DTC memory (see page

24-37

7. Read the DTC (see page

24-35

Open or increased resistance in the driver's airbag infla-
tor; replace the driver's airbag (see page

24-160

Check for an open in the cable reel:

1. Disconnect the battery negative cable, then disconnect

the positive cable, and wait for 3 minutes.

2. Disconnect the special tool from the cable reel 2P

connector.

3. Remove the dashboard lower cover, and disconnect the

cable reel 2P connector from the SRS main harness.

4. Connect the special tool to the SRS main harness

2P connector. (cont'd)

07SAZ-TB4011A

To page

24-45

07TAZ-SZ5011A

Main Menu

Table of Contents

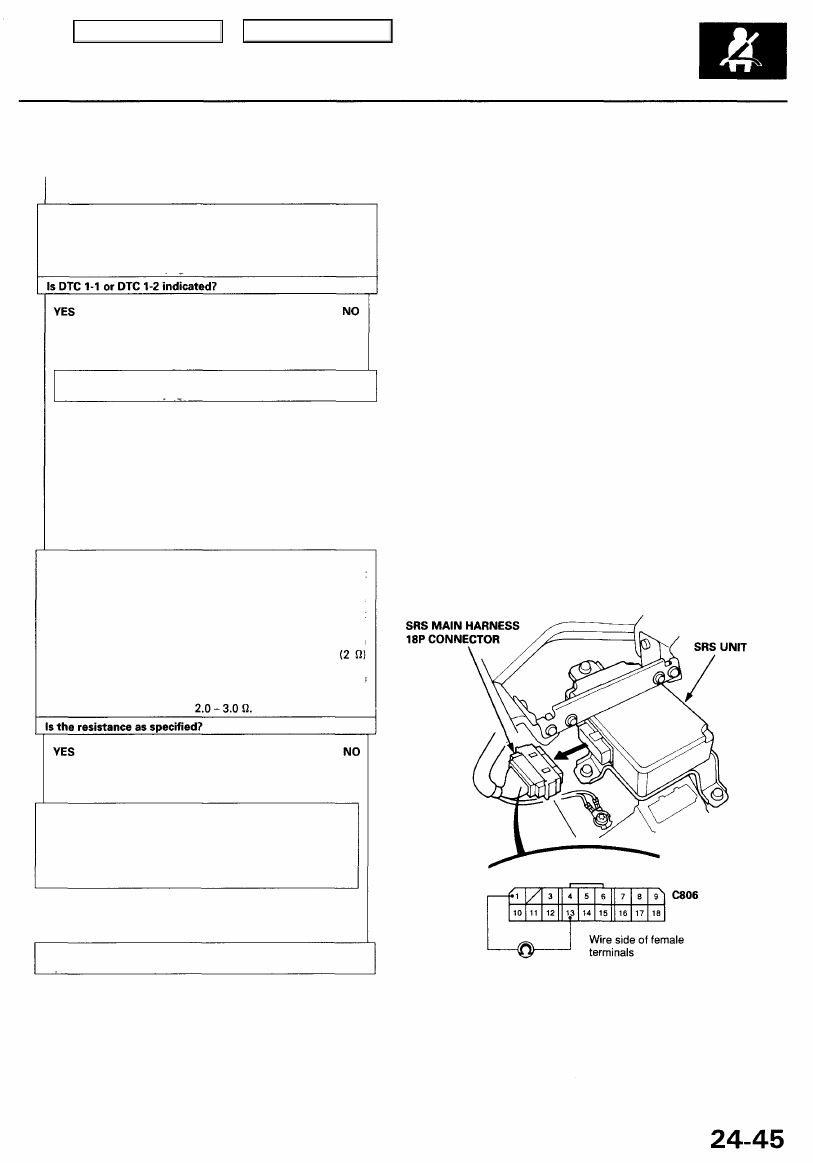

From page

24-44

Check for an open in the cable reel (cont'd)
5. Reconnect the battery positive cable, then reconnect the

negative cable.

6. Erase the DTC memory (see page

24-37

7. Read the DTC (see page

24-35

Open or increased resistance in the cable reel; replace
the cable reel (see page

24-176

Check for an open in the SRS main harness:

1. Disconnect the battery negative cable, then disconnect

the positive cable, and wait for 3 minutes.

2. Disconnect the front passenger's airbag connector, then

disconnect the driver's and front passenger's seat belt
tensioner connectors (see page

24-33

3. Disconnect the SRS main harness 18P connector from

the SRS unit. Do not disconnect the special tool
from the SRS main harness 2P connector.

4. Check resistance between terminals No. 1 and No. 13 of

the SRS main harness 18P connector.
There should be approx.

Poor contact at the SRS main harness 18P connector;
check the connector.

• If the connector is OK, substitute a known-good SRS

unit, and recheck.

• If the problem is still present, replace the SRS main

harness.

Open or increased resistance in the SRS main harness;
replace the harness.
