Acura RL (1996-2004 year). Manual - part 613





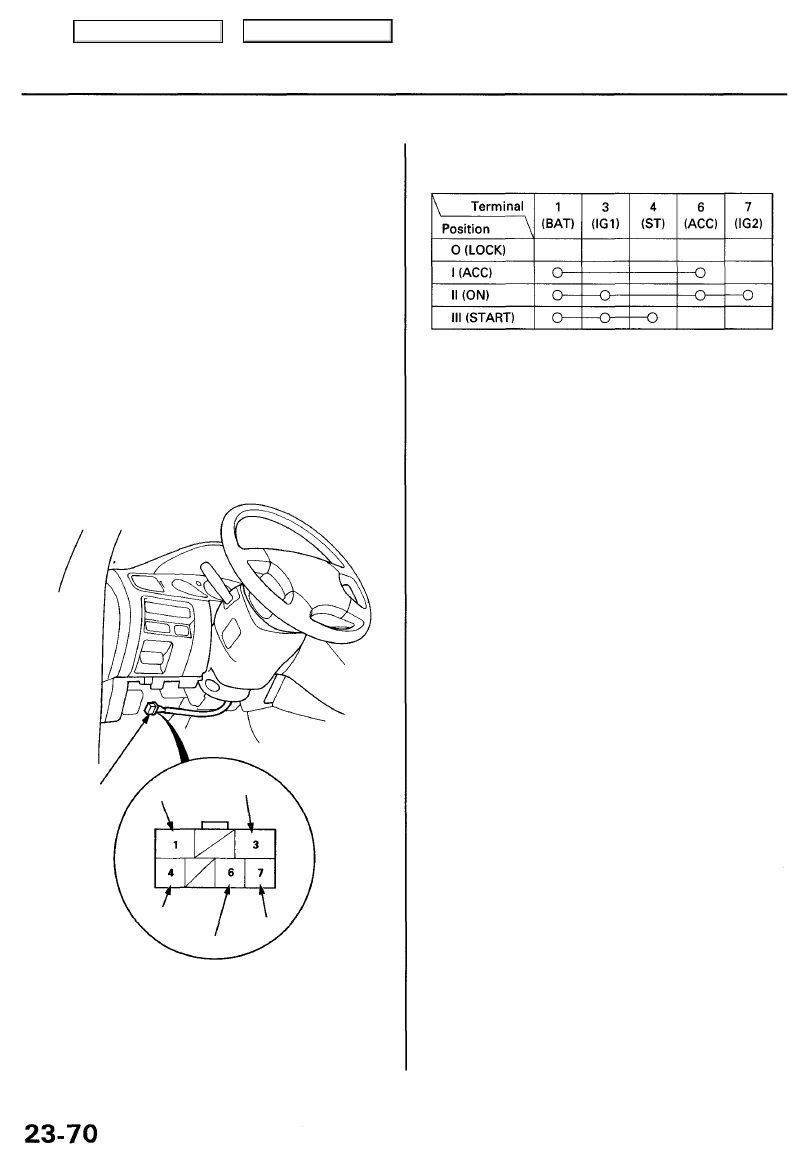

Ignition Switch

Test

SRS components are located in this area. Review the
SRS component locations, precautions, and procedures

in the SRS (

section 24

) before performing repairs or

service.

NOTE: The PCM memory must be reset after reconnecting

the battery (see

section 11

).

1. Make sure you have the anti-theft code for the radio

and the navigation system, then write down the fre-
quencies for the radio's preset buttons.

2. Disconnect the battery negative cable.

3. Remove the dashboard lower cover (see

 section 20

).

4. Disconnect the 7P connector from the under-dash

fuse/relay box.

7P CONNECTOR

Wire side of
female terminals

WHT

BLK/YEL

YEL

WHT/RED

BLK/WHT

5. Check for continuity between the terminals in each

switch position according to the table.

6. If the continuity checks do not agree with the table,

replace the electrical switch.

7. After reconnecting the battery, enter the anti-theft

code for the radio and the navigation system, then
enter the customer's radio station presets.

Main Menu

Table of Contents

8. After reconnecting the battery, enter the anti-theft

code for the radio and the navigation system, then
enter the customer's radio station presets.

SWITCH

LOCK CYLINDER

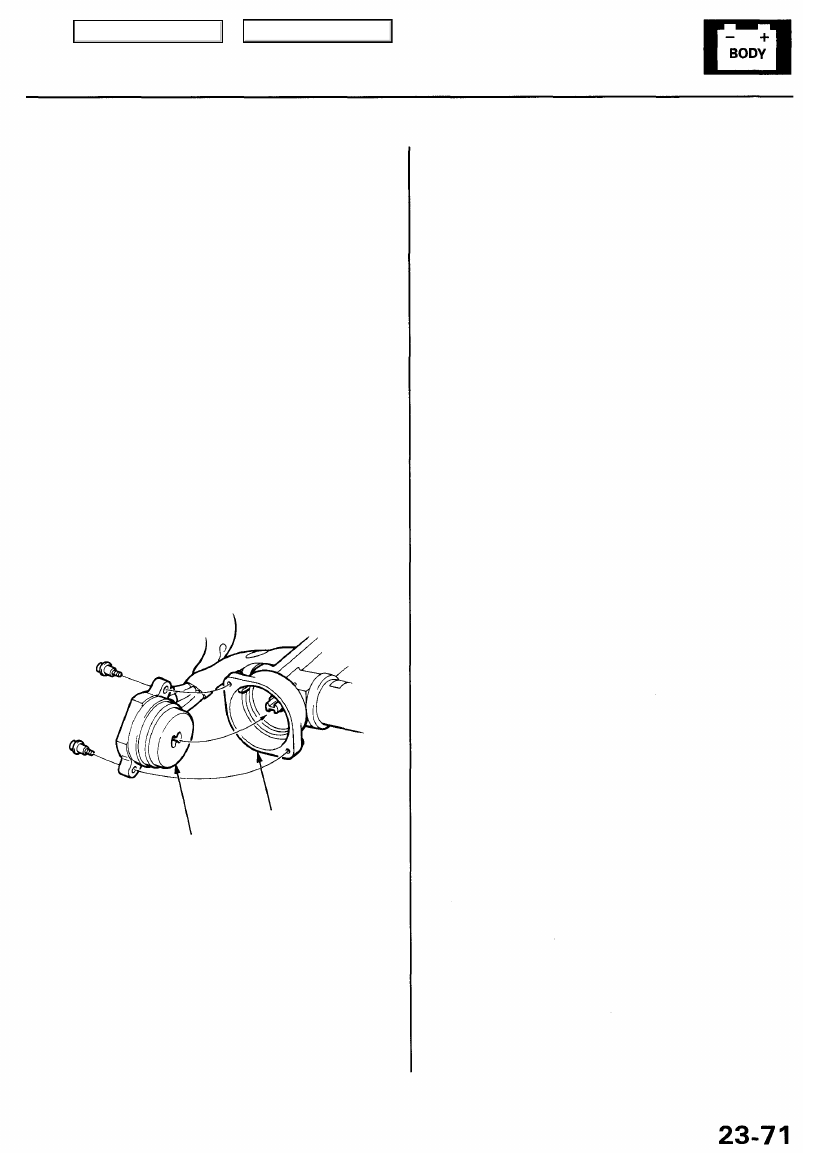

Electrical Switch Replacement

SRS components are located in this area. Review the
SRS component locations, precautions,and procedures

in the SRS (

section 24

) before performing repairs or

service.

NOTE: The PCM memory must be reset after reconnecting

the battery (see

 section 11

).

1. Make sure you have the anti-theft code for the radio

and the navigation system, then write down the fre-
quencies for the radio's preset buttons.

2. Disconnect the battery negative cable.

3. Remove the dashboard lower cover (see

section 20

).

4. Disconnect the 7P connector from the under-dash

fuse/relay box.

5. Remove the steering column covers (see

section 17

).

6. Insert the ignition key, and turn it to "0".

7. Remove the two screws and the electrical switch

from the steering lock.

Main Menu

Table of Contents

Battery

Test

• Battery fluid (electrolyte) contains sulfuric acid. It may cause severe burns if it gets on your skin or in your eyes. Wear

protective clothing and a face shield.
— If electrolyte gets on your skin or clothes, rinse it off with water immediately.
— If electrolyte gets in your eyes, flush it out by splashing water in your eyes for at least 15 minutes; call a physician

immediately.

• A battery gives off hydrogen gas. If ignited, the hydrogen will explode and could crack the battery case and splatter

acid on you. Keep sparks, flames, and cigarettes away from the battery.

• Overcharging will raise the temperature of the electrolyte. This may force electrolyte to spray out of the battery vents.

Follow the charger manufacturer's instructions, and charge the battery at a proper rate.

NOTE: The PCM memory must be reset after reconnecting the battery (see

section 11

).

Use either a JCI or Bear ARBST tester, and follow the manufacturer's procedures. If you don't have one of these

computerized testers, follow this conventional test procedure:
To get accurate results, the temperature of the electrolyte must be between 70°F (21°C) and 100°F (38°C).

Stays above 9.6 volts;
battery is OK.

Drops below 9.6 volts.

• Apply 300 amp load for 15 seconds to remove

surface charge.

• Allow 15 seconds recovery period.
• Apply test load (see Test Load Chart).
• Record voltage at the end of 15 seconds.

Test Load Capacity (#1)

EYE Indicates OK

If the indicator shows low electrolyte, add distilled

water if possible.

EYE Indicates LOW
CHARGE

Check Indicator EYE Color

If the case is cracked or the posts are loose, replace

the battery.

Check For Damage

Main Menu

Table of Contents

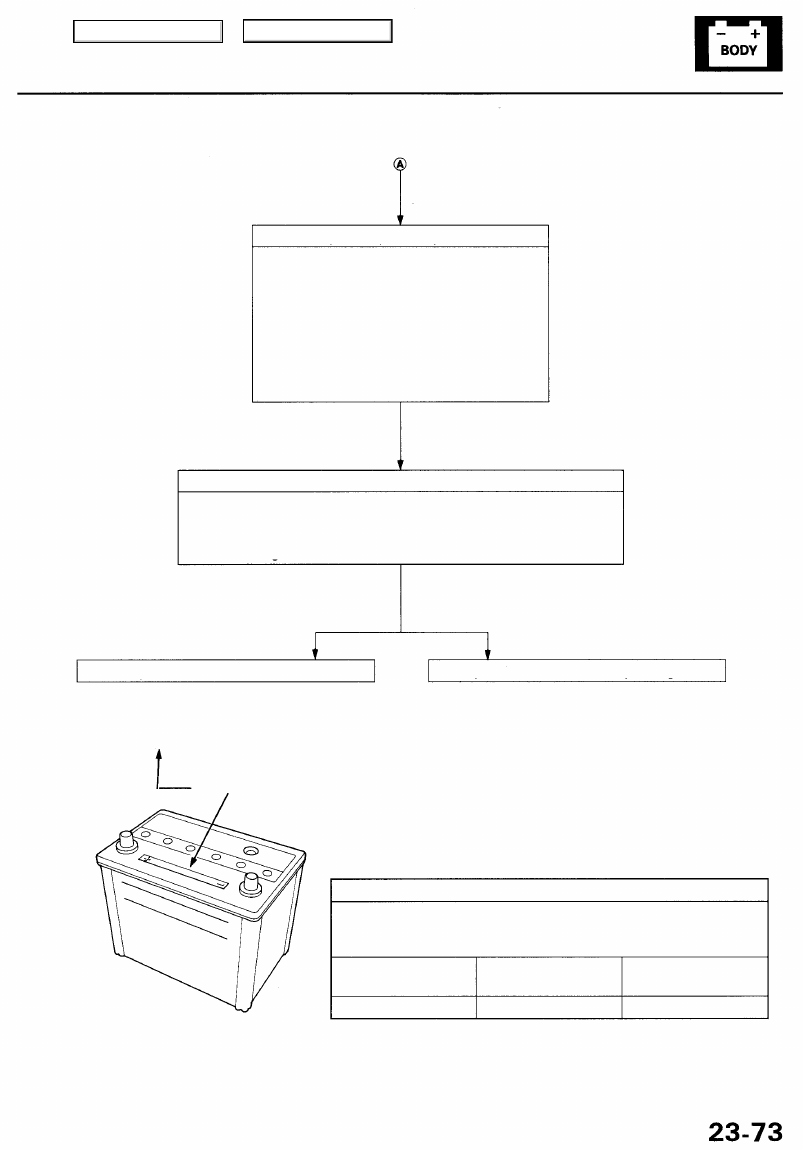

Charge on High Setting (40 amps)

Charge until EYE shows charge is OK; plus an
additional 30 minutes to assure full charge.

NOTE: If the battery charge is very low, it may
be necessary to bypass the charger's polarity
protection circuitry.
If the EYE does not show charge is OK within

3 hours, the battery is no-good; replace it.
Write down how long the battery was
charged.

Test Load Capacity (#2)

• Apply 300 amp load for 15 seconds to remove surface charge.
• Allow 15 seconds recovery period.
• Apply test load (see Test Load Chart).
• Record voltage at the end of 15 seconds.

Stays above 9.6 volts; battery is OK.

Drops below 9.6 volts; battery is no-good.

BATTERY CODE

80D26R-MF

TEST LOAD CHART

Use the test load or 1/2 the cold cranking amps (CCA) printed on the
label on the top of the battery. If neither is indicated, use the
information below:

BATTERY

CODE

COLD CRANKING

AMPS (CCA)

LOAD

(amps)

270

550

80
