Oil Pan

Installation

Install the oil pan in the reverse order of removal:
• Always use new O-rings.
• Oil pan and cylinder block mating surface must be

clean.

1. Apply liquid gasket to the cylinder block, then install

the oil pan.

NOTE:
• Use liquid gasket, Part No. 08718 - 0001 or 08718

0003.

• Check that the mating surfaces are clean and dry

before applying liquid gasket.

• Apply liquid gasket evenly, being careful to cover

all the mating surface.

• Do not apply liquid gasket to O-ring grooves.
• To prevent oil leakage, apply liquid gasket to the

inner threads of the bolt holes.

• Do not install the parts if 5 minutes or more have

elapsed since applying liquid gasket.

Instead, reapply liquid gasket after removing old
residue.

• After assembly, wait at least 30 minutes before fill-

ing the engine with oil.

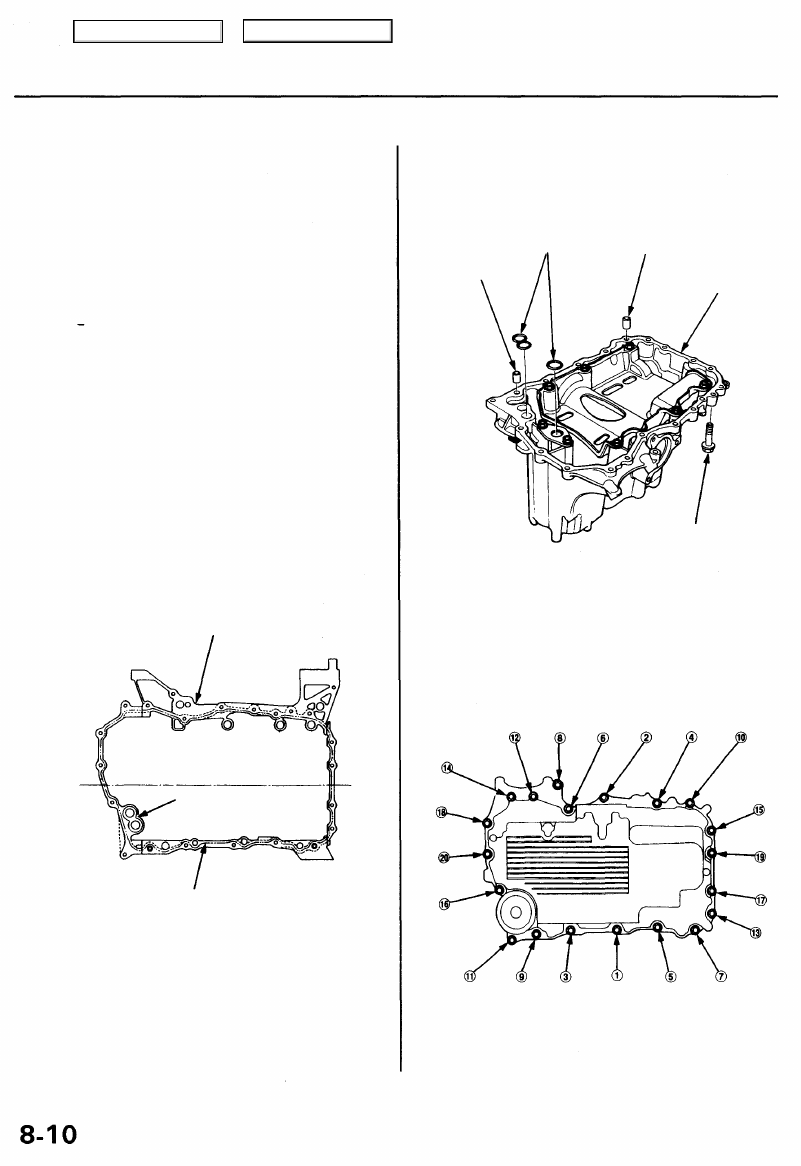

CYLINDER
BLOCK

O-RING GROOVE

Apply liquid gasket
along the broken line.

NOTE: Use new O-rings. Apply oil to the O-rings
before installation.

DOWEL PIN

O-RINGS
Replace.

DOWEL PIN

OIL PAN

ASSEMBLY

8 x 1.25 mm

22 N-m (2.2 kgf-m,

16 Ibf-ft)

2. Tighten the oil pan bolts as shown.

OIL PAN BOLT TORQUE SEQUENCE
8 x 1.25 mm: 22 N-m (2.2 kgf-m, 16 Ibf-ft)

Main Menu

Table of Contents

3. Install the differential assembly.

Select the appropriate 26 mm shim whenever the
oil pan or the cylinder block is replaced.
Refer to

section 15

 for selection of the correct

26 mm shim.

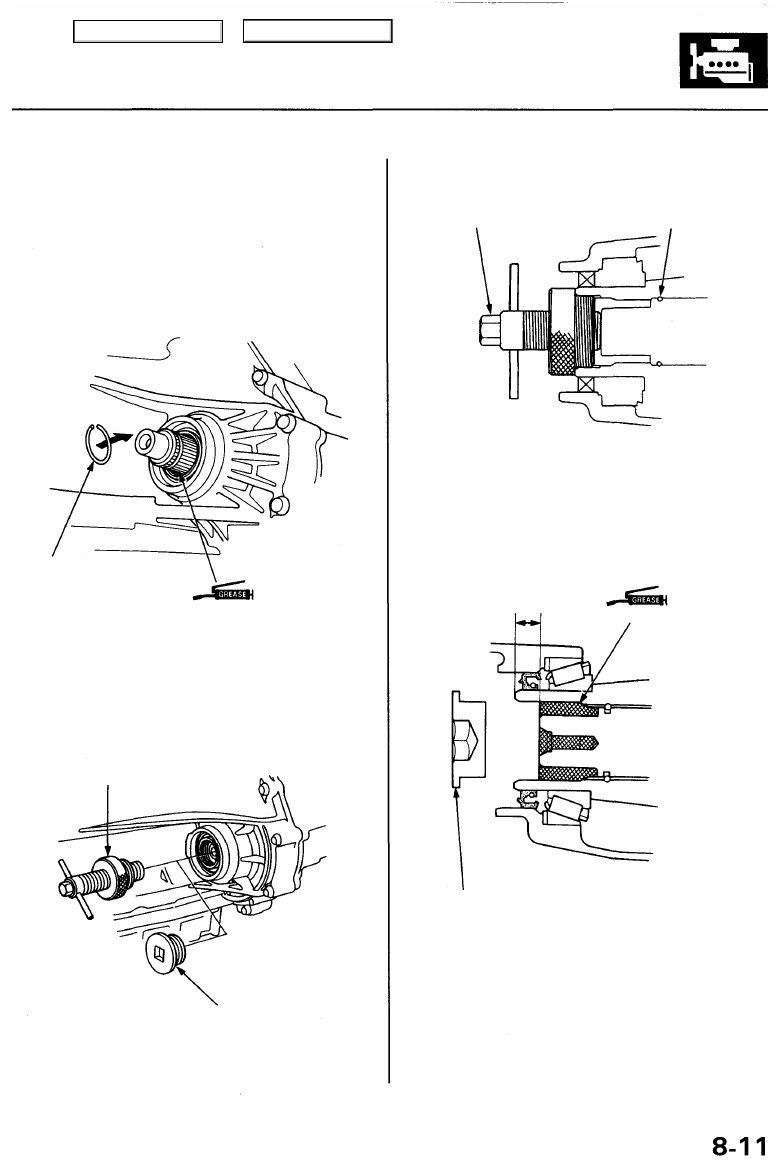

4. Apply grease to the spline of the extension shaft,

then install the new set ring with the open side fac-

ing up.

EXTENSION SHAFT
INSTALLER

07MAF-PY40101

SET RING
Replace.

6. Fill the cavity with High Temp Urea Grease (P/N

08798 - 9002).

7. Reinstall the 36 mm sealing bolt and the secondary

cover.
Apply liquid gasket (P/N 08718 - 0001) to the sealing

bolt threads.

11.5 ± 0.3 mm
(0.45 ± 0.01 in)

12 -14 g (0.4-0.5 oz)

36 mm SEALING BOLT
78 N-m (8.0 kgf-m, 58 Ibf-ft)

8. Check the following after reassembly.

• Refill the differential with differential oil.
• Refill the engine with engine oil.
• Make sure the set rings on the driveshafts are

completely inserted into the grooves of the dif-
ferential or intermediate shaft.

• Adjust the A/C compressor belt tension.
• Adjust the P/S pump belt tension.

36 mm SEALING BOLT
78 N-m (8.0 kgf-m, 58 Ibf-ft)

EXTENSION SHAFT
INSTALLER

07MAF-PY40101

5. Install the extension shaft with the special tool.

NOTE: Make sure the extension shaft locks in place.

SET RING
Replace.

Main Menu

Table of Contents

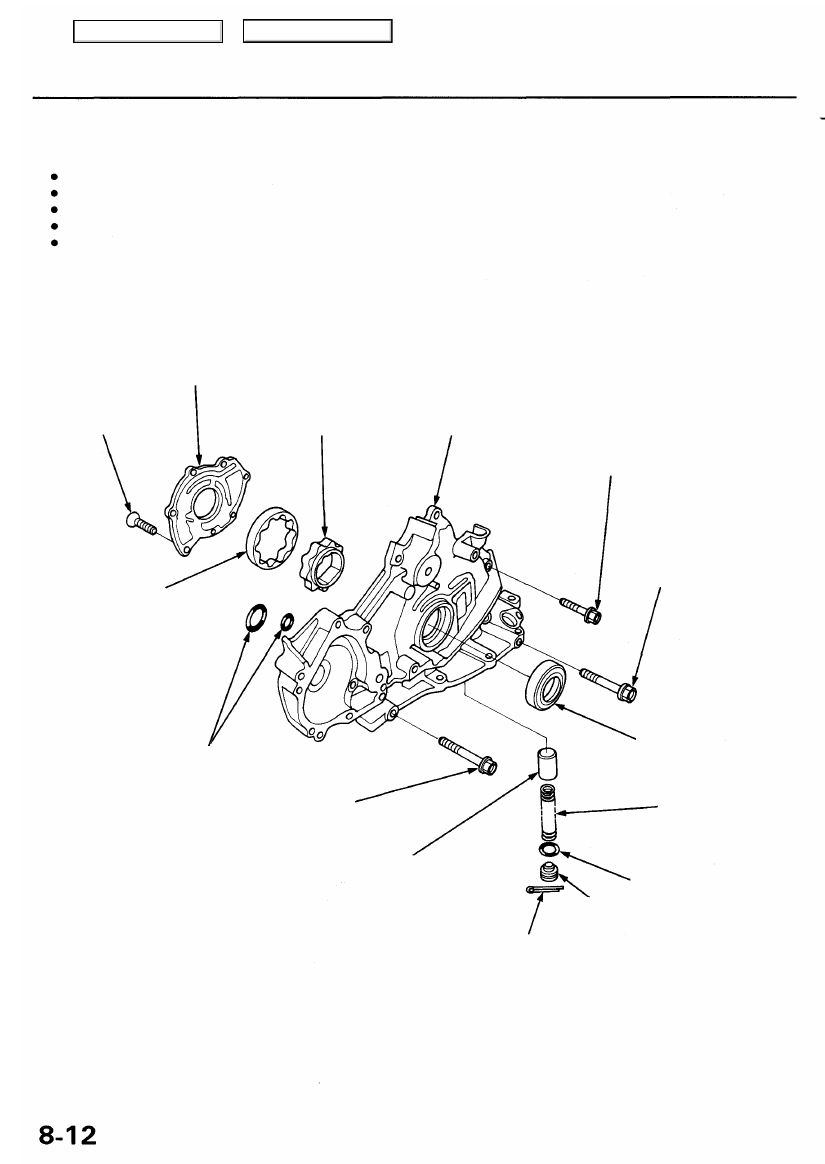

Oil Pump

Overhaul

NOTE:

Use new O-rings when reassembling.

Apply oil to the O-rings before installation.

Use liquid gasket, Part No. 08718 - 0001 or 08718 - 0003.

The rotors must be installed in the same direction.

After reassembly, check that the rotors move without binding.

6 x 1.0 mm
8 N-m (0.8 kgf-m,
6 Ibf-ft)

PUMP COVER

INNER ROTOR
Inspection, page

8-14

PUMP HOUSING
Inspection, page

8-14

Apply liquid gasket
to mating surface of
the cylinder block
when installing.

6 x 1.0 mm

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)

8 x 1.25 mm
22 N-m (2.2 kgf-m,

16 Ibf-ft)

OIL SEAL

Installation, page

 8-15

Replace.

SPRING

O-RING

Replace.

SPRING
SEAT

COTTER PIN

Replace.

RELIEF VALVE
Valve must slide freely
in housing bore.
Replace if scored.

8 x 1.25 mm
22 N-m (2.2 kgf-m,

16 Ibf-ft)

O-RINGS
Replace.

OUTER ROTOR
Inspection, page

8-14

Main Menu

Table of Contents

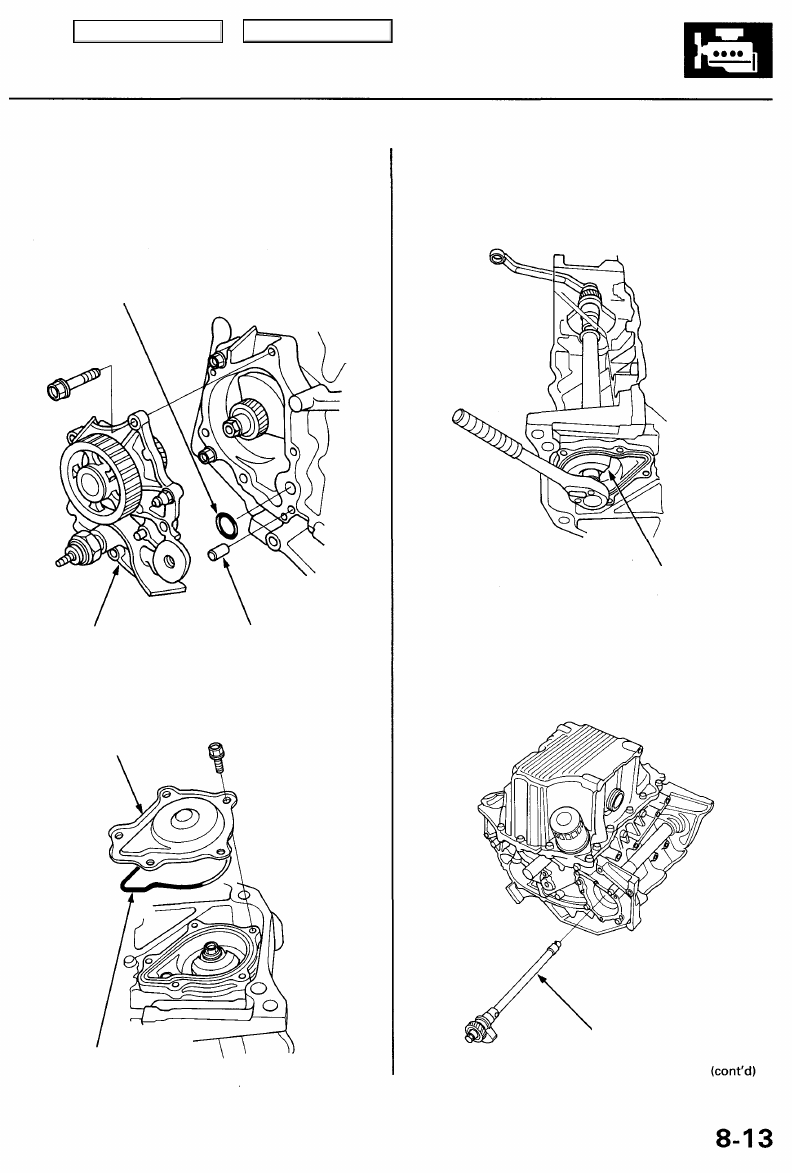

Removal/lnspection/lnstallation
