Acura RL (1996-2004 year). Manual - part 347





Line up the mark when
installing the connecting

rod cap.

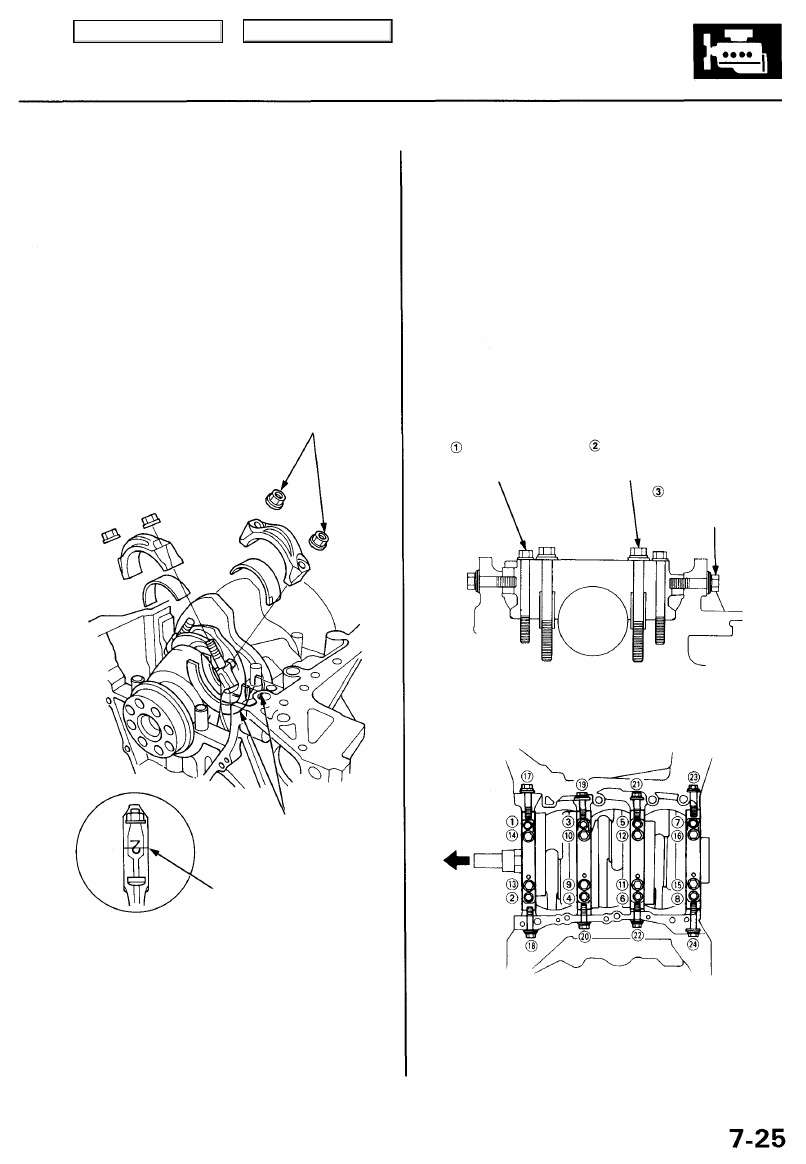

THRUST WASHERS

5. Install the piston/connecting rod assemblies (see

page

7-23

).

6. Check the connecting rod bearing clearance with

plastigage (see page

7-9

), then torque the connect-

ing rod cap nuts.

NOTE: Reference numbers on the connecting rods
are for big-end bore tolerance and do NOT indicate

the position of the piston in the engine.

9 x 0.75 mm

44 N-m (4.5 kgf-m,
33 Ibf-ft)
Apply engine oil to the

nut threads.

7. Tighten the 9 x 1.25 mm cap bolts to the specified

torque.

Torque: 39 N-m (4.0 kgf-m, 29 Ibf-ft)
Apply engine oil to the bolt threads.

8. Tighten the 11 x 1.5 mm cap bolts to the specified

torque.

Torque: 76 N-m (7.8 kgf-m, 56 Ibf-ft)

Apply engine oil to the bolt threads.

9. Tighten the 10 x 1.25 mm cap side bolts to the spec-

ified torque.

Torque: 49 N-m (5.0 kgf-m, 36 Ibf-ft)

9 x 1.25 mm

39 N-m (4.0 kgf-m,
29 Ibf-ft)

11 x 1.5 mm

76 N-m (7.8 kgf-m,
56 Ibf-ft)

10 x 1.25 mm

49 N-m (5.0 kgf-m,
36 Ibf-ft)

BEARING CAP BOLTS TORQUE SEQUENCE

CAUTION: Whenever any crankshaft bearing or con-
necting rod bearing is replaced, it is necessary after
reassembly to run the engine at idling speed until it
reaches normal operating temperature, then continue
to run it for approximately 15 minutes.

(cont'd)

Main Menu

Table of Contents

Crankshaft

Installation (cont'd)

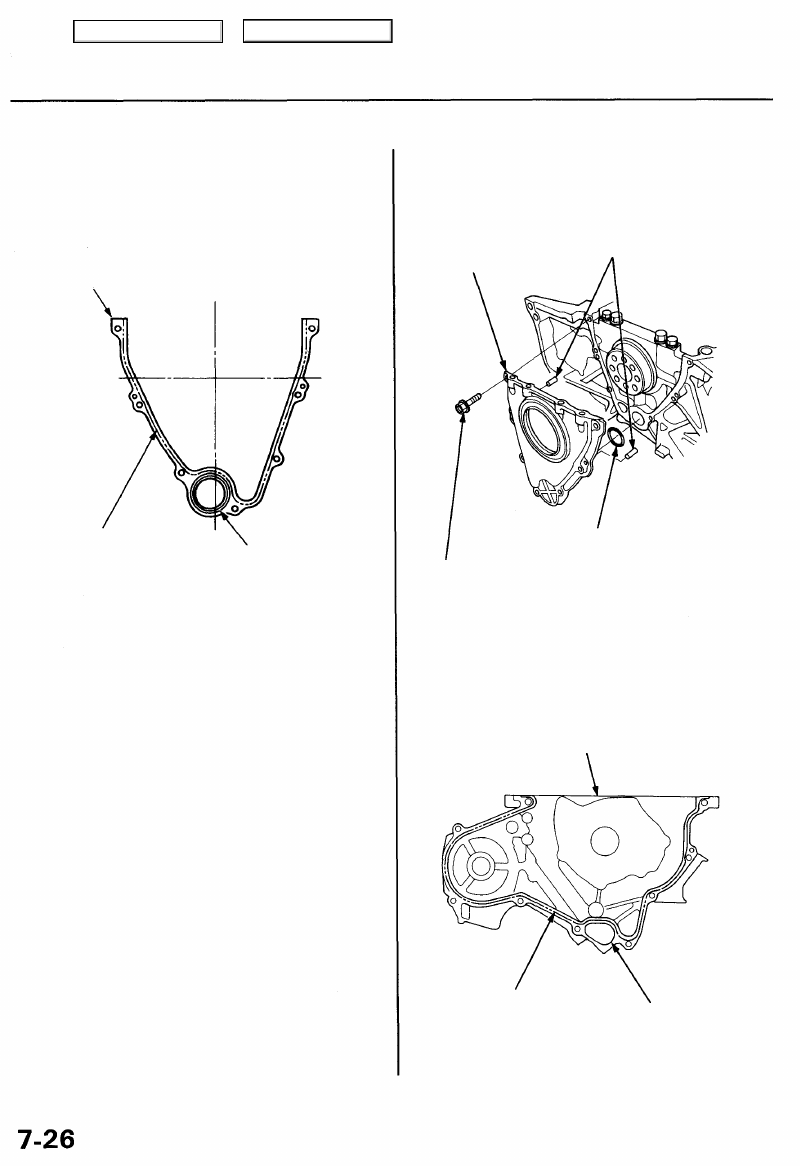

10. Apply liquid gasket to the cylinder block mating sur-

face of the rear cover, then install the cover on the
cylinder block.

REAR COVER

Apply liquid gasket

along the broken line.

Do not apply liquid gasket

to O-ring groove.

NOTE:
• Use liquid gasket, Part No. 08718 - 0001 or 08718

- 0003.

• Check that the mating surfaces are clean and dry

before applying liquid gasket.

• Apply liquid gasket evenly, being careful to cover

all the mating surface.

• To prevent oil leakage, apply liquid gasket to the

inner threads of the bolt holes.

• Do not apply liquid gasket to O-ring grooves.
• Do not install the parts if five minutes or more

have elapsed since applying liquid gasket.
Instead reapply liquid gasket after removing old
residue.

• After assembly, wait at least 30 minutes before

filling the engine with oil.

Apply liquid gasket
along the broken line.

O-RING GROOVE

NOTE:
• Apply a light coat of oil to the crankshaft and to the

lip of the oil seal.

• Use a new O-ring and apply oil when installing it.

REAR COVER

DOWEL PINS

6 x 1.0 mm

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)

O-RING

Replace.

11. Apply liquid gasket to the cylinder block mating sur-

face of the oil pump.

NOTE: Do not apply liquid gasket to the O-ring
grooves.

OIL PUMP
HOUSING

Main Menu

Table of Contents

12. Install the oil pump with new O-rings.

NOTE:
• Apply a light coat of oil to the crankshaft and to

the lip of the seal.

• Use new O-rings and apply oil when installing

them.

DOWEL PIN

O-RINGS

Replace.

OIL PUMP

DOWEL PIN

6 x 1.0 mm

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)

8 x 1.25 mm
22 N-m (2.2 kgf-m,

16 Ibf-ft)

DOWEL PIN

DOWEL PIN

OIL PAN
ASSEMBLY

NOTE: Do not apply liquid gasket to the O-ring
grooves.

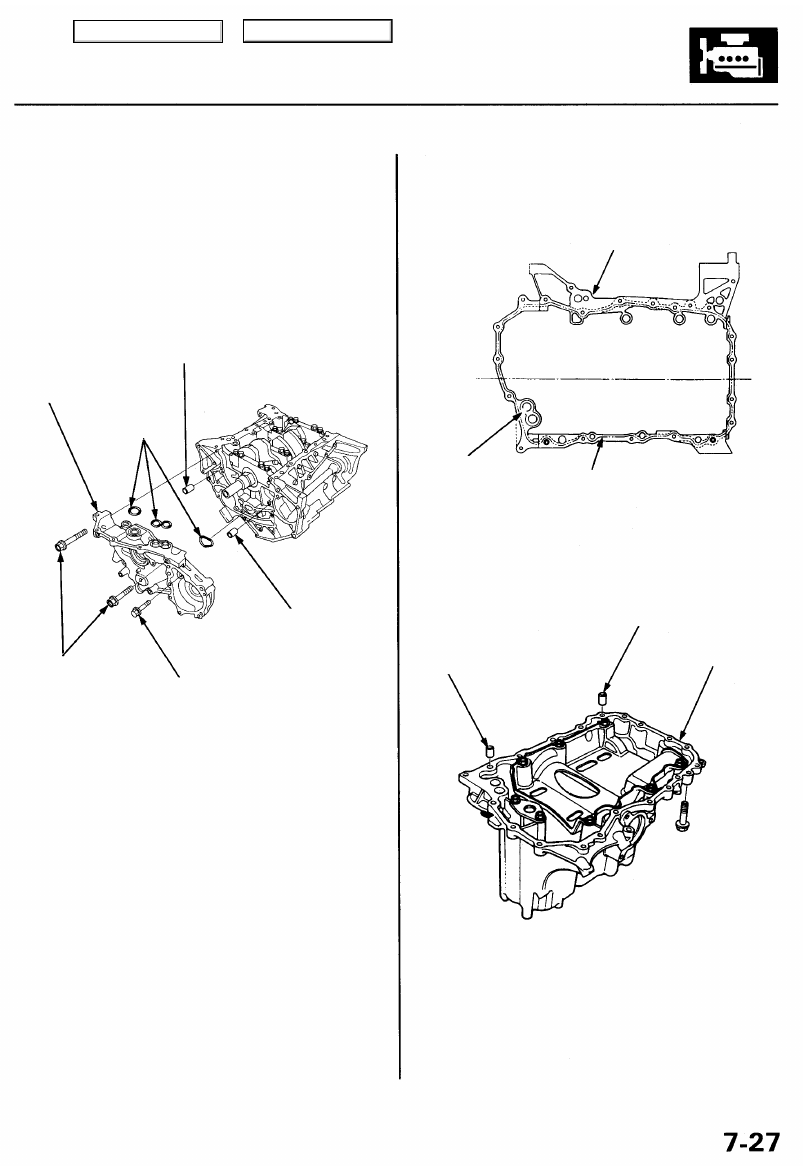

13. Apply liquid gasket to the cylinder block, then install

the oil pan.

CYLINDER
BLOCK

Apply liquid gasket
along the broken line.

O-RING
GROOVE

(cont'd)

Main Menu

Table of Contents

BALANCER
SHAFT

Crankshaft

Installation (cont'd)

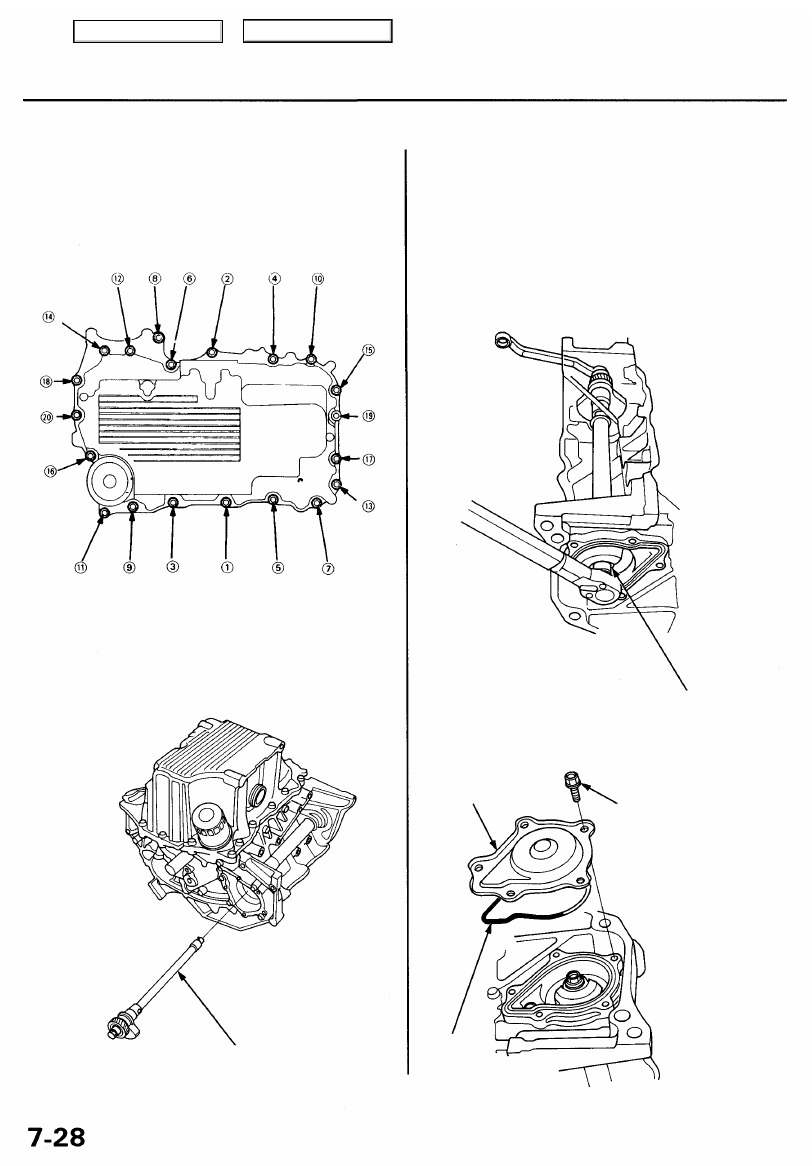

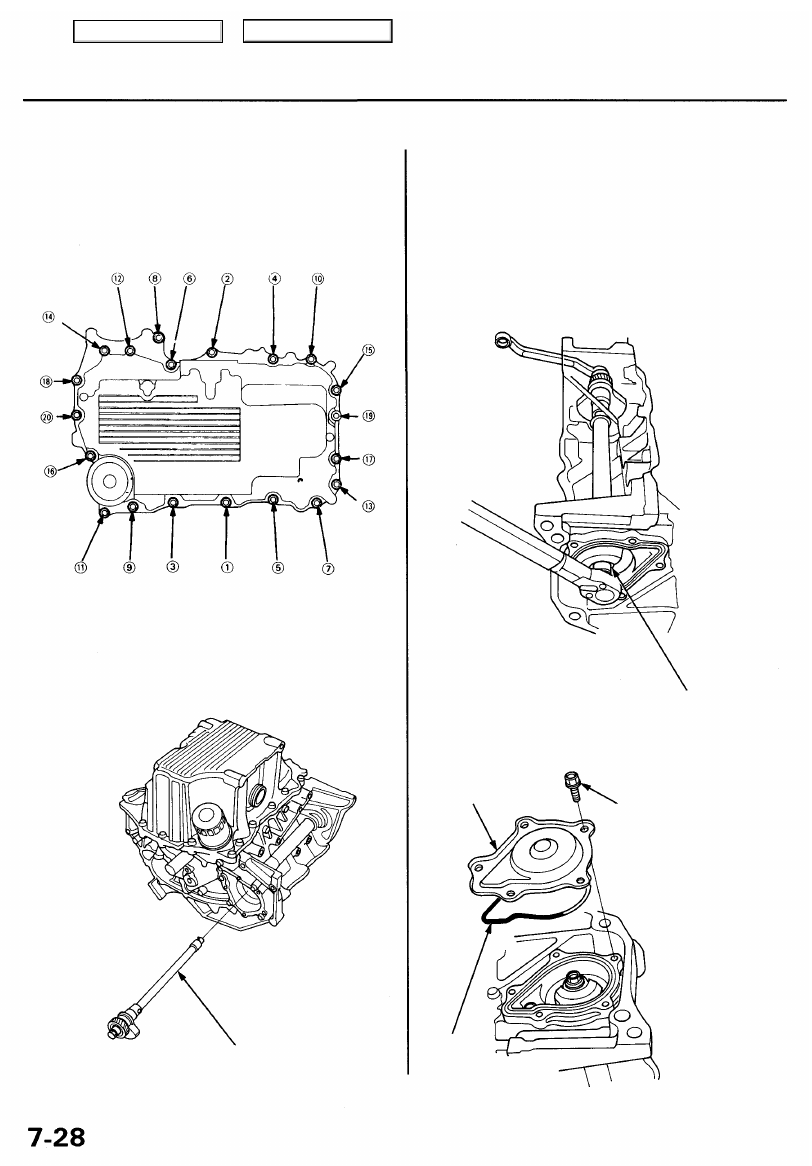

14. Tighten the oil pan bolts as shown.

OIL PAN BOLT TIGHTENING SEQUENCE
8 x 1.25 mm: 22 N-m (2.2 kgf-m, 16 Ibf-ft)

15. Apply engine oil to the balancer shaft, then insert

the balancer shaft.

NOTE: Take care not to damage the journals when
installing the balancer shaft.

16. Install the balancer shaft holder (see page

7-3

).

NOTE: Apply liquid gasket around the oil hole to

the block mating surface.

17. Install the rear balancer weight.

18. Hold the balancer shaft as shown below, then tighten

the bolt.

8 x 1.25 mm

25 N-m (2.5 kgf-m,

18 Ibf-ft)

19. Install the balancer shaft rear cover.

BALANCER SHAFT
REAR COVER

6 x 1.0 mm

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)

O-RING
Replace.
