203-28
2004 American Honda Motor Co., Inc.
Connector to Harness Index
Roof Wire Harness
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C411
4-GRY
Under left side of dash
Main wire harness
*2
C411
8-GRY
Under left side of dash
Main wire harness
*1
C411
14-GRY
Under left side of dash
Main wire harness
*5
C411
16-GRY
Under left side of dash
Main wire harness
*6
C542
1-CLR
Roof
Driver’s vanity mirror light
*4
C542
2-GRY
Roof
Driver’s vanity mirror light
*3
C543
4-GRY
Roof
Front ceiling and spotlights
C544
1-CLR
Roof
Front passenger’s vanity mirror light
*4
C544
2-GRY
Roof
Front passenger’s vanity mirror light
*3
C545
4-GRY
Roof
Rear ceiling light
C546
3-GRY
Roof
Automatic dimming mirror
*1, *6
C547
16-GRY
Rear view mirror
Automatic dimming mirror/OnStar buttons
and microphone
*5
C547
7-GRY
Roof
OnStar
buttons and microphone/
Homelink unit B
*6
C548
2-GRY
Roof
OnStar
buttons and microphone/
Homelink unit C
*6
C549
4-GRY
Roof
OnStar
buttons and microphone/
Homelink unit A
*6
*1: ’99-’01: Automatic dimming mirror, ’02-’03 (Canada)
*2: Except automatic dimming mirror
*3: Homelink remote control system
*4: Except homelink remote control system
*5: ’02-’03 (USA)
*6: ’04 (USA)

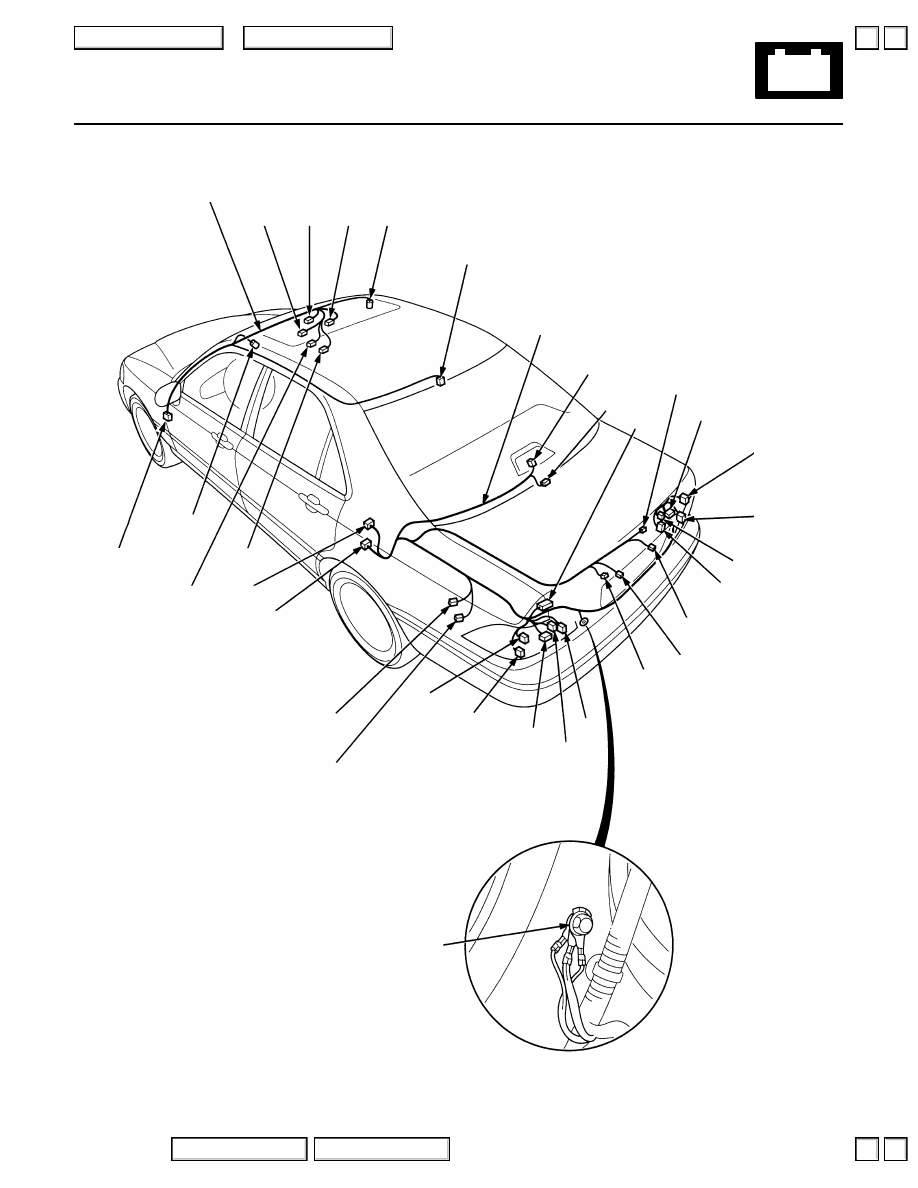

Rear Wire Harness
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C670
16-GRY
Left front corner of trunk
Left side wire harness
C702
2-BRN
Middle of trunk lid
High mount brake light
C703
2-GRY
Middle front of trunk
Trunk light
C704
2-GRY
Left side of trunk
Fuel pump resistor
C705
6-GRY
Middle rear of trunk lid
Trunk latch switch
C706
2-GRY
Behind rear bumper
Left license plate light
C707
2-GRY
Behind rear bumper
Right license plate light
C708
2-GRY
Right rear of trunk
Trunk key cylinder switch
Security
C709
8-GRY
Left rear of trunk
Left taillights
*1
C709
4-GRY
Left rear of trunk
Left brake lights/ taillights
*2
C710
8-GRY
Right rear of trunk
Right taillights
*1
C710
4-GRY
Right rear of trunk
Right brake lights/ taillights
*2
C711
6-GRY
Left rear of trunk
Trailer lighting connector
C712
4-BLU
Left rear of trunk
Left brake lights/ taillights
*2
C713
3-GRY
Left rear of trunk
Left rear turn signal light
*2
C714
6-GRY
Left rear of trunk
Left brake light failure sensor
*2
C715
2-GRY
Left rear of trunk
Left back-up light
*2
C716
4-BLU
Right rear of trunk
Right brake lights/ taillights
*2
C717
3-GRY
Right rear of trunk
Right rear turn signal light
*2
C718
6-GRY
Right rear of trunk
Right brake light failure sensor
*2
C719
2-GRY
Right rear of trunk
Right back-up light
*2
C720
14-WHT
Left side of trunk
XM satellite radio unit connector B
*3
C677
13-WHT
Left front corner of trunk
Left wire harness
*4
G701
Near left taillight
Body ground, via rear wire harness
*1: ’96-’98
*2: ’99-’04
*3: ’04
*4: ’04 USA
▲
▲
