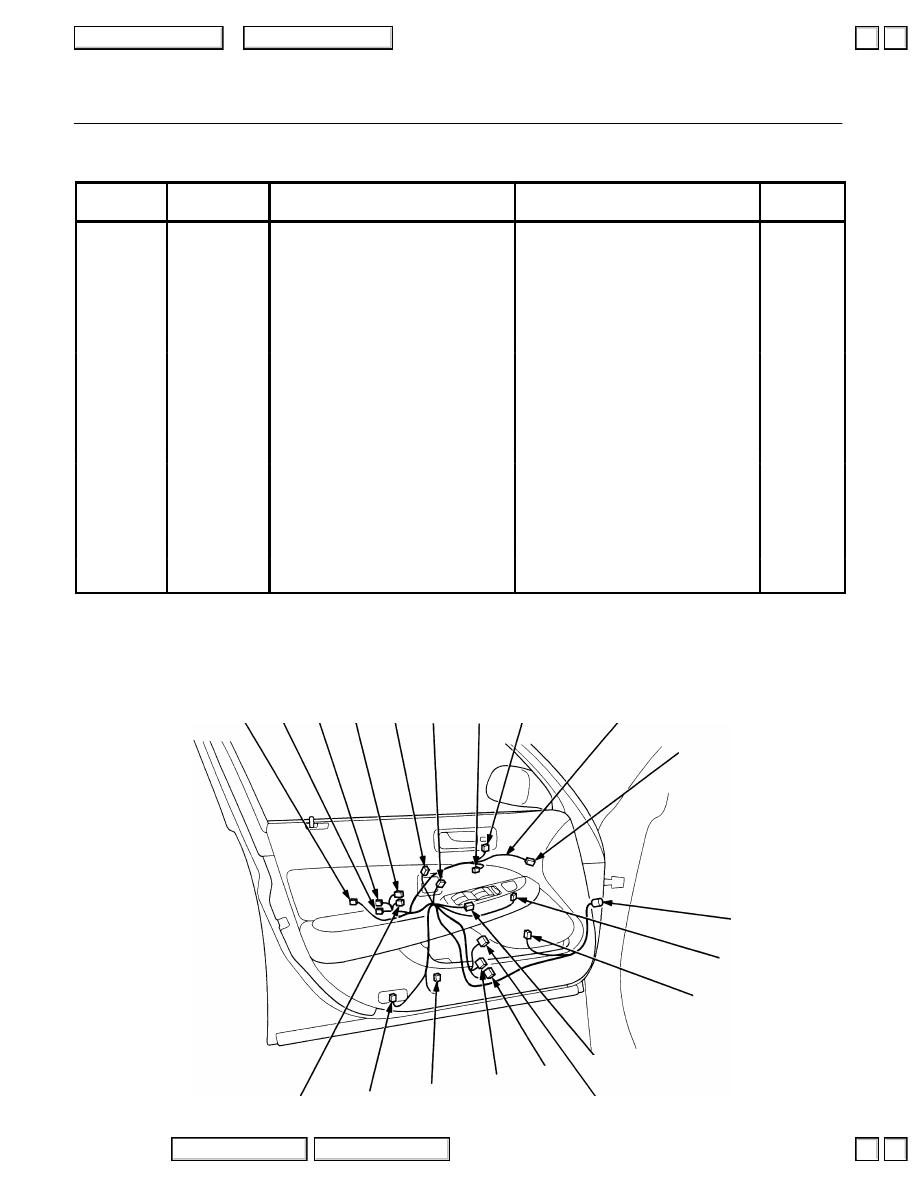

Connector to Harness Index
Driver’s Door Wire Harness
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C412
42-GRY
Driver’s door
Main wire harness
C742
2-GRY
Driver’s door
Driver’s door speaker
*6
C743
4-GRY
Driver’s door
Driver’s power window motor
C743
6-GRY
Driver’s door
Driver’s power window motor
*7
C744
8-GRY
Driver’s door
Driver’s door latch
C745
3-GRY
Driver’s door
Driver’s door key cylinder switch
C746
2-GRY
Driver’s door
Left tweeter
*1
C747
3-GRY
Driver’s door
Driver’s door lock switch
C748
10-GRY
Driver’s door
Left power mirror actuator
*4
C748
8-GRY
Driver’s door
Left power mirror actuator
*5
C749
2-BRN
Driver’s door
Trunk opener switch
C750
2-GRY
Driver’s door
Driver’s door courtesy light
C751
10-BLU
Driver’s door
Power mirror switch
*6
C751
10-GRN
Driver’s door
Power mirror switch
*7
C752
2-BRN
Driver’s door
Power mirror switch
*3
C753
10-GRY
Driver’s door
Driving position memory switch
C754
2-GRY
Driver’s door
Security indicator
C755
12-BLK
Driver’s door
Power mirror control unit
*6
C756
16-BLK
Driver’s door
Power mirror control unit
*6
C757
20-BLU
Driver’s door
Multiplex control unit (door)
C758
2-GRY
Driver’s door
Left tweeter
*2
C758
2-GRY
Driver’s door
Left twiddler
*8
C759
18-GRY
Driver’s door
Power window control unit
*7
*1: Except BOSE sound system
*2: BOSE sound system
*3: Defogger
*4: Position memory
*5: Except position memory
*6: ’96-’01
*7: ’02-’04
*8: ’04

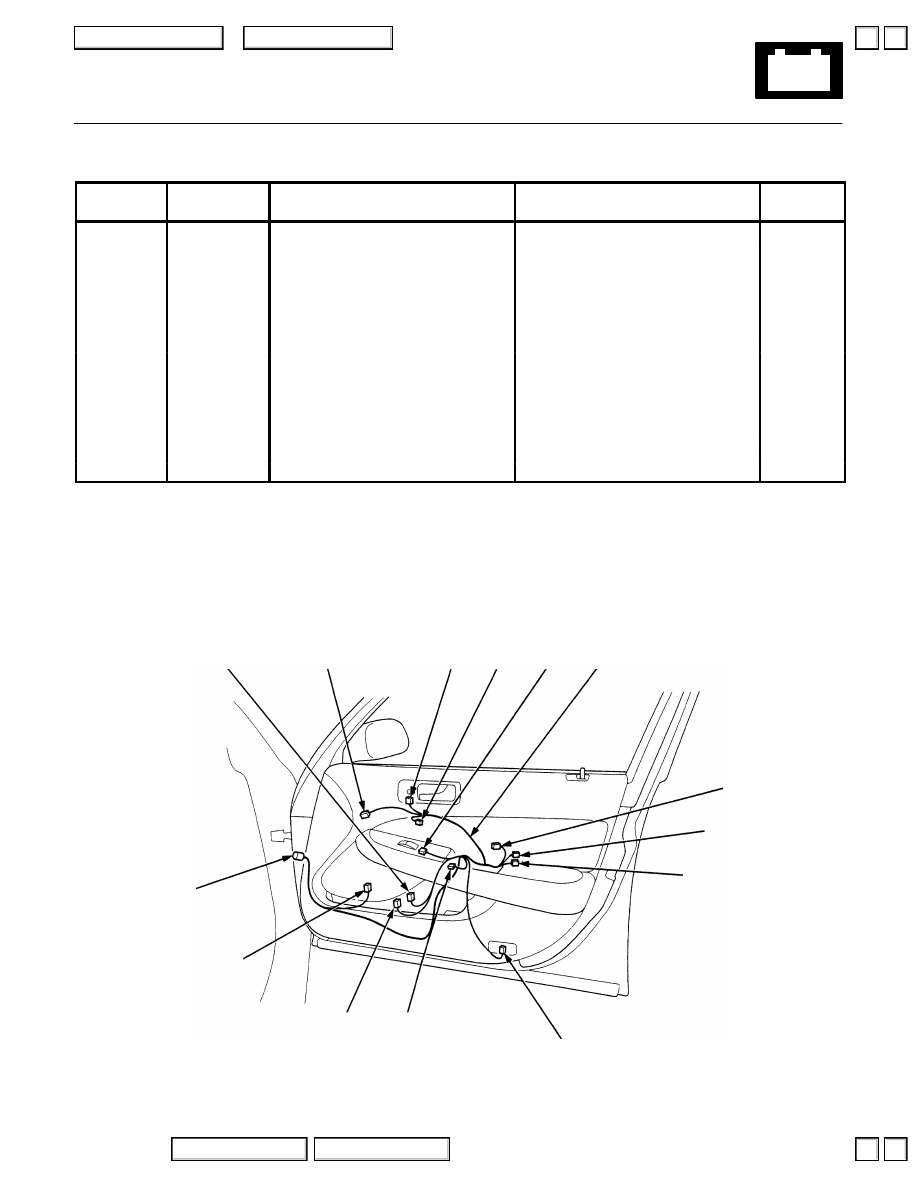

C754 C744 C745 C758 C743
C753
C746
C747
DRIVER’S DOOR
WIRE HARNESS
C748
C412
C751
C742
C757
C756
C755
C749
C750
C752
C759
▲
▼
▲
▼
