Fig. 29: Identifying Self-Locking Nuts, Joint Pin, Hex Wrench And Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Place a floor jack at the connecting point of lower arm B and the stabilizer link, and raise the suspension.

5. Install the stabilizer link (A) on the stabilizer bar (C) and lower arm B with the joint pins set at the center

of their range of the movement.

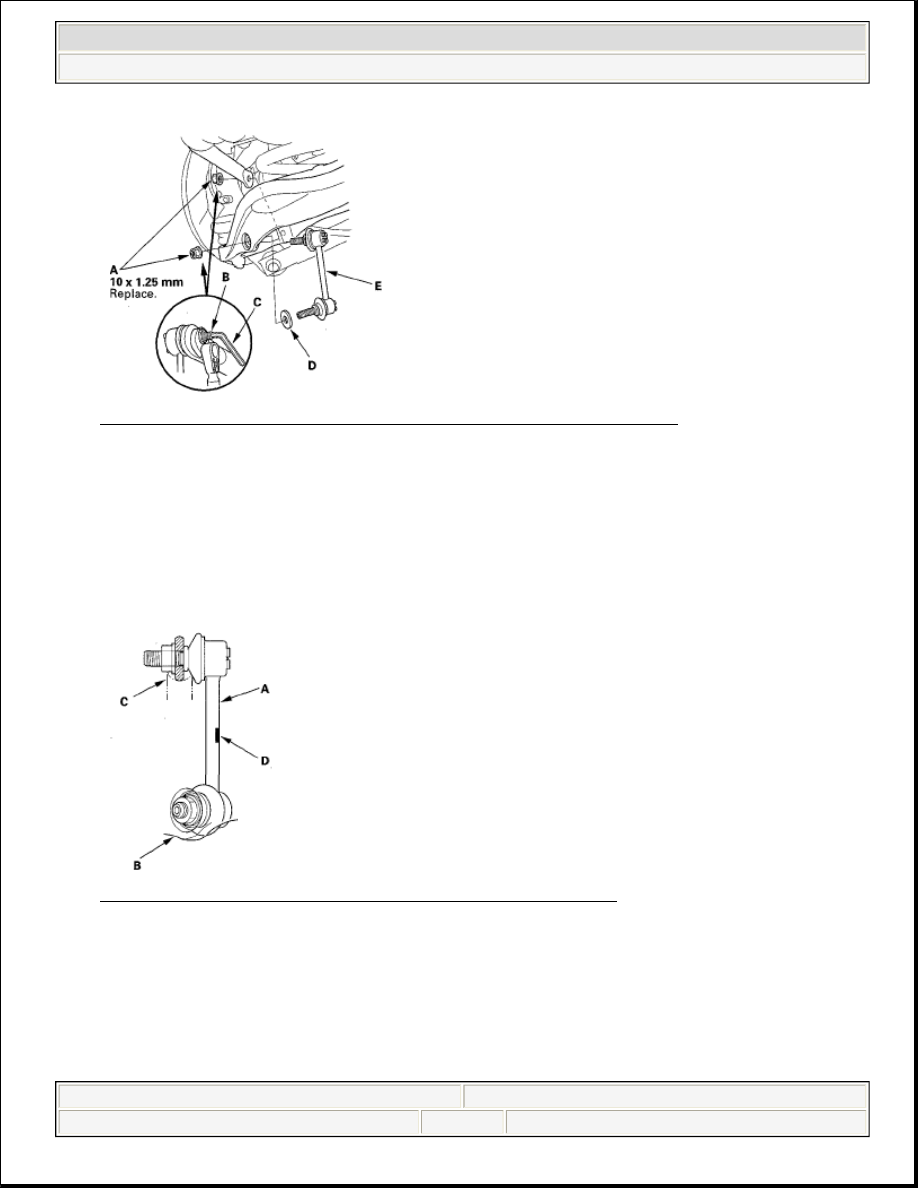

Fig. 30: Identifying Stabilizer Link, Stabilizer Bar And Lower Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the washer and new self-locking nuts (A), and lightly tighten them.

NOTE:

The left stabilizer link has a yellow paint mark (D), while the right stabilizer
link has a white paint mark.



2007 Acura RL

2005-08 SUSPENSION Rear Suspension - RL



me



Friday, June 05, 2009 1:21:25 PM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

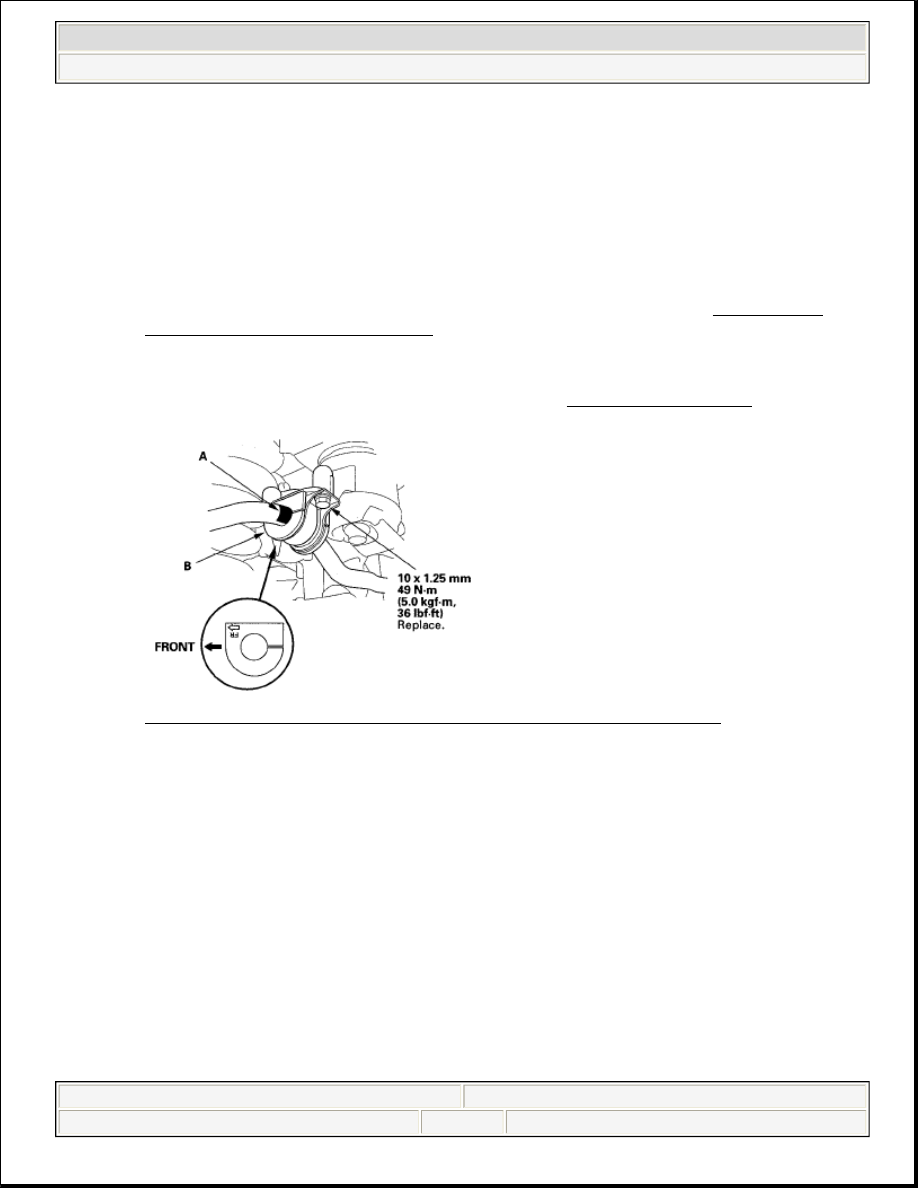

Fig. 31: Identifying Self-Locking Nuts, Joint Pin With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Tighten the self-locking nuts to the specified torque values while holding the respective joint pin (B) with

a hex wrench (C).

8. Clean the mating surface of the brake disc/drum and the inside of the wheel, then install the rear wheel.

9. Test-drive the vehicle.

10. After 5 minutes of driving, tighten the self-locking nuts again to the specified torque value.

STABILIZER BAR REPLACEMENT

1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see LIFT AND

SUPPORT POINTS ).

2. Remove the rear wheels.

3. Disconnect the stabilizer links from the stabilizer bar (A) on the right and left sides (see STABILIZER

LINK REMOVAL/INSTALLATION ).

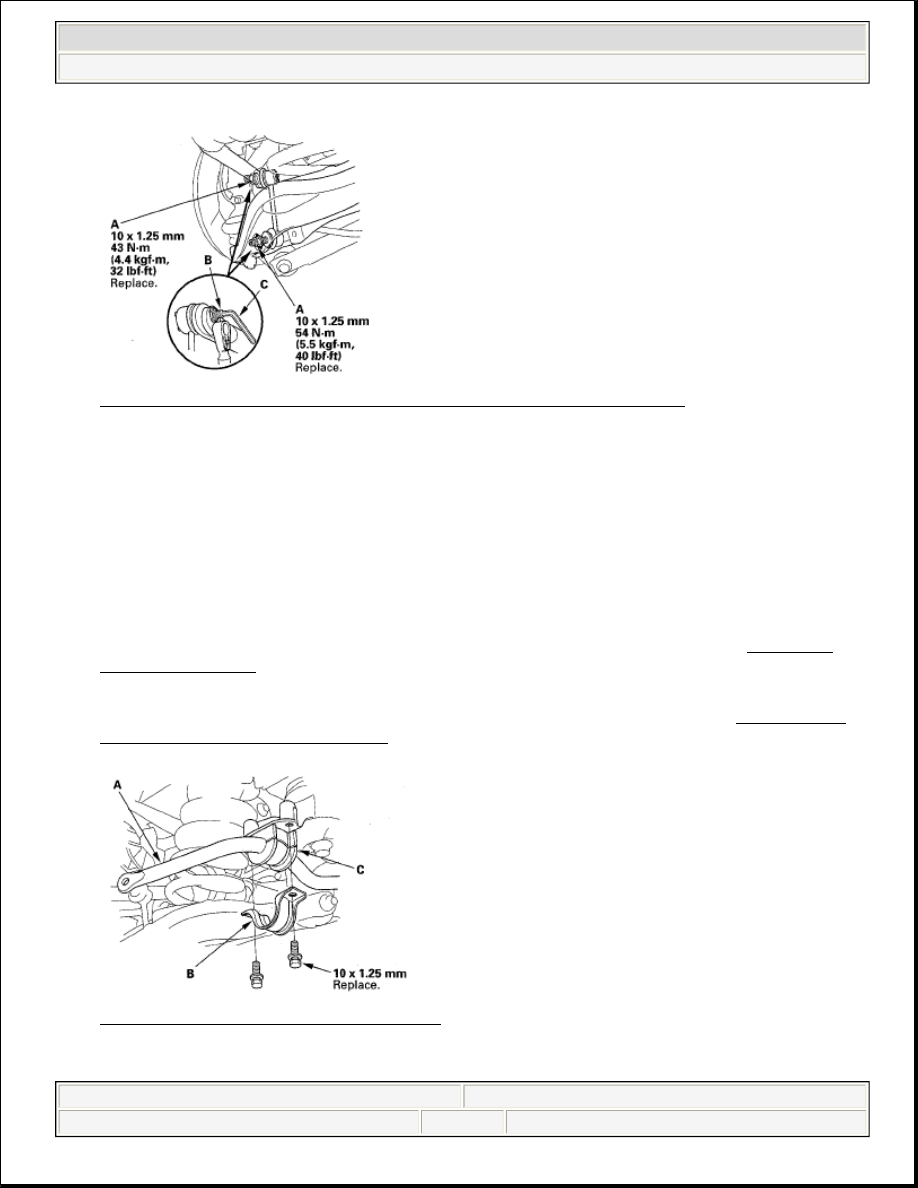

Fig. 32: Identifying Stabilizer Bar And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 SUSPENSION Rear Suspension - RL



me



Friday, June 05, 2009 1:21:25 PM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

4. Remove the flange bolts and bushing holders (B), then remove the bushing (C) and the stabilizer bar.

5. Install the stabilizer bar in the reverse order of removal, and note these items:



Note the right and left direction of the stabilizer bar.



Align the ends of the paint marks (A) on the stabilizer bar with each end of the bushings (B).



Refer to Stabilizer Link Replacement to connect the stabilizer to the links (see STABILIZER
LINK REMOVAL/INSTALLATION ).



Clean the mating surface of the brake disc/drum and the inside of the wheel, then install the rear
wheel.



Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).

Fig. 33: Identifying Paint Marks And Bushings With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DAMPER REPLACEMENT

EXPLODED VIEW

NOTE:

Use new flange bolts during reassembly.



2007 Acura RL

2005-08 SUSPENSION Rear Suspension - RL



me



Friday, June 05, 2009 1:21:25 PM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

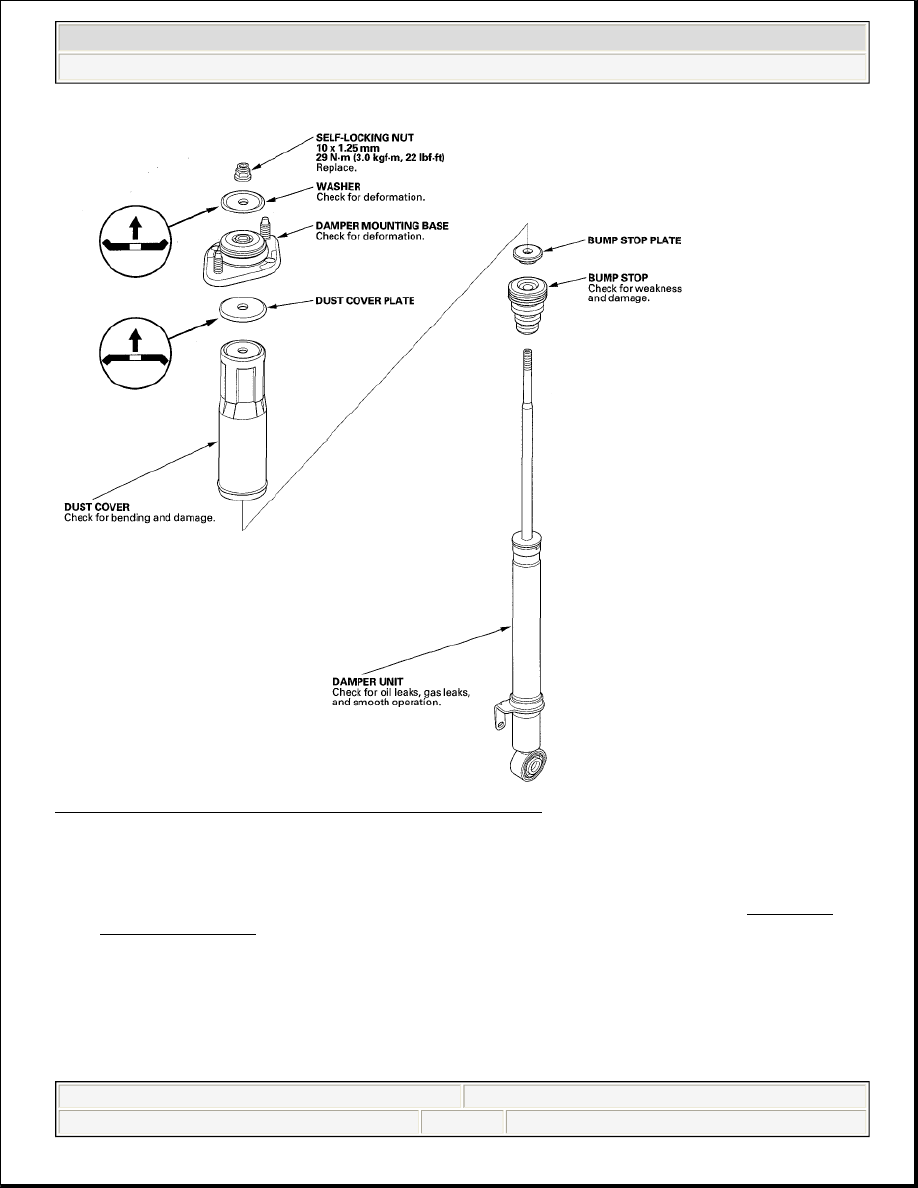

Fig. 34: Exploded View Of Damper With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REMOVAL

1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see LIFT AND

SUPPORT POINTS ).

2. Remove the rear wheel.

3. Place a floor jack at the connecting point of lower arm B and the stabilizer link to support them.

4. Disconnect the headlight leveling sensor linkage (A) from the damper.
