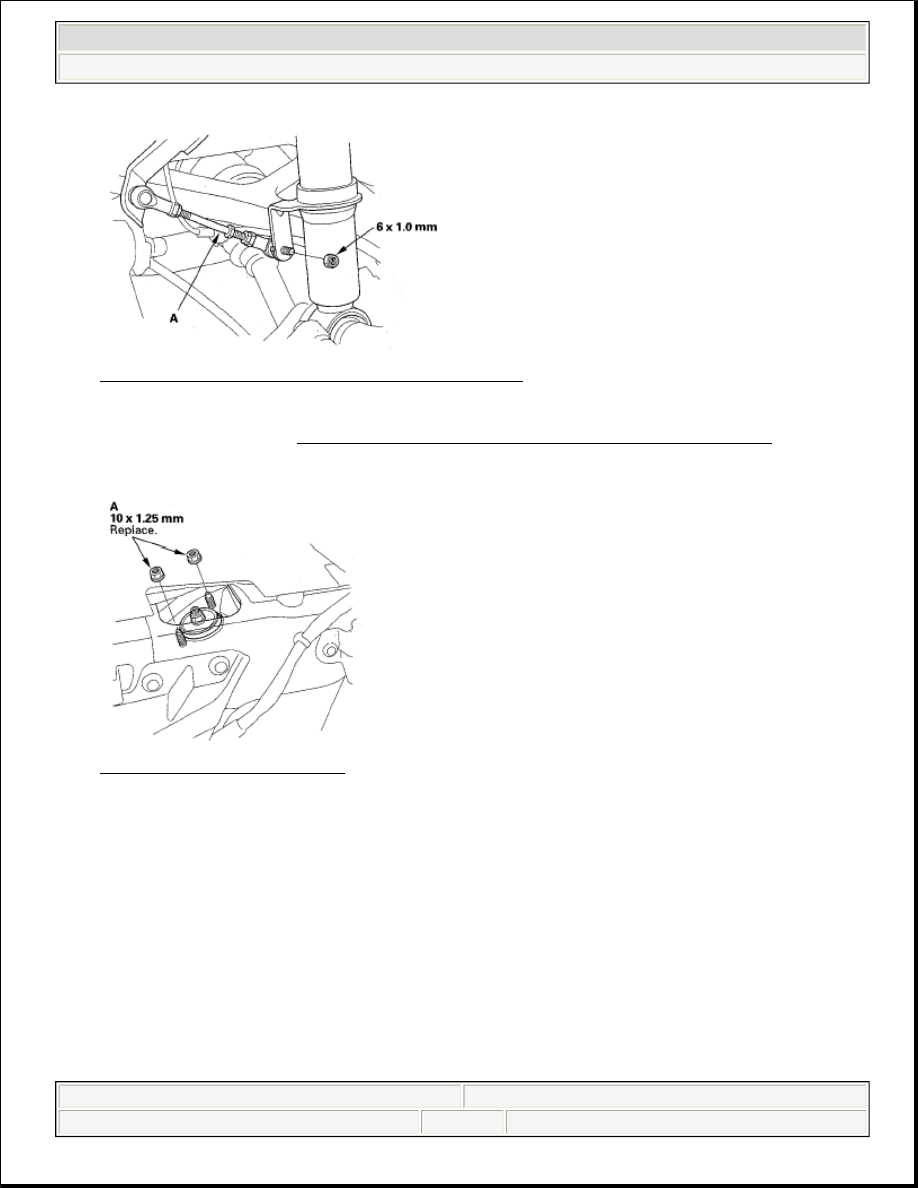

Fig. 35: Identifying Headlight Leveling Sensor Linkage
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the rear shelf (see TRIM REMOVAL/INSTALLATION - REAR SHELF AREA ).

6. Remove the two flange nuts (A).

Fig. 36: Identifying Flange Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the damper lower mounting bolt (A) from the knuckle.



2007 Acura RL

2005-08 SUSPENSION Rear Suspension - RL



me



Friday, June 05, 2009 1:21:25 PM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

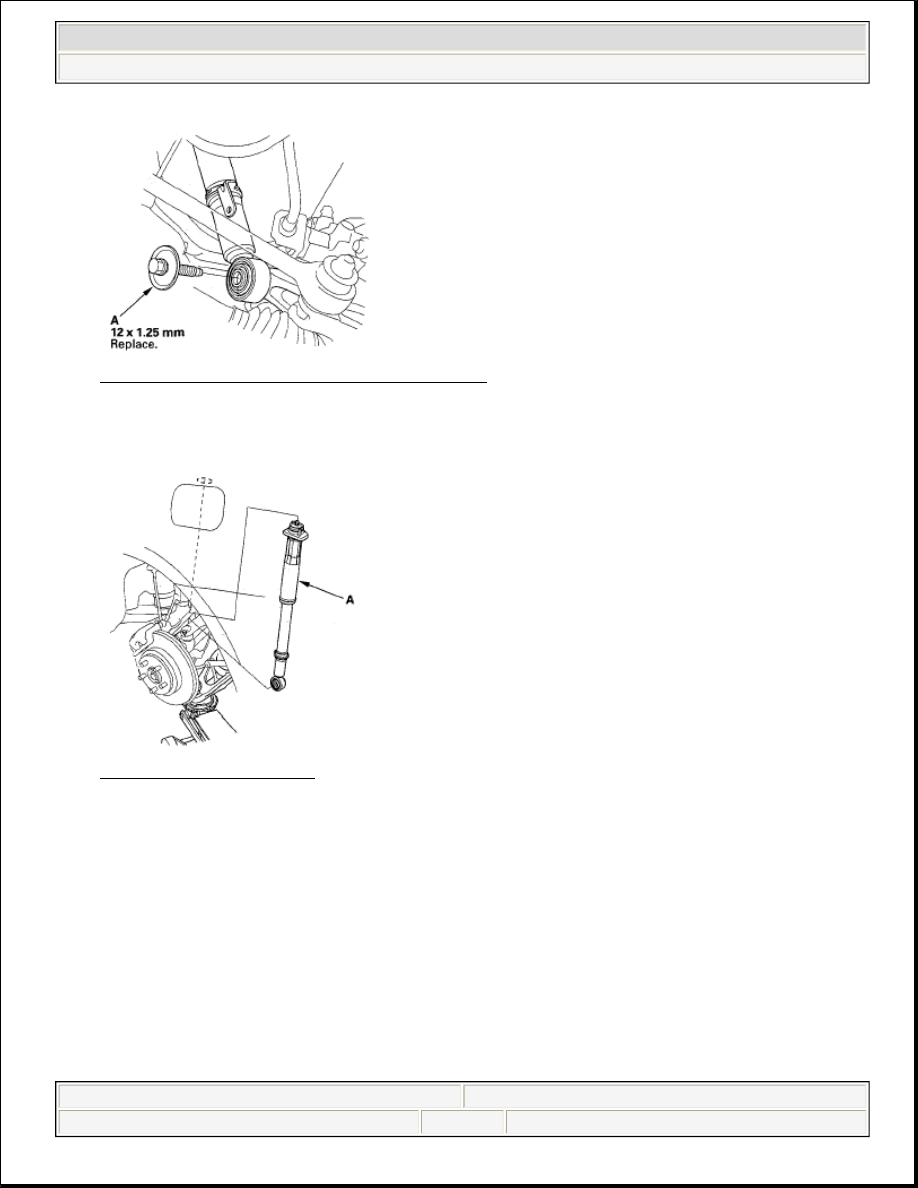

Fig. 37: Identifying Damper Lower Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Lower the rear suspension, then remove the damper (A) from the vehicle.

Fig. 38: Identifying Damper
Courtesy of AMERICAN HONDA MOTOR CO., INC.

INSPECTION

1. Disassemble the damper and check all the parts as shown in the Exploded View.

2. Install the damper mounting base, washer, and 10 mm nut to the damper unit.

3. Push on the damper by hand as shown.



2007 Acura RL

2005-08 SUSPENSION Rear Suspension - RL



me



Friday, June 05, 2009 1:21:25 PM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

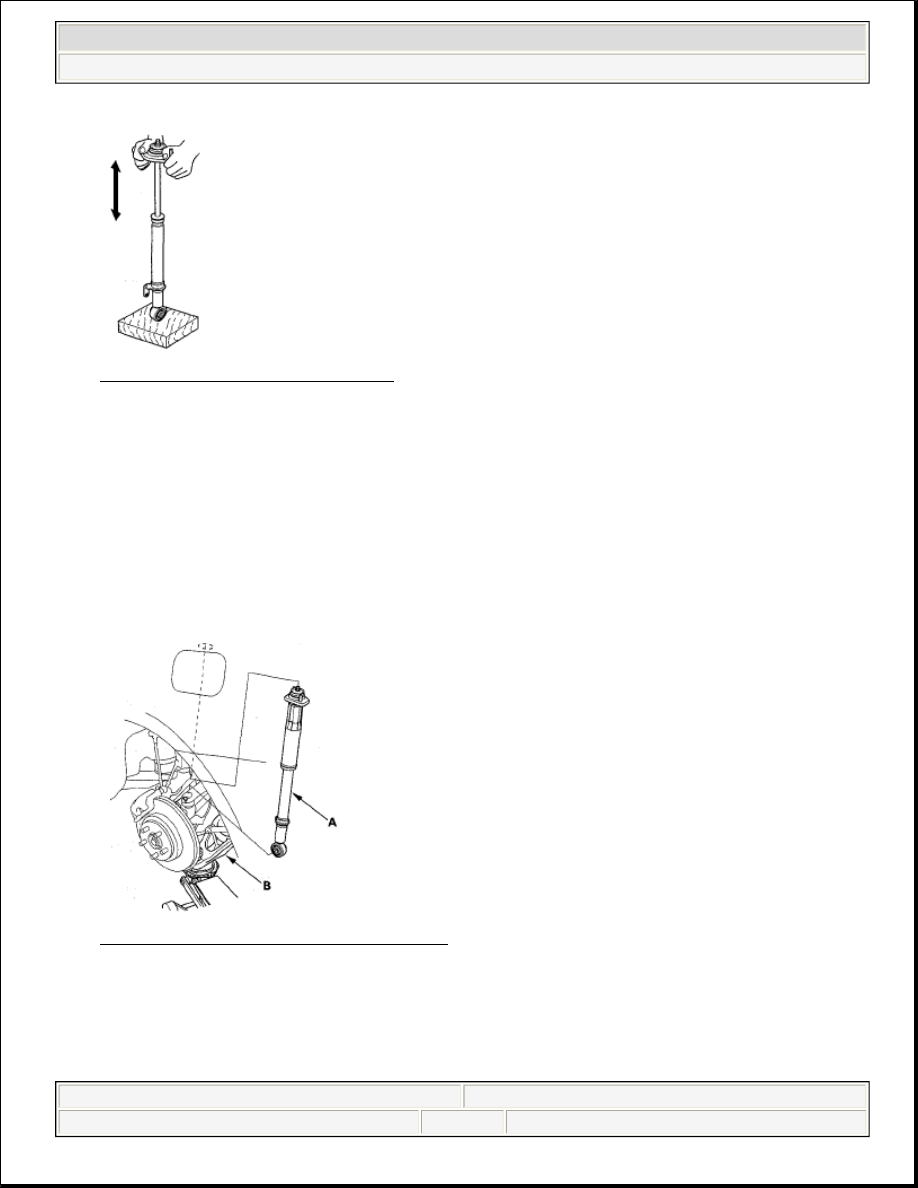

Fig. 39: Pushing On Damper By Hand
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Compress the damper assembly by hand, and check for smooth operation through a full stroke, both

compression and extension. The damper should extend in a smooth, continuous motion when the
compression is released. If it does not (no compression or no extension), the gas is leaking, and the
damper should be replaced.

5. Check for oil leaks, abnormal noises, or binding during these tests.

INSTALLATION

1. Place a floor jack at the connecting point of lower arm B and the stabilizer link.

Fig. 40: Identifying Damper And Lower Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Compress the damper (A) by hand, and move it into position.

3. Loosely tighten the new damper lower mounting bolt (A).



2007 Acura RL

2005-08 SUSPENSION Rear Suspension - RL



me



Friday, June 05, 2009 1:21:25 PM

Page 24

© 2005 Mitchell Repair Information Company, LLC.

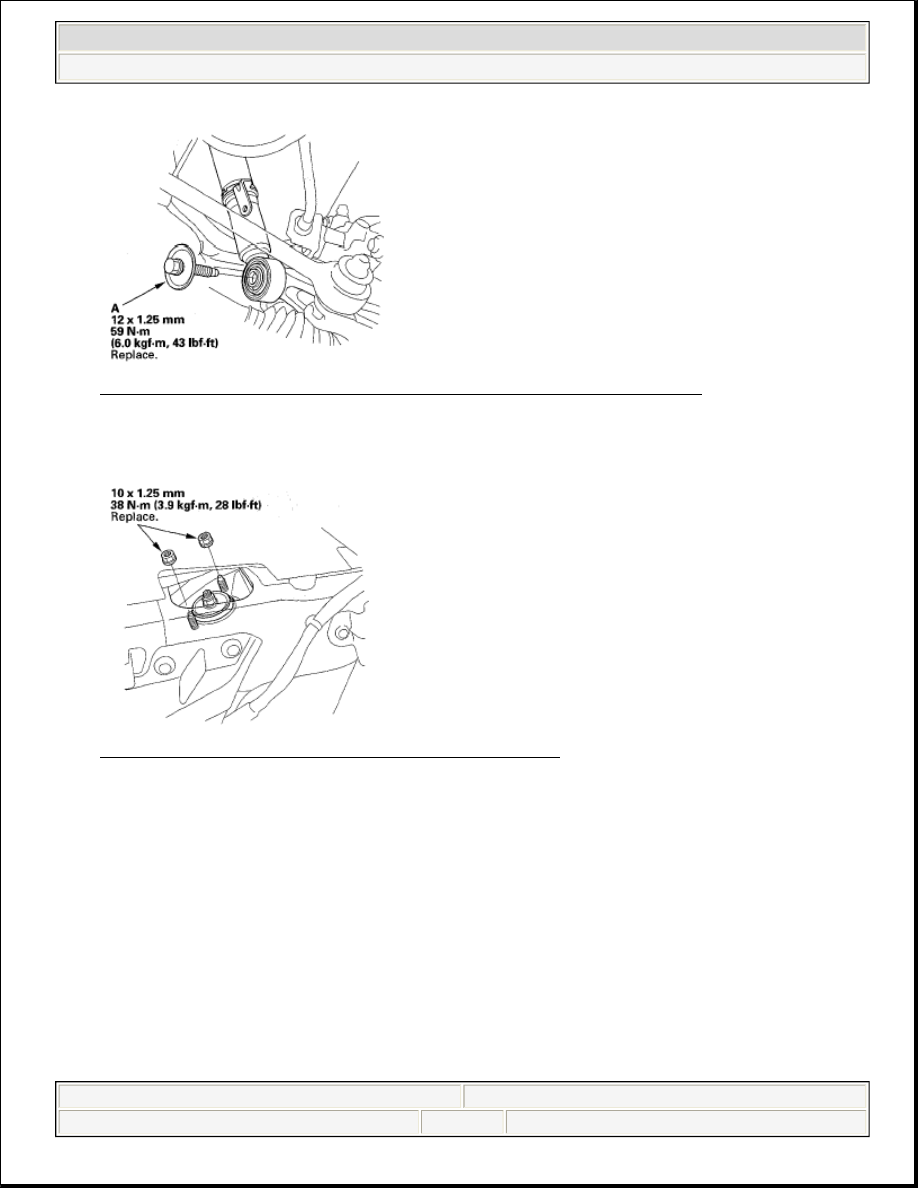

Fig. 41: Identifying Damper Lower Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Loosely install the new flange nuts.

Fig. 42: Identifying Flange Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Raise the rear suspension with a floor jack to load it with the vehicle's weight.

6. Tighten the flange nuts and the damper lower mounting bolt to the specified torque value.

7. Connect the headlight leveling sensor linkage (A) to the damper with the self-locking nut (B).
