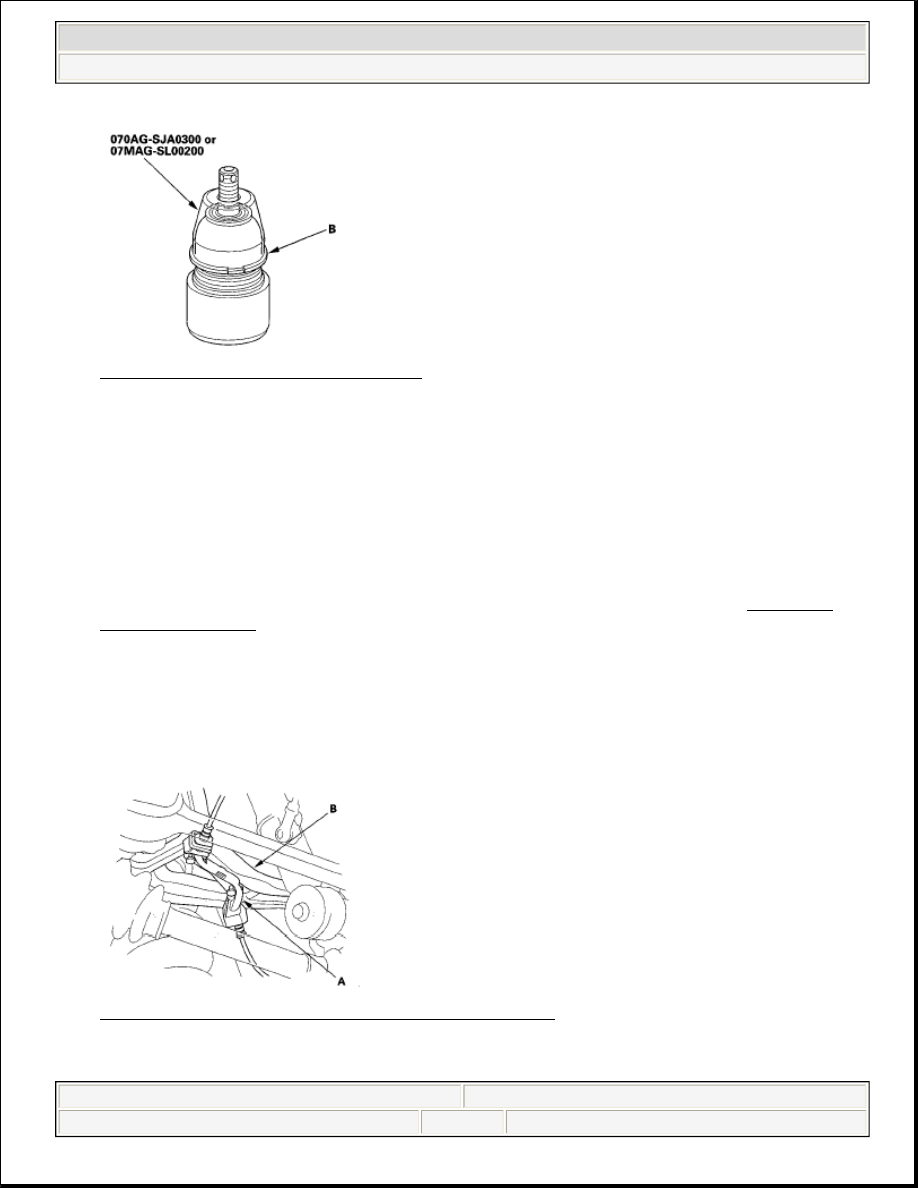

Fig. 17: Identifying Special Tool And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. After installing a boot, wipe any grease off the exposed portion of the ball joint pin.

UPPER ARM REPLACEMENT

Special Tools Required

Ball joint remover, 32 mm 07MAC-SL0A102

1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see LIFT AND

SUPPORT POINTS ).

2. Remove the rear wheels.

3. Place a floor jack under the trailing arm, and support the suspension.

4. Remove the wheel sensor bracket (A) from the upper arm (B).

Fig. 18: Identifying Wheel Sensor Bracket And Upper Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the lock pin (A) from the upper arm ball joint, and loosen the castle nut (B).

NOTE:

Use a new wheel sensor bracket on reassembly.



2007 Acura RL

2005-08 SUSPENSION Rear Suspension - RL



me



Friday, June 05, 2009 1:21:25 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

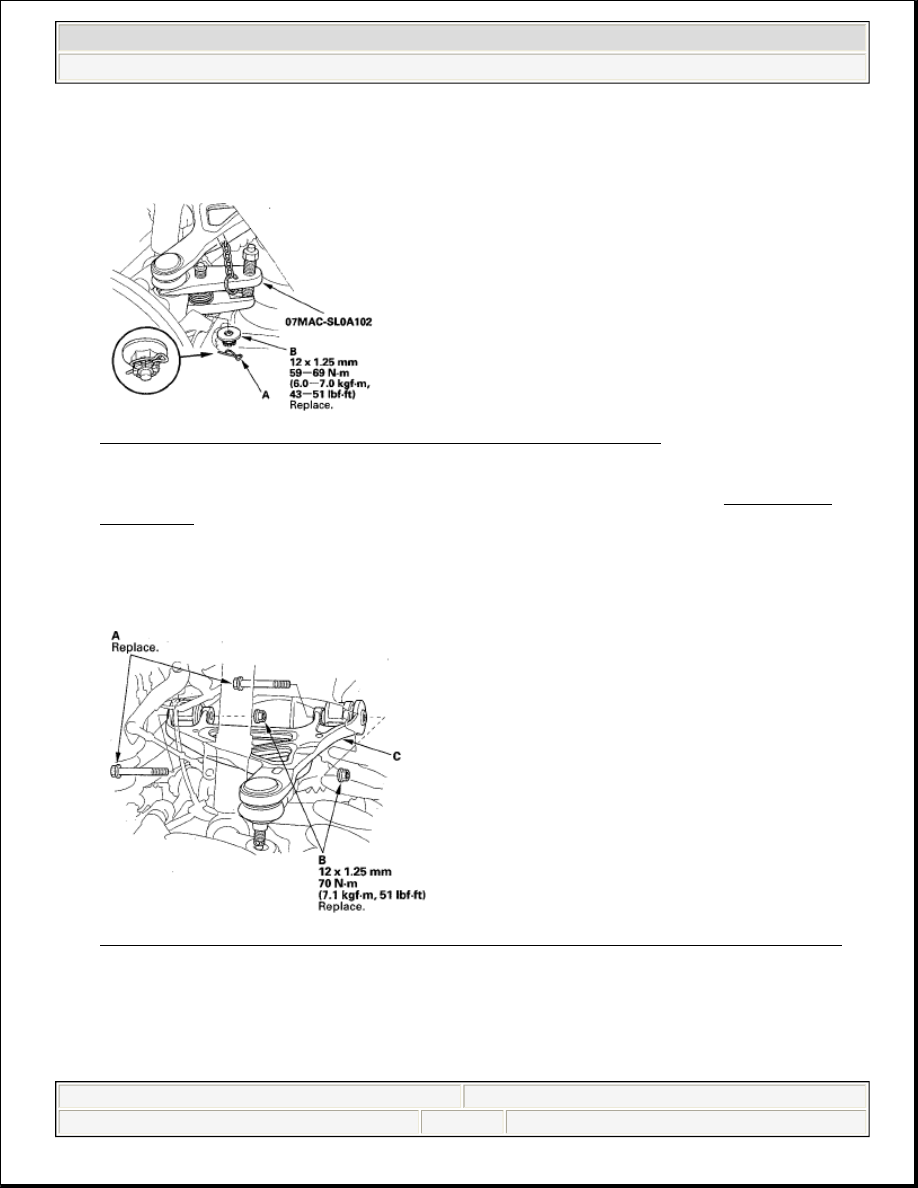

Fig. 19: Identifying Lock Pin And Castle Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Disconnect the upper arm ball joint from the knuckle using the ball joint remover (see BALL JOINT

REMOVAL ).

7. Remove the flange bolts (A) and self-locking nuts (B), and remove the upper arm (C).

Fig. 20: Identifying Flange Bolts, Self-Locking Nuts And Upper Arm With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the upper arm in the reverse order of removal, and note these items:



First install all the suspension components and lightly tighten the bolts and nuts, then raise the
suspension to load it with the vehicle's weight before fully tightening the bolts and nuts to the
specified torque values.

NOTE:

During installation, insert the lock pin as shown after tightening the new
castle nut.

NOTE:

Use new flange bolts and new self-locking nuts during reassembly.



2007 Acura RL

2005-08 SUSPENSION Rear Suspension - RL



me



Friday, June 05, 2009 1:21:25 PM

Page 11

© 2005 Mitchell Repair Information Company, LLC.



Be careful not to damage the ball joint boot when installing the knuckle.



Before connecting the ball joint to the knuckle, degrease the threaded section and tapered portion of
the ball joint pin, the connecting hole, and the threaded section and mating surface of the castle nut.



Torque the castle nut to the lower torque specification, then tighten it only far enough to align the
slot with the ball joint pin hole. Do not align the castle nut by loosening it.



Before installing the wheel, clean the mating surfaces of the brake disc/drum and the inside of the
wheel.



Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).

LOWER ARM A REPLACEMENT

1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see LIFT AND

SUPPORT POINTS ).

2. Remove the rear wheel.

3. Remove the lower arm A mounting nut (B), washers (C) and mounting bolt (D) from the knuckle side.

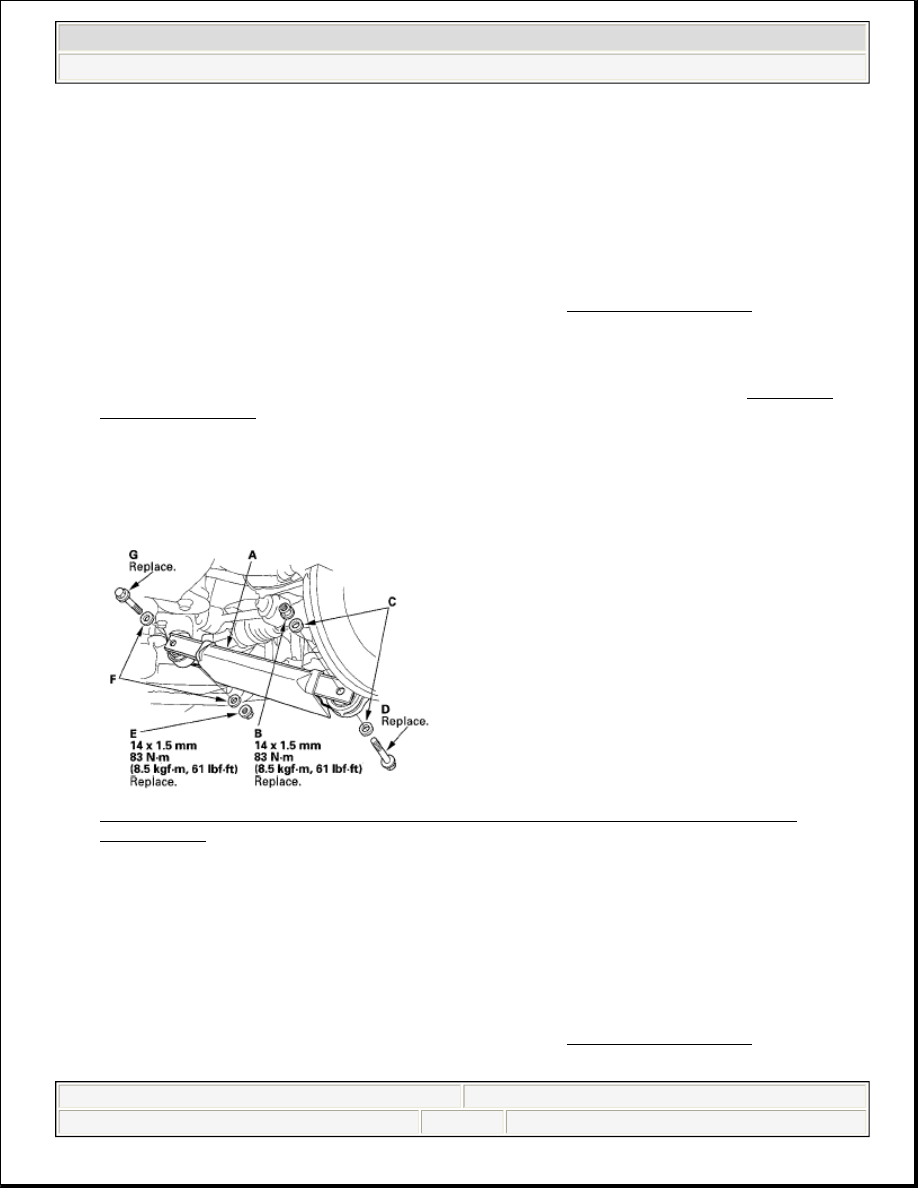

Fig. 21: Identifying Lower Arm, Mounting Nut, Washers And Mounting Bolt With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the self-locking nut (E), washers (F), and the flange bolt (G), then remove the lower arm A.

5. Install the lower arm A in the reverse order of removal, and note these items:



First, install the components and lightly tighten the bolts and nuts, then raise the suspension to load
it with the vehicle's weight before fully tightening to the specified torque values.



Before installing the wheel, clean the mating surfaces on the brake disc/drum and inside of the
wheel.



Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).

NOTE:

Use a new lower arm A mounting nuts and bolts during reassembly.



2007 Acura RL

2005-08 SUSPENSION Rear Suspension - RL



me



Friday, June 05, 2009 1:21:25 PM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

CONTROL ARM REPLACEMENT

1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see LIFT AND

SUPPORT POINTS ).

2. Remove the rear wheel.

3. Remove the control arm mounting nut (A) and washer (B) from the knuckle side.

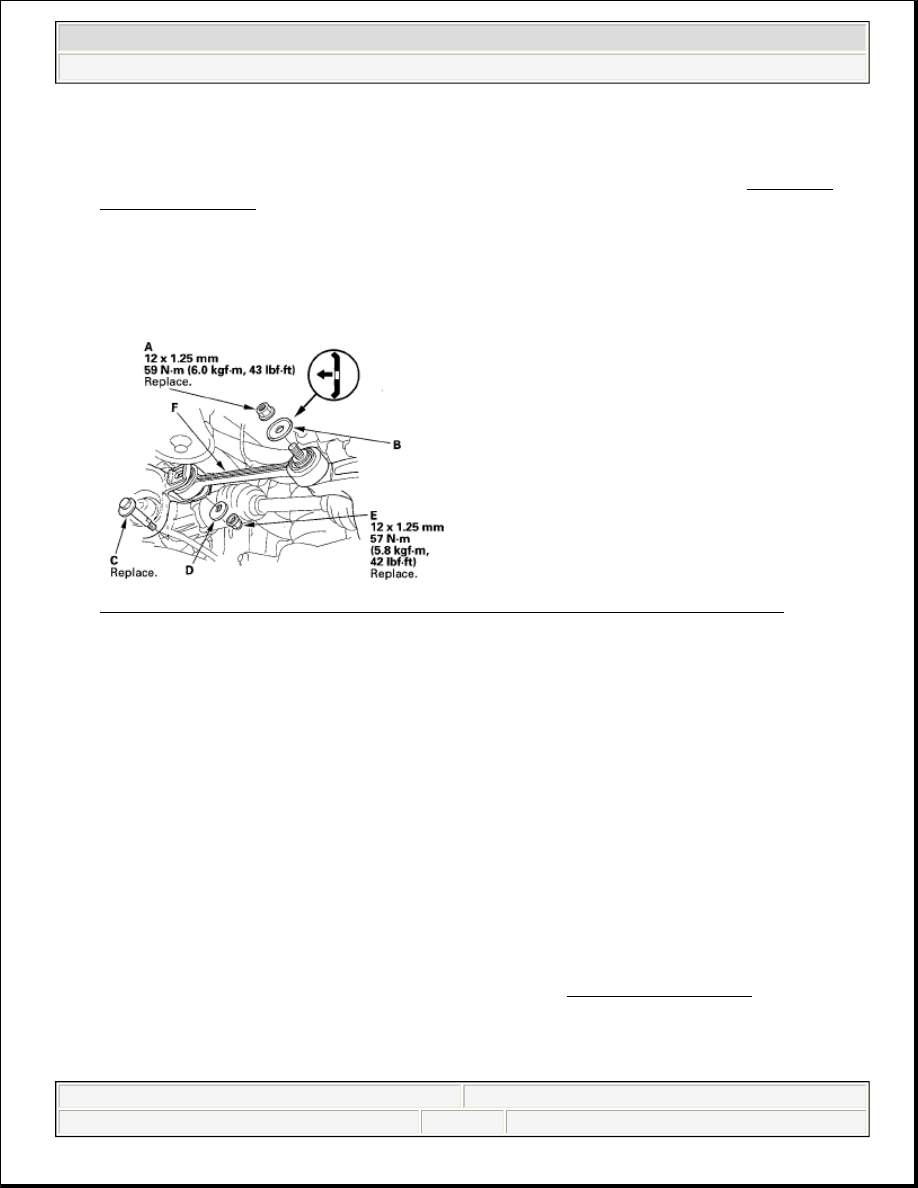

Fig. 22: Identifying Control Arm Mounting Nut And Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Mark the cam positions of the adjusting bolt (C) and adjusting cam (D), then remove the self-locking nut

(E), and adjusting cam, and adjusting bolt.

5. Remove the control arm (F).

6. Install the control arm in the reverse order of removal, and note these items:



First, install the components and lightly tighten the bolts and nuts, then raise the suspension to load
it with the vehicle's weight before fully tightening to the specified torque values.



Align the cam positions of the adjusting bolt and adjusting cam with the marked positions when
tightening.



Tighten all mounting hardware to the specified torque values.



Before installing the wheel, clean the mating surfaces on the brake disc/drum and inside of the
wheel.



Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).

LOWER ARM B REMOVAL AND INSTALLATION

NOTE:

Use a new control arm mounting nut during reassembly.

NOTE:

Use a new self-locking nut and a new adjusting bolt during reassembly.
